2015 fall Chapter 17 Methodology Logical Database Design

國立臺北科技大學 課程：資料庫系統 2015 fall Chapter 17 Methodology Logical Database Design for the Relational Model

Step 2 Build and Validate Logical Data Model • To translate the conceptual data model into a logical data model and then to validate this model to check that it is structurally correct using normalization and supports the required transactions. 2

Step 2 Build and Validate Logical Data Model • Step 2. 1 Derive relations for logical data model – To create relations for the logical data model to represent the entities, relationships, and attributes that have been identified. 3

Conceptual data model for Staff view showing all attributes 4

Step 2. 1 Derive relations for logical data model • (1) Strong entity types – For each strong entity in the data model, create a relation that includes all the simple attributes of that entity. For composite attributes, include only the constituent simple attributes. (2) Weak entity types – For each weak entity in the data model, create a relation that includes all the simple attributes of that entity. The primary key of a weak entity is partially or fully derived from each owner entity and so the identification of the primary key of a weak entity cannot be made until after all the relationships with the owner entities have been mapped. 5

Step 2. 1 Derive relations for logical data model • (3) One-to-many (1: *) binary relationship types – For each 1: * binary relationship, the entity on the ‘one side’ of the relationship is designated as the parent entity and the entity on the ‘many side’ is designated as the child entity. To represent this relationship, post a copy of the primary key attribute(s) of parent entity into the relation representing the child entity, to act as a foreign key. 6

Step 2. 1 Derive relations for logical data model • (4) One-to-one (1: 1) binary relationship types – Creating relations to represent a 1: 1 relationship is more complex as the cardinality cannot be used to identify the parent and child entities in a relationship. Instead, the participation constraints are used to decide whether it is best to represent the relationship by combining the entities involved into one relation or by creating two relations and posting a copy of the primary key from one relation to the other. – Consider the following • (a) mandatory participation on both sides of 1: 1 relationship; • (b) mandatory participation on one side of 1: 1 relationship; • (c) optional participation on both sides of 1: 1 relationship. 7

Step 2. 1 Derive relations for logical data model • (a) Mandatory participation on both sides of 1: 1 relationship – Combine entities involved into one relation and choose one of the primary keys of original entities to be primary key of the new relation, while the other (if one exists) is used as an alternate key. • (b) Mandatory participation on one side of a 1: 1 relationship – Identify parent and child entities using participation constraints. Entity with optional participation in relationship is designated as parent entity, and entity with mandatory participation is designated as child entity. A copy of primary key of the parent entity is placed in the relation representing the child entity. If the relationship has one or more attributes, these attributes should follow the posting of the primary key to the child relation. 8

Step 2. 1 Derive relations for logical data model • (c) Optional participation on both sides of a 1: 1 relationship • In this case, the designation of the parent and child entities is arbitrary unless we can find out more about the relationship that can help a decision to be made one way or the other. 9

Step 2. 1 Derive relations for logical data model • (5) One-to-one (1: 1) recursive relationships – For a 1: 1 recursive relationship, follow the rules for participation as described above for a 1: 1 relationship. • mandatory participation on both sides, represent the recursive relationship as a single relation with two copies of the primary key. • mandatory participation on only one side, option to create a single relation with two copies of the primary key, or to create a new relation to represent the relationship. The new relation would only have two attributes, both copies of the primary key. As before, the copies of the primary keys act as foreign keys and have to be renamed to indicate the purpose of each in the relation. • optional participation on both sides, again create a new relation as described above. 10

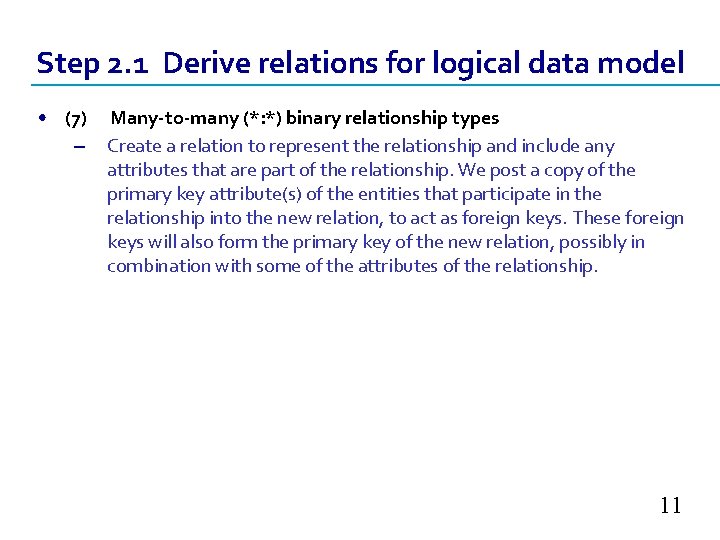

Step 2. 1 Derive relations for logical data model • (7) Many-to-many (*: *) binary relationship types – Create a relation to represent the relationship and include any attributes that are part of the relationship. We post a copy of the primary key attribute(s) of the entities that participate in the relationship into the new relation, to act as foreign keys. These foreign keys will also form the primary key of the new relation, possibly in combination with some of the attributes of the relationship. 11

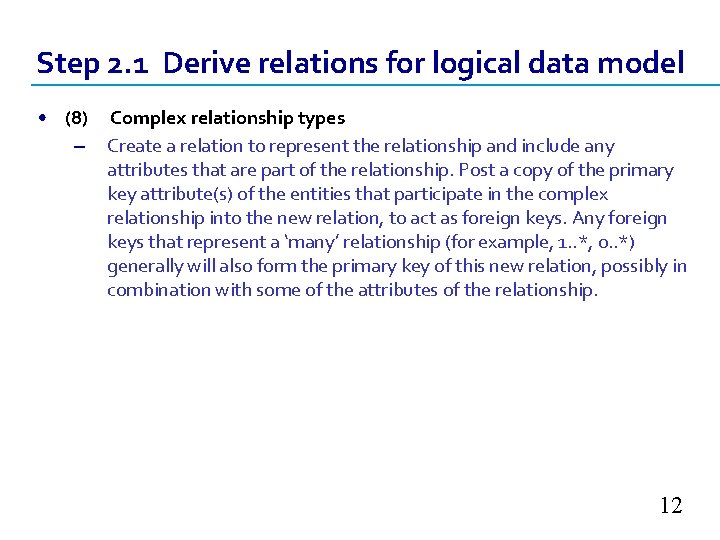

Step 2. 1 Derive relations for logical data model • (8) Complex relationship types – Create a relation to represent the relationship and include any attributes that are part of the relationship. Post a copy of the primary key attribute(s) of the entities that participate in the complex relationship into the new relation, to act as foreign keys. Any foreign keys that represent a ‘many’ relationship (for example, 1. . *, 0. . *) generally will also form the primary key of this new relation, possibly in combination with some of the attributes of the relationship. 12

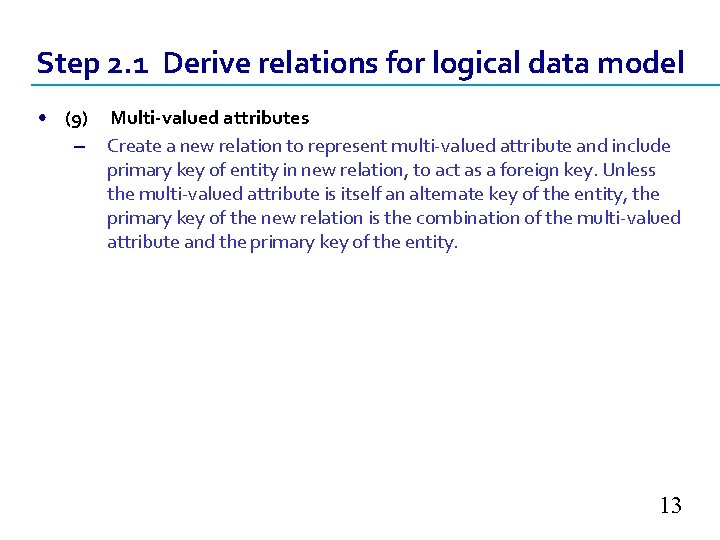

Step 2. 1 Derive relations for logical data model • (9) Multi-valued attributes – Create a new relation to represent multi-valued attribute and include primary key of entity in new relation, to act as a foreign key. Unless the multi-valued attribute is itself an alternate key of the entity, the primary key of the new relation is the combination of the multi-valued attribute and the primary key of the entity. 13

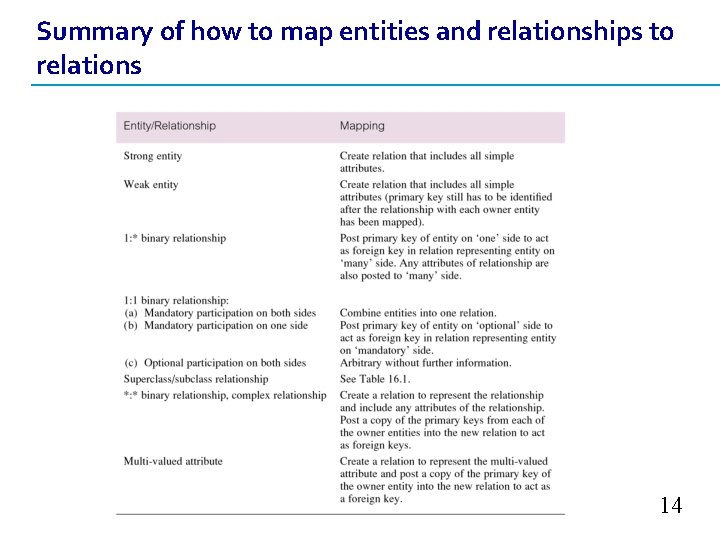

Summary of how to map entities and relationships to relations 14

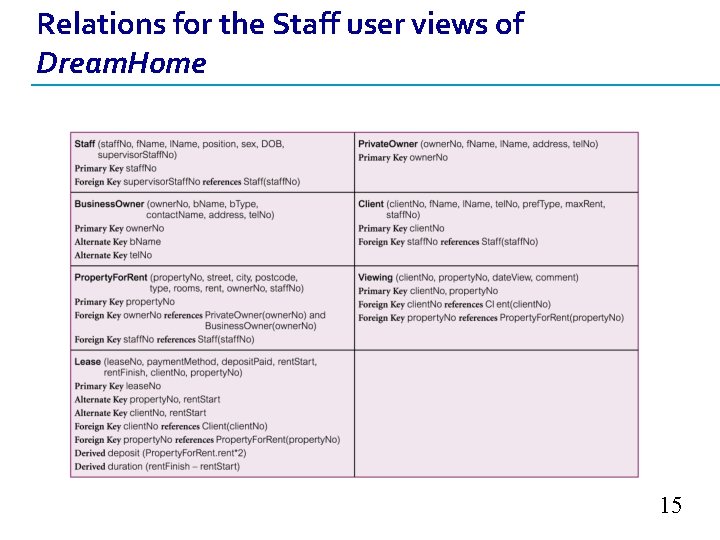

Relations for the Staff user views of Dream. Home 15

Step 2. 2 Validate relations using normalization • To validate the relations in the logical data model using normalization. 16

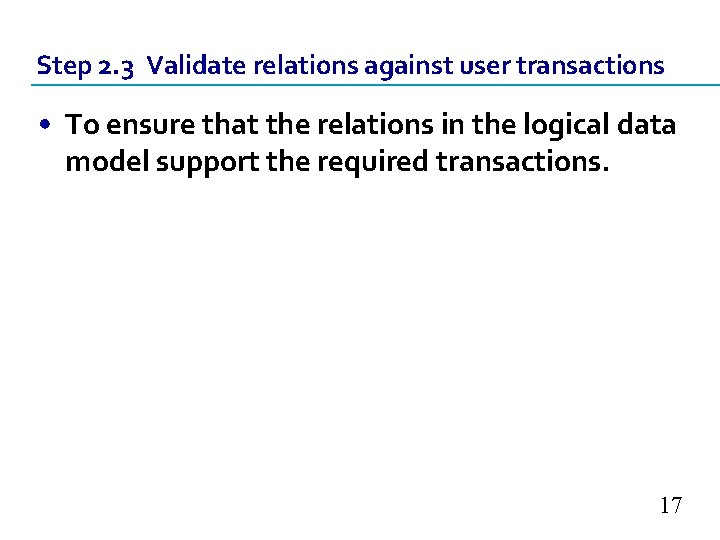

Step 2. 3 Validate relations against user transactions • To ensure that the relations in the logical data model support the required transactions. 17

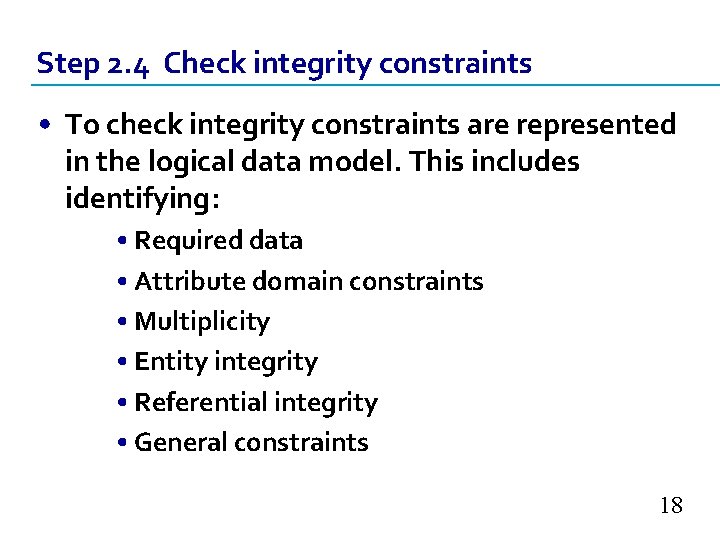

Step 2. 4 Check integrity constraints • To check integrity constraints are represented in the logical data model. This includes identifying: • Required data • Attribute domain constraints • Multiplicity • Entity integrity • Referential integrity • General constraints 18

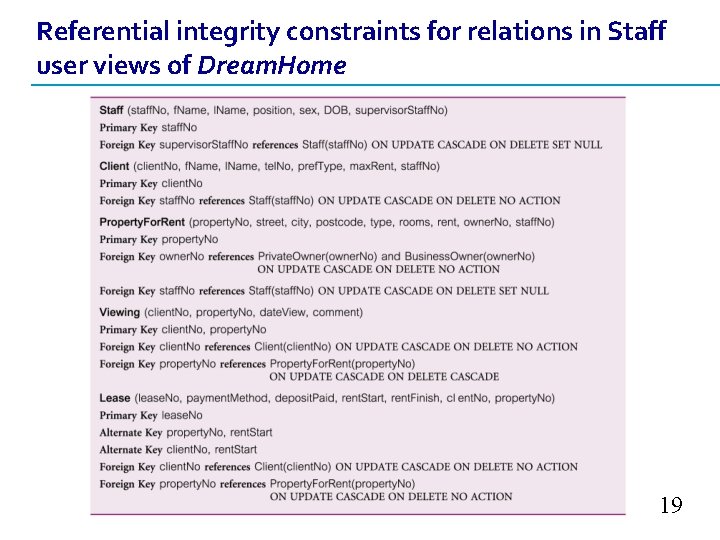

Referential integrity constraints for relations in Staff user views of Dream. Home 19

Step 2. 5 Review logical data model with user • To review the logical data model with the users to ensure that they consider the model to be a true representation of the data requirements of the enterprise. 20

Step 2. 6 Merge logical data models into global Model (optional step) • To merge logical data models into a single global logical data model that represents all user views of a database. 21

Step 2. 6. 1 Merge local logical data models into global model • To merge local logical data model into a single global logical data model. • This activities in this step include: – Step 2. 6. 1 Merge local logical data models into global model – Step 2. 6. 2 Validate global logical data model – Step 2. 6. 3 Review global logical data model with users. 22

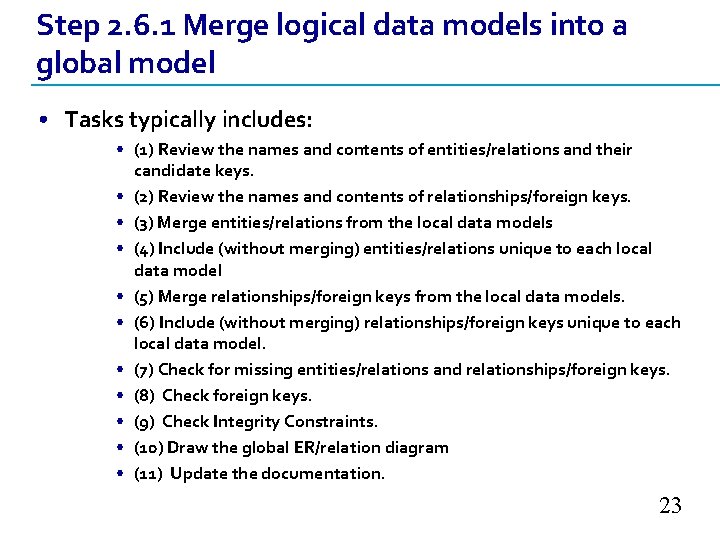

Step 2. 6. 1 Merge logical data models into a global model • Tasks typically includes: • (1) Review the names and contents of entities/relations and their candidate keys. • (2) Review the names and contents of relationships/foreign keys. • (3) Merge entities/relations from the local data models • (4) Include (without merging) entities/relations unique to each local data model • (5) Merge relationships/foreign keys from the local data models. • (6) Include (without merging) relationships/foreign keys unique to each local data model. • (7) Check for missing entities/relations and relationships/foreign keys. • (8) Check foreign keys. • (9) Check Integrity Constraints. • (10) Draw the global ER/relation diagram • (11) Update the documentation. 23

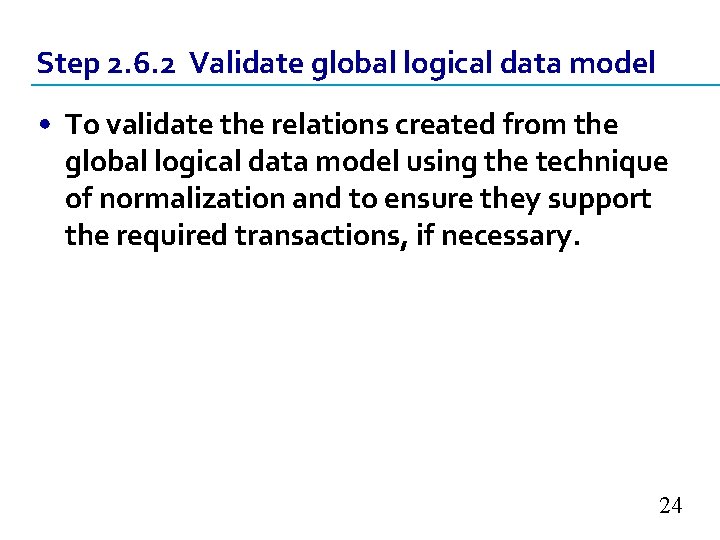

Step 2. 6. 2 Validate global logical data model • To validate the relations created from the global logical data model using the technique of normalization and to ensure they support the required transactions, if necessary. 24

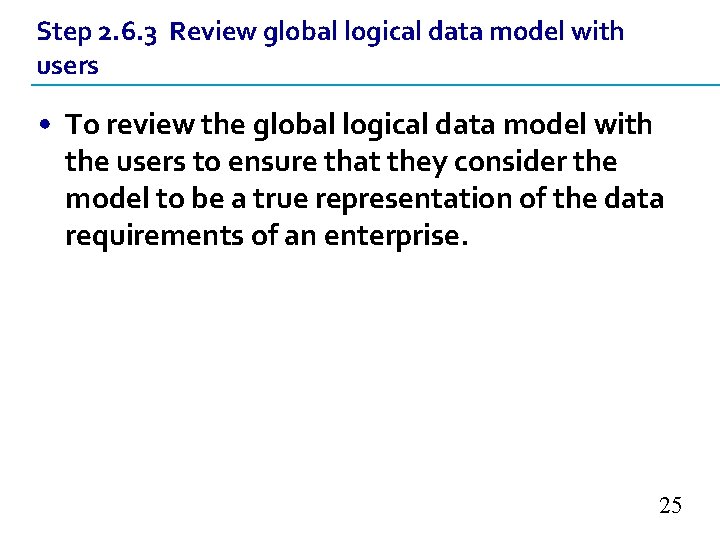

Step 2. 6. 3 Review global logical data model with users • To review the global logical data model with the users to ensure that they consider the model to be a true representation of the data requirements of an enterprise. 25

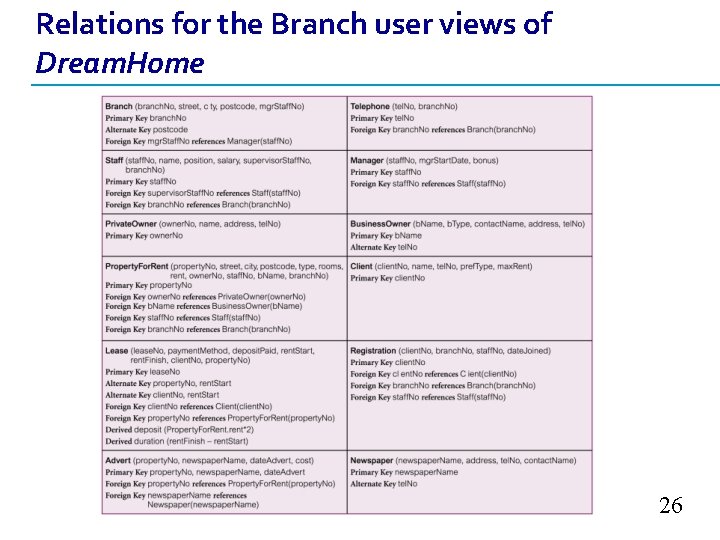

Relations for the Branch user views of Dream. Home 26

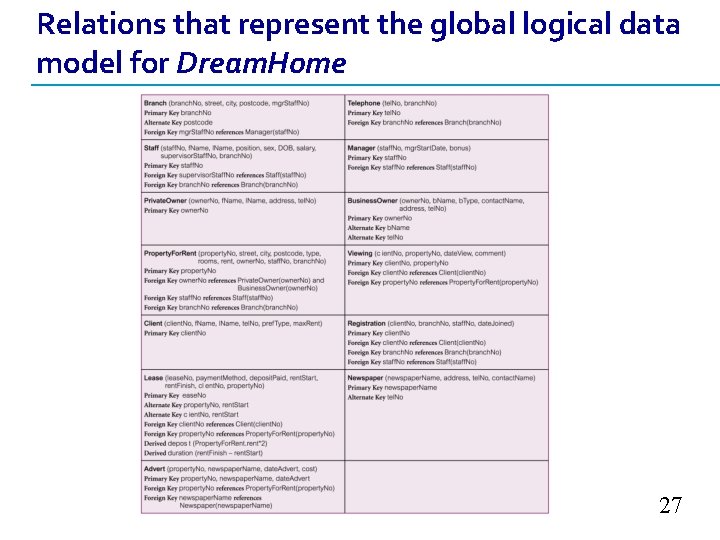

Relations that represent the global logical data model for Dream. Home 27

Global relation diagram for Dream. Home 28

Review of Chapter 17 29
