Mine Rescue Statement 2015 A • Welcome to the New View Mine. We have encountered a problem and your assistance is needed. An examiner was making our developing main west entries. He was traveling inby in the #1 entry when he encountered smoke. He withdrew and contacted management. We have evacuated the mine and all people are accounted for except for the three people working in the main west developing panel. The map is not up to date. There is a 6’ airshaft in the #3 entry. This shaft is under construction and cannot be used at the present time. The fan is a blowing system and is off at the present time. The fan may be started but once started it cannot be shut off. The fan cannot be reversed or stalled. All agencies have been notified and a back up mine rescue team is available. All workings out by A crosscut have been explored. Where safe to do so.
Mine Rescue Problem • 2015 A Skills Problem Make the mine in its entirety, where safe to do so. Account for all missing person, and bring all life persons to the Fresh air base. There will be a 60 minute time limit.

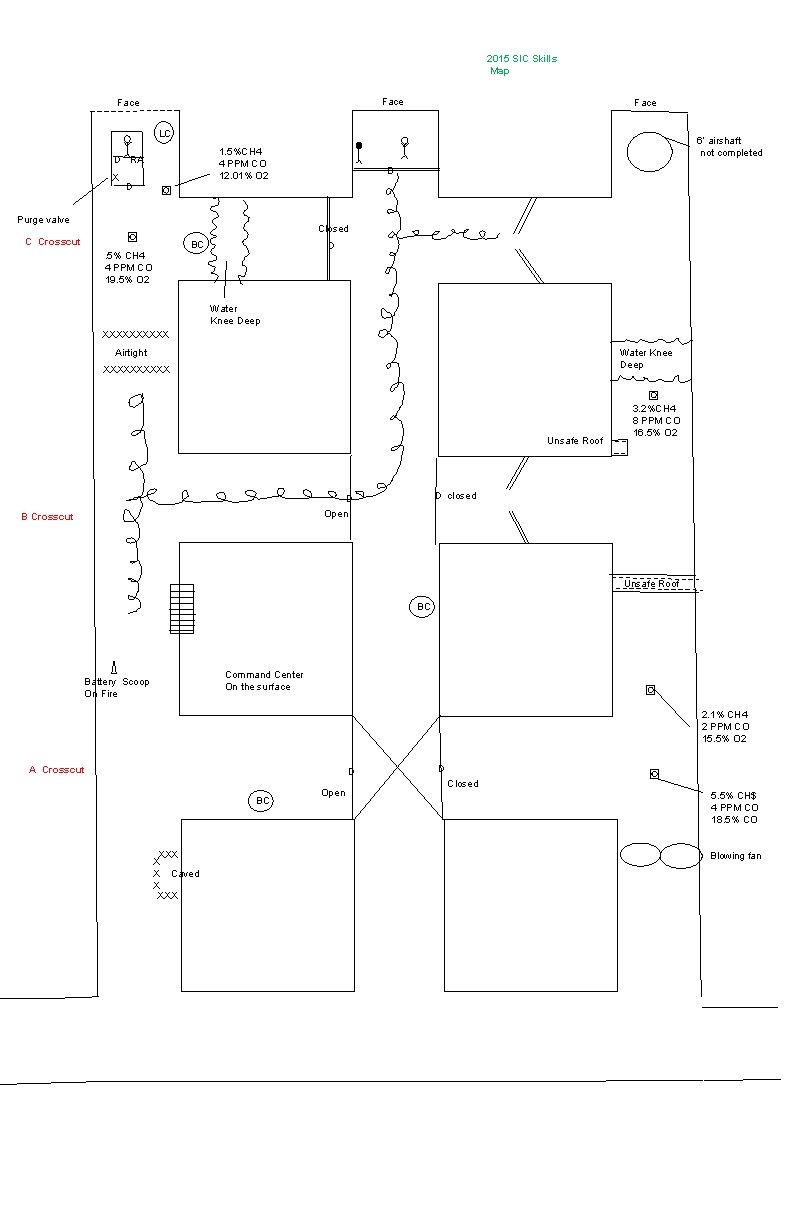

2015 SIC Skills Map Face LC D RA X 6’ airshaft not completed 1. 5%CH 4 4 PPM CO 12. 01% O 2 D Purge valve B Closed C Crosscut BC . 5% CH 4 4 PPM CO 19. 5% O 2 D Water Knee Deep XXXXX Airtight Water Knee Deep XXXXX Unsafe Roof D closed D Open B Crosscut 3. 2%CH 4 8 PPM CO 16. 5% O 2 Unsafe Roof BC Command Center On the surface Battery Scoop On Fire 2. 1% CH 4 2 PPM CO 15. 5% O 2 A Crosscut D BC XXX X X Caved X XXX Open D Closed 5. 5% CH$ 4 PPM CO 18. 5% CO Blowing fan
2015 SIC Skills A Handout map Map Face LC 6’ airshaft not completed D RA X B D Purge valve C Crosscut Closed D BC Water Knee Deep XXXXX Airtight Water Knee Deep XXXXX Unsafe Roof B Crosscut D closed D Open Unsafe Roof BC Command Center On the surface A Crosscut D BC XXX X X Caved X XXX Open D Closed Blowing fan
2015 SIC Skills Team Stops Map Face LC D RA X Purge valve 6’ airshaft not completed 1. 5%CH 4 4 PPM CO 12. 01% O 2 D 9 B Closed C Crosscut BC . 5% CH 4 4 PPM CO 19. 5% O 2 D 6 7 Water Knee Deep XXXXX Airtight Water Knee Deep XXXXX 3. 2%CH 4 8 PPM CO 16. 5% O 2 Unsafe Roof A Crosscut D closed D Open 4 8 3 Unsafe Roof BC Command Center On the surface Battery Scoop On Fire 2. 1% CH 4 2 PPM CO 15. 5% O 2 A Crosscut BC XXX X X Caved X XXX Open 5 D D 1 2 Closed 5. 5% CH$ 4 PPM CO 18. 5% CO Blowing fan There are several ways to explore this mine. This example is just one
2015 SIC Skills First Vent Map Face LC D RA X 6’ airshaft not completed 1. 5%CH 4 4 PPM CO 12. 01% O 2 D Purge valve B Closed C Crosscut BC . 5% CH 4 4 PPM CO 19. 5% O 2 D Water Knee Deep XXXXX Airtight Water Knee Deep XXXXX Unsafe Roof D closed D Open B Crosscut 3. 2%CH 4 8 PPM CO 16. 5% O 2 Unsafe Roof BC Command Center On the surface Battery Scoop On Fire 2. 1% CH 4 2 PPM CO 15. 5% O 2 A Crosscut D BC XXX X X Caved X XXX Open D Closed 5. 5% CH$ 4 PPM CO 18. 5% CO Blowing fan
2015 SIC Skills Second Vent Map Face LC D RA X 6’ airshaft not completed 1. 5%CH 4 4 PPM CO 12. 01% O 2 D B Purge valve C Crosscut D BC . 5% CH 4 4 PPM CO 19. 5% O 2 Closed Water Knee Deep XXXXX Airtight Water Knee Deep XXXXX Unsafe Roof A Crosscut 3. 2%CH 4 8 PPM CO 16. 5% O 2 D closed Unsafe Roof BC Command Center On the surface Battery Scoop On Fire 2. 1% CH 4 2 PPM CO 15. 5% O 2 A Crosscut D BC XXX X X Caved X XXX closed D Closed 5. 5% CH$ 4 PPM CO 18. 5% CO Blowing fan
2015 SIC A Skills Team Map Face 6’ airshaft not completed C Crosscut B Crosscut Command Center On the surface A Crosscut BC XXX X X Caved X XXX Blowing fan Team map
2015 SIC Skills A Briefing Officer Map Face 6’ airshaft not completed C Crosscut B Crosscut Command Center On the surface A Crosscut BC XXX X X Caved X XXX Blowing fan Briefing officer Command Center
2015 SIC Skills Judges Map Face 6’ airshaft not completed C Crosscut B Crosscut Command Center On the surface A Crosscut D BC XXX X X Caved X XXX Open D Closed Blowing fan
2015 SIC Skills Judges Map Face 6’ airshaft not completed C Crosscut B Crosscut Command Center On the surface A Crosscut D BC XXX X X Caved X XXX Open D Closed Blowing fan
Practice maps 80 70 1 2 D Crosscut 3 4 50 60 2 1 1 2 3 4 C Crosscut 3 4 30 40 1 2 3 4 B Crosscut 10 1 A Crosscut 20 2 1 2
Patient Statement Barricade in #2 Help get me out
Patient Statement RA Help get me out
