• Pro. Structures configuration can be controlled by system variables • Working with Pro. Structures Configuration is similar to the Micro. Station configuration • If config/pro_st 3 d. cfg exists then it is used for configuring Pro. Structures (Compatibility) • Otherwise config/appl/product. cfg is used 2 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated About Pro. Structures configuration
• Open Control Panel • Select „System“ • Run „Advanced System Settings“ • Select „Environment Variables“ • Click New to add a new variable • Enter name and value 3 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated Setting environment variables

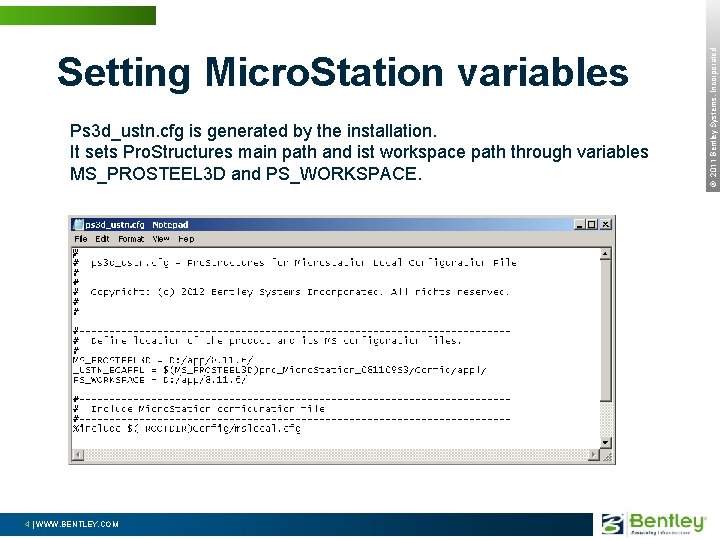

Ps 3 d_ustn. cfg is generated by the installation. It sets Pro. Structures main path and ist workspace path through variables MS_PROSTEEL 3 D and PS_WORKSPACE. 4 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated Setting Micro. Station variables
• Go into the Pro. Structures config/appl folder • Edit product. cfg 5 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated Using environment variables
6 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated Display Pro. Structures Configuration
7 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated Displaying Micro. Station Configuration
• Variables to be used must be enclosed by % sign • Edit Pro_st 3 d. cfg • BLOCKCENTERPATH=%My. Blocks% 8 | WWW. BENTLEY. COM © 2011 Bentley Systems, Incorporated Using environment variables for Auto. CAD
