金融市场技术分析 道氏理论和趋势分析 北京, 2011年 9月6日 David Sneddon 董事总经理, 全球策略技术分析 +44 (0)20 7888 7173 david.

金融市场技术分析 道氏理论和趋势分析 北京, 2011年 9月6日 David Sneddon 董事总经理, 全球策略技术分析 +44 (0)20 7888 7173 david. sneddon@credit-suisse. com FOR IMPORTANT DISCLOSURE INFORMATION relating to analyst certification, the Firm’s rating system, and potential conflicts of interest regarding issuers that are the subject of this report, please refer to the Disclosure Appendix.

道琼斯 业平均指数: 1900 -1940 Original 12 stocks: • General Electric • American Cotton Oil

道琼斯 业平均指数: 1900 -1940 Original 12 stocks: • General Electric • American Cotton Oil Company • American Sugar Company • American Tobacco Company • Chicago Gas Company • Distilling & Cattle Feeding Company • Laclede Gas Company • National Lead Company • North American Company • Tennessee Coal, Iron & Railroad Company • US Leather Company • United States Rubber Company Source: CQG, Credit Suisse 8

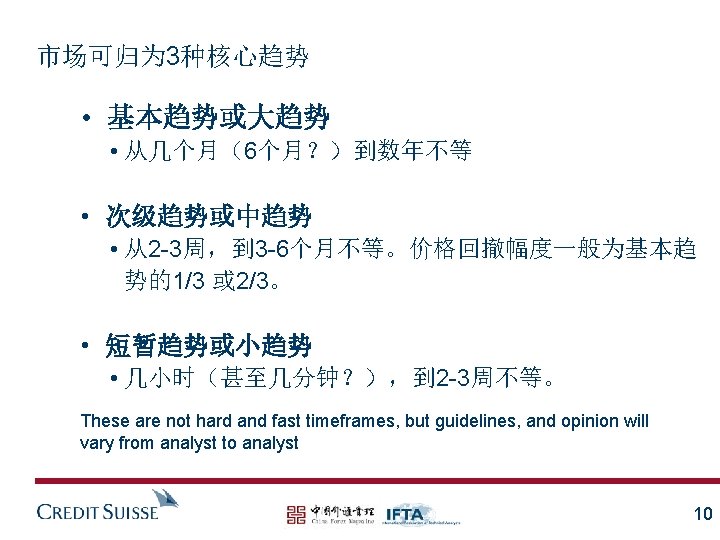

基本趋势、次级趋势、短暂趋势 From 2003 to 2007, 10 yr US yields were in a Primary uptrend

基本趋势、次级趋势、短暂趋势 From 2003 to 2007, 10 yr US yields were in a Primary uptrend Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 11

基本趋势、次级趋势、短暂趋势 Within the secondary downtrend, we have minor uptrends. Within this primary uptrend for

基本趋势、次级趋势、短暂趋势 Within the secondary downtrend, we have minor uptrends. Within this primary uptrend for yields, we have secondary downtrends. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 12

基本趋势、次级趋势、短暂趋势 In fact, 10 yr US yields have been in a Primary downtrend since

基本趋势、次级趋势、短暂趋势 In fact, 10 yr US yields have been in a Primary downtrend since at least the early 1980’s, consistently making lower lows and lower highs. Source: CQG, Credit Suisse 13

趋势有三个不同阶段 1. 积累 2. 参与 3. 出货 3 1 2 Source: Updata, the BLOOMBERG

趋势有三个不同阶段 1. 积累 2. 参与 3. 出货 3 1 2 Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 15

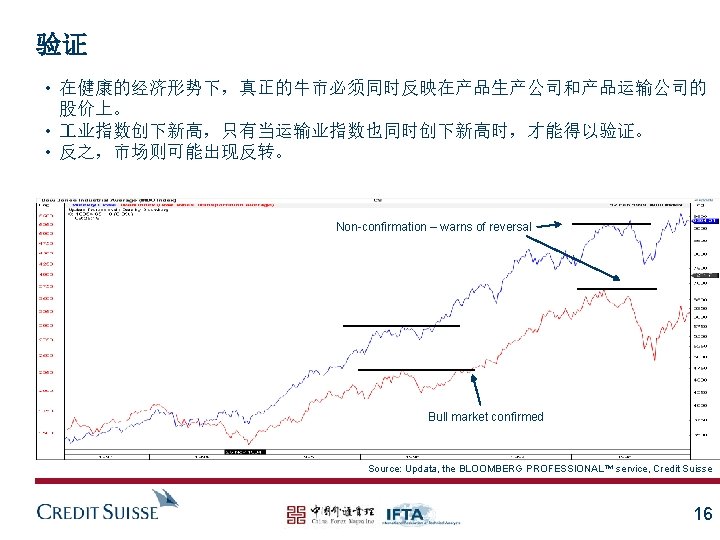

2007/2008和2011,均未得到类似验证。 Dow Jones Industrials – Blue Dow Jones Transports - Red Source: Updata, the

2007/2008和2011,均未得到类似验证。 Dow Jones Industrials – Blue Dow Jones Transports - Red Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 17

以成交量为验证 Volume for the S&P 500 increased sharply on the completion of the top.

以成交量为验证 Volume for the S&P 500 increased sharply on the completion of the top. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 19

成交量 Care must be taken when using outright volume to define broader trends. Underlying

成交量 Care must be taken when using outright volume to define broader trends. Underlying structure of market can change. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 20

成交量净额指标 Cumulative volume is often better. On Balance Volume (OBV) adds or subtracts volume

成交量净额指标 Cumulative volume is often better. On Balance Volume (OBV) adds or subtracts volume depending on whether market closes higher or lower that day. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 21

各种趋势具有相似的特点 10年期美国国债收益 Time series data in both 10 yr US yields and EUR/USD show

各种趋势具有相似的特点 10年期美国国债收益 Time series data in both 10 yr US yields and EUR/USD show very similar properties. EUR/USD We look to identify tools to use for a general nonspecific trend, and then apply across assets. 25

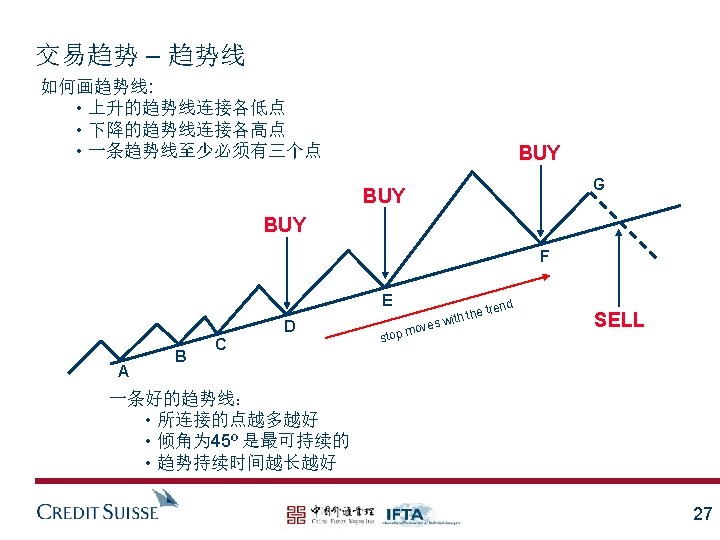

第 1步 – 定义趋势 Uptrend – Higher Highs and Higher Lows – Be long

第 1步 – 定义趋势 Uptrend – Higher Highs and Higher Lows – Be long Downtrend – Lower Lows and Lower Highs – Be short In an uptrend, we like to see higher volume on the rallies, and lower volume on the setbacks. Vice-versa in a downtrend. A trend in motion … is more likely to continue than reverse. We let the trend tell us when it has reversed. i. e. , Do not fight a trend. Source: CQG, Credit Suisse 26

趋势线 & 进入/退出市场 Trendlines offer: • Discipline • Timing/market entry • Risk/reward • Stop

趋势线 & 进入/退出市场 Trendlines offer: • Discipline • Timing/market entry • Risk/reward • Stop placement • Market information Russell 2000 Source: CQG, Credit Suisse 28

趋势线 – 每小时 Dow Jones Industrial Average – 60 -minute bar chart Apply the

趋势线 – 每小时 Dow Jones Industrial Average – 60 -minute bar chart Apply the same principle to every timeframe Source: CQG, Credit Suisse 29

趋势线 – 每周 5 yr US T-Note - Weekly Using trendlines forces you to

趋势线 – 每周 5 yr US T-Note - Weekly Using trendlines forces you to run a long or a short. No second-guessing of tops or bottoms. Position is closed by being stopped out ! Source: CQG, Credit Suisse 30

差额(以及曲线) We also apply trendlines to spreads and curves S&P Utils v S&P Pharma

差额(以及曲线) We also apply trendlines to spreads and curves S&P Utils v S&P Pharma Source: CQG, Credit Suisse 31

趋势线 – 第二高点/低点…. S&P 500 Pharmaceuticals A better trendline is often established after the

趋势线 – 第二高点/低点…. S&P 500 Pharmaceuticals A better trendline is often established after the 2 nd low or high. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 32

内部趋势线 Markets can often spike through trendlines, and then subsequently re-hold. One solution is

内部趋势线 Markets can often spike through trendlines, and then subsequently re-hold. One solution is to ignore the “tails”. EUR/USD Source: CQG, Credit Suisse 33

内部趋势线 USD/BRL But, sometimes irregular trendlines or pivot lines are often called internal trendlines.

内部趋势线 USD/BRL But, sometimes irregular trendlines or pivot lines are often called internal trendlines. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 34

市场信息 The breaking of an important trend can give as much information as a

市场信息 The breaking of an important trend can give as much information as a trend holding. The break of a 5 -touch trendline that has been in existence for well over 3 years for USD/JPY proved a significant signal. Source: CQG, Credit Suisse 35

市场信息 India Nifty DAX Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 36

市场信息 India Nifty DAX Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 36

趋势通道 Once a trendline is established, a parallel is often drawn. Can enhance our

趋势通道 Once a trendline is established, a parallel is often drawn. Can enhance our trading opportunities: • Location to take profit • Counter-trend trade opportunities • Market information Source: CQG, Credit Suisse 37

趋势通道可用于所有时间框架 GPB/USD – 10 minute chart Source: CQG, Credit Suisse 38

趋势通道可用于所有时间框架 GPB/USD – 10 minute chart Source: CQG, Credit Suisse 38

趋势与趋势通道: 对数 vs 算术 Note, remember to use log scaling for Equity & Commodity

趋势与趋势通道: 对数 vs 算术 Note, remember to use log scaling for Equity & Commodity markets. This can have a dramatic impact on signals. WTI Crude – Linear WTI Crude - Log Source: CQG, Credit Suisse 39

也可应用回归分析 Can be useful, but, is often backward looking. Similar application to a Bollinger

也可应用回归分析 Can be useful, but, is often backward looking. Similar application to a Bollinger Band. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 40

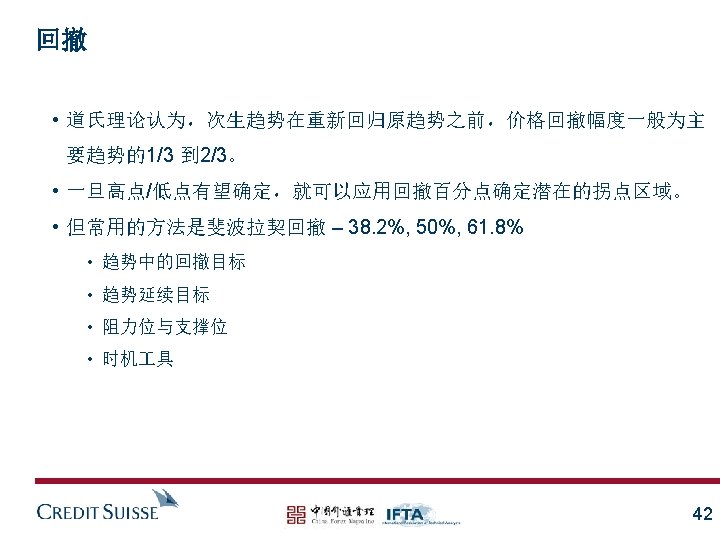

斐波拉契回撤 A 10 yr German Yield - Daily X In a downtrend A =

斐波拉契回撤 A 10 yr German Yield - Daily X In a downtrend A = 4. 450 ; B = 3. 417 C = A – B = 1. 033 X = B + 38. 2%(C) X = 3. 417 + 0. 394606 = 3. 811606 Actual high = 3. 811 B Source: CQG, Credit Suisse 44

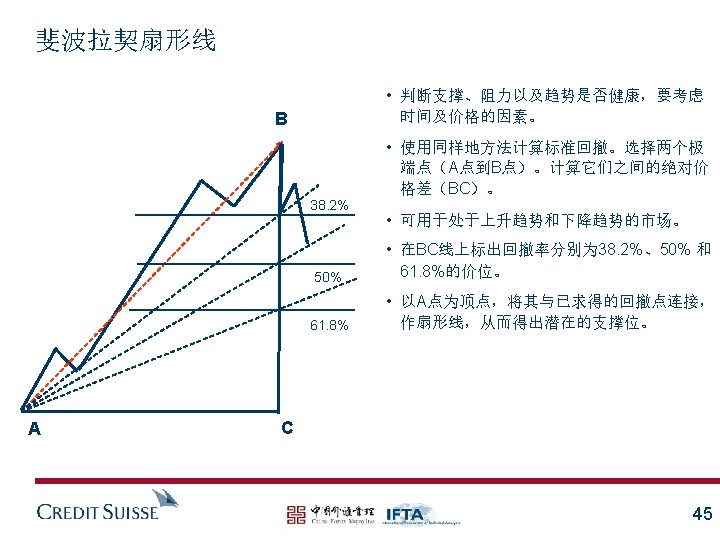

费氏扇形案例分析 – 铜(伦敦金属交易所LME) The 50% and 61. 8% Fibonacci Fan lines have provided support

费氏扇形案例分析 – 铜(伦敦金属交易所LME) The 50% and 61. 8% Fibonacci Fan lines have provided support for Copper’s (LME) decline off the 2011 high. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 46

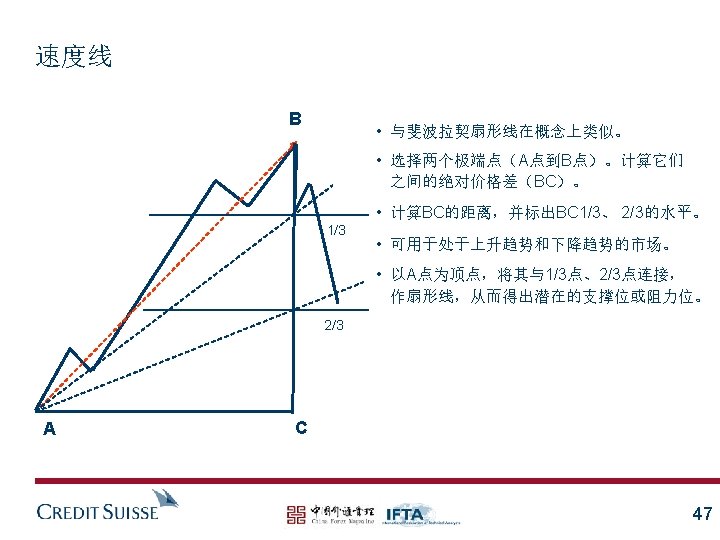

速度线案例分析 – 铜(伦敦金属交易所LME) Dow Jones Industrial Average – 60 -minute bar chart Coppers break

速度线案例分析 – 铜(伦敦金属交易所LME) Dow Jones Industrial Average – 60 -minute bar chart Coppers break of the 1/3 speed line has seen it revert to support at the 2 -/3 line. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 48

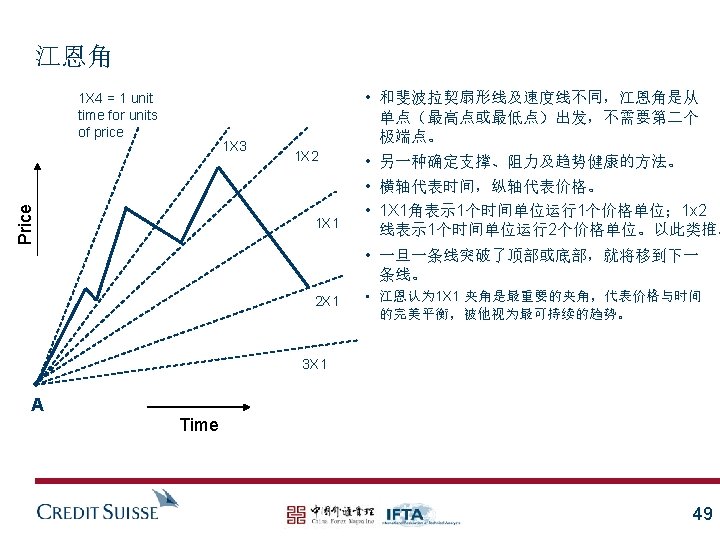

江恩角案例分析 – 10年期美国国债收益 Dow Jones Industrial Average – 60 -minute bar chart 10 yr

江恩角案例分析 – 10年期美国国债收益 Dow Jones Industrial Average – 60 -minute bar chart 10 yr US Yields have repeatedly found support and resistance (support) at various Gann angles Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 50

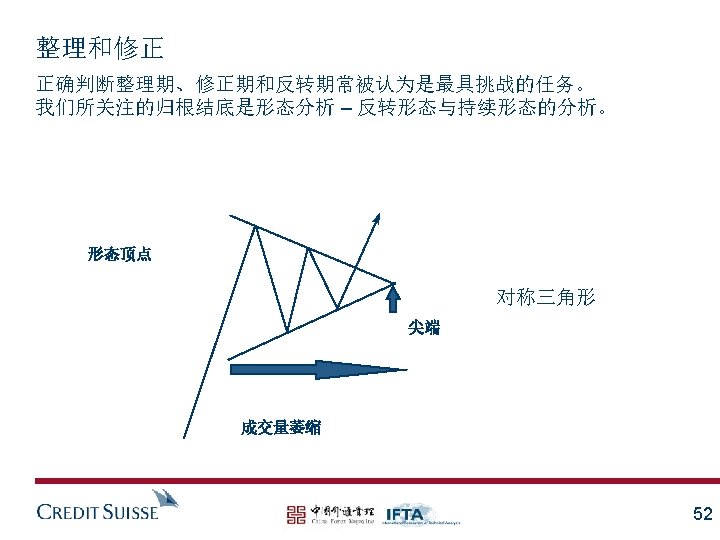

对称三角形 GBP/USD Source: CQG, Credit Suisse 53

对称三角形 GBP/USD Source: CQG, Credit Suisse 53

对称三角形 Gold Source: CQG, Credit Suisse 54

对称三角形 Gold Source: CQG, Credit Suisse 54

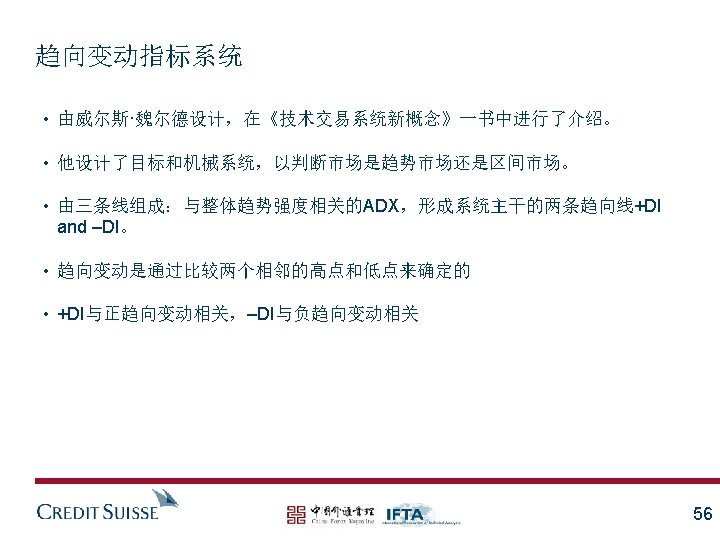

趋向系统(DMI) Crossings by the DI lines generate buy and sell signals, when the crossing

趋向系统(DMI) Crossings by the DI lines generate buy and sell signals, when the crossing occurs above 25. 58

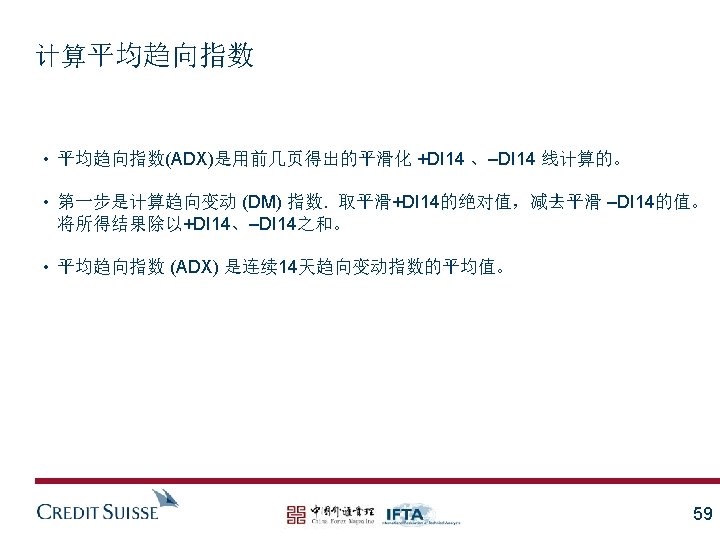

趋势定义: ADX从趋向线衍生而来,可用于衡量趋向变动的强度。 GBP/USD § +DI and –DI lines are used to generate the ADX

趋势定义: ADX从趋向线衍生而来,可用于衡量趋向变动的强度。 GBP/USD § +DI and –DI lines are used to generate the ADX line, which measures the strength of the directional movement and determines if a trend exists. § Below 20 – weak/non-trending ; Above 20 – market is starting to trend; Above 40 – strong trend 40 Non-trending 20 Trending Source: CQG, Credit Suisse 60

相对趋势, 更准确地说 – 相对强势 Credit Suisse We analyse the trend or performance of a

相对趋势, 更准确地说 – 相对强势 Credit Suisse We analyse the trend or performance of a stock relative to the broader market – i. e. , a sector or an index. We apply exactly the same trend analysis to ratio or relative line, as we would to the individual stock. We are concerned with the direction of the relative trend, not the value. Credit Suisse/SMI ratio Relative trending higher – the stock is outperforming. Relative trendline lower – the stock is underperforming. Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 62

相对强势 DJ Stoxx 600 Construction & Materials A break in the trend or the

相对强势 DJ Stoxx 600 Construction & Materials A break in the trend or the completion of a pattern in the relative will often lead a break in the actual price trend Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 63

相对强势 A break in the trend or the completion of a pattern in the

相对强势 A break in the trend or the completion of a pattern in the relative will often lead a break in the actual price trend Credit Suisse Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 64

来自先前高点的阻力 FTSE 100 Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 68

来自先前高点的阻力 FTSE 100 Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 68

来自先前低点的阻力 Dow Jones Euro Stoxx 50 - Daily Source: Updata, the BLOOMBERG PROFESSIONAL™ service,

来自先前低点的阻力 Dow Jones Euro Stoxx 50 - Daily Source: Updata, the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 69

趋势线与移动平均阻力 EUR/USD & 40 -week moving average Source: CQG, Credit Suisse 70

趋势线与移动平均阻力 EUR/USD & 40 -week moving average Source: CQG, Credit Suisse 70

斐波拉契阻力 10 YR US YIELD – DAILY Source: CQG, Credit Suisse 71

斐波拉契阻力 10 YR US YIELD – DAILY Source: CQG, Credit Suisse 71

缺口 Gaps – Please mind them! Only to be used in markets where they

缺口 Gaps – Please mind them! Only to be used in markets where they occur infrequently. Additionally, different gaps can have different implications: • Normal • Breakaway • Running • Exhaustive Source: Reuters, Credit Suisse 72

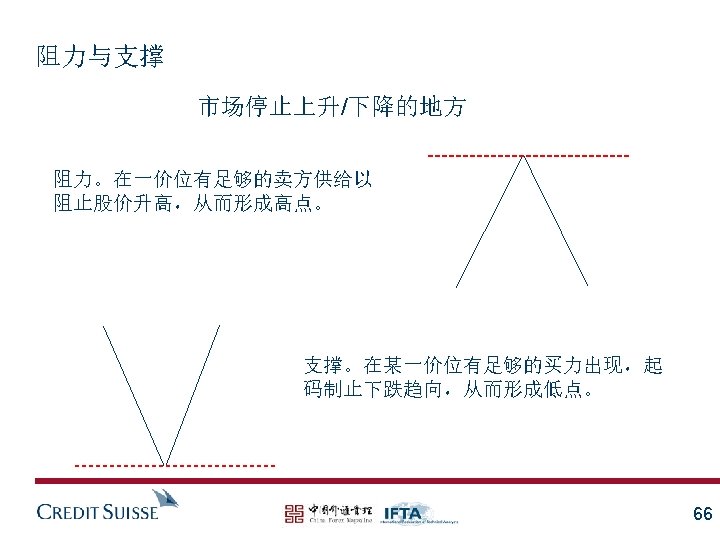

阻力与支撑 Once broken, resistance and support reverse roles. Resistance becomes Support becomes Resistance Source:

阻力与支撑 Once broken, resistance and support reverse roles. Resistance becomes Support becomes Resistance Source: Reuters Limited, Credit Suisse 74

聚类 – 10年期美国国债收益 The best levels are often where see levels “cluster” together Source:

聚类 – 10年期美国国债收益 The best levels are often where see levels “cluster” together Source: CQG, Credit Suisse 75

聚类 - S&P 500 Source: CQG, Credit Suisse 76

聚类 - S&P 500 Source: CQG, Credit Suisse 76

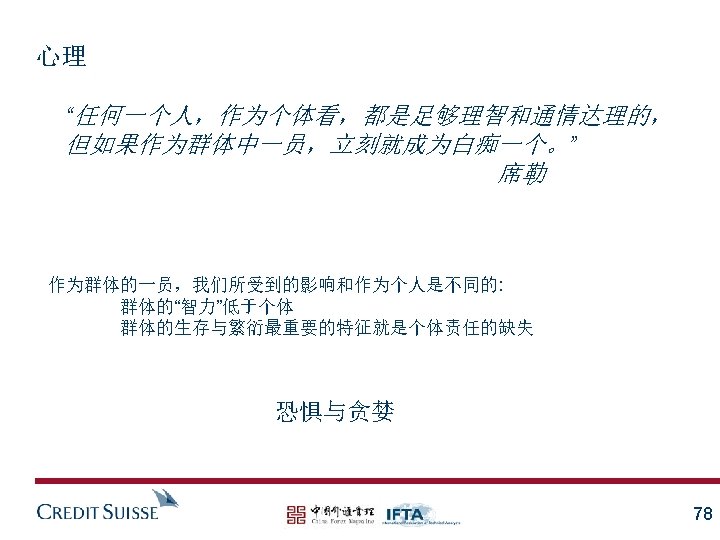

价格周期当中的心理 ‘More good news, I am doubling my longs. ’ ‘Still buying on dips.

价格周期当中的心理 ‘More good news, I am doubling my longs. ’ ‘Still buying on dips. ’ ‘News is getting better, I am going long. ’ ‘Only a squeeze pullback, news still good. ’ ‘Some good news, maybe I shall cover short. ’ ‘News gets worse, I better exit longs. ’ ‘Nothing changed, price will go back down. ’ ‘I told you before, I am still short. ’ ‘All news is bad, price will go a lot lower. ’ Sideways Trending (UP) Sideways Trending (DOWN) Source: Credit Suisse 79

不同时间图表组合使用: WTI 原油– 周表与日表 Daily and Weekly 13 Sequential & Combo at the lows

不同时间图表组合使用: WTI 原油– 周表与日表 Daily and Weekly 13 Sequential & Combo at the lows ! Source: the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 82

S&P 500 – 不要孤立使用 与其它 具配合使用效果最佳 1200/1240 = • 61. 8% retracement of 2007/2009

S&P 500 – 不要孤立使用 与其它 具配合使用效果最佳 1200/1240 = • 61. 8% retracement of 2007/2009 bear market. • Target from 2008/2009 base. • “Lehman” breakdown resistance. Also have MACD divergence Source: the BLOOMBERG PROFESSIONAL™ service, Credit Suisse 83

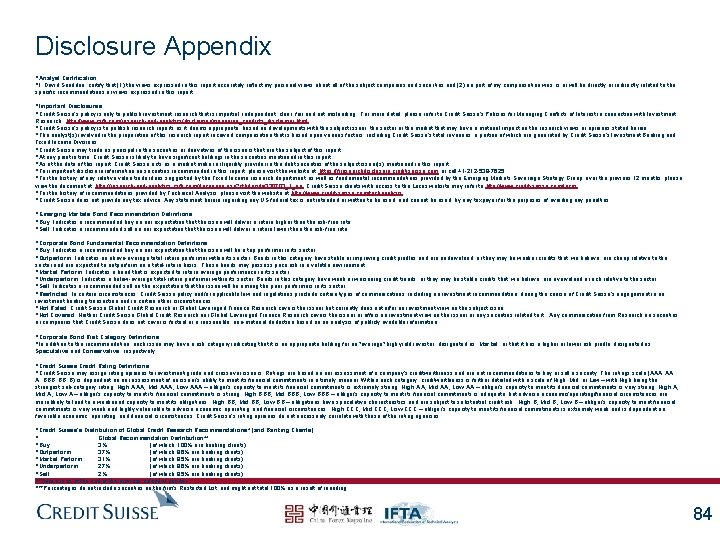

Disclosure Appendix §Analyst Certification §I, David Sneddon, certify that (1) the views expressed in
