2008 PSU Human Powered Vehicle Team Concept Evaluation
- Slides: 32
2008 PSU Human Powered Vehicle Team Concept Evaluation Ben Bolen Erik Chamberlain Kenneth Lou Levi Patton Bryan Voytilla
Overview • Frame configuration • Biomechanical optimization • Drivetrain configuration • Fairing design
External Search • Tricycles – Wheels in front (Tadpole)
External Search • Tricycles – Wheels in front (Tadpole) – Wheels in back (Delta)
External Search • Tricycles – Wheels in front (Tadpole) – Wheels in back (Delta) • Bicycles
External Search • Tricycles – Wheels in front (Tadpole) – Wheels in back (Delta) • Bicycles • Quadricycle
Internal Search • Tadpole Tricycle
Product Design Specifications • Performance – Stiffness – Weight • Safety – Strength – High / Low speed satiability • Aesthetics – Uniqueness – Design • Cost – Ease of manufacturing – Engineering Time
Datum Evaluation Performance Safety Aesthetics Cost Total Datum Vike Trike II Bicycle Tricycle (Tadpole) Tricycle (Delta) Quadricy cle 0 +1 0 -1 -1 0 +1 0 0 -1 0 +3 0 -2 -2
External Search • Upright
External Search • Upright • Prone
External Search • Upright • Prone • Recumbent
External Search • Upright • Prone • Recumbent
Internal Search • Vike Trike II Recumbent
Internal Search • Vike Trike II Recumbent • Bio-Mechanical Testing
Product Design Specifications • Performance – – Power Output Speed Frontal Area Ergonomics • Aesthetics – Uniqueness • Cost • Safety – Ergonomics – Engineering time – Materials
Datum Evaluation Performance Safety Aesthetics Cost Total Datum Vike Trike II Upright Recumbent Prone 0 -1 0 +1 0 -1 0 0 0 +1 0 -1
External Search • Front Wheel Drive
External Search • Front Wheel Drive • Rear Wheel Drive

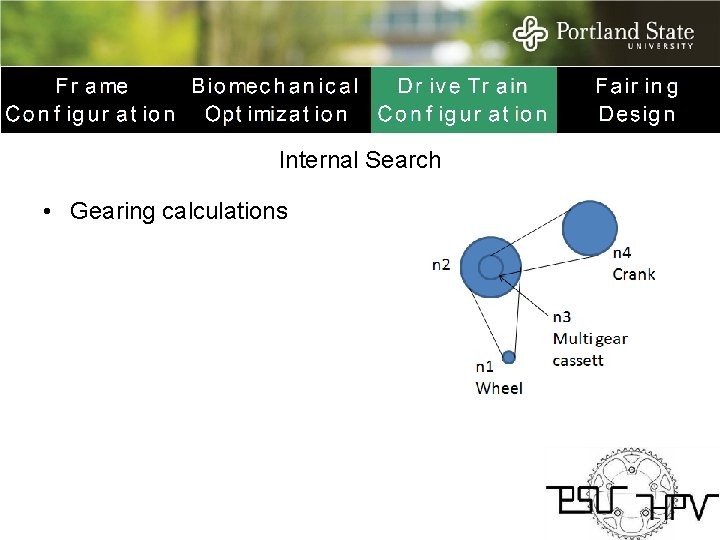

Internal Search • Gearing calculations
Internal Search • Gearing calculations • Vike Trike II
Product Design Specifications • Performance – Weight – Steering • Safety – Chain Routing – Steering • Aesthetics – Packaging • Cost – Engineering Time – Reduced Parts
Datum Evaluation Performance Safety Aesthetics Cost Total Datum Vike Trike II RWD FWD 0 0 -1 0 0 0 +1 0 0 -1
External Search • Partial Fairing
External Search • Partial Fairing • Full Fairing
External Search • Partial Fairing • Full Fairing • Competition
External Search • Partial Fairing • Full Fairing • Competition • NACA Shapes
Internal Search • Vike Trike II (Sprint)
Internal Search • Vike Trike II (Sprint) • Vike Trike II (Endurance)
Product Design Specifications • Performance – – Crash Recovery Strength Weight Aerodynamic Drag • Safety – Visibility – Crash Protection • Aesthetics – Streamlined • Cost – Material Requirements – Engineering Time
Datum Evaluation Performance Safety Aesthetics Cost Total Datum Vike Trike II Partial Fairing Full Fairing 0 -1 +1 0 0 +1 0 -1 +1 0 +1 +1 0 -1 +4
Contact • http: //web. cecs. pdx. edu/~asme/HPV/ • psu. hpv@gmail. com
