2006 Camcorders 2006 Mini DV Camcorders JVC Technology

2006 Camcorders

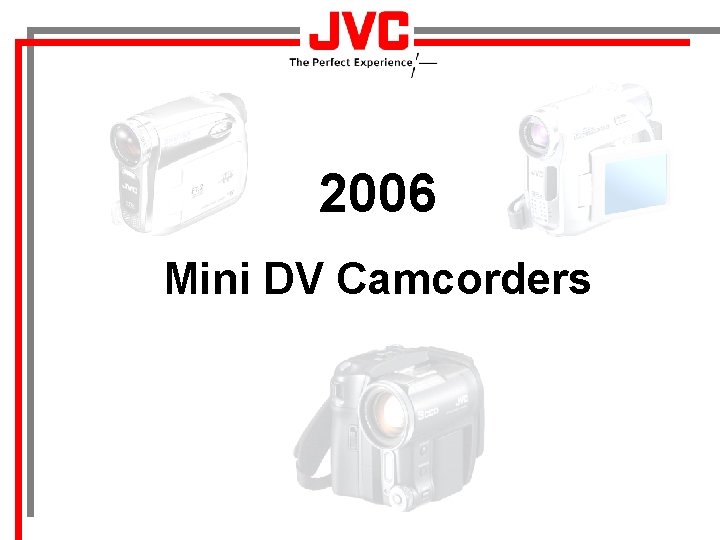

2006 Mini DV Camcorders

JVC Technology Concept for 2006 JVC Focuses on Picture Quality with Innovative & Unique Technologies Data Battery Low Light Plus 3 -D NR Super High-Band Processor High Quality Picture F 1. 2 Super Bright Lens New Live Slow Auto Illumi-Light Tele. Conversion Built In In addition to current JVC original technologies including Super High-Band Processor and Night. Alive, we developed the new 3 D NR and Auto Illumi. Light in order to further improve picture quality especially when shooting in low-light environments.

32 x Optical Zoom 32 x Optical Zoom enables one to enlarge an image 32 x times without jagged edges, which is not possible with a digital zoom.

Clear LCD Monitor Suppresses diffusion of internal light to deliver a brighter, clearer image. Conventional LCD Clear LCD Also reduces reflection and glare from external light. Combined characteristics allow outdoor shooting with clearly visible subjects unlike conventional LCD monitors. Live Slow *(on select models) Slow motion pictures recorded with sound on a DVC tape. This is a first for a camcorder! Sound is recorded and played back in real time. The slow motion effect will give you a new perspective and enable a new appreciation of your video. Precious moments become all the more enjoyable.

AUTO Button The AUTO Button allows switching to AUTO Mode with a touch of a button. 2005 Push the AUTO Button Displayed after 3 sec. A A AUTO Mode Conveniently placed AUTO Button. 2006 M M MANUAL

Menu On-Screen Display (Non-DSC Models) 2005 Up MENU/SET Down 2006 First Screen Up Second Screen Third Screen SET Right Left SET MENU ON/OFF Down The menu layers are sorted by categories making the OSD simpler and more user-friendly. Now, the navigating the menu is much easier to operate.

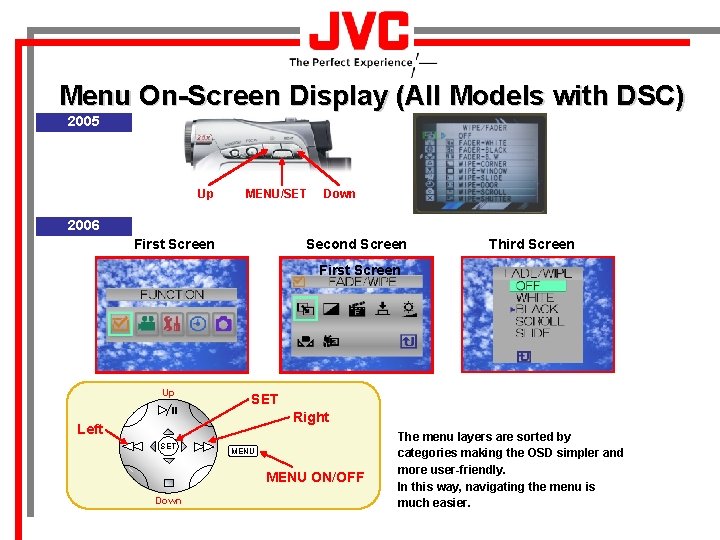

Menu On-Screen Display (All Models with DSC) 2005 Up MENU/SET Down 2006 First Screen Second Screen Third Screen First Screen Up SET Right Left SET MENU ON/OFF Down The menu layers are sorted by categories making the OSD simpler and more user-friendly. In this way, navigating the menu is much easier.

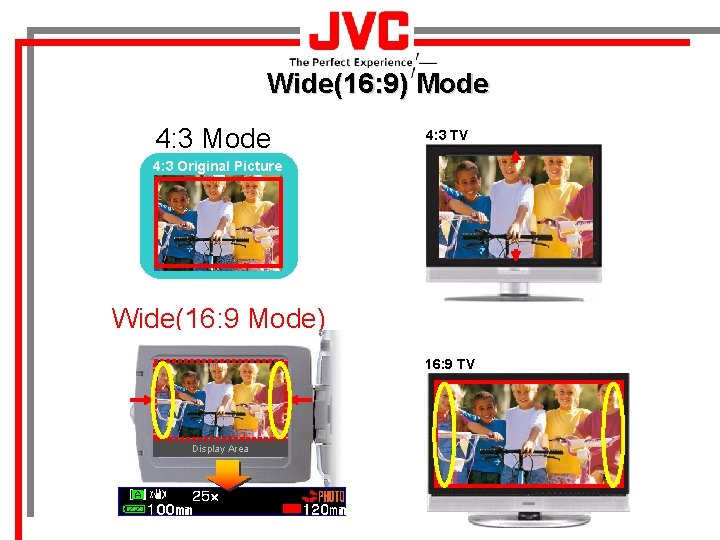

Wide(16: 9) Mode 4: 3 TV 4: 3 Original Picture Wide(16: 9 Mode) 16: 9 TV Display Area

WIDE Mode On-Screen Display 4: 3 On-Screen Display Not displayed during snapshot/SP setting 16: 9 Wide Screen Mode On-Screen Display Tape Icon LP Shutter Fades/Wipes Program AE LP (Full On-Screen Display Image)

Convenience Data Battery • Remaining battery can be checked by simply touching a button even before shooting and with the power turned off. • Remaining recording time is automatically calculated and shown. 10 different levels of remaining battery and recording time are shown. Prevents a battery from running out during shooting. This function operates only with a genuine JVC battery pack.

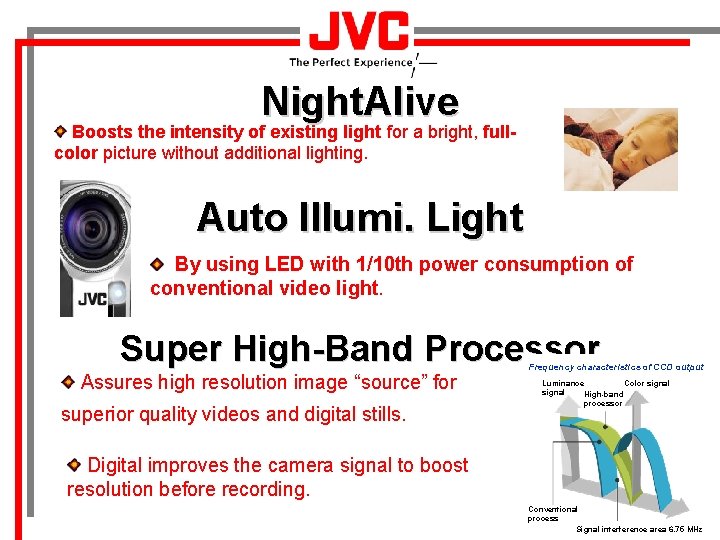

Night. Alive Boosts the intensity of existing light for a bright, fullcolor picture without additional lighting. Auto Illumi. Light By using LED with 1/10 th power consumption of conventional video light. Super High-Band Processor Assures high resolution image “source” for superior quality videos and digital stills. Frequency characteristics of CCD output Luminance Color signal High-band processor Digital improves the camera signal to boost resolution before recording. Conventional process Signal interference area 6. 75 MHz

D Series Design (GR-D 370): Stylish and Slim 32 x Optical Zoom Well-placed Controls Slim form Stylish: Shoulder Cut Form Auto Button Power Button One-hand operation is possible

GR-D 370: Comparison of Dimensions GR-D 370 GR-D 270 TOTAL WIDTH 50 53 114 112 94 93. 5 58 56

GR-D 350/370/395/396 BVP Comparison Avail. GR-D 350 GR-D 370 GR-D 395 GR-D 396 $299. 95 $329. 95 $369. 95 $379. 95 February March NON DSC MODELS (640 x 480) 32 x Optical Zoom / 800 x Digital Zoom CCD: 1/6” 680 K- pixel CCD 520 Horizontal Lines of Resolution 16: 9 Video Mode Color Viewfinder Clear LCD NO Auto Illumi. Light NO Live Slow NO USB NO SD/ MMC Card Slot 4 Languages 7 Languages English Spanish French Portuguese Japanese Korean Chinese (Tr) NO Data Battery VF 707 Remote Control Included VF 714 4 Language 7 Languages NO Photo Nav. Software 2 x VF 707

TENTATIVE 2006 Mega-pixel Mini. DV Camcorders

Low Light Plus (F 1. 2 Super Bright Lens) Aspherical lens for high-precision optics F 1. 2 is 2. 3 -times the brightness of F 1. 8 and 1. 8 -times the brightness of F 1. 6. F 1. 8 Lens F 1. 2 Lens New F 1. 2 lens is used for the GR-D 650 camera.

Low-Light Plus (3 D NR) JVC’s proven picture improvement technology for VCRs has been adopted for video cameras. Able to reduce video noise by approx. 30%, especially when shooting in low light. Edge flicker is inhibited, enabling even subjects that contain lots of high frequency range elements such as hair, to be shot as pure, bright, low-noise images. When shooting in dark environments, noise elements are visible throughout the image, producing a coarse picture with obscured borders such as facial shapes. JVC made it possible to cut noise when shooting in low light environments using our original 3 D NR technology to deliver high quality results.

Tele-Conversion Built In (for Mega Models) Tele Conversion Lens increases the magnification of your subject and captures close-up shots. Without Tele Conversion Lens Normal Mode With Tele Conversion Lens Tele Mode offers instant close-ups without attaching a Tele Conversion Lens 1. 33 -Mega Model: 1. 3 x (Equals 19. 5 X Zoom)

Wide(16: 9) Mode 4: 3 TV 4: 3 Original Picture Wide(16: 9 Mode) 16: 9 TV Display Area

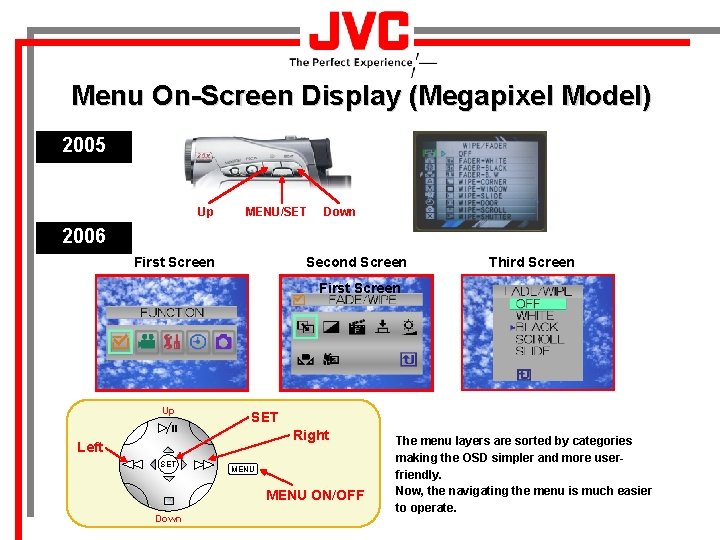

Menu On-Screen Display (Megapixel Model) 2005 Up MENU/SET Down 2006 First Screen Second Screen Third Screen First Screen Up SET Right Left SET MENU ON/OFF Down The menu layers are sorted by categories making the OSD simpler and more userfriendly. Now, the navigating the menu is much easier to operate.

D Series Design (GR-D 650): Well-built and Stylish 1. 3 -Megapixel F 1. 2 Super Bright Lens Slim Top for Easy Grip 15 x Optical Zoom Glossy finish makes the lens stand out Stylish: Streamlined AUTO Button 16: 9 Button

GR-D 650 CCD: 1/5” 1. 33 Mega- pixel CCD Lens Performance: F 1. 2 April 540 Horizontal Lines of Resolution $399. 95 15 x Optical Zoom 3 DNR Built-in Tele Conversion 1. 3 x 16: 9 Wide Screen Mode Clear LCD Auto Illumi. Light USB Power-Linked Operation Live Slow Digital Stills (1280 x 960) Data Battery VF 707 7 Languages Color Viewfinder Remote Control Included SD/ MMC Card Slot 7 Languages English Spanish French Portuguese Japanese

TENTATIVE 2006 Compact VHS Camcorders

GR-AXM 18 Compact VHS Camera Basic Features 2. 5” LCD Color Monitor 20 x Optical Zoom 800 x Digital Hyper Zoom Viewfinder 320 k pixel CCD Product Highlights • 20 x Optical Zoom • 800 x Digital Hyper Zoom • Digital Picture Improvement Technology *Picture Stabilizer *Digital TBC (Time Base Corrector) *Digital CNR (Chroma Noise Reduction) *108 Combinations of Digital Special Avail. Feb. - $199. 95 Effects (11 x) and Scene Transitions (10 x) • Multi-Language Instant Titles (4 Languages) • Manual Focus • Flying Erase Head • Built-in Battery Charger

GR-SXM 38 Compact Super VHS Camera Basic Features Super VHS & “Super VHS ET” 2. 5” LCD Color Monitor 25 x Optical Zoom 1000 x Digital Hyper Zoom Viewfinder 320 k pixel CCD Product Highlights • 25 x Optical Zoom • 1000 x Digital Hyper Zoom • Super VHS & Super VHS ET Recording • Digital Picture Improvement Technology *Picture Stabilizer *Digital TBC (Time Base Corrector) *Digital CNR (Chroma Noise Reduction) *108 Combinations of Digital Special Effects (11 x) and Scene Transitions (10 x) • Auto Illumi. light • Multi-Language Instant Titles (4 Languages) • Manual Focus • Flying Erase Head • Built-in Battery Charger • Easy VHS Playback adapter included Avail. Feb. - $229. 95
