2005 Performance 3 4 Itanium 2 Montecito 24

2005年多核心安腾处理器 Performance ~ 3. 4 • 新一代Itanium 2 处理器 - Montecito – 多核心，多线程，24 MB cache ~ 1. 7 ~ 1. 5 1 – 显著的性能提升，并降低能耗 • 1. 5 -2 倍的性能提升，比较安腾 处理器 9 M • 100 W 处理器功耗 – 和目前的安腾 2平台完全兼容 • 新的平台技术 – 动态性能提升 – Foxton Technology – 服务器功耗节省 – Demand Based Switching – 内存/缓存运行更稳定 – Pellston Technology – 强大的虚拟分区 – Virtualization All products, dates, comparisons, and information are preliminary and subject to change without notice. 4 S Transaction Processing Relative Performance Intel® Itanium® 2 Intel Itanium 2 - 6 M Intel Itanium 2 - 9 M Montecito Power 130 W 100 W

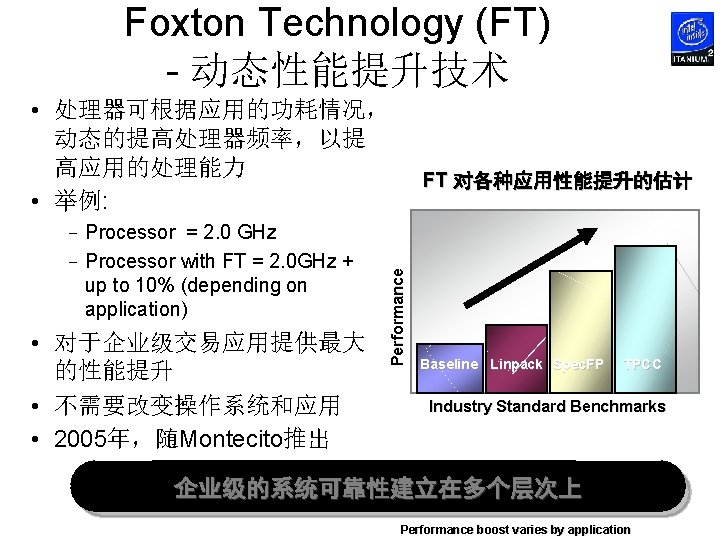

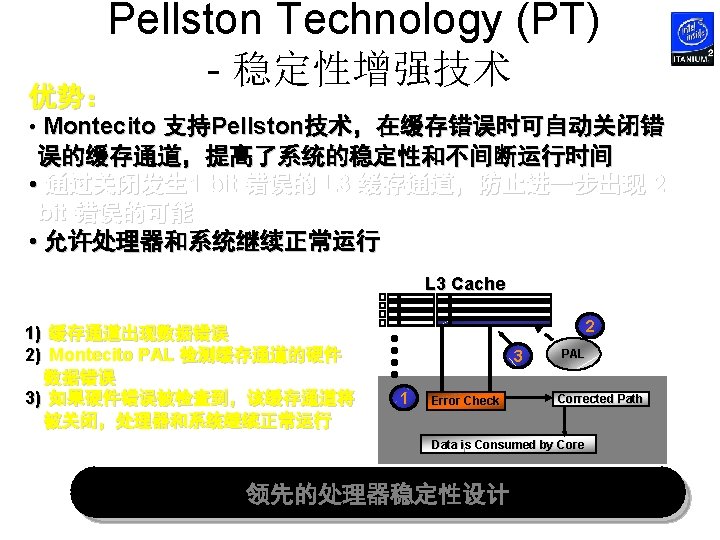

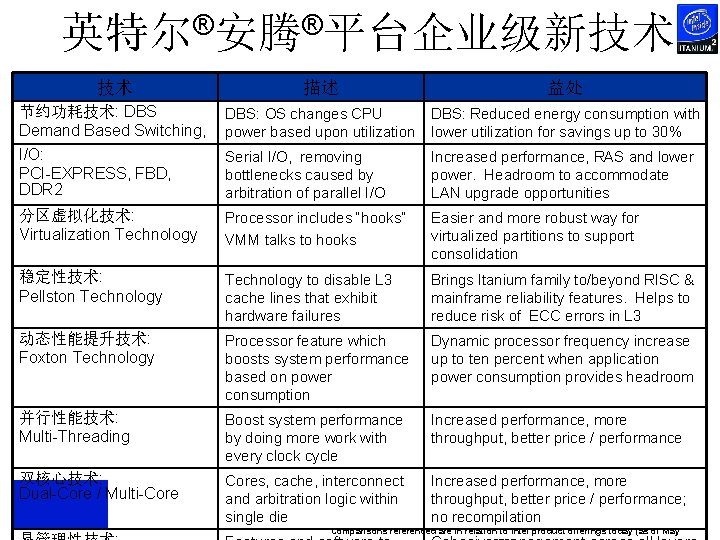

英特尔®安腾®平台企业级新技术 技术 描述 益处 节约功耗技术: DBS Demand Based Switching, I/O: PCI-EXPRESS, FBD, DDR 2 DBS: OS changes CPU power based upon utilization DBS: Reduced energy consumption with lower utilization for savings up to 30% Serial I/O, removing bottlenecks caused by arbitration of parallel I/O Increased performance, RAS and lower power. Headroom to accommodate LAN upgrade opportunities 分区虚拟化技术: Virtualization Technology Processor includes “hooks” VMM talks to hooks Easier and more robust way for virtualized partitions to support consolidation 稳定性技术: Pellston Technology to disable L 3 cache lines that exhibit hardware failures Brings Itanium family to/beyond RISC & mainframe reliability features. Helps to reduce risk of ECC errors in L 3 动态性能提升技术: Foxton Technology Processor feature which boosts system performance based on power consumption Dynamic processor frequency increase up to ten percent when application power consumption provides headroom 并行性能技术: Multi-Threading Boost system performance by doing more work with every clock cycle Increased performance, more throughput, better price / performance 双核心技术: Dual-Core / Multi-Cores, cache, interconnect and arbitration logic within single die Increased performance, more throughput, better price / performance; no recompilation Comparisons referenced are in relation to Intel product offerings today (as of May

Virtualization Technology (VT) - 硬件支持的服务器虚拟化技术 Apps Apps Apps OS OS OS CPU, Memory IO, Disk (Virtual) Physical Host HW 更灵活和稳定 硬件虚拟 化的益处 更强的性能 Virtual Machine Monitor Platform Hardware (physical) CPU, Memory, IO, Disk 更好的技术支 持 和软件虚拟化技术相比，基于硬件的虚拟化技术提供更 好的灵活性，稳定性，性能和技术的完整性支持

双核心 / 多核心技术 2004 Single Core 2005 Dual Core Cache Core on li li ors B st 7 1. nsi a Tr 2 Cores + Cache 2007 Multi-Core e or m 2 X es >= cor 4 or more Cores + Cache 2 or more Cores + Cache 增加的处理器性能 • 英特尔领先的生产技术和能力(90 nm, 65 nm) 将领导推出多核心技术 • 安腾技术能保持更小的处理器核心– 和Xeon处理器相同成本的情况下，性能 提高一倍 All products, dates and features are preliminary and subject to change without notice
