증기터빈 첨단열유체공학 200421300 심진형 Copyright © by ARTCOM PT All rights reserved.

Company 차례 Copyright © by ARTCOM PT All rights reserved. 11 Click 증기사이클 to add Title 22 Click 증기터빈의 to add 종류 Title 13 Click 증기터빈의 to add 제조 Title 24 Click 증기터빈의 to add 구조 Title 15 Click 증기터빈의 to add 응용 Title 2 Logo www. art-com. co. kr

Company Logo 1. 증기사이클<증기원동소> 복수기 급수펌프 증기터빈 보일러 Copyright © by ARTCOM PT All rights reserved. 3 www. art-com. co. kr

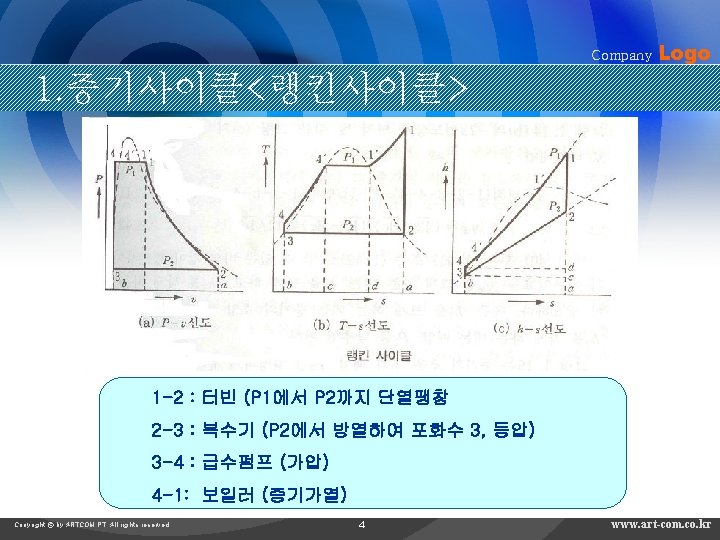

Company Logo 1. 증기사이클<효율증대> 초온증가 초압증가 e=(h 1 -h 2)/(h 1 -h 3) P 2감소 Copyright © by ARTCOM PT All rights reserved. 5 www. art-com. co. kr

Company Logo 1. 증기사이클<개량사이클> 재열사이클 Copyright © by ARTCOM PT All rights reserved. 재생사이클 6 www. art-com. co. kr

Company Logo 2. 증기터빈의 종류 High Pressure Copyright © by ARTCOM PT All rights reserved. Intermediate Pressure 7 Low Pressure www. art-com. co. kr

Company Logo 2. 증기터빈의 종류 높은 압력영역 에서 유리 Copyright © by ARTCOM PT All rights reserved. 낮은 압력영역 에서 유리 8 www. art-com. co. kr

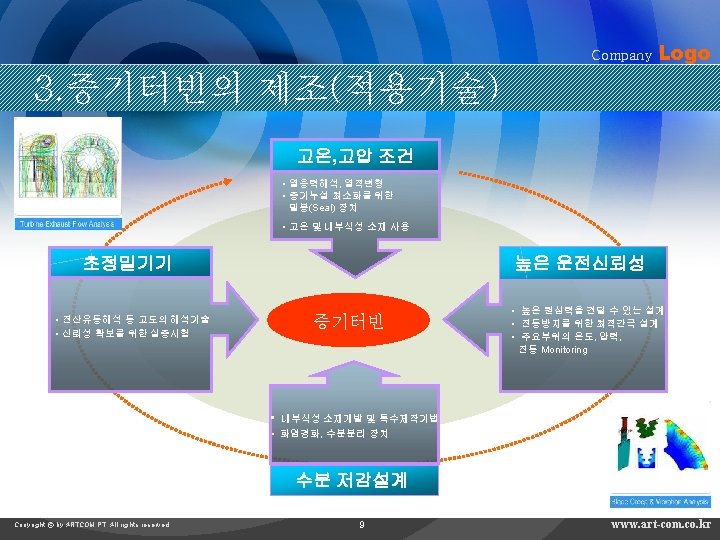

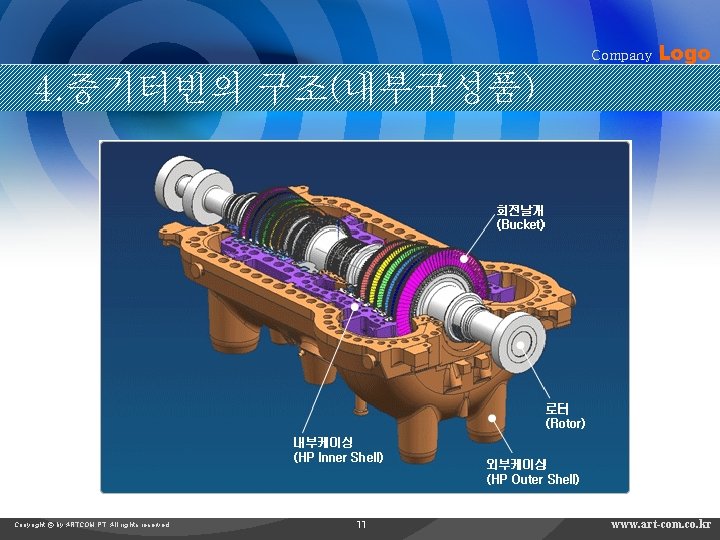

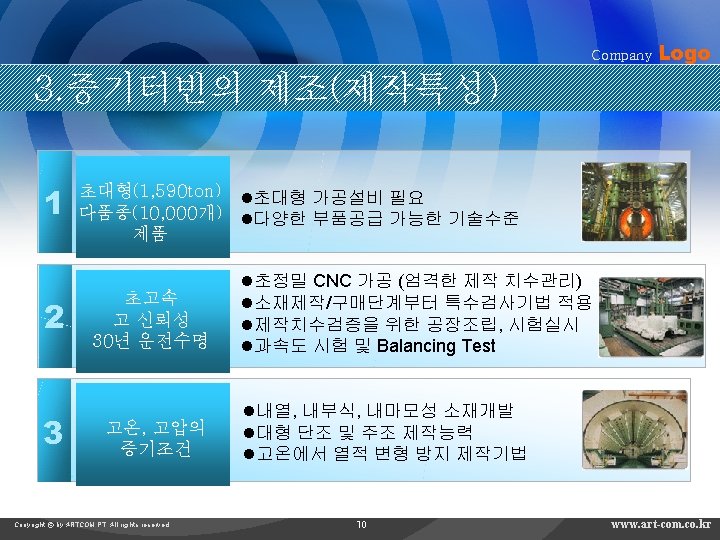

Company Logo 4. 증기터빈의 구조(내부구성품) Copyright © by ARTCOM PT All rights reserved. 11 www. art-com. co. kr

Company Logo 4. 증기터빈의 구조(Nozzles) Potential Energy (Temperature& convert Kinetic Energy (Velocity) Pressure) Copyright © by ARTCOM PT All rights reserved. 12 www. art-com. co. kr

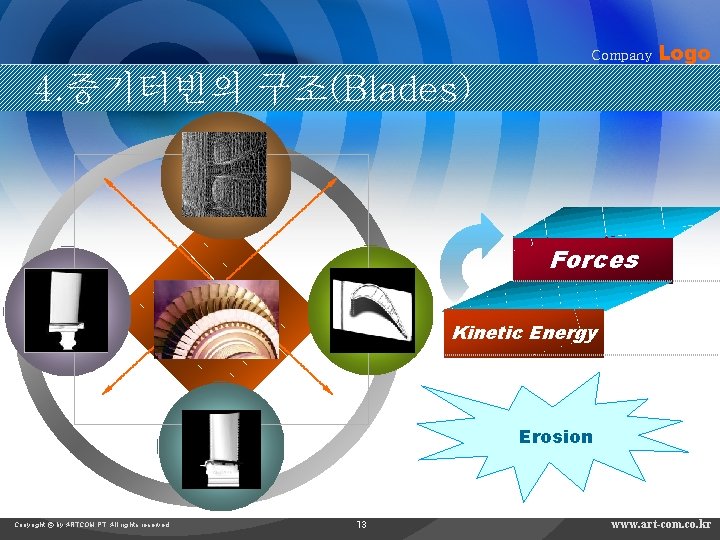

Company Logo 4. 증기터빈의 구조(Blades) Forces Kinetic Energy Erosion Copyright © by ARTCOM PT All rights reserved. 13 www. art-com. co. kr

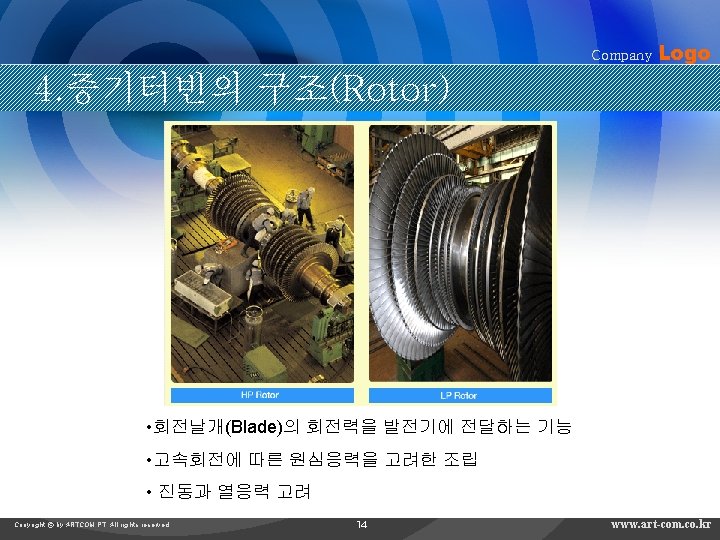

Company Logo 4. 증기터빈의 구조(고정날개) Kinetic Thermal Energy 입사각 및 출구각 고려 Copyright © by ARTCOM PT All rights reserved. 15 www. art-com. co. kr

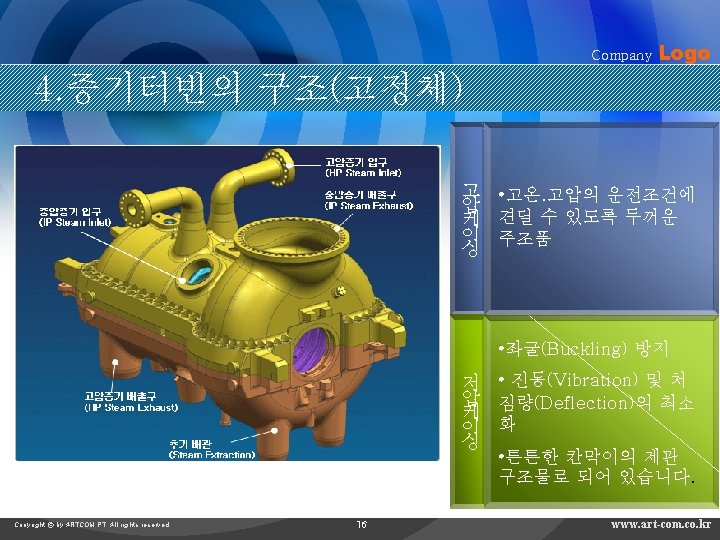

Company Logo 4. 증기터빈의 구조(보조기기) Lubrication Bearings Copyright © by ARTCOM PT All rights reserved. Turning gear Shaft Seals 17 www. art-com. co. kr

Company Logo 5. 증기터빈의 응용(원자력발전소) The William_H_Zimmer Power Plant, Ohio(Nuclear) 1300 MW Copyright © by ARTCOM PT All rights reserved. 18 www. art-com. co. kr

Company Logo 5. 증기터빈의 응용(원자력발전소) GE-Nuclear—N Series 1500 MW Copyright © by ARTCOM PT All rights reserved. 19 www. art-com. co. kr

Company Logo 5. 증기터빈의 응용(화력발전소) SIEMENS - steam turbine with the case opened. Copyright © by ARTCOM PT All rights reserved. 20 www. art-com. co. kr

Company Logo 5. 증기터빈의 응용(화력발전소) GE-Huaneng Power International’s Dezhou Phase III power plant in China(660 MW) Copyright © by ARTCOM PT All rights reserved. 21 www. art-com. co. kr

Company Logo 6. 참고문헌 • 증기에너지공학-장태현, 장길홍. 보성각 • 위키피디아 온라인 백과사전 (http: //www. wikipedia. org) • 두산중공업(http: //www. doosanheavy. com) • GE Energy(http: //www. gepower. com) • Google(http: //www. google. com) • 한국중부발전(http: //www. komipo. co. kr) Copyright © by ARTCOM PT All rights reserved. 22 www. art-com. co. kr
