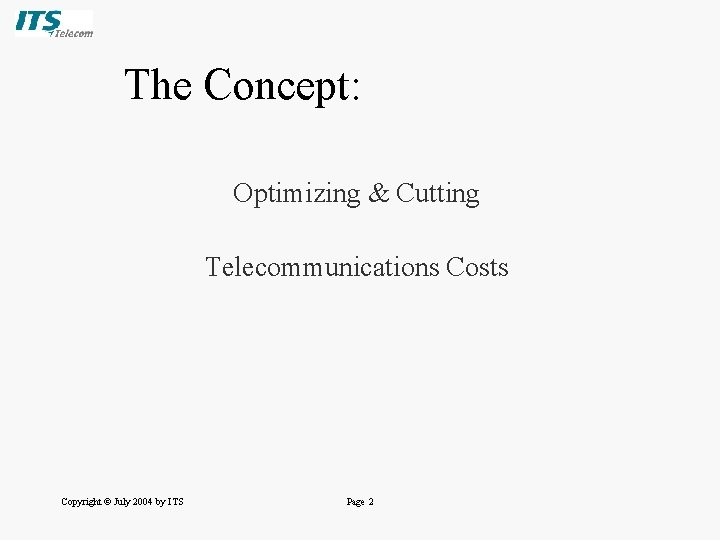

The Concept: Optimizing & Cutting Telecommunications Costs Copyright © July 2004 by ITS Page

The Concept: Optimizing & Cutting Telecommunications Costs Copyright © July 2004 by ITS Page 2

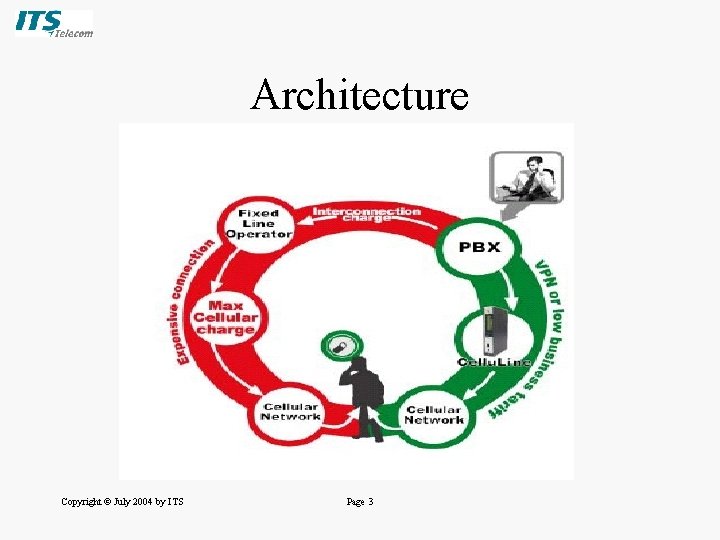

Architecture Copyright © July 2004 by ITS Page 3

Architecture Copyright © July 2004 by ITS Page 3

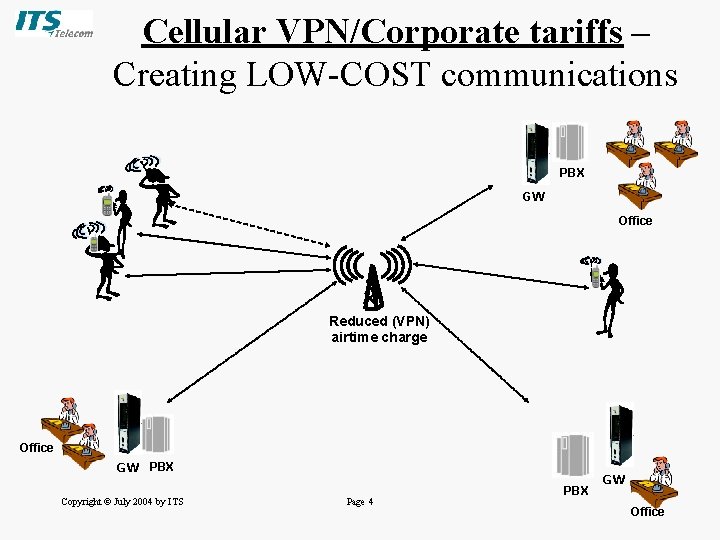

Cellular VPN/Corporate tariffs – Creating LOW-COST communications PBX GW Office Reduced (VPN) Cellular Network

Cellular VPN/Corporate tariffs – Creating LOW-COST communications PBX GW Office Reduced (VPN) Cellular Network airtime charge Office GW PBX Copyright © July 2004 by ITS Page 4 PBX GW Office

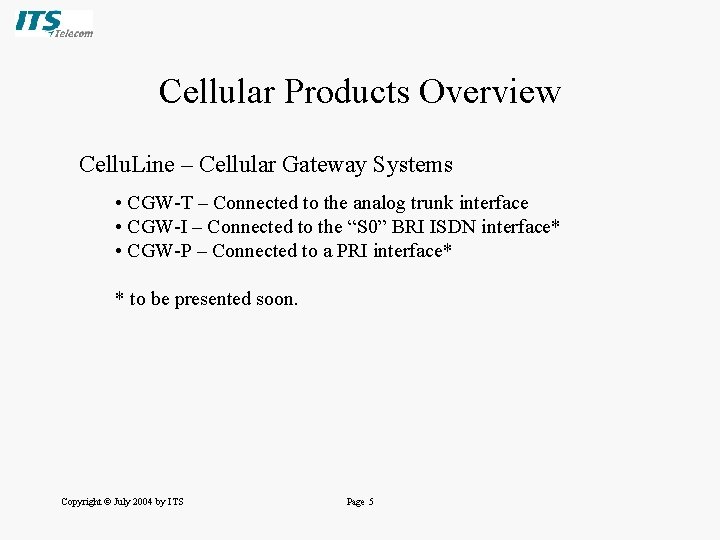

Cellular Products Overview Cellu. Line – Cellular Gateway Systems • CGW-T – Connected to

Cellular Products Overview Cellu. Line – Cellular Gateway Systems • CGW-T – Connected to the analog trunk interface • CGW-I – Connected to the “S 0” BRI ISDN interface* • CGW-P – Connected to a PRI interface* * to be presented soon. Copyright © July 2004 by ITS Page 5

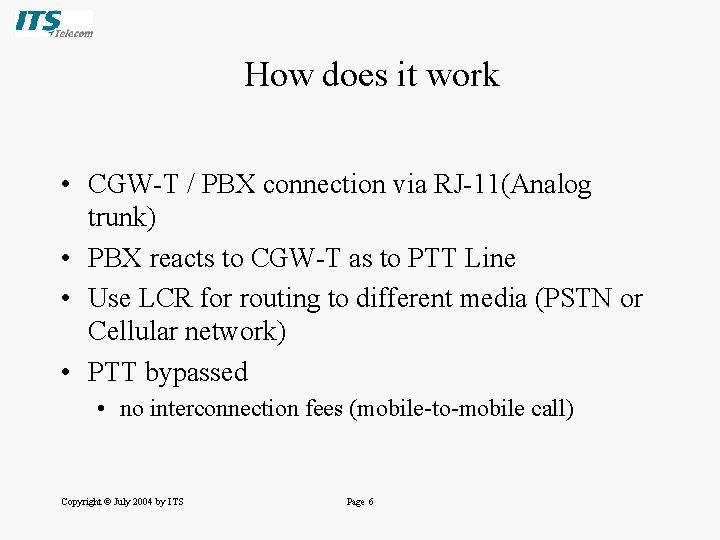

How does it work • CGW-T / PBX connection via RJ-11(Analog trunk) • PBX

How does it work • CGW-T / PBX connection via RJ-11(Analog trunk) • PBX reacts to CGW-T as to PTT Line • Use LCR for routing to different media (PSTN or Cellular network) • PTT bypassed • no interconnection fees (mobile-to-mobile call) Copyright © July 2004 by ITS Page 6

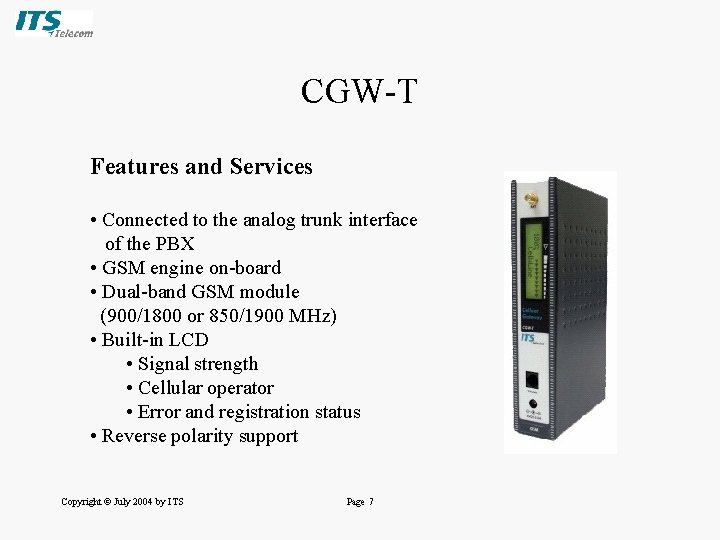

CGW-T Features and Services • Connected to the analog trunk interface of the PBX

CGW-T Features and Services • Connected to the analog trunk interface of the PBX • GSM engine on-board • Dual-band GSM module (900/1800 or 850/1900 MHz) • Built-in LCD • Signal strength • Cellular operator • Error and registration status • Reverse polarity support Copyright © July 2004 by ITS Page 7

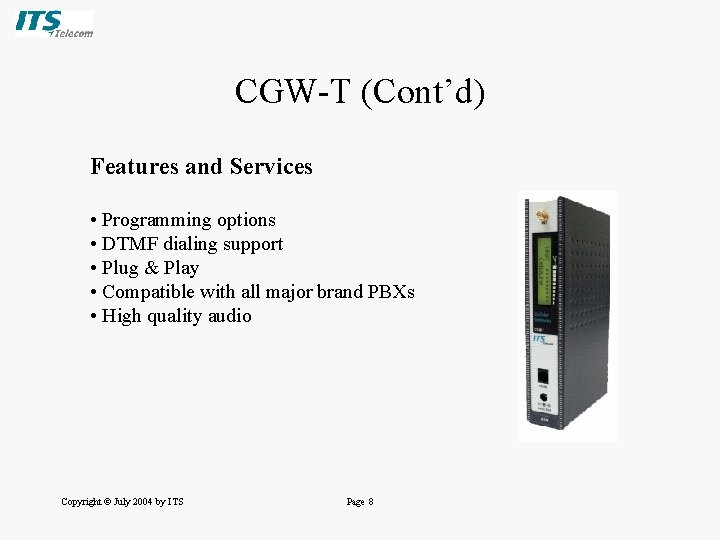

CGW-T (Cont’d) Features and Services • Programming options • DTMF dialing support • Plug

CGW-T (Cont’d) Features and Services • Programming options • DTMF dialing support • Plug & Play • Compatible with all major brand PBXs • High quality audio Copyright © July 2004 by ITS Page 8

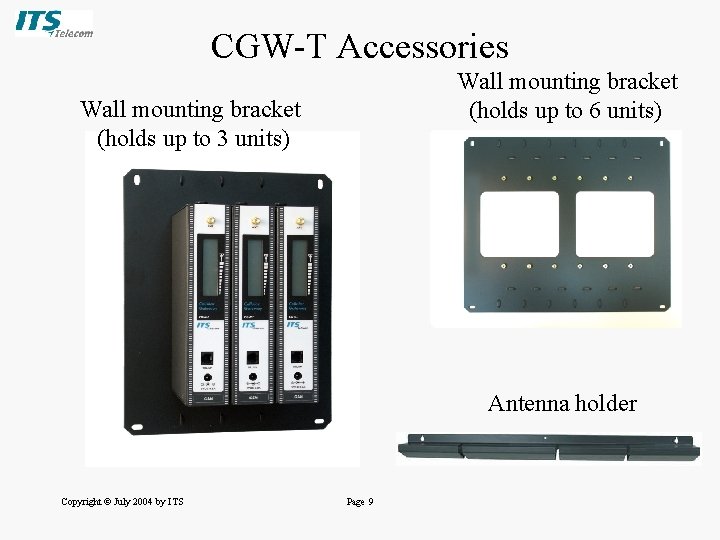

CGW-T Accessories Wall mounting bracket (holds up to 6 units) Wall mounting bracket (holds

CGW-T Accessories Wall mounting bracket (holds up to 6 units) Wall mounting bracket (holds up to 3 units) Antenna holder Copyright © July 2004 by ITS Page 9

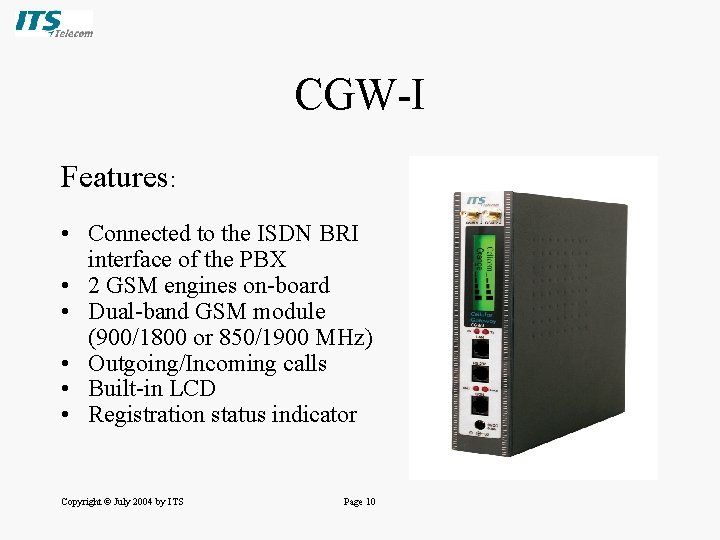

CGW-I Features: • Connected to the ISDN BRI interface of the PBX • 2

CGW-I Features: • Connected to the ISDN BRI interface of the PBX • 2 GSM engines on-board • Dual-band GSM module (900/1800 or 850/1900 MHz) • Outgoing/Incoming calls • Built-in LCD • Registration status indicator Copyright © July 2004 by ITS Page 10

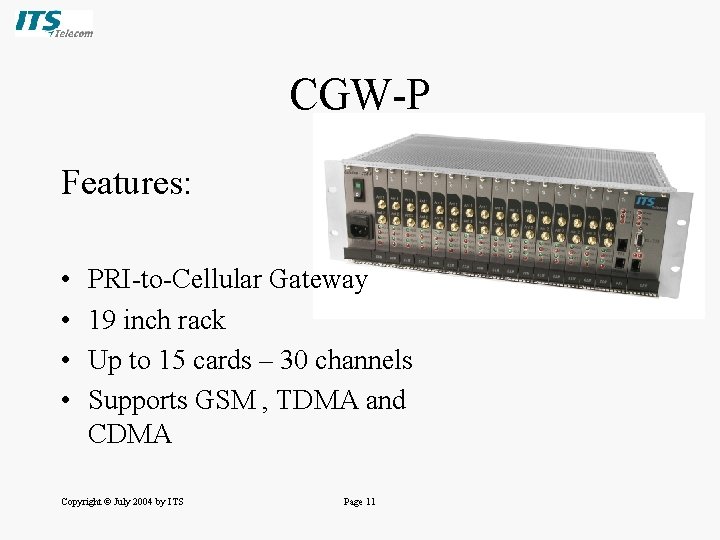

CGW-P Features: • • PRI-to-Cellular Gateway 19 inch rack Up to 15 cards –

CGW-P Features: • • PRI-to-Cellular Gateway 19 inch rack Up to 15 cards – 30 channels Supports GSM , TDMA and CDMA Copyright © July 2004 by ITS Page 11

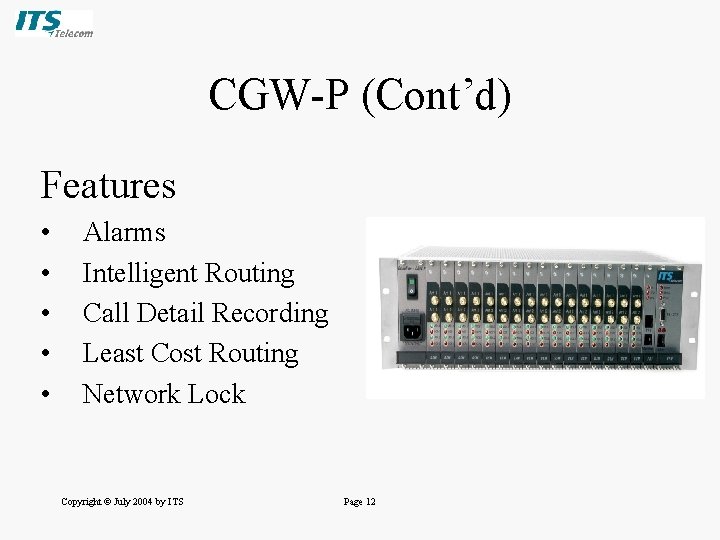

CGW-P (Cont’d) Features • • • Alarms Intelligent Routing Call Detail Recording Least Cost

CGW-P (Cont’d) Features • • • Alarms Intelligent Routing Call Detail Recording Least Cost Routing Network Lock Copyright © July 2004 by ITS Page 12
