2002 AASHTO ROADSIDE DESIGN GUIDE A CONCISE OVERVIEW

2002 AASHTO ROADSIDE DESIGN GUIDE A CONCISE OVERVIEW

Background The first edition of the AASHTO Roadside Design Guide was published in 1989. It combined and updated information from: u The 1974 AASHTO “Yellow Book, ” Highway Design and Operational Practices Related to Highway Safety u The 1977 AASHTO “Barrier Guide, ” Guide for Selecting, Locating, and Designing Traffic Barriers u Numerous research reports on various aspects of roadside safety

Background The first Roadside Design Guide contained nine chapters: u u Introduction Roadside Safety and Economics Roadside Topography and Drainage Features Sign and Luminaire Supports and Similar Roadside Features u u u Roadside Barriers (including terminals) Median Barriers (including terminals) Bridge Railings Crash Cushions Safety Appurtenances for Work Zones

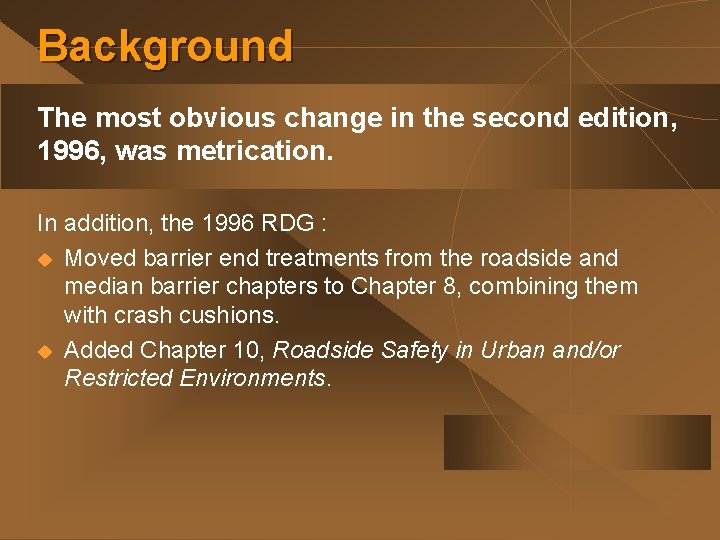

Background The most obvious change in the second edition, 1996, was metrication. In addition, the 1996 RDG : u Moved barrier end treatments from the roadside and median barrier chapters to Chapter 8, combining them with crash cushions. u Added Chapter 10, Roadside Safety in Urban and/or Restricted Environments.

The New Guide The 2002 Edition of the Roadside Design Guide is written in dual units per AASHTO policy. Additional changes include: u For the most part, only hardware meeting NCHRP Report 350 test evaluation criteria is included. u Chapter 11, Erecting Mailboxes on Streets and Highways, has been added, replacing the AASHTO guide publication of the same name.

The New Guide Roadside Safety Analysis Program (RSAP) One additional change in the 2002 RDG is the substitution of a new cost-effectiveness algorithm for comparing alternative safety improvement designs. This new computer program, which replaces “ROADSIDE, ” is called the “Roadside Safety Analysis Program, ” or RSAP. While it will be described in Appendix A of the 2002 RDG, the computer program itself and a User’s Guide will be distributed separately.

The New Guide Design Options for Safer Roadsides Common to all editions of the Roadside Design Guide are the design options for creating safer roadsides. These design options, in order of preference, are: • • • Remove the obstacle Redesign the obstacle so it can be safely traversed Relocate the obstacle Reduce the impact severity using a breakaway device Shield the obstacle using a traffic barrier or crash cushion

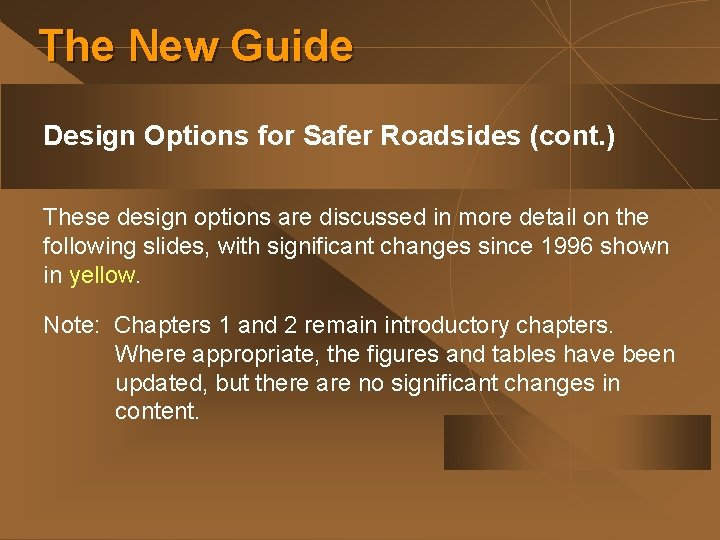

The New Guide Design Options for Safer Roadsides (cont. ) These design options are discussed in more detail on the following slides, with significant changes since 1996 shown in yellow. Note: Chapters 1 and 2 remain introductory chapters. Where appropriate, the figures and tables have been updated, but there are no significant changes in content.

Design Options: Remove, Redesign, or Relocate u u To the extent practical, all roadsides should be traversable and contain no objects likely to cause severe injuries when struck by a motorist. This concept is the cornerstone of the “forgiving roadside” philosophy. Chapter 3, Roadside Topography and Drainage Features, addresses the clear zone issue and the safety treatment of ditches, pipes, and culverts in the roadside.

Chapter 3: Roadside Topography and Drainage Features u u u Recommended clear zones are minimums Minimum clear zone increases as foreslopes become steeper Curbs have no physical effect on clear zone Transverse slopes must be much flatter than parallel slopes Pipes should “match” traversable slopes in w e N 002 2

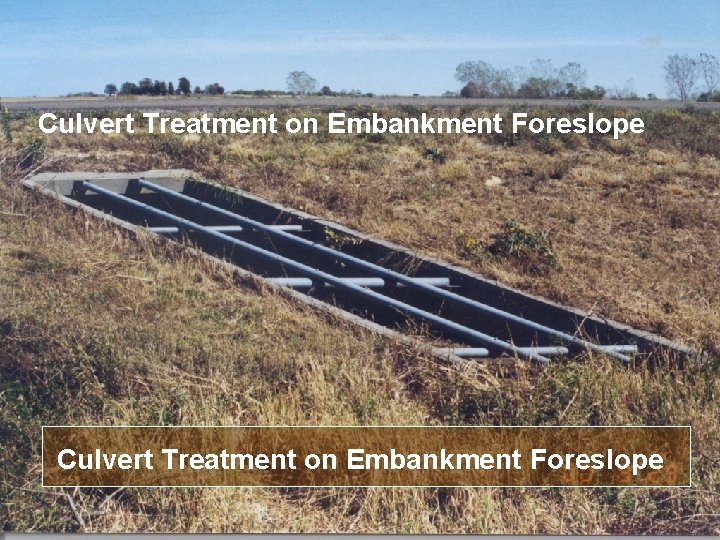

Culvert Treatment on Embankment Foreslope

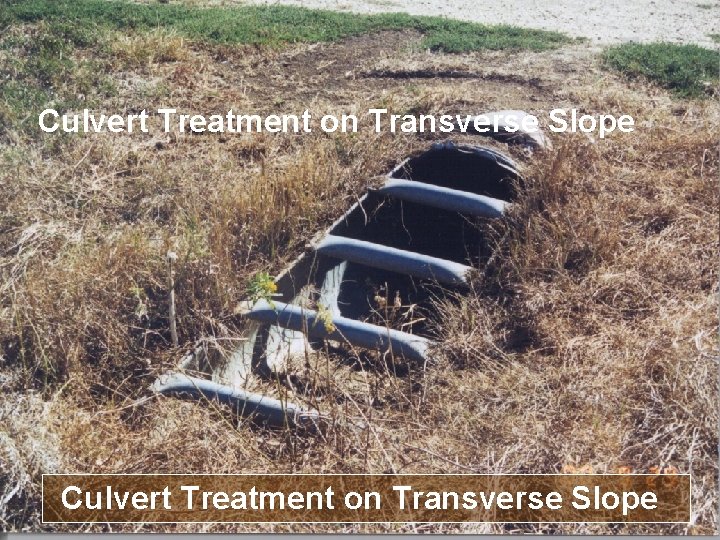

Culvert Treatment on Transverse Slope

Design Options: Reduce Impact Severity u u Roadside hardware that cannot be removed or located farther from the roadway should be designed to yield when struck, decreasing the likelihood of serious injury. Chapter 4 on supports, poles, and trees, and Chapter 11 on mailboxes identify acceptable breakaway designs and installation practices for sign supports and poles in the right-of-way.

Chapter 4: Supports, Poles, Trees, and Similar Roadside Features u u Use breakaway designs where feasible Move farther from roadway Shield with barrier or crash cushion Maintain existing recovery areas

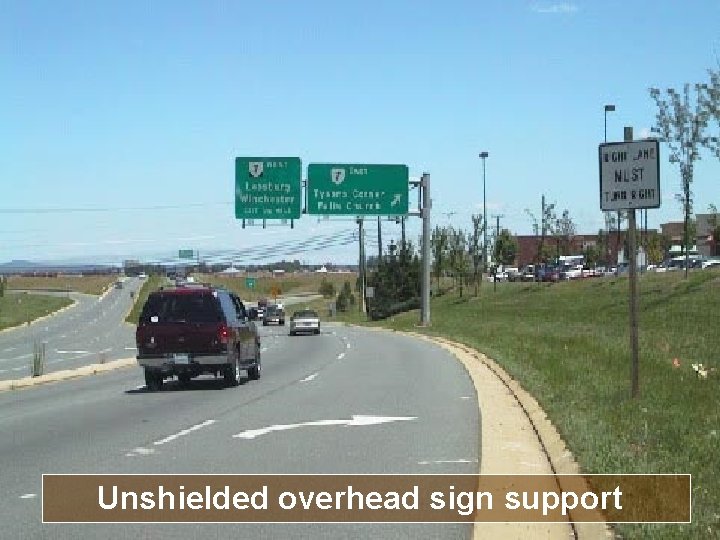

Unshielded overhead sign support

Chapter 11: Mailboxes u u in w e N 002 2 New chapter Deadly designs Crashworthy designs New concerns

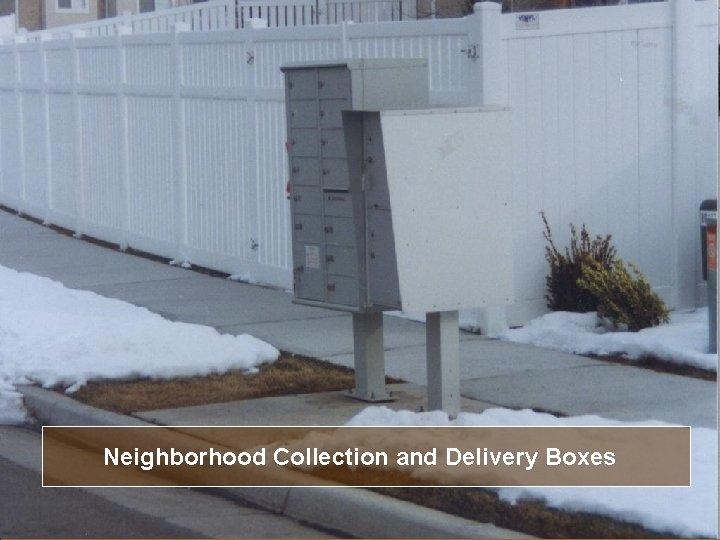

Neighborhood Collection and Delivery Boxes

Design Options: Shield the Obstacle u u u Whenever a hazardous terrain feature or fixed object cannot be eliminated through redesign or made to yield on impact, shielding with an appropriate traffic barrier should be considered. Chapters 5, 6, and 7 present design details for crashworthy roadside and median barriers and bridge railings, respectively. Chapter 8 provides information on acceptable terminals (end treatments) for traffic barriers, and on crash cushions.

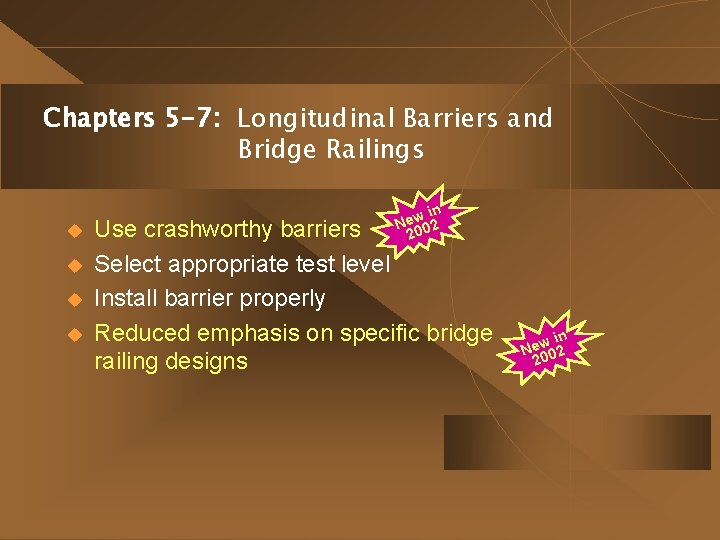

Chapters 5 -7: Longitudinal Barriers and Bridge Railings u u in w e N 002 2 Use crashworthy barriers Select appropriate test level Install barrier properly Reduced emphasis on specific bridge railing designs in w e N 002 2

Chapter 8: Barrier Terminals and Crash Cushions u u u Barriers terminals Selection and site grading Crash Cushions in w e N 002 2

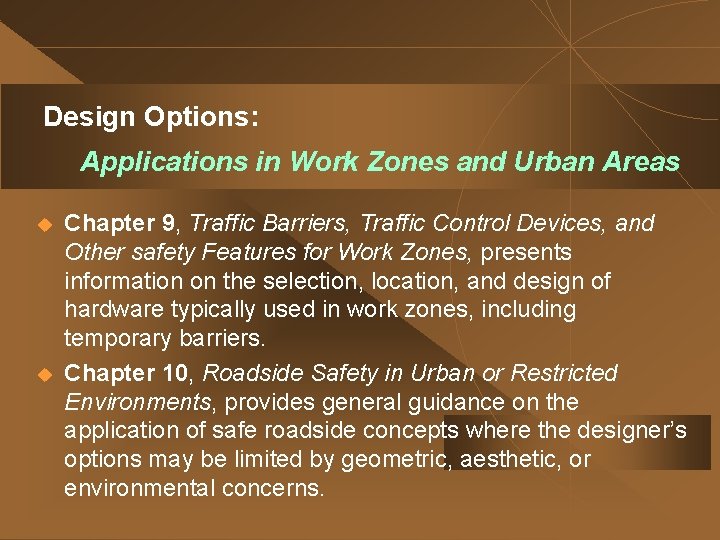

Design Options: Applications in Work Zones and Urban Areas u u Chapter 9, Traffic Barriers, Traffic Control Devices, and Other safety Features for Work Zones, presents information on the selection, location, and design of hardware typically used in work zones, including temporary barriers. Chapter 10, Roadside Safety in Urban or Restricted Environments, provides general guidance on the application of safe roadside concepts where the designer’s options may be limited by geometric, aesthetic, or environmental concerns.

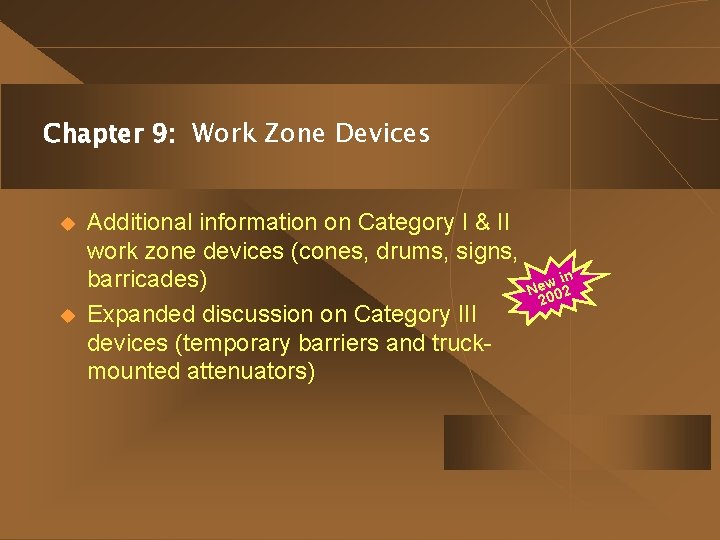

Chapter 9: Work Zone Devices u u Additional information on Category I & II work zone devices (cones, drums, signs, barricades) Expanded discussion on Category III devices (temporary barriers and truckmounted attenuators) in w e N 002 2

Chapter 10: Urban Roadside Design Concerns u u u Addresses application of roadside design principles where limited rights-of-way restrict available options Re-emphasizes clear zone considerations in urban in w e N 002 areas 2 Incorporates former AASHTO Guide for Protective Screening of Overpass Structures

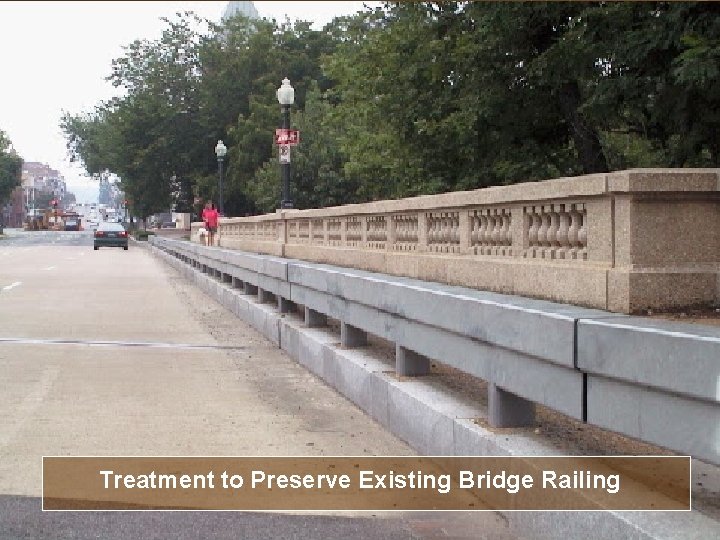

Treatment to Preserve Existing Bridge Railing

Inappropriate Landscaping ?

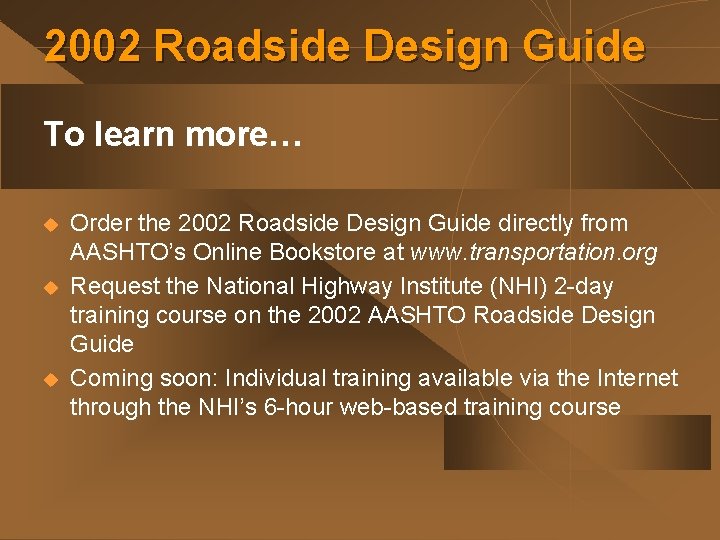

2002 Roadside Design Guide To learn more… u u u Order the 2002 Roadside Design Guide directly from AASHTO’s Online Bookstore at www. transportation. org Request the National Highway Institute (NHI) 2 -day training course on the 2002 AASHTO Roadside Design Guide Coming soon: Individual training available via the Internet through the NHI’s 6 -hour web-based training course
