200 Series Addressable Emergency-Call System Ideal for Assisted Living Facilities, Independent Living Facilities, Clinics, Urgent Care and Medical Offices. 2/4 -Wires or Wireless Call Devices Copyright 2018 Alpha Communications. All rights Reserved.

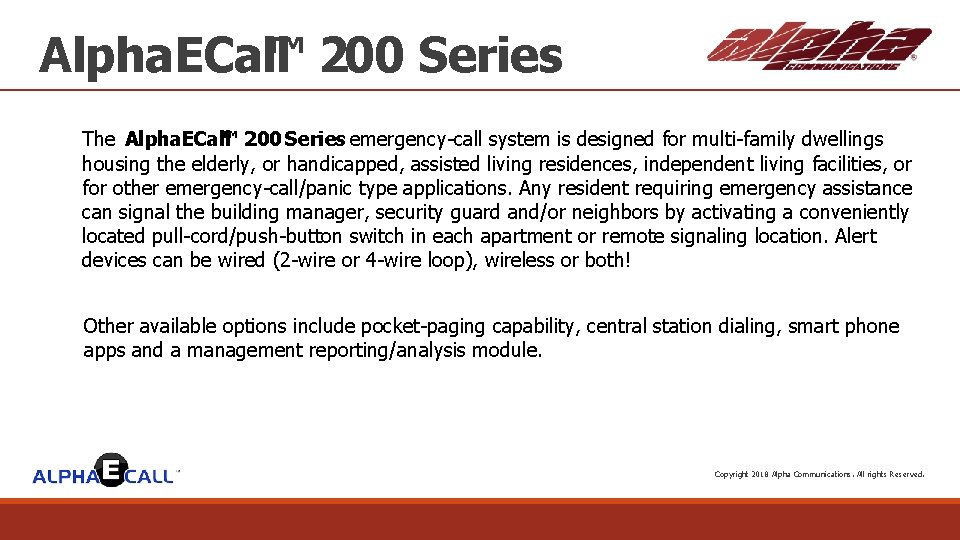

Alpha. ECall ™ 200 Series The Alpha. ECall ™ 200 Series emergency-call system is designed for multi-family dwellings housing the elderly, or handicapped, assisted living residences, independent living facilities, or for other emergency-call/panic type applications. Any resident requiring emergency assistance can signal the building manager, security guard and/or neighbors by activating a conveniently located pull-cord/push-button switch in each apartment or remote signaling location. Alert devices can be wired (2 -wire or 4 -wire loop), wireless or both! Other available options include pocket-paging capability, central station dialing, smart phone apps and a management reporting/analysis module. Copyright 2018 Alpha Communications. All rights Reserved.

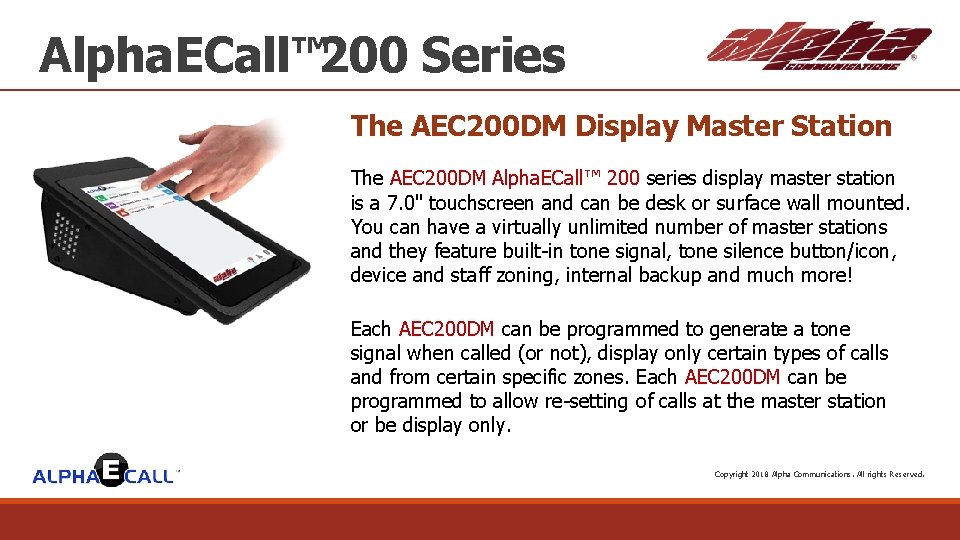

Alpha. ECall™ 200 Series The AEC 200 DM Display Master Station The AEC 200 DM Alpha. ECall™ 200 series display master station is a 7. 0" touchscreen and can be desk or surface wall mounted. You can have a virtually unlimited number of master stations and they feature built-in tone signal, tone silence button/icon, device and staff zoning, internal backup and much more! Each AEC 200 DM can be programmed to generate a tone signal when called (or not), display only certain types of calls and from certain specific zones. Each AEC 200 DM can be programmed to allow re-setting of calls at the master station or be display only. Copyright 2018 Alpha Communications. All rights Reserved.

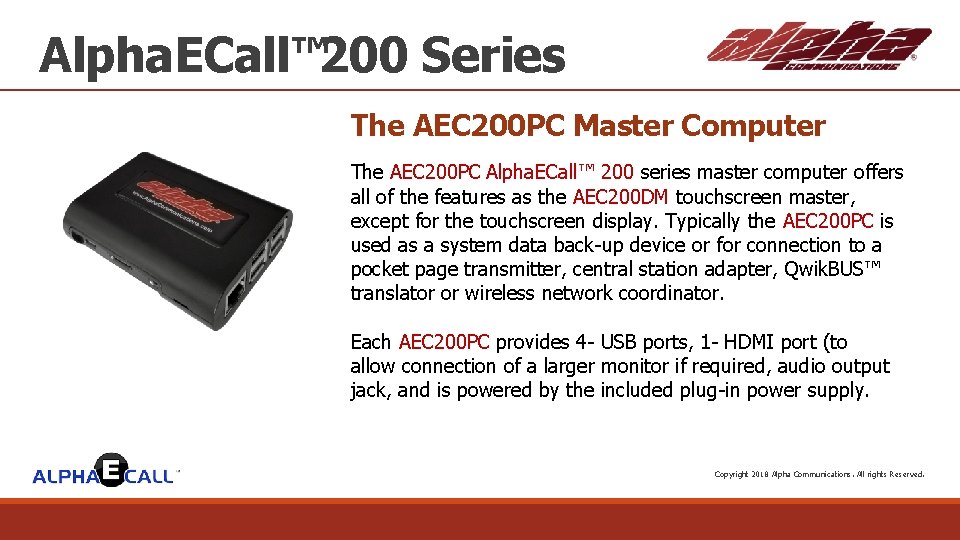

Alpha. ECall™ 200 Series The AEC 200 PC Master Computer The AEC 200 PC Alpha. ECall™ 200 series master computer offers all of the features as the AEC 200 DM touchscreen master, except for the touchscreen display. Typically the AEC 200 PC is used as a system data back-up device or for connection to a pocket page transmitter, central station adapter, Qwik. BUS™ translator or wireless network coordinator. Each AEC 200 PC provides 4 - USB ports, 1 - HDMI port (to allow connection of a larger monitor if required, audio output jack, and is powered by the included plug-in power supply. Copyright 2018 Alpha Communications. All rights Reserved.

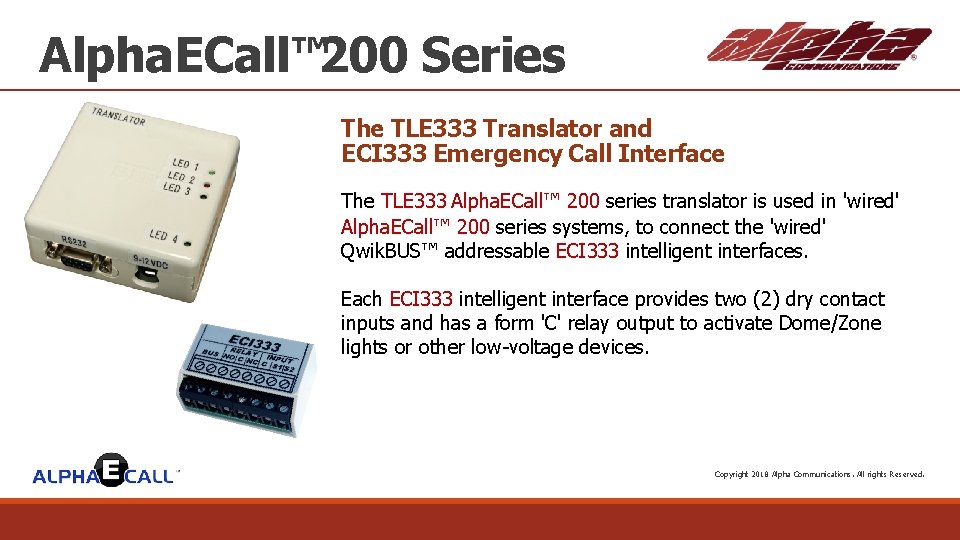

Alpha. ECall™ 200 Series The TLE 333 Translator and ECI 333 Emergency Call Interface The TLE 333 Alpha. ECall™ 200 series translator is used in 'wired' Alpha. ECall™ 200 series systems, to connect the 'wired' Qwik. BUS™ addressable ECI 333 intelligent interfaces. Each ECI 333 intelligent interface provides two (2) dry contact inputs and has a form 'C' relay output to activate Dome/Zone lights or other low-voltage devices. Copyright 2018 Alpha Communications. All rights Reserved.

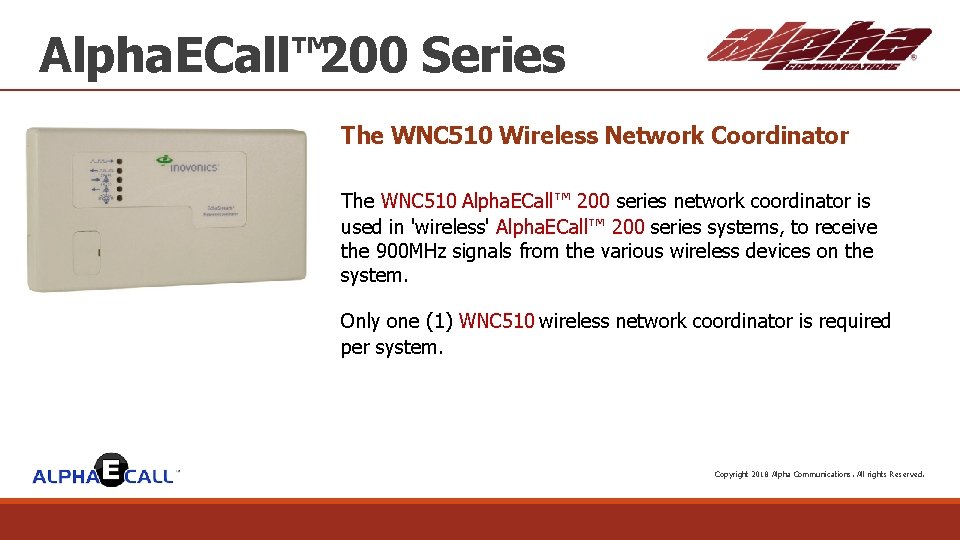

Alpha. ECall™ 200 Series The WNC 510 Wireless Network Coordinator The WNC 510 Alpha. ECall™ 200 series network coordinator is used in 'wireless' Alpha. ECall™ 200 series systems, to receive the 900 MHz signals from the various wireless devices on the system. Only one (1) WNC 510 wireless network coordinator is required per system. Copyright 2018 Alpha Communications. All rights Reserved.

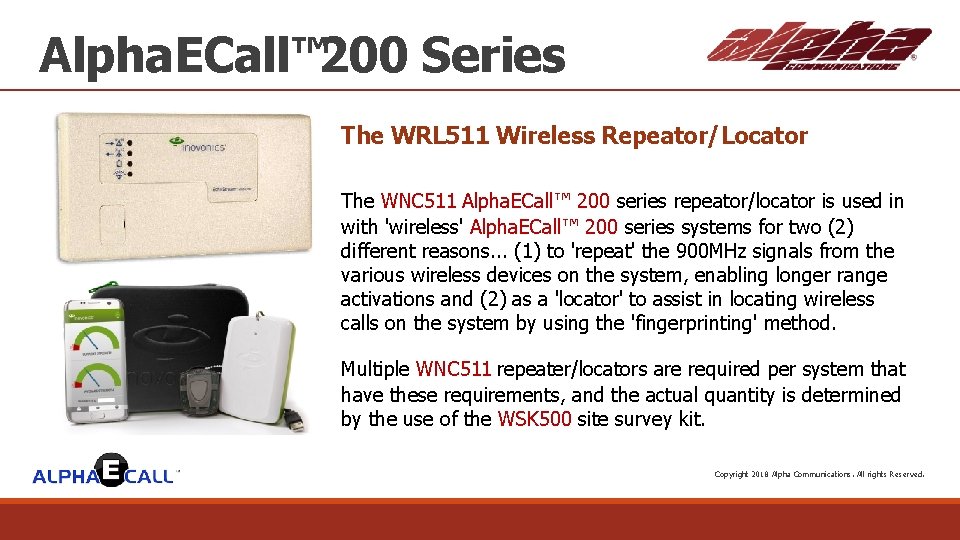

Alpha. ECall™ 200 Series The WRL 511 Wireless Repeator/Locator The WNC 511 Alpha. ECall™ 200 series repeator/locator is used in with 'wireless' Alpha. ECall™ 200 series systems for two (2) different reasons. . . (1) to 'repeat' the 900 MHz signals from the various wireless devices on the system, enabling longer range activations and (2) as a 'locator' to assist in locating wireless calls on the system by using the 'fingerprinting' method. Multiple WNC 511 repeater/locators are required per system that have these requirements, and the actual quantity is determined by the use of the WSK 500 site survey kit. Copyright 2018 Alpha Communications. All rights Reserved.

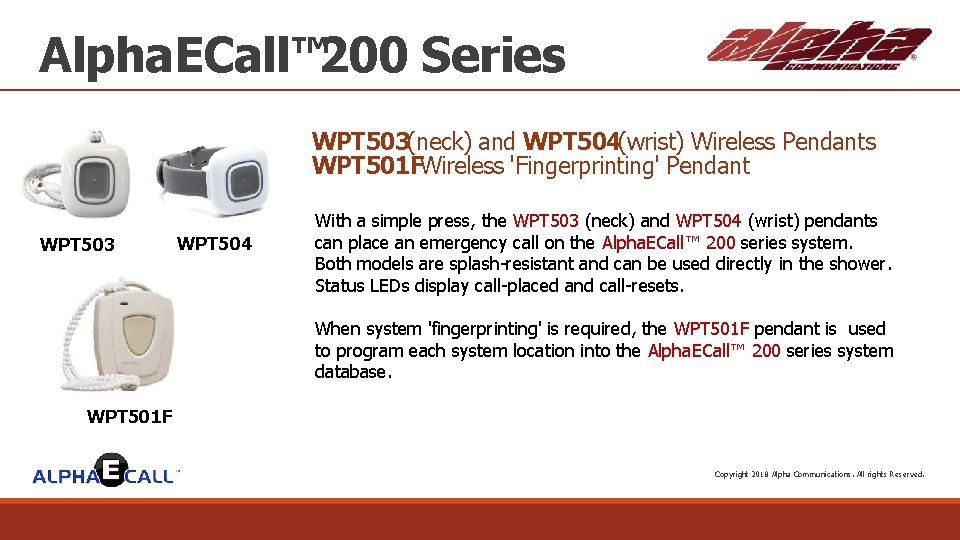

Alpha. ECall™ 200 Series WPT 503 (neck) and WPT 504 (wrist) Wireless Pendants WPT 501 F Wireless 'Fingerprinting' Pendant WPT 503 WPT 504 With a simple press, the WPT 503 (neck) and WPT 504 (wrist) pendants can place an emergency call on the Alpha. ECall™ 200 series system. Both models are splash-resistant and can be used directly in the shower. Status LEDs display call-placed and call-resets. When system 'fingerprinting' is required, the WPT 501 F pendant is used to program each system location into the Alpha. ECall™ 200 series system database. WPT 501 F Copyright 2018 Alpha Communications. All rights Reserved.

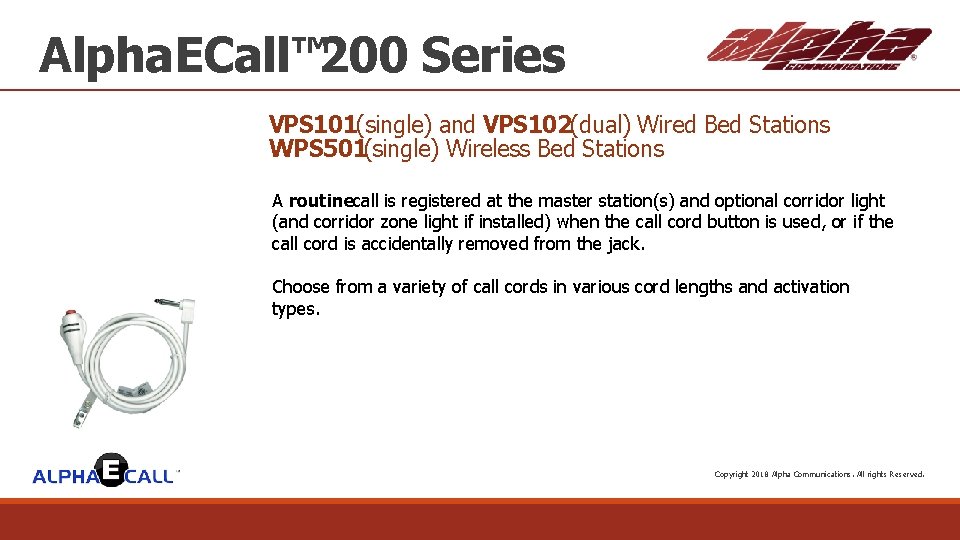

Alpha. ECall™ 200 Series VPS 101 (single) and VPS 102 (dual) Wired Bed Stations WPS 501 (single) Wireless Bed Stations A routine call is registered at the master station(s) and optional corridor light (and corridor zone light if installed) when the call cord button is used, or if the call cord is accidentally removed from the jack. Choose from a variety of call cords in various cord lengths and activation types. Copyright 2018 Alpha Communications. All rights Reserved.

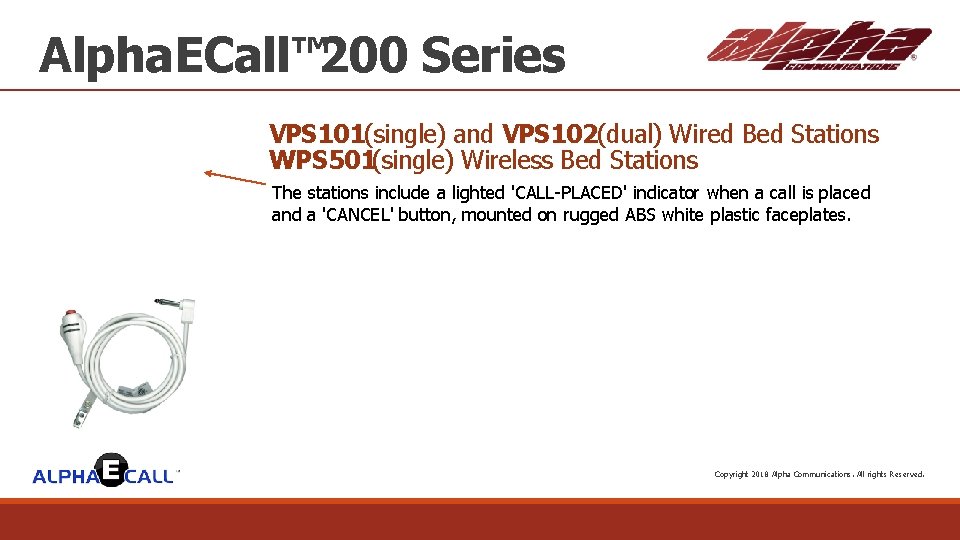

Alpha. ECall™ 200 Series VPS 101 (single) and VPS 102 (dual) Wired Bed Stations WPS 501 (single) Wireless Bed Stations The stations include a lighted 'CALL-PLACED' indicator when a call is placed and a 'CANCEL' button, mounted on rugged ABS white plastic faceplates. Copyright 2018 Alpha Communications. All rights Reserved.

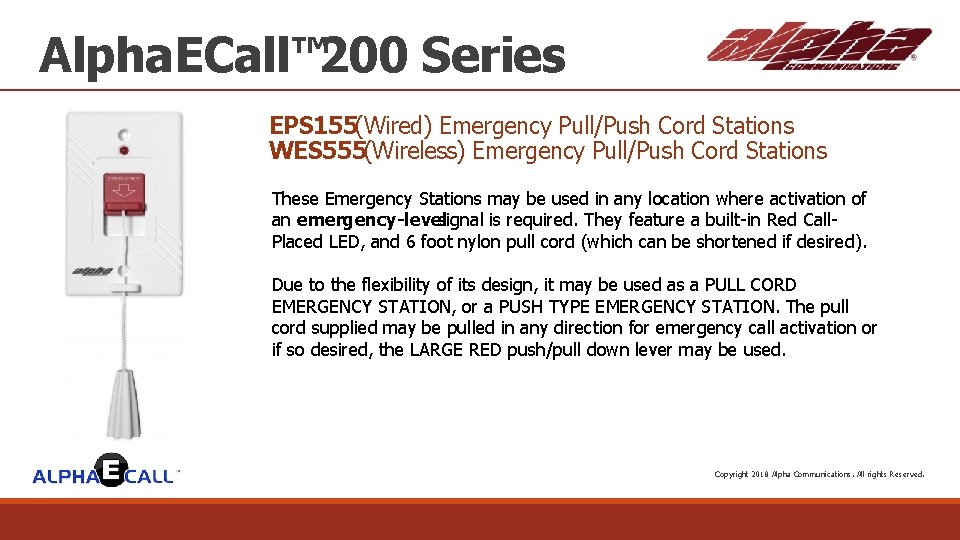

Alpha. ECall™ 200 Series EPS 155(Wired) Emergency Pull/Push Cord Stations WES 555(Wireless) Emergency Pull/Push Cord Stations These Emergency Stations may be used in any location where activation of an emergency-level signal is required. They feature a built-in Red Call. Placed LED, and 6 foot nylon pull cord (which can be shortened if desired). Due to the flexibility of its design, it may be used as a PULL CORD EMERGENCY STATION, or a PUSH TYPE EMERGENCY STATION. The pull cord supplied may be pulled in any direction for emergency call activation or if so desired, the LARGE RED push/pull down lever may be used. Copyright 2018 Alpha Communications. All rights Reserved.

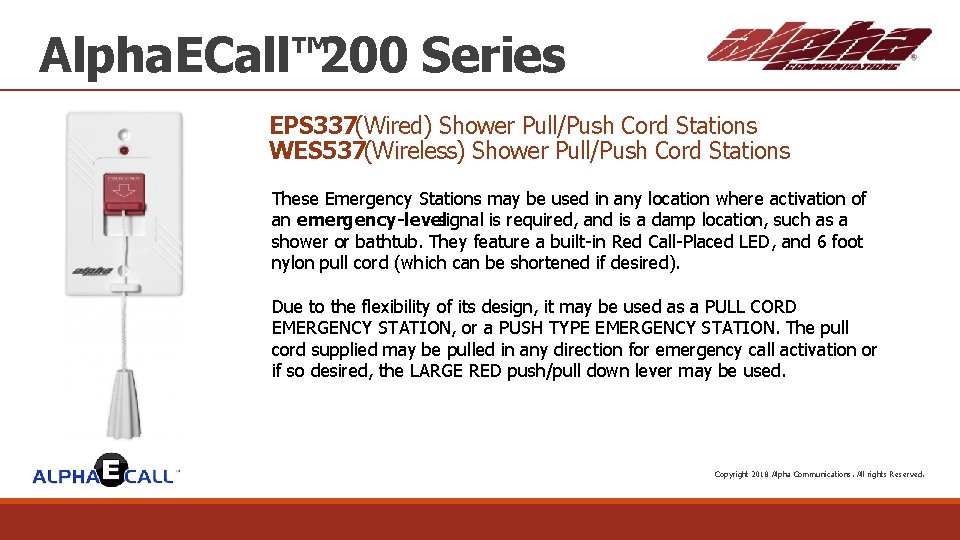

Alpha. ECall™ 200 Series EPS 337(Wired) Shower Pull/Push Cord Stations WES 537(Wireless) Shower Pull/Push Cord Stations These Emergency Stations may be used in any location where activation of an emergency-level signal is required, and is a damp location, such as a shower or bathtub. They feature a built-in Red Call-Placed LED, and 6 foot nylon pull cord (which can be shortened if desired). Due to the flexibility of its design, it may be used as a PULL CORD EMERGENCY STATION, or a PUSH TYPE EMERGENCY STATION. The pull cord supplied may be pulled in any direction for emergency call activation or if so desired, the LARGE RED push/pull down lever may be used. Copyright 2018 Alpha Communications. All rights Reserved.

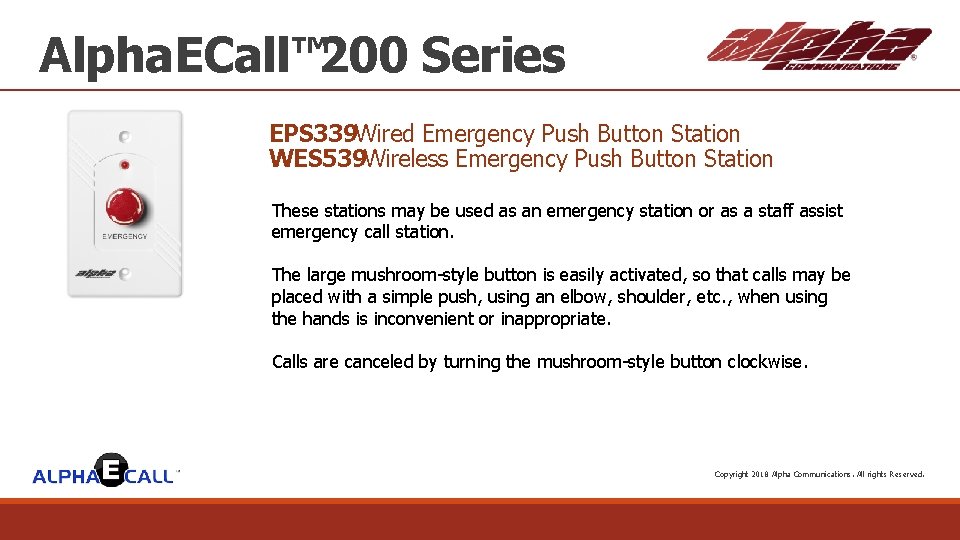

Alpha. ECall™ 200 Series EPS 339 Wired Emergency Push Button Station WES 539 Wireless Emergency Push Button Station These stations may be used as an emergency station or as a staff assist emergency call station. The large mushroom-style button is easily activated, so that calls may be placed with a simple push, using an elbow, shoulder, etc. , when using the hands is inconvenient or inappropriate. Calls are canceled by turning the mushroom-style button clockwise. Copyright 2018 Alpha Communications. All rights Reserved.

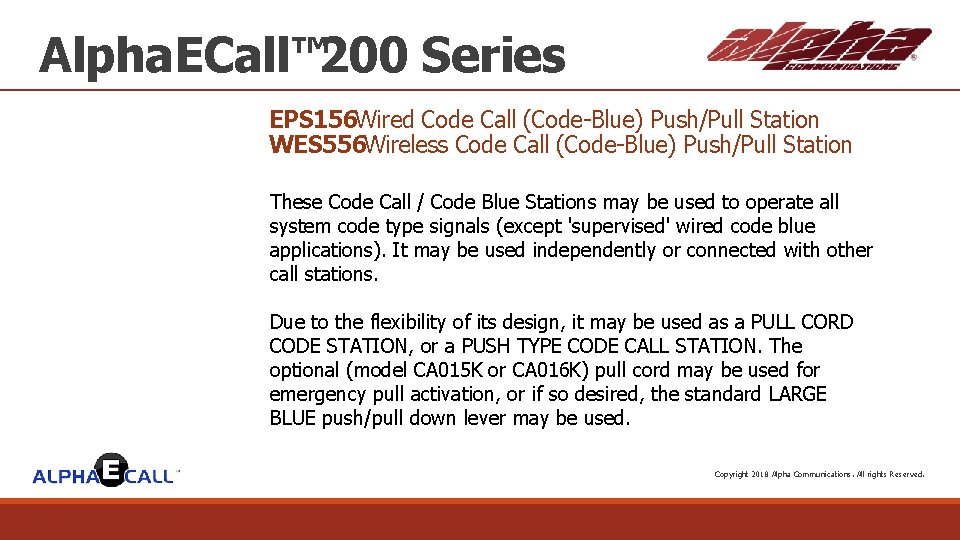

Alpha. ECall™ 200 Series EPS 156 Wired Code Call (Code-Blue) Push/Pull Station WES 556 Wireless Code Call (Code-Blue) Push/Pull Station These Code Call / Code Blue Stations may be used to operate all system code type signals (except 'supervised' wired code blue applications). It may be used independently or connected with other call stations. Due to the flexibility of its design, it may be used as a PULL CORD CODE STATION, or a PUSH TYPE CODE CALL STATION. The optional (model CA 015 K or CA 016 K) pull cord may be used for emergency pull activation, or if so desired, the standard LARGE BLUE push/pull down lever may be used. Copyright 2018 Alpha Communications. All rights Reserved.

Alpha. ECall™ 200 Series VSS 110 Wired Staff Station WSS 510 Wireless Staff Station These Staff Stations incorporate push button operation of call and cancel functions. A call is registered at the Master Station(s) and on an optional wired corridor light and/or corridor zone light (if installed) when the call switch with integral "CALL PLACED" LED is pushed. The "CALL PLACED" LED is also illuminated. Calls are canceled simply by depressing the "CANCEL" button mounted on a rugged ABS plastic faceplate. The "CALL PLACED" LED will also be extinguished. Copyright 2018 Alpha Communications. All rights Reserved.

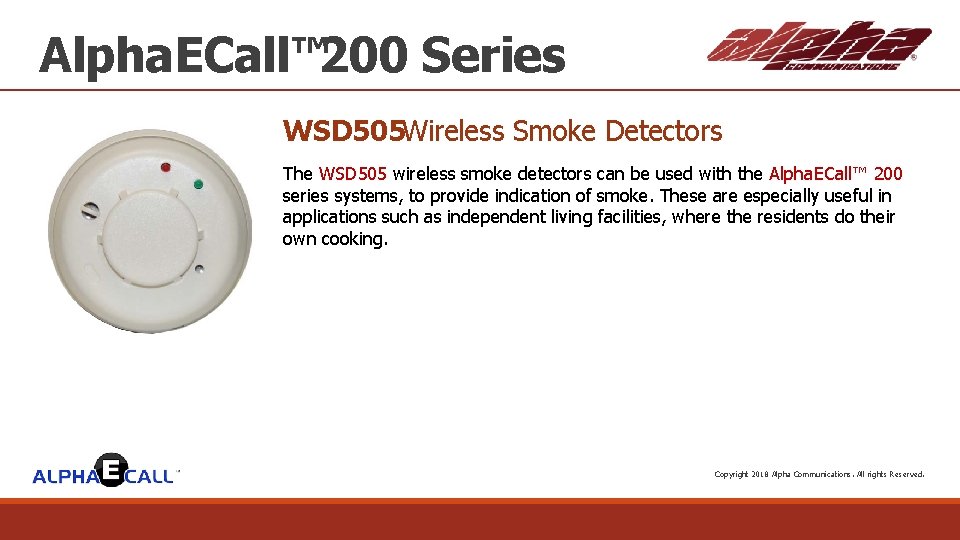

Alpha. ECall™ 200 Series WSD 505 Wireless Smoke Detectors The WSD 505 wireless smoke detectors can be used with the Alpha. ECall™ 200 series systems, to provide indication of smoke. These are especially useful in applications such as independent living facilities, where the residents do their own cooking. Copyright 2018 Alpha Communications. All rights Reserved.

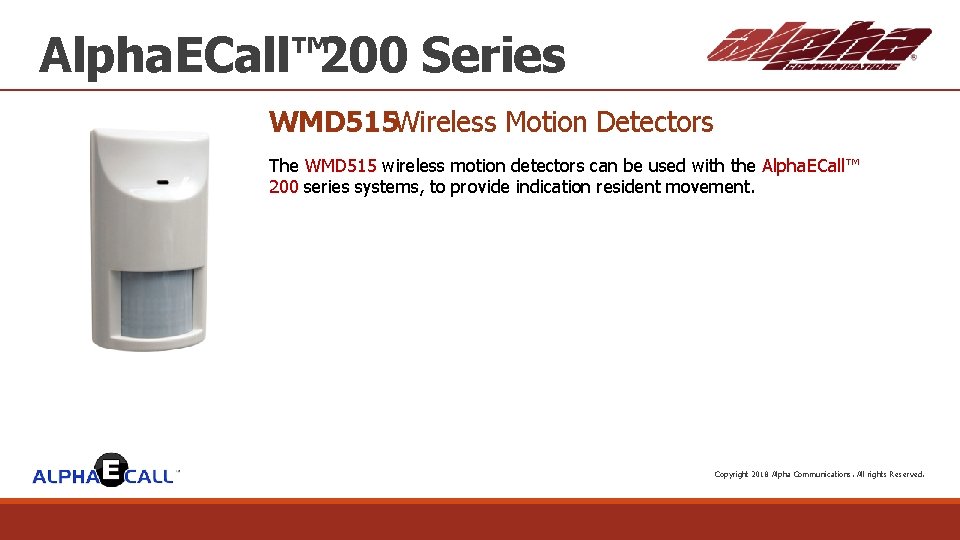

Alpha. ECall™ 200 Series WMD 515 Wireless Motion Detectors The WMD 515 wireless motion detectors can be used with the Alpha. ECall™ 200 series systems, to provide indication resident movement. Copyright 2018 Alpha Communications. All rights Reserved.

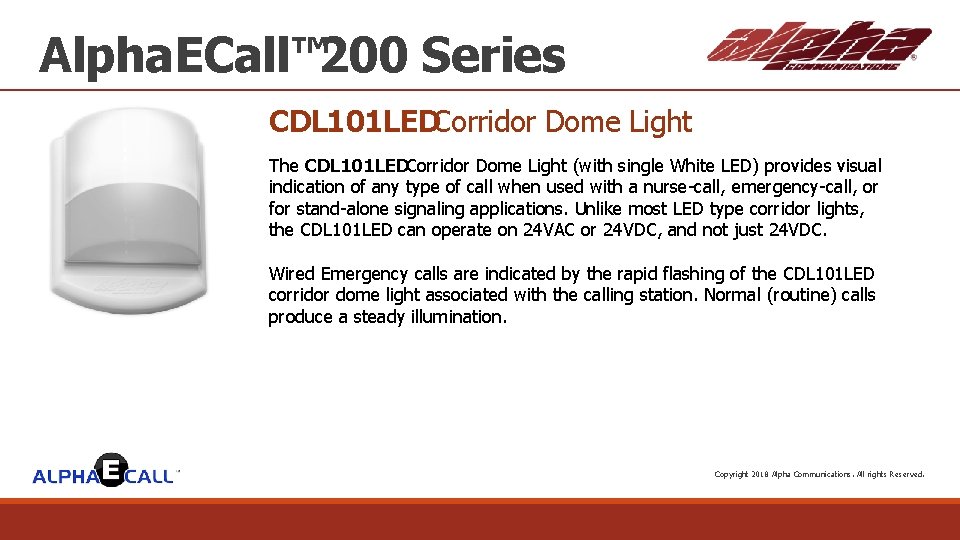

Alpha. ECall™ 200 Series CDL 101 LEDCorridor Dome Light The CDL 101 LED Corridor Dome Light (with single White LED) provides visual indication of any type of call when used with a nurse-call, emergency-call, or for stand-alone signaling applications. Unlike most LED type corridor lights, the CDL 101 LED can operate on 24 VAC or 24 VDC, and not just 24 VDC. Wired Emergency calls are indicated by the rapid flashing of the CDL 101 LED corridor dome light associated with the calling station. Normal (routine) calls produce a steady illumination. Copyright 2018 Alpha Communications. All rights Reserved.

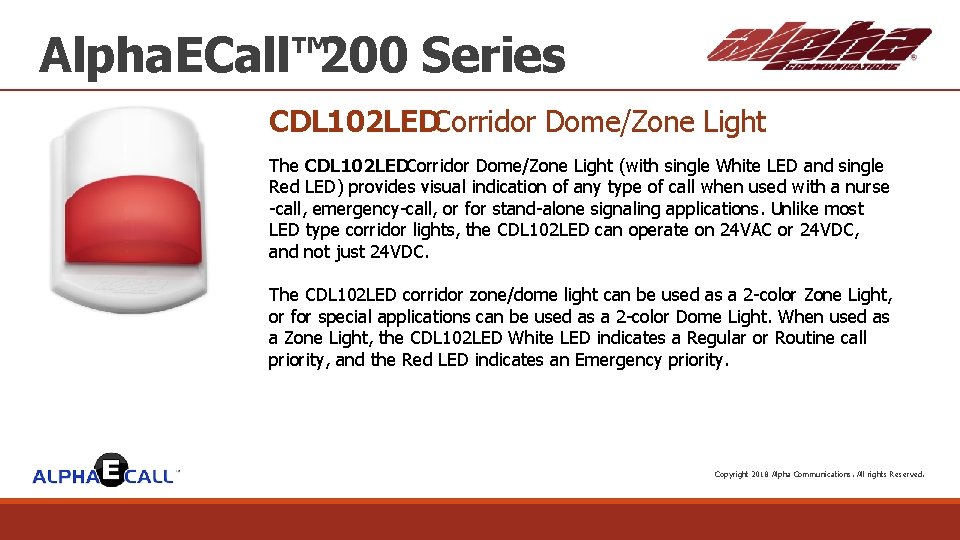

Alpha. ECall™ 200 Series CDL 102 LEDCorridor Dome/Zone Light The CDL 102 LED Corridor Dome/Zone Light (with single White LED and single Red LED) provides visual indication of any type of call when used with a nurse -call, emergency-call, or for stand-alone signaling applications. Unlike most LED type corridor lights, the CDL 102 LED can operate on 24 VAC or 24 VDC, and not just 24 VDC. The CDL 102 LED corridor zone/dome light can be used as a 2 -color Zone Light, or for special applications can be used as a 2 -color Dome Light. When used as a Zone Light, the CDL 102 LED White LED indicates a Regular or Routine call priority, and the Red LED indicates an Emergency priority. Copyright 2018 Alpha Communications. All rights Reserved.

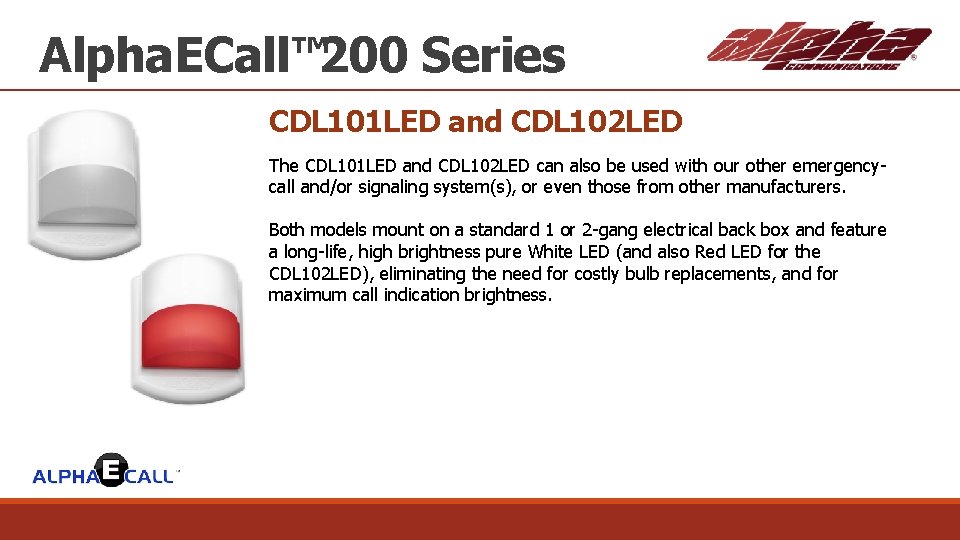

Alpha. ECall™ 200 Series CDL 101 LED and CDL 102 LED The CDL 101 LED and CDL 102 LED can also be used with our other emergencycall and/or signaling system(s), or even those from other manufacturers. Both models mount on a standard 1 or 2 -gang electrical back box and feature a long-life, high brightness pure White LED (and also Red LED for the CDL 102 LED), eliminating the need for costly bulb replacements, and for maximum call indication brightness.

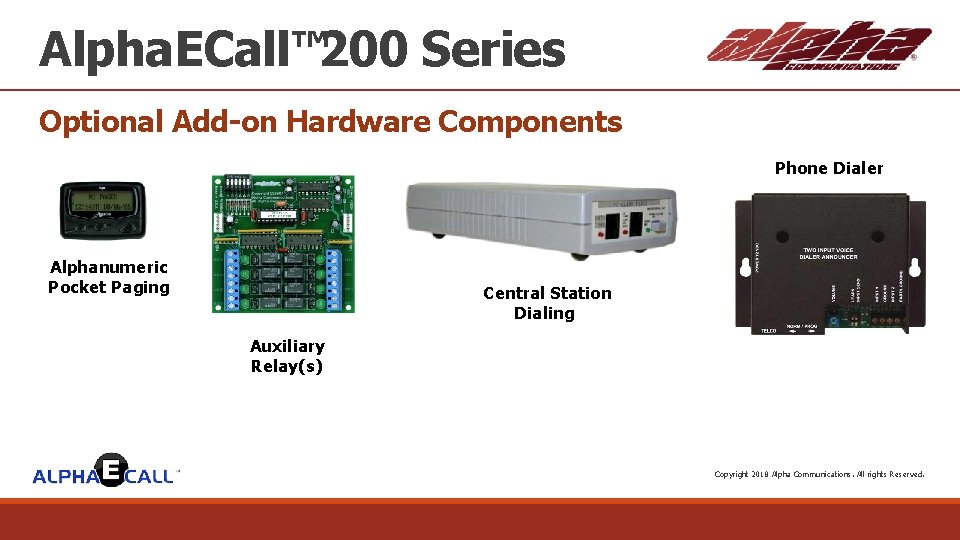

Alpha. ECall™ 200 Series Optional Add-on Hardware Components Phone Dialer Alphanumeric Pocket Paging Central Station Dialing Auxiliary Relay(s) Copyright 2018 Alpha Communications. All rights Reserved.

Alpha. ECall™ 200 Series Optional Software Capabilities The Alpha. ECall™ 200 Series has a simple web-based configuration UI that can be done from any networkconnected PC or mobile device with a web browser. Software options include a management reporting capability and smart phone (or smart tablet) staff notification for Android and/or i. OS (Apple) devices. Copyright 2018 Alpha Communications. All rights Reserved.

Alpha. ECall™ 200 Series For more information on this system, please visit: The Alpha. ECall™ 200 Series System Information Page ü ü Spec Sheets Wiring Information Downloads Literature Click to Configure Your Alpha. ECall™ 200 System with Alpha. Quote™ 42 Central Drive – Farmingdale NY 11735 -1202 P: 800 -666 -4800 F: 631 -777 -5599 Copyright 2018 Alpha Communications. All rights Reserved. www. Alpha. Communications. com
