2 Wire Door Entry System DES of MH

2 Wire Door Entry System (DES of MH BT offer)

Company Profile § § § § Art and Industry Company Founded shortly after the Second World War Part of the Legrand Group since 1989 Well-known brand name in more than 60 countries 14 Manufacturing Plants & over 5000 employees world wide 70% market share in Italy 1. 3 Billion Euro in turn over

Bticino 2 wire Door Entry System n Suitable for a wide range of applications n Good aesthetic range of Entrance Panels and Internal Handsets n High Audio and Video quality n Easy to install and configure Easy to integrate with My. Home Automation, Burglar Alarm, Thermal Control n n Continuous development to increase functions . . . Sound Diffusion,

Suitable for wide range of applications House Apartments Compound

Aesthetic range of Entrance Panels Sfera Monobloc Sfera Vandal Resistant Sfera Modular Linea 2000 Metal

Aesthetic range of Internal Handsets SPRINT POLYX SWING PIVOT AXOLUTE

Easy to install 2 WIRE, NON POLARIZED Bticino Twisted Cable (Recommended) Sheathed Non-twisted Cable Figure 8 Non Twisted Cable Cat 5 Cable Note : Depending on the cable used, distance limitations applies!

Easy to install BASIC INSTALLATION 2 Wire Audio DES Entrance Panel Power Supply Internal Handsets 2 Wire Audio Video DES Entrance Panel Power Supply Video Adaptor Internal Handsets

Easy to configure Entrance Panel Internal Handset

Easy to Configure BASIC CONFIGURATION N Audio DES P N T P N P 2 1 S 1 N=2 N=1 P N T Audio Video DES S 1 N=6 N=5 N=4 N=3 N=2 N =1 N P 2

Easy integration Security System Temperature Control Sound Diffusion Door Entry System Automation

Sfera Modular Assembly Mounting Box Function Modules Front Covers Front Frame Complete Entrance Panel Assembly

Sfera Vandal Resistant Assembly Mounting Box Function Modules 316 L Stainless Steel Front Cover

Sfera Function Modules & Modular Front Covers Colour or B/W Camera Speaker + Push Buttons Graphic Display + Speaker Numeric Digital Call Code Lock + Numeric Call Code Lock Name Plate or Blank

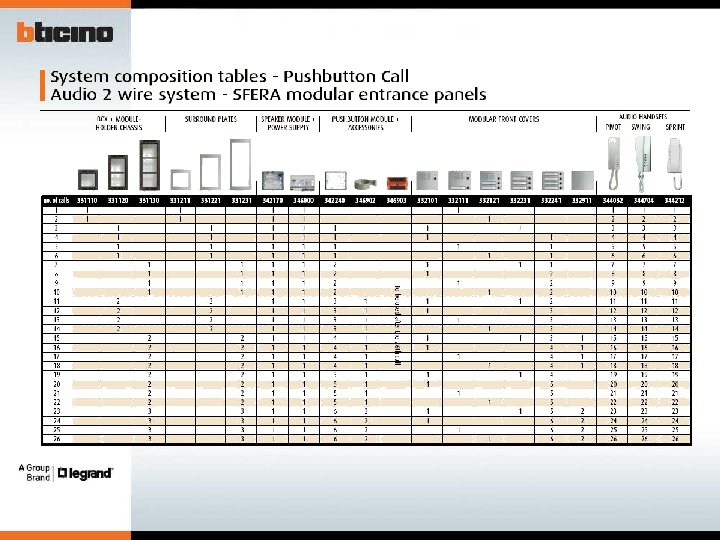

Audio & Video Kits

Configuration – Entrance Panel Pushbuttons Modules Only – Electronic card

Configuration – Entrance Panel Pushbuttons Modules Only – Electronic card in the last push button module For more than 26 call buttons (or more than 6 pushbutton modules), connecting cable has to be inverted

Configuration – Entrance Panel Speaker + Pushbutton Modules + P = Address of Entrance Panel (Max. 96) P N T S N = Call Number - address of Handset to start call T = Door lock relay timing S = Call signal / Ring tones to Handsets Digital Call Speaker Module P Speaker + Digital Call Modules T S No configurators required +

Configuration – Internal Handset N P N = Address of Handset P = Address of Entrance Panel NOTE: For any configuration or changes made, the DES must be powered off, wait several seconds and then powered on again for the programming changes to become effective

Configuration – EPs & Handsets Apartment 6 N Apartment 10 P N 1 6 Apartment 1 N 2 Apartment 7 P 1 P 0 1 N 1 P 7 2 Power Supply Apartment 6 Apartment 10 Entrance Panel Apartment 1 P N T 1 S Apartment 1 P N 1 T 1 S 1 Apartment 10 Entrance Panel Apartment 7 P N 2 T 7 S 1

Configuration – EPs & Handsets N P N 1 2 N P P 2 N 1 1 N 2 1 P Entrance Panel N T 1 S 2 1 Entrance Panel P N 1 1 T 1 S 2 N Power Supply Entrance Panel P P N 2 2 T 1 S 2 P 1 2

Configuration – EPs & Handsets N P N 1 2 N P P 2 N 1 1 N 2 1 P Entrance Panel N T 1 S 2 1 Entrance Panel P N 1 1 T 1 S 2 N Power Supply Entrance Panel P P N 2 2 T 1 S 2 P 1 2

Wiring to Door Strikes Entrance Panel P Camera module N T S T = Door lock relay timing BUS Speaker module PL S+ S- NOTE: Bticino does not sell door strikes SSCS Bus S+ 18 Vdc 4 A impulsive, (250 m. A holding current) PL Pushbutton Door Strike NOTE: Door lock is via pushbutton is not timed

Wiring Distances & Cable Types A B C Internal Panel Power Supply Entrance Panel 2 nominal cables Cat 5 E (0. 25 mm 2) (0. 28 mm 2) > 1 mm 2 AUDIO A max SYSTEM Bticino Cable 336904 (0. 5 mm 2) 190 m

Wiring Distances & Cable Types A B Internal Panel Power Video Supply Adaptor Entrance Panel 2 nominal cables > 0. 2 mm 2 VIDEO Amax SYSTEM C Cat 5 E (0. 25 mm 2) (0. 28 mm 2) Bticino Cable 336904 (0. 5 mm 2)

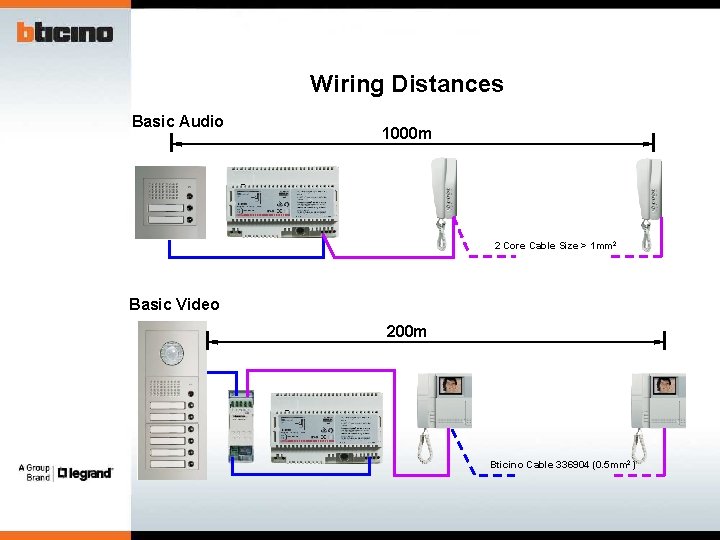

Wiring Distances Basic Audio 1000 m 2 Core Cable Size > 1 mm 2 Basic Video 200 m Bticino Cable 336904 (0. 5 mm 2 )

Wiring Distances 200 m Video Maximum 600 m using expansion modules 200 m Extension Interface 200 m Audio Video Node Extension Interface Audio Video Node Entrance Panel Video Adaptor Power Supply

Wiring Type Loop In Loop Out Wiring ON Apt. 5 Apt. 6 Apt. 7 Apt. 8 OFF OFF Note : Important to set the DIP switch in each internal handset. Apt. 1 OFF Apt. 4 Apt. 3 Apt. 2 OFF OFF

Wiring Type Star Wiring ON Apt. 8 Floor Distributor ON Apt. 7 Note : Important to set the DIP switch in each internal handset. ON Apt. 6 ON Apt. 5 ON Apt. 4 Floor Distributor ON Apt. 3 ON Apt. 2 Apt. 1 ON

Components – Floor Distributor Apartment 1 ON OFF Floor Distributor Apartment 2 ON Video displays simultaneously switch on Each output : - Max of 3 handsets - Max of 1 handset simultaneously switching on ON ON

Components – Video Adaptor 1 Entrance Panel VIDEO ADAPTOR 2 Risers Power Supply 2 Entrance Panels 1 Risers VIDEO ADAPTOR NOTE: Maximum of 3 IN / OUT connections allowed for VIDEO ADAPTOR Power Supply

Components – Audio Video Node 4 Risers AUDIO VIDEO NODE 4 Entrance Panels Power Supply

Components – Audio Video Node example NOTE: The video signal can pass through a max of 2 Audio Video Node AUDIO VIDEO NODE 16 Entrance Panels or Cameras Power Supply

Components – Line Amplifier (non twisted cable only) A B Entrance Panel Video Adaptor C Internal Panel Power Supply Video System 2 non twisted cable, > 0. 2 mm 2 A 50 m B 50 m C 50 m Line Amplifier Approx. 50 m from EP Max. 50 m Note : Cross sectional area of the non twisted pair cable must be >= than 0. 28 mm 2. Video amplifier must be place approximately 50 m away from the EP

Components – Extention / Riser Interface 346851 System Expansion Interface • Extends the distance of the video signal to a further 200 m • Allows more devices to be connected to the bus • Provides independent audio & video functions in a specific riser A : Interface Status: Flashing Green = Stand By Solid Green = Int - Ext Connection Active B : Video Signal Level Green = OK Green/Red = Limited Signal Red = No Signal or Limits exceeded 1 C : Not Used N M OFF = For SCS bus IN/OUT Connections ON = For last interface in the riser M FUNCTION N ADDRESS 0 Extension 00 - 99 Interface number 5 Riser 01 - 39 Riser number

Components – Apartment Interface 346850 Apartment Interface • Extend number of internal handsets in the same apartment to 5 • Extend number of apartments up to 100 in the same riser (N address = 00 to 99) • Allows dedicated entrance panels or cameras for each apartment • Allows integration to My Home system in the apartment A : Interface Status: Flashing Green = Stand By Solid Green = Int - Ext Connection Active B : Video Signal Level Green = OK Green/Red = Limited Signal Red = No Signal or Limits exceeded C : Not Used N M N = Interface number 3 M = 3 (always for apartment interface) OFF = For SCS bus IN/OUT Connections ON = For last interface in the riser

General Limitations – EPs & Handsets Basic Audio System Maximum of 99 Internal Handsets 1 Audio Entrance Panel Power Supply 1000 m 2 core cable size > 1 mm 2

General Limitations – EPs & Handsets Basic Audio System 2 EPs 64 Handsets To 2 to 9 Audio Entrance Panels 9 EPs 10 Handsets Power Supply 1000 m 2 core cable size > 1 mm 2

General Limitations – EPs & Handsets Basic Video System Maximum of 64 Internal Handsets 1 Video Entrance Panel 200 m, Bticino Cable 336904 Video Adaptor Power Supply

General Limitations – EPs & Handsets Basic Video System Video Handset 64 Maximum of 99 Internal Handsets Video Handset 99 1 Video Entrance Panel Video Adaptor Power Supply Video Handset 1 Video Handset 65 Expansion Video Interface Adaptor Power Supply

General Limitations – EPs & Handsets Video System – Using Video adaptor Maximum of 64 Internal Handsets Max. of 2 Video Entrance Panels Video Adaptor Power Supply

General Limitations – EPs & Handsets Video System Maximum of 99 using Apartment Interfaces 1 Video Entrance Panel Video Adaptor Power Supply Apartment Video Power Interface Adaptor Supply

General Limitations - 39 risers, 39 x 99 Apartments Apartment 99 Apartment Interface Video Adaptor (Riser 1) Apartment 1 Apartment Interface Entrance Video Panel Adaptor Power Supply Video Adaptor Riser Interface Video Adaptor (Riser 39) Power Supply Riser Interface Power Supply Video Adaptor Power Supply

EXERCISES

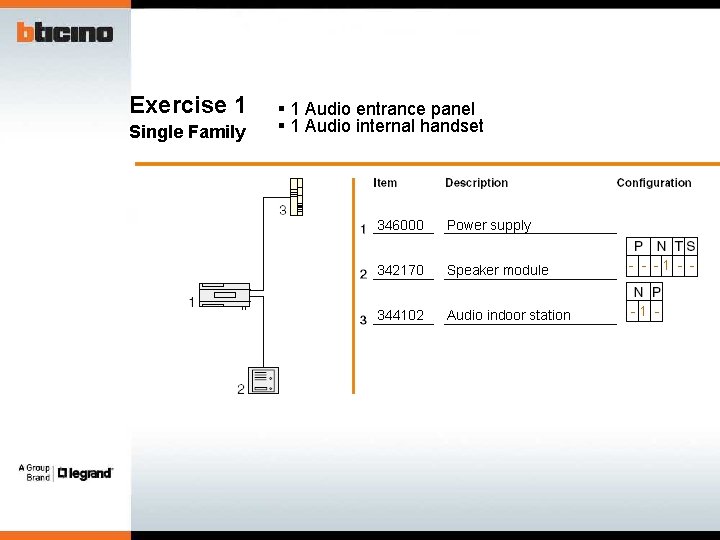

Exercise 1 Single Family § 1 Audio entrance panel § 1 Audio internal handset 346000 Power supply 342170 Speaker module - - -1 - - 344102 Audio indoor station -1 -

Exercise 2 Single Family § 1 Video entrance panel § 1 Video internal handset 346000 Power supply 346830 Video adaptor 342170 Speaker module 342510 Camera module 344102 Video indoor station - - -1 -

Exercise 3 Two Family § 1 Audio entrance panel § 2 Audio internal handset 346000 Power supply 342170 Speaker module - - -1 - - 344102 Audio indoor station -1 - 344102 Audio indoor station -2 -

Exercise 4 Two Family § 1 Video entrance panel § 2 Video internal handset 346000 Power supply 346830 Video adaptor 342170 Speaker module 342510 Camera module 344102 Video indoor station -1 - 344102 Video indoor station -2 - -1 - -

Exercise 5 Two Family § 1 Main audio entrance panel § 2 Independent risers § 2 Apartment audio internal handsets § 2 Secondary audio entrance panels 346000 Power supply 342170 Speaker module - - -1 - - 342170 Speaker module -1 -1 -1 344102 Audio indoor station -1 - 342170 Speaker module -2 -2 -1 344102 Audio indoor station -2 -

Exercise 6 Multi Family § 1 Main audio entrance panel § 4 Villas audio internal handsets § 4 Secondary audio entrance panels 346000 Power supply 342170 Speaker module 342240 4 Pushbutton module 342170 Speaker module 344102 Audio indoor station - 1 - 342170 Speaker module 344102 Audio indoor station - 2 - 342170 Speaker module 344102 Audio indoor station - 4 - -1 - - - 1 -1 -1 - 2 -2 -1 - 3 -3 -1 - 4 -4 -1

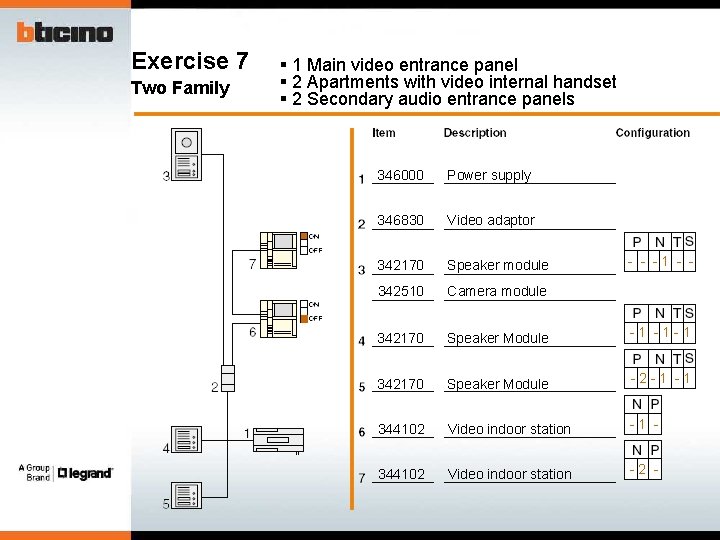

Exercise 7 Two Family § 1 Main video entrance panel § 2 Apartments with video internal handset § 2 Secondary audio entrance panels 346000 Power supply 346830 Video adaptor 342170 Speaker module 342510 Camera module 342170 Speaker Module -1 -1 -1 342170 Speaker Module -2 -1 -1 344102 Video indoor station -1 - 344102 Video indoor station -2 - -1 - -

Exercise 8 Multi Family § 1 Main video entrance panel § 5 Apartments with video internal handsets § Star wiring 346000 Power supply 346830 Video adaptor 342170 342510 342240 - - -1 - Speaker module Camera module 4 Pushbutton module 346841 Distribution block 344102 Video indoor station - 1 - 344102 Video indoor station - 2 - 344102 Video indoor station - 4 - 344102 Video indoor station - 5 - -3 -
