2 Unit Support and Movement Fundamentals of Anatomy

2 Unit�� Support and Movement Fundamentals of Anatomy & Physiology Frederic H. Martini�� Power. Point® Lecture Slides prepared by Professor Albia Dugger, Miami–Dade College, Miami, FL Professor Robert R. Speed, Ph. D. , Wallace Community College, Dothan, AL Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Chapter 9: Articulations

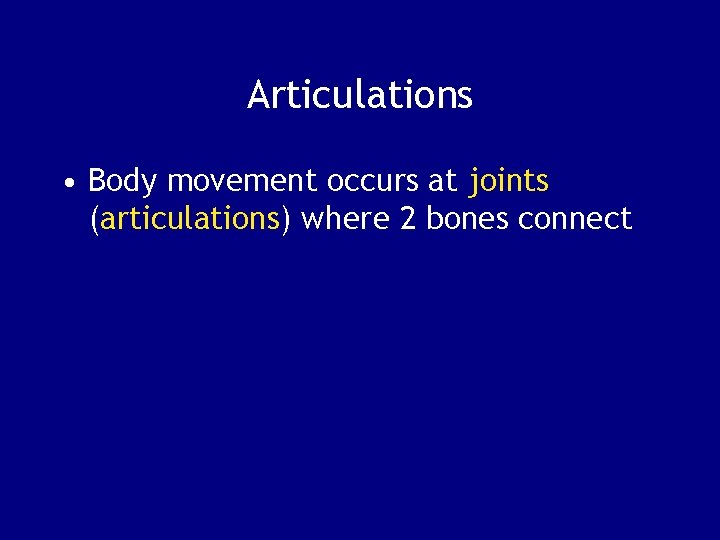

Articulations • Body movement occurs at joints (articulations) where 2 bones connect

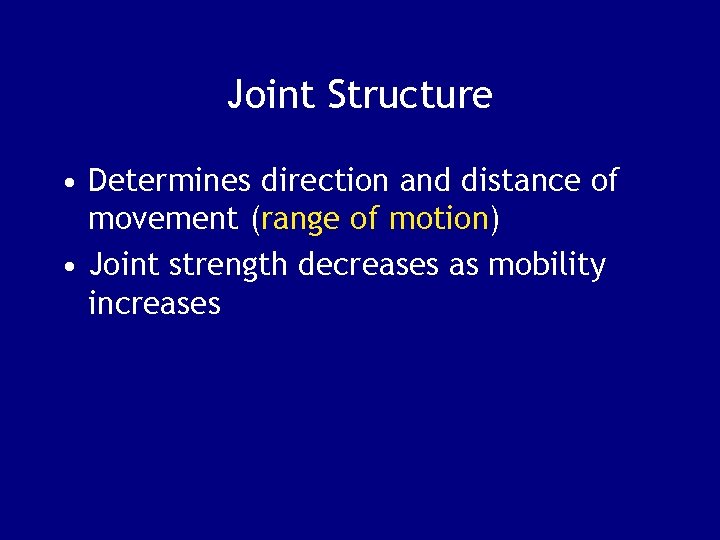

Joint Structure • Determines direction and distance of movement (range of motion) • Joint strength decreases as mobility increases

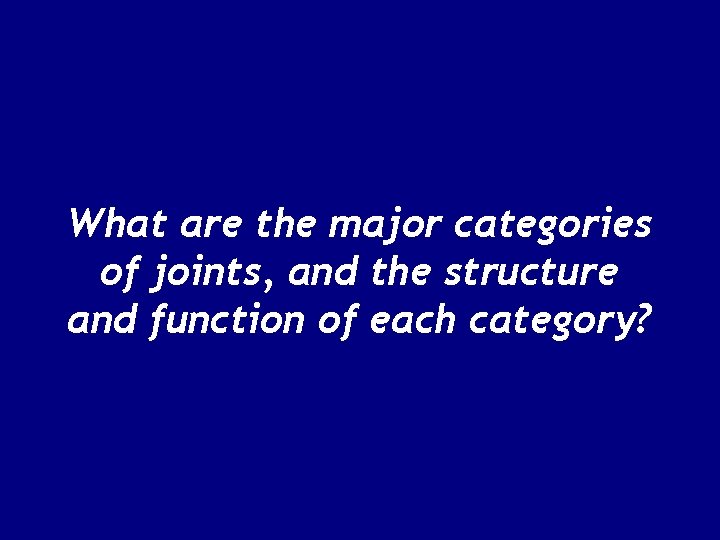

What are the major categories of joints, and the structure and function of each category?

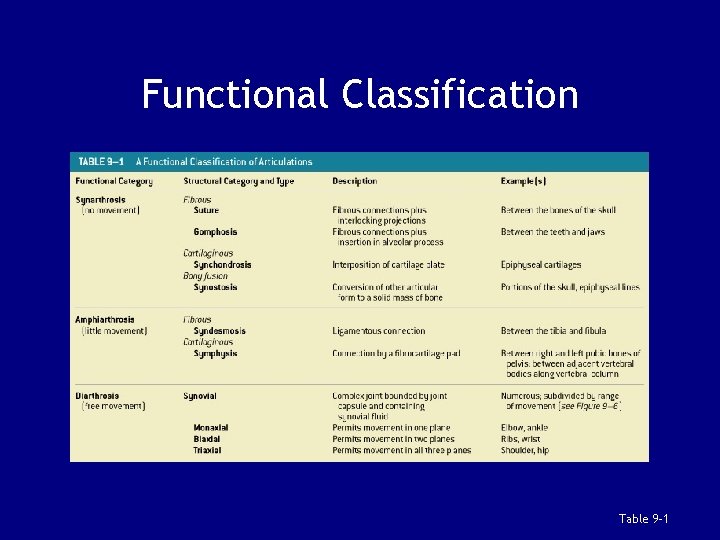

Functional Classification Table 9– 1

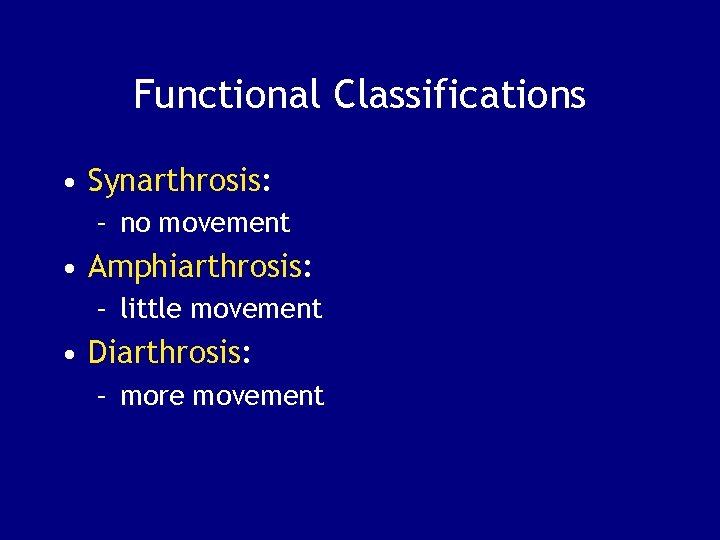

Functional Classifications • Synarthrosis: – no movement • Amphiarthrosis: – little movement • Diarthrosis: – more movement

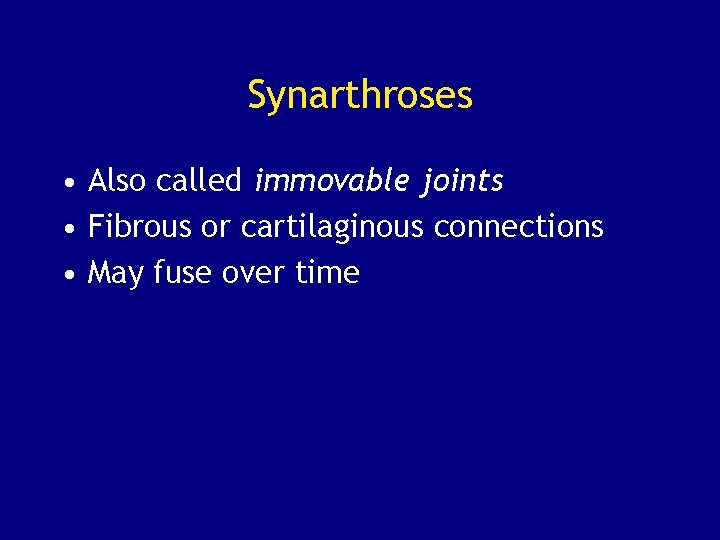

Synarthroses • Also called immovable joints • Fibrous or cartilaginous connections • May fuse over time

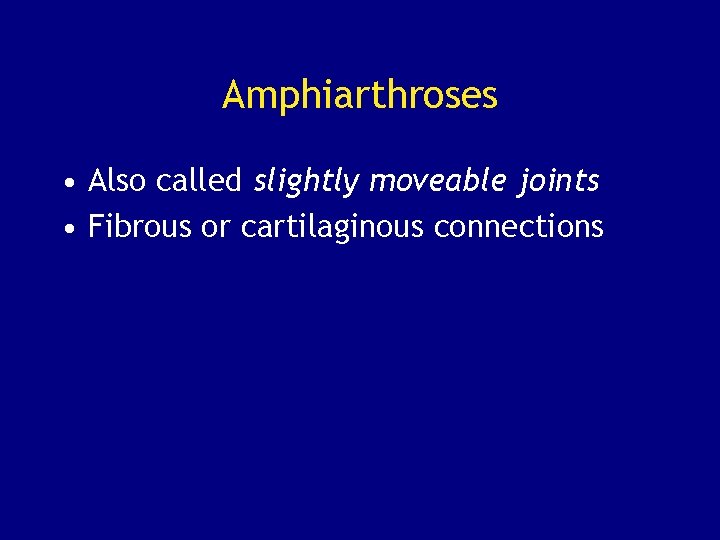

Amphiarthroses • Also called slightly moveable joints • Fibrous or cartilaginous connections

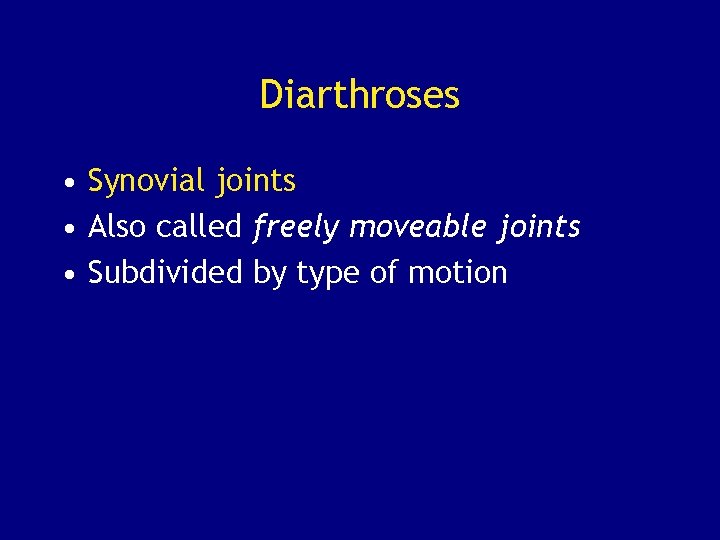

Diarthroses • Synovial joints • Also called freely moveable joints • Subdivided by type of motion

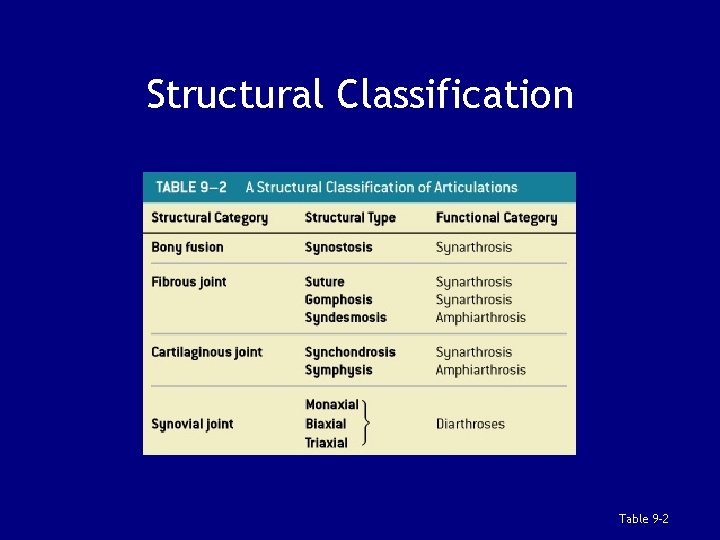

Structural Classification Table 9– 2

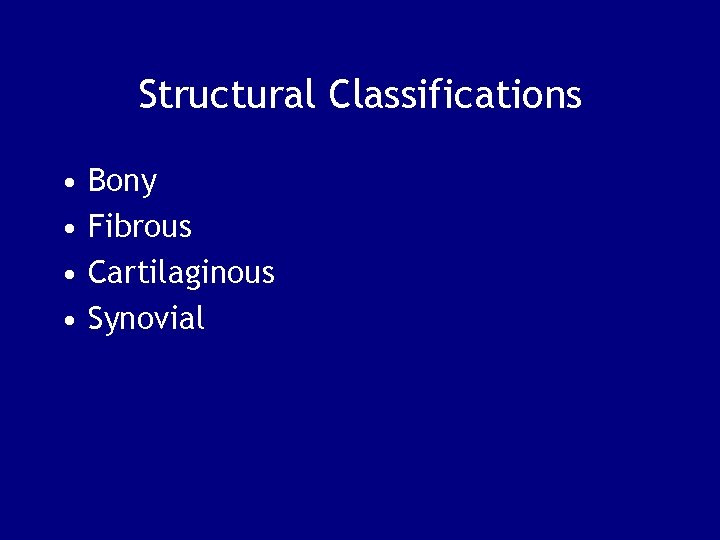

Structural Classifications • • Bony Fibrous Cartilaginous Synovial

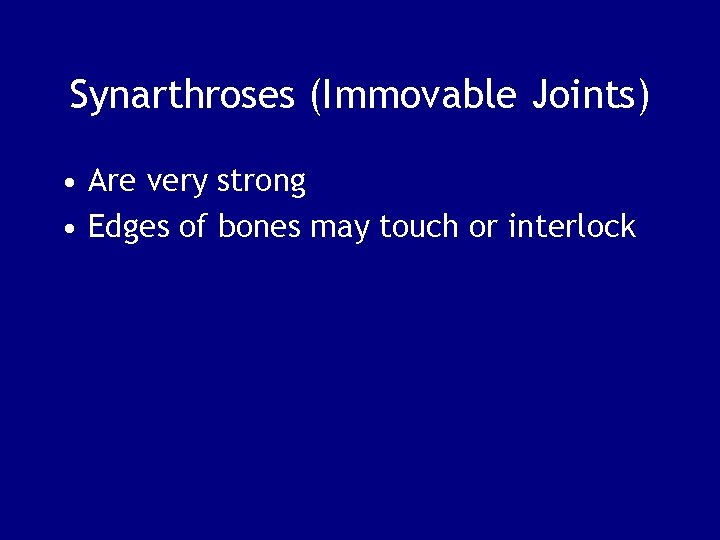

Synarthroses (Immovable Joints) • Are very strong • Edges of bones may touch or interlock

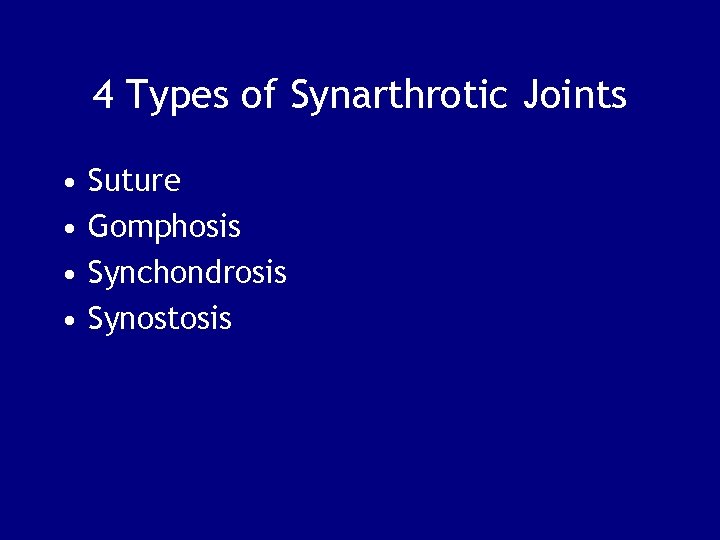

4 Types of Synarthrotic Joints • • Suture Gomphosis Synchondrosis Synostosis

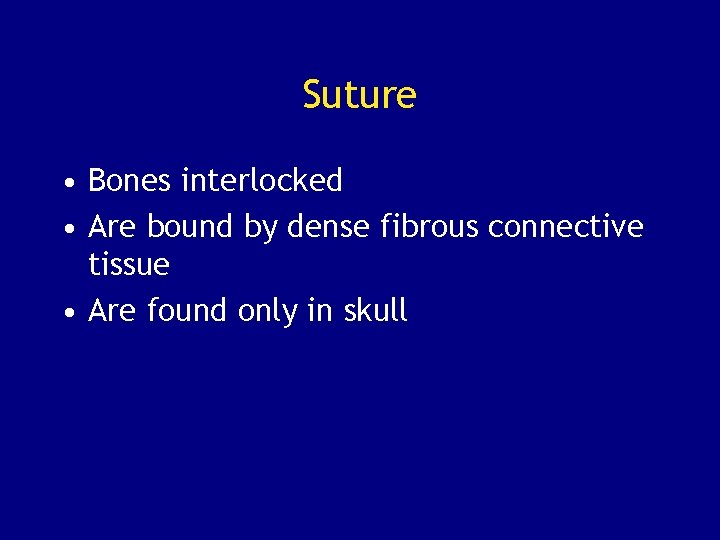

Suture • Bones interlocked • Are bound by dense fibrous connective tissue • Are found only in skull

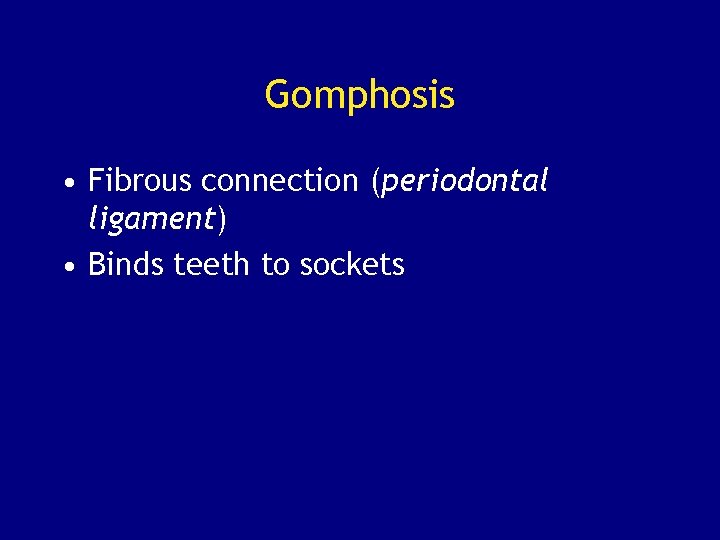

Gomphosis • Fibrous connection (periodontal ligament) • Binds teeth to sockets

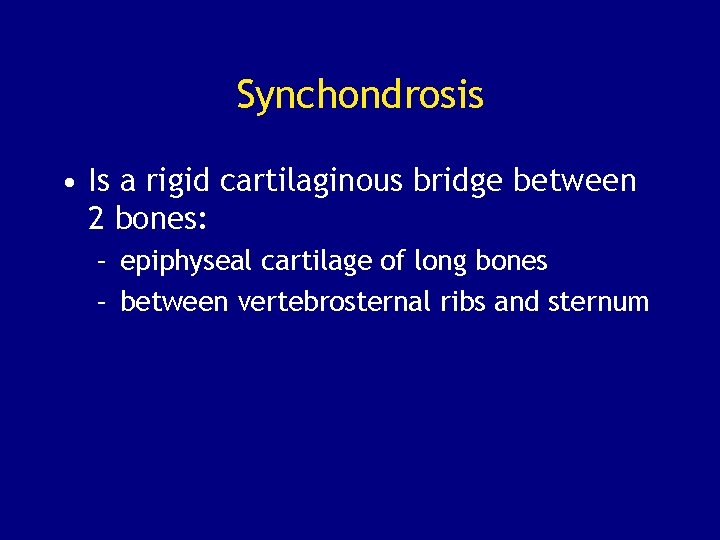

Synchondrosis • Is a rigid cartilaginous bridge between 2 bones: – epiphyseal cartilage of long bones – between vertebrosternal ribs and sternum

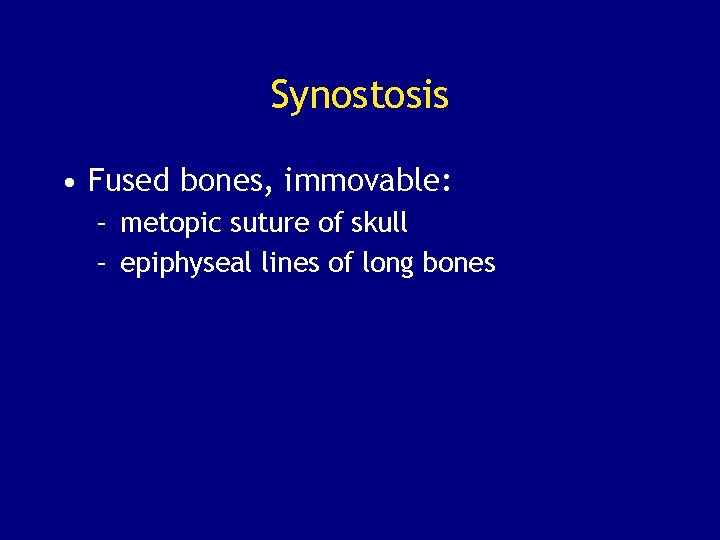

Synostosis • Fused bones, immovable: – metopic suture of skull – epiphyseal lines of long bones

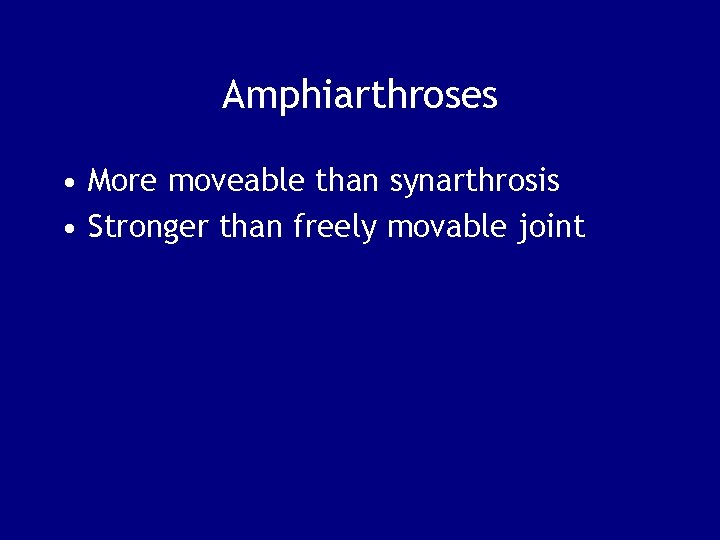

Amphiarthroses • More moveable than synarthrosis • Stronger than freely movable joint

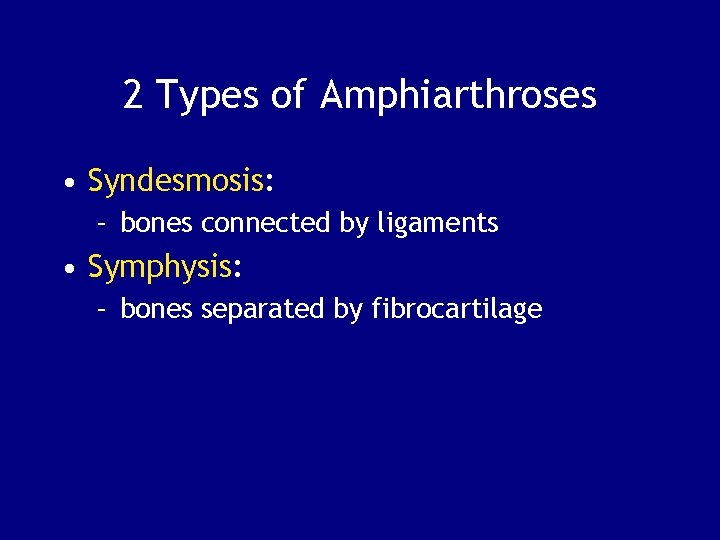

2 Types of Amphiarthroses • Syndesmosis: – bones connected by ligaments • Symphysis: – bones separated by fibrocartilage

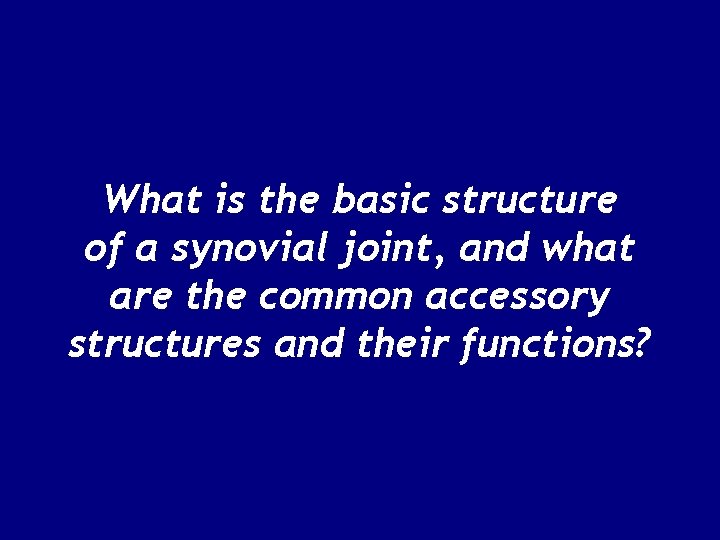

What is the basic structure of a synovial joint, and what are the common accessory structures and their functions?

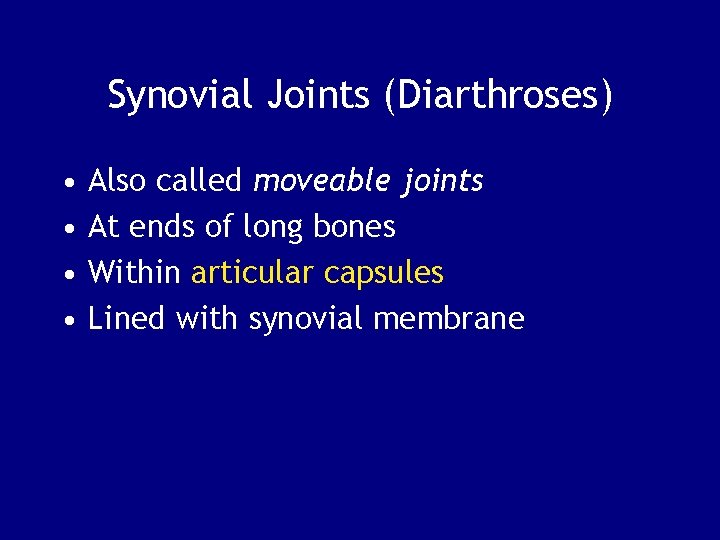

Synovial Joints (Diarthroses) • • Also called moveable joints At ends of long bones Within articular capsules Lined with synovial membrane

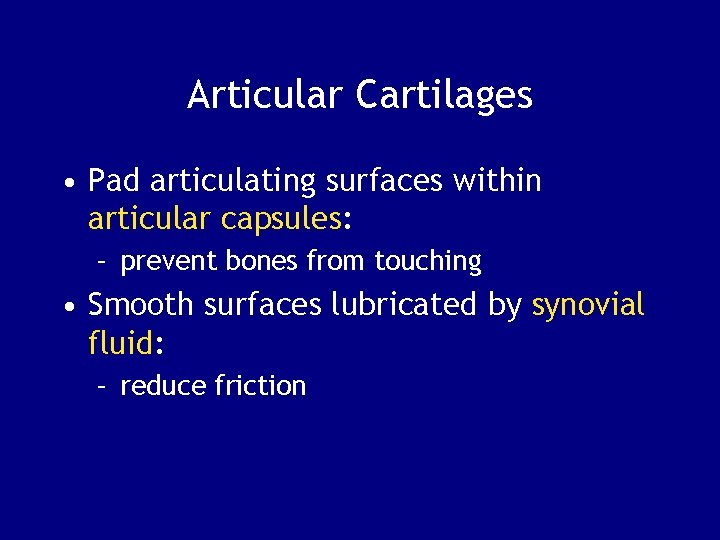

Articular Cartilages • Pad articulating surfaces within articular capsules: – prevent bones from touching • Smooth surfaces lubricated by synovial fluid: – reduce friction

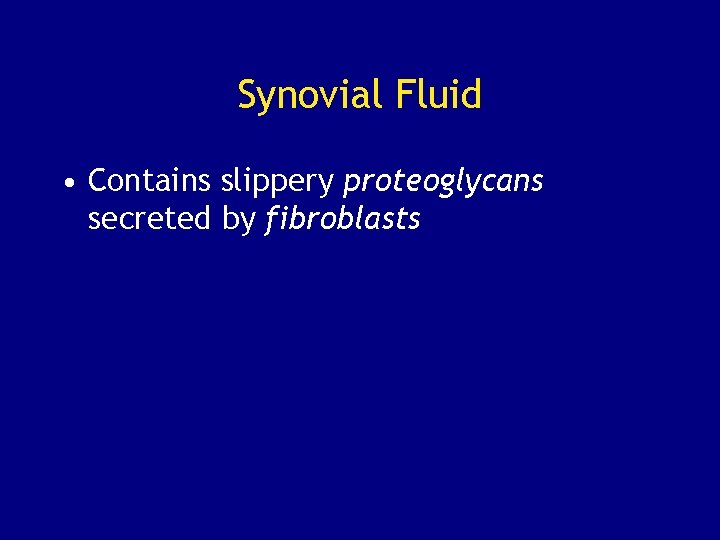

Synovial Fluid • Contains slippery proteoglycans secreted by fibroblasts

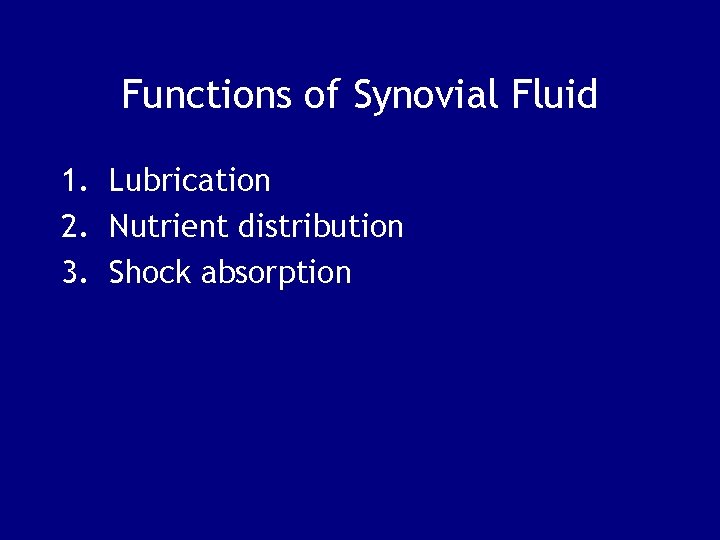

Functions of Synovial Fluid 1. Lubrication 2. Nutrient distribution 3. Shock absorption

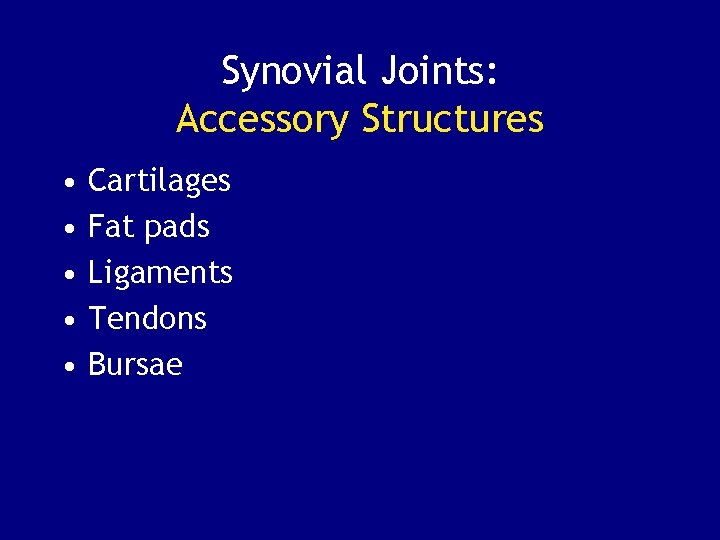

Synovial Joints: Accessory Structures • • • Cartilages Fat pads Ligaments Tendons Bursae

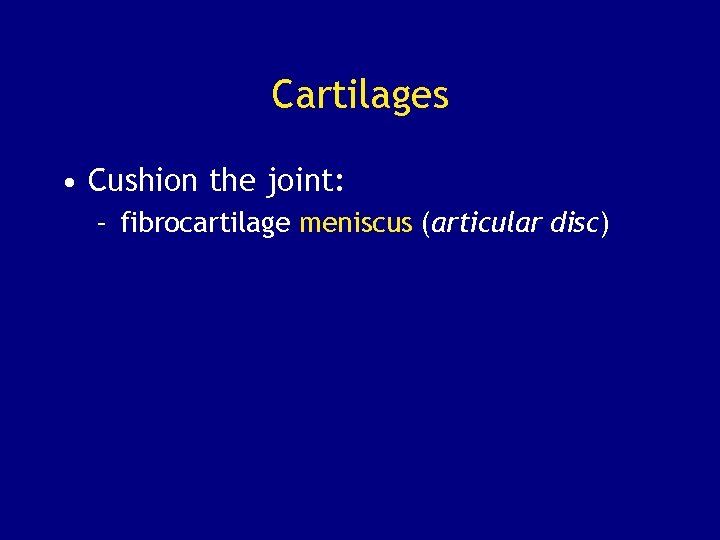

Cartilages • Cushion the joint: – fibrocartilage meniscus (articular disc)

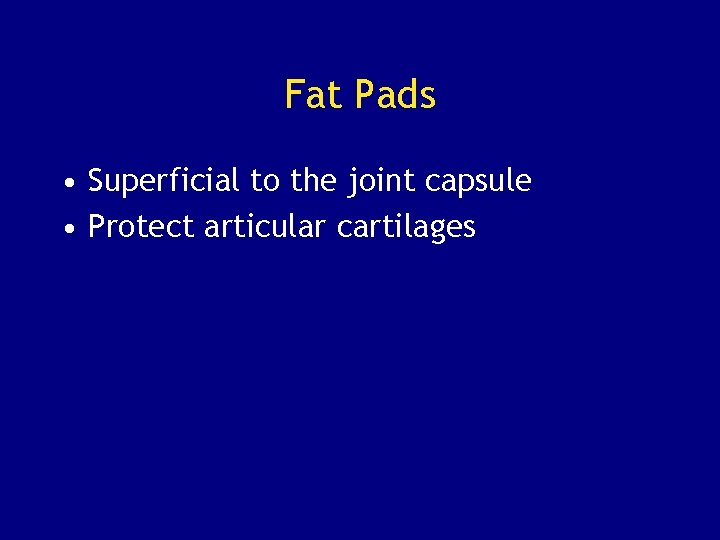

Fat Pads • Superficial to the joint capsule • Protect articular cartilages

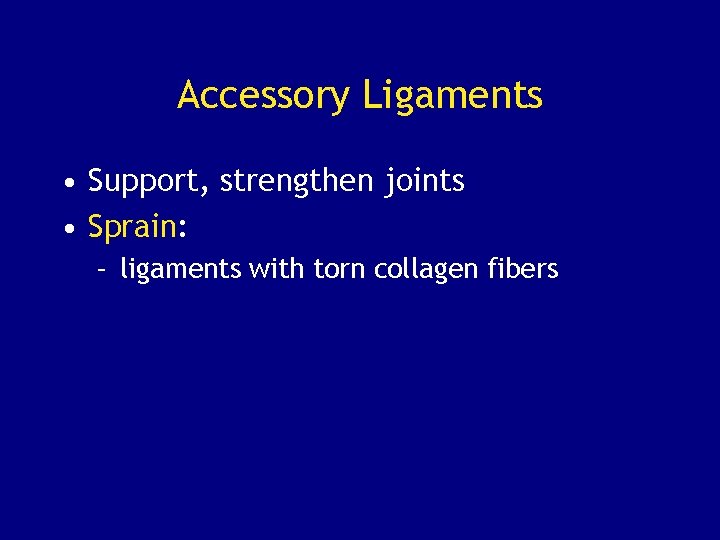

Accessory Ligaments • Support, strengthen joints • Sprain: – ligaments with torn collagen fibers

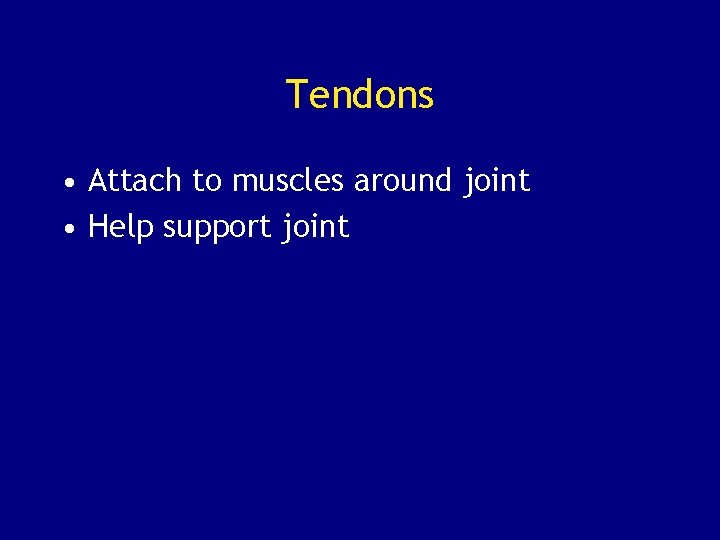

Tendons • Attach to muscles around joint • Help support joint

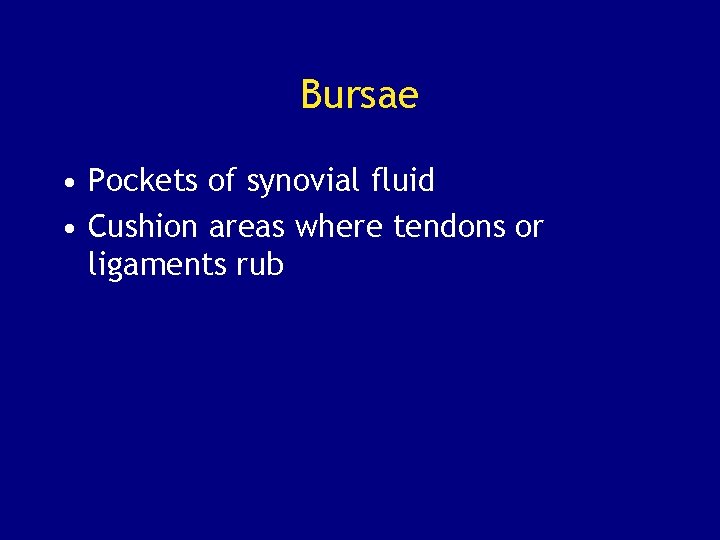

Bursae • Pockets of synovial fluid • Cushion areas where tendons or ligaments rub

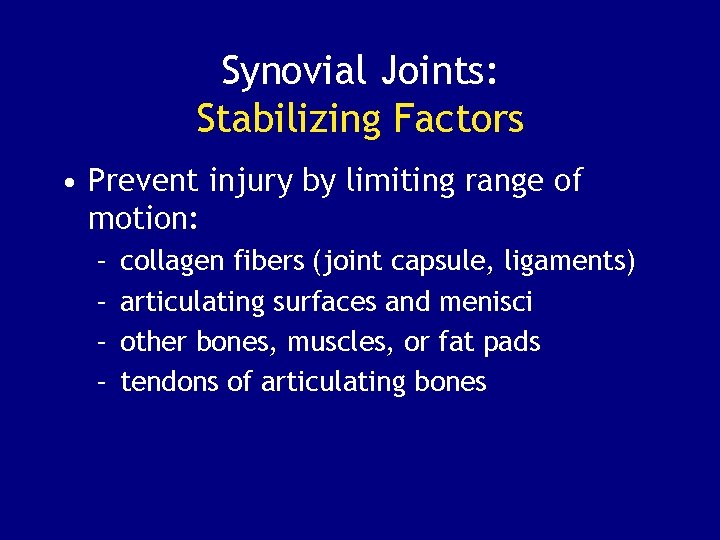

Synovial Joints: Stabilizing Factors • Prevent injury by limiting range of motion: – – collagen fibers (joint capsule, ligaments) articulating surfaces and menisci other bones, muscles, or fat pads tendons of articulating bones

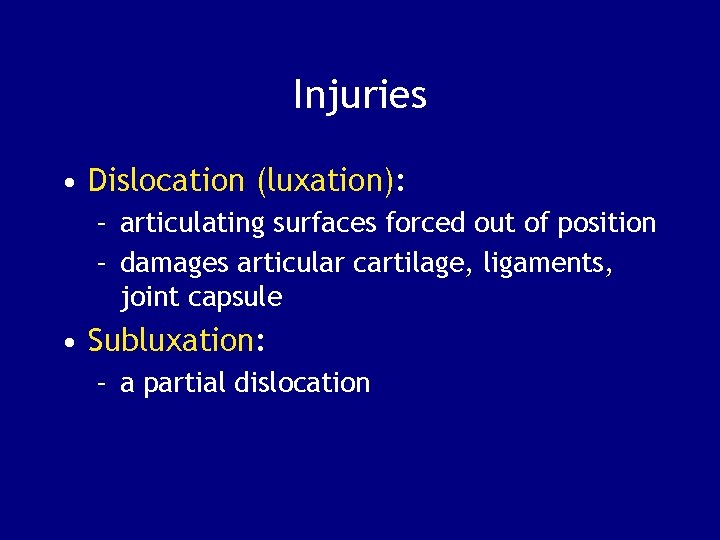

Injuries • Dislocation (luxation): – articulating surfaces forced out of position – damages articular cartilage, ligaments, joint capsule • Subluxation: – a partial dislocation

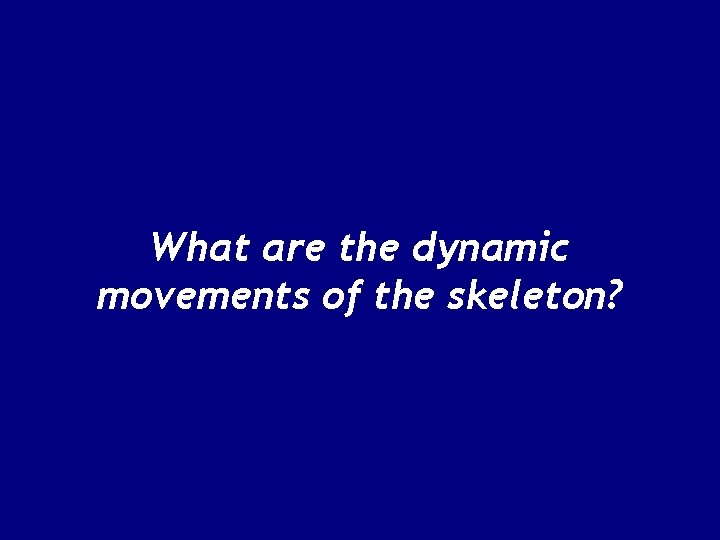

What are the dynamic movements of the skeleton?

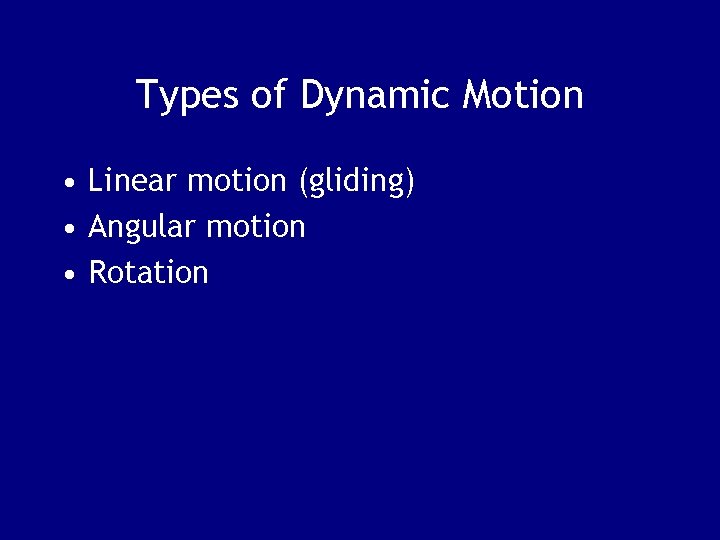

Types of Dynamic Motion • Linear motion (gliding) • Angular motion • Rotation

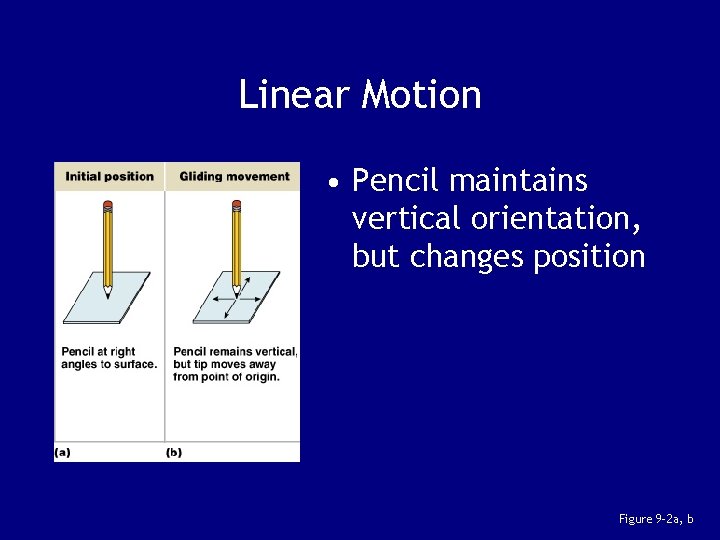

Linear Motion • Pencil maintains vertical orientation, but changes position Figure 9– 2 a, b

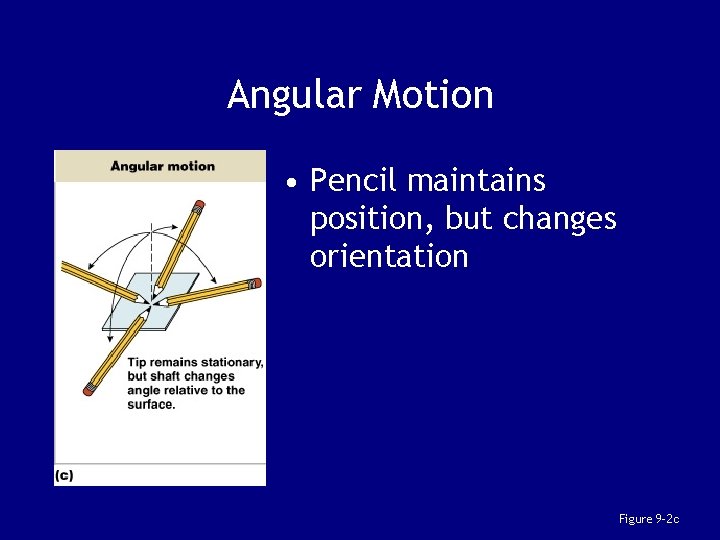

Angular Motion • Pencil maintains position, but changes orientation Figure 9– 2 c

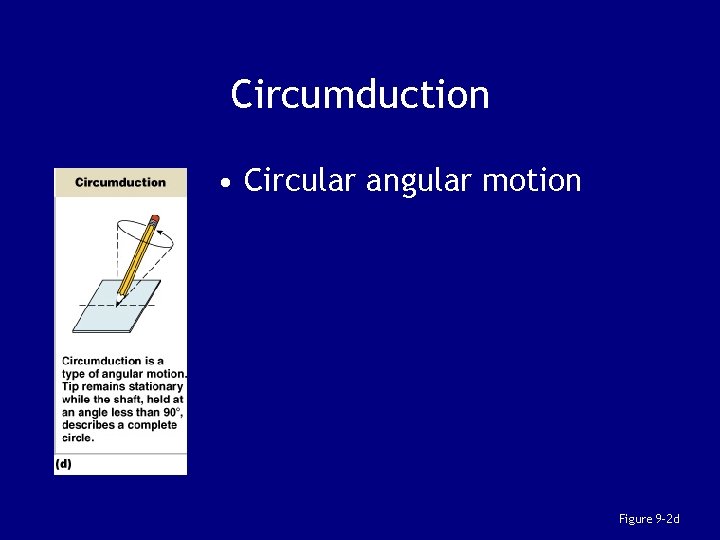

Circumduction • Circular angular motion Figure 9– 2 d

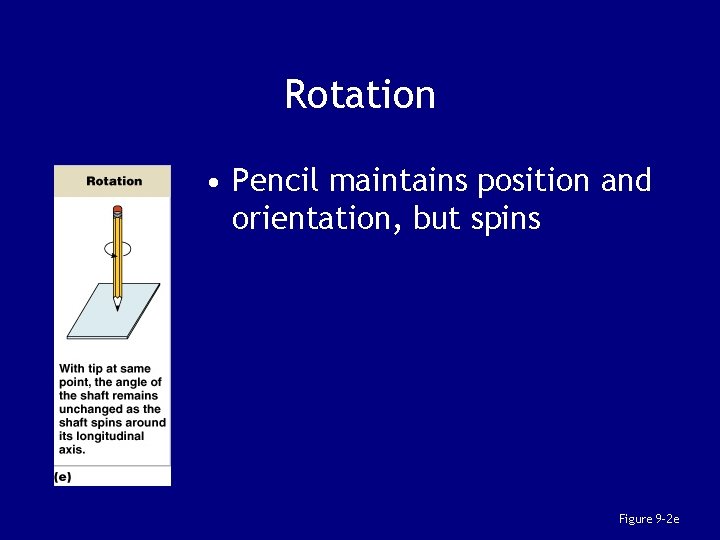

Rotation • Pencil maintains position and orientation, but spins Figure 9– 2 e

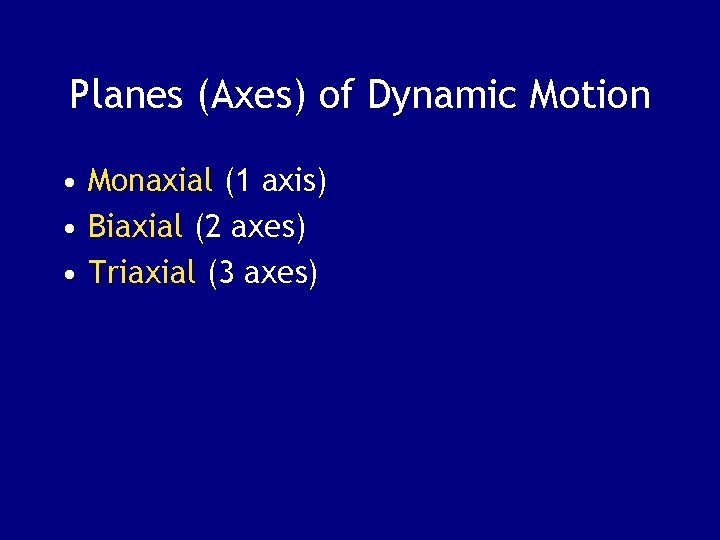

Planes (Axes) of Dynamic Motion • Monaxial (1 axis) • Biaxial (2 axes) • Triaxial (3 axes)

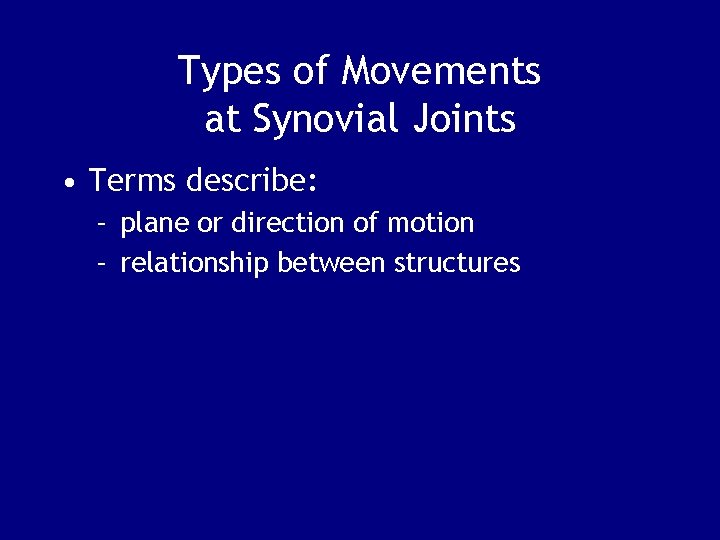

Types of Movements at Synovial Joints • Terms describe: – plane or direction of motion – relationship between structures

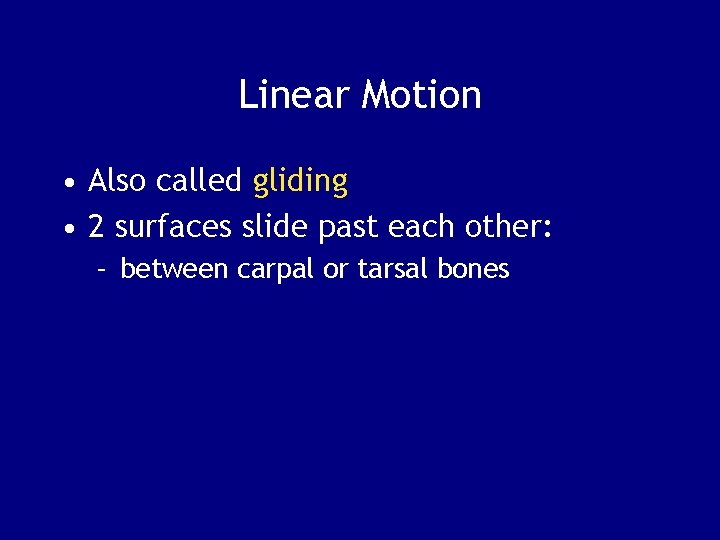

Linear Motion • Also called gliding • 2 surfaces slide past each other: – between carpal or tarsal bones

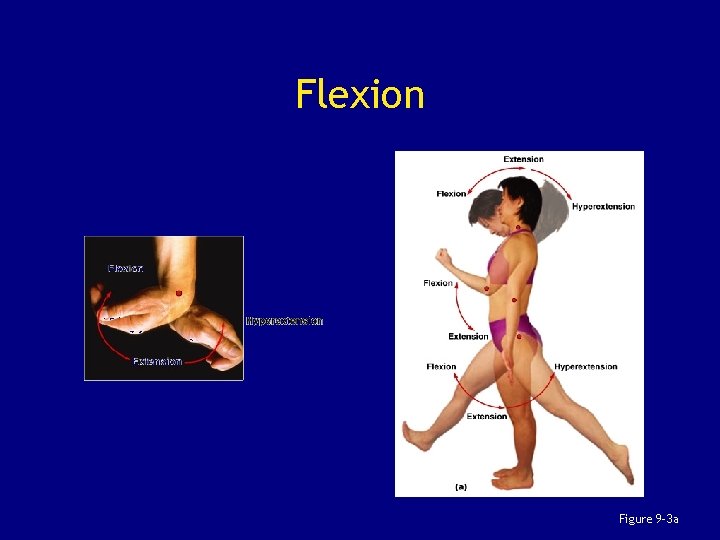

Flexion Figure 9– 3 a

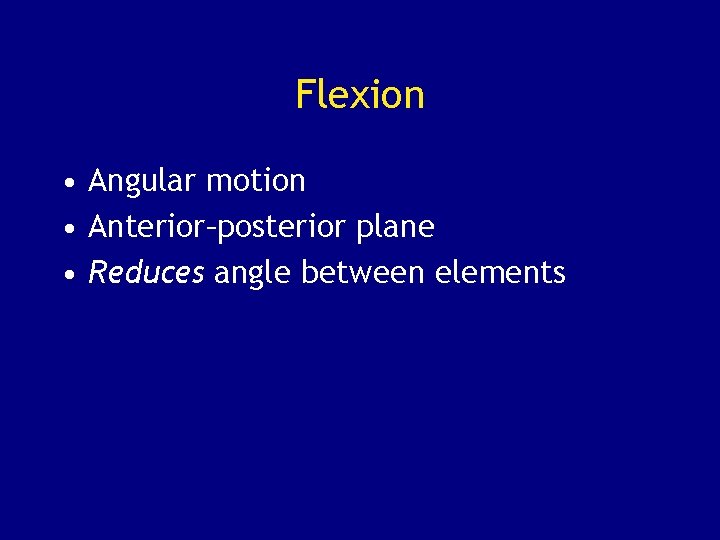

Flexion • Angular motion • Anterior–posterior plane • Reduces angle between elements

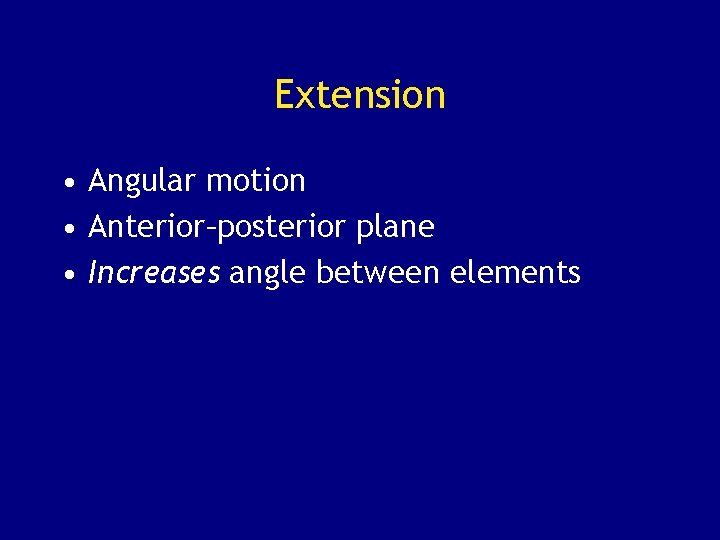

Extension • Angular motion • Anterior–posterior plane • Increases angle between elements

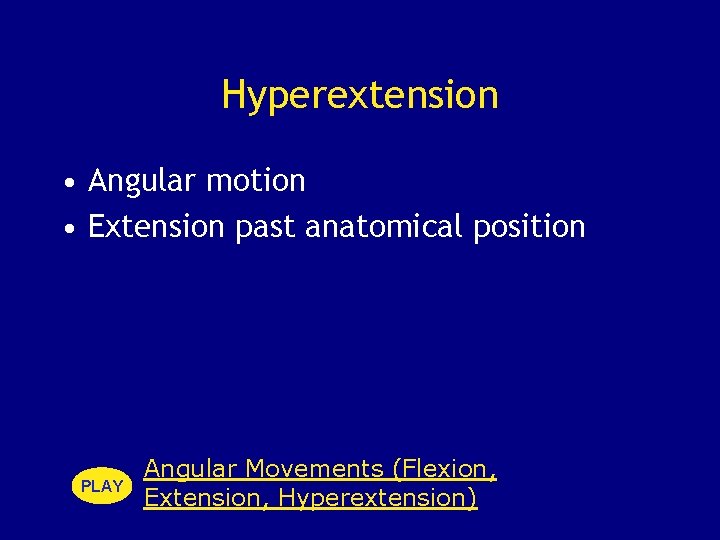

Hyperextension • Angular motion • Extension past anatomical position PLAY Angular Movements (Flexion, Extension, Hyperextension)

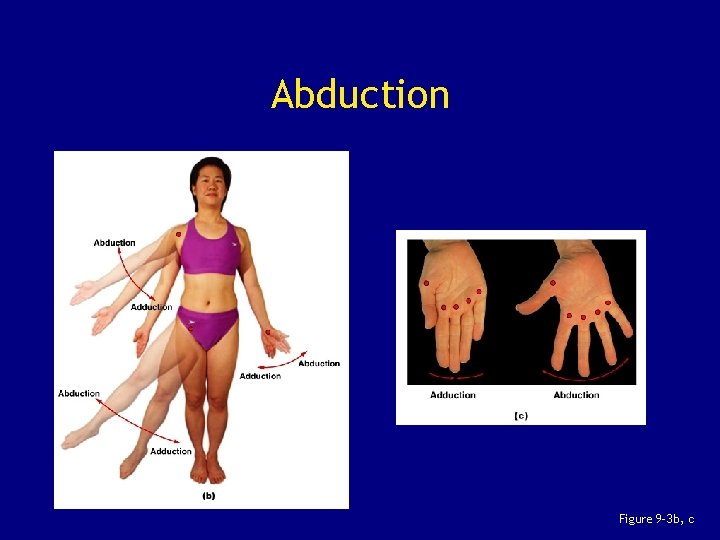

Abduction Figure 9– 3 b, c

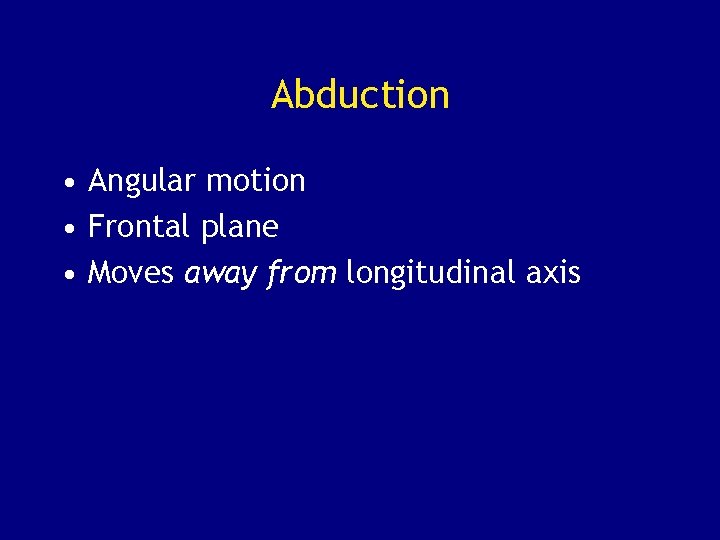

Abduction • Angular motion • Frontal plane • Moves away from longitudinal axis

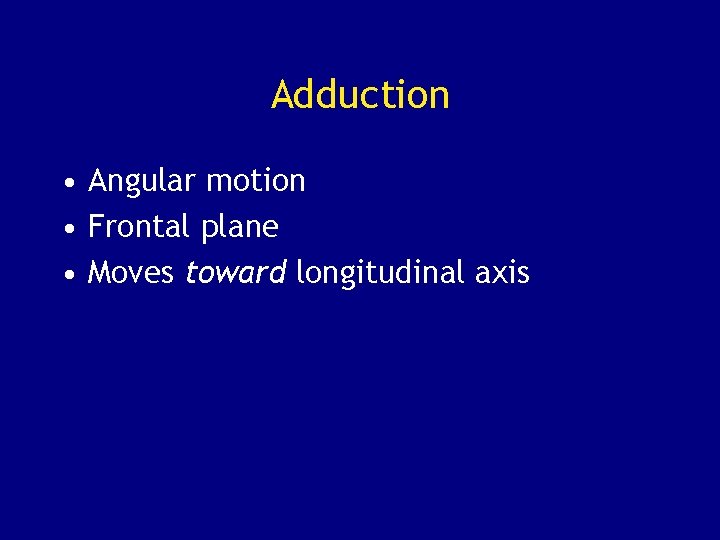

Adduction • Angular motion • Frontal plane • Moves toward longitudinal axis

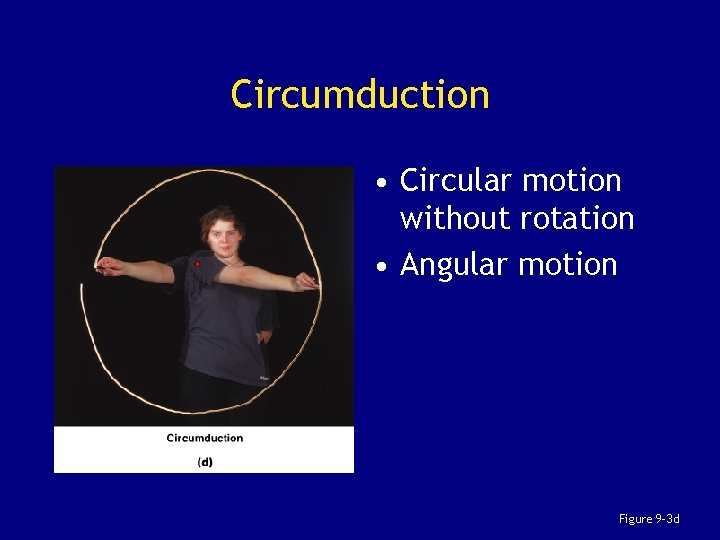

Circumduction • Circular motion without rotation • Angular motion Figure 9– 3 d

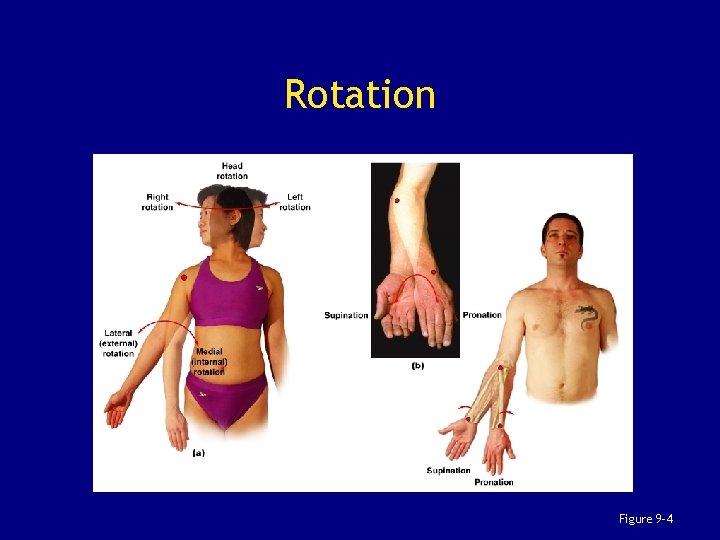

Rotation Figure 9– 4

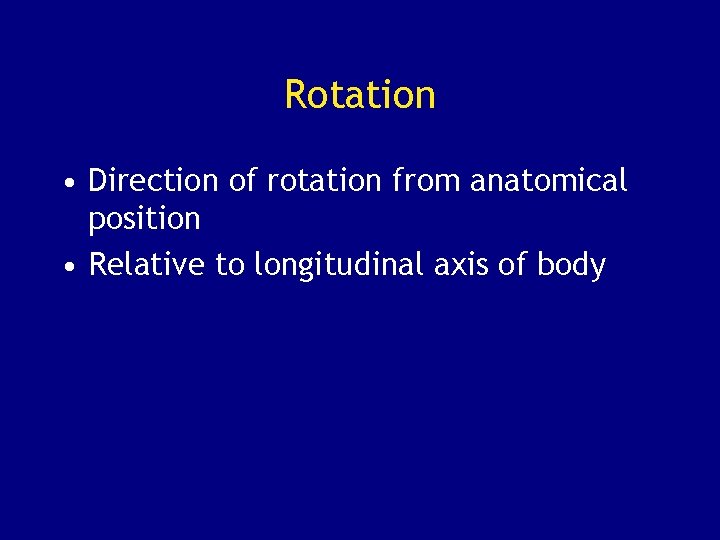

Rotation • Direction of rotation from anatomical position • Relative to longitudinal axis of body

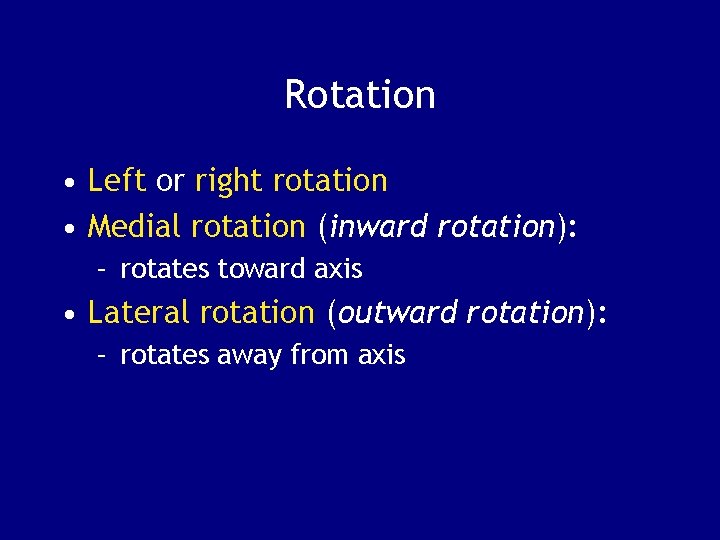

Rotation • Left or right rotation • Medial rotation (inward rotation): – rotates toward axis • Lateral rotation (outward rotation): – rotates away from axis

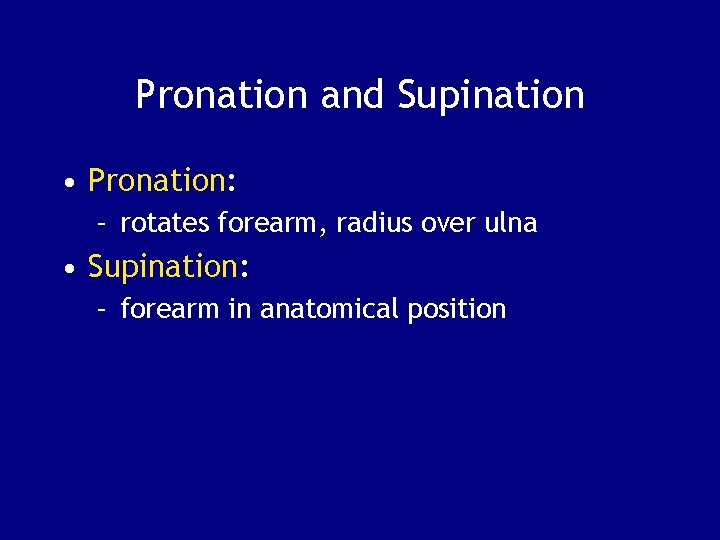

Pronation and Supination • Pronation: – rotates forearm, radius over ulna • Supination: – forearm in anatomical position

Inversion and Eversion Figure 9– 5 a

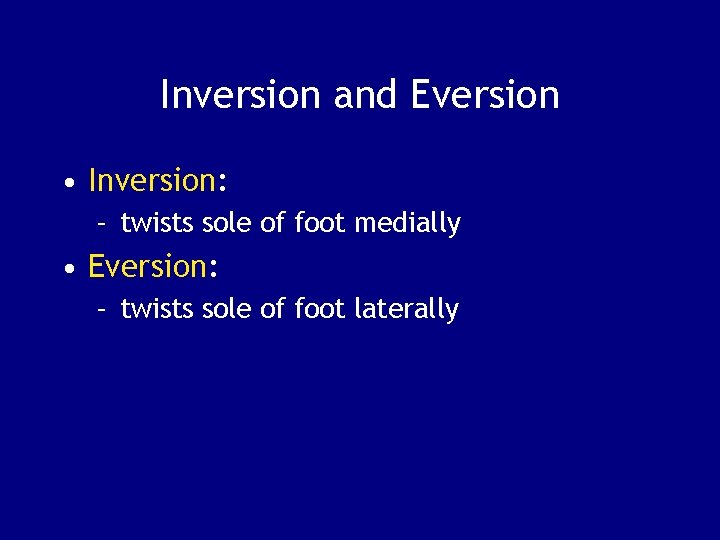

Inversion and Eversion • Inversion: – twists sole of foot medially • Eversion: – twists sole of foot laterally

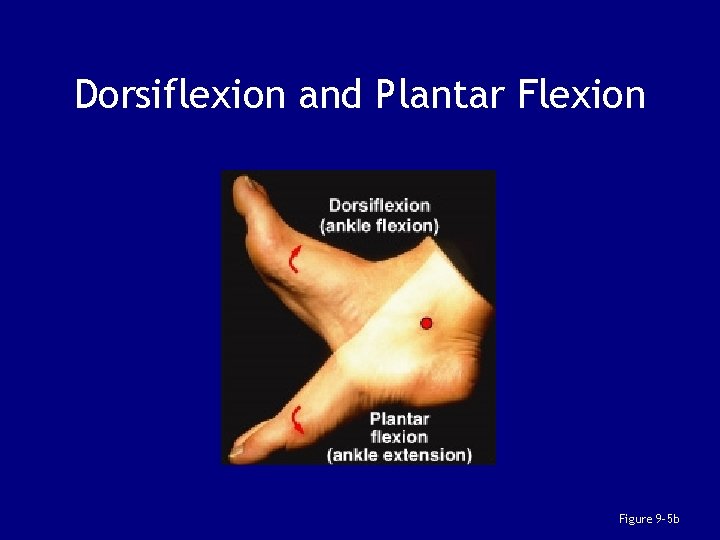

Dorsiflexion and Plantar Flexion Figure 9– 5 b

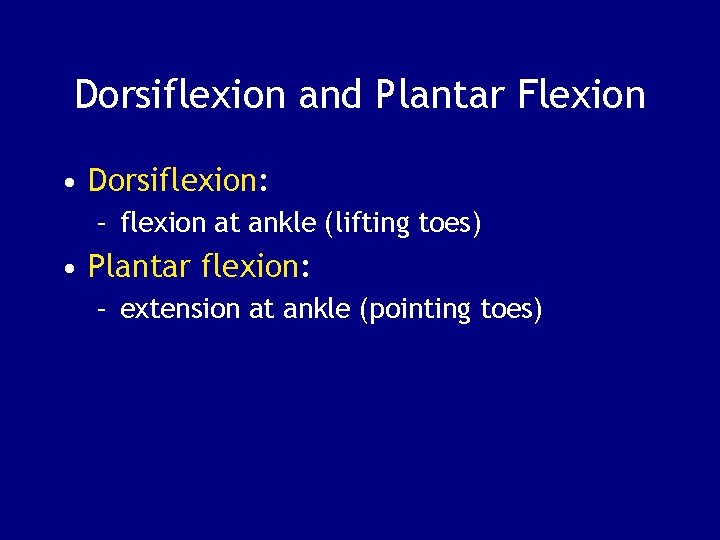

Dorsiflexion and Plantar Flexion • Dorsiflexion: – flexion at ankle (lifting toes) • Plantar flexion: – extension at ankle (pointing toes)

Opposition • Thumb movement toward fingers or palm (grasping) Figure 9– 5 c

Protraction and Retraction Figure 9– 5 d

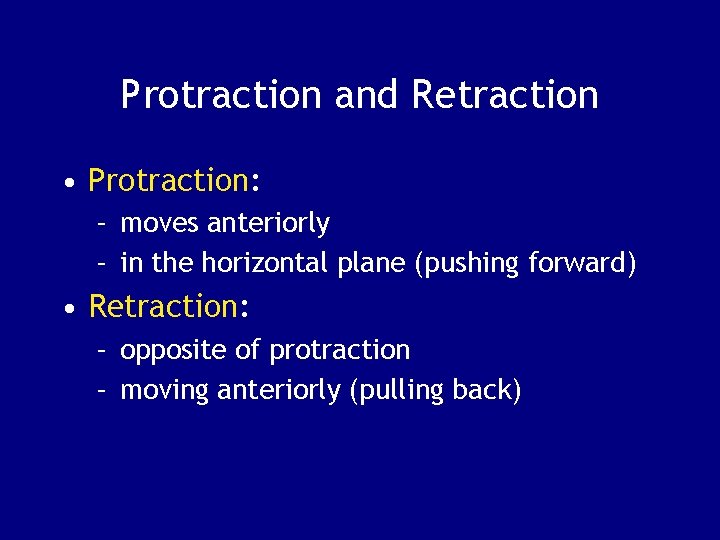

Protraction and Retraction • Protraction: – moves anteriorly – in the horizontal plane (pushing forward) • Retraction: – opposite of protraction – moving anteriorly (pulling back)

Elevation and Depression Figure 9– 5 e

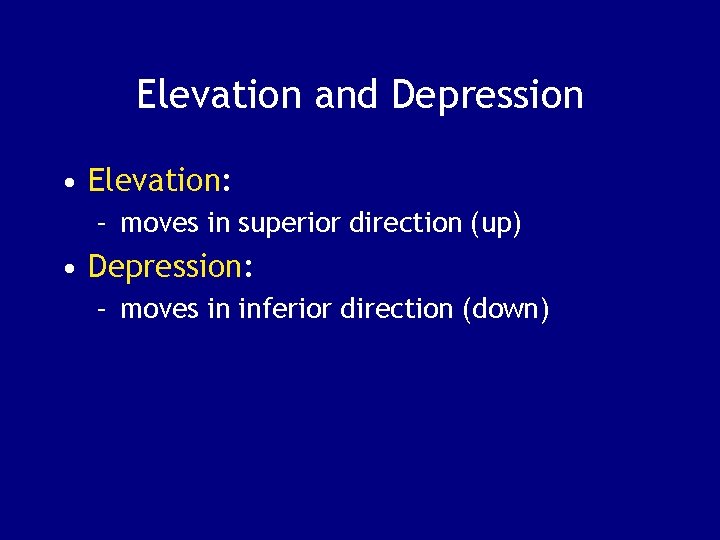

Elevation and Depression • Elevation: – moves in superior direction (up) • Depression: – moves in inferior direction (down)

Lateral Flexion • Bends vertebral column from side to side Figure 9– 5 f

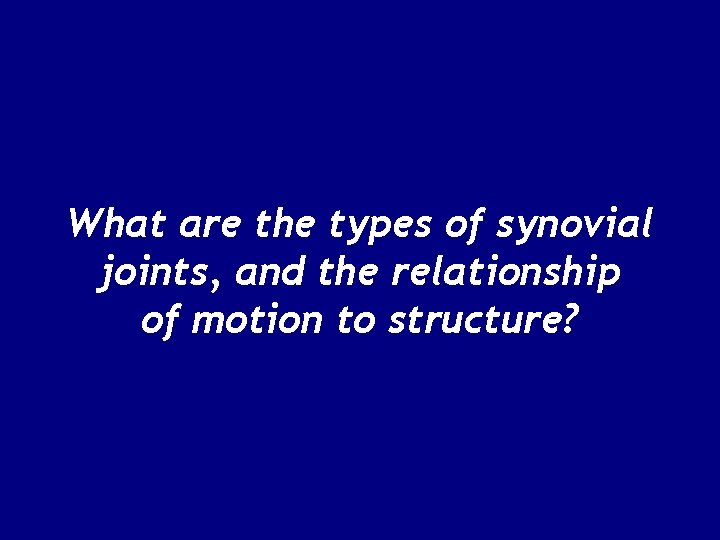

What are the types of synovial joints, and the relationship of motion to structure?

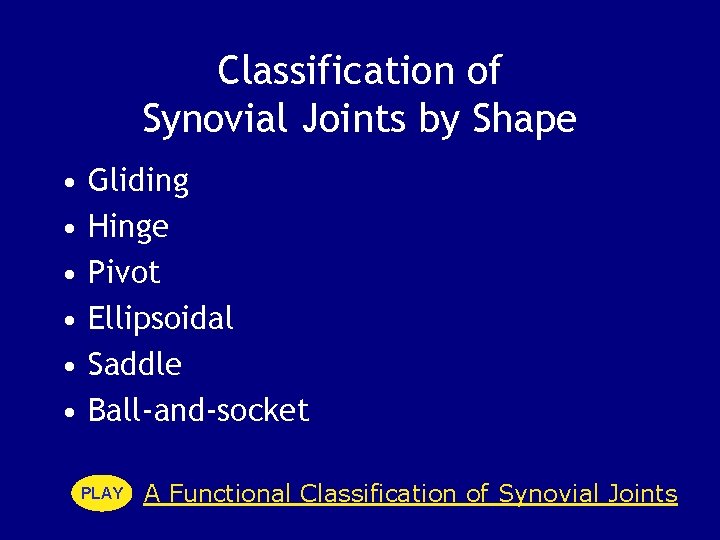

Classification of Synovial Joints by Shape • • • Gliding Hinge Pivot Ellipsoidal Saddle Ball-and-socket PLAY A Functional Classification of Synovial Joints

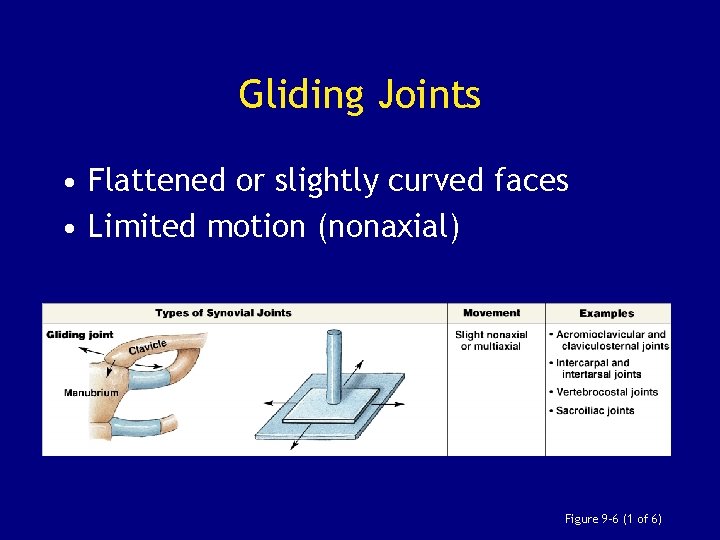

Gliding Joints • Flattened or slightly curved faces • Limited motion (nonaxial) Figure 9– 6 (1 of 6)

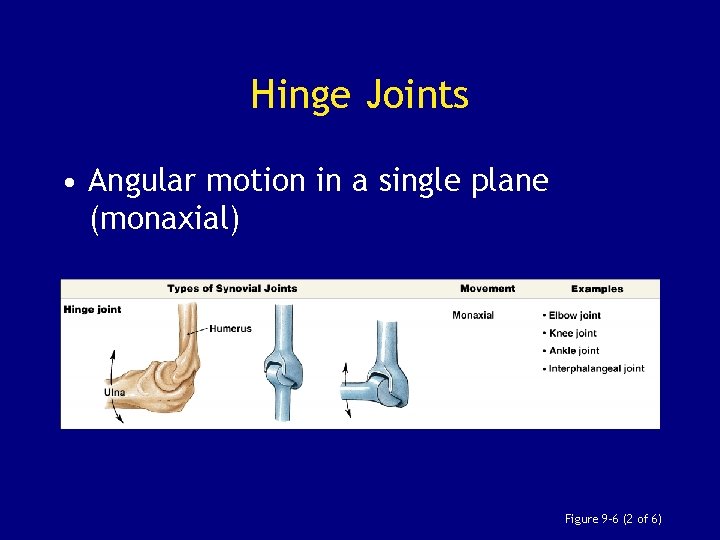

Hinge Joints • Angular motion in a single plane (monaxial) Figure 9– 6 (2 of 6)

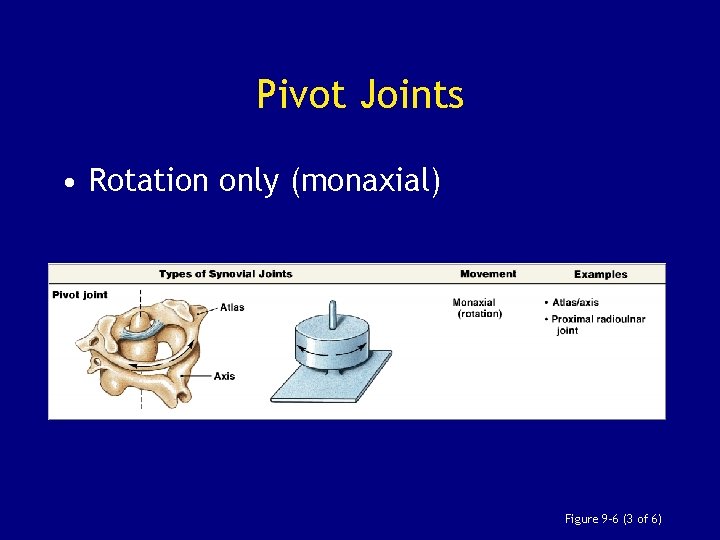

Pivot Joints • Rotation only (monaxial) Figure 9– 6 (3 of 6)

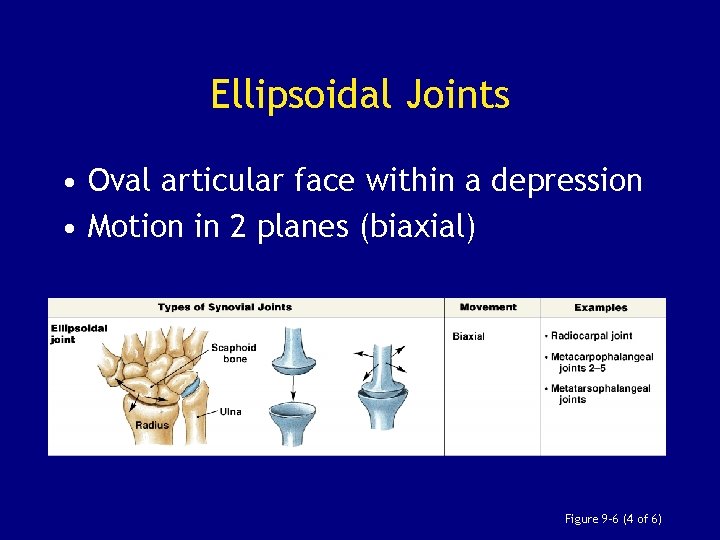

Ellipsoidal Joints • Oval articular face within a depression • Motion in 2 planes (biaxial) Figure 9– 6 (4 of 6)

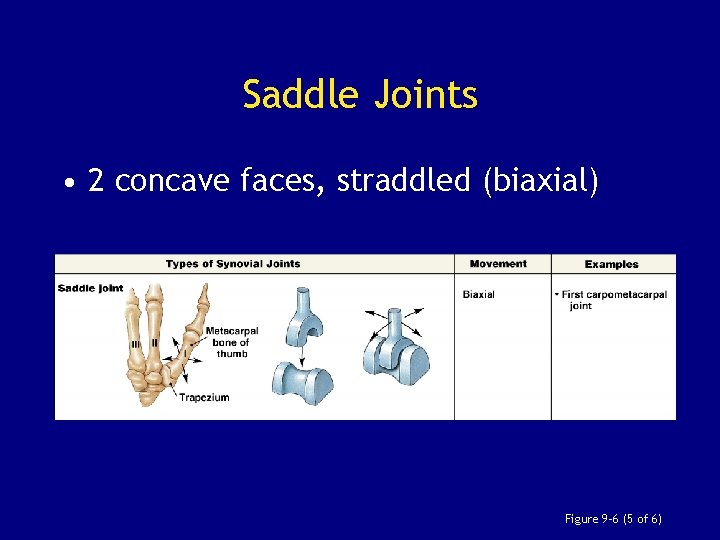

Saddle Joints • 2 concave faces, straddled (biaxial) Figure 9– 6 (5 of 6)

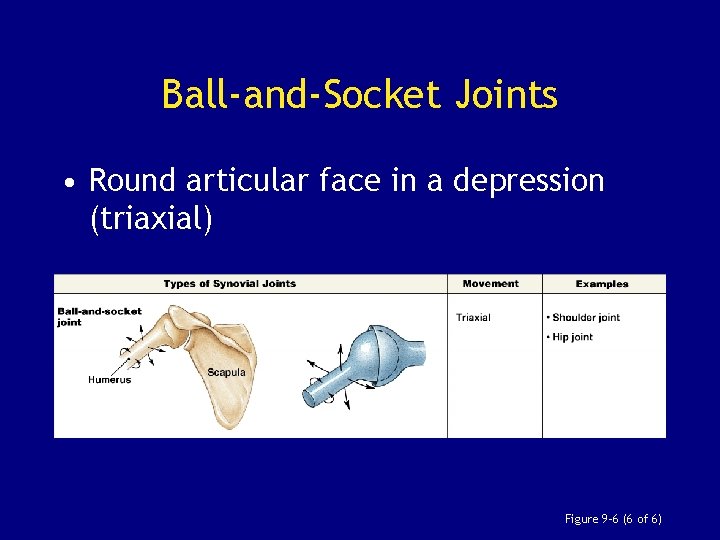

Ball-and-Socket Joints • Round articular face in a depression (triaxial) Figure 9– 6 (6 of 6)

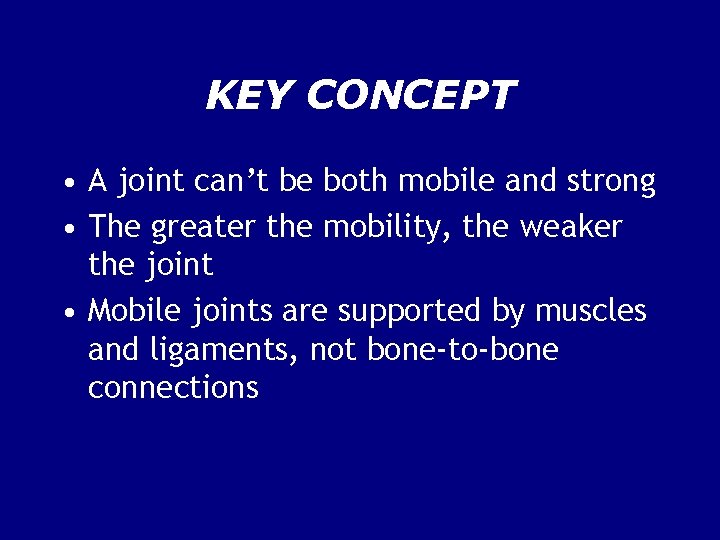

KEY CONCEPT • A joint can’t be both mobile and strong • The greater the mobility, the weaker the joint • Mobile joints are supported by muscles and ligaments, not bone-to-bone connections

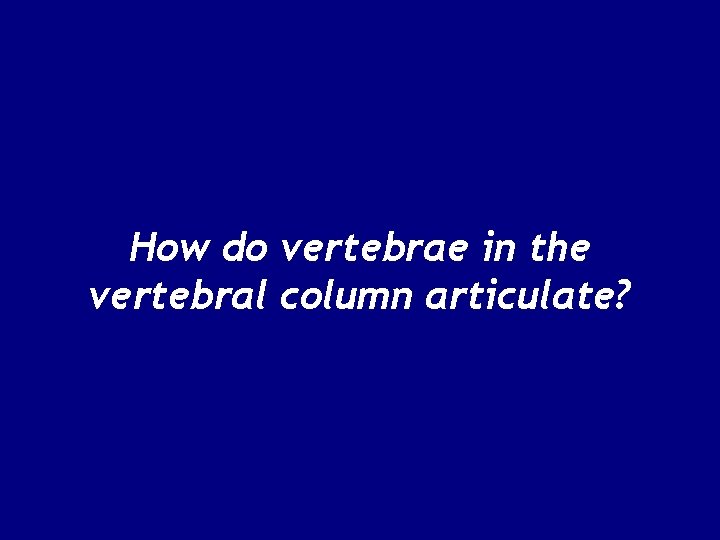

How do vertebrae in the vertebral column articulate?

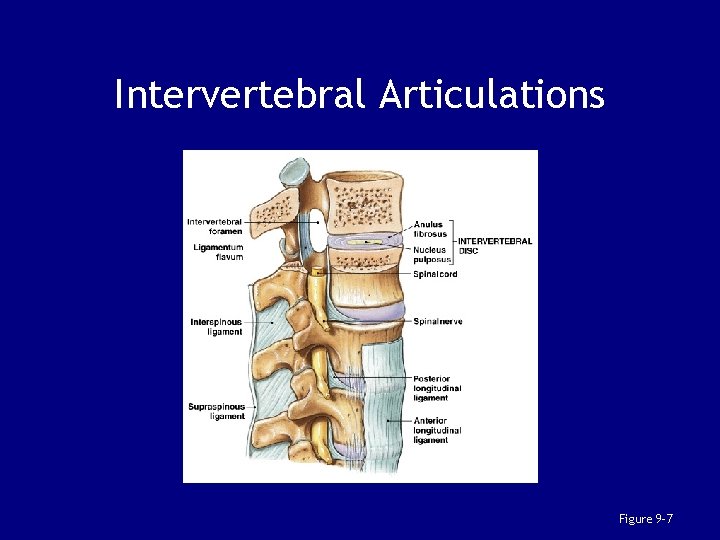

Intervertebral Articulations Figure 9– 7

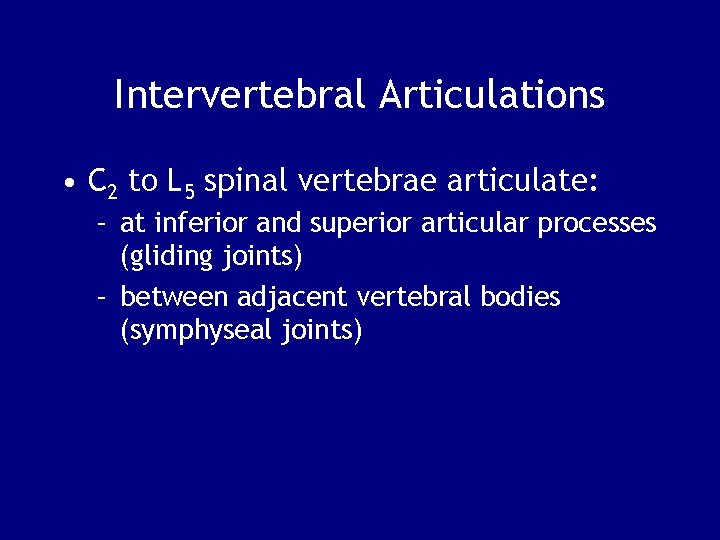

Intervertebral Articulations • C 2 to L 5 spinal vertebrae articulate: – at inferior and superior articular processes (gliding joints) – between adjacent vertebral bodies (symphyseal joints)

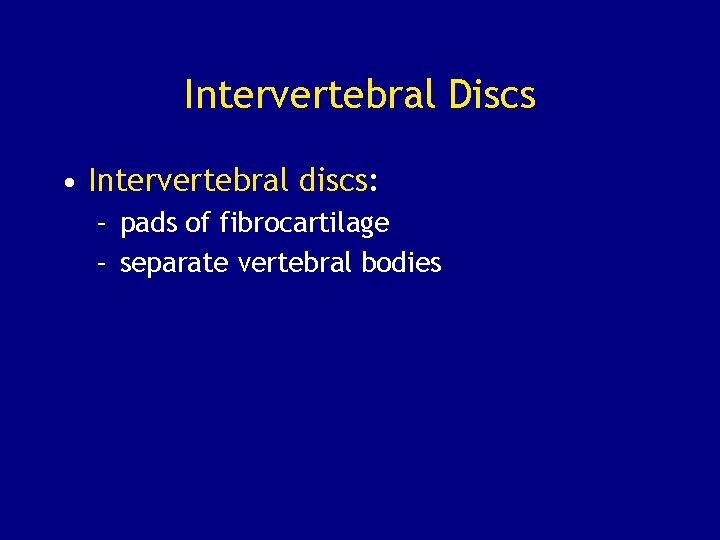

Intervertebral Discs • Intervertebral discs: – pads of fibrocartilage – separate vertebral bodies

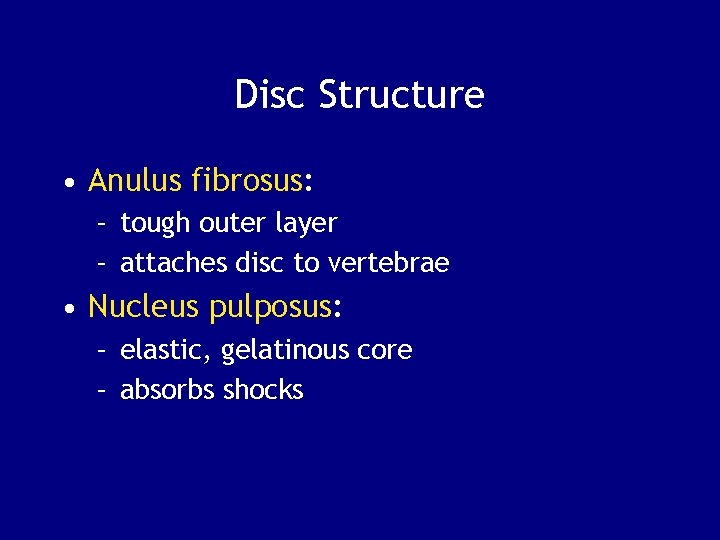

Disc Structure • Anulus fibrosus: – tough outer layer – attaches disc to vertebrae • Nucleus pulposus: – elastic, gelatinous core – absorbs shocks

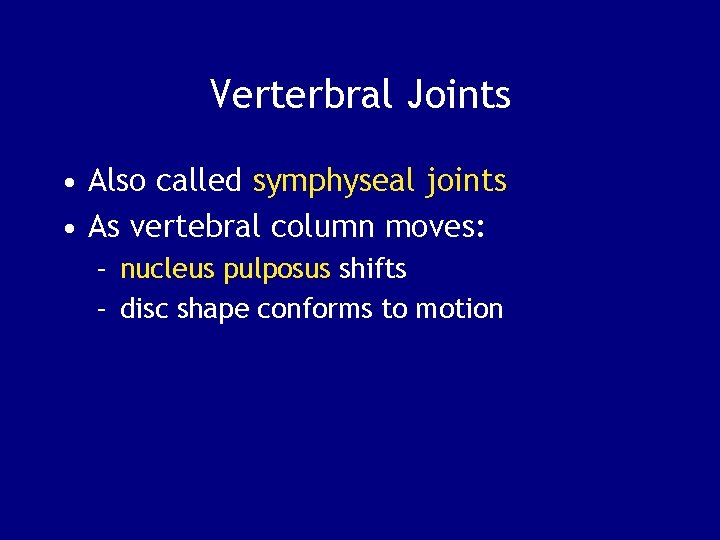

Verterbral Joints • Also called symphyseal joints • As vertebral column moves: – nucleus pulposus shifts – disc shape conforms to motion

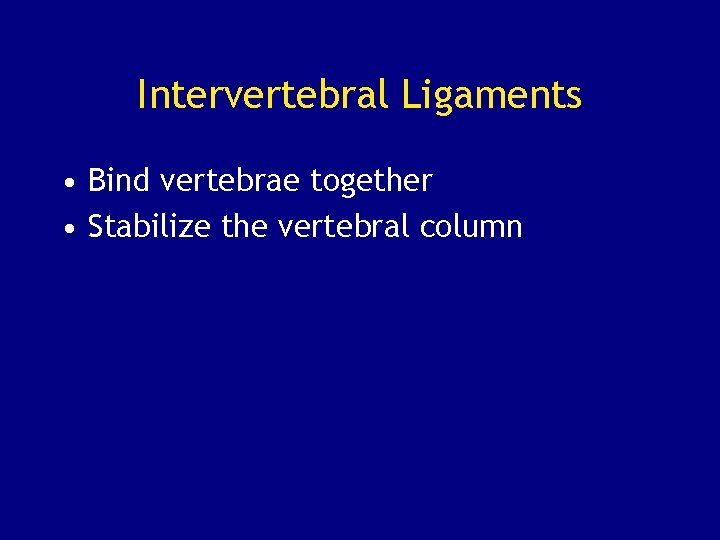

Intervertebral Ligaments • Bind vertebrae together • Stabilize the vertebral column

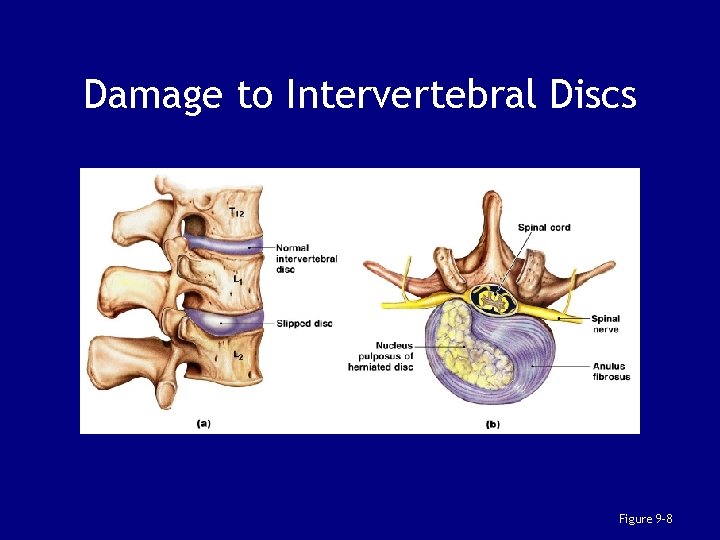

Damage to Intervertebral Discs Figure 9– 8

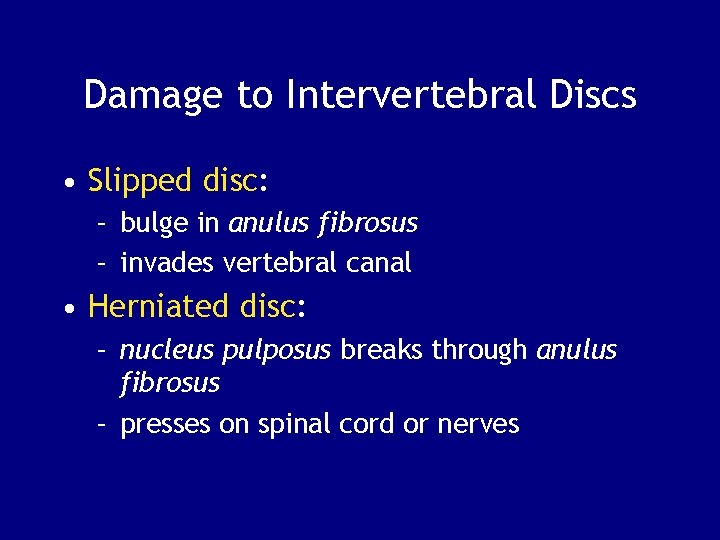

Damage to Intervertebral Discs • Slipped disc: – bulge in anulus fibrosus – invades vertebral canal • Herniated disc: – nucleus pulposus breaks through anulus fibrosus – presses on spinal cord or nerves

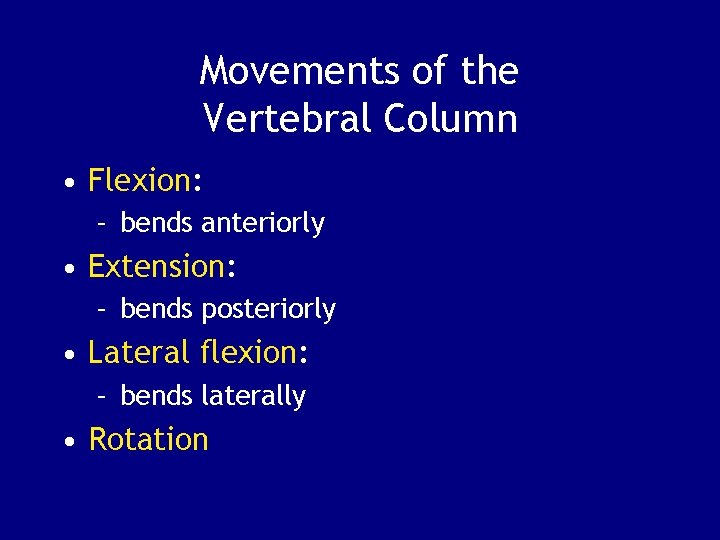

Movements of the Vertebral Column • Flexion: – bends anteriorly • Extension: – bends posteriorly • Lateral flexion: – bends laterally • Rotation

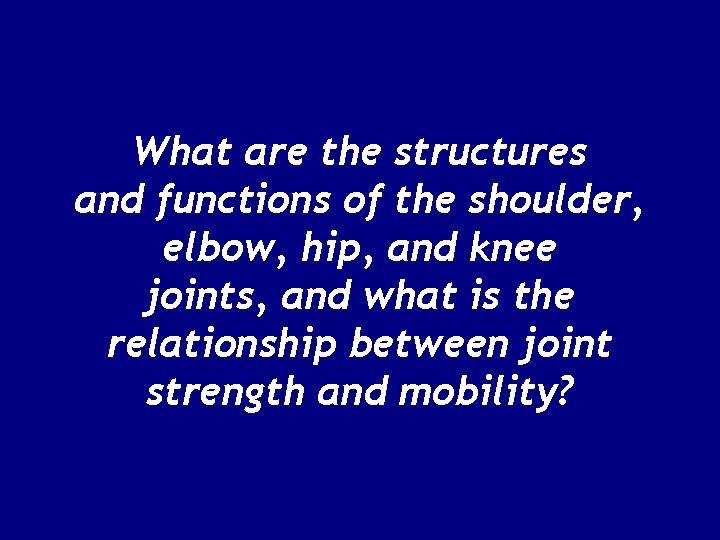

What are the structures and functions of the shoulder, elbow, hip, and knee joints, and what is the relationship between joint strength and mobility?

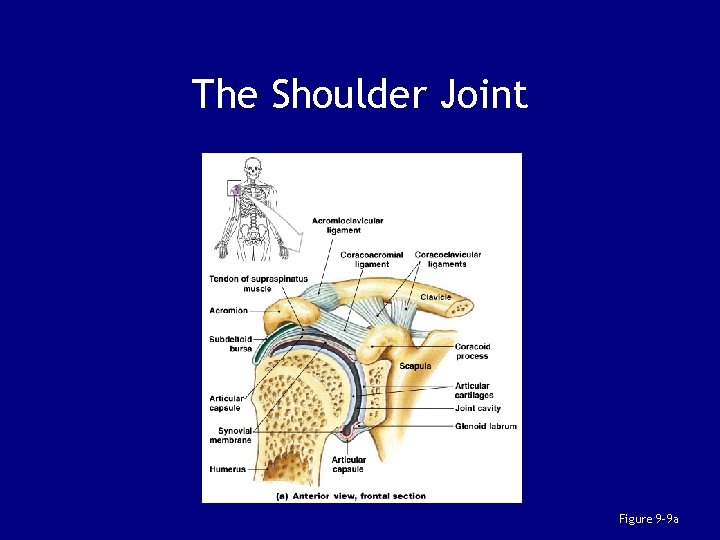

The Shoulder Joint Figure 9– 9 a

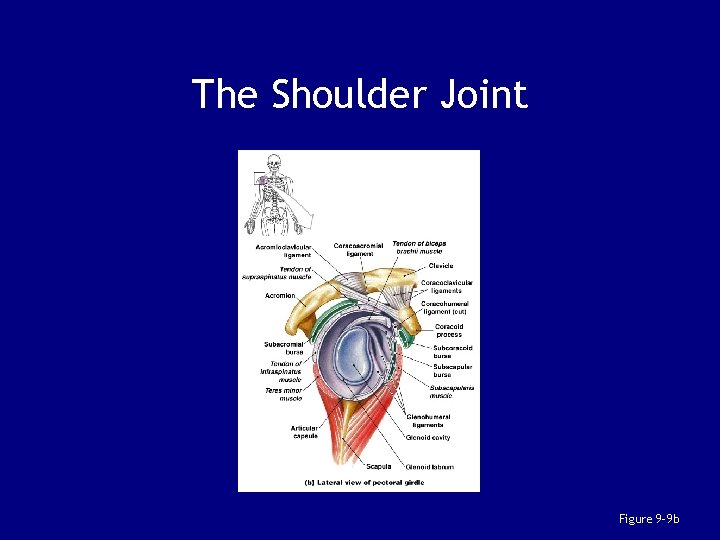

The Shoulder Joint Figure 9– 9 b

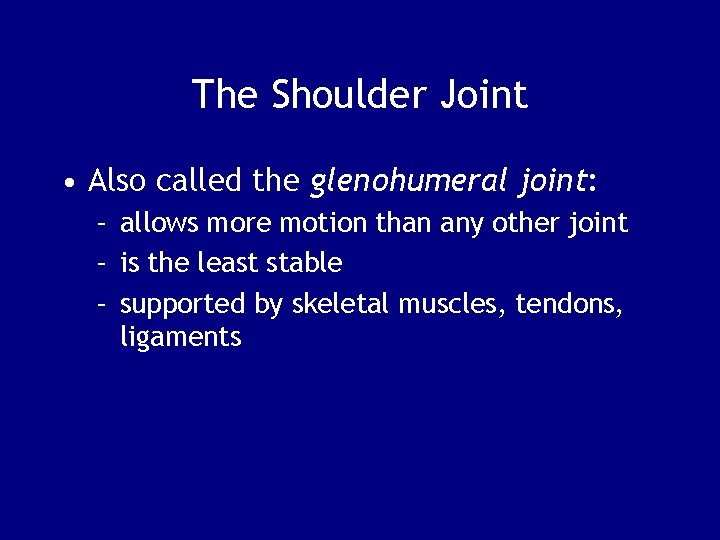

The Shoulder Joint • Also called the glenohumeral joint: – allows more motion than any other joint – is the least stable – supported by skeletal muscles, tendons, ligaments

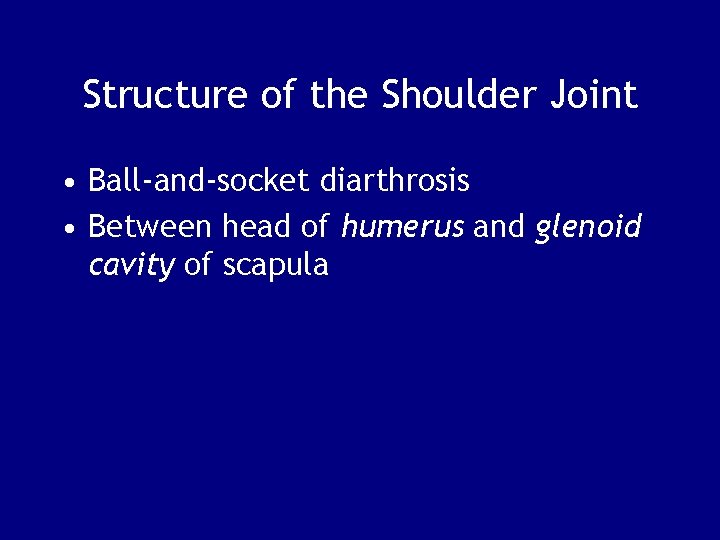

Structure of the Shoulder Joint • Ball-and-socket diarthrosis • Between head of humerus and glenoid cavity of scapula

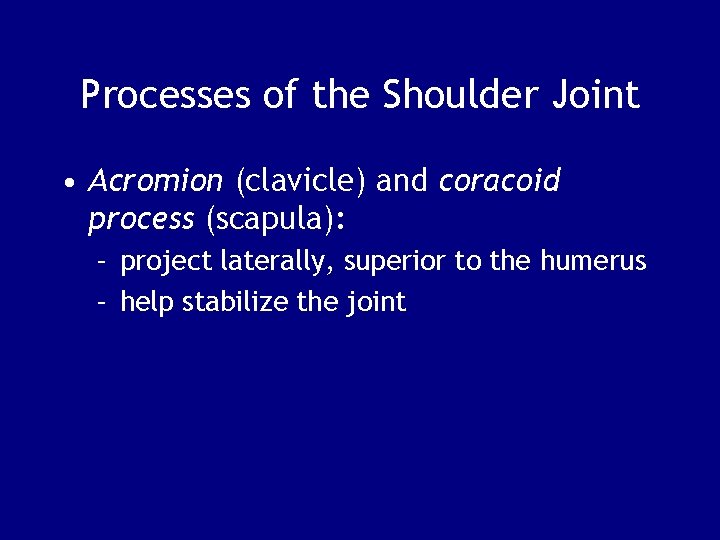

Processes of the Shoulder Joint • Acromion (clavicle) and coracoid process (scapula): – project laterally, superior to the humerus – help stabilize the joint

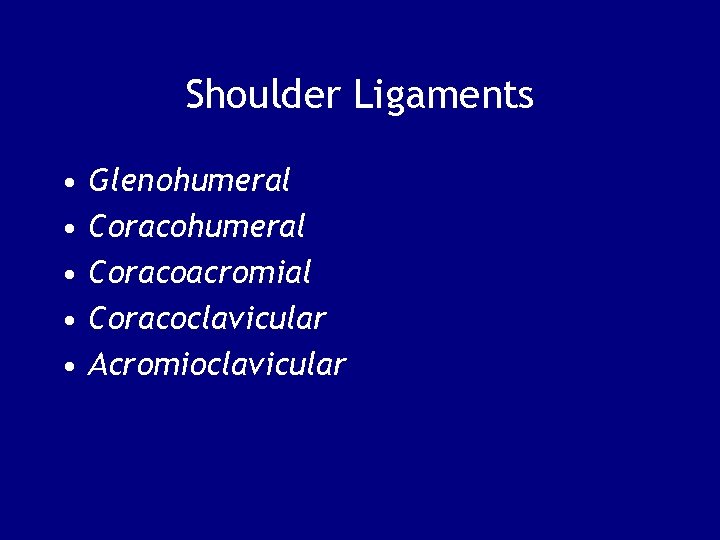

Shoulder Ligaments • • • Glenohumeral Coracoacromial Coracoclavicular Acromioclavicular

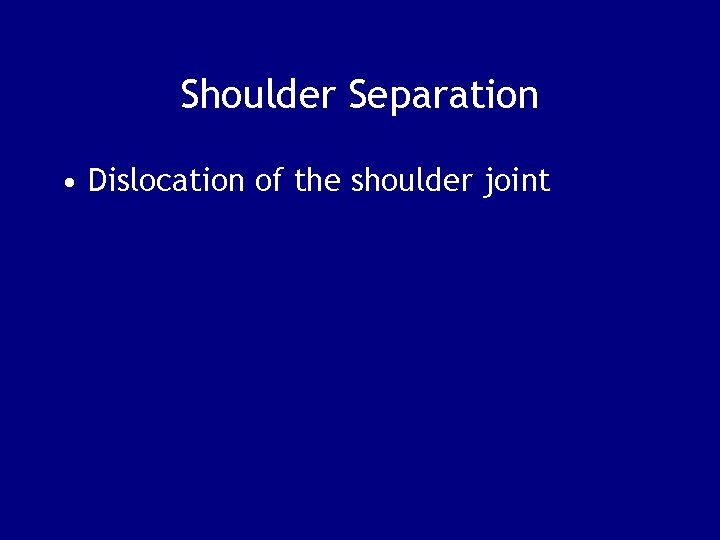

Shoulder Separation • Dislocation of the shoulder joint

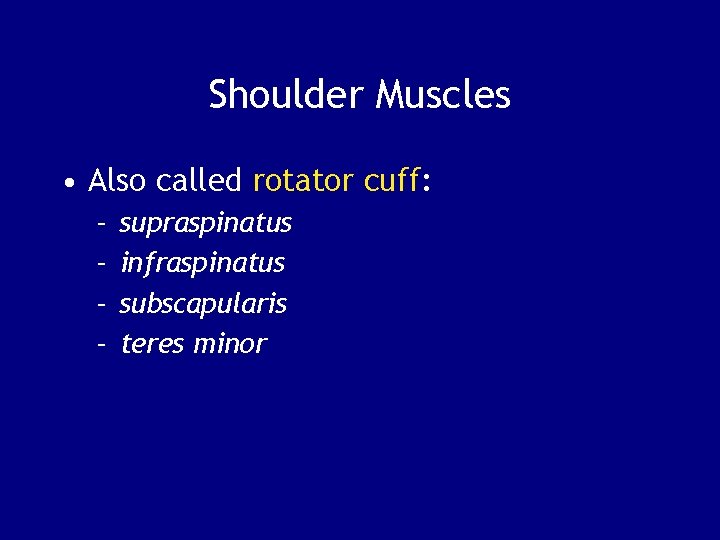

Shoulder Muscles • Also called rotator cuff: – – supraspinatus infraspinatus subscapularis teres minor

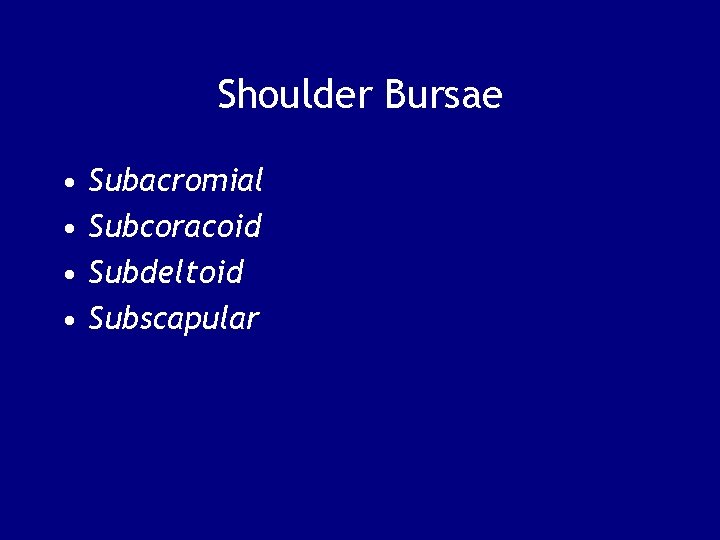

Shoulder Bursae • • Subacromial Subcoracoid Subdeltoid Subscapular

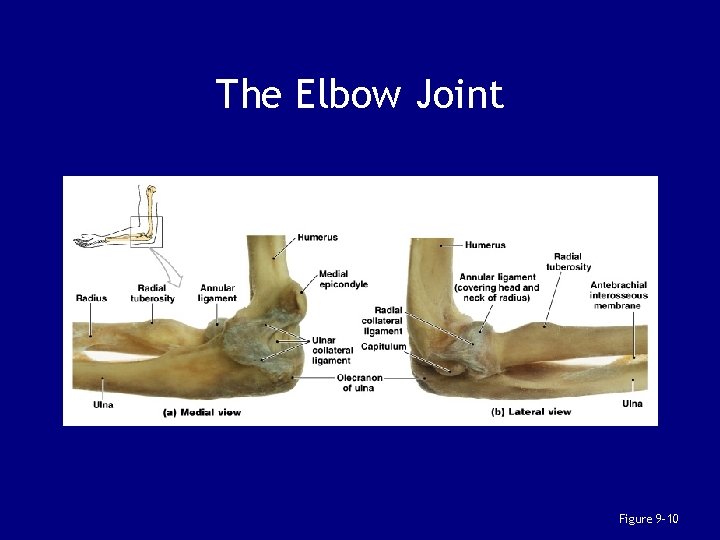

The Elbow Joint Figure 9– 10

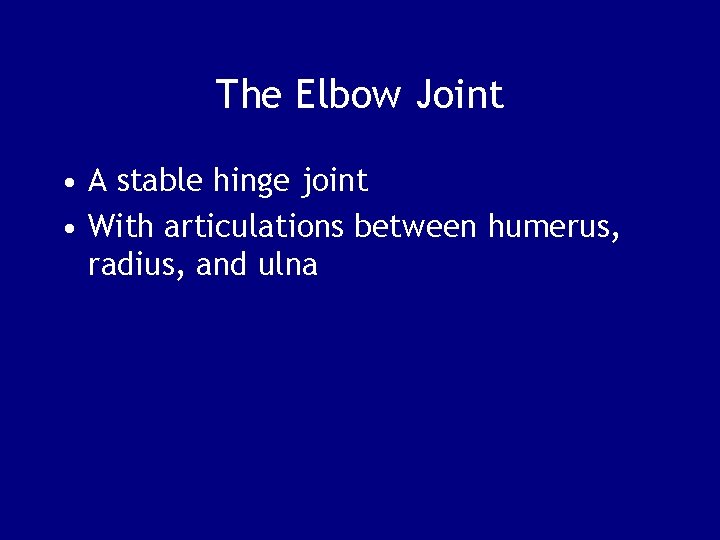

The Elbow Joint • A stable hinge joint • With articulations between humerus, radius, and ulna

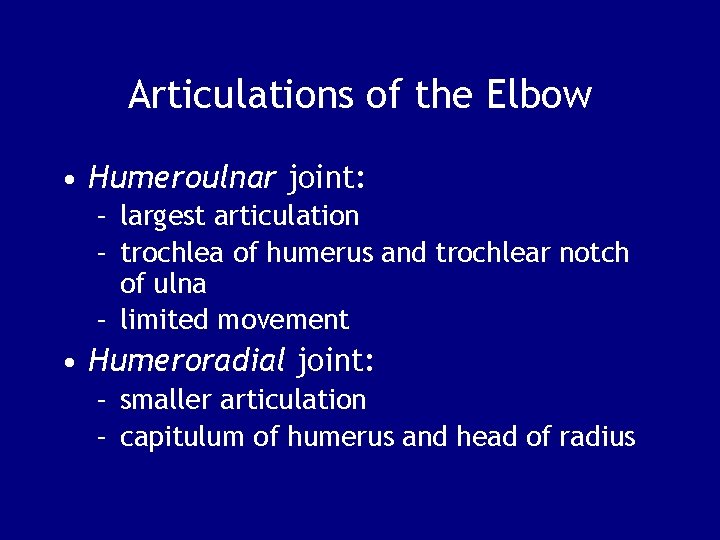

Articulations of the Elbow • Humeroulnar joint: – largest articulation – trochlea of humerus and trochlear notch of ulna – limited movement • Humeroradial joint: – smaller articulation – capitulum of humerus and head of radius

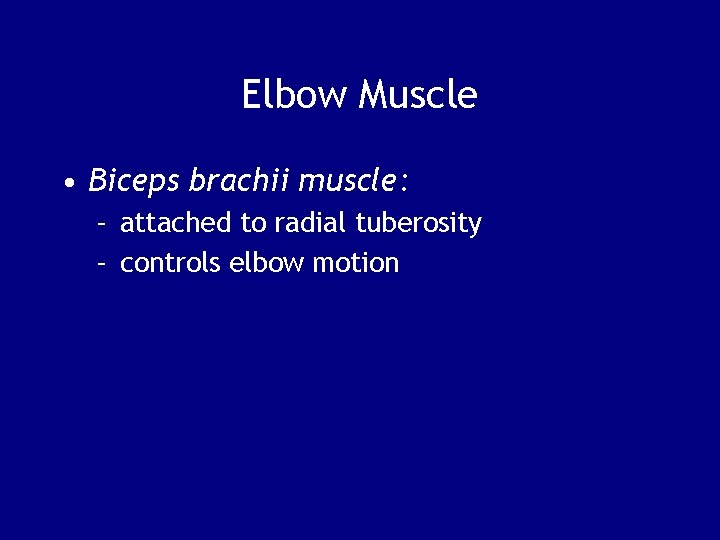

Elbow Muscle • Biceps brachii muscle: – attached to radial tuberosity – controls elbow motion

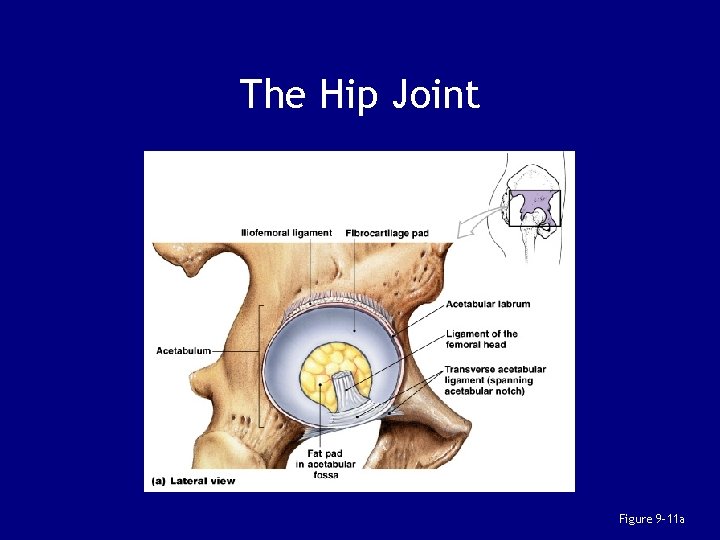

The Hip Joint Figure 9– 11 a

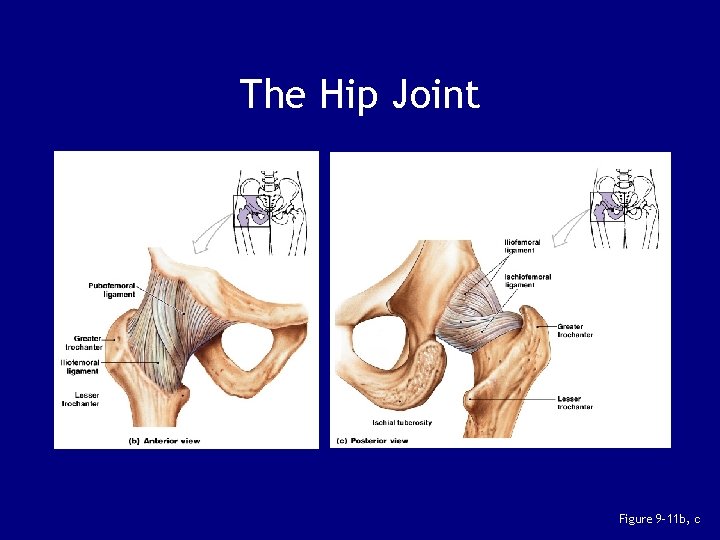

The Hip Joint Figure 9– 11 b, c

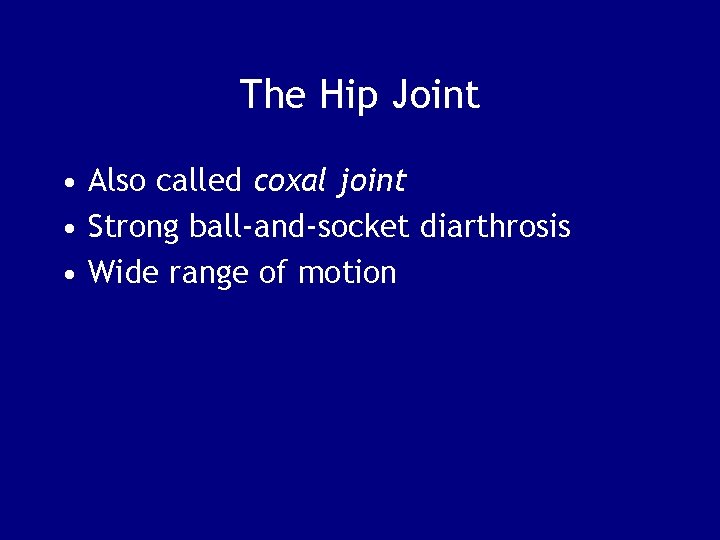

The Hip Joint • Also called coxal joint • Strong ball-and-socket diarthrosis • Wide range of motion

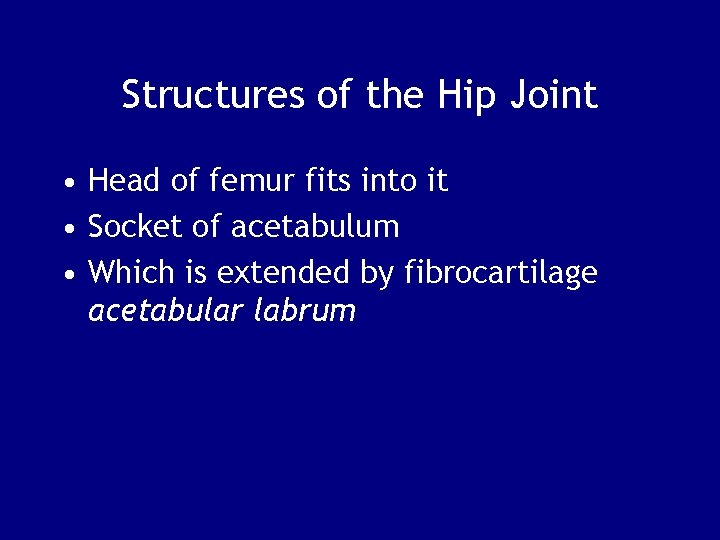

Structures of the Hip Joint • Head of femur fits into it • Socket of acetabulum • Which is extended by fibrocartilage acetabular labrum

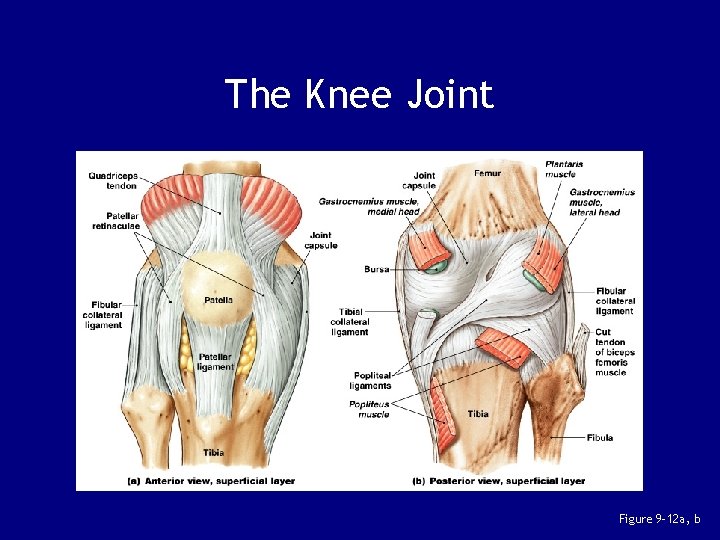

The Knee Joint Figure 9– 12 a, b

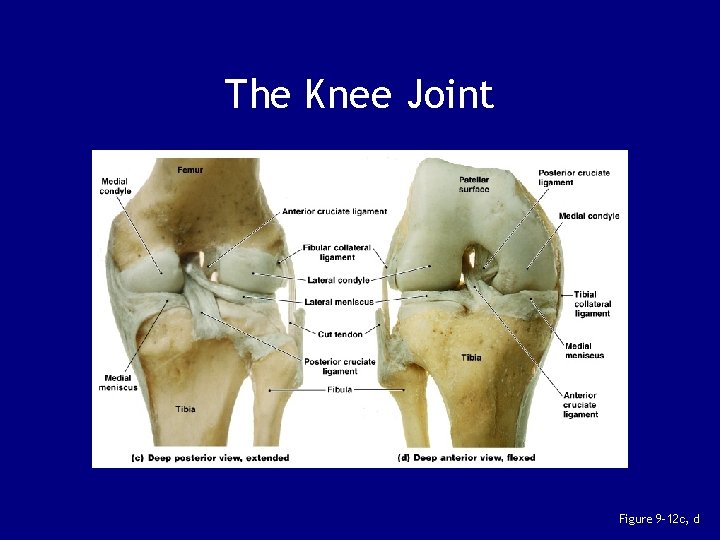

The Knee Joint Figure 9– 12 c, d

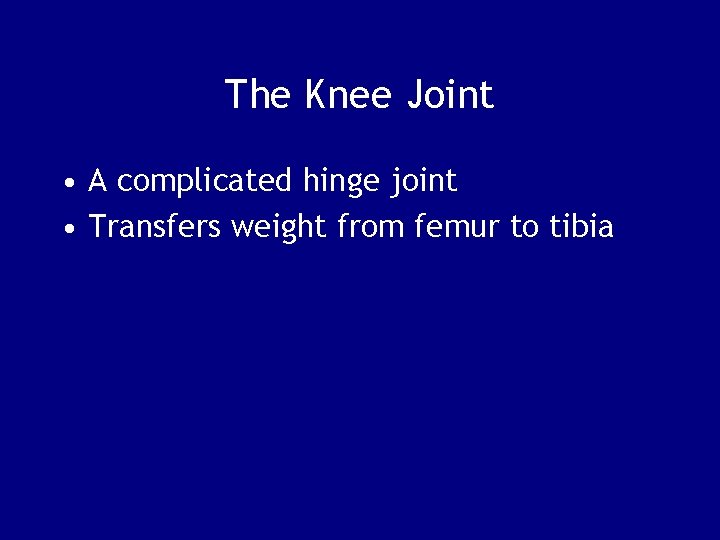

The Knee Joint • A complicated hinge joint • Transfers weight from femur to tibia

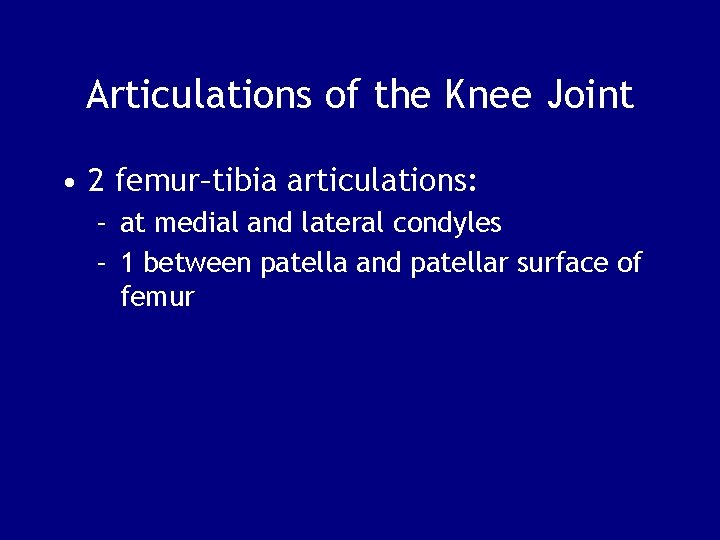

Articulations of the Knee Joint • 2 femur–tibia articulations: – at medial and lateral condyles – 1 between patella and patellar surface of femur

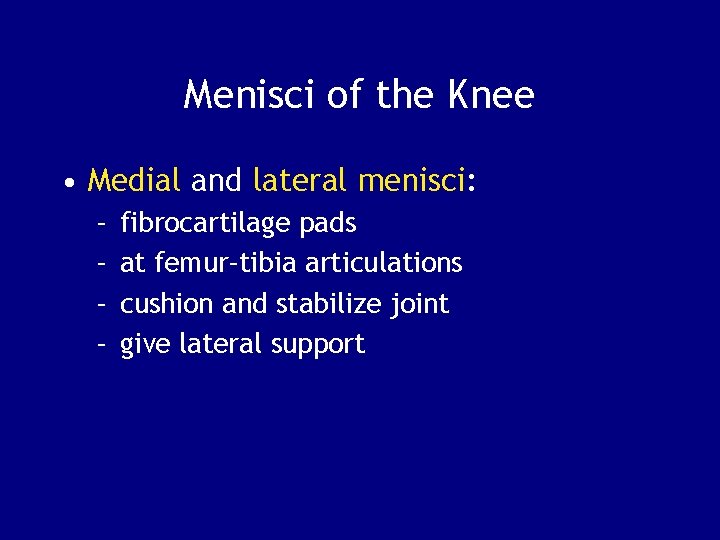

Menisci of the Knee • Medial and lateral menisci: – – fibrocartilage pads at femur–tibia articulations cushion and stabilize joint give lateral support

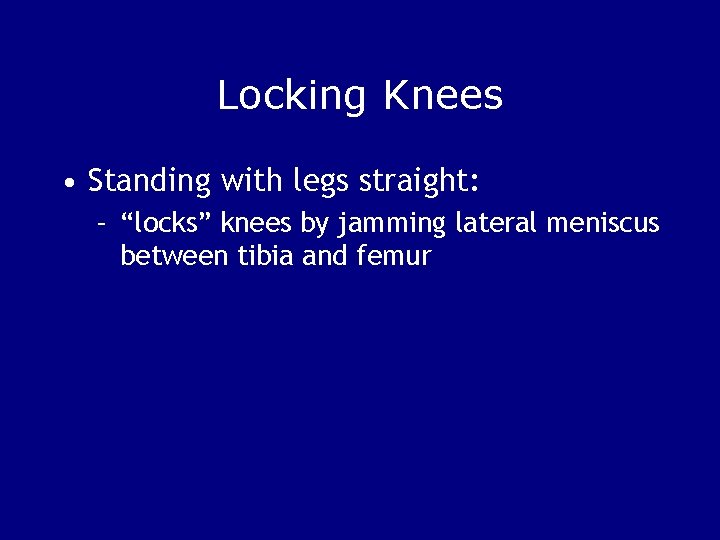

Locking Knees • Standing with legs straight: – “locks” knees by jamming lateral meniscus between tibia and femur

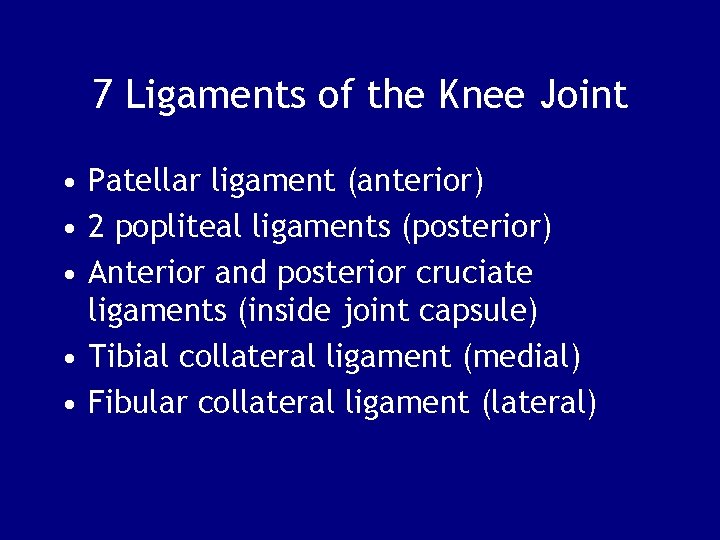

7 Ligaments of the Knee Joint • Patellar ligament (anterior) • 2 popliteal ligaments (posterior) • Anterior and posterior cruciate ligaments (inside joint capsule) • Tibial collateral ligament (medial) • Fibular collateral ligament (lateral)

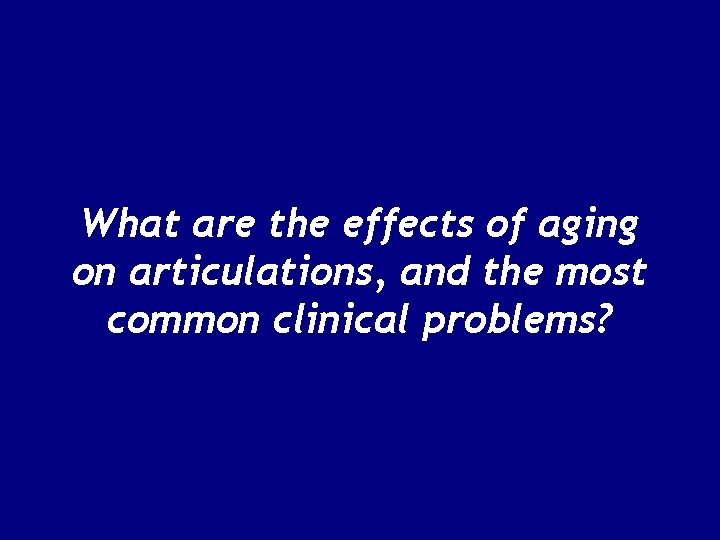

What are the effects of aging on articulations, and the most common clinical problems?

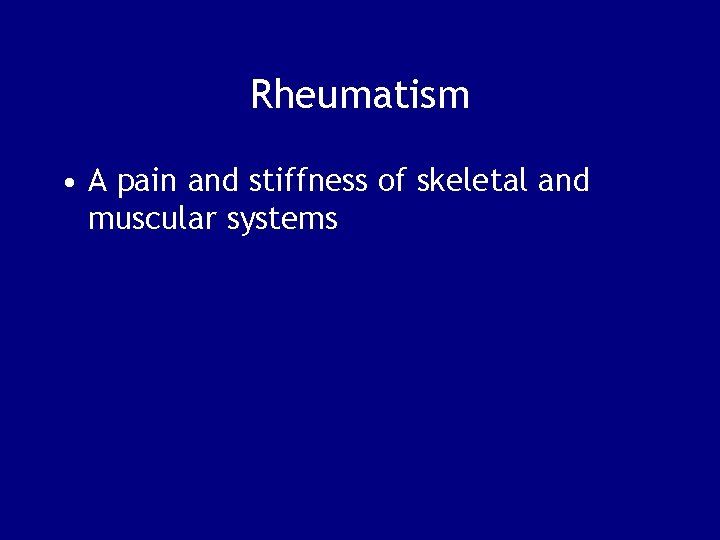

Rheumatism • A pain and stiffness of skeletal and muscular systems

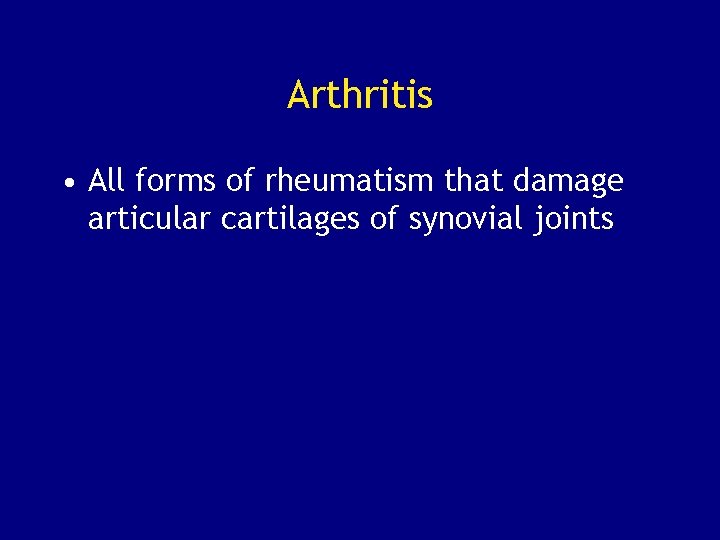

Arthritis • All forms of rheumatism that damage articular cartilages of synovial joints

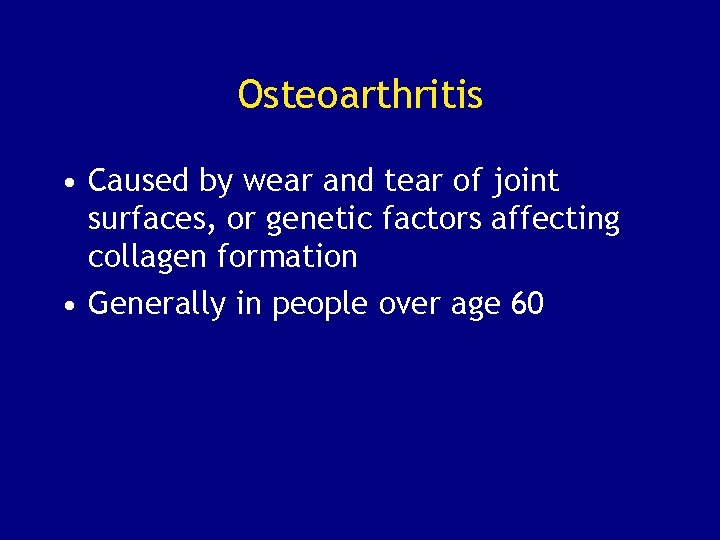

Osteoarthritis • Caused by wear and tear of joint surfaces, or genetic factors affecting collagen formation • Generally in people over age 60

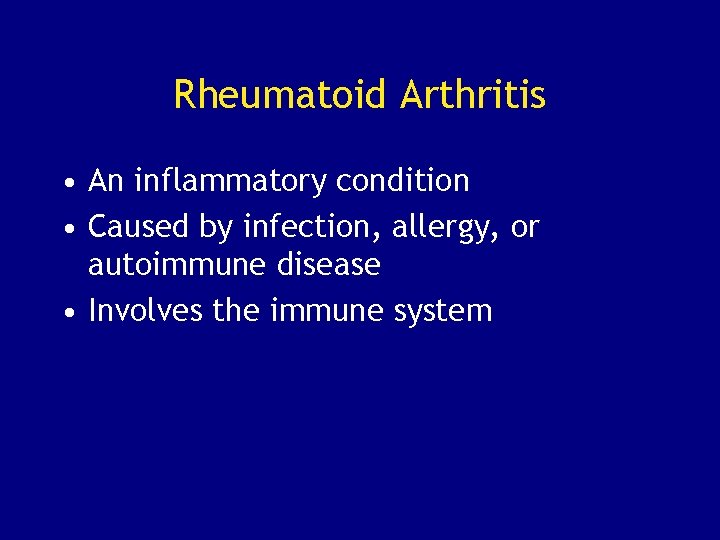

Rheumatoid Arthritis • An inflammatory condition • Caused by infection, allergy, or autoimmune disease • Involves the immune system

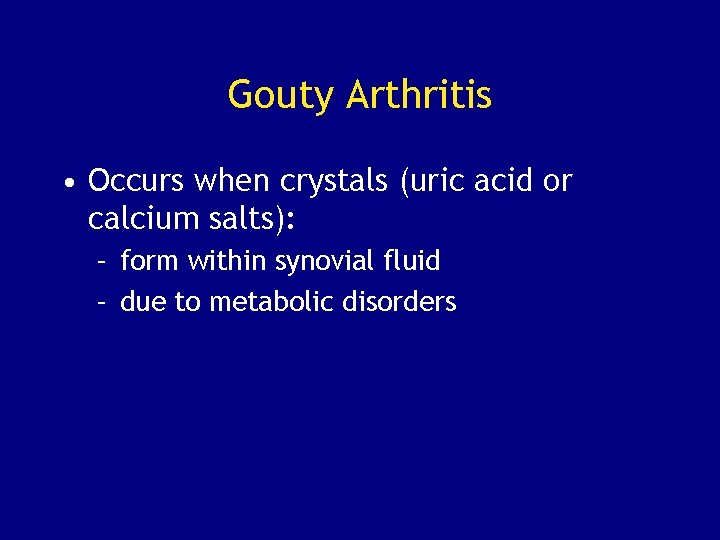

Gouty Arthritis • Occurs when crystals (uric acid or calcium salts): – form within synovial fluid – due to metabolic disorders

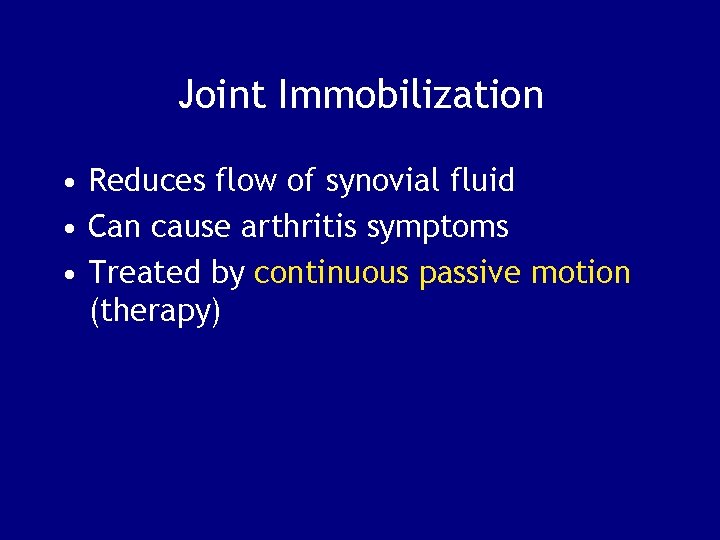

Joint Immobilization • Reduces flow of synovial fluid • Can cause arthritis symptoms • Treated by continuous passive motion (therapy)

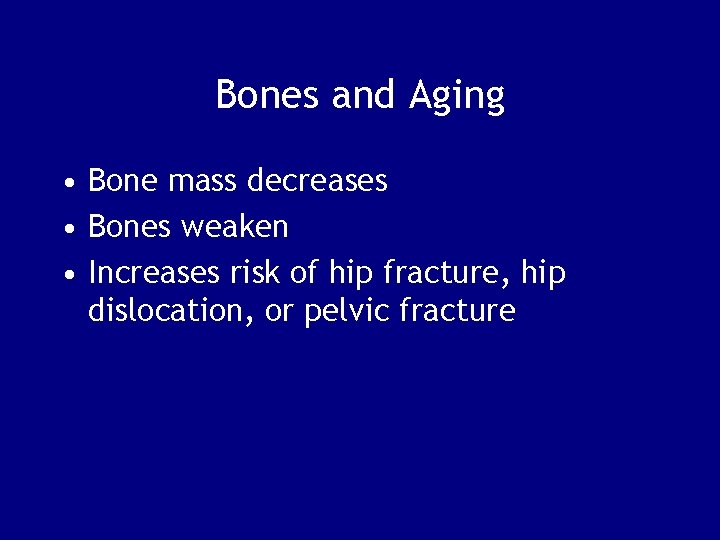

Bones and Aging • Bone mass decreases • Bones weaken • Increases risk of hip fracture, hip dislocation, or pelvic fracture

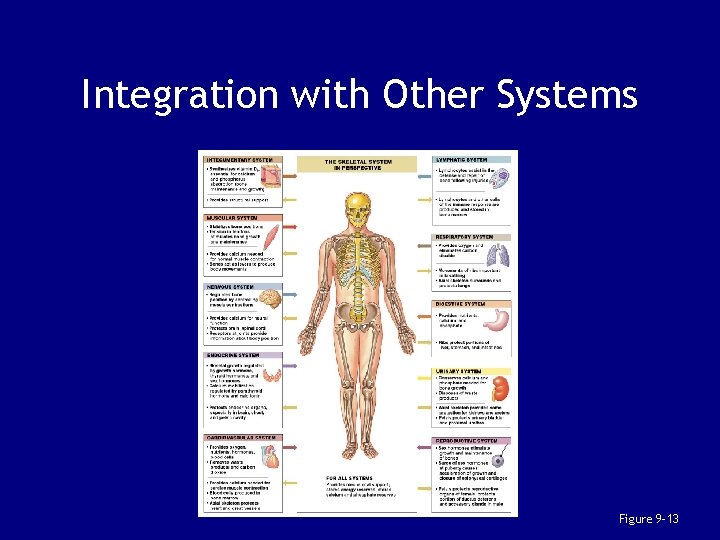

Integration with Other Systems Figure 9– 13

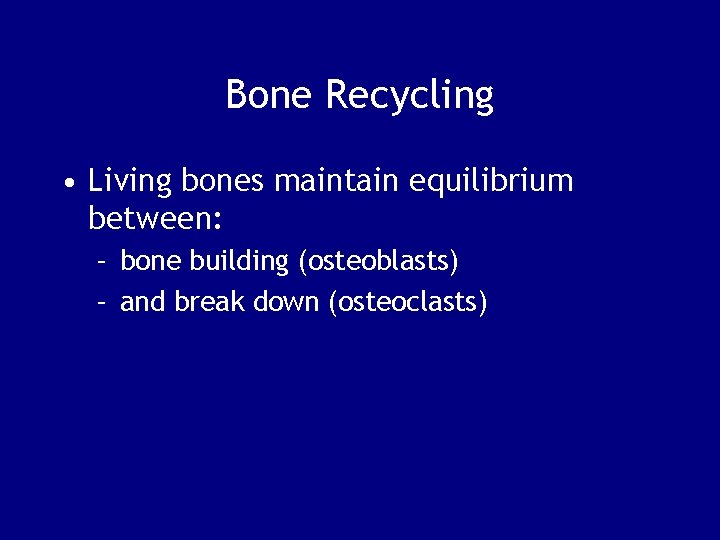

Bone Recycling • Living bones maintain equilibrium between: – bone building (osteoblasts) – and break down (osteoclasts)

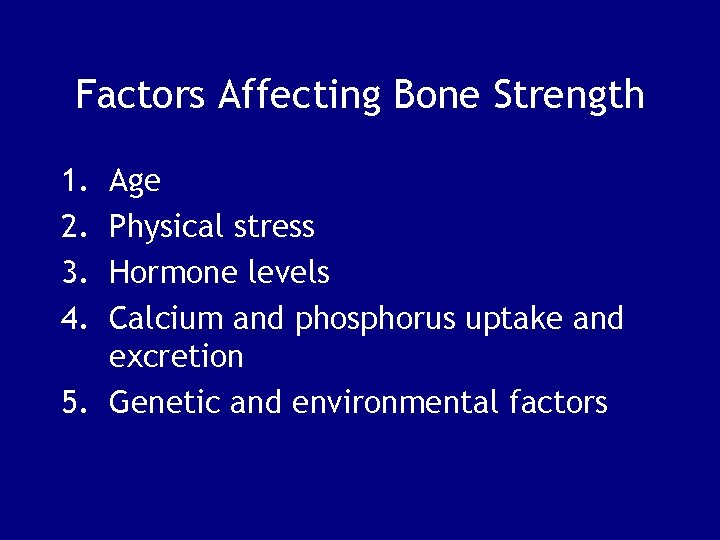

Factors Affecting Bone Strength 1. 2. 3. 4. Age Physical stress Hormone levels Calcium and phosphorus uptake and excretion 5. Genetic and environmental factors

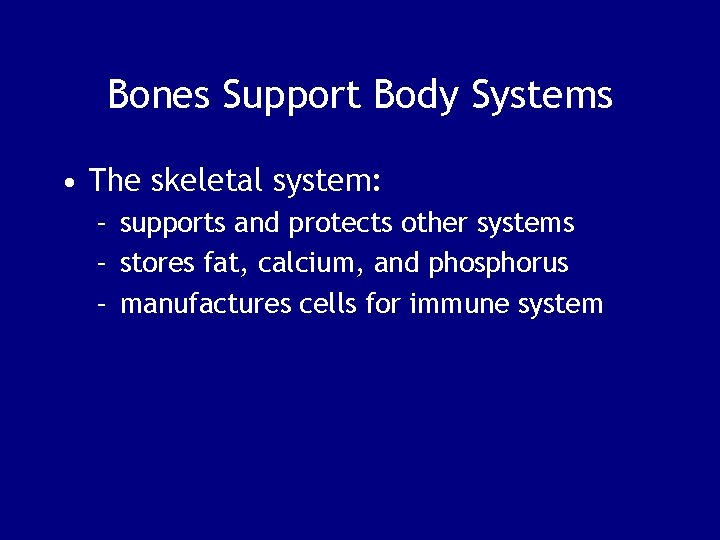

Bones Support Body Systems • The skeletal system: – supports and protects other systems – stores fat, calcium, and phosphorus – manufactures cells for immune system

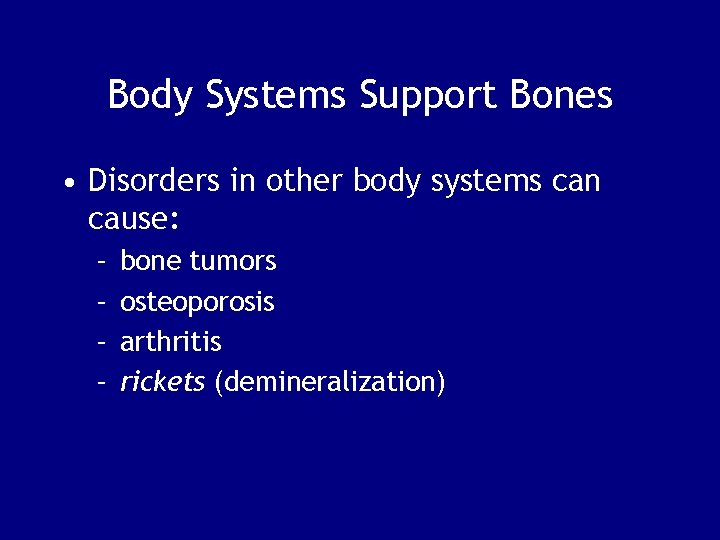

Body Systems Support Bones • Disorders in other body systems can cause: – – bone tumors osteoporosis arthritis rickets (demineralization)

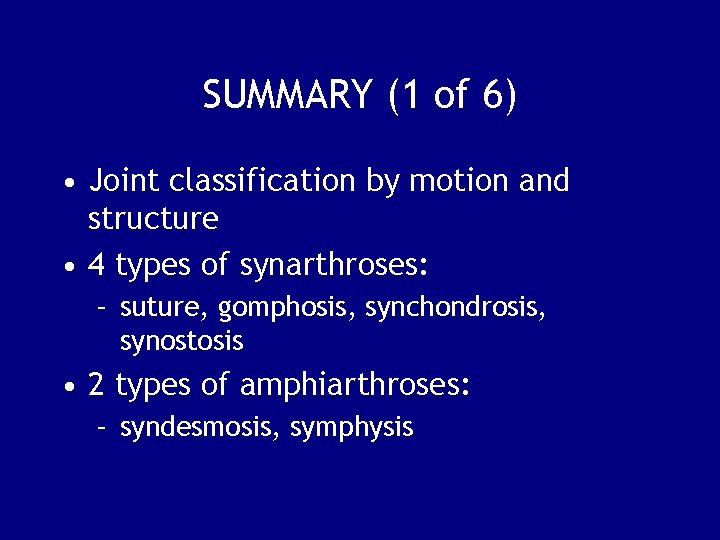

SUMMARY (1 of 6) • Joint classification by motion and structure • 4 types of synarthroses: – suture, gomphosis, synchondrosis, synostosis • 2 types of amphiarthroses: – syndesmosis, symphysis

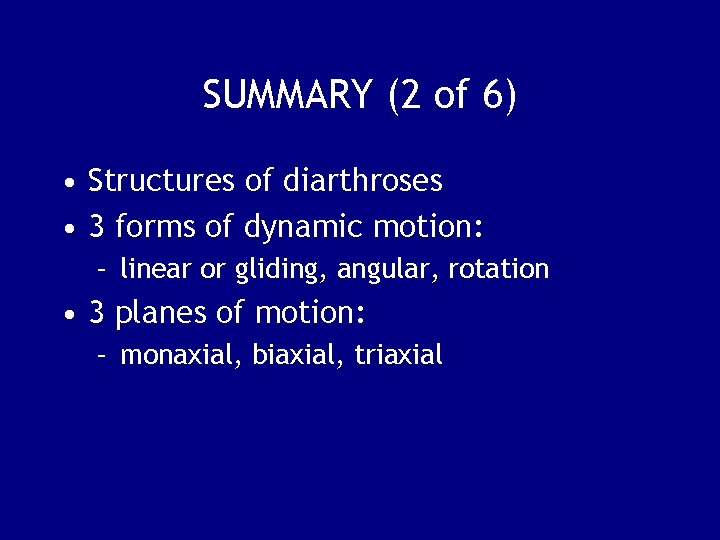

SUMMARY (2 of 6) • Structures of diarthroses • 3 forms of dynamic motion: – linear or gliding, angular, rotation • 3 planes of motion: – monaxial, biaxial, triaxial

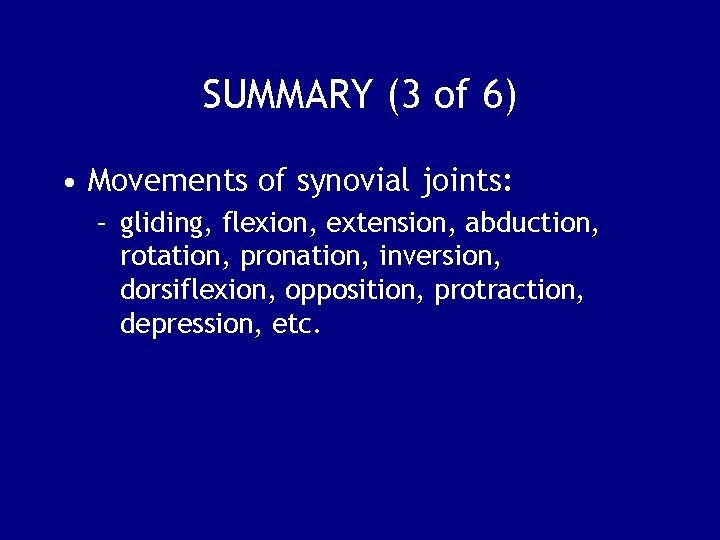

SUMMARY (3 of 6) • Movements of synovial joints: – gliding, flexion, extension, abduction, rotation, pronation, inversion, dorsiflexion, opposition, protraction, depression, etc.

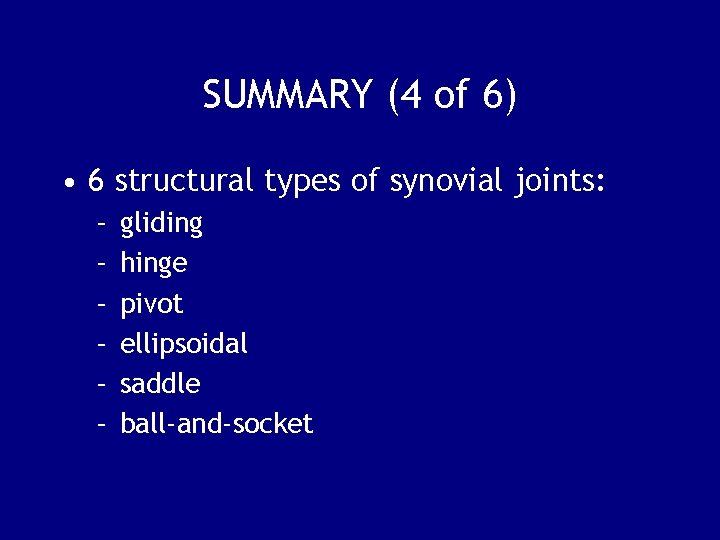

SUMMARY (4 of 6) • 6 structural types of synovial joints: – – – gliding hinge pivot ellipsoidal saddle ball-and-socket

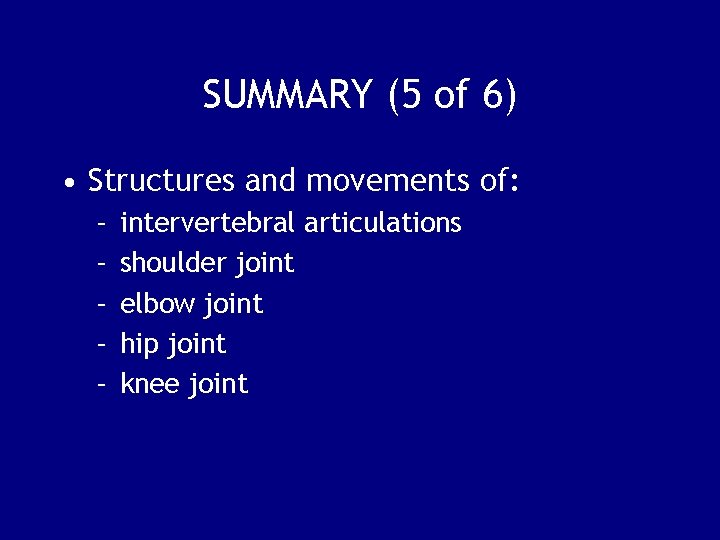

SUMMARY (5 of 6) • Structures and movements of: – – – intervertebral articulations shoulder joint elbow joint hip joint knee joint

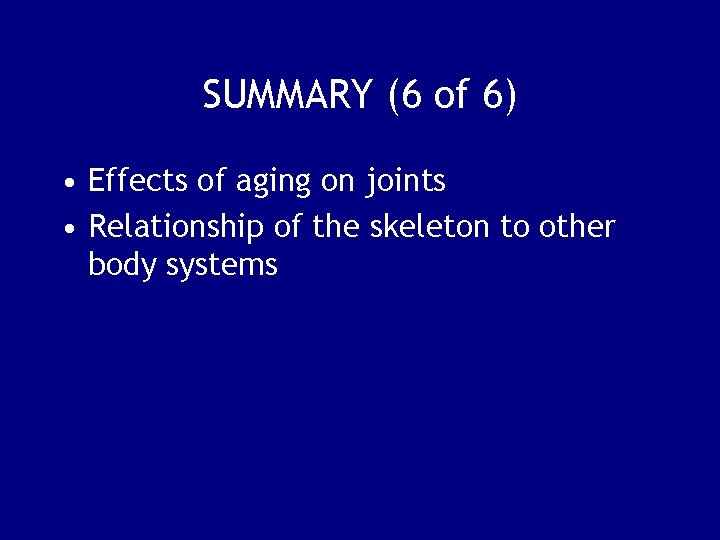

SUMMARY (6 of 6) • Effects of aging on joints • Relationship of the skeleton to other body systems
