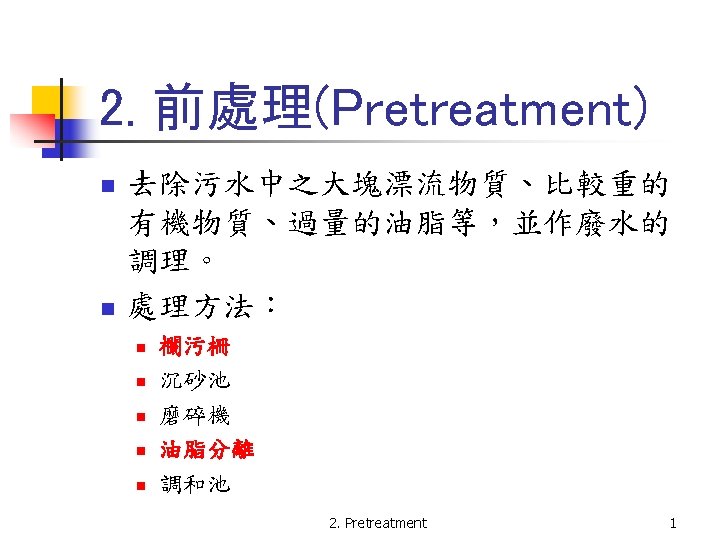

2 Pretreatment 5 2 Pretreatment 6 2 Pretreatment
- Slides: 84

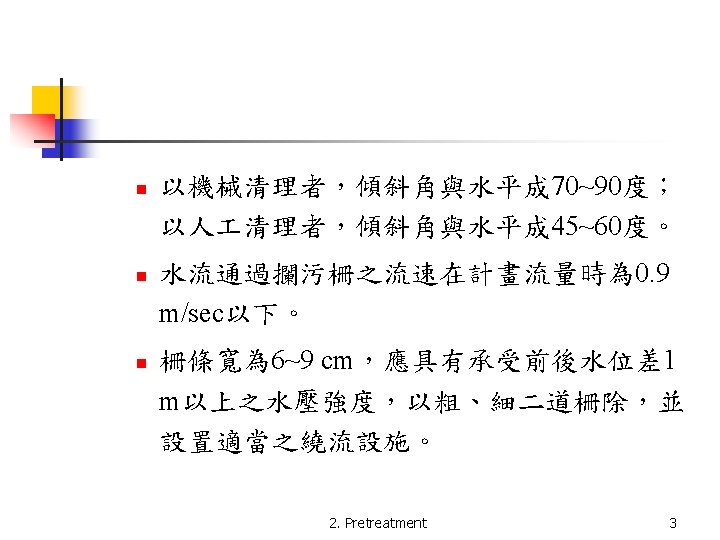

2. Pretreatment 5
2. Pretreatment 6
2. Pretreatment 7

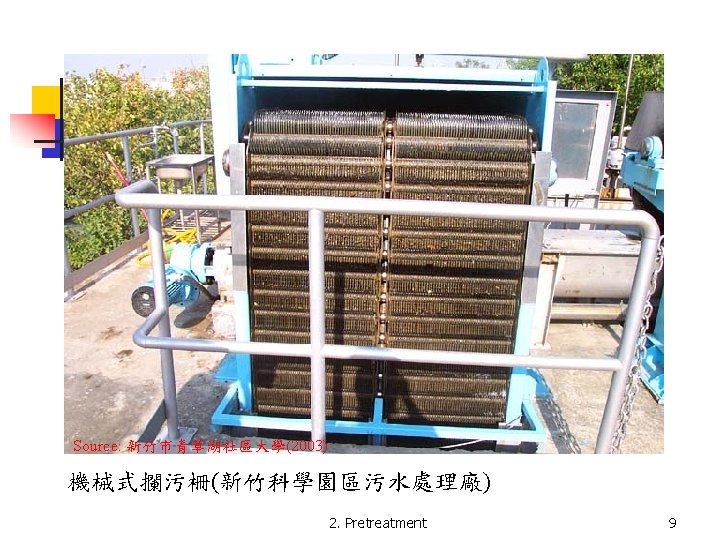

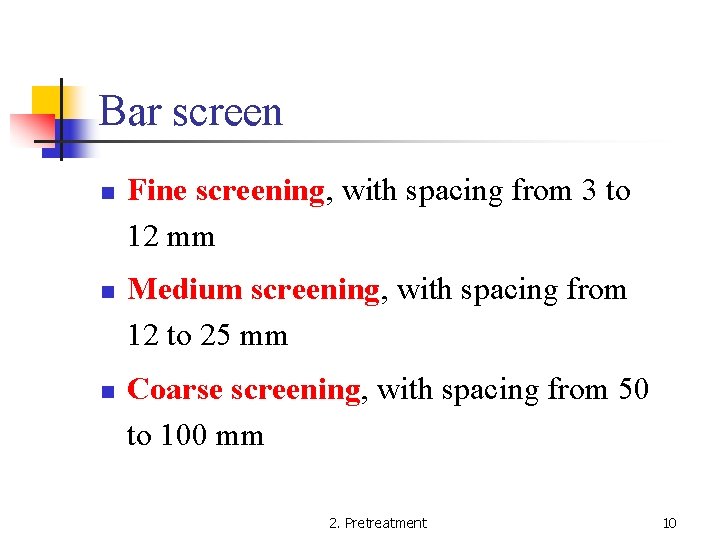

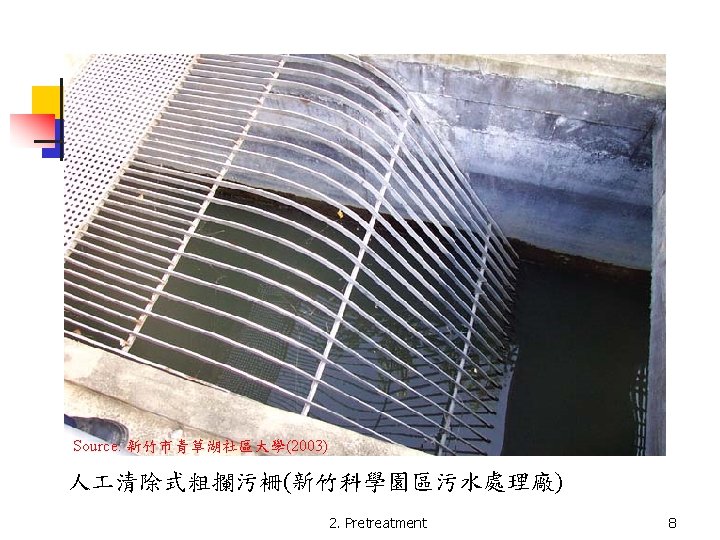

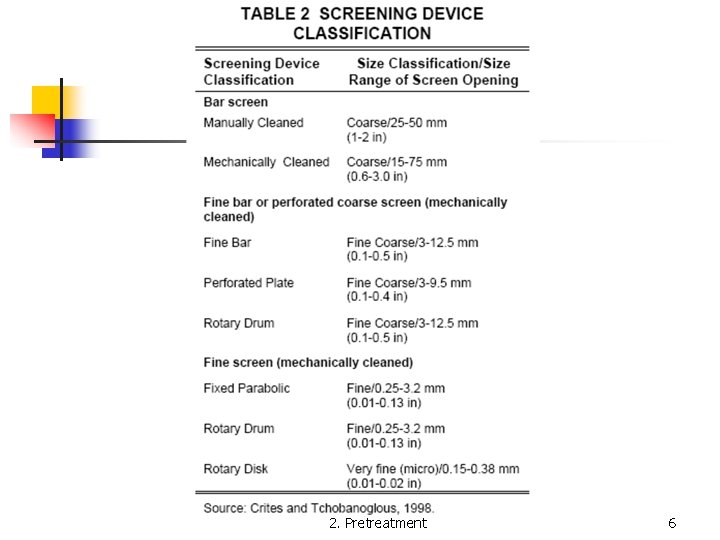

Bar screen n Fine screening, with spacing from 3 to 12 mm Medium screening, with spacing from 12 to 25 mm Coarse screening, with spacing from 50 to 100 mm 2. Pretreatment 10
Source: 用水と廃水 (1995), Vol. 37, No. 3, p. 41. 2. Pretreatment 11
Source: 用水と廃水 (1995), Vol. 37, No. 3, p. 42. 2. Pretreatment 12
2. Pretreatment Source: 用水と廃水 (1995), Vol. 37, No. 3, p. 44. 13
2. Pretreatment 14
欄污柵水頭損失估算 n Kirschmer’s formula 2. Pretreatment 15
n Bar Racks h. L = headloss, ft (m) 0. 7= an empirical discharge coefficient to account for turbulence and eddy losses V = velocity of flow through the openings of the bar racks, ft/s (m/s) v = approach velocity in upstream channel, ft/s (m/s) 2 (m/s 2) 2. Pretreatment g = acceleration due to gravity, ft/s 16
n Fine Screens h. L = headloss, ft (m) C = coefficient of discharge for the screen (typical value for a clean screen = 0. 60) g = acceleration due to gravity, ft/s 2 (m/s 2) Q = discharge through screen, ft 3/s (m 3/s) A = effective open area of submerged screen, ft 2 (m 2) 2. Pretreatment 17

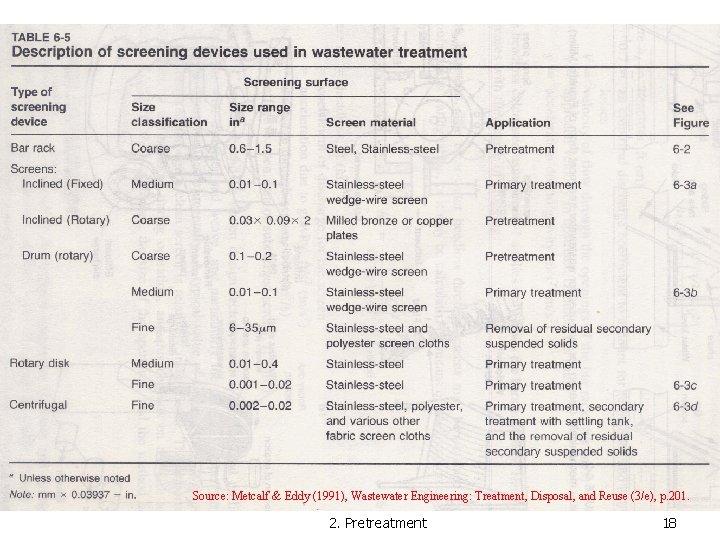

Source: Metcalf & Eddy (1991), Wastewater Engineering: Treatment, Disposal, and Reuse (3/e), p. 201. 2. Pretreatment 18
Source: Metcalf & Eddy (1991), Wastewater Engineering: Treatment, Disposal, and Reuse (3/e), p. 202. 2. Pretreatment 19
Source: Metcalf & Eddy (1991), Wastewater Engineering: Treatment, Disposal, and Reuse (3/e), p. 202. 2. Pretreatment 20

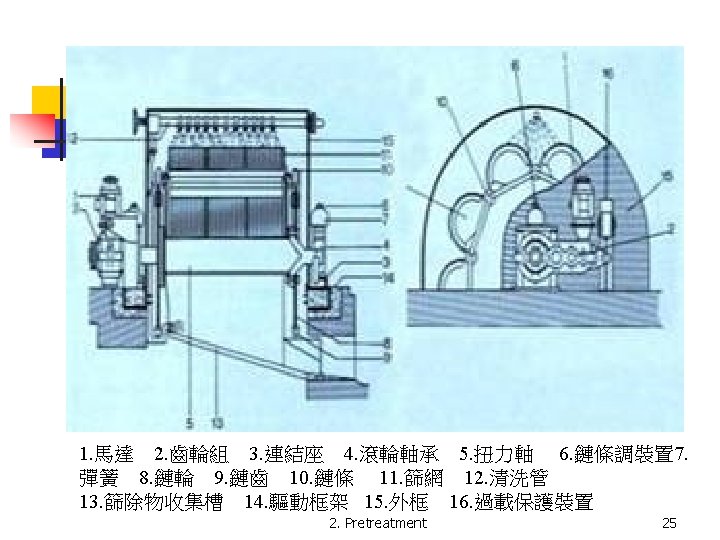

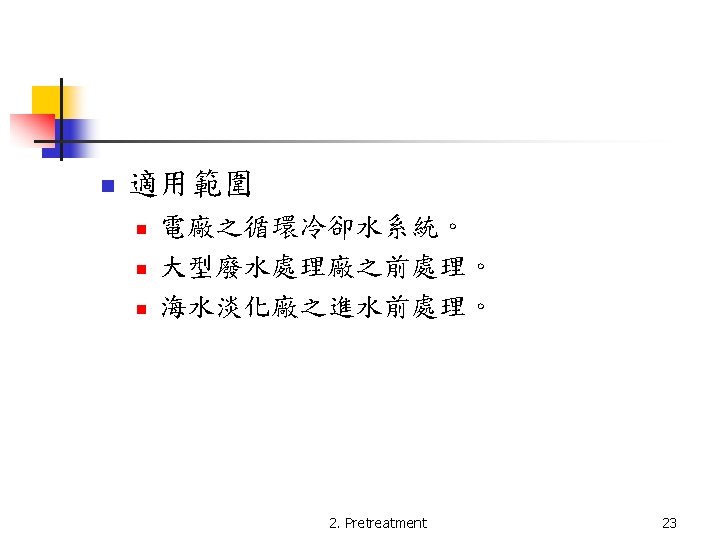

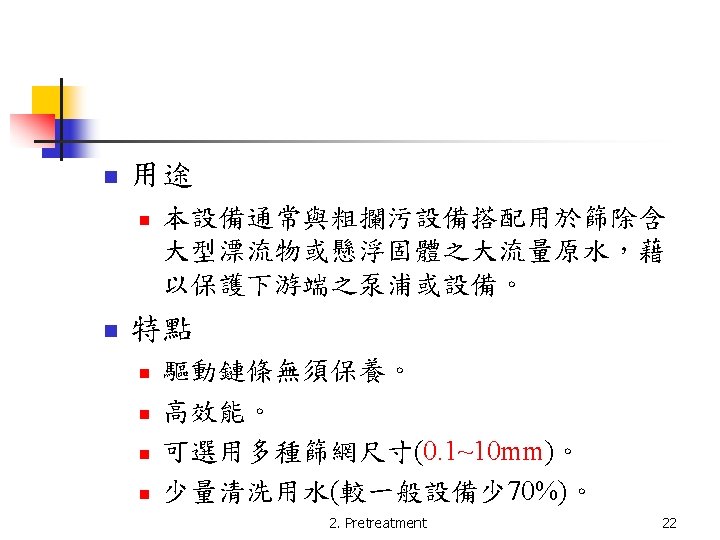

2. Pretreatment 24

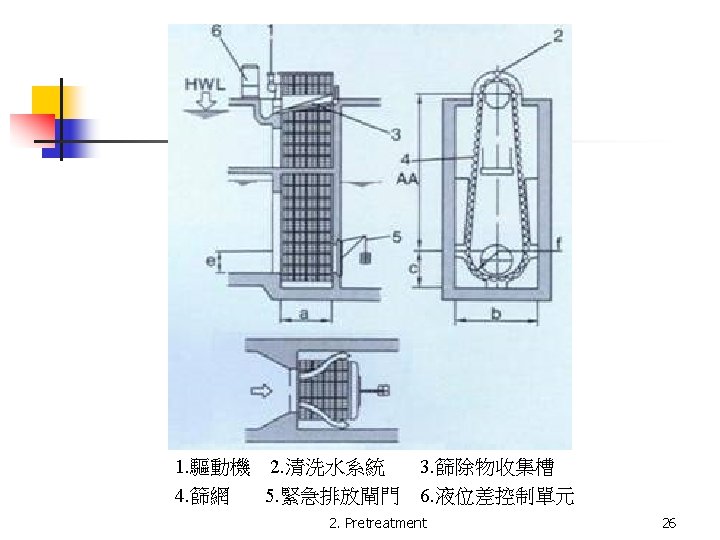

2. Pretreatment 27

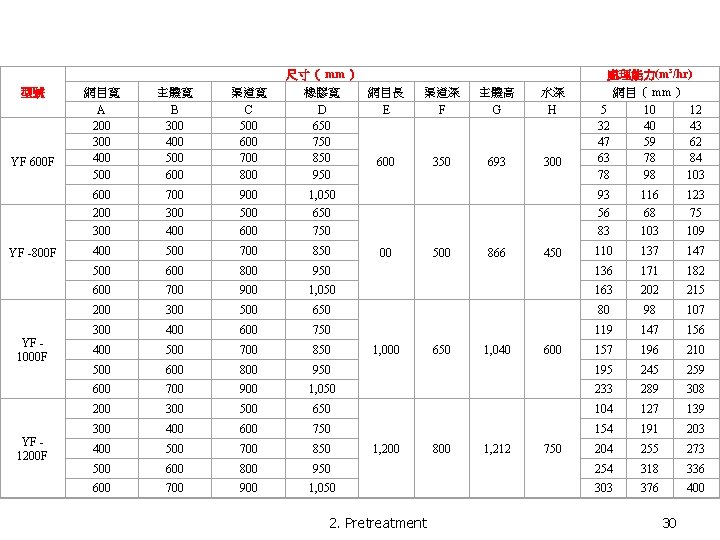

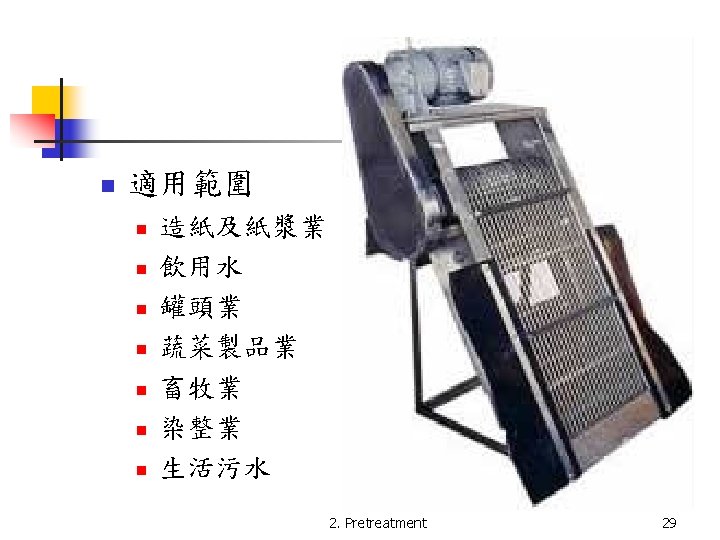

型號 YF 600 F YF -800 F YF 1000 F YF 1200 F 尺寸（ mm ） 橡膠寬 網目長 D E 650 750 850 600 950 網目寬 A 200 300 400 500 主體寬 B 300 400 500 600 渠道寬 C 500 600 700 800 600 200 300 700 300 400 900 500 600 1, 050 650 750 400 500 700 850 500 600 800 600 700 200 渠道深 F 主體高 G 水深 H 350 693 300 處理能力(m³/hr) 網目（ mm ） 5 10 12 32 40 43 47 59 62 63 78 84 78 98 103 93 56 83 116 68 103 123 75 109 110 137 147 950 136 171 182 900 1, 050 163 202 215 300 500 650 80 98 107 300 400 600 750 119 147 156 400 500 700 850 157 196 210 500 600 800 950 195 245 259 600 700 900 1, 050 233 289 308 200 300 500 650 104 127 139 300 400 600 750 154 191 203 400 500 700 850 204 255 273 500 600 800 950 254 318 336 600 700 900 1, 050 303 376 400 00 1, 000 1, 200 2. Pretreatment 500 650 800 866 1, 040 1, 212 450 600 750 30

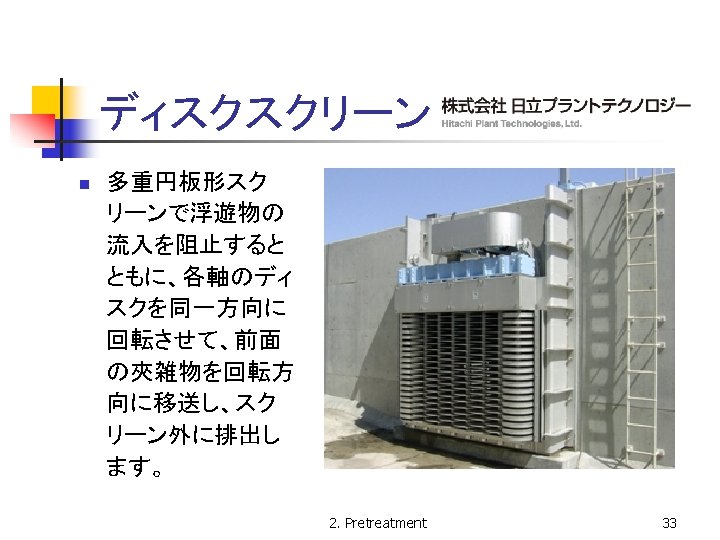

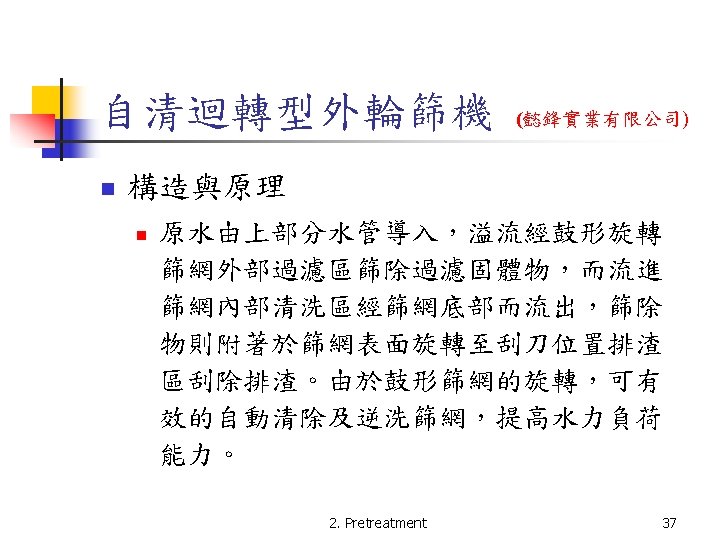

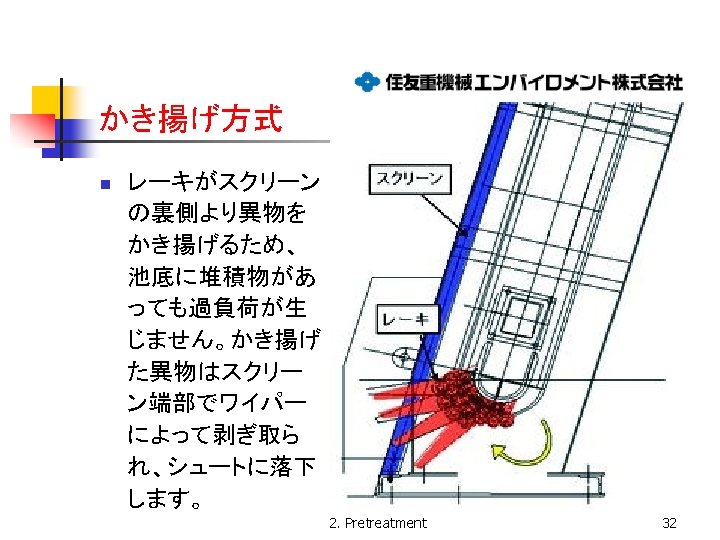

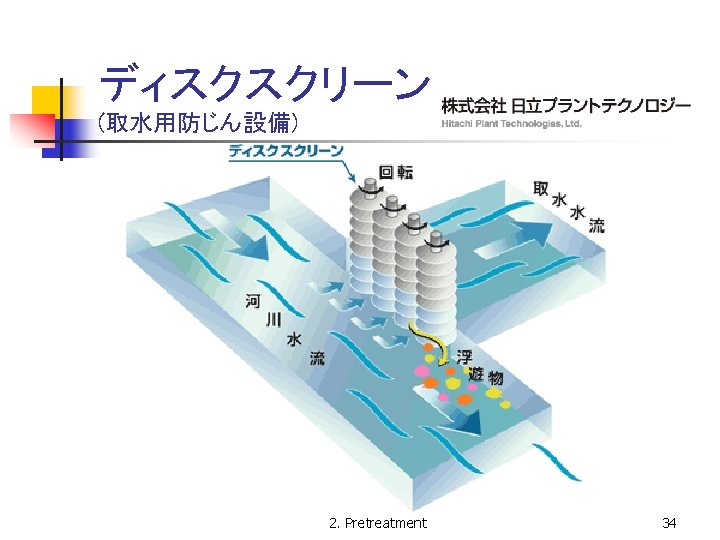

篩網間距（mm） 型號 0. 5 0. 75 1. 0 1. 25 1. 5 2 處理能力（m³/hr） R 4545 10 20 25 *27 30 36 R 4560 15 26 33 *36 40 50 R 6030 40 *55 75 81 90 110 R 6060 80 *110 150 160 180 220 R 6090 120 *165 225 240 270 330 * 較常使用之型號 2. Pretreatment 39
產品照片 流程說明圖 2. Pretreatment 40

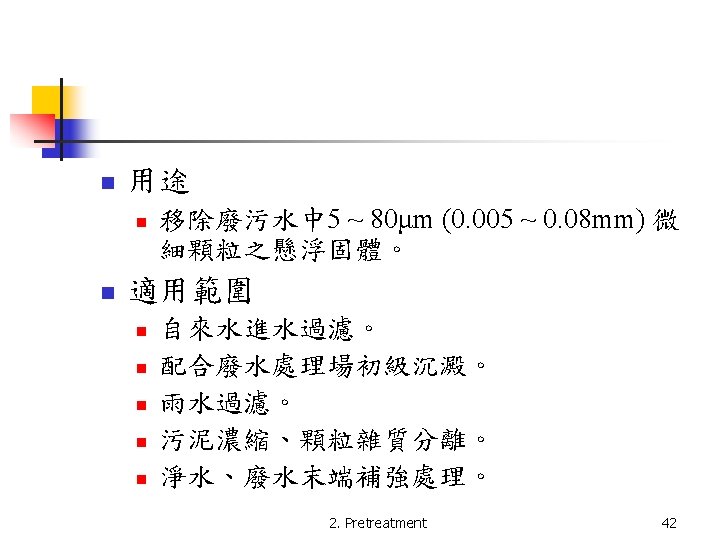

型號 處理量 W L H (m 3/h) (m/m) P 1 P 2 總 動力 (kw) AS 20 5~20 800 1, 000 800 4" 4" 1 AS 50 20~50 1, 000 1, 400 1, 000 4" 6" 2 AS 90 50~90 1, 200 1, 600 1, 200 6" 6"*2 3 AS 150 90~150 1, 600 2, 200 1, 600 6"* 2 8"*2 4. 5 2. Pretreatment 2~200 mesh 濾網材質 SUS 304&P. P 200~600 mesh 濾網材質 P. P 43
設備流程 2. Pretreatment 44
產品照片 2. Pretreatment 45

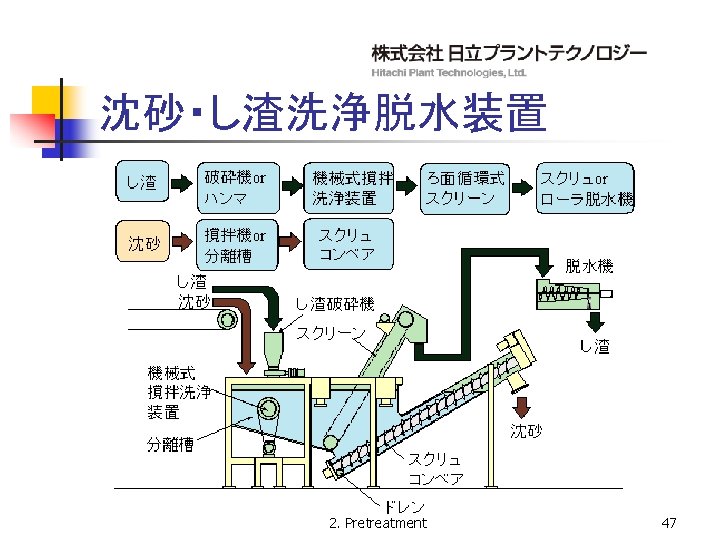

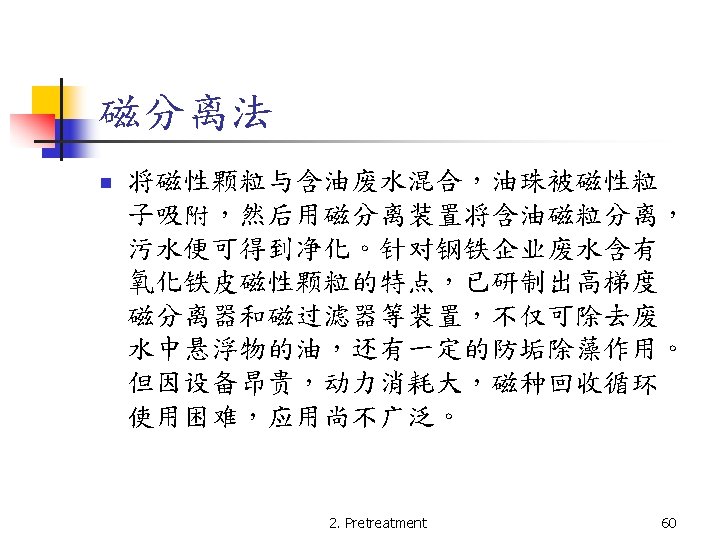

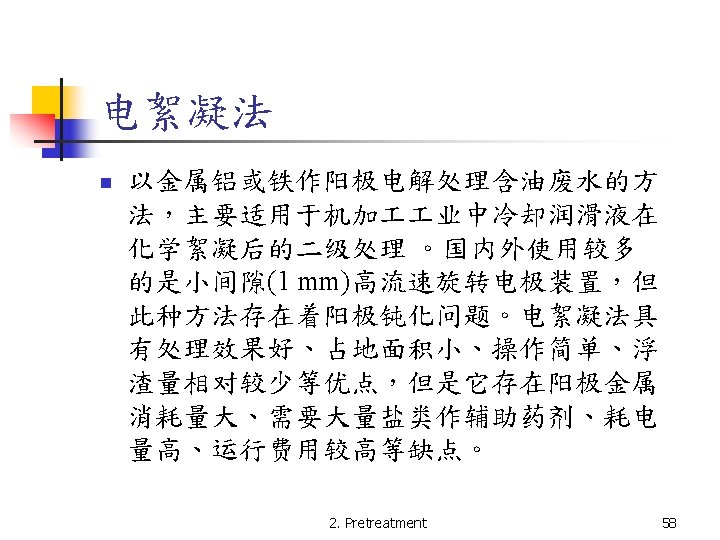

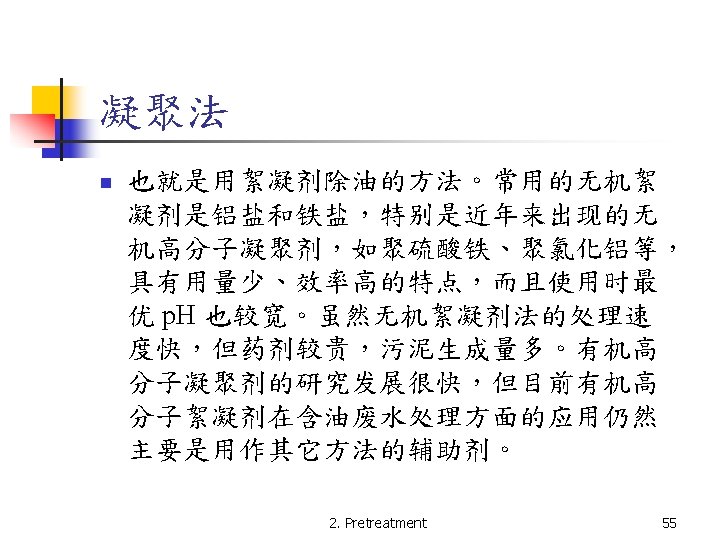

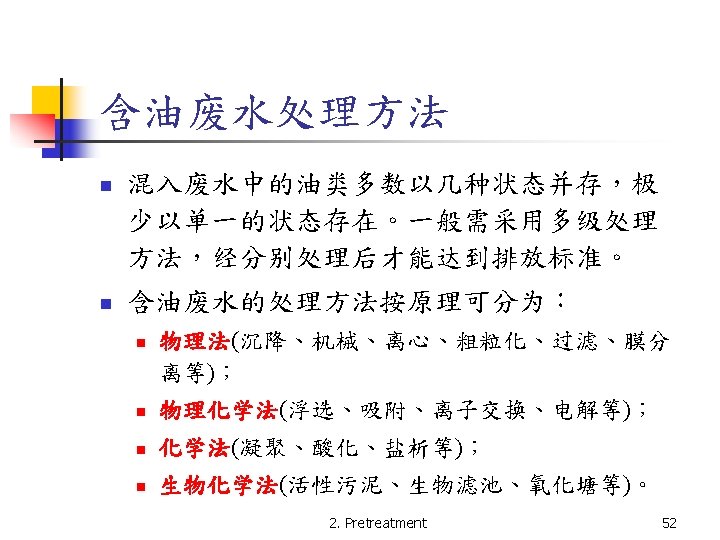

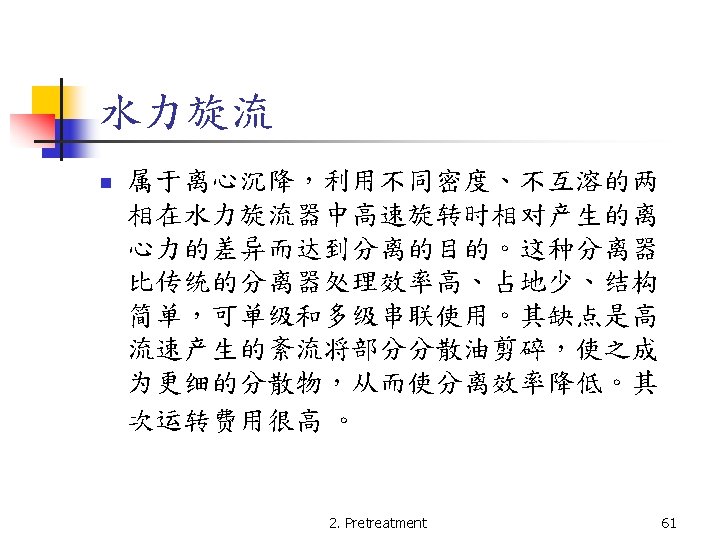

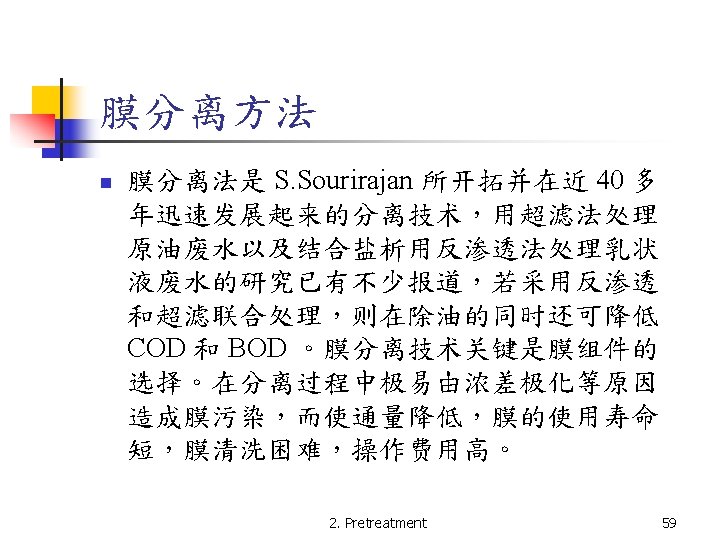

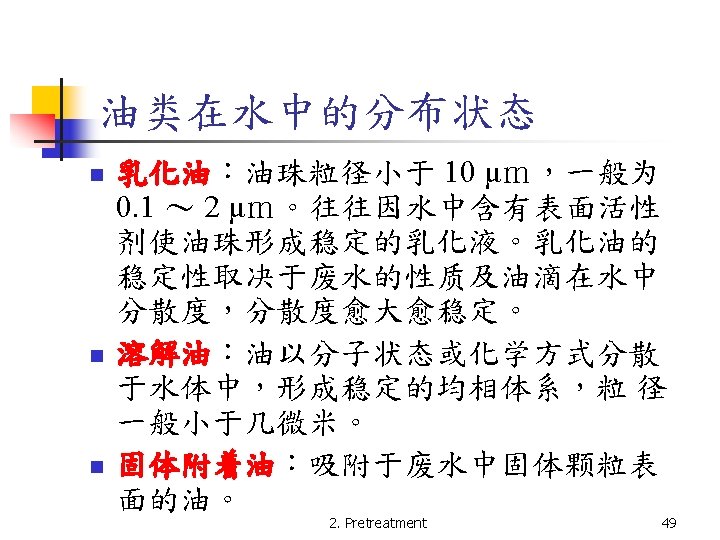

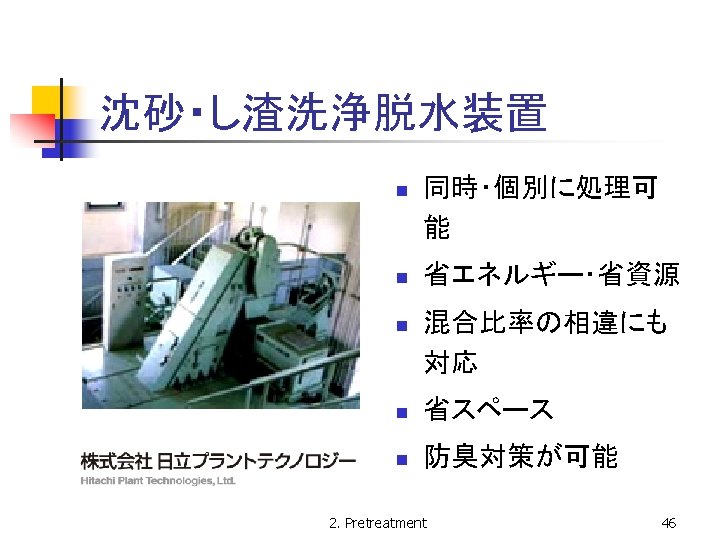

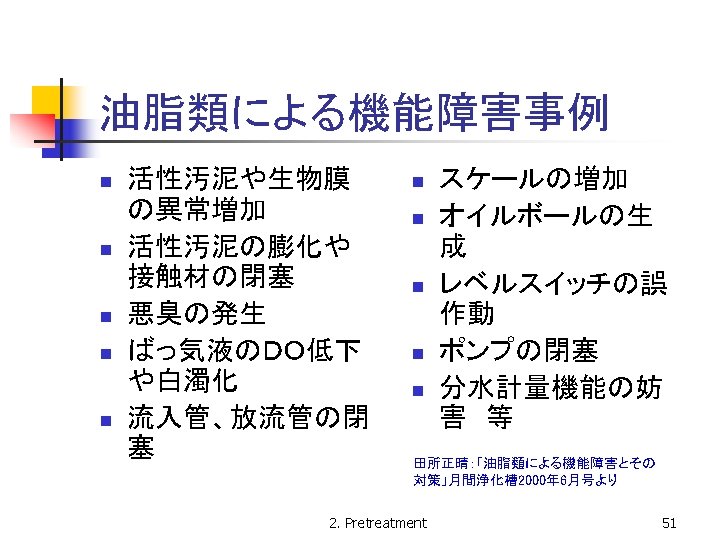

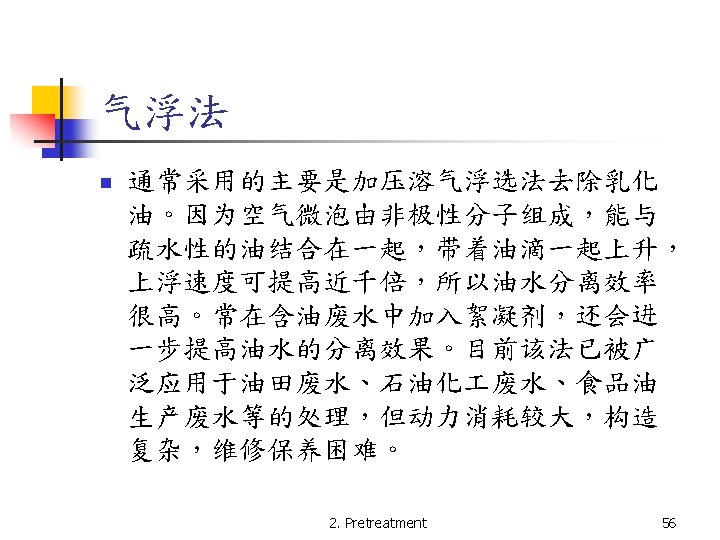

2. Pretreatment 62
2. Pretreatment 63
2. Pretreatment 64

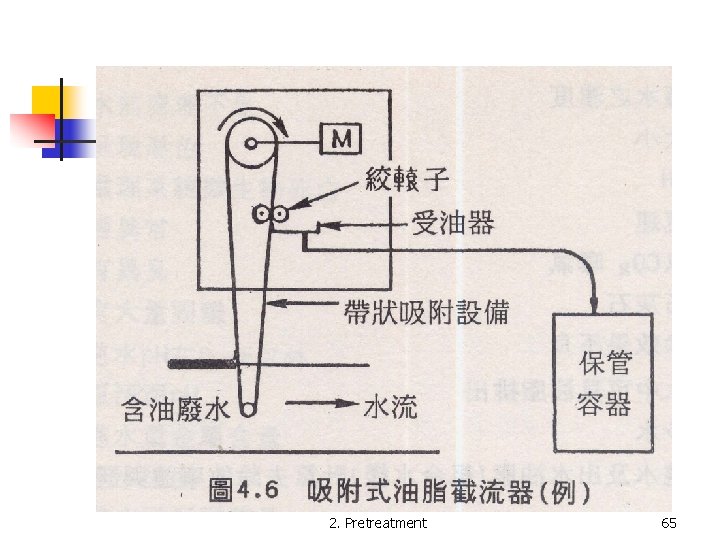

2. Pretreatment 65
2. Pretreatment 66
2. Pretreatment 67

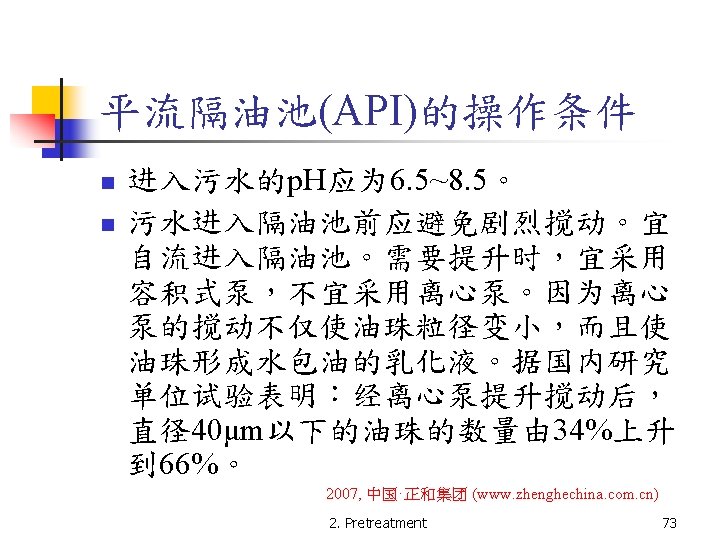

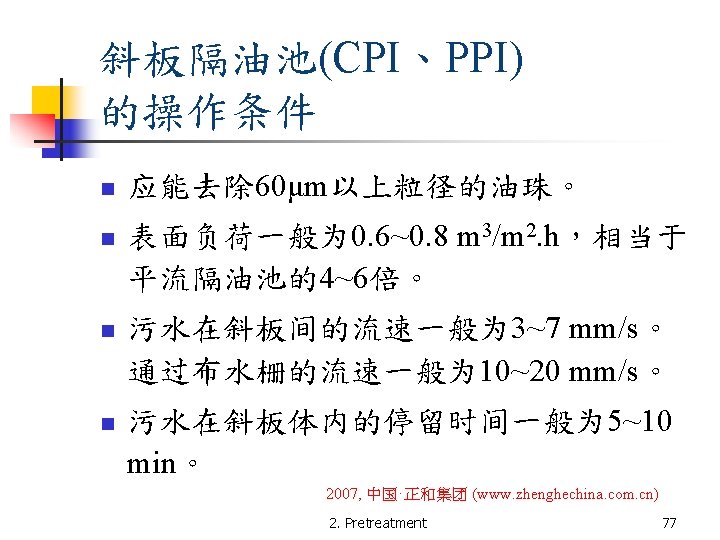

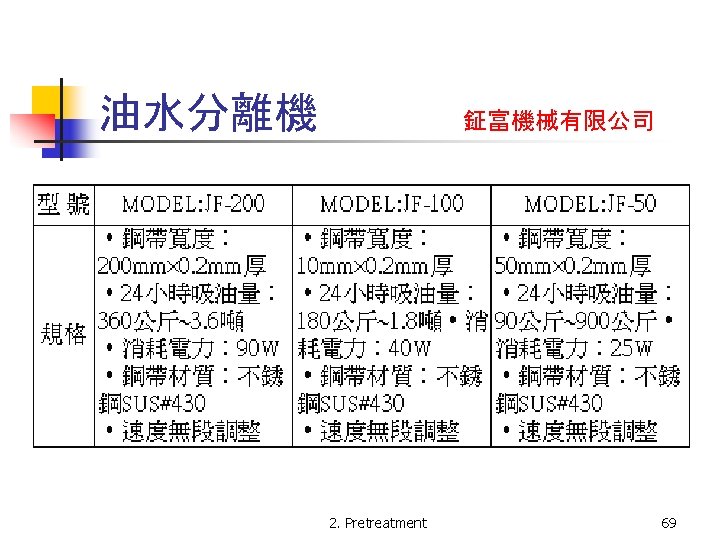

Oil Skimer n API (American Petroleum Institute) n PPI (Parallel Plate Interceptor) n CPI (Corrugated Plate Interceptor) 2. Pretreatment 70
2. Pretreatment 71
2. Pretreatment 72

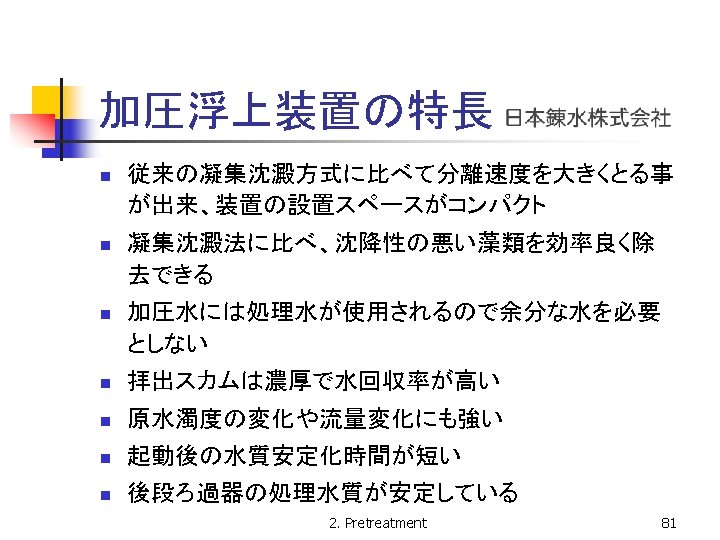

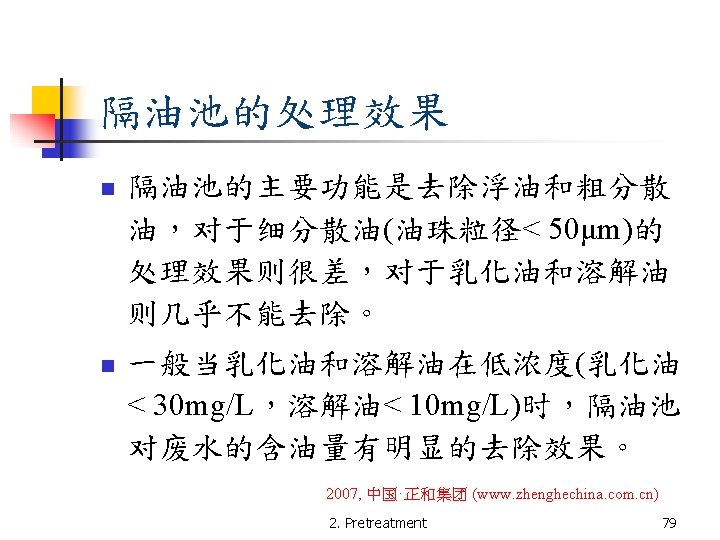

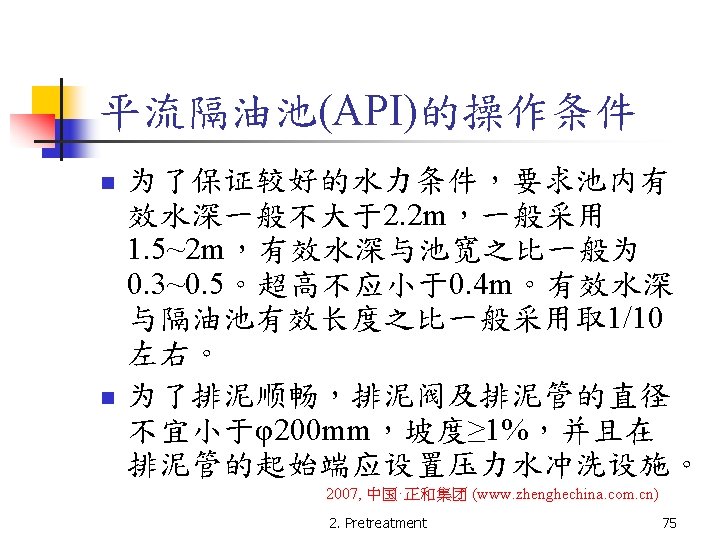

加圧浮上装置 2. Pretreatment 80
加圧浮上装置 2. Pretreatment 82
