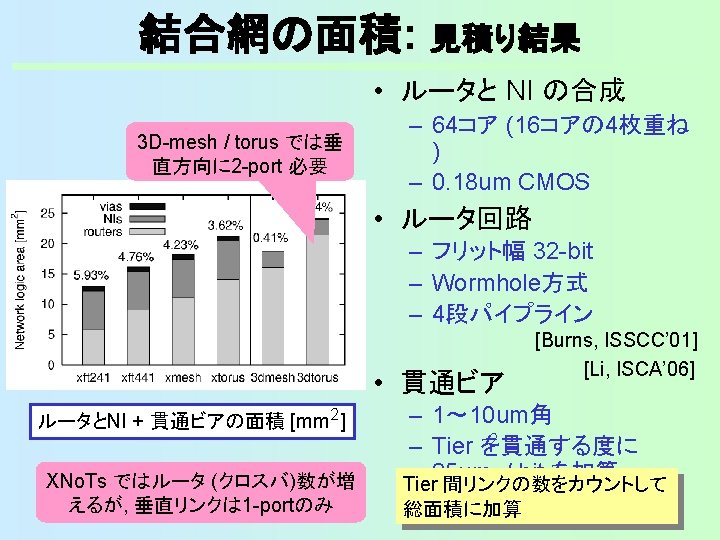

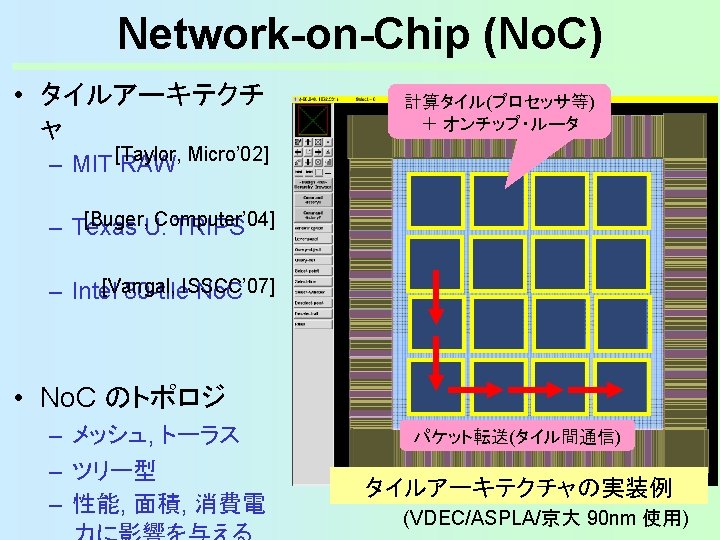

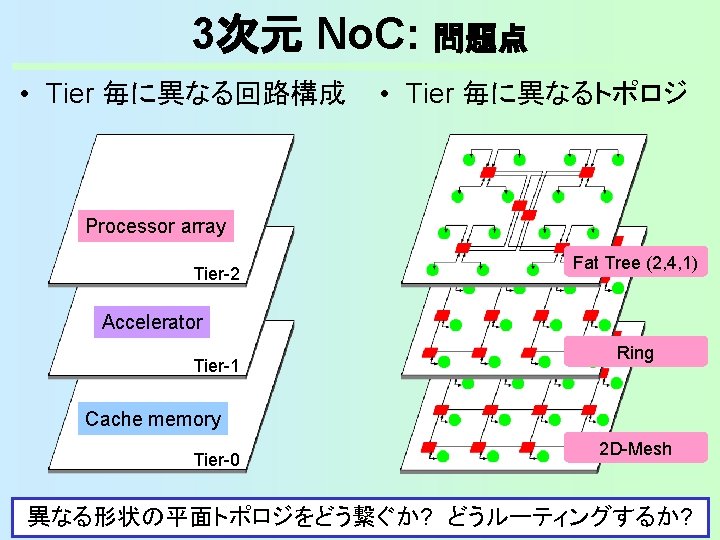

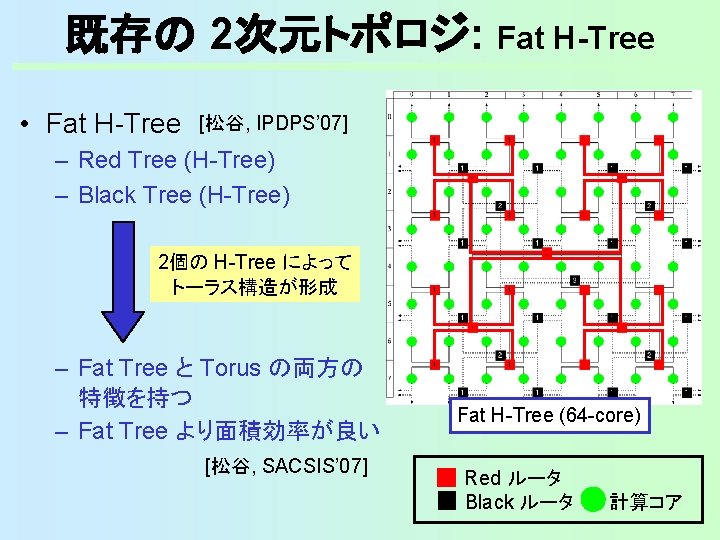

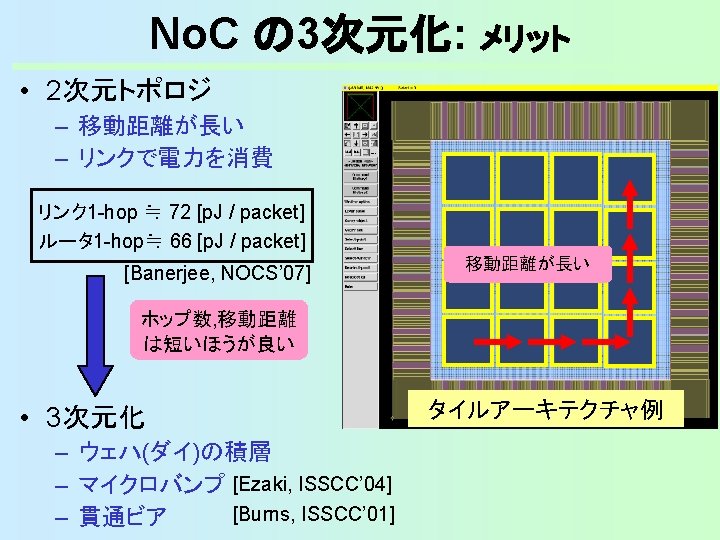

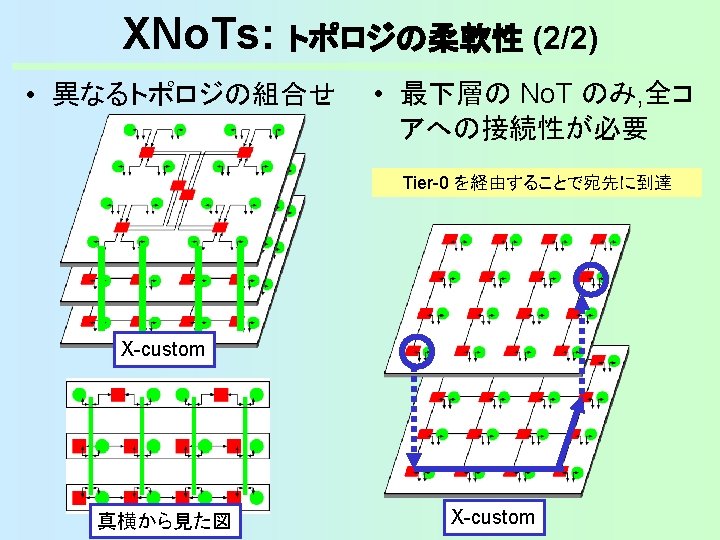

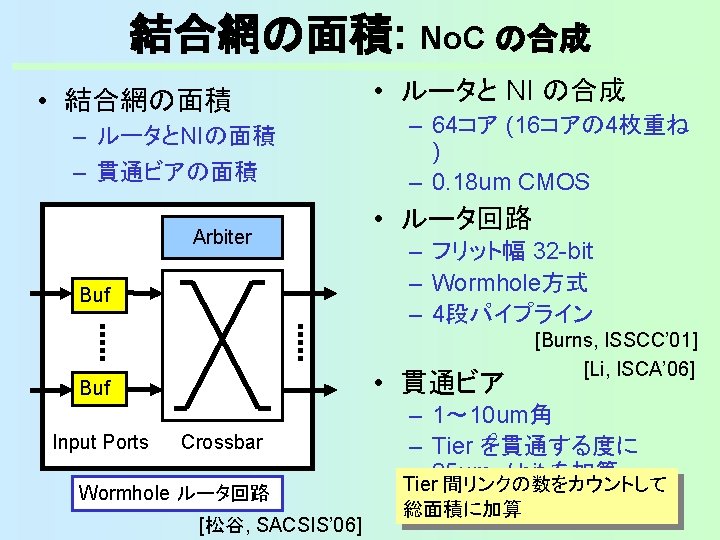

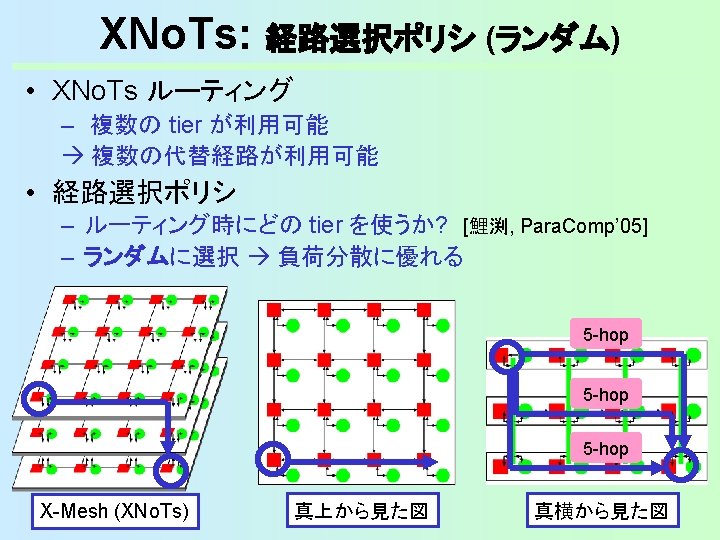

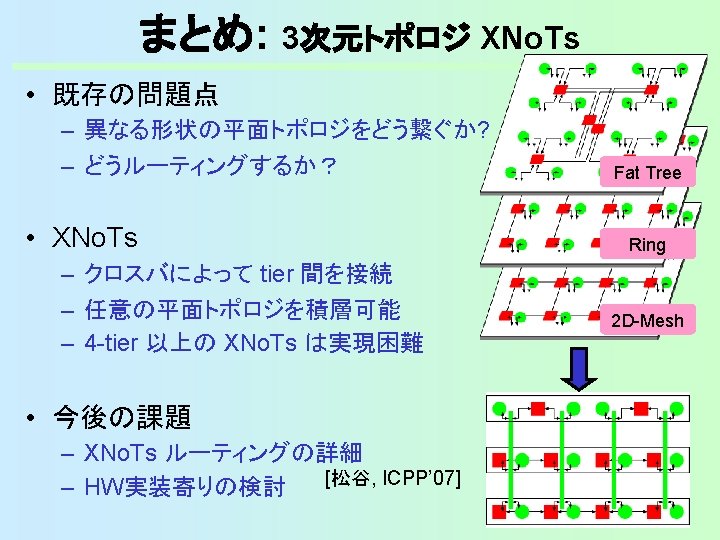

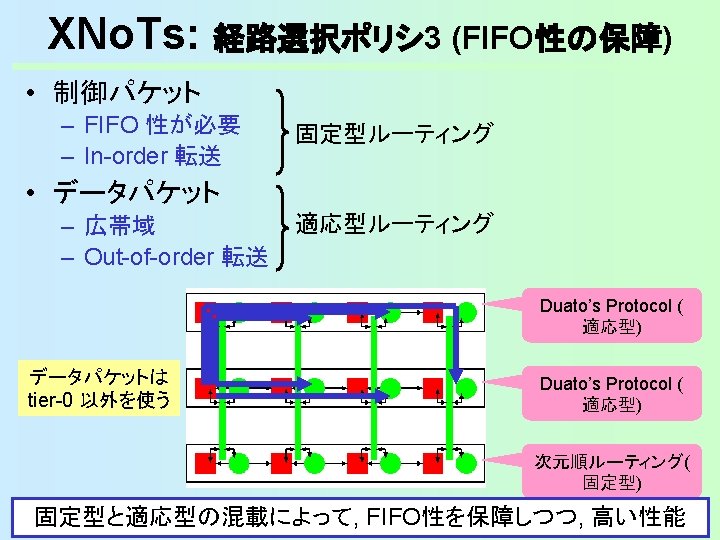

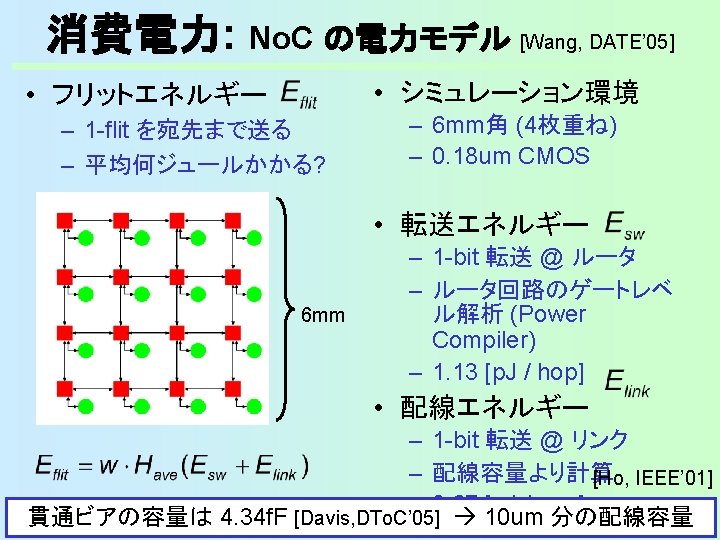

2 Mesh Torus 2 D Mesh 2 D Slides: 37 Download presentation 既存の 2次元トポロジ: Mesh & Torus • 2 -D Mesh • 2 -D Torus RAW [Taylor, Micro’ 02] Intel’s 80 -tile [Vangal, ISSCC’ 07] ルータ [Dally, DAC’ 01] – メッシュの 2倍の帯域 計算コア 既存の 2次元トポロジ: Fat Tree • Fat Tree (p, q, c) SPIN [Andriahantenaina, DATE’ 03] p: 上位リンクの数 q: 下位リンクの数 c: コアのポート数 Fat Tree (2, 4, 1) SCORE [Caspi, FPL’ 00] ACM [Furtek, FPL’ 04] Fat Tree (2, 4, 2) ルータ 計算コア 既存の 3次元トポロジ: 3 D-Mesh [Addo-Quaye, So. C’ 05] [Vasilis, So. C’ 06] Tier-3 Tier-2 Tier-1 Tier-0 2 D-Mesh (8 x 8=64) Average hop count: 5. 33 Channel bisection: 16 Number of routers: 64 Node degree: 5 3 D-Mesh (4 x 4 x 4=64) Average hop count: 4. 00 Channel bisection: 32 Number of routers: 64 Node degree: 7 性能評価: Channel bisection • ネットワークを二等分したとき, 断面をまたぐリンクの数 N-core × n-tier 1 -tier 2 -tier 4 -tier X-Mesh 8 16 32 X-Torus 16 32 64 X-FT 141 4 8 16 X-FT 241 8 16 32 X-FT 441 16 32 64 3 D-Mesh 8 16 32 3 D-Torus 16 32 64 X-Torus は 3 D-Torus と同程度, X-Mesh は 3 D-Mesh と同程度 Sliding mesh vs constant meshDusty torusTorus intervenosusGlut torusHomotopy group of torusTorus topology networkTorus eversionStanford torus space stationJo van den brandTorusGlutsolidTorus tubariusTorus palatin prise en chargeDusty torusMargo dexter heartTorus parametrisierungTorus palatino definicionProfessor raymond floodSagittal keelTorus eversionGlutwireGlut solid torusTorus topology networkIo plasma torusCentrum tendineumAn introduction to microsoft mesh[hydraulic press mesh curtain]SupermeshSupermesh analysis examplesWindows live meshRaw meshChina wire mesh boppPlanet meshOpenfoam dynamic mesh tutorialMesh wifi handoffElectric welded mesh machineService mesh conduitMaesh service mesh
