2. Definite Integrals and Numeric Integration

2. Definite Integrals and Numeric Integration

Calculus • Calculus answers two very important questions. • The first, how to find

Calculus • Calculus answers two very important questions. • The first, how to find the instantaneous rate of change, we answered with our study of derivatives • The second we are now ready to answer, how to find the area of irregular regions.

Approximating Area • We will now approximate an irregular area bounded by a function,

Approximating Area • We will now approximate an irregular area bounded by a function, the x-axis between vertical lines x=a and x=b, like the one below by finding the areas of many rectangles and summing them up.

Finding area • Break region into subintervals (strips) • These strips resemble rectangles •

Finding area • Break region into subintervals (strips) • These strips resemble rectangles • Sum of all the areas of these “rectangles” will give the total area

Rectangular Approximation Method (RAM) • Since the height of the rectangle varies along the

Rectangular Approximation Method (RAM) • Since the height of the rectangle varies along the subinterval, in order to find area of the rectangle, we must use either the left hand endpoint (LRAM) to find the height, the right hand endpoint (RRAM) or the midpoint (MRAM) • The more rectangles you make, the better the approximation

Rectangular Approximation Method (RAM) • If a function is increasing, LRAM will underestimate the

Rectangular Approximation Method (RAM) • If a function is increasing, LRAM will underestimate the area and RRAM will overestimate it. • If a function is decreasing, LRAM will overestimate the area and RRAM will underestimate it

Trapezoid Approximation • Another approximation we can use (and probably the best) is trapezoids.

Trapezoid Approximation • Another approximation we can use (and probably the best) is trapezoids. • Trapezoids give an answer between the LRAM and RRAM • The formula for the area of a trapezoid is ½(x)(y 1+y 2)

Example 1 • Find the area under y=x 2+2 x-3 from x=0 to x=2,

Example 1 • Find the area under y=x 2+2 x-3 from x=0 to x=2, use width of ½ • LRAM • MRAM • RRAM • Trapezoid

Example 2 • We can also approximate integrals when our function is given to

Example 2 • We can also approximate integrals when our function is given to us in either data form. • Approximate using LRAM, MRAM, RRAM, and trapezoids. Also approximate f’(1)

Example 3 Approximate using LRAM, RRAM, and trapezoids. Why did I leave off MRAM?

Example 3 Approximate using LRAM, RRAM, and trapezoids. Why did I leave off MRAM? Also approximate f’(7)

How many rectangles should we make? • The estimate of area gets more and

How many rectangles should we make? • The estimate of area gets more and more accurate as the number of rectangles (n) gets larger

How many rectangles should we make? • If we take the limit as n

How many rectangles should we make? • If we take the limit as n approaches infinity, we should get the exact area • We will talk more about this tomorrow…. .

BREAK!!

BREAK!!

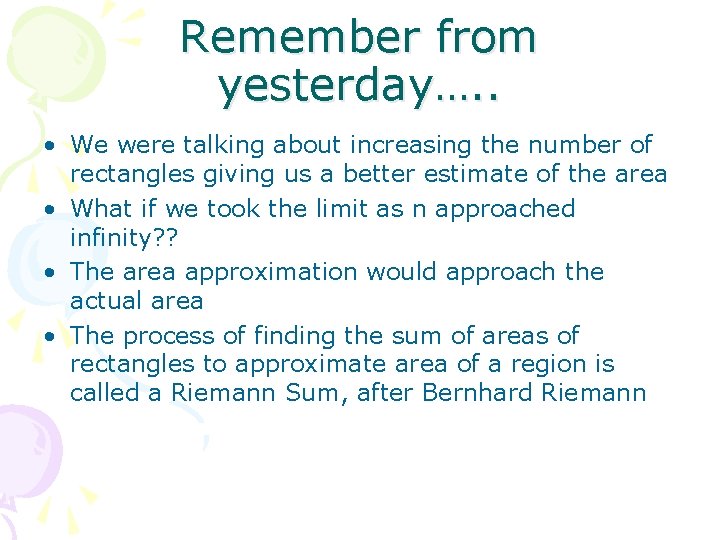

Remember from yesterday…. . • We were talking about increasing the number of rectangles

Remember from yesterday…. . • We were talking about increasing the number of rectangles giving us a better estimate of the area • What if we took the limit as n approached infinity? ? • The area approximation would approach the actual area • The process of finding the sum of areas of rectangles to approximate area of a region is called a Riemann Sum, after Bernhard Riemann

Riemann Sums • Riemann proved that the finite process of adding up the rectangular

Riemann Sums • Riemann proved that the finite process of adding up the rectangular areas could be found by a process known as definite integration. Here is the essence of his great, time-saving work.

Example 4 • Evaluate geometrically as well as on your calculator

Example 4 • Evaluate geometrically as well as on your calculator

Negative area? • The example we just looked at was nonnegative on the interval

Negative area? • The example we just looked at was nonnegative on the interval we evaluated. This is not always the case. • If f(x) is non-negative and integratable over a closed interval [a, b] then the area under the curve is the definite integral of f from a to b • If f(x) is negative and integrable over a closed interval [a, b], then the area under the curve is the OPPOSITE of the definite integral of f from a to b.

In general… • does NOT give us area but rather the NET accumulation over

In general… • does NOT give us area but rather the NET accumulation over the interval x=a to x=b. If f(x) is positive and negative on a closed interval, then will NOT give us area.

 • When integrating left to right, regions above the x-axis are positive and

• When integrating left to right, regions above the x-axis are positive and regions below the x-axis are negative. • When integrating right to left, regions above the x-axis are negative and regions below the x-axis are positive. • This can be summarized as

Negative functions • When using definite integrals to find area, you must divide the

Negative functions • When using definite integrals to find area, you must divide the interval into subintervals where function is positive and where it is negative and use absolute values of definite integral • When using area to find definite integrals, you must assign the correct sign to the area.

Example 5 • The graph of f(x) is shown below. If A 1 and

Example 5 • The graph of f(x) is shown below. If A 1 and A 2 are positive numbers that represent the areas of the shaded regions, then find the following.

Another property of definite integrals • The property that allows us to do the

Another property of definite integrals • The property that allows us to do the calculations in the previous example is

Example 6 • Approximate using four subintervals of equal length and trapezoidal method. Test

Example 6 • Approximate using four subintervals of equal length and trapezoidal method. Test your answer against the calculator’s approximation using fnint. Can any of these approximations represent the area of the region? Why or why not?

Example 7 • Find the area in the previous problem using trapezoids and also

Example 7 • Find the area in the previous problem using trapezoids and also set up integrals needed to calculate with calculator.

Another way to find area with calculator

Another way to find area with calculator

Example 8 • Sketch the region corresponding to each definite integral, then evaluate each

Example 8 • Sketch the region corresponding to each definite integral, then evaluate each integral using a geometric formula. Decide if the integral represents the area.

Example 9 • Evaluate and. Do these represent the area of the region? Why

Example 9 • Evaluate and. Do these represent the area of the region? Why or why not? If not, what is the area of the region?

Properties of definite integrals • We have seen some of these already.

Properties of definite integrals • We have seen some of these already.

Example 10 • Given that • Find

Example 10 • Given that • Find

Example 11 • If and , find

Example 11 • If and , find
