2 Aeronautical Symbols 1 Aerodrome Information 2 Radio

2. �������� (Aeronautical Symbols) 1. Aerodrome Information § § § 2. Radio Facilities : Beacons, Control Tower Frequencies, VOR, ILS Aeronautical Lights 3. § § 4. Characteristics Traffic Control Boundaries Instrument Landing Aids White – Green : Civil Airfield 2 White – Green : Mil Airfield White – Yellow : Water airfield White – red : significant land mark Miscellaneous : Caution, Danger area, Isogonics Lines

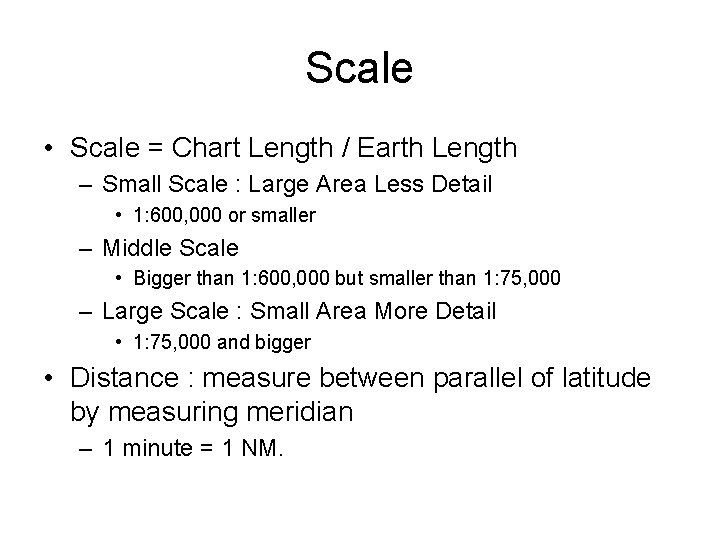

Scale • Scale = Chart Length / Earth Length – Small Scale : Large Area Less Detail • 1: 600, 000 or smaller – Middle Scale • Bigger than 1: 600, 000 but smaller than 1: 75, 000 – Large Scale : Small Area More Detail • 1: 75, 000 and bigger • Distance : measure between parallel of latitude by measuring meridian – 1 minute = 1 NM.

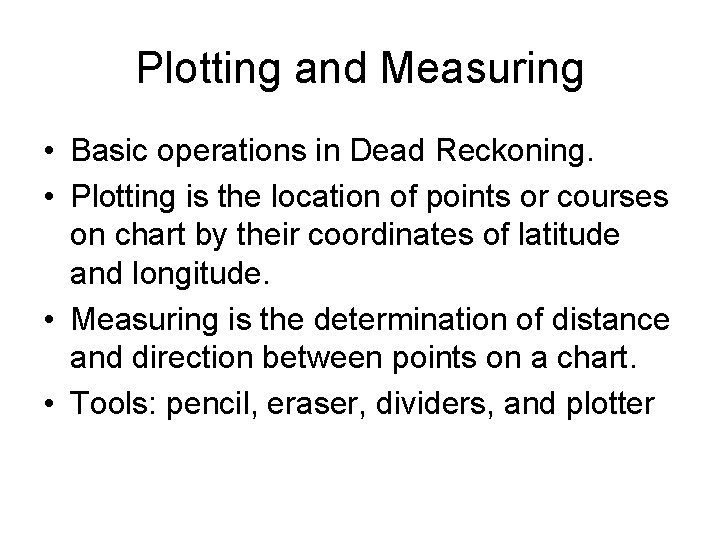

Plotting and Measuring • Basic operations in Dead Reckoning. • Plotting is the location of points or courses on chart by their coordinates of latitude and longitude. • Measuring is the determination of distance and direction between points on a chart. • Tools: pencil, eraser, dividers, and plotter

Plotter • A device for drawing and measuring courses and distances • Weems Aircraft Plotter Mark II, MK IIN • The principal use of a plotter is the measurement of true course, which is line on a chart representing the path over which the aircraft to travel. • Its direction is determined by the angle it make with the meridians, which run north and south

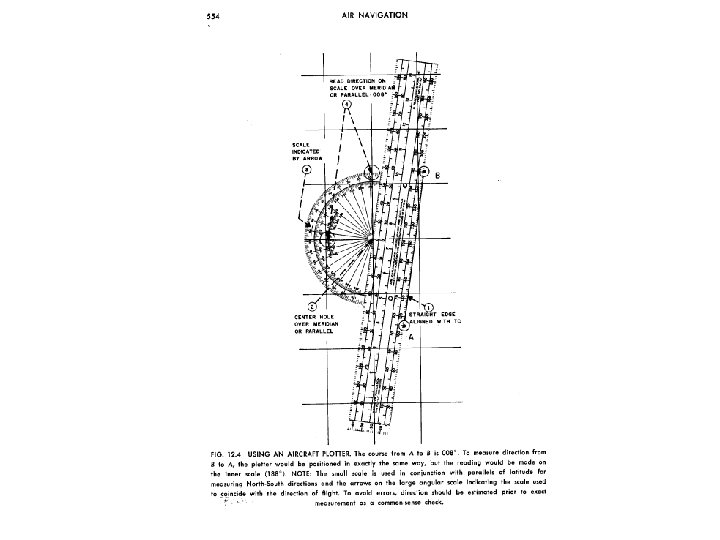

Plotter 1. 2. 3. 4. Straight edge aligned with True Course (TC) Center hole over meridian or parallel Scale indicated by arrow Read direction on scale over meridian or parallel § § A course between 0º and 180º is measured along the outer scale; A course between 180º and 360º is measured along the inner scale 5. It is wise to estimate the direction roughly prior to exact measurement as “a commonsense check”

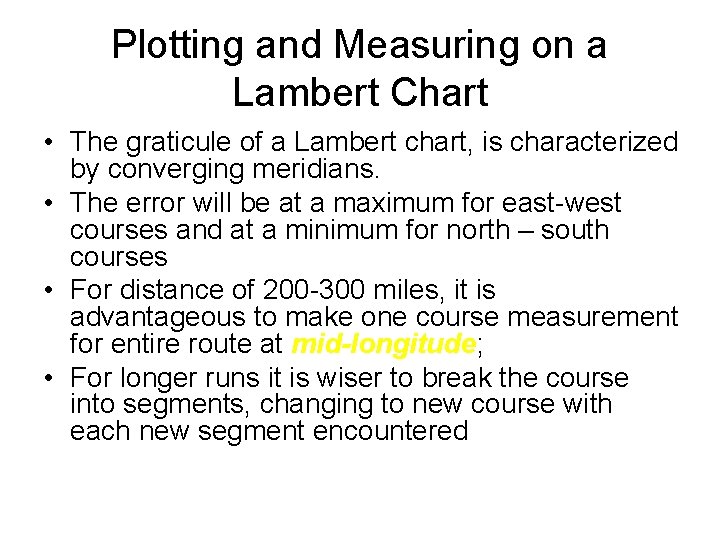

Plotting and Measuring on a Lambert Chart • The graticule of a Lambert chart, is characterized by converging meridians. • The error will be at a maximum for east-west courses and at a minimum for north – south courses • For distance of 200 -300 miles, it is advantageous to make one course measurement for entire route at mid-longitude; • For longer runs it is wiser to break the course into segments, changing to new course with each new segment encountered

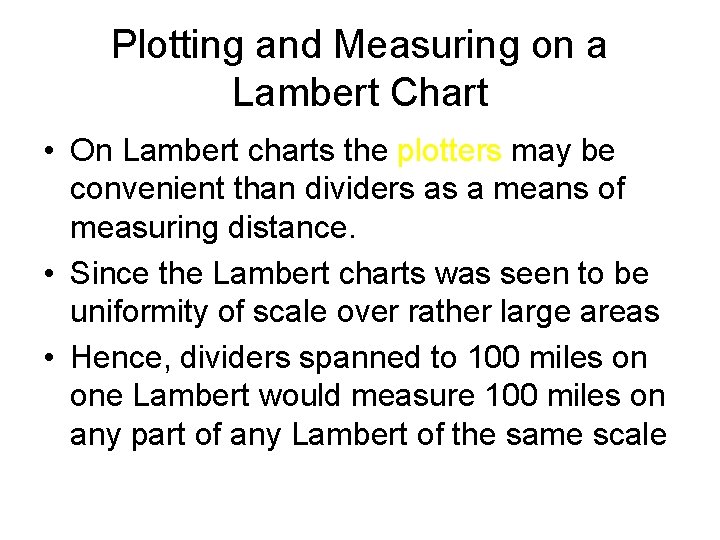

Plotting and Measuring on a Lambert Chart • On Lambert charts the plotters may be convenient than dividers as a means of measuring distance. • Since the Lambert charts was seen to be uniformity of scale over rather large areas • Hence, dividers spanned to 100 miles on one Lambert would measure 100 miles on any part of any Lambert of the same scale

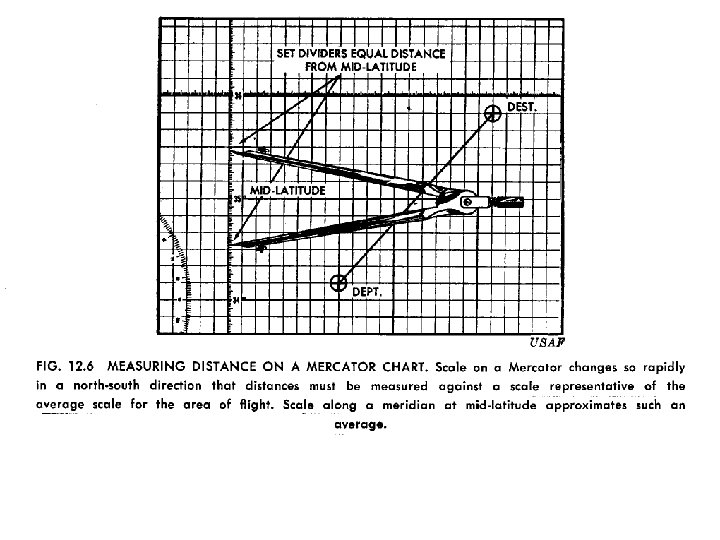

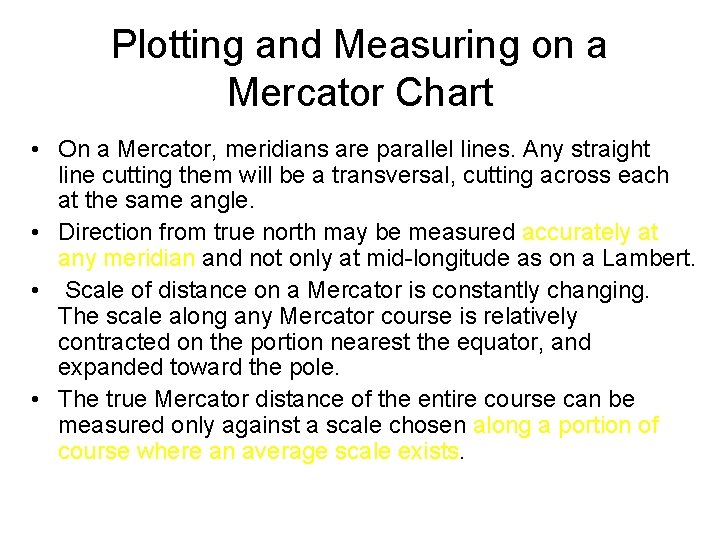

Plotting and Measuring on a Mercator Chart • On a Mercator, meridians are parallel lines. Any straight line cutting them will be a transversal, cutting across each at the same angle. • Direction from true north may be measured accurately at any meridian and not only at mid-longitude as on a Lambert. • Scale of distance on a Mercator is constantly changing. The scale along any Mercator course is relatively contracted on the portion nearest the equator, and expanded toward the pole. • The true Mercator distance of the entire course can be measured only against a scale chosen along a portion of course where an average scale exists.

Chapter 4

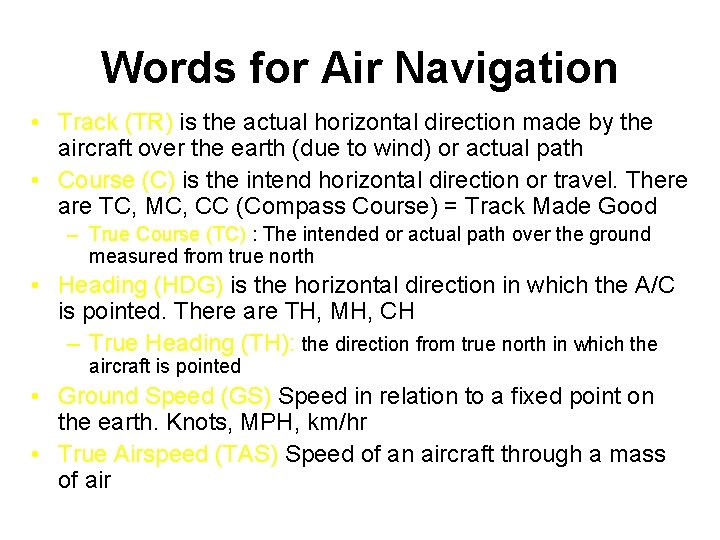

Words for Air Navigation • Track (TR) is the actual horizontal direction made by the aircraft over the earth (due to wind) or actual path • Course (C) is the intend horizontal direction or travel. There are TC, MC, CC (Compass Course) = Track Made Good – True Course (TC) : The intended or actual path over the ground measured from true north • Heading (HDG) is the horizontal direction in which the A/C is pointed. There are TH, MH, CH – True Heading (TH): the direction from true north in which the aircraft is pointed • Ground Speed (GS) Speed in relation to a fixed point on the earth. Knots, MPH, km/hr • True Airspeed (TAS) Speed of an aircraft through a mass of air

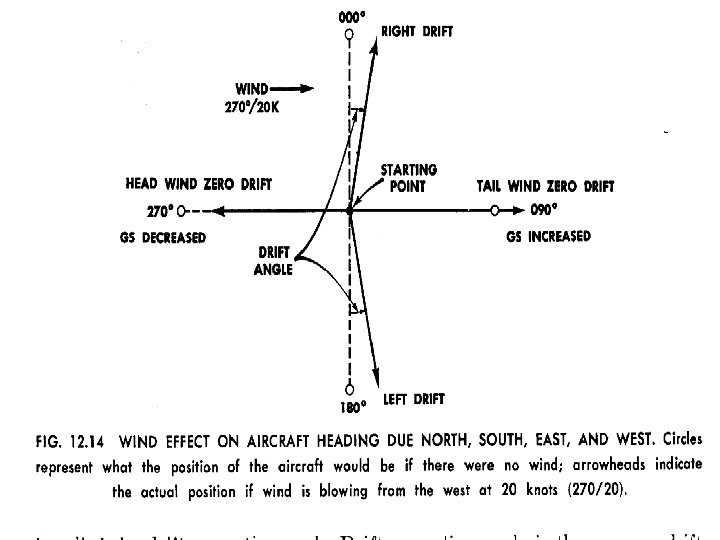

Wind and Wind Effect • • Wind has direct and speed Wind direction “from” The lateral displacement effected by wind is “drift”, The angle between intended and actual track is “drift angle” • The number of degrees that an aircraft is turn into wind in order to fly a desired path over the ground is called “ the drift-correction angle” • The drift-correction angle is the same as drift angle but opposite direction • In making a drift correction, the pilot has not prevented drift but corrected for it.

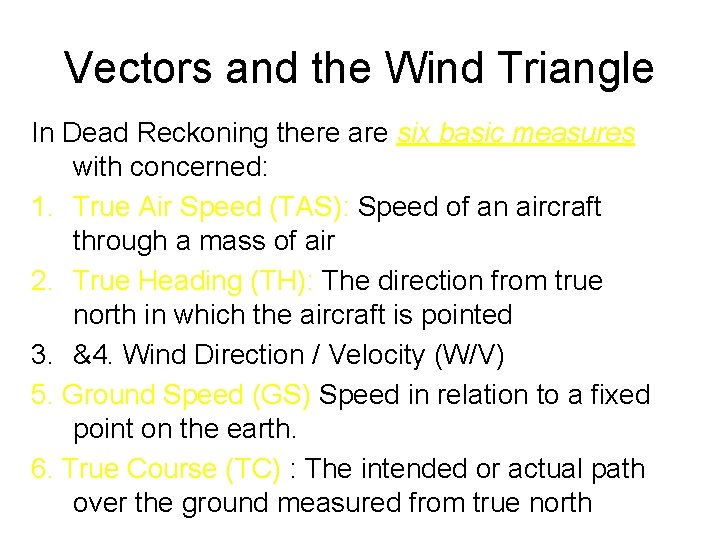

Vectors and the Wind Triangle In Dead Reckoning there are six basic measures with concerned: 1. True Air Speed (TAS): Speed of an aircraft through a mass of air 2. True Heading (TH): The direction from true north in which the aircraft is pointed 3. &4. Wind Direction / Velocity (W/V) 5. Ground Speed (GS) Speed in relation to a fixed point on the earth. 6. True Course (TC) : The intended or actual path over the ground measured from true north

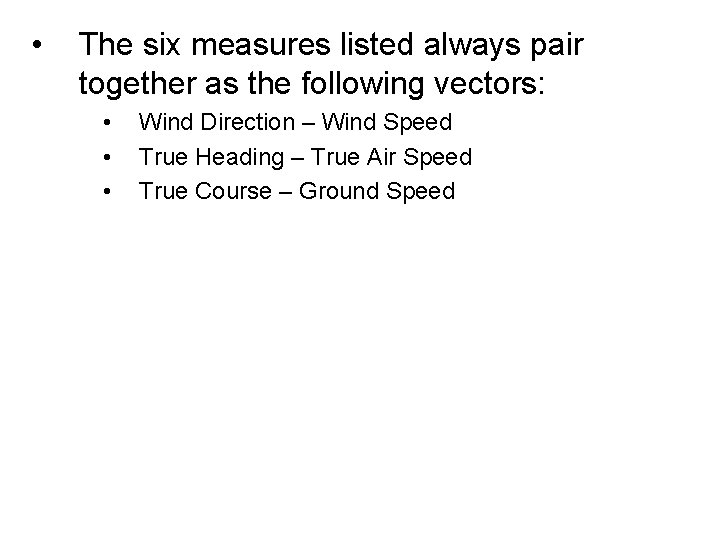

• The six measures listed always pair together as the following vectors: • • • Wind Direction – Wind Speed True Heading – True Air Speed True Course – Ground Speed

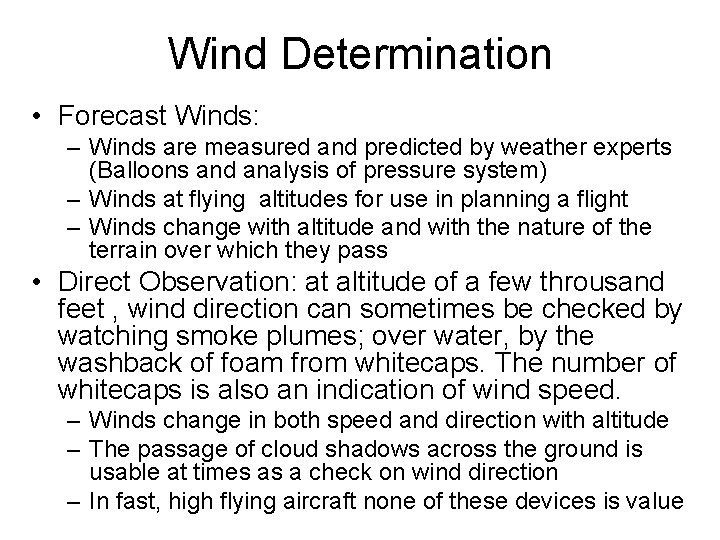

Wind Determination • Forecast Winds: – Winds are measured and predicted by weather experts (Balloons and analysis of pressure system) – Winds at flying altitudes for use in planning a flight – Winds change with altitude and with the nature of the terrain over which they pass • Direct Observation: at altitude of a few throusand feet , wind direction can sometimes be checked by watching smoke plumes; over water, by the washback of foam from whitecaps. The number of whitecaps is also an indication of wind speed. – Winds change in both speed and direction with altitude – The passage of cloud shadows across the ground is usable at times as a check on wind direction – In fast, high flying aircraft none of these devices is value

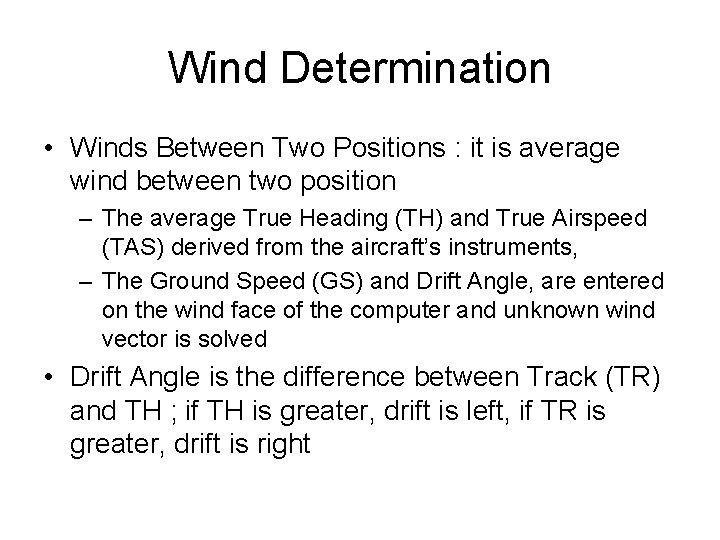

Wind Determination • Winds Between Two Positions : it is average wind between two position – The average True Heading (TH) and True Airspeed (TAS) derived from the aircraft’s instruments, – The Ground Speed (GS) and Drift Angle, are entered on the wind face of the computer and unknown wind vector is solved • Drift Angle is the difference between Track (TR) and TH ; if TH is greater, drift is left, if TR is greater, drift is right

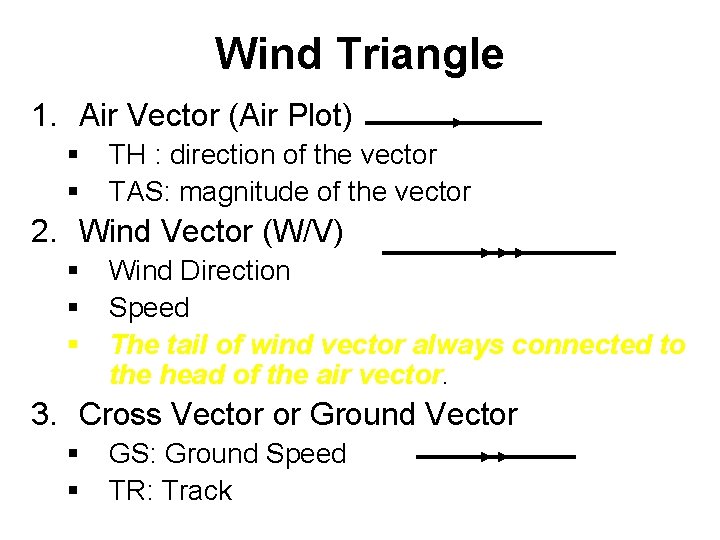

Wind Triangle 1. Air Vector (Air Plot) § § TH : direction of the vector TAS: magnitude of the vector 2. Wind Vector (W/V) § § § Wind Direction Speed The tail of wind vector always connected to the head of the air vector. 3. Cross Vector or Ground Vector § § GS: Ground Speed TR: Track

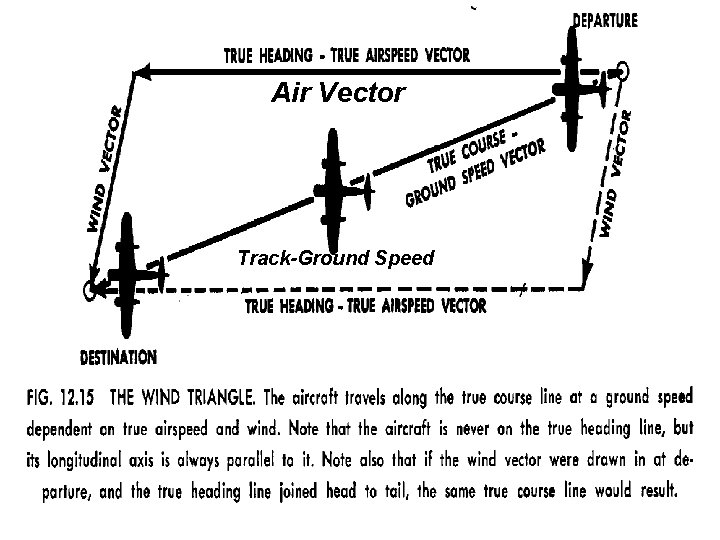

Air Vector Track-Ground Speed

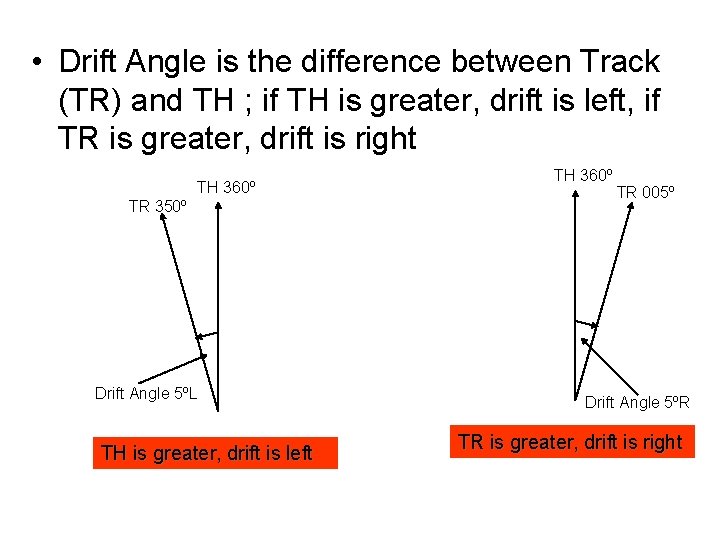

• Drift Angle is the difference between Track (TR) and TH ; if TH is greater, drift is left, if TR is greater, drift is right TH 360º TR 350º Drift Angle 5ºL TH is greater, drift is left TH 360º TR 005º Drift Angle 5ºR TR is greater, drift is right

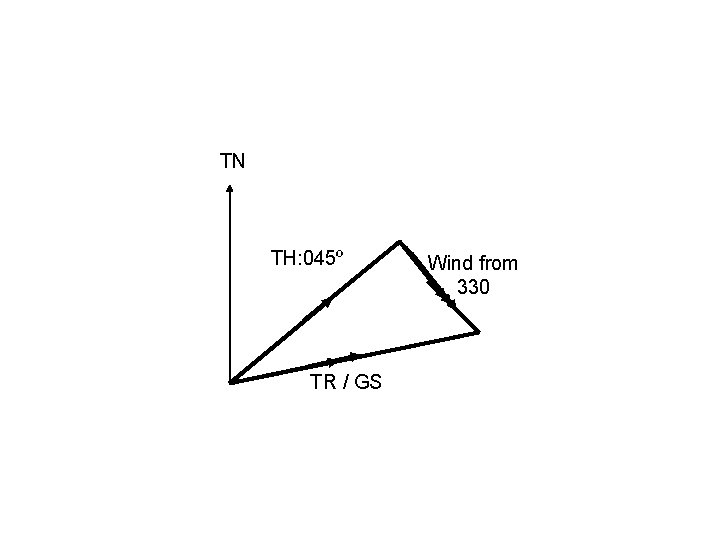

TN TH: 045º TR / GS Wind from 330

• Any distance between the ground position and air position must represent wind effect • An arrow drawn from air position to ground position will be a wind vector

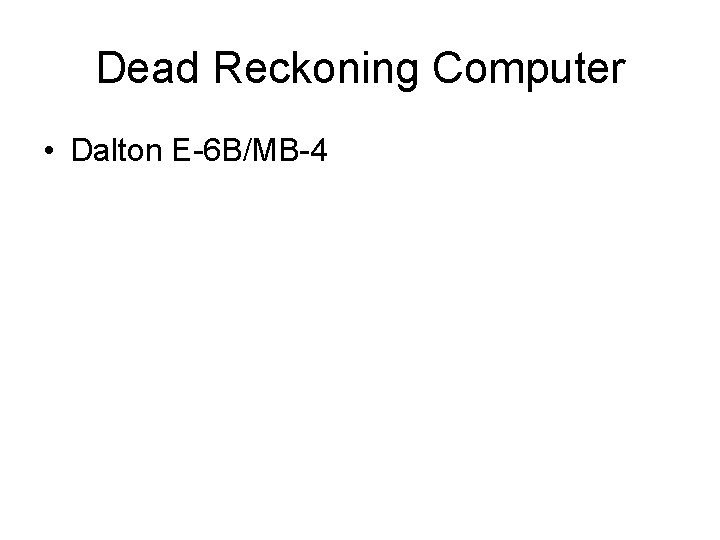

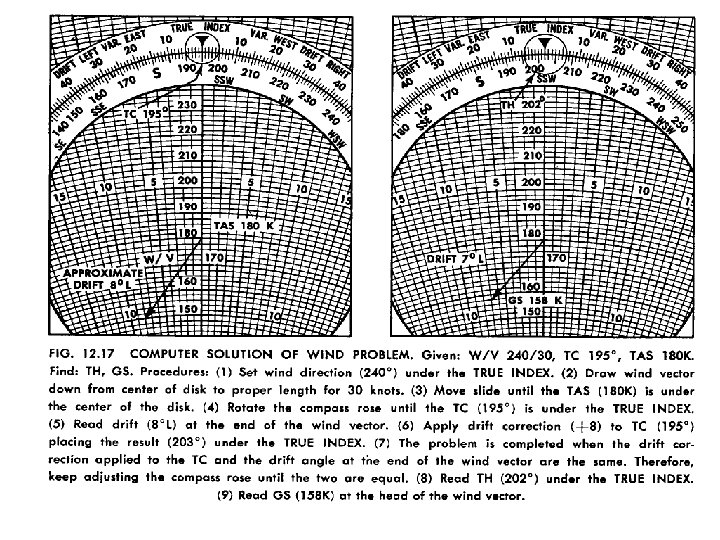

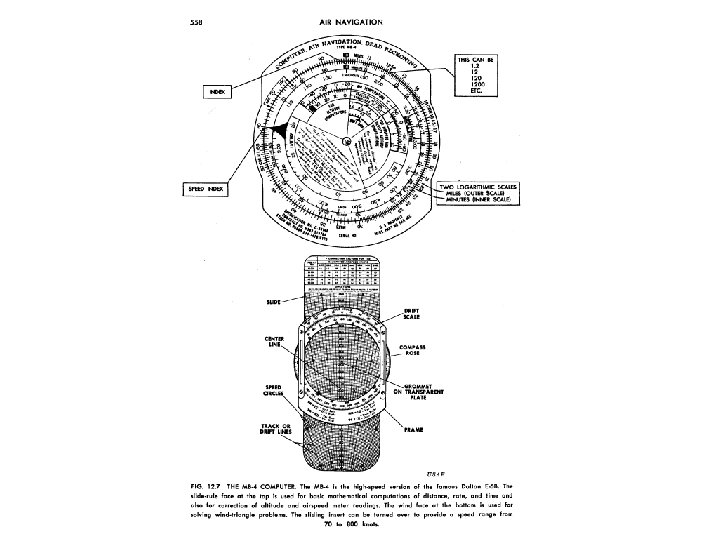

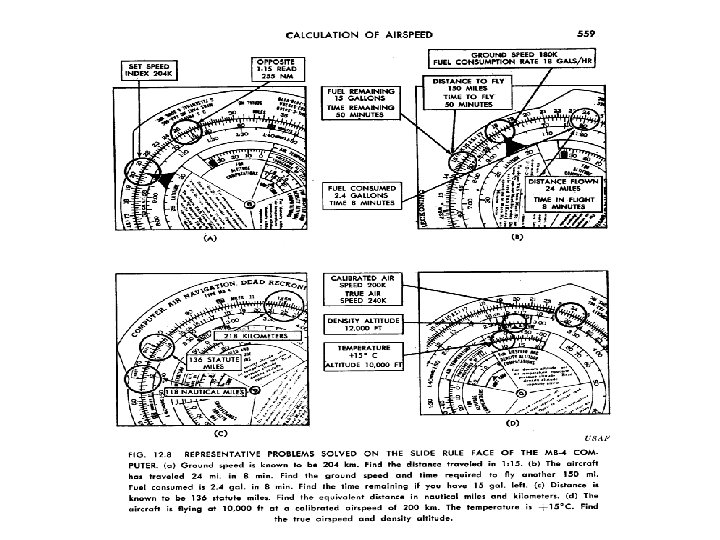

Dead Reckoning Computer • Dalton E-6 B/MB-4

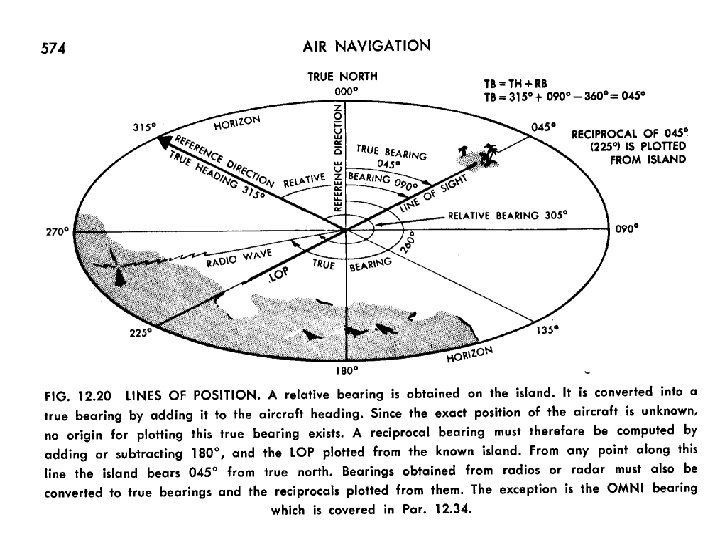

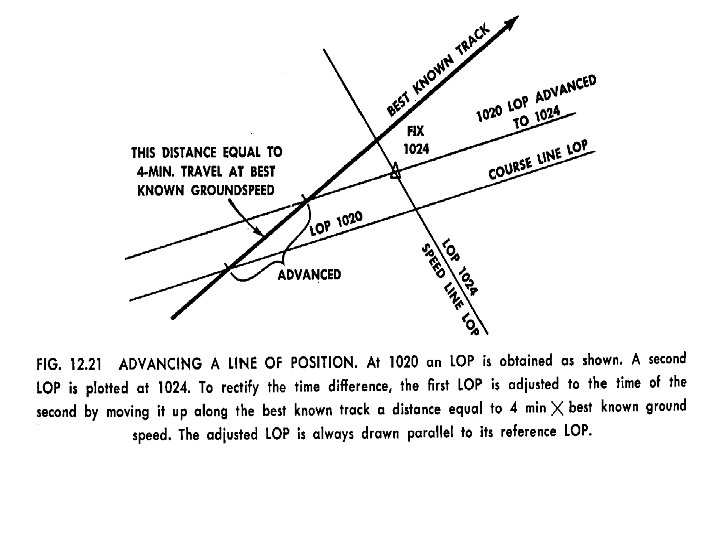

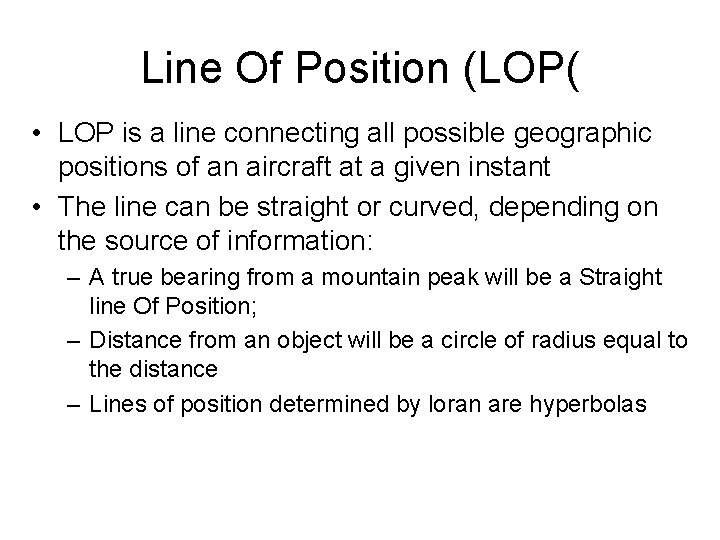

Line Of Position (LOP( • LOP is a line connecting all possible geographic positions of an aircraft at a given instant • The line can be straight or curved, depending on the source of information: – A true bearing from a mountain peak will be a Straight line Of Position; – Distance from an object will be a circle of radius equal to the distance – Lines of position determined by loran are hyperbolas

Fix • A fix is an established geographic position of an aircraft for a given instant time. It is a point, not a line. • A fix can be found only by crossing two or more LOP’s independently determined • Any two LOP’s intersecting at an angle greater than 30º will normally provide reliable fixing, the best results are obtained when they cross at right angles

Altitude • Indicated Altitude: is read directly from altimeter when it is directly adjusted to the local altimeter setting • Pressure Altitude: is displayed on altimeter when it is set to the standard sea level atmospheric pressure of 29. 92 in. Hg – At or above transition altitude – Called Flight Level • Density Altitude: is pressure altitude corrected for nonstandard temperature used to determine aircraft performance • True Altitude: is the actual height of an object above mean sea level – True altitude and Pressure Altitude are equal only when standard atmospheric condition exist • Absolute Altitude: is the actual height of the airplane above the earth’s surface – Height above ground level (AGL) – Height Above Airport (HAA) – Height Above Touch Down Zone (HAT) – Threshold Crossing Height (TCH)

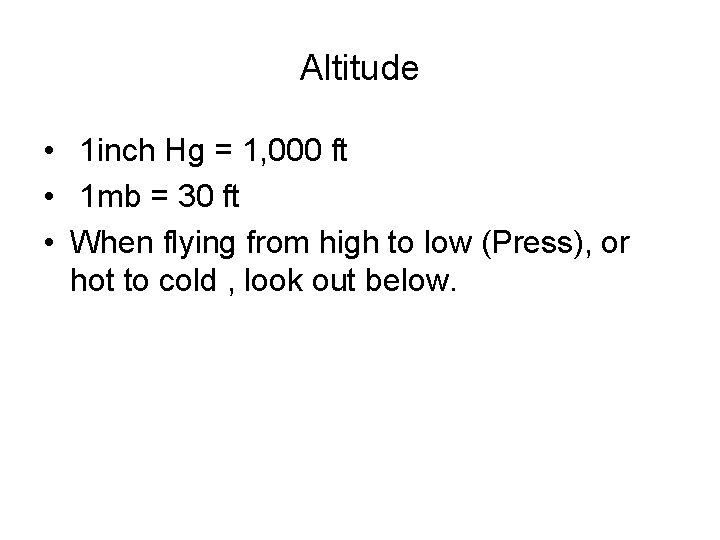

Altitude • 1 inch Hg = 1, 000 ft • 1 mb = 30 ft • When flying from high to low (Press), or hot to cold , look out below.

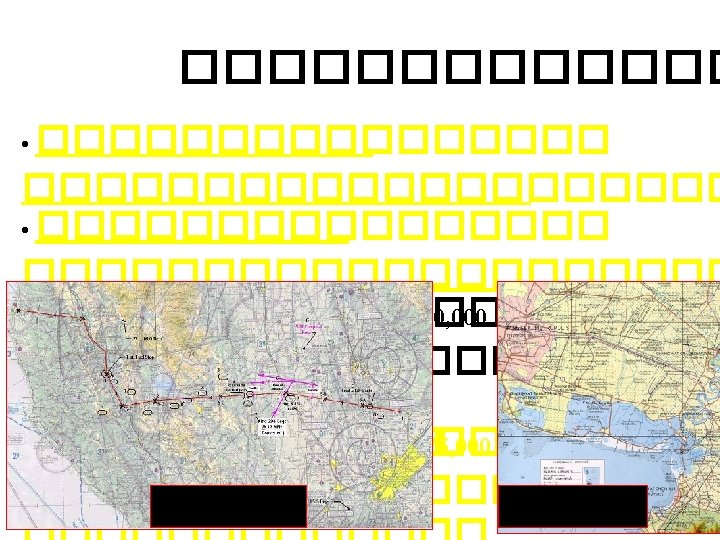

Navigation Technique

������� • Heading +/- 2° • Speed +/- 5 % ��� TAS • Altitude +/- 200 feet

1. ��� Track ������ Reporting Points

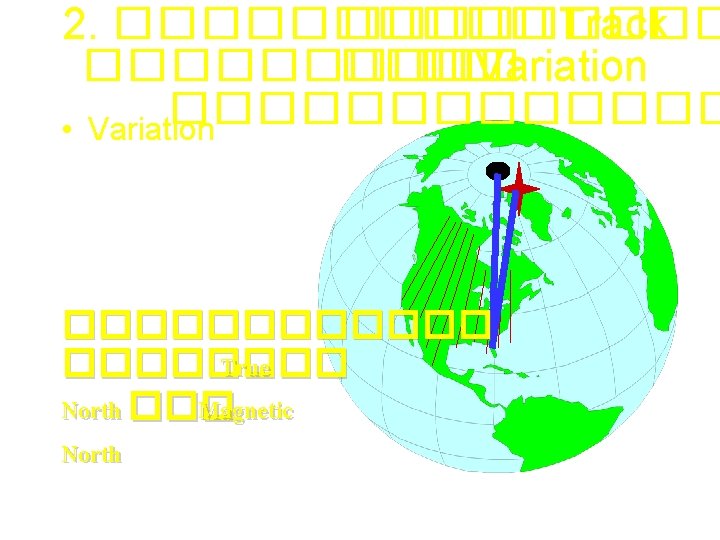

3. ����� Prohibited, Restricted ��� Danger Areas ��������

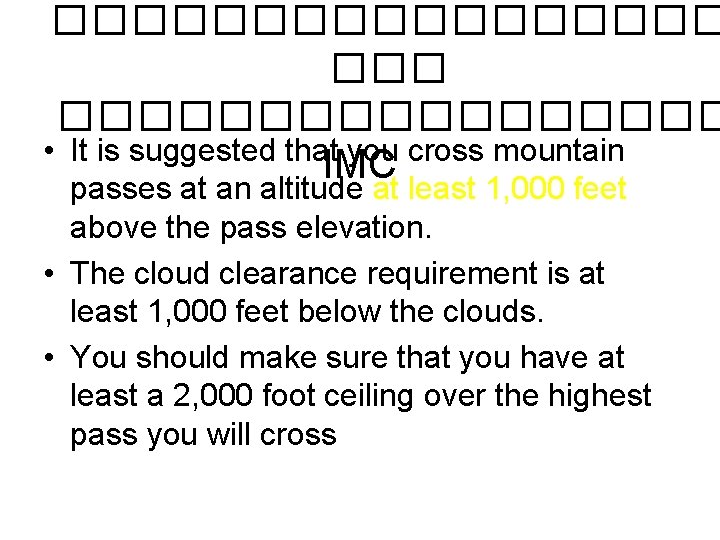

���������� • It is suggested that you cross mountain IMC passes at an altitude at least 1, 000 feet above the pass elevation. • The cloud clearance requirement is at least 1, 000 feet below the clouds. • You should make sure that you have at least a 2, 000 foot ceiling over the highest pass you will cross

สญลกษณบนแผนท • TURNING POINT • INFORMATION BLOCK 350 0: 45 Magnetic Heading 3500 Estimate Time Interval Safety Height (RED) 22 23 Calculated Fuel Remaining Actual Fuel Remaining

• POSITION REPORTING POINTS TAKHLI ATA ETA

• DISTANCE MARKER – 10 NM interval (Normally on the right side) 40 30 20 10

ATA ETA Magnetic Heading 15 ATA Estimate Time Interval Safety Height 10 Calculated Fuel Remaining 5 Actual Fuel Remaining Check Point ATA ETA 10 Magnetic Heading Estimate Time Interval Safety Height Calculated Fuel Remaining Actual Fuel Remaining 5

Magnetic Heading Estimate Time Interval Safety Height Calculated Fuel Remaining Actual Fuel Remaining 10 5
