2 6 The Coordinate Plane Vocabulary coordinate plane

2 -6 The Coordinate Plane Vocabulary coordinate plane A plane formed by the intersection of a horizontal number line called the x-axis and a vertical number line called the yaxis. axes The two perpendicular lines of a coordinate plane that intersect at the origin. x-axis The horizontal axis on a coordinate plane. Holt CA Course 1

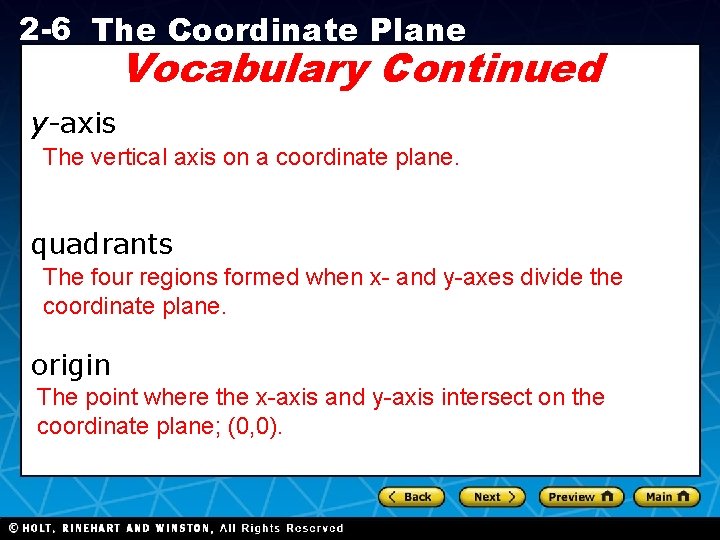

2 -6 The Coordinate Plane Vocabulary Continued y-axis The vertical axis on a coordinate plane. quadrants The four regions formed when x- and y-axes divide the coordinate plane. origin The point where the x-axis and y-axis intersect on the coordinate plane; (0, 0). Holt CA Course 1

2 -6 The Coordinate Plane Vocabulary Continued coordinates The numbers of an ordered pair that locate a point on a coordinate graph. x-coordinate The first number in an ordered pair; it tells the distance to move right or left from the origin. y-coordinate The second number in a ordered pair; it tells the distance to move up or down from the origin. Holt CA Course 1

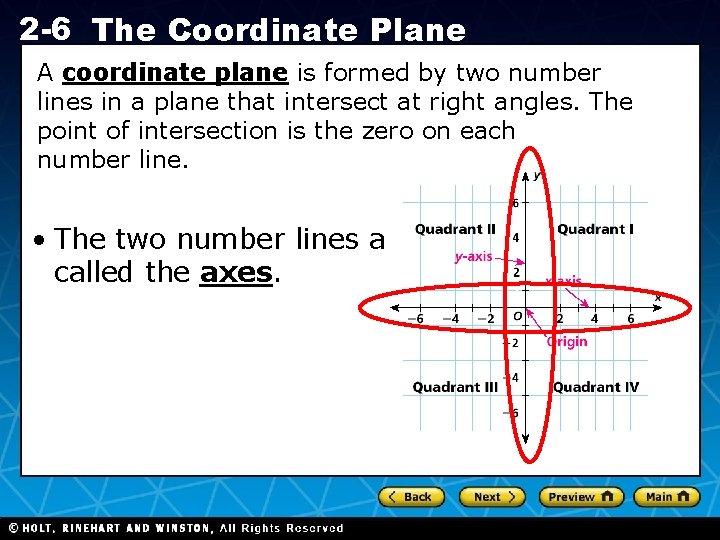

2 -6 The Coordinate Plane A coordinate plane is formed by two number lines in a plane that intersect at right angles. The point of intersection is the zero on each number line. • The two number lines are called the axes. Holt CA Course 1

2 -6 The Coordinate Plane A coordinate plane is formed by two number lines in a plane that intersect at right angles. The point of intersection is the zero on each number line. • The horizontal axis is called the x-axis. Holt CA Course 1

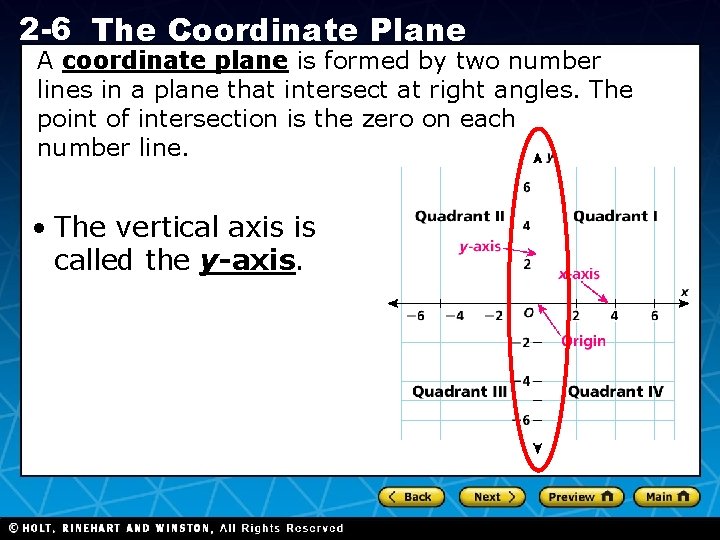

2 -6 The Coordinate Plane A coordinate plane is formed by two number lines in a plane that intersect at right angles. The point of intersection is the zero on each number line. • The vertical axis is called the y-axis. Holt CA Course 1

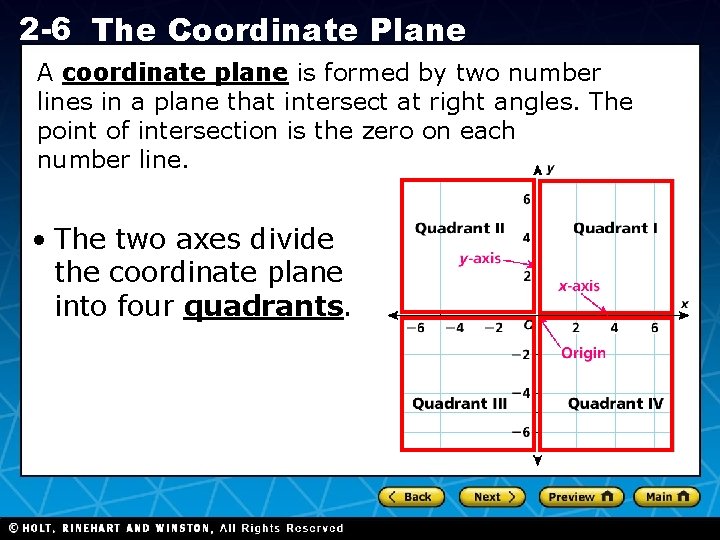

2 -6 The Coordinate Plane A coordinate plane is formed by two number lines in a plane that intersect at right angles. The point of intersection is the zero on each number line. • The two axes divide the coordinate plane into four quadrants. Holt CA Course 1

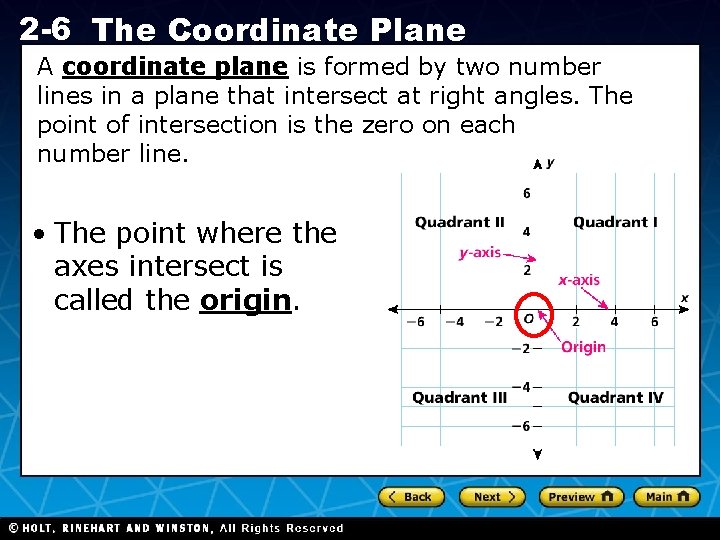

2 -6 The Coordinate Plane A coordinate plane is formed by two number lines in a plane that intersect at right angles. The point of intersection is the zero on each number line. • The point where the axes intersect is called the origin. Holt CA Course 1

2 -6 The Coordinate Plane Example 1: Identifying Quadrants Name the quadrant where each point is located. A. X Quadrant IV B. Y Quadrant III C. S Quadrant II Holt CA Course 1

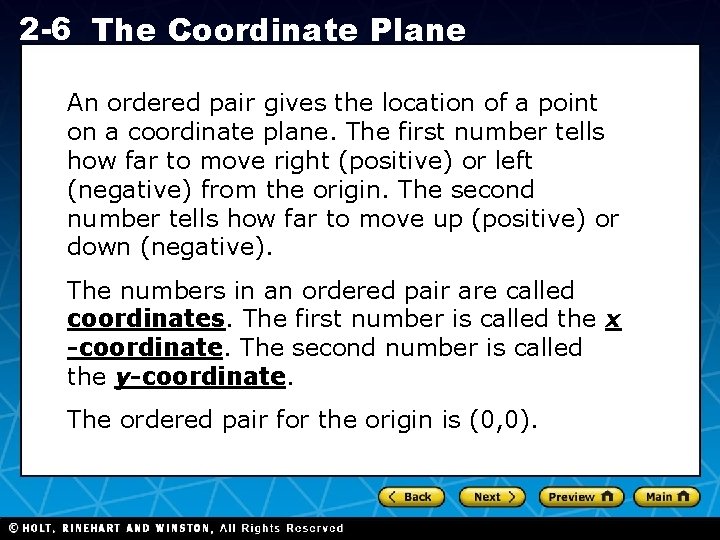

2 -6 The Coordinate Plane An ordered pair gives the location of a point on a coordinate plane. The first number tells how far to move right (positive) or left (negative) from the origin. The second number tells how far to move up (positive) or down (negative). The numbers in an ordered pair are called coordinates. The first number is called the x -coordinate. The second number is called the y-coordinate. The ordered pair for the origin is (0, 0). Holt CA Course 1

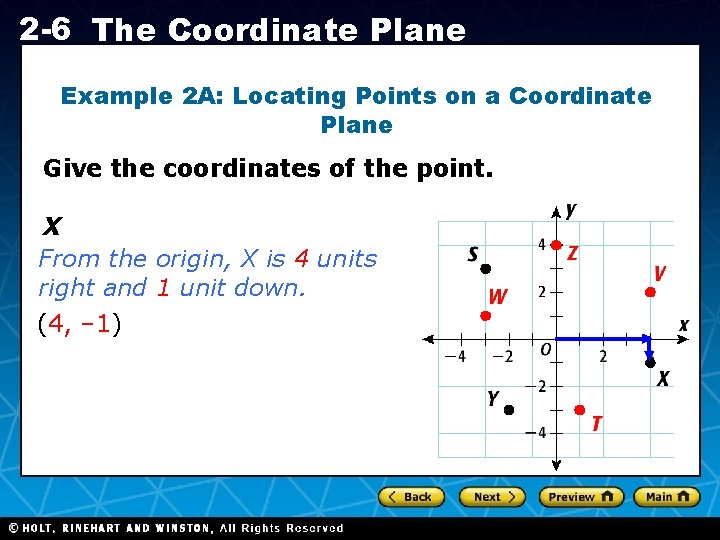

2 -6 The Coordinate Plane Example 2 A: Locating Points on a Coordinate Plane Give the coordinates of the point. X From the origin, X is 4 units right and 1 unit down. (4, – 1) Holt CA Course 1

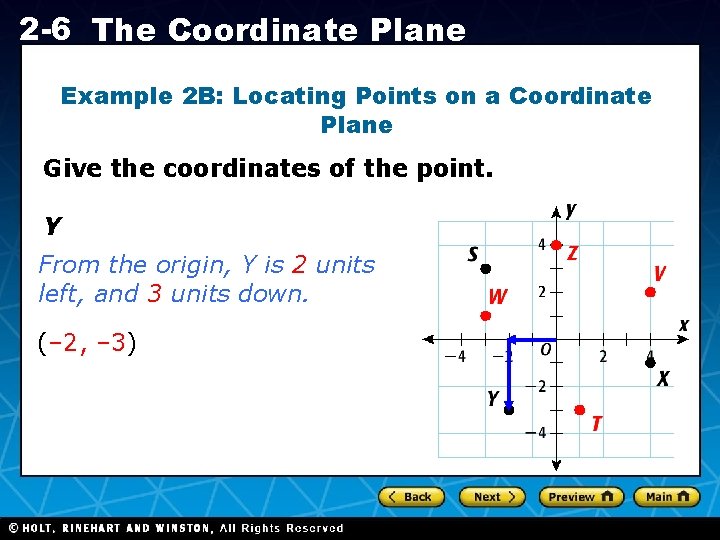

2 -6 The Coordinate Plane Example 2 B: Locating Points on a Coordinate Plane Give the coordinates of the point. Y From the origin, Y is 2 units left, and 3 units down. (– 2, – 3) Holt CA Course 1

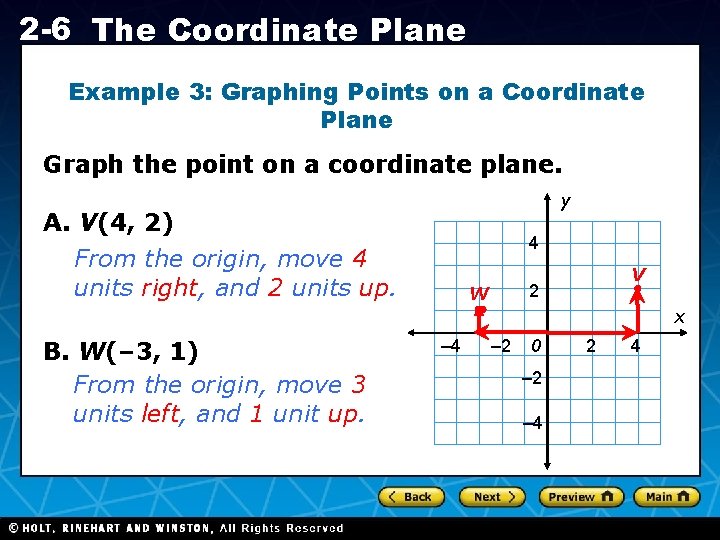

2 -6 The Coordinate Plane Example 3: Graphing Points on a Coordinate Plane Graph the point on a coordinate plane. y A. V(4, 2) 4 From the origin, move 4 units right, and 2 units up. V 2 W x B. W(– 3, 1) From the origin, move 3 units left, and 1 unit up. Holt CA Course 1 – 4 – 2 0 – 2 – 4 2 4

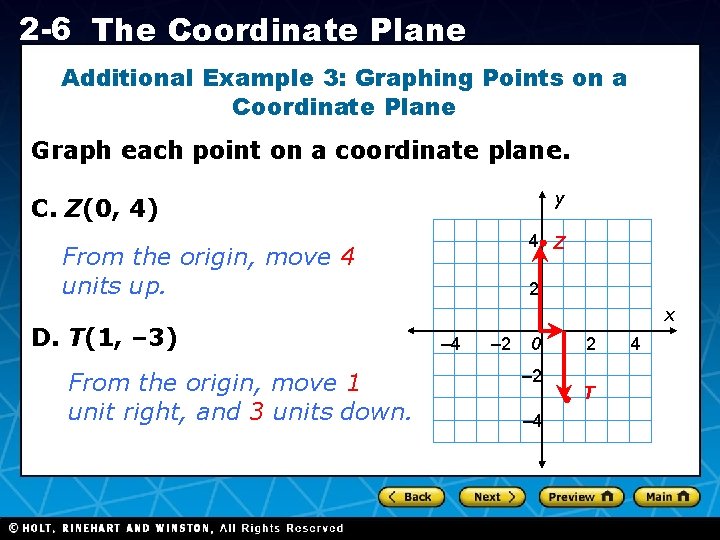

2 -6 The Coordinate Plane Additional Example 3: Graphing Points on a Coordinate Plane Graph each point on a coordinate plane. y C. Z(0, 4) 4 Z From the origin, move 4 units up. D. T(1, – 3) From the origin, move 1 unit right, and 3 units down. Holt CA Course 1 2 x – 4 – 2 0 – 2 – 4 2 T 4

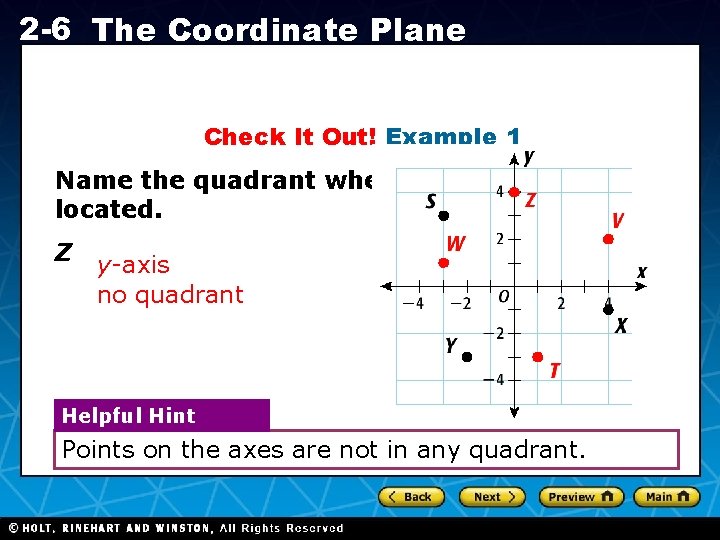

2 -6 The Coordinate Plane Check It Out! Example 1 Name the quadrant where the point is located. Z y-axis no quadrant Helpful Hint Points on the axes are not in any quadrant. Holt CA Course 1

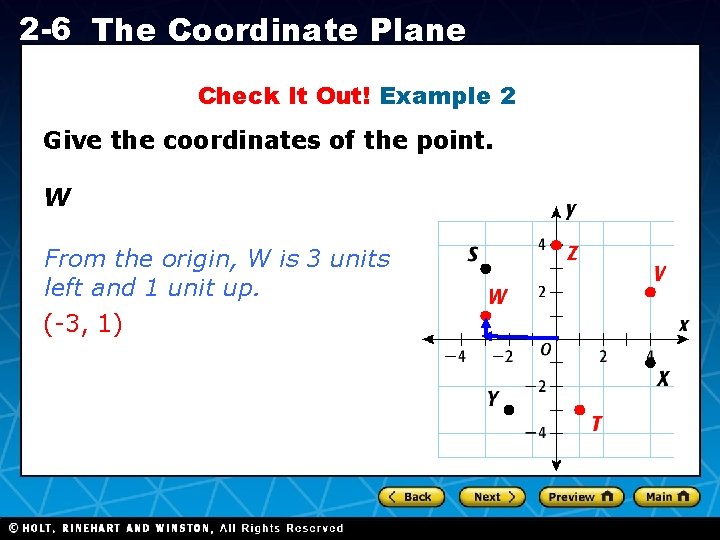

2 -6 The Coordinate Plane Check It Out! Example 2 Give the coordinates of the point. W From the origin, W is 3 units left and 1 unit up. (-3, 1) Holt CA Course 1

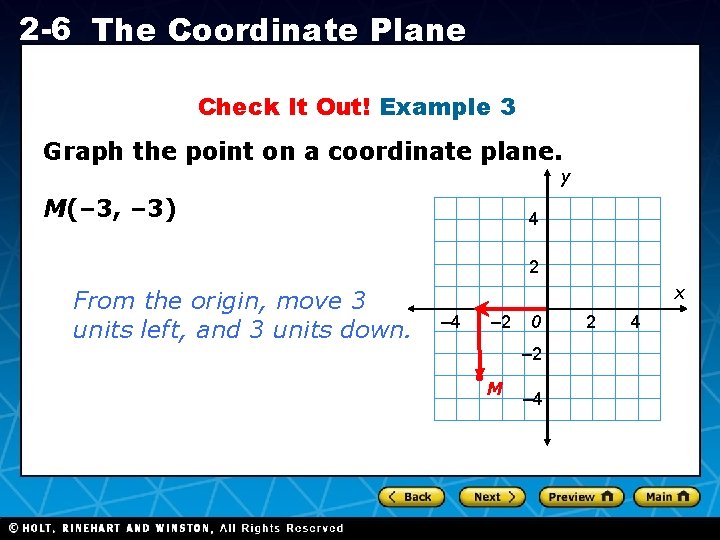

2 -6 The Coordinate Plane Check It Out! Example 3 Graph the point on a coordinate plane. y M(– 3, – 3) 4 2 From the origin, move 3 units left, and 3 units down. x – 4 – 2 0 – 2 M Holt CA Course 1 – 4 2 4
