기계공학기초실험(2) 고체역학실험 2 외팔보의 처짐과 변형률 측정 Deflection and Strain Measurement of Cantilever Beam

기계공학기초실험(2) 고체역학실험 2 외팔보의 처짐과 변형률 측정 Deflection and Strain Measurement of Cantilever Beam 담당교수 : 윤성호 (shyoon@kumoh. ac. kr T 341) 담당조교 : 차재호 (plqa 2080@kumoh. ac. kr, T 338) Advanced Materials & Smart Structures Lab.

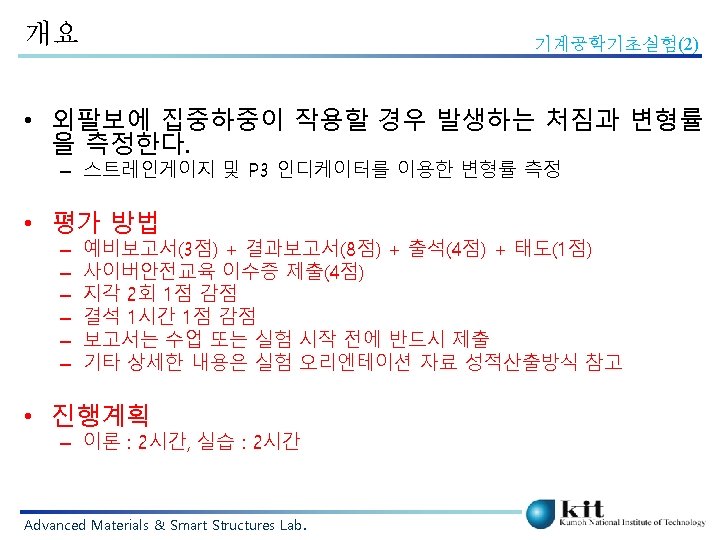

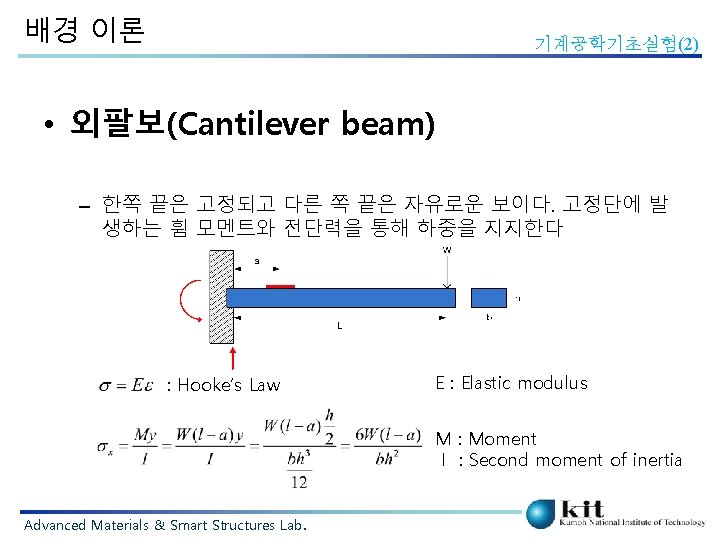

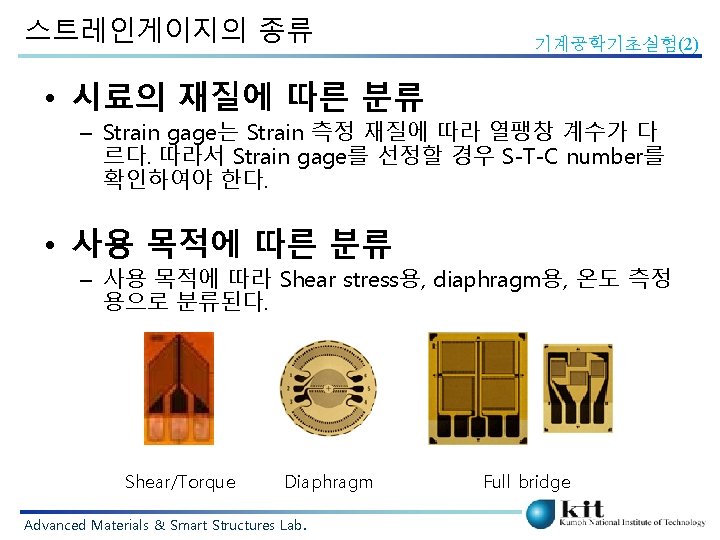

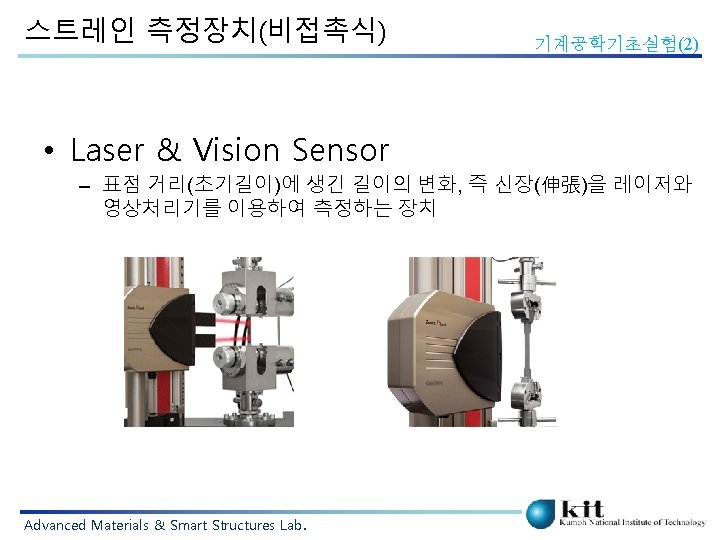

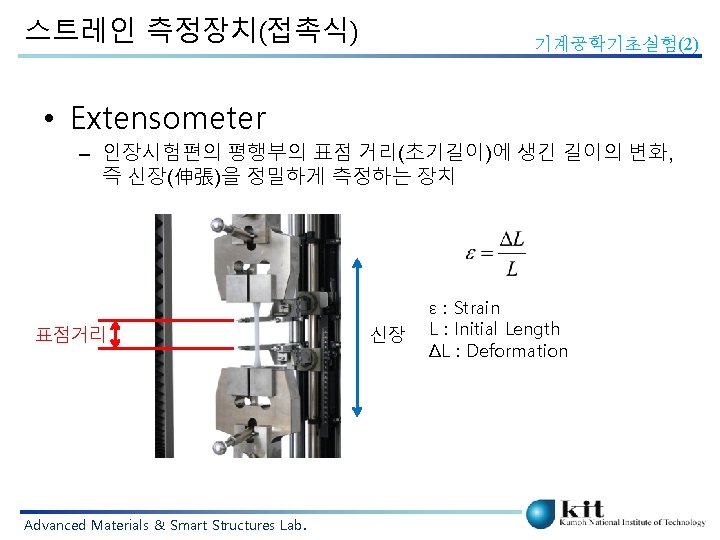

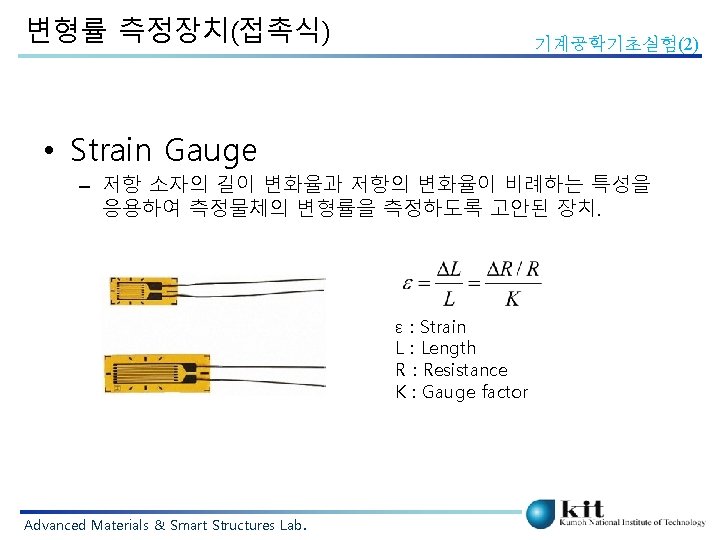

스트레인게이지의 종류 • 기계공학기초실험(2) Pattern에 따른 분류 – 1개의 Strain gage만을 가지는 경우 :

스트레인게이지의 종류 • 기계공학기초실험(2) Pattern에 따른 분류 – 1개의 Strain gage만을 가지는 경우 : Single Pattern (Single gage) – 2개 이상의 Strain gage로 구성되어 있는 경우 : Rosette Pattern (Rosette gage) Single linear Tee • Strain gage 저항에 따른 분류 Rectangular – Strain gage에는 120, 350, 1000Ω의 저항이 사용된다. Advanced Materials & Smart Structures Lab. Multi-axis

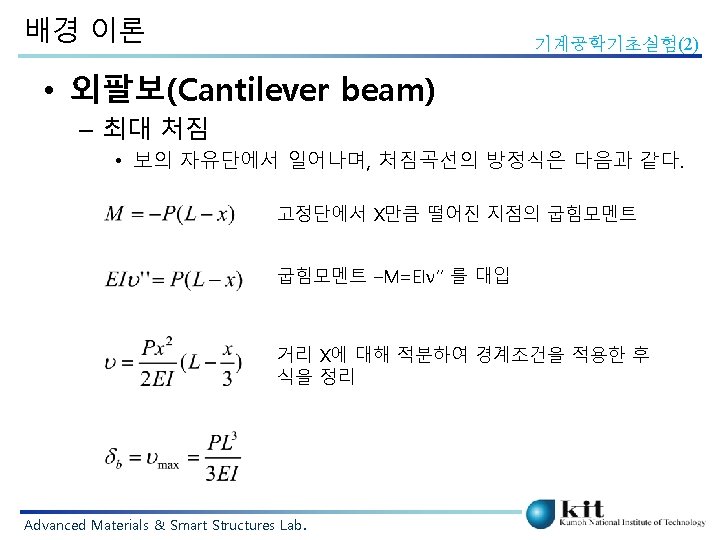

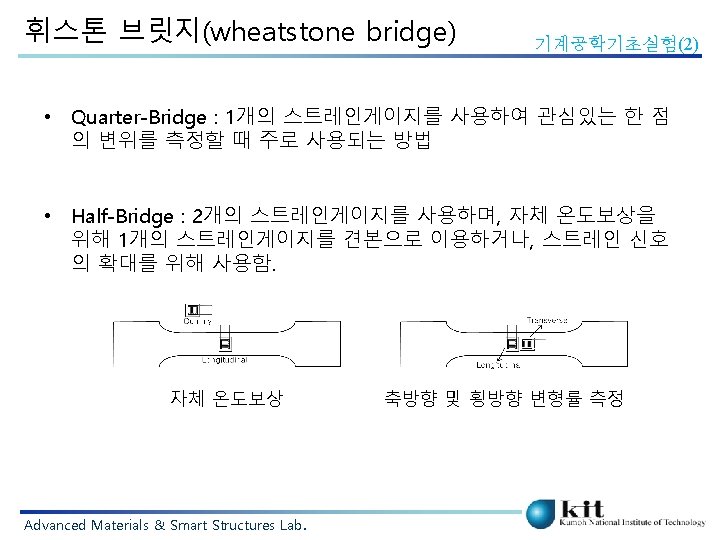

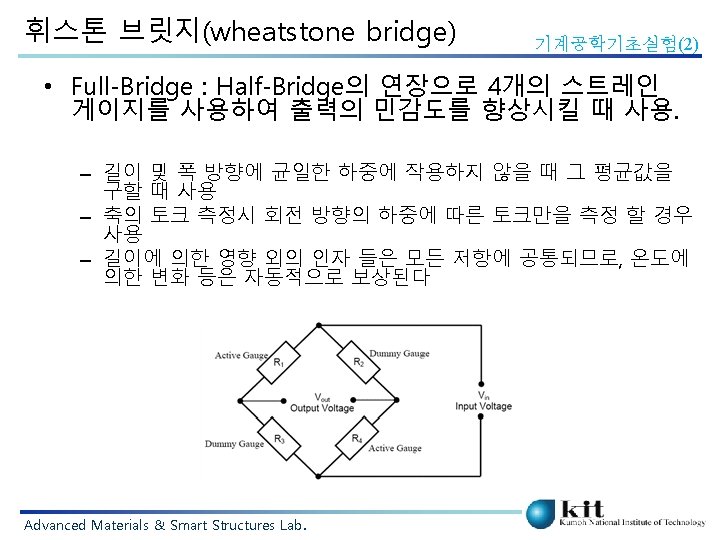

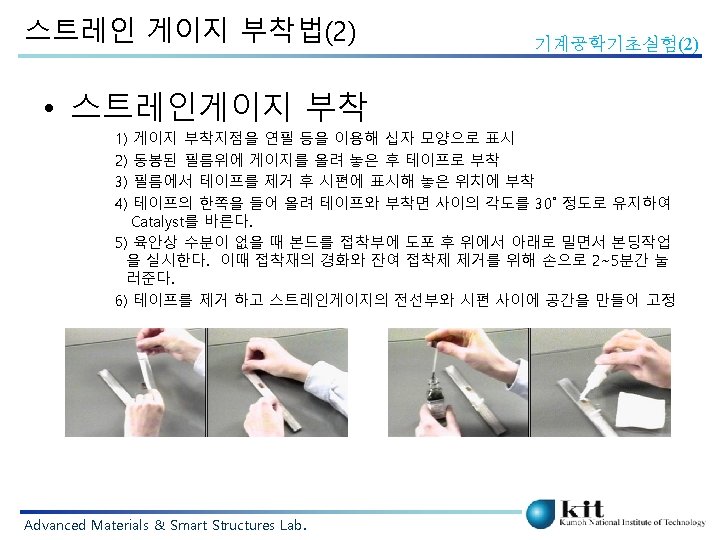

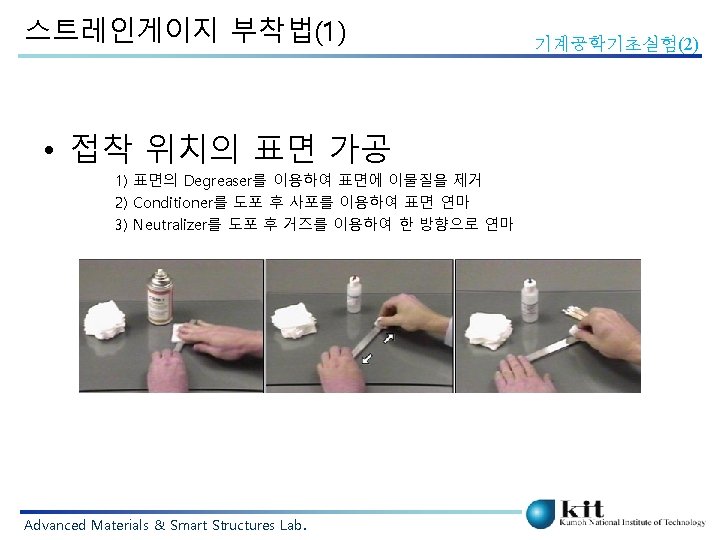

출처 작성법 Advanced Materials & Smart Structures Lab. 기계공학기초실험(2)

출처 작성법 Advanced Materials & Smart Structures Lab. 기계공학기초실험(2)
