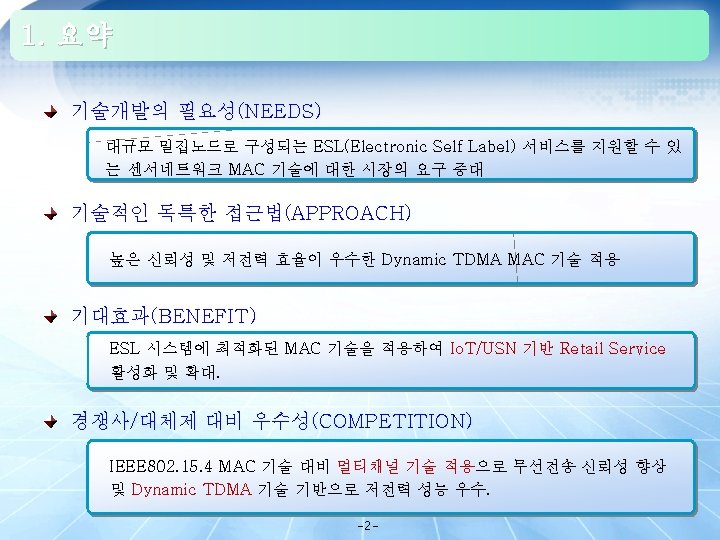

2 2 Beacon slot CAP slot CFP slot

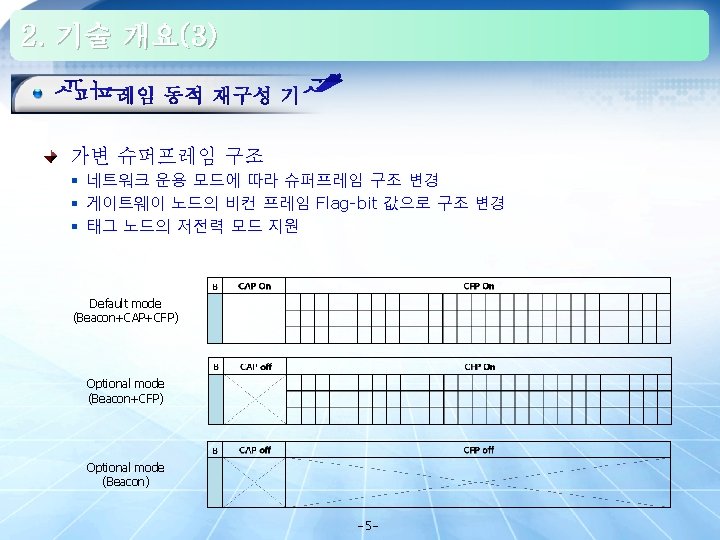

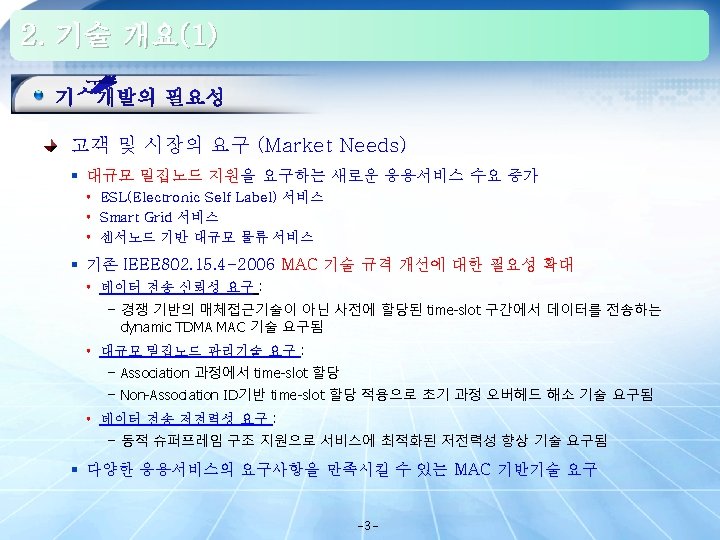

2. 기술 개요(2) § 슈퍼프레임 동적 재구성 기술 • Beacon slot + CAP slot +CFP slot • Beacon slot + CFP slot • Beacon slot only § 데이터 전송 신뢰성 기술 • TDMA with rate adaptive time synchronization • Multi-channel list for retransmission § 경량 타임슬랏 할당 기술 • Association 과정에서 ID 및 데이터 time-slot 할당 • Association free and ID based slot allocation § 저전력 지원 기술 • 태그 노드의 Low Duty-cycling 지원 -4 -

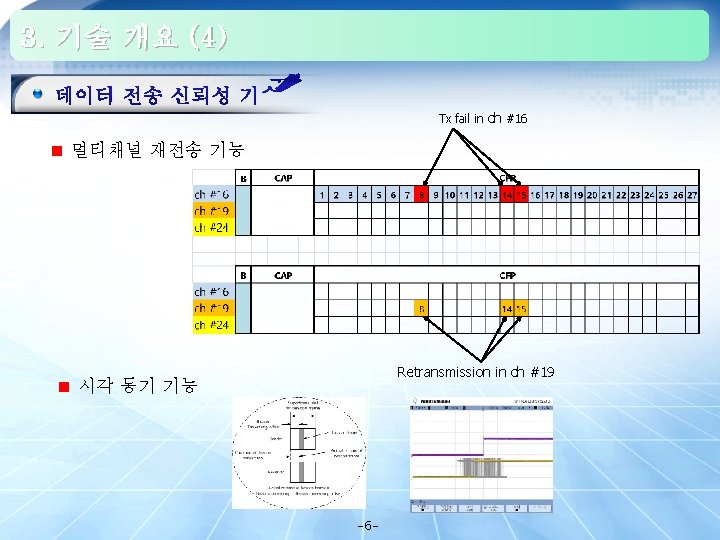

3. 기술 개요 (5) ID 기반 time-slot 할당 기능 Tag devices Tag ID (5) => Time-slot #5 할당 -7 -

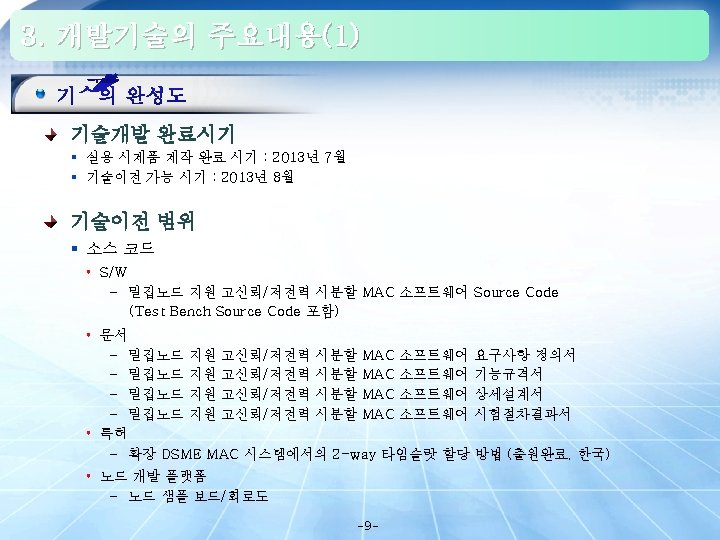

3. 기술 개요 (6) Low duty-cycling for Tag node Item Description Battery 2, 000 m. Ah x 2 ea MCU (MSP 430 F 5438) Active mode: 1. 12 m. A LPM 0: 0. 086 m. A RF Transceiver (CC 2420) Tx: 17. m. A Rx: 18. 8 m. A Idle: 0. 001 m. A Sensor None Duty cycle (0. 02 %) 5. 05 years Duty cycle (0. 003 %) 5. 27 years -8 -
