What is a Universal Upper Air System? 1. Flies sondes from any qualified manufacturer 2. Operates in multiple modes (RDF/GPS) 3. Complies with WMO and national reporting requirements 2 Photo courtesy of NOAA Archive
Universal System 1930 s Optical Theodolite Photo courtesy of NOAA Archive
Universal System 1940 s SCR-658 Manual Radiotheodolite Photo courtesy of NOAA Archive

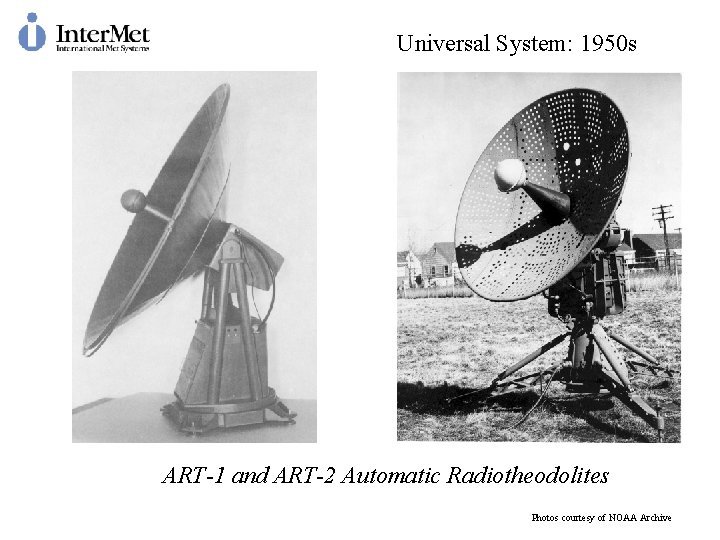

Universal System: 1950 s ART-1 and ART-2 Automatic Radiotheodolites Photos courtesy of NOAA Archive
1990: GPS Revolution • Rapidly dominates synoptic market by offering high accuracy and ease of use • High cost of disposables becomes unsustainable for many operators leading to darkened sites 6 Image courtesy of USAF Research Lab

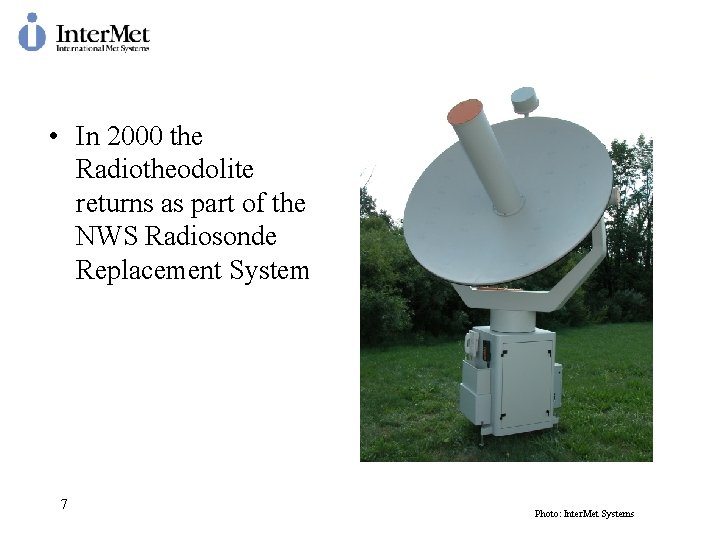

• In 2000 the Radiotheodolite returns as part of the NWS Radiosonde Replacement System 7 Photo: Inter. Met Systems
TRS: Telemetry Receiving System • • • 8 Multi-Sonde Compatible Dual-Mode (GPS / RDF) Digital Architecture All Environment High Gain / Long Range Easy to Operate Photo: Inter. Met Systems

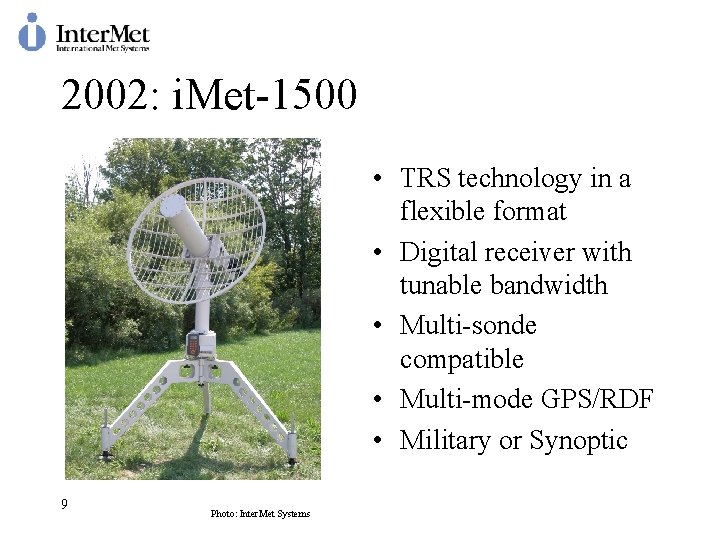

2002: i. Met-1500 • TRS technology in a flexible format • Digital receiver with tunable bandwidth • Multi-sonde compatible • Multi-mode GPS/RDF • Military or Synoptic 9 Photo: Inter. Met Systems
2004: i. Met-1700 • TRS technology at a lower cost • Fixed site installations • Fewer moving parts, reduced maintenance • Multi-sonde compatible • Multi-mode GPS/RDF Photo: Inter. Met Systems 10
Operational factors favor 403 MHz GPS: GPS • Maintenance free • Accurate winds in all conditions • Release and forget operations RDF • Complex hardware • Inaccurate winds at low elevation angles • Training and experience required Ø When properly integrated, PTU is a function of the radiosonde, and should be independent of the wind finding methodology 11
Tanzania Evaluation • In October 2004, a team lead by Dr. John Nash from the Met Office evaluated an i. Met -1500 installation on behalf of the WMO. – More training was required for a staff that had not conducted synoptic flights for 10 years – Identified important integration issues – RDF Wind accuracy was deemed acceptable for operational use in the Tropics 12
RDF Winds as Function of Height 13

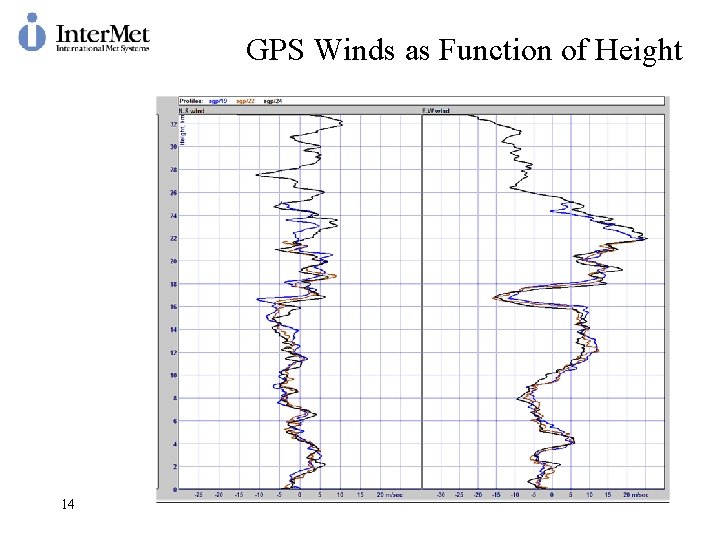

GPS Winds as Function of Height 14

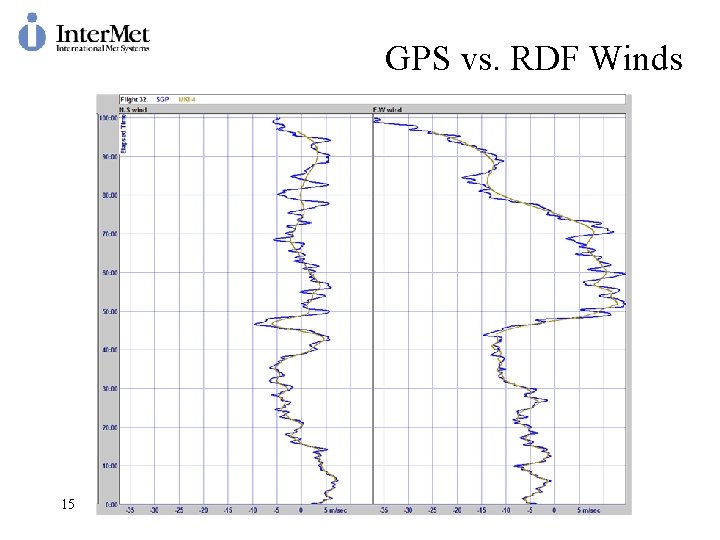

GPS vs. RDF Winds 15

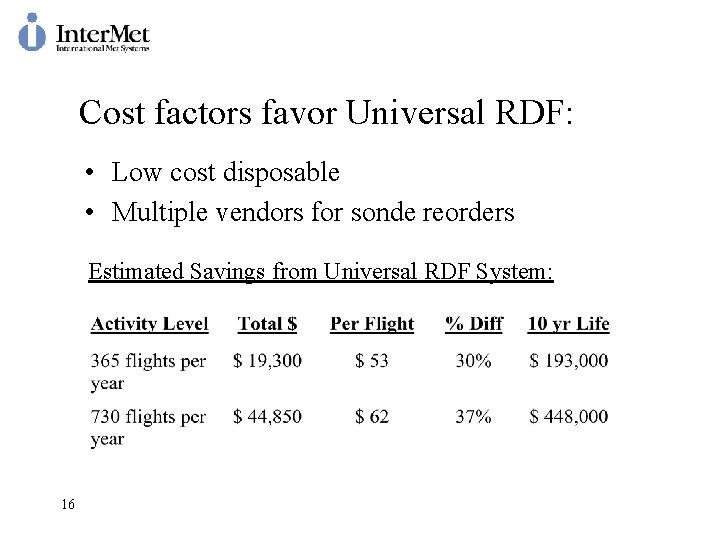

Cost factors favor Universal RDF: • Low cost disposable • Multiple vendors for sonde reorders Estimated Savings from Universal RDF System: 16
Universal Compatibility: • The Signal Processor (decoder) is the key to multi-sonde use • Other Issues: Signal Processor 17 – Bandwidth – Frequency selection – Transfer of calibration coefficients – Solar correction
Meteorological Issues: • Are RDF winds accurate enough for tropical locations with a low incidence of low angle tracking? • Is a competitive market for annual sonde reorders compatible with providing consistent PTU time series data? 18
Conclusions: • There is a place for Universal RDF Systems in the GUAN • Additional work needs to be done on data quality and the potential impact of annual sonde changes 19 Photo courtesy of NOAA Archive
