19 – Passing Data between pages: Forms, Sessions, & Query Strings Mark Dixon Page 1

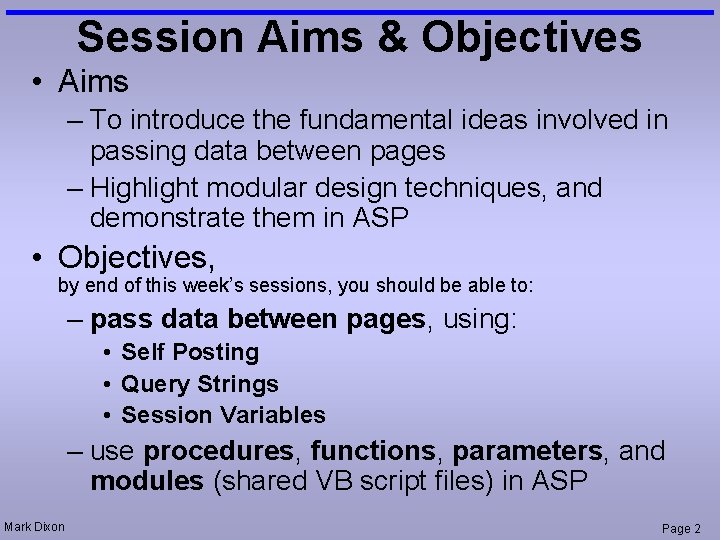

Session Aims & Objectives • Aims – To introduce the fundamental ideas involved in passing data between pages – Highlight modular design techniques, and demonstrate them in ASP • Objectives, by end of this week’s sessions, you should be able to: – pass data between pages, using: • Self Posting • Query Strings • Session Variables – use procedures, functions, parameters, and modules (shared VB script files) in ASP Mark Dixon Page 2
Example: Logon v 2 (design) • Restrict access to home page Mark Dixon Page 3
Example: Logon v 2 (code) Logon. aspx <script language="VB" runat="server"> Sub Page_Load() Dim un As String Dim pw As String If Request. Form("btn. Logon") > "" Then un = txt. User. Name. Value pw = txt. Pass. Word. Value If un = "mark" And pw = "soft 131" Then Response. Redirect("home. htm") Else msg. inner. Text = "Login details incorrect. " End If End Sub </script> Home. htm <html> <head><title>My Home page</title></head> <body> <p> Welcome to my home page. <img src="You. Are. Here. jpg" /> </p> </body> </html> <head><title></head> <body> <form runat="server"> Please logon: <input id="txt. User. Name" type="text" runat="server" /> <input id="txt. Pass. Word" type="text" runat="server" /> <input id="btn. Logon" type="submit" value="Logon" runat="server" /> <p id="msg" runat="server"></p> </form> </body> </html> Mark Dixon Page 4
Example: Logon (Fixed Problem) • View Source – shows client-side script: No server-side code Mark Dixon Page 5
Example: Logon (Problem 2) • User can type home page url (address) directly (bypassing logon page) Mark Dixon Page 6
Solution • Need way for: – password page to tell home page – that user logged in OK Mark Dixon Page 7
Technique: Dead-Drop Variables • 2 Spies wish to pass message between each other without actually meeting • Arrange a dead-drop location – one spy leaves message at location – other spy visits location later to pick up message • Variables used as dead-drop containers Mark Dixon Page 8
Example: Logon v 3 (code) Logon 3. aspx Home 3. aspx <script language="VB" runat="server"> Dim Logon. OK As Boolean Sub Page_Load() Dim un As String Dim pw As String Logon. OK = False If Request. Form("btn. Logon") > "" Then un = txt. User. Name. Value pw = txt. Pass. Word. Value If un = "mark" And pw = "soft 131" Then Logon. OK = True Response. Redirect("home 3. htm") Else msg. inner. Text = "Login details incorrect. " End If End Sub </script> <html> <head><title></head> <body> <form runat="server"> Please logon: <input id="txt. User. Name" type="text" runat="server" /> <input id="txt. Pass. Word" type="text" runat="server" /> <input id="btn. Logon" type="submit" value="Logon" runat="server" /> <p id="msg" runat="server"></p> </form> </body> </html> Logon. OK True <script runat="server" language="VB"> Dim Logon. OK As Boolean Sub Page_Load() If Logon. OK = False Then Response. Redirect("Logon 3. aspx") End If End Sub </script> <html> <head><title>My Home page</title></head> <body> <p> Welcome to my home page. <img src="You. Are. Here. jpg" /> </p> </body> </html> • Does not work: always redirect to logon Mark Dixon Page 9
Example: Logon v 3 (Error) • Variables – don't persist between pages Mark Dixon Page 10
Passing Data (temporary) • Session object – used to pass information between pages: Session("Thing") = 91 Put 91 into Thing – exists for current session – persist between pages – clears if user closes browser – clears after 20 mins of inactivity – no need for declaration Mark Dixon Page 11

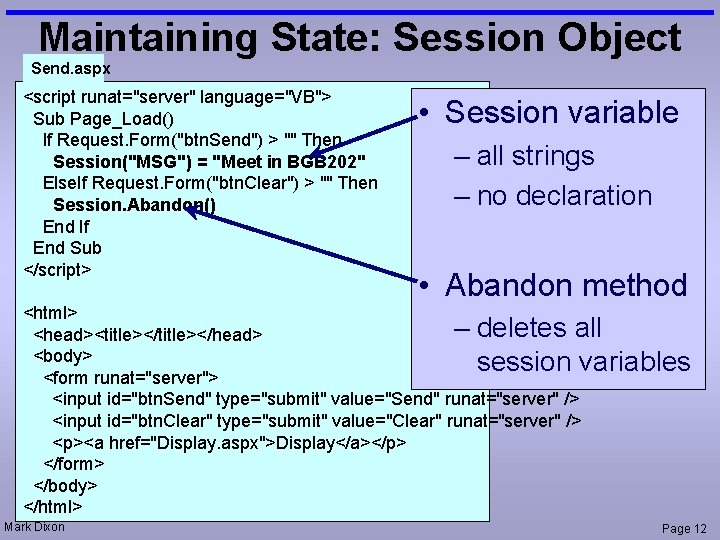

Maintaining State: Session Object Send. aspx <script runat="server" language="VB"> Sub Page_Load() If Request. Form("btn. Send") > "" Then Session("MSG") = "Meet in BGB 202" Else. If Request. Form("btn. Clear") > "" Then Session. Abandon() End If End Sub </script> • Session variable – all strings – no declaration • Abandon method <html> – deletes all <head><title></head> <body> session variables <form runat="server"> <input id="btn. Send" type="submit" value="Send" runat="server" /> <input id="btn. Clear" type="submit" value="Clear" runat="server" /> <p><a href="Display. aspx">Display</a></p> </form> </body> </html> Mark Dixon Page 12
Maintaining State: Session Object Display. aspx <script runat="server" language="VB"> Sub Page_Load() par. Msg. Inner. Text = Session("MSG") End Sub </script> • read session variable, and display in par. Msg <html> <head><title></head> <body> <p id="par. Msg" runat="server"></p> </body> </html> Mark Dixon Page 13

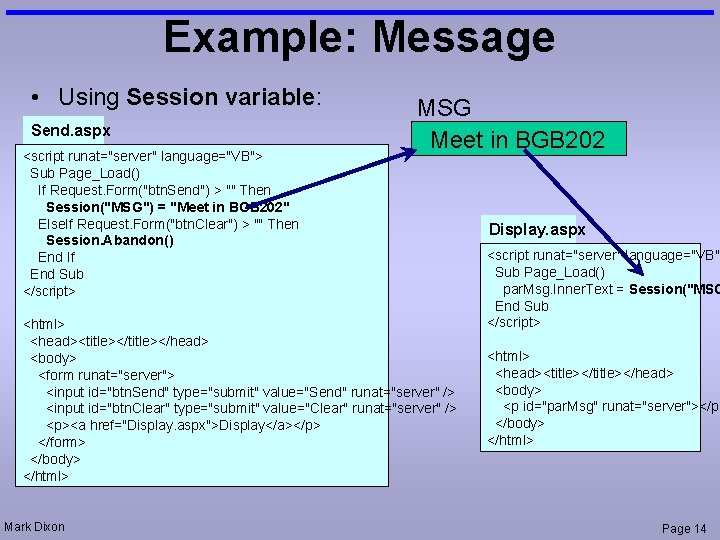

Example: Message • Using Session variable: Send. aspx <script runat="server" language="VB"> Sub Page_Load() If Request. Form("btn. Send") > "" Then Session("MSG") = "Meet in BGB 202" Else. If Request. Form("btn. Clear") > "" Then Session. Abandon() End If End Sub </script> MSG Meet in BGB 202 <html> <head><title></head> <body> <form runat="server"> <input id="btn. Send" type="submit" value="Send" runat="server" /> <input id="btn. Clear" type="submit" value="Clear" runat="server" /> <p><a href="Display. aspx">Display</a></p> </form> </body> </html> Mark Dixon Display. aspx <script runat="server" language="VB"> Sub Page_Load() par. Msg. Inner. Text = Session("MSG End Sub </script> <html> <head><title></head> <body> <p id="par. Msg" runat="server"></p> </body> </html> Page 14

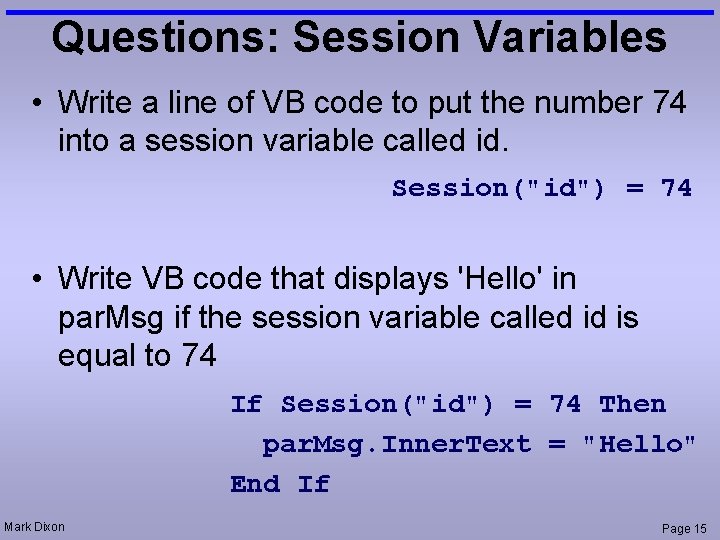

Questions: Session Variables • Write a line of VB code to put the number 74 into a session variable called id. Session("id") = 74 • Write VB code that displays 'Hello' in par. Msg if the session variable called id is equal to 74 If Session("id") = 74 Then par. Msg. Inner. Text = "Hello" End If Mark Dixon Page 15
Passing Data (temporary) • Query Strings – Useful for passing information between pages via links Mark Dixon Page 16
Maintaining State: Query Strings • Data added to end of URL (address): http: //localhost/page. asp? Surname=Bob Query String • ASP code can use this data: – Request. Query. String("Surname") • would return the value "Bob" • Form method=get – data automatically added to query string Mark Dixon Page 17

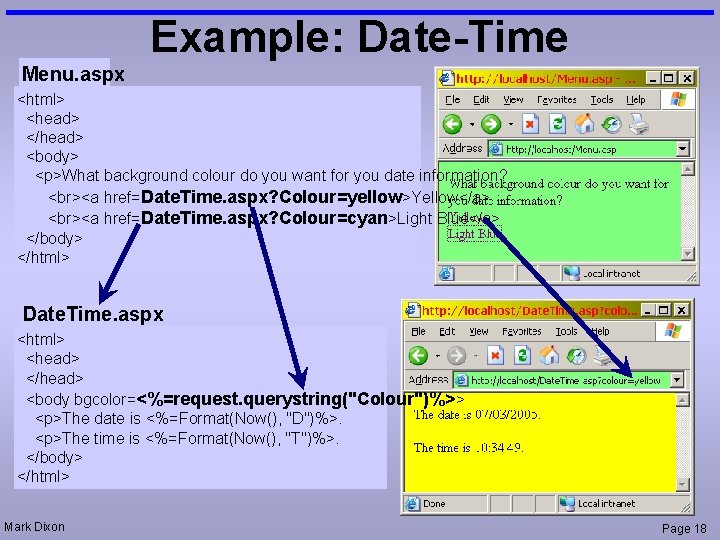

Example: Date-Time Menu. aspx <html> <head> </head> <body> <p>What background colour do you want for you date information? <a href=Date. Time. aspx? Colour=yellow>Yellow</a> <a href=Date. Time. aspx? Colour=cyan>Light Blue</a> </body> </html> Date. Time. aspx <html> <head> </head> <body bgcolor=<%=request. querystring("Colour")%>> <p>The date is <%=Format(Now(), "D")%>. <p>The time is <%=Format(Now(), "T")%>. </body> </html> Mark Dixon Page 18
Reference: Server Object Model • Request object: calling web page – Form: used to get form data from page – Query. String: used to get data from address (? ) • Response object: web page sent back – Write: used to put text into web page – Redirect: used to navigate to other page – Clear: erases all HTML in web page • Session object: store data between pages – Abandon: clears session data Mark Dixon Page 19
Passing Data (persistent) • Cookies (not covered in this module) – stored on users’ (client) hard drive – persists between sessions • Database/file (covered in later lectures) – stored on server hard drive – persists between sessions Mark Dixon Page 20
Example: Apples (analysis) SPECIFICATION • User Requirements – help young children learn to count from 1 to 10 • Software Requirements – Functional: – computer selects number between 1 and 10 – computer displays that number of apples – user (child) types digits – computer compares digits to number of apples – Non-functional should be easy to use and interesting Mark Dixon Page 21
Example: Apples v 2 (design) • Functionality: • • Mark Dixon computer selects number between 1 and 10 computer displays that number of apples user types digits computer compares digits to number of apples Page 22
Example: Apples v 2 (code) Apples. aspx Dim n As Long Sub Page_Load() Dim html As String Dim a As Long If Request. Form("btn. Start") > "" Then n = 1 + Int(Rnd() * 9) html = "How many apples are there? " For a = 1 To n html = html & "<img src=Apple. gif>" Next quest. Inner. Html = html Session("Num. Apples") = n msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Else. If Request. Form("btn. Check") > "" Then n = Session("Num. Apples") If CInt(txt. Ans. Value) = CInt(n) Then msg. Inner. Html = "Correct, well done!" Else msg. Inner. Html = "Sorry, please try again. " End If btn. Start. Disabled = False btn. Check. Disabled = True End If End Sub Mark Dixon Dim n As Long Sub Page_Load() Dim html As String Dim a As Long If Request. Form("btn. Start") > "" Then n = 1 + Int(Rnd() * 9) html = "How many apples are there? <b For a = 1 To n html = html & "<img src=Apple. gif>" Next quest. Inner. Html = html Session("Num. Apples") = n msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Page 23
Example: Apples v 2 (code) Apples. aspx Dim n As Long Sub Page_Load() Dim html As String Dim a As Long If Request. Form("btn. Start") > "" Then n = 1 + Int(Rnd() * 9) html = "How many apples are there? " For a = 1 To n html = html & "<img src=Apple. gif>" Next quest. Inner. Html = html Session("Num. Apples") = n msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Else. If Request. Form("btn. Check") > "" Then n = Session("Num. Apples") If CInt(txt. Ans. Value) = CInt(n) Then msg. Inner. Html = "Correct, well done!" Else msg. Inner. Html = "Sorry, please try again. " End If btn. Start. Disabled = False btn. Check. Disabled = True End If End Sub Mark Dixon Else. If Request. Form("btn. Check") > "" Then n = Session("Num. Apples") If CInt(txt. Ans. Value) = CInt(n) Then msg. Inner. Html = "Correct, well done!" Else msg. Inner. Html = "Sorry, please try agai End If btn. Start. Disabled = False btn. Check. Disabled = True End If End Sub Page 24
Problem Solving Strategies • bottom-up – Create a detailed solution first – Then look for best solution – refactoring – process of: • changing internal design of code, • without altering what it does • top-down – plan overall design – fill in details in practice mixed – novices favour bot-up, experts top-down Mark Dixon Page 25
Example: Apples (Dependencies) • Difficult to see dependencies for lines far apart Mark Dixon Dim n As Long Sub Page_Load() Dim html As String Dim a As Long If Request. Form("btn. Start") > "" Then n = 1 + Int(Rnd() * 9) html = "How many apples are there? <b For a = 1 To n html = html & "<img src=Apple. gif>" Next quest. Inner. Html = html Session("Num. Apples") = n msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Page 26
Example: Apples (Dependencies) • Put dependent lines close together Mark Dixon Dim n As Long Sub Page_Load() Dim html As String Dim a As Long If Request. Form("btn. Start") > "" Then n = 1 + Int(Rnd() * 9) Session("Num. Apples") = n html = "How many apples are there? <b For a = 1 To n html = html & "<img src=Apple. gif>" Next quest. Inner. Html = html msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Page 27
Example: Apples v 3 (design) • Functionality: • • computer selects number between 1 and 10 computer displays that number of apples user types digits computer compares digits to number of apples and displays number of apples typed by user Mark Dixon Page 28

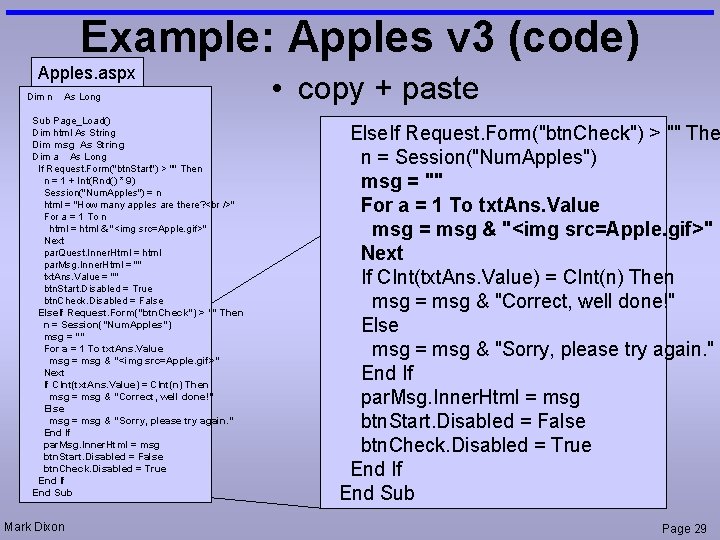

Example: Apples v 3 (code) Apples. aspx Dim n As Long Sub Page_Load() Dim html As String Dim msg As String Dim a As Long If Request. Form("btn. Start") > "" Then n = 1 + Int(Rnd() * 9) Session("Num. Apples") = n html = "How many apples are there? " For a = 1 To n html = html & "<img src=Apple. gif>" Next par. Quest. Inner. Html = html par. Msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Else. If Request. Form("btn. Check") > "" Then n = Session("Num. Apples") msg = "" For a = 1 To txt. Ans. Value msg = msg & "<img src=Apple. gif>" Next If CInt(txt. Ans. Value) = CInt(n) Then msg = msg & "Correct, well done!" Else msg = msg & "Sorry, please try again. " End If par. Msg. Inner. Html = msg btn. Start. Disabled = False btn. Check. Disabled = True End If End Sub Mark Dixon • copy + paste Else. If Request. Form("btn. Check") > "" The n = Session("Num. Apples") msg = "" For a = 1 To txt. Ans. Value msg = msg & "<img src=Apple. gif>" Next If CInt(txt. Ans. Value) = CInt(n) Then msg = msg & "Correct, well done!" Else msg = msg & "Sorry, please try again. " End If par. Msg. Inner. Html = msg btn. Start. Disabled = False btn. Check. Disabled = True End If End Sub Page 29
Modular Design • What do lines do (group summary)? Pick Num. of Apples Display Question Prepare for Response Mark Dixon n = 1 + Int(Rnd() * 9) Session("Num. Apples") = n html = "How many apples are there? < For a = 1 To n html = html & "<img src=Apple. gif>" Next par. Quest. Inner. Html = html par. Msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False Page 30
Modular Design (top level) • Top level reads like English algorithm: Dim n As Long Dim html As String Dim msg As String Dim a As Long Sub Page_Load() If Request. Form("btn. Start") > "" Then Pick. Random. Number. Of. Apples Display. Apples. Quest Prepare. For. Response Else. If Request. Form("btn. Check") > "" Then n = Session("Num. Apples") Display. Apples. User Display. Feedback Prepare. For. Quest End If End Sub Mark Dixon Page 31

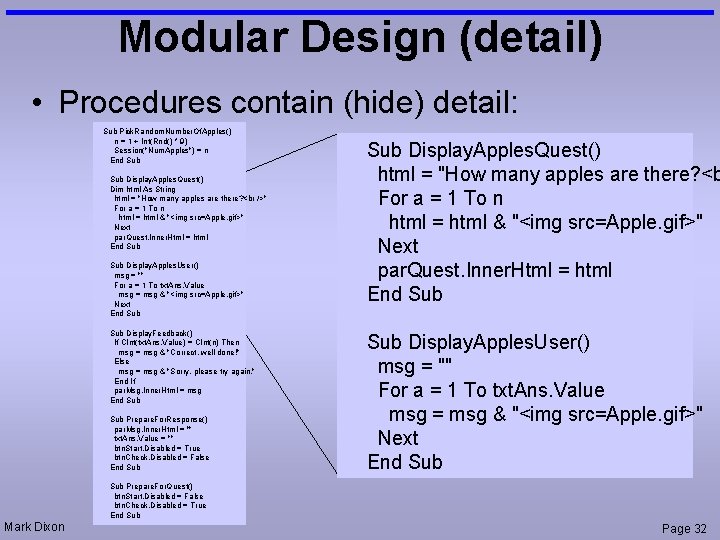

Modular Design (detail) • Procedures contain (hide) detail: Sub Pick. Random. Number. Of. Apples() n = 1 + Int(Rnd() * 9) Session("Num. Apples") = n End Sub Display. Apples. Quest() Dim html As String html = "How many apples are there? " For a = 1 To n html = html & "<img src=Apple. gif>" Next par. Quest. Inner. Html = html End Sub Display. Apples. User() msg = "" For a = 1 To txt. Ans. Value msg = msg & "<img src=Apple. gif>" Next End Sub Display. Feedback() If CInt(txt. Ans. Value) = CInt(n) Then msg = msg & "Correct, well done!" Else msg = msg & "Sorry, please try again. " End If par. Msg. Inner. Html = msg End Sub Prepare. For. Response() par. Msg. Inner. Html = "" txt. Ans. Value = "" btn. Start. Disabled = True btn. Check. Disabled = False End Sub Display. Apples. Quest() html = "How many apples are there? <b For a = 1 To n html = html & "<img src=Apple. gif>" Next par. Quest. Inner. Html = html End Sub Display. Apples. User() msg = "" For a = 1 To txt. Ans. Value msg = msg & "<img src=Apple. gif>" Next End Sub Prepare. For. Quest() btn. Start. Disabled = False btn. Check. Disabled = True End Sub Mark Dixon Page 32
Routines: Self-Contained • Good design principle: – routines (functions and procedures) should be self-contained (easier to re-use in other programs) Dim u As Long Dim a As Long a=4 u = Twice() Function Twice() Return a * 2 End Function Mark Dixon Dim u As Long u = Twice(4) Function Twice(a As Long) Return a * 2 End Function Page 33
Question: Self-Contained Routines • Are the following routines self contained? Dim num 1 Dim num 2 Dim diff Sub Compare() diff = num 1 - num 2 End Sub Function Half(num As Double) As Double Return num / 2 End Function Mark Dixon Page 34
Problem Solving: 9 dots • Join all 9 dots – with straight continuous lines Mark Dixon Page 35
Problem Solving Process (Name Split) • Problem: a variable exists called n. This contains a person's full name (forename, then surname ). It needs to be split into two separate variables. Dim n As String n = "Ruth Jones" • Solution Process: – What do I do to solve this manually (on paper)? – How do I know where the forename ends and the surname begins? – The space is the key: • Find the space • everything before the space is the forename • everything after the space is the surname Mark Dixon Page 36
Tutorial Exercise: Apples • LEARNING OBJECTIVE: identify dependencies between lines of code refactor code: dependent lines closer refactor code: split into routines (procedures and functions) refactor code: make routines self-contained • Task 1: Get the Apples v 3 example (from the lecture) working • Task 2: Modify your page to keep a score. HINT: Try to identify the routines first, then fill in the code. Mark Dixon Page 37
Tutorial Exercise: Message • LEARNING OBJECTIVE: pass data between pages using session variables, and (form) selfposting • Task 1: Get the message example working (from the lecture) • Task 2: Change the send. aspx page so that when you click the buttons it gives some feedback as to what has happened. hint: add a paragraph Mark Dixon Page 38
Tutorial Exercise: Apples • LEARNING OBJECTIVE: pass data between pages using session variables, and (form) selfposting • Task 1: Type in the code for the Apples example (from the lecture) • Task 2: Modify this to use a session variable to 'remember' the random number, so that it works properly. • Task 3: Change it so that it disables the buttons appropriately • Task 4: Change it so that it clears the text box and feedback as a new question begins • Task 5: Add a score facility. – when the page loads, the score should be 0 – when the answer is correct, the score should increase by 1 – when the score goes over 10, a congratulations message should be shown, and the score reset to 0 Mark Dixon Page 39

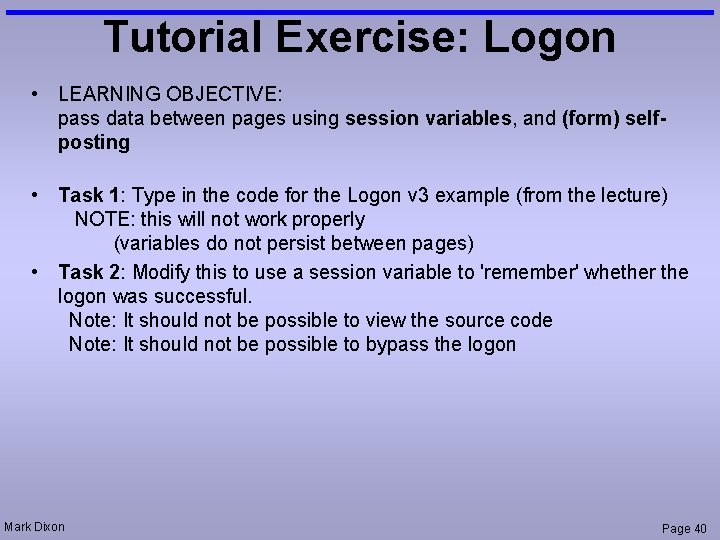

Tutorial Exercise: Logon • LEARNING OBJECTIVE: pass data between pages using session variables, and (form) selfposting • Task 1: Type in the code for the Logon v 3 example (from the lecture) NOTE: this will not work properly (variables do not persist between pages) • Task 2: Modify this to use a session variable to 'remember' whether the logon was successful. Note: It should not be possible to view the source code Note: It should not be possible to bypass the logon Mark Dixon Page 40
Tutorial Exercise: Date • LEARNING OBJECTIVE: pass data between pages using query strings • Task 1: Get the Date-Time example (from the lecture) working • Task 2: Modify your page to provide another choice of background colour. Mark Dixon Page 41
