19 November 2012 MTM 800 Fu G ET

19. November 2012 MTM 800 Fu. G ET FRANK HEISUCK | Systems Engineer MOTOROLA SOLUTIONS

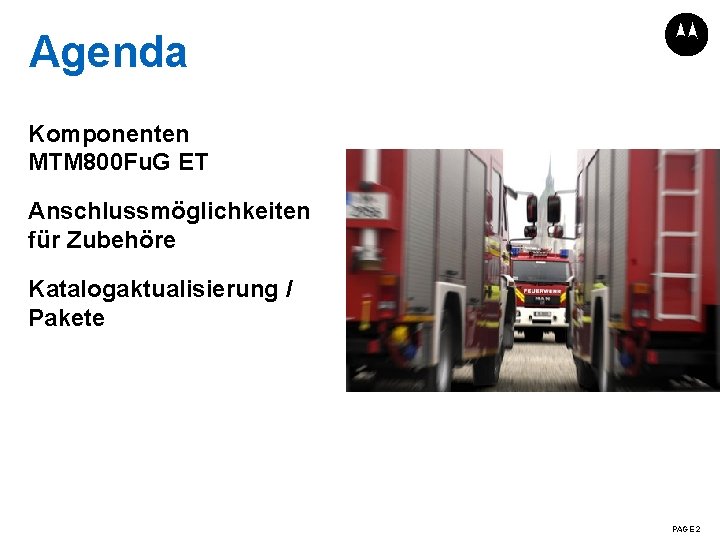

Agenda Komponenten MTM 800 Fu. G ET Anschlussmöglichkeiten für Zubehöre Katalogaktualisierung / Pakete TITLES ARE ARIAL 44 PT BOLD SUBJECT TEXT IS ARIAL 24 PT BOLD PAGE 2

Komponenten MTM 800 Fu. G ET

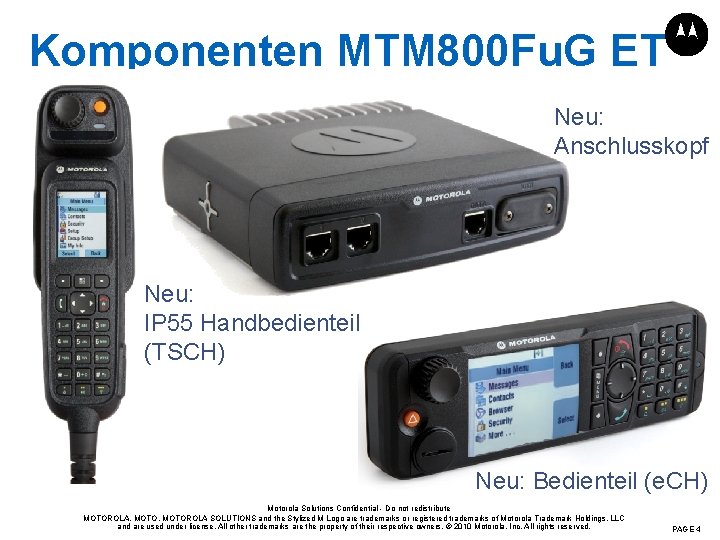

Komponenten MTM 800 Fu. G ET Neu: Anschlusskopf Neu: IP 55 Handbedienteil (TSCH) Neu: Bedienteil (e. CH) Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 4

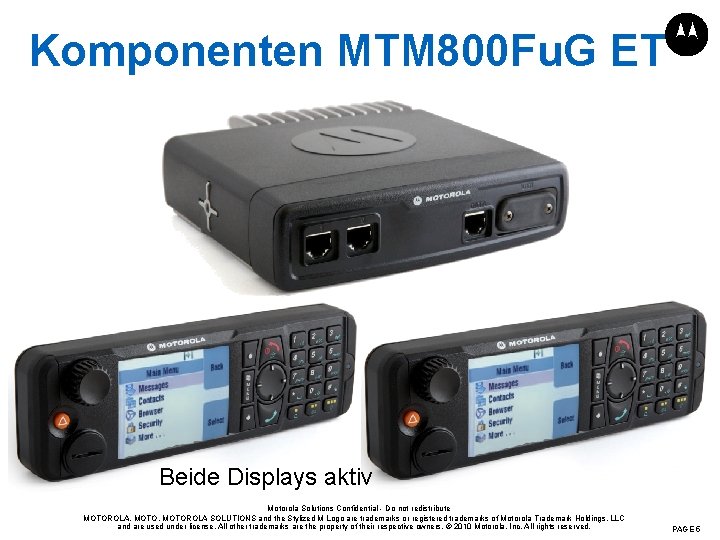

Komponenten MTM 800 Fu. G ET Beide Displays aktiv Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 5

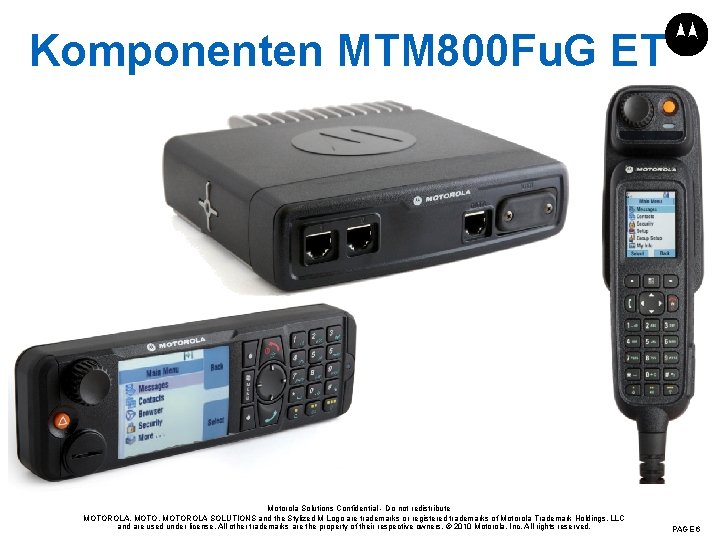

Komponenten MTM 800 Fu. G ET Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 6

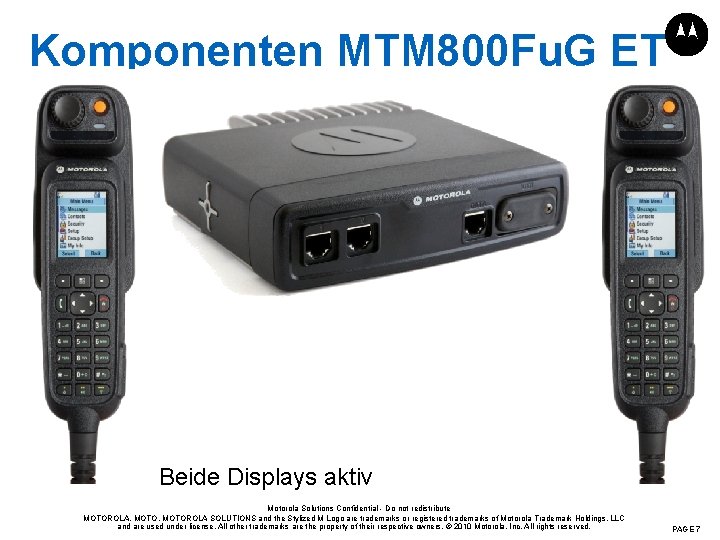

Komponenten MTM 800 Fu. G ET Beide Displays aktiv Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 7

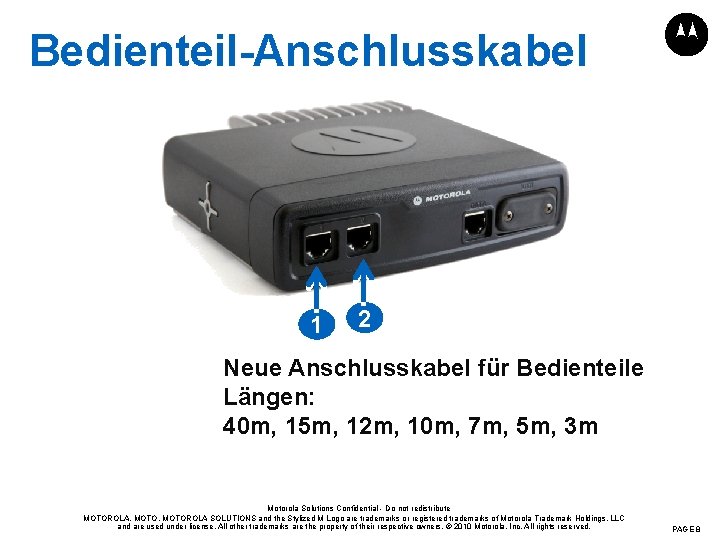

Bedienteil-Anschlusskabel 1 2 Neue Anschlusskabel für Bedienteile Längen: 40 m, 15 m, 12 m, 10 m, 7 m, 5 m, 3 m Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 8

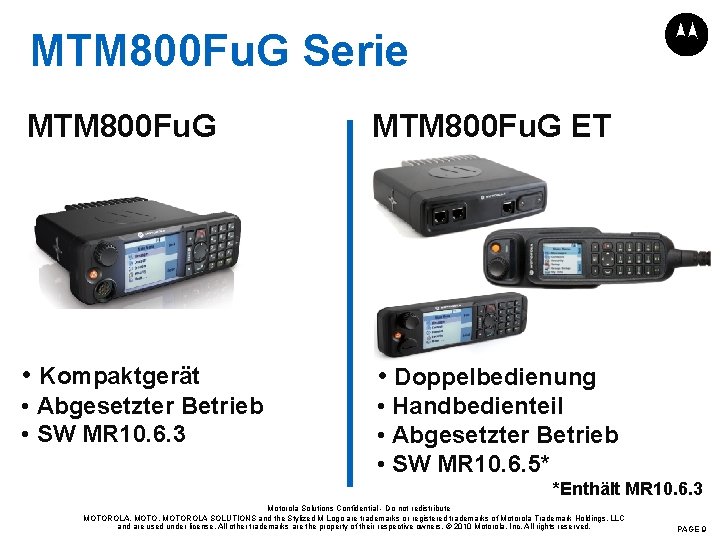

MTM 800 Fu. G Serie MTM 800 Fu. G ET • Kompaktgerät • Doppelbedienung • Abgesetzter Betrieb • SW MR 10. 6. 3 • Handbedienteil • Abgesetzter Betrieb • SW MR 10. 6. 5* *Enthält MR 10. 6. 3 Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 9

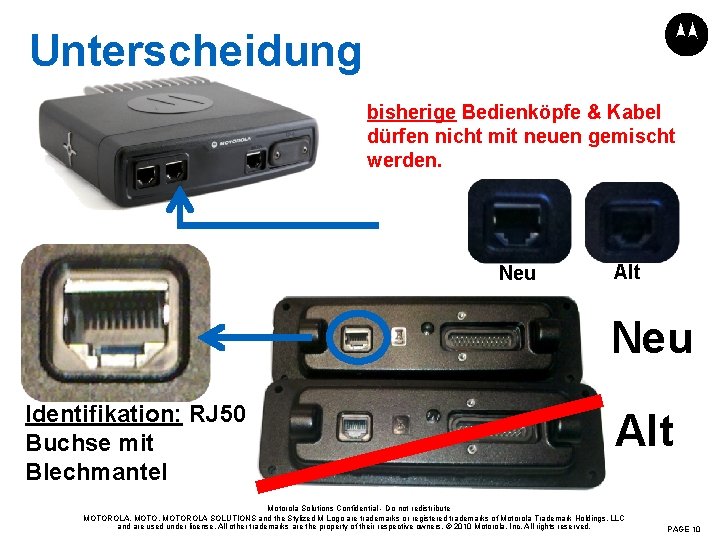

Unterscheidung bisherige Bedienköpfe & Kabel dürfen nicht mit neuen gemischt werden. Neu Alt Neu Identifikation: RJ 50 Buchse mit Blechmantel Alt Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 10

Zubehör Anschluss. Möglichkeiten PAGE 11

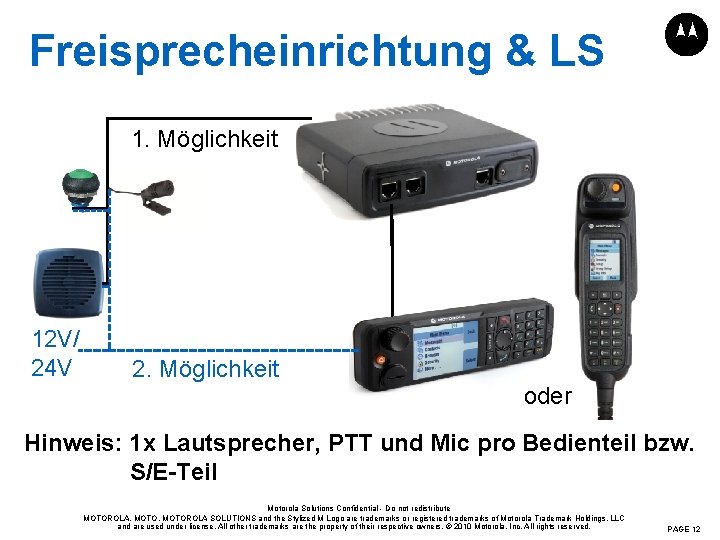

Freisprecheinrichtung & LS 1. Möglichkeit 12 V/ 24 V 2. Möglichkeit oder Hinweis: 1 x Lautsprecher, PTT und Mic pro Bedienteil bzw. S/E-Teil Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 12

Lautsprecher am S/E-Teil A On Hook B Off Hook Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 13

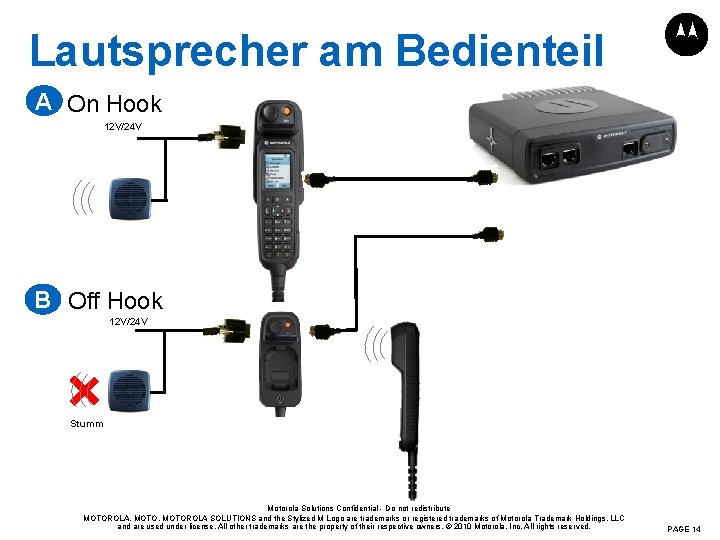

Lautsprecher am Bedienteil A On Hook 12 V/24 V B Off Hook 12 V/24 V Stumm Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 14

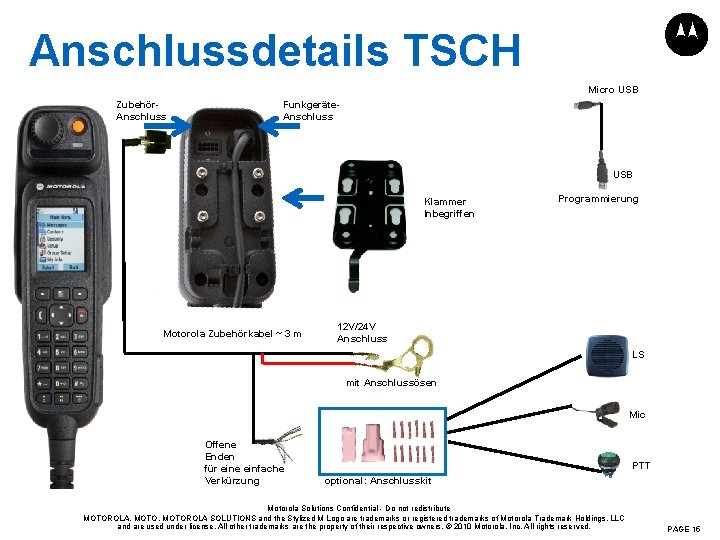

Anschlussdetails TSCH Micro USB Zubehör. Anschluss Funkgeräte. Anschluss USB Klammer Inbegriffen Motorola Zubehörkabel ~ 3 m Programmierung 12 V/24 V Anschluss LS mit Anschlussösen Mic Offene Enden für eine einfache Verkürzung PTT optional: Anschlusskit Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 15

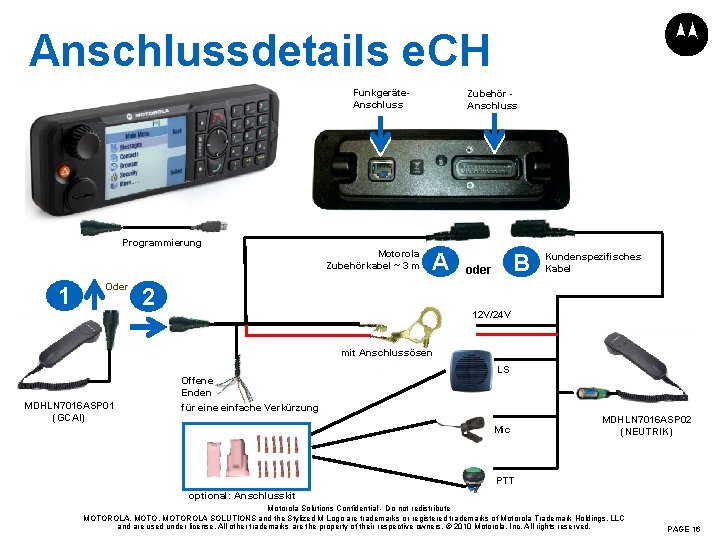

Anschlussdetails e. CH Funkgeräte. Anschluss Programmierung 1 Oder Motorola Zubehörkabel ~ 3 m Zubehör Anschluss A 2 B oder Kundenspezifisches Kabel 12 V/24 V mit Anschlussösen LS MDHLN 7016 ASP 01 (GCAI) Offene Enden für eine einfache Verkürzung Mic MDHLN 7016 ASP 02 (NEUTRIK) PTT optional: Anschlusskit Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 16

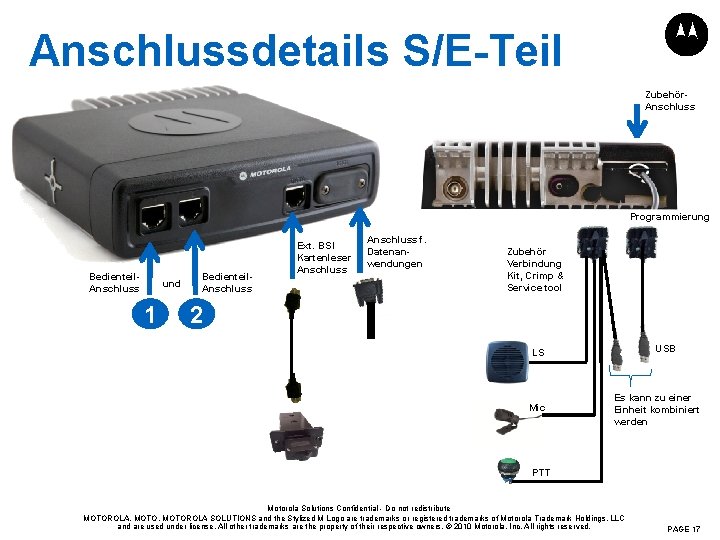

Anschlussdetails S/E-Teil Zubehör. Anschluss Programmierung Bedienteil. Anschluss und 1 Bedienteil. Anschluss Ext. BSI Kartenleser Anschluss f. Datenanwendungen Zubehör Verbindung Kit, Crimp & Service tool 2 USB LS Mic Es kann zu einer Einheit kombiniert werden PTT Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 17

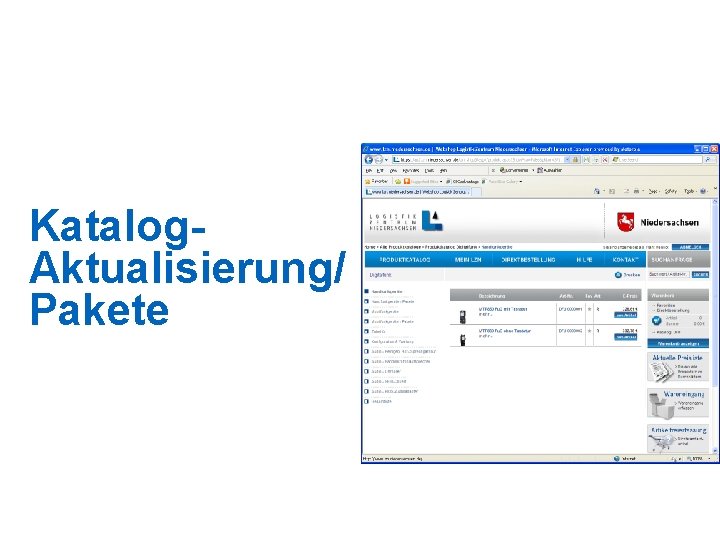

Katalog. Aktualisierung/ Pakete

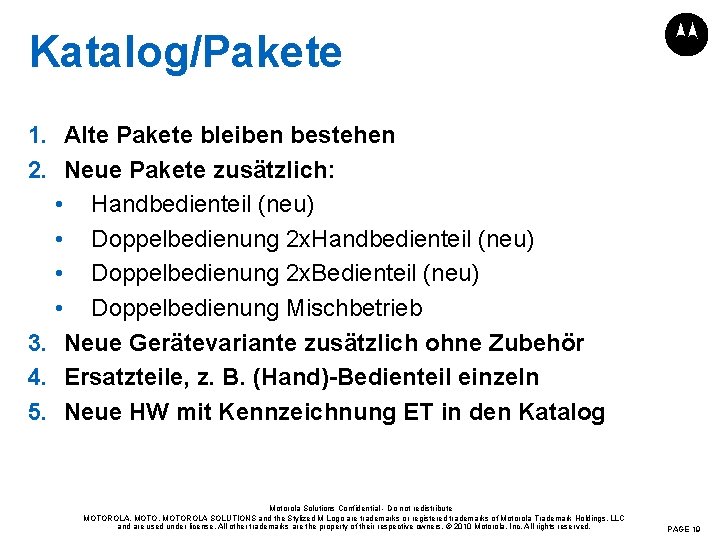

Katalog/Pakete 1. Alte Pakete bleiben bestehen 2. Neue Pakete zusätzlich: • Handbedienteil (neu) • Doppelbedienung 2 x. Bedienteil (neu) • Doppelbedienung Mischbetrieb 3. Neue Gerätevariante zusätzlich ohne Zubehör 4. Ersatzteile, z. B. (Hand)-Bedienteil einzeln 5. Neue HW mit Kennzeichnung ET in den Katalog Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 19

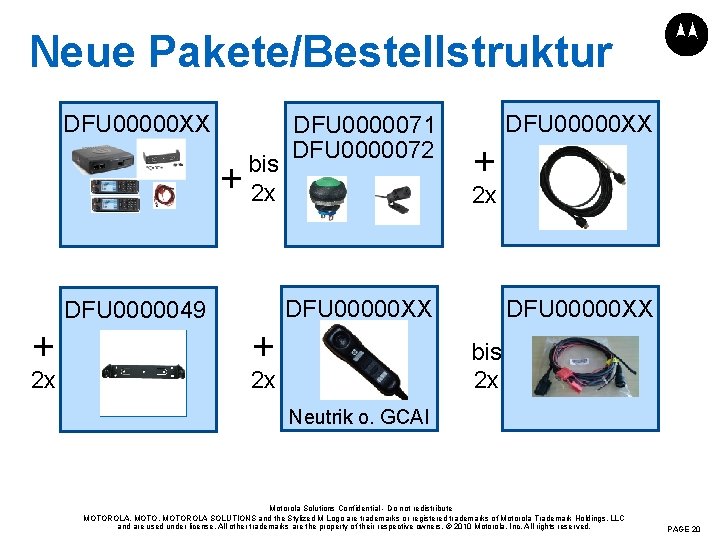

Neue Pakete/Bestellstruktur DFU 00000 XX + bis 2 x 2 x DFU 00000 XX + 2 x DFU 00000 XX DFU 0000049 + DFU 0000071 DFU 0000072 + DFU 00000 XX bis 2 x 2 x Neutrik o. GCAI Motorola Solutions Confidential - Do not redistribute MOTOROLA, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2010 Motorola, Inc. All rights reserved. PAGE 20
