17 Remote Shooting Objectives Explain the options available

17 Remote Shooting

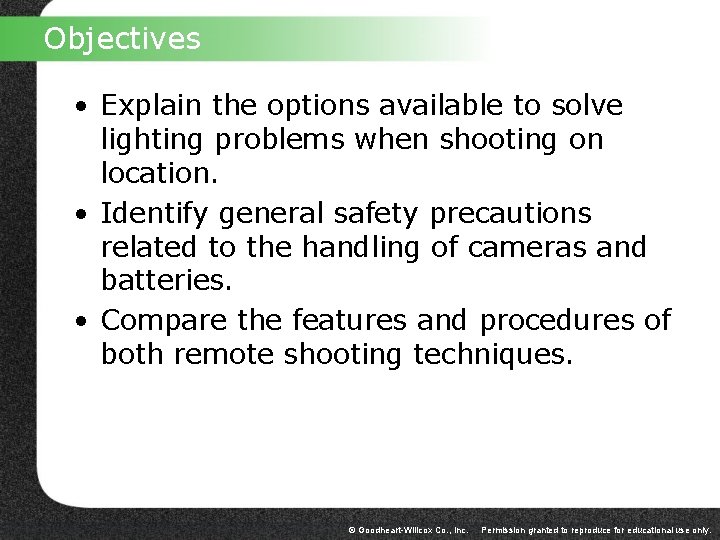

Objectives • Explain the options available to solve lighting problems when shooting on location. • Identify general safety precautions related to the handling of cameras and batteries. • Compare the features and procedures of both remote shooting techniques. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Camera Mounts for Remotes • Crab dolly, or track dolly • Dolly grip © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Camera Mounts for Remotes (Cont. ) • Operator-supported camera stabilization system © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

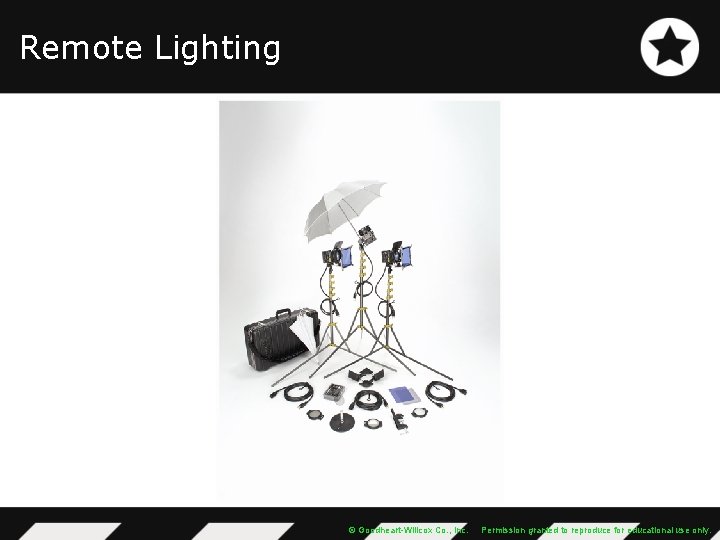

Remote Lighting © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Lighting for Remote Shoot • If shooting inside building on set in daytime with sunlight coming through window: • Either CTO gel window or CTB gel your instruments to convert everything to same color temperature before white balancing camera • Cover window with light blocking material • Shoot at night—window will become a mirror © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Audio for Remotes • Wear full-muff headphones to monitor sound • Place mics as close as possible to talent • Use microphone boom • Hide mics on set • Hide lapel mic under collar of talent’s shirt • Use windscreen outside if necessary © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

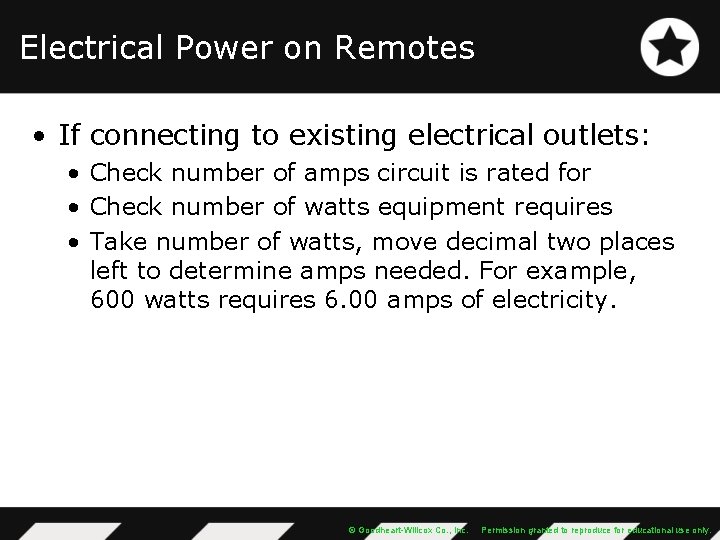

Electrical Power on Remotes • If connecting to existing electrical outlets: • Check number of amps circuit is rated for • Check number of watts equipment requires • Take number of watts, move decimal two places left to determine amps needed. For example, 600 watts requires 6. 00 amps of electricity. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Discussion How do you determine if you can plug a 400 W, a 600 W, two 500 W, and a 750 W lighting instrument into 20 amp electrical circuit? Move decimal point two places to left on each lamp and you get: 4 + 6 + 5 + 7. 5 = 27. 5 amps are required for instruments to operate. Circuit only can provide 20 amps. You need to reduce instruments. Best solution is to not use 750 W instrument. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Batteries • Nickel cadmium (Ni. Cad) • Read instructions on how to charge batteries • Some batteries can remain on charger indefinitely • Some batteries must be removed from charger once fully charged © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Battery Precautions • Do not drop them! They can split open. • They do not last long in cold environments • Do not completely discharge them—leave small amount of power in battery before recharging • Batteries can rupture when heated—never leave in sun or hot space © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

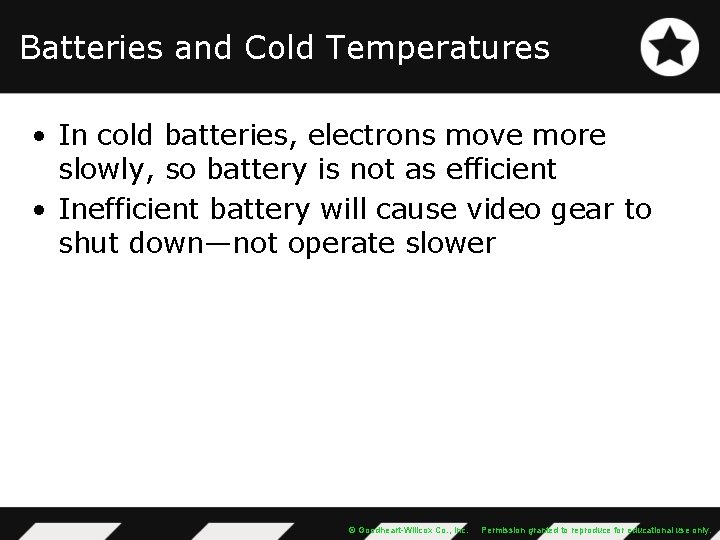

Batteries and Cold Temperatures • In cold batteries, electrons move more slowly, so battery is not as efficient • Inefficient battery will cause video gear to shut down—not operate slower © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

To Keep Batteries Warm • Slip batteries inside your shirt, next to your skin • Wrap camera in blanket • Take breaks in warm environment • Keep extra batteries in cooler with chemical hand warmers activated. Place towel between batteries and warmers. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

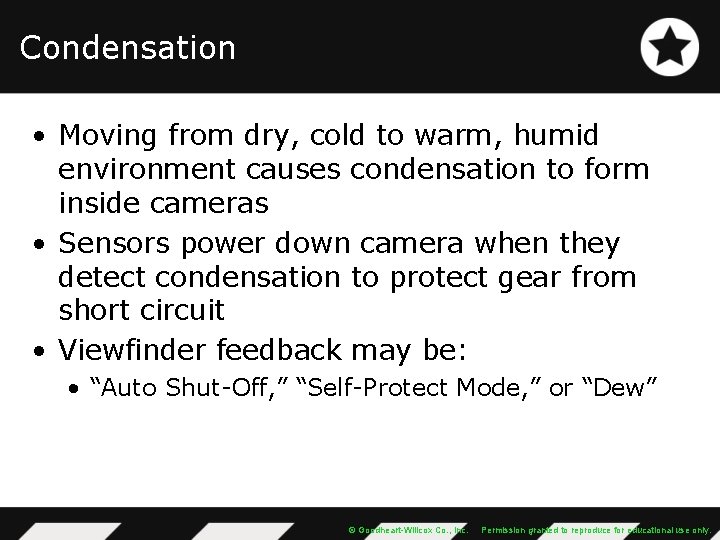

Condensation • Moving from dry, cold to warm, humid environment causes condensation to form inside cameras • Sensors power down camera when they detect condensation to protect gear from short circuit • Viewfinder feedback may be: • “Auto Shut-Off, ” “Self-Protect Mode, ” or “Dew” © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Condensation Solution 1. Place camera in new environment at least one hour before using so it can self-adjust 2. Power up camera and quickly press eject button 3. Blow cool air from hand-held hair dryer into open door of camera to speed up evaporation 4. Wait © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Multi-Camera Shooting • Requires more personnel for each camera • Should require fewer takes since scene is shot with different angles at same time • May be edited on the spot using camera switcher, so may require less editing time in post-production © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Single-Camera Shooting • Fewer personnel needed • Mostly used for ENG, event recording, speeches, presentations • End user merely wants “fly on the wall” recording of event as it happens © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

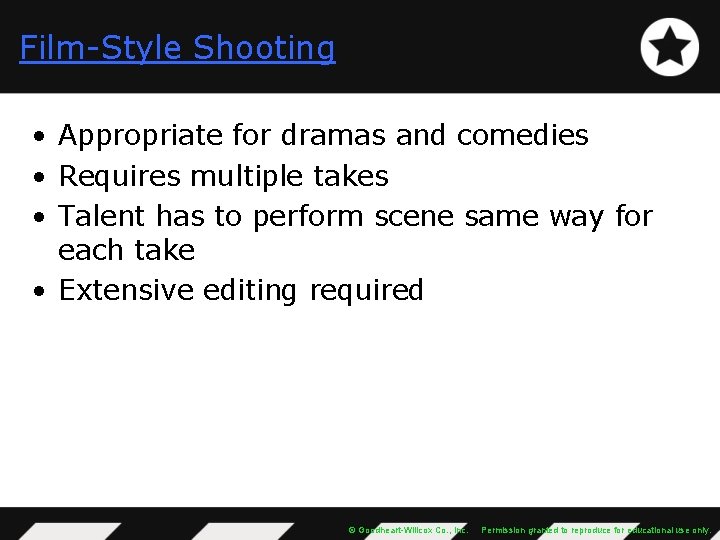

Film-Style Shooting • Appropriate for dramas and comedies • Requires multiple takes • Talent has to perform scene same way for each take • Extensive editing required © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

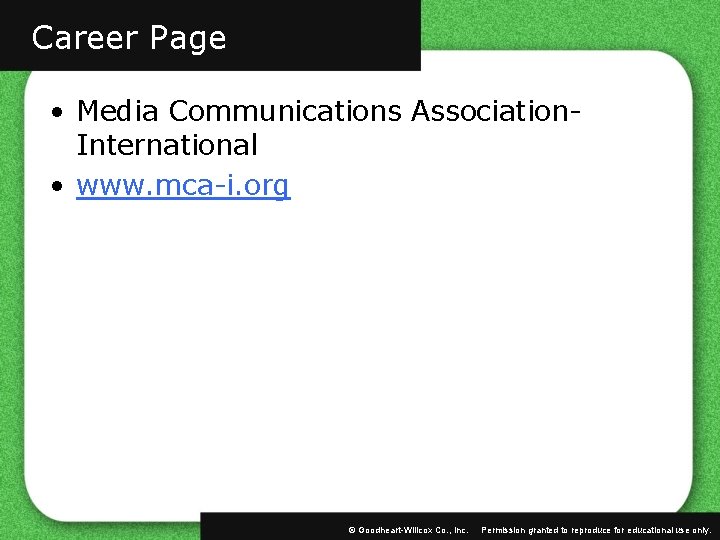

Career Page • Media Communications Association. International • www. mca-i. org © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Discussion What are pros and cons for using crab dolly vs. Steadicam? © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

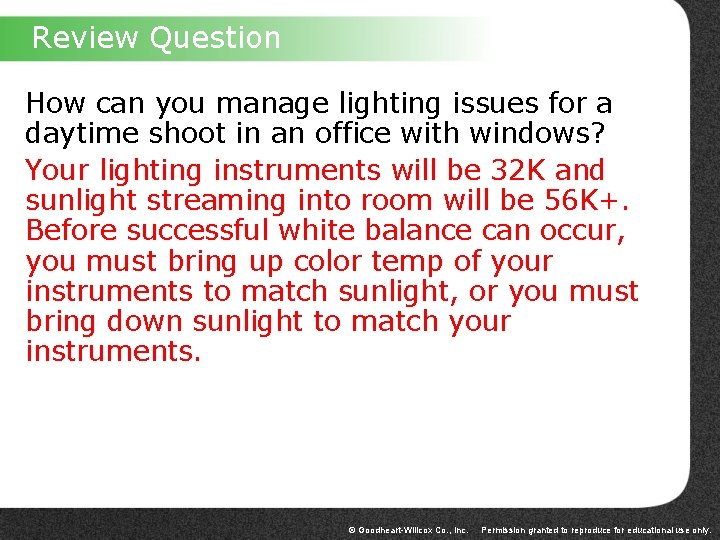

Review Question How can you manage lighting issues for a daytime shoot in an office with windows? Your lighting instruments will be 32 K and sunlight streaming into room will be 56 K+. Before successful white balance can occur, you must bring up color temp of your instruments to match sunlight, or you must bring down sunlight to match your instruments. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Review Question What is the purpose of wearing full-muff, high-quality headphones while shooting on location? To monitor sound going on recording to make sure no unwanted environmental or extraneous sounds are inadvertently recorded. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Review Question Which is most often used for ENG—multicamera shooting or single-camera shooting? Why? Single-camera shooting, because all that is required is camera and reporter for vast majority of ENG shooting. Multi-camera is more suitable for sporting events. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Review Question What are some precautions to take when using camera batteries? Avoid extreme temperatures, do not drop, do not completely discharge before recharging, ideally keep at room temperature and dry. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

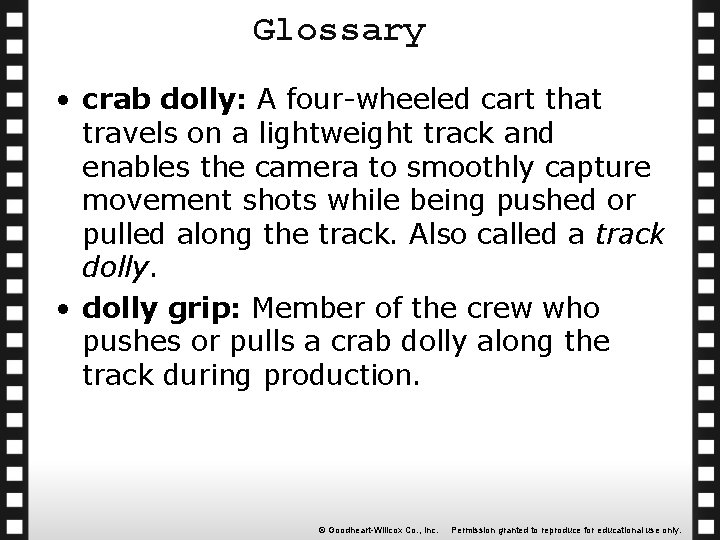

Glossary • crab dolly: A four-wheeled cart that travels on a lightweight track and enables the camera to smoothly capture movement shots while being pushed or pulled along the track. Also called a track dolly. • dolly grip: Member of the crew who pushes or pulls a crab dolly along the track during production. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

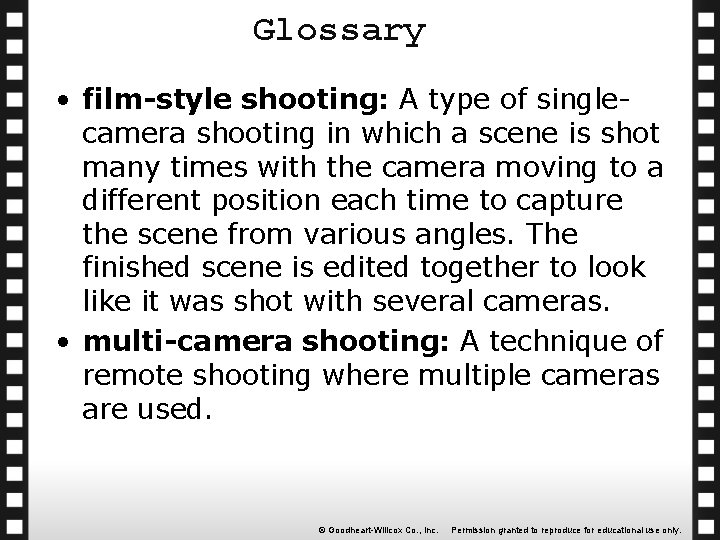

Glossary • film-style shooting: A type of singlecamera shooting in which a scene is shot many times with the camera moving to a different position each time to capture the scene from various angles. The finished scene is edited together to look like it was shot with several cameras. • multi-camera shooting: A technique of remote shooting where multiple cameras are used. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.

Glossary • nickel cadmium (Ni. Cad): A type of rechargeable battery commonly used to power cameras. • single-camera shooting: A technique of remote shooting that involves only one camera and is most often used for event recording. • windscreen: A covering, usually foam, placed over a mic to reduce the rumble or flapping sound created when wind blows across the mic. © Goodheart-Willcox Co. , Inc. Permission granted to reproduce for educational use only.
