17 1 Mechanical Waves What is a mechanical
- Slides: 17
17. 1 Mechanical Waves
What is a mechanical wave? • A mechanical wave is a disturbance in matter that carries energy from place to place
What do mechanical waves require? • Mechanical waves require a medium.
What is a medium? • A medium is the material through which a wave travels.
How are mechanical waves created? • Mechanical waves are created when a source of energy causes a vibration to travel through a medium.
What is a transverse wave? • A transverse wave causes the medium to vibrate @ right angles to the direction the wave travels.
Draw a picture of a transverse wave: label crest, trough, rest
Name an example of a transverse wave. • Shaking a rope & shaking a blanket are examples of transverse waves.
What is a longitudinal wave? • A longitudinal wave is a wave in which the vibration of the medium is parallel to the direction the wave travels.
Draw a longitudinal wave: label compression and rarefaction
Name an example of a longitudinal wave. • Slinky springs & P waves (aka primary waves) produced by earthquakes are examples of longitudinal waves.

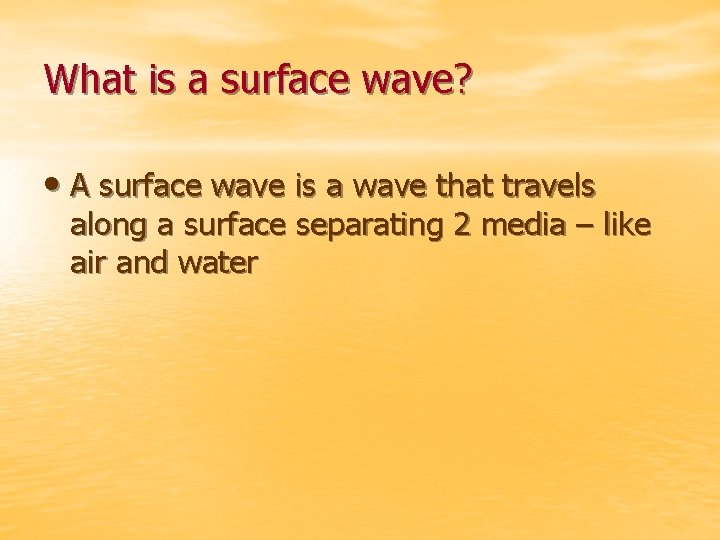

What is a surface wave? • A surface wave is a wave that travels along a surface separating 2 media – like air and water
What is the most familiar kind of surface wave? • Ocean waves are the most familiar surface waves.

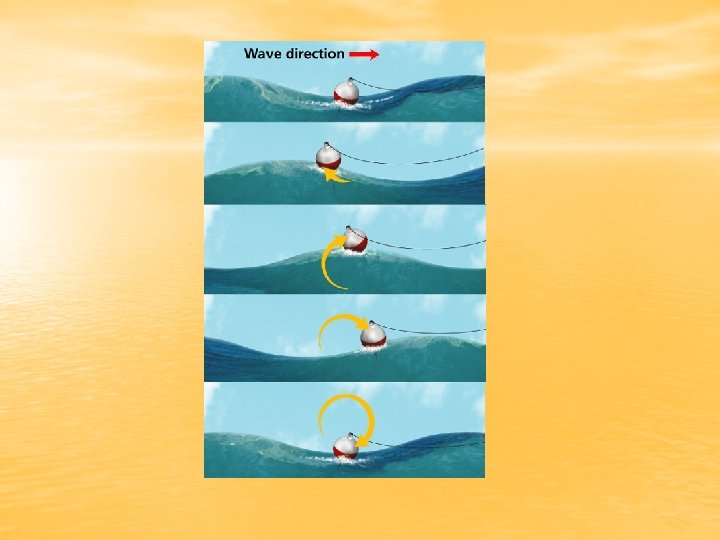

A surface wave causes a bobber floating on the water to move an up-and-down motion, as well as a back-and-forth motion. The combined effect of both types of wave motion causes the bobber to move in a circle
Bobber buoy… http: //footage. shutterstock. com/video. html ? id=286108
