1600 series Scanner PocketSize 1600 series PocketSize Scanner

1600 series Scanner Pocket-Size

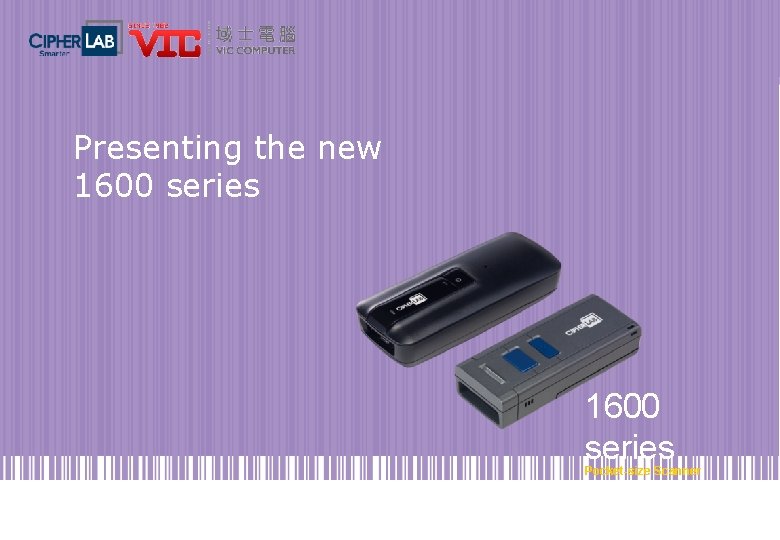

1600 series Pocket-Size Scanner Presenting the new 1600 series Pocket-size Scanner

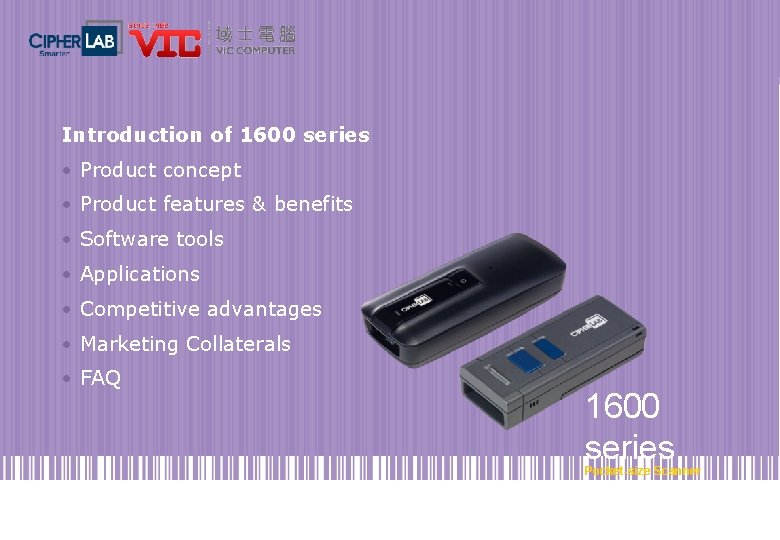

1600 series Pocket-Size Scanner Introduction of 1600 series • Product concept • Product features & benefits • Software tools • Applications • Competitive advantages • Marketing Collaterals • FAQ 1600 series Pocket-size Scanner

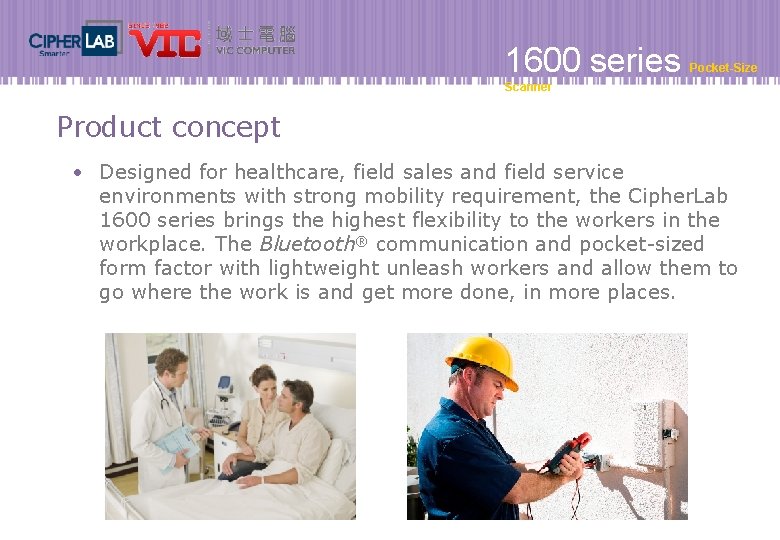

1600 series Pocket-Size Scanner Product concept • Designed for healthcare, field sales and field service environments with strong mobility requirement, the Cipher. Lab 1600 series brings the highest flexibility to the workers in the workplace. The Bluetooth® communication and pocket-sized form factor with lightweight unleash workers and allow them to go where the work is and get more done, in more places.

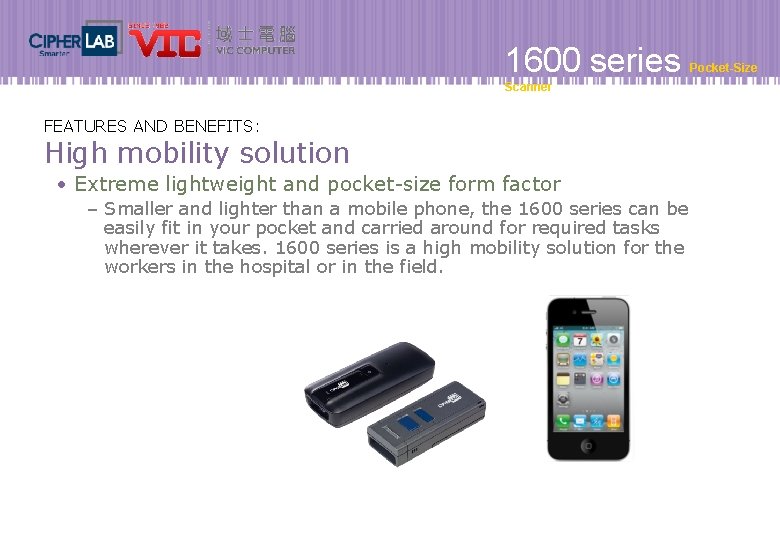

1600 series Scanner FEATURES AND BENEFITS: High mobility solution • Extreme lightweight and pocket-size form factor – Smaller and lighter than a mobile phone, the 1600 series can be easily fit in your pocket and carried around for required tasks wherever it takes. 1600 series is a high mobility solution for the workers in the hospital or in the field. Pocket-Size

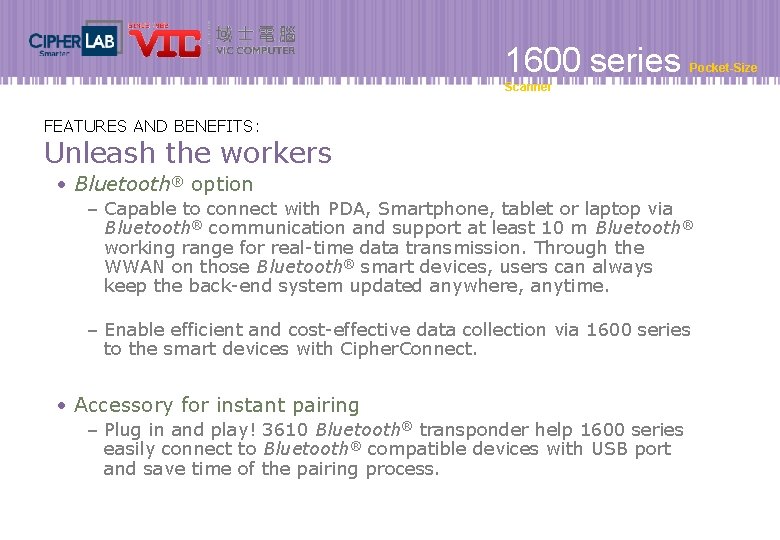

1600 series Pocket-Size Scanner FEATURES AND BENEFITS: Unleash the workers • Bluetooth® option – Capable to connect with PDA, Smartphone, tablet or laptop via Bluetooth® communication and support at least 10 m Bluetooth® working range for real-time data transmission. Through the WWAN on those Bluetooth® smart devices, users can always keep the back-end system updated anywhere, anytime. – Enable efficient and cost-effective data collection via 1600 series to the smart devices with Cipher. Connect. • Accessory for instant pairing – Plug in and play! 3610 Bluetooth® transponder help 1600 series easily connect to Bluetooth® compatible devices with USB port and save time of the pairing process.

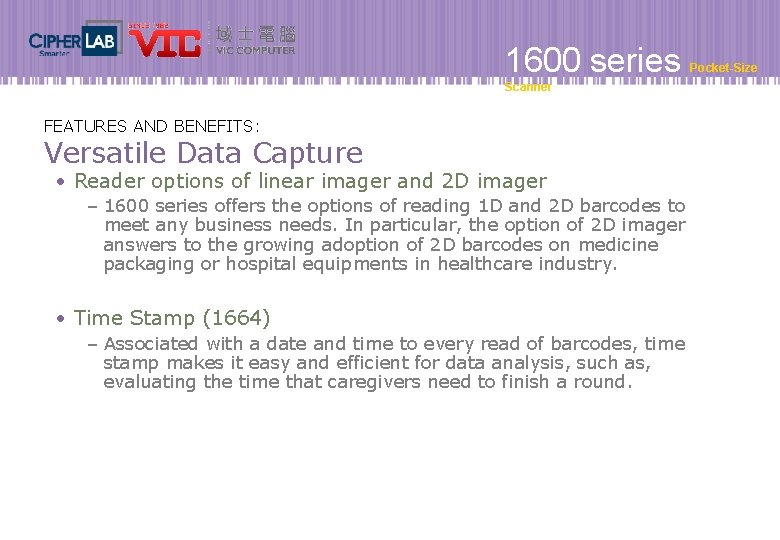

1600 series Scanner FEATURES AND BENEFITS: Versatile Data Capture • Reader options of linear imager and 2 D imager – 1600 series offers the options of reading 1 D and 2 D barcodes to meet any business needs. In particular, the option of 2 D imager answers to the growing adoption of 2 D barcodes on medicine packaging or hospital equipments in healthcare industry. • Time Stamp (1664) – Associated with a date and time to every read of barcodes, time stamp makes it easy and efficient for data analysis, such as, evaluating the time that caregivers need to finish a round. Pocket-Size

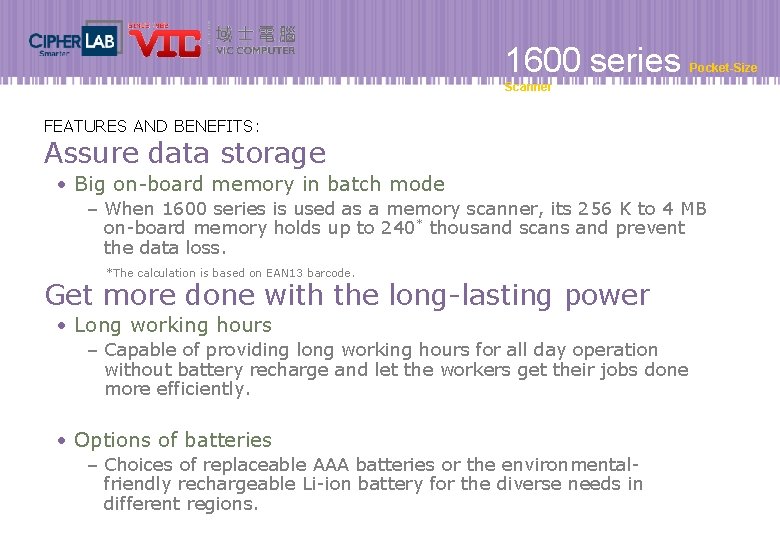

1600 series Pocket-Size Scanner FEATURES AND BENEFITS: Assure data storage • Big on-board memory in batch mode – When 1600 series is used as a memory scanner, its 256 K to 4 MB on-board memory holds up to 240* thousand scans and prevent the data loss. *The calculation is based on EAN 13 barcode. Get more done with the long-lasting power • Long working hours – Capable of providing long working hours for all day operation without battery recharge and let the workers get their jobs done more efficiently. • Options of batteries – Choices of replaceable AAA batteries or the environmentalfriendly rechargeable Li-ion battery for the diverse needs in different regions.

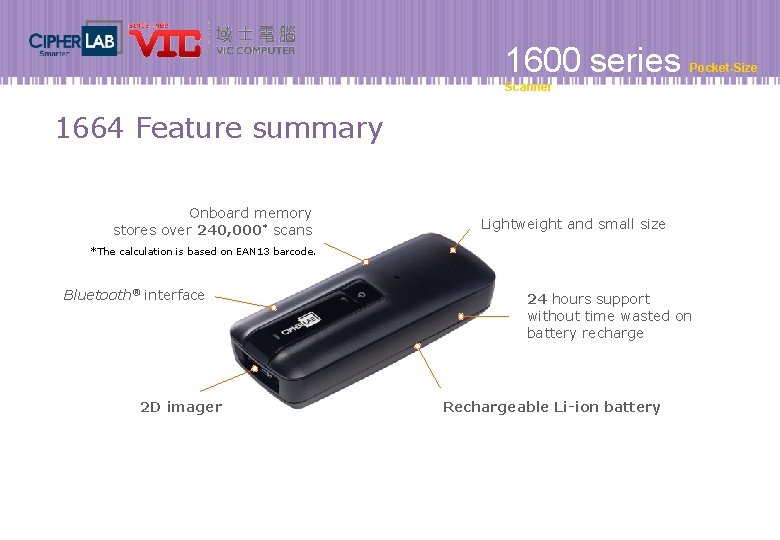

1600 series Pocket-Size Scanner 1664 Feature summary Onboard memory stores over 240, 000* scans Lightweight and small size *The calculation is based on EAN 13 barcode. Bluetooth® interface 2 D imager 24 hours support without time wasted on battery recharge Rechargeable Li-ion battery

1600 series Scanner 1660/1661 Feature summary Onboard memory stores over 10, 000* scans Extreme lightweight and small size *The calculation is based on EAN 13 barcode. Bluetooth® interface Linear imager 30/40 hours support without time wasted on battery recharge Options of AAA batteries or the rechargeable Li-ion battery Pocket-Size

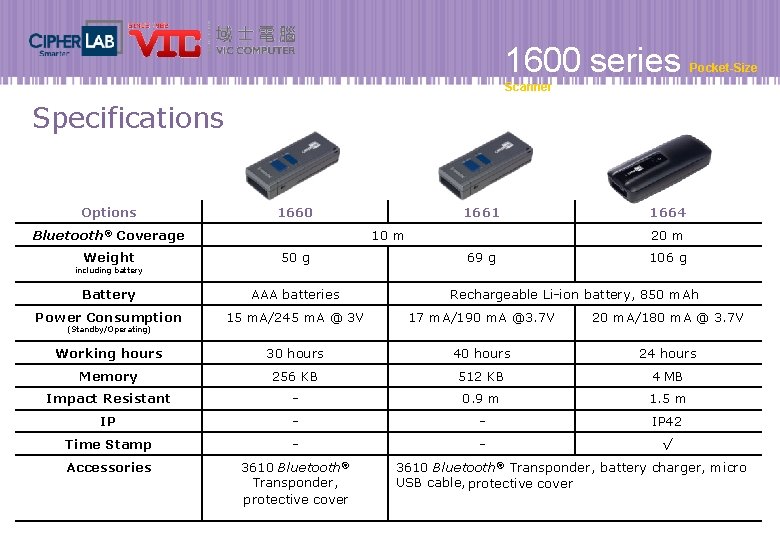

1600 series Pocket-Size Scanner Specifications Options 1660 Bluetooth® Coverage 1661 10 m 1664 20 m Weight 50 g Battery AAA batteries Power Consumption 15 m. A/245 m. A @ 3 V 17 m. A/190 m. A @3. 7 V 20 m. A/180 m. A @ 3. 7 V Working hours 30 hours 40 hours 24 hours Memory 256 KB 512 KB 4 MB Impact Resistant - 0. 9 m 1. 5 m IP - - IP 42 Time Stamp - - √ Accessories 3610 Bluetooth® Transponder, protective cover including battery (Standby/Operating) 69 g 106 g Rechargeable Li-ion battery, 850 m. Ah 3610 Bluetooth® Transponder, battery charger, micro USB cable, protective cover

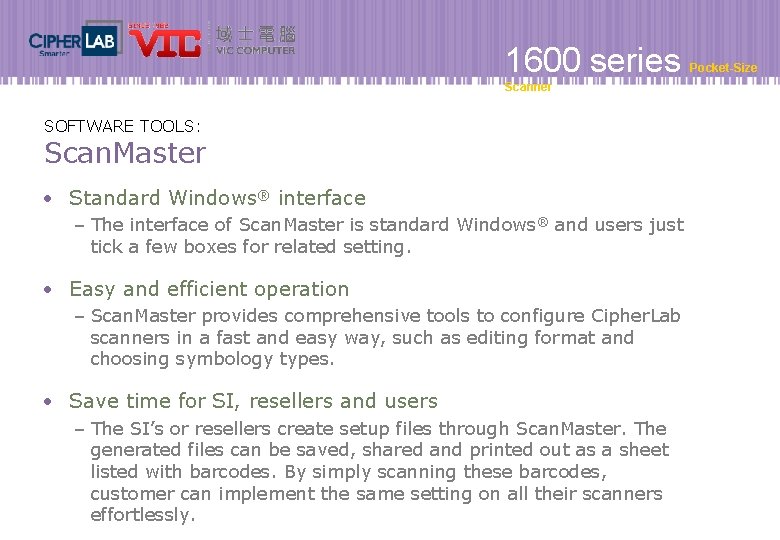

1600 series Scanner SOFTWARE TOOLS: Scan. Master • Standard Windows® interface – The interface of Scan. Master is standard Windows® and users just tick a few boxes for related setting. • Easy and efficient operation – Scan. Master provides comprehensive tools to configure Cipher. Lab scanners in a fast and easy way, such as editing format and choosing symbology types. • Save time for SI, resellers and users – The SI’s or resellers create setup files through Scan. Master. The generated files can be saved, shared and printed out as a sheet listed with barcodes. By simply scanning these barcodes, customer can implement the same setting on all their scanners effortlessly. Pocket-Size

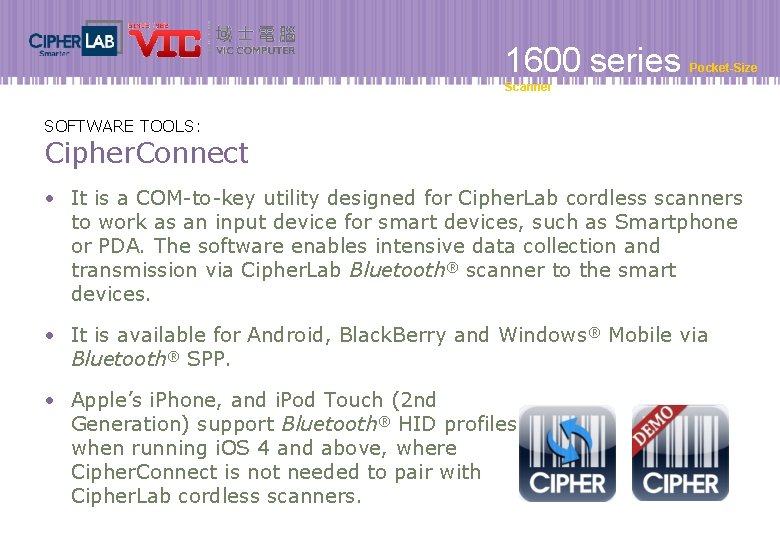

1600 series Pocket-Size Scanner SOFTWARE TOOLS: Cipher. Connect • It is a COM-to-key utility designed for Cipher. Lab cordless scanners to work as an input device for smart devices, such as Smartphone or PDA. The software enables intensive data collection and transmission via Cipher. Lab Bluetooth® scanner to the smart devices. • It is available for Android, Black. Berry and Windows® Mobile via Bluetooth® SPP. • Apple’s i. Phone, and i. Pod Touch (2 nd Generation) support Bluetooth® HID profiles when running i. OS 4 and above, where Cipher. Connect is not needed to pair with Cipher. Lab cordless scanners.

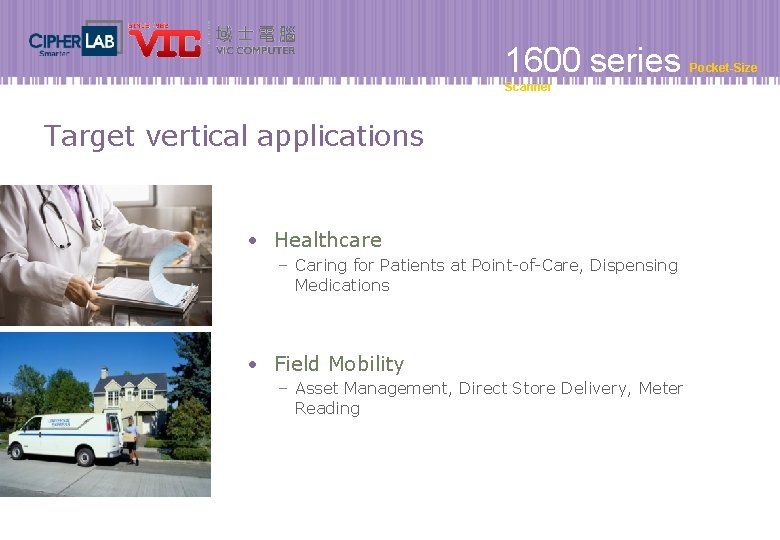

1600 series Scanner Target vertical applications • Healthcare – Caring for Patients at Point-of-Care, Dispensing Medications • Field Mobility – Asset Management, Direct Store Delivery, Meter Reading Pocket-Size

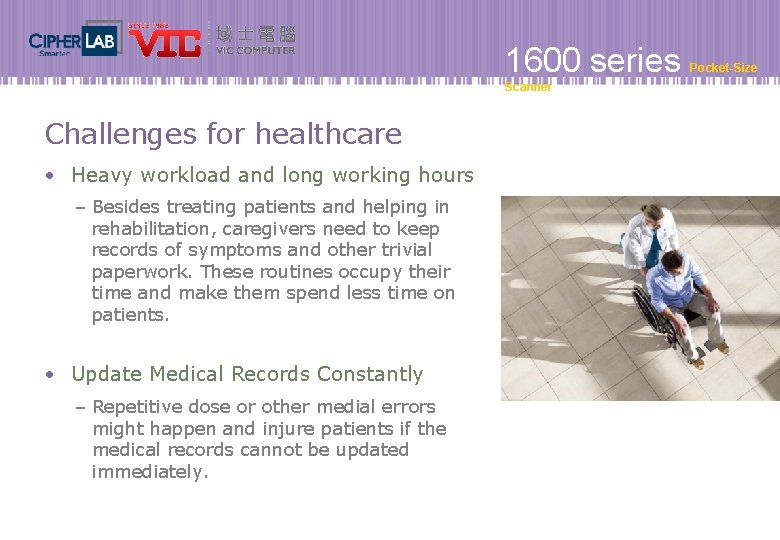

1600 series Scanner Challenges for healthcare • Heavy workload and long working hours – Besides treating patients and helping in rehabilitation, caregivers need to keep records of symptoms and other trivial paperwork. These routines occupy their time and make them spend less time on patients. • Update Medical Records Constantly – Repetitive dose or other medial errors might happen and injure patients if the medical records cannot be updated immediately. Pocket-Size

1600 series Pocket-Size Scanner Beneficial solutions for healthcare • The efficient operation of 1600 series makes the doctors’ or caregivers’ rounds more efficient. – Low power consumption enables longer working hours and fewer battery recharges/replacements. – Bright LED and adjustable beeper let caregivers easily confirm data capture even in dim wards. • The medical information will be updated immediately via the reliable Bluetooth® communications of 1600 series. – The Bluetooth® connection and the coverage range of 1600 series ensure that moving caregivers are able to transmit data to tablets or laptops on medical carts immediately after dispensing medicines to inpatients.

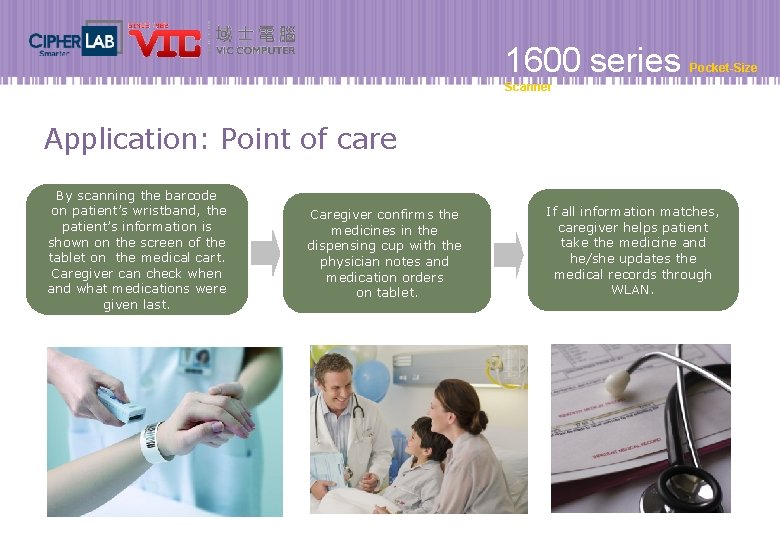

1600 series Pocket-Size Scanner Application: Point of care By scanning the barcode on patient’s wristband, the patient’s information is shown on the screen of the tablet on the medical cart. Caregiver can check when and what medications were given last. Caregiver confirms the medicines in the dispensing cup with the physician notes and medication orders on tablet. If all information matches, caregiver helps patient take the medicine and he/she updates the medical records through WLAN.

1600 series Pocket-Size Scanner Application: Dispensing medications By scanning the barcode on patient’s prescription, pharmacist checks the patient’s identification and what medicines the patient needs. Pharmacist starts to dispense the medicines. To confirm the medicine is taken, pharmacist scans the barcode on each medicine’s cabinet or packaging before taking. After the dispensing is completed, pharmacist takes the medicines to the patient and updates the medical records.

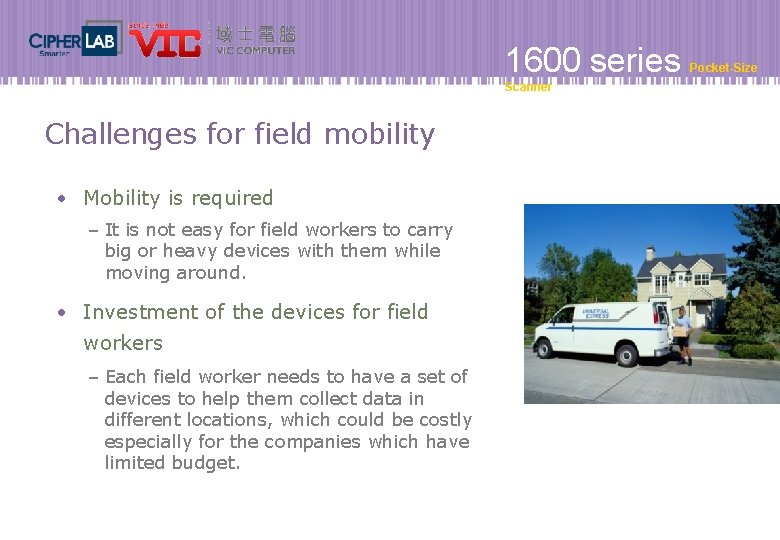

1600 series Scanner Challenges for field mobility • Mobility is required – It is not easy for field workers to carry big or heavy devices with them while moving around. • Investment of the devices for field workers – Each field worker needs to have a set of devices to help them collect data in different locations, which could be costly especially for the companies which have limited budget. Pocket-Size

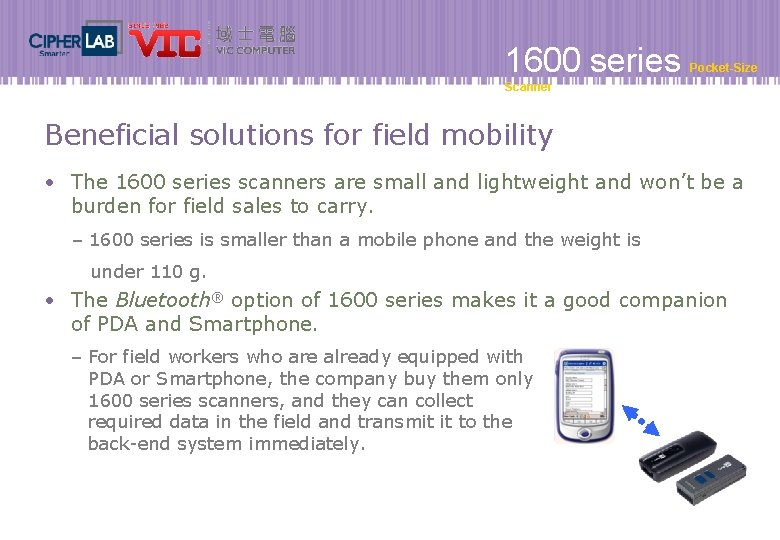

1600 series Pocket-Size Scanner Beneficial solutions for field mobility • The 1600 series scanners are small and lightweight and won’t be a burden for field sales to carry. – 1600 series is smaller than a mobile phone and the weight is under 110 g. • The Bluetooth® option of 1600 series makes it a good companion of PDA and Smartphone. – For field workers who are already equipped with PDA or Smartphone, the company buy them only 1600 series scanners, and they can collect required data in the field and transmit it to the back-end system immediately.

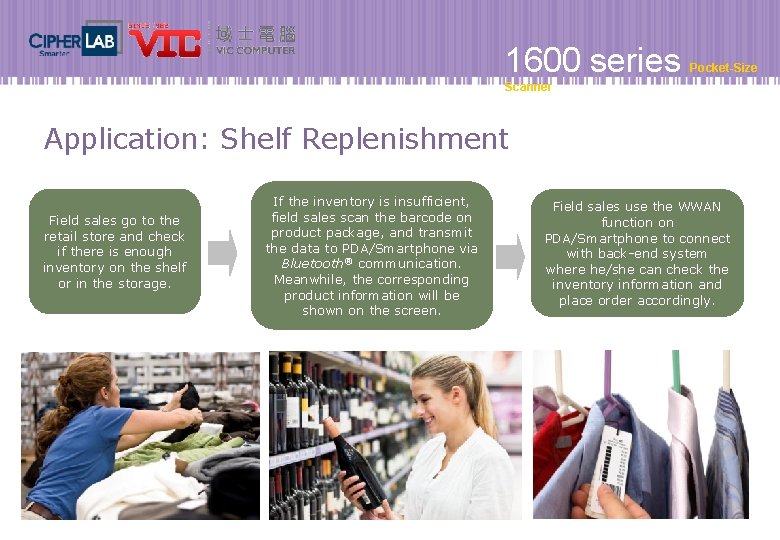

1600 series Pocket-Size Scanner Application: Shelf Replenishment Field sales go to the retail store and check if there is enough inventory on the shelf or in the storage. If the inventory is insufficient, field sales scan the barcode on product package, and transmit the data to PDA/Smartphone via Bluetooth® communication. Meanwhile, the corresponding product information will be shown on the screen. Field sales use the WWAN function on PDA/Smartphone to connect with back-end system where he/she can check the inventory information and place order accordingly.

1600 series 1600 Competitive advantages Pocket-Size Scanner • Outstanding reading performance – 1600 series can read small barcodes up to 3 mil of 1 D and 5 mil of 2 D, along with the wide range of reading distance from 3. 6 to 30. 5 cm. • Long working hours – 1600 series supports all day operation to work across workers’ shifts and reduce the time wasted on frequent re-charging or replacement. • Large on-board memory – In batch mode, there are 256 K/512 K and 4 M memory in the 1600 series 1 D and 2 D Bluetooth® scanners respectively to store from 10 to 240 thousands data. • A cost-effective solution – A lightweight and pocket-sized scanner with affordable price. • Custom-configure scanners easily – Scan. Master provides comprehensive tools to easily configure scanner, edit format and choose symbology types.

1600 series Marketing Collaterals Pocket-Size Scanner 1600 series Pocket-size Scanner

1600 series Scanner Product brochure Pocket-Size

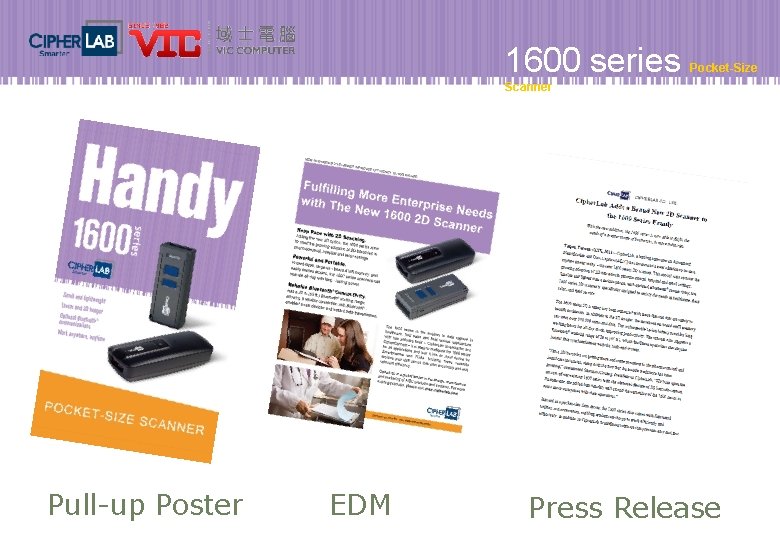

1600 series Pocket-Size Scanner Pull-up Poster EDM Press Release

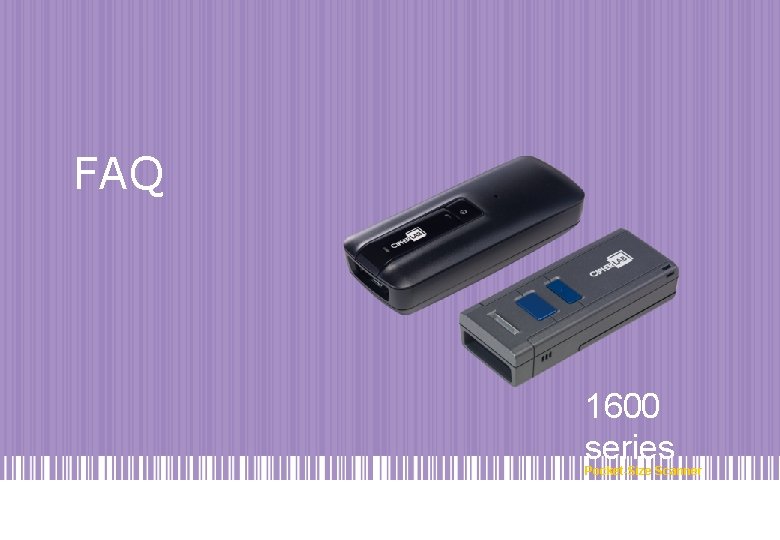

1600 series Pocket-Size Scanner FAQ 1600 series Pocket-Size Scanner

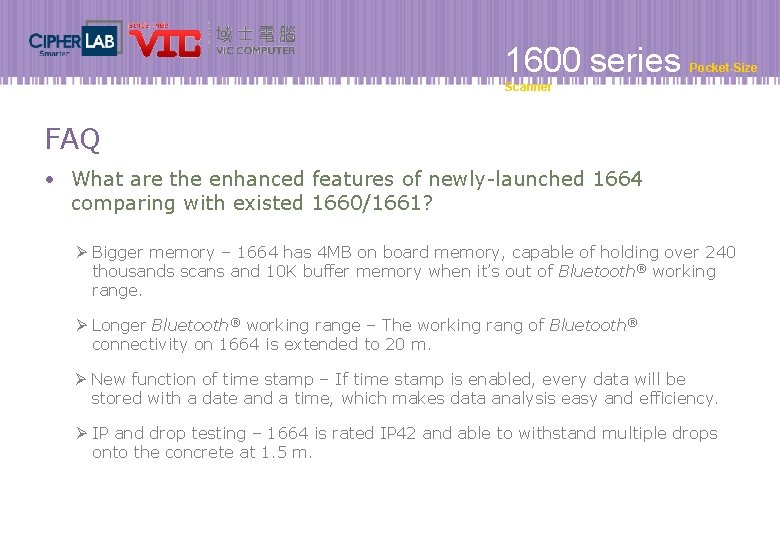

1600 series Pocket-Size Scanner FAQ • What are the enhanced features of newly-launched 1664 comparing with existed 1660/1661? Ø Bigger memory – 1664 has 4 MB on board memory, capable of holding over 240 thousands scans and 10 K buffer memory when it’s out of Bluetooth® working range. Ø Longer Bluetooth® working range – The working rang of Bluetooth® connectivity on 1664 is extended to 20 m. Ø New function of time stamp – If time stamp is enabled, every data will be stored with a date and a time, which makes data analysis easy and efficiency. Ø IP and drop testing – 1664 is rated IP 42 and able to withstand multiple drops onto the concrete at 1. 5 m.

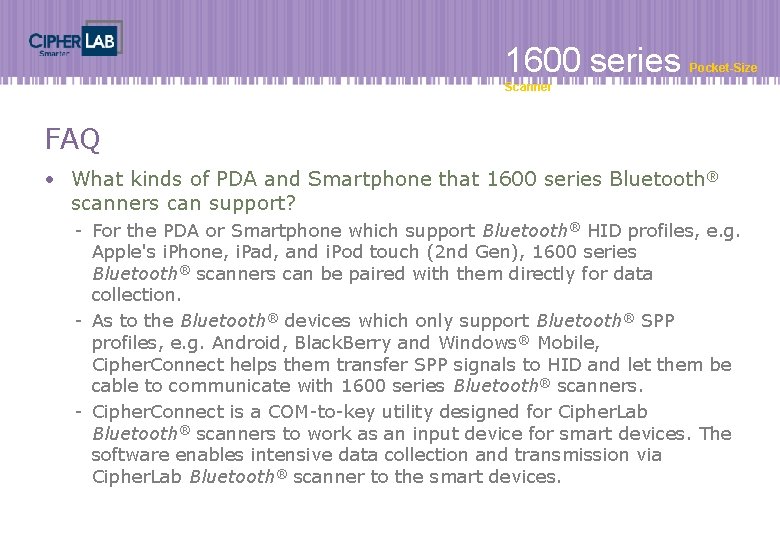

1600 series Pocket-Size Scanner FAQ • What kinds of PDA and Smartphone that 1600 series Bluetooth ® scanners can support? - For the PDA or Smartphone which support Bluetooth® HID profiles, e. g. Apple's i. Phone, i. Pad, and i. Pod touch (2 nd Gen), 1600 series Bluetooth® scanners can be paired with them directly for data collection. - As to the Bluetooth® devices which only support Bluetooth® SPP profiles, e. g. Android, Black. Berry and Windows® Mobile, Cipher. Connect helps them transfer SPP signals to HID and let them be cable to communicate with 1600 series Bluetooth® scanners. - Cipher. Connect is a COM-to-key utility designed for Cipher. Lab Bluetooth® scanners to work as an input device for smart devices. The software enables intensive data collection and transmission via Cipher. Lab Bluetooth® scanner to the smart devices.

1600 series Pocket-Size Scanner FAQ • What is the benefit of using 3610 Bluetooth® transponder? For any computer with USB port, 3610 Bluetooth® transponder can add reliable wireless capability between it and 1600 Bluetooth® scanners with easy, instant pairing and guaranteed performance.

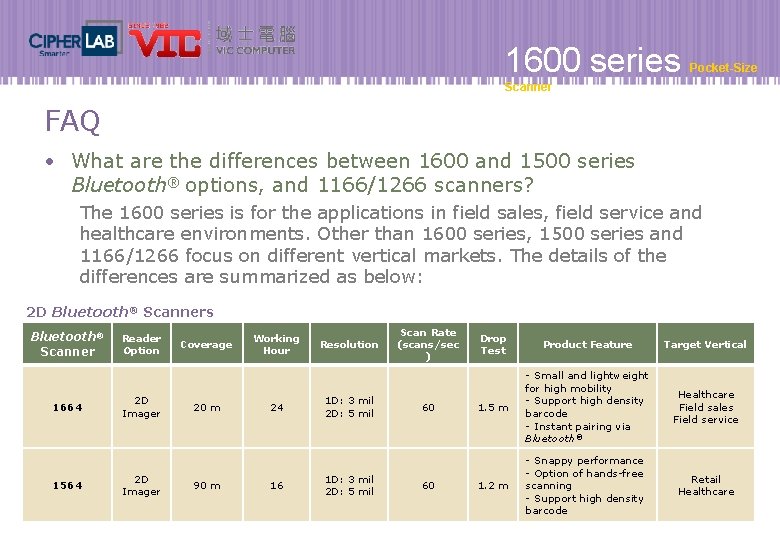

1600 series Pocket-Size Scanner FAQ • What are the differences between 1600 and 1500 series Bluetooth® options, and 1166/1266 scanners? The 1600 series is for the applications in field sales, field service and healthcare environments. Other than 1600 series, 1500 series and 1166/1266 focus on different vertical markets. The details of the differences are summarized as below: 2 D Bluetooth® Scanners Bluetooth® Scanner 1664 1564 Reader Option 2 D Imager Coverage 20 m 90 m Working Hour 24 16 Resolution 1 D: 3 mil 2 D: 5 mil Scan Rate (scans/sec ) 60 60 Drop Test Product Feature Target Vertical 1. 5 m - Small and lightweight for high mobility - Support high density barcode - Instant pairing via Bluetooth® Healthcare Field sales Field service 1. 2 m - Snappy performance - Option of hands-free scanning - Support high density barcode Retail Healthcare

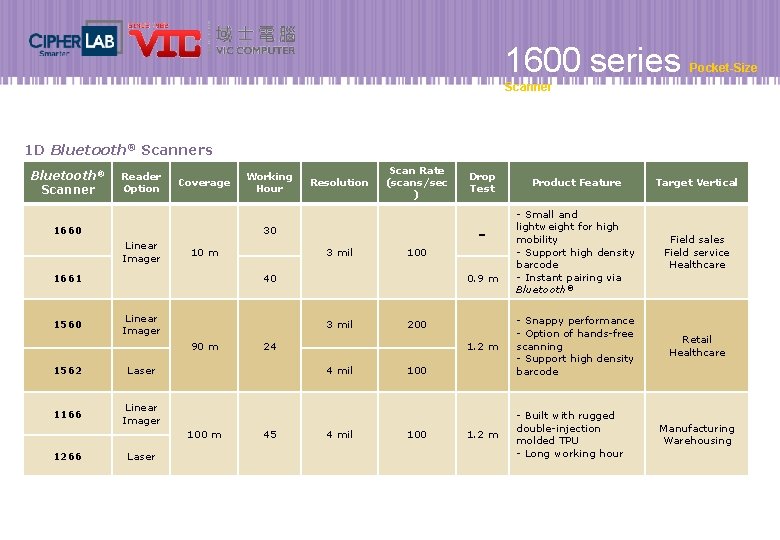

1600 series Pocket-Size Scanner 1 D Bluetooth® Scanners Bluetooth® Scanner Reader Option Coverage 1660 10 m 1661 Scan Rate (scans/sec ) 3 mil 100 40 Linear Imager 1562 Laser 1166 Linear Imager Laser 45 Product Feature Target Vertical - Small and lightweight for high mobility - Support high density barcode - Instant pairing via Bluetooth® Field sales Field service Healthcare 1. 2 m - Snappy performance - Option of hands-free scanning - Support high density barcode Retail Healthcare 1. 2 m - Built with rugged double-injection molded TPU - Long working hour - 200 24 4 mil 100 m Drop Test 0. 9 m 3 mil 90 m 1266 Resolution 30 Linear Imager 1560 Working Hour 4 mil 100 Manufacturing Warehousing

1600 series Pocket-Size Scanner Thank you! 1600 series Pocket-Size Scanner
