14 Other Wired Networks 1 14 1 2

  • Slides: 63
Download presentation
14장 다른 유선 네트워크들 (Other Wired Networks) 1

14장 다른 유선 네트워크들 (Other Wired Networks) 1

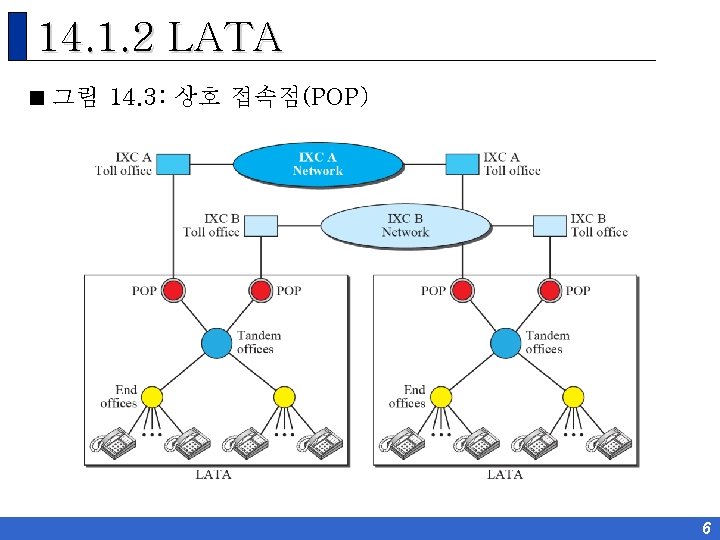

14. 1. 2 LATA < LATA(Local Access Transport Area) Ü 지역 접근 전송 구역

14. 1. 2 LATA < LATA(Local Access Transport Area) Ü 지역 접근 전송 구역 Ü LATA내 서비스: 지역 전화사업자(LEC, Local Exchange Carrier) Ü LATA간 서비스: 교환국간 사업자(IXC, Inter-exchange Carrier) < 그림 14. 2: LATA의 교환국 5

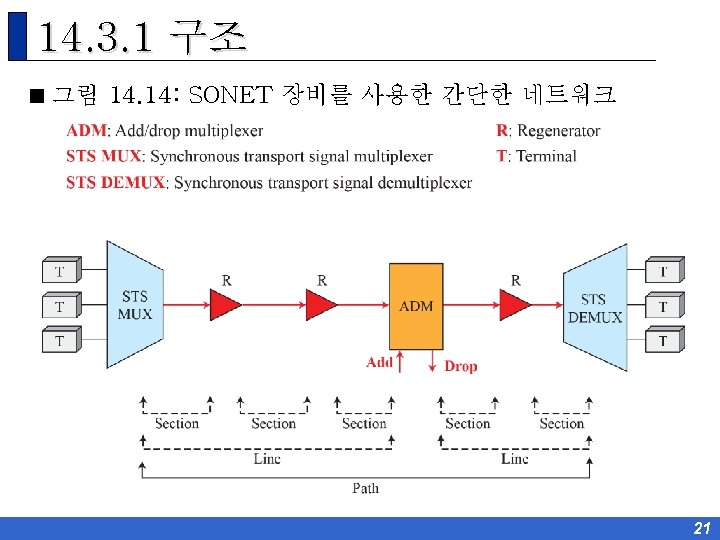

14. 3. 1 구조 < 신호 Ü 동기 전송 신호(STS, Synchronous Transport Signal) Ü

14. 3. 1 구조 < 신호 Ü 동기 전송 신호(STS, Synchronous Transport Signal) Ü 광 반송자(OC, Optical Carrier) Ü 동기 전송 모듈(STM, Synchronous Transport Module) < 표 14. 1: SONET/SDH 데이터율 20

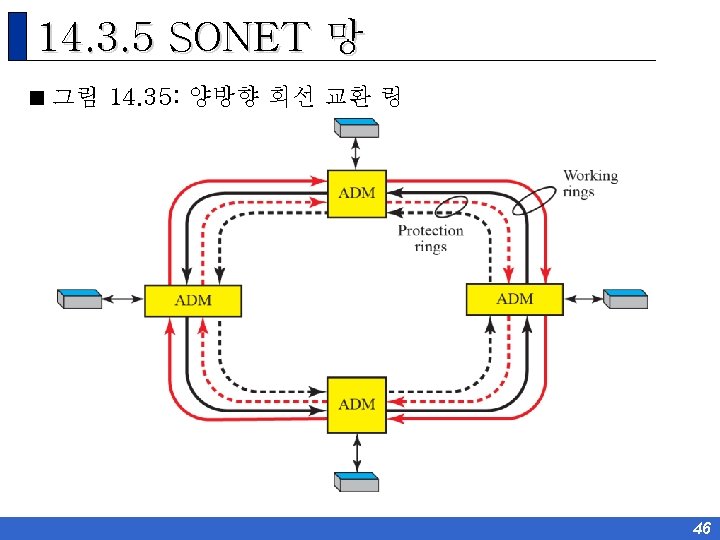

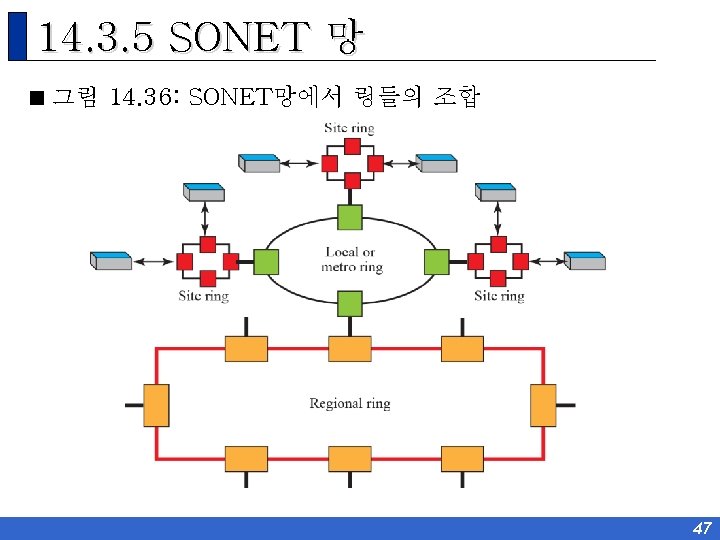

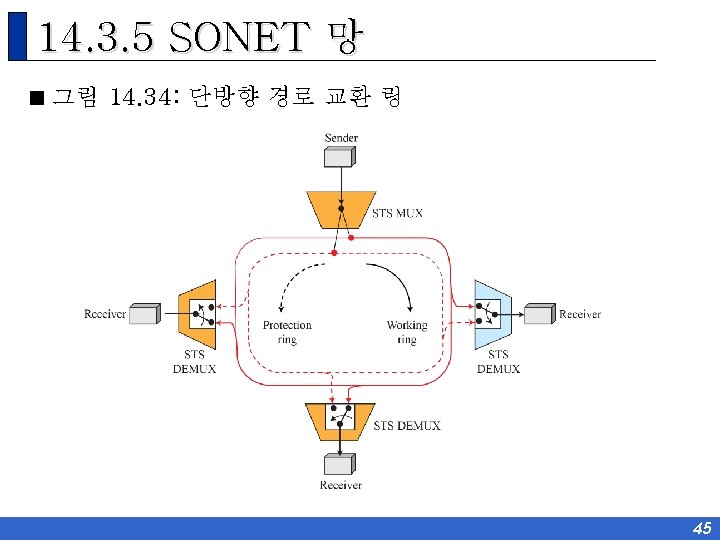

14. 3. 5 SONET 망 < 선형 망(Linear Network) < 링 망(Ring Network) <

14. 3. 5 SONET 망 < 선형 망(Linear Network) < 링 망(Ring Network) < 그물형 망(Mesh Network) < 그림 14. 30: SONET 망의 분류 42

14. 3. 5 SONET 망 < 그림 14. 37: 그물형 SONET 망 48

14. 3. 5 SONET 망 < 그림 14. 37: 그물형 SONET 망 48

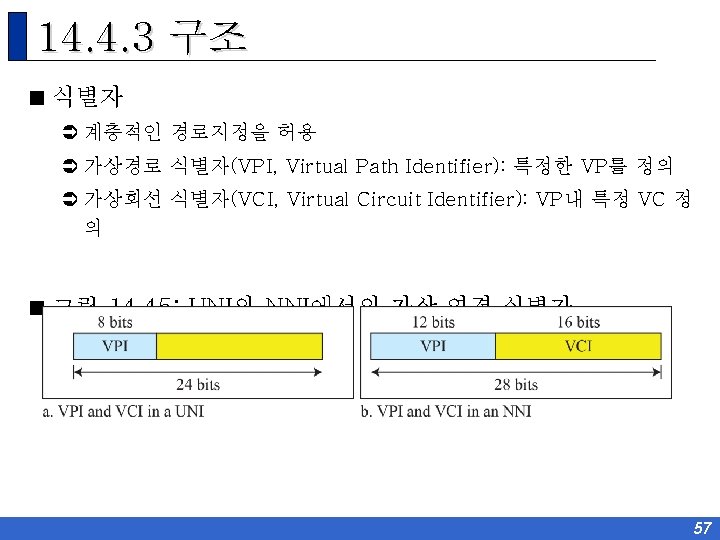

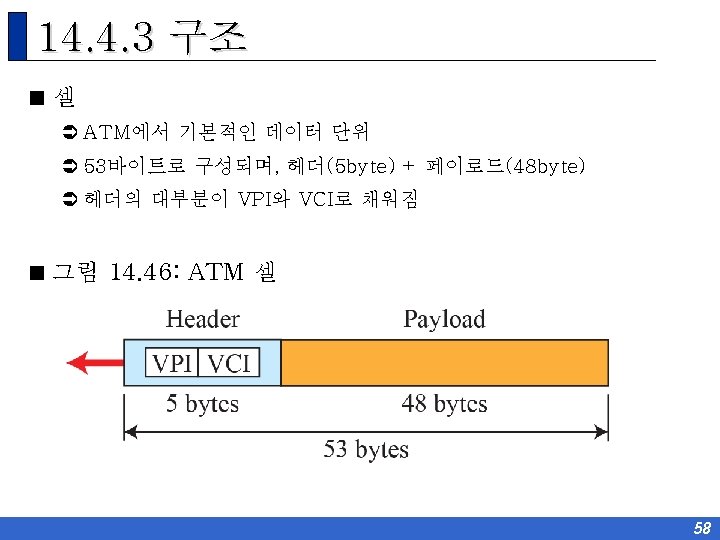

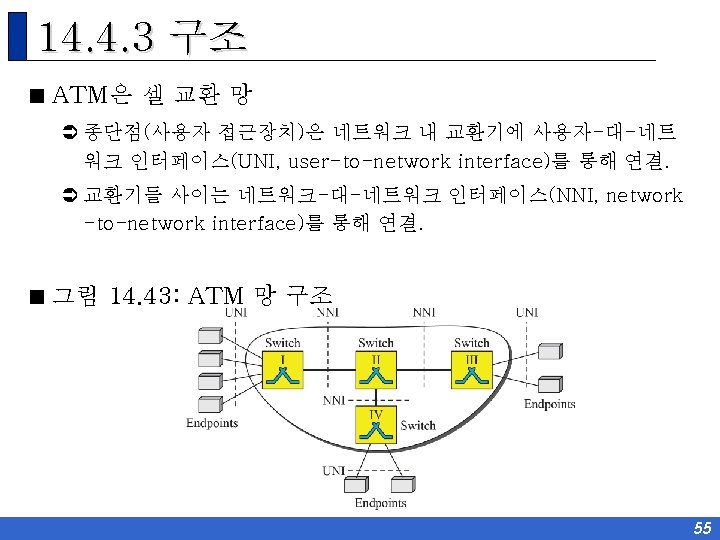

14. 4. 3 구조 < 가상 연결 Ü 전송경로(TP, Transmission Path) Ü 가상경로(VP, Virtual

14. 4. 3 구조 < 가상 연결 Ü 전송경로(TP, Transmission Path) Ü 가상경로(VP, Virtual Path) Ü 가상회선(VC, Virtual Circuit) < 그림 14. 44: TP, VP 및 VC 56

14. 4. 3 구조 < 응용 적용 계층 Ü AAL, Application Adaptation Layer Ü

14. 4. 3 구조 < 응용 적용 계층 Ü AAL, Application Adaptation Layer Ü 모든 종류의 페이로드, 연속 비트 스트림을 처리하기 위함 Ü SAR(Segmentation And Reassembly) Ü CS(Convergence Sublayer): 데이터 무결성 보장 < 그림 14. 49: AAL 5 61

14. 5 요약 Q & A 62

14. 5 요약 Q & A 62
