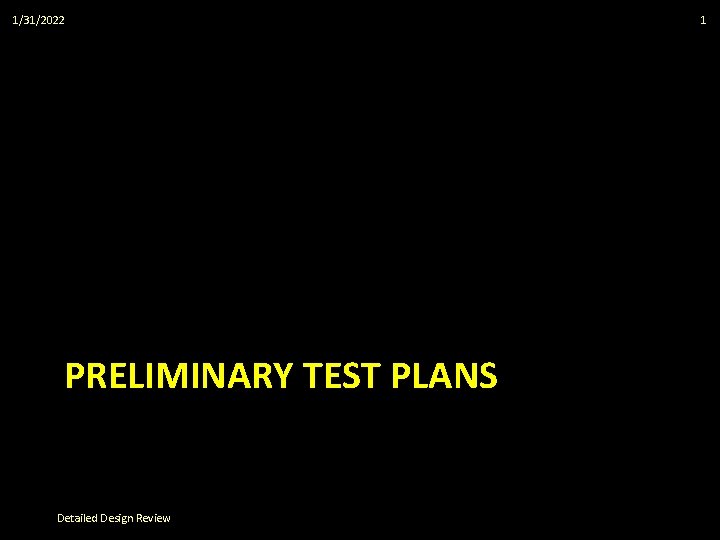

1312022 PRELIMINARY TEST PLANS Detailed Design Review 1

1/31/2022 PRELIMINARY TEST PLANS Detailed Design Review 1

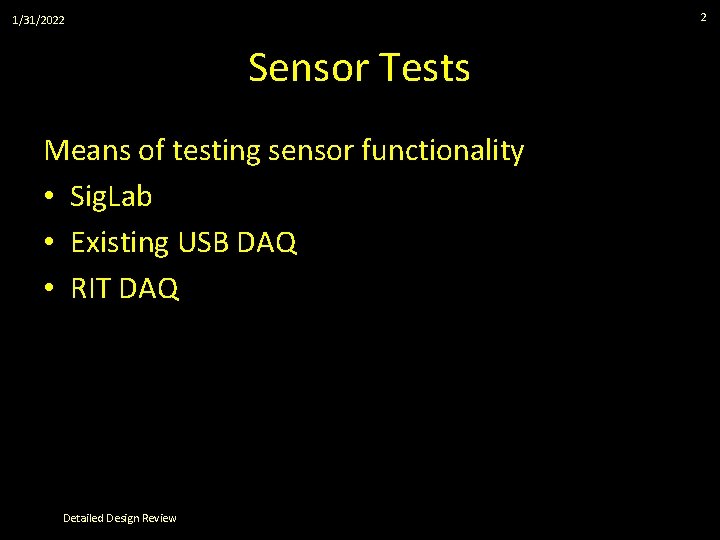

2 1/31/2022 Sensor Tests Means of testing sensor functionality • Sig. Lab • Existing USB DAQ • RIT DAQ Detailed Design Review

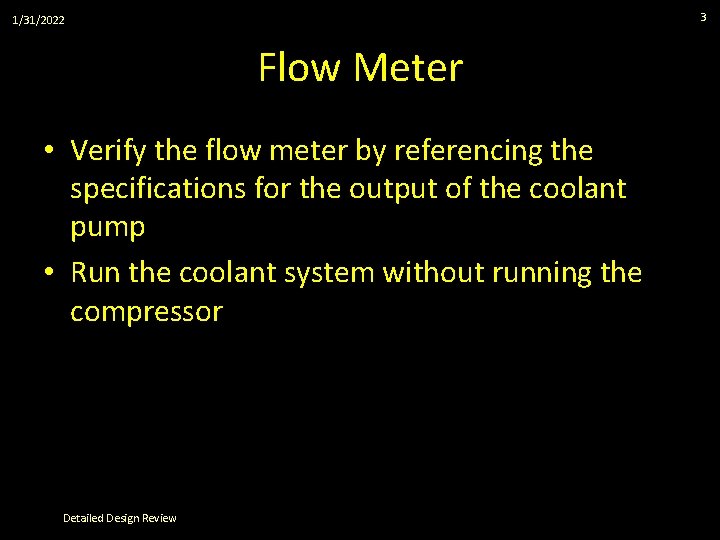

3 1/31/2022 Flow Meter • Verify the flow meter by referencing the specifications for the output of the coolant pump • Run the coolant system without running the compressor Detailed Design Review

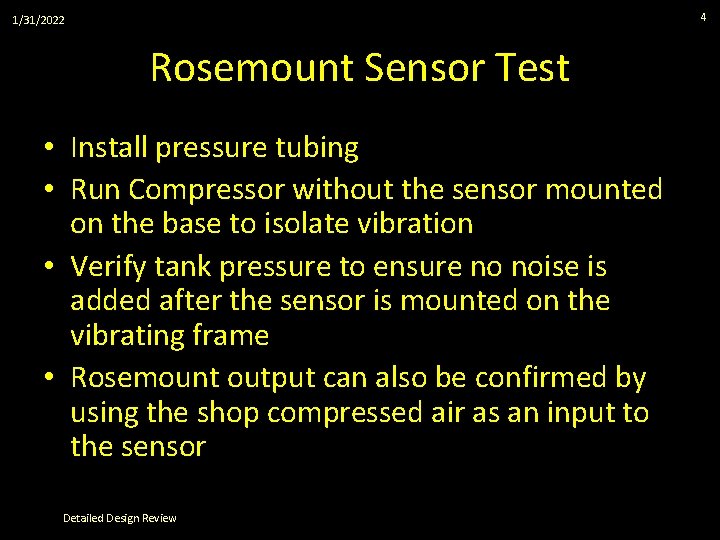

4 1/31/2022 Rosemount Sensor Test • Install pressure tubing • Run Compressor without the sensor mounted on the base to isolate vibration • Verify tank pressure to ensure no noise is added after the sensor is mounted on the vibrating frame • Rosemount output can also be confirmed by using the shop compressed air as an input to the sensor Detailed Design Review

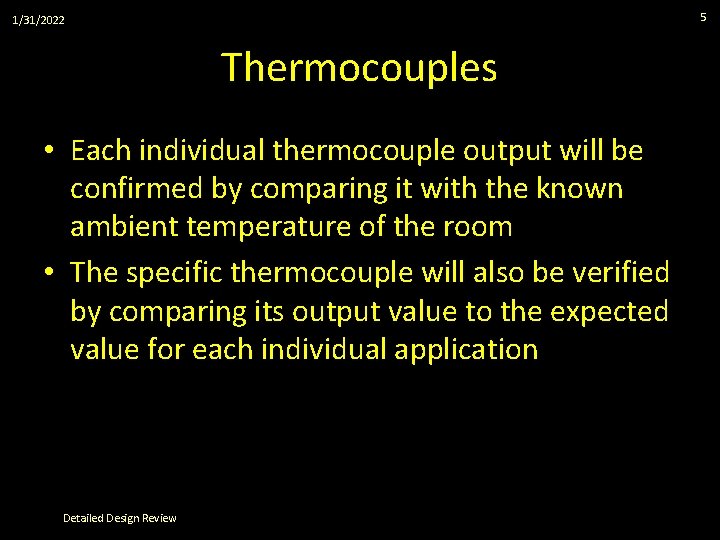

5 1/31/2022 Thermocouples • Each individual thermocouple output will be confirmed by comparing it with the known ambient temperature of the room • The specific thermocouple will also be verified by comparing its output value to the expected value for each individual application Detailed Design Review

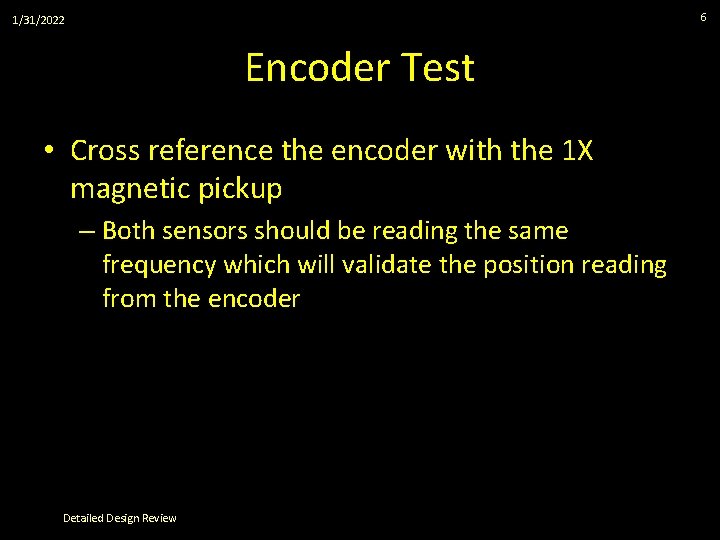

6 1/31/2022 Encoder Test • Cross reference the encoder with the 1 X magnetic pickup – Both sensors should be reading the same frequency which will validate the position reading from the encoder Detailed Design Review

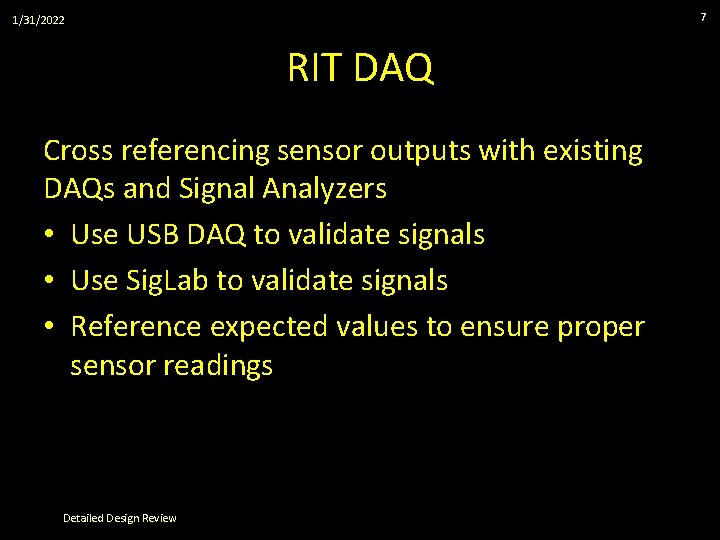

7 1/31/2022 RIT DAQ Cross referencing sensor outputs with existing DAQs and Signal Analyzers • Use USB DAQ to validate signals • Use Sig. Lab to validate signals • Reference expected values to ensure proper sensor readings Detailed Design Review

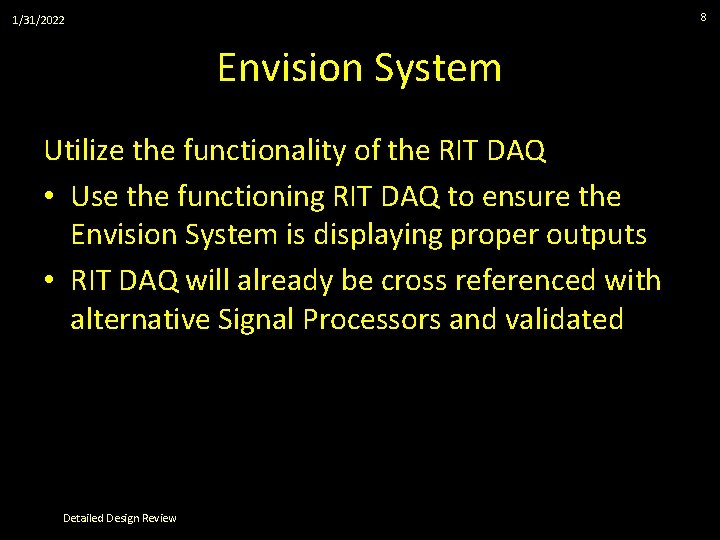

8 1/31/2022 Envision System Utilize the functionality of the RIT DAQ • Use the functioning RIT DAQ to ensure the Envision System is displaying proper outputs • RIT DAQ will already be cross referenced with alternative Signal Processors and validated Detailed Design Review
