1202016 Minimizer Confidential 1 Fast Flap 1202016 Minimizer
- Slides: 20
1/20/2016 Minimizer Confidential 1
Fast Flap® 1/20/2016 Minimizer Confidential 2
Fast Flap® 1/20/2016 Minimizer Confidential 3
Fast Flap® 1/20/2016 4
Fast Flap® Product Overview • • Mounts to rear of your truck or trailer frame. Designed for use in Vocational Trucks. Details / Specifications • Features • • • (4) 9. 5” (L) x 2. 8” (H) Allows – Mud Flaps to release free from bracket without causing damage to flaps, hanger bracket or fender Retail Packaged - for in store POP direct sales Full assembly – no additional brackets required - Mud Flaps Sold Separately Durable – All stainless steel, heat tempered to spring steel Secure – Mud flap fastened in with spring steel clamping force Save Money – No damage, no shop labor, no down time or DOT fines Industry Applications – For both on-road and off-road trucking including; Dump Trucks, Cement Mixers, Asphalt, Block, Logging, Roll-Off and Garbage Trucks. Also great for freight haulers that often experience mud flap damage. Proven Product! Thousands in use on Owner Operators, Fleets, Municipalities and D. O. T. equipment throughout U. S. & Canada Standard – 7” on center bolt pattern 1/20/2016 Minimizer Confidential 5
Fast Flap® Part No. : 101227 Description Search: FSTFLP-K Styles: Standard Style Color Options: Heat Tempered Spring Steel – Stainless Steel Overall Dimensions: 9. 5” Long x 2. 8” High x 1 7/8” Deep w/bolt (7/8” Deep flap only) Overview: Minimizer owned product. Outsourced manufactured, full inventory. Ready to sell. Warranty: Lifetime Weight: 4. 2 lbs. 1/20/2016 Minimizer Confidential 6
Fast Flap® About Minimizer Fast Flap® • Minimizer Fast Flap, mud flap releasable hanger brackets were designed for truck drivers by a truck driver/excavator with over twenty five years of experience. • Minimizer Fast Flap, mud flap releasable hanger brackets are made of Stainless Steel. Heat tempered to spring steel. The spring steel gripping force of the brackets holds mud flaps securely in place. 1/20/2016 Minimizer Confidential 7
Fast Flap® About Minimizer Fast Flap® • Minimizer Fast Flap bolts directly onto standard 7” on center bolt pattern on heavy duty commercial trucks. • Minimizer Fast Flap brackets are designed to be used with a set of ¼” or 3/8” thick standard commercial rubber mud flaps. • Based on multiple tests that used ¼” thick rubber mud flaps, the mud flap will start to release from brackets when downward force exceeds an average of 516 lbs. 1/20/2016 Minimizer Confidential 8
Fast Flap® About Minimizer Fast Flap® • Based on multiple tests that used 3/8” thick rubber mud flaps, the mud flap will start to release from brackets when downward force exceeds an average of 457 lbs. • Mud Flaps will release damage free from brackets when backing up into any type of obstructions which cause the flaps to be pinched against the rear tire. • The mud flap can be reinstalled on site by the driver in under One Minute! Preventing expensive fines for driving without a mud flap and saving you money on costly down time, damage and shop labor expense. 1/20/2016 Minimizer Confidential 9

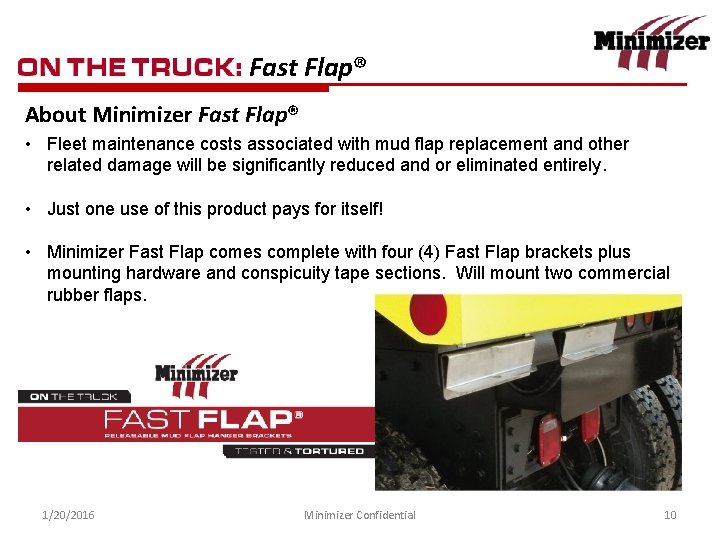

Fast Flap® About Minimizer Fast Flap® • Fleet maintenance costs associated with mud flap replacement and other related damage will be significantly reduced and or eliminated entirely. • Just one use of this product pays for itself! • Minimizer Fast Flap comes complete with four (4) Fast Flap brackets plus mounting hardware and conspicuity tape sections. Will mount two commercial rubber flaps. 1/20/2016 Minimizer Confidential 10
Fast Flap® About Minimizer Fast Flap® • No moving parts! • Comes with a Lifetime warranty! • Minimizer Fast Flap is protected under U. S. Patent with additional Patents pending. • Made in America & Built to Last! Minimizer Tested & Tortured! We don’t‘ make the truck, we make the truck you! 1/20/2016 Minimizer Confidential 11
Fast Flap® 1/20/2016 Minimizer Confidential 12
Fast Flap® Front of Placard 1/20/2016 Back of Placard Minimizer Confidential 13
Fast Flap® 1/20/2016 Minimizer Confidential 14
Fast Flap® Installation Instructions: 1. ) Remove existing mud flaps. 1/20/2016 Minimizer Confidential 15
Fast Flap® Installation Instructions: 2. ) Install brackets into existing mounting holes using provided hardware. • Install & tighten lock nuts • 10 -Ft. /lbs. of torque is all that is needed. • Over tightening may result in damage. CAUTION: Always wear eye protection when installing mud flaps into brackets. Keep fingers and hands out of and away from gripping area as injury may occur. 1/20/2016 Minimizer Confidential 16
Fast Flap® Installation Instructions: 3. ) Use a quality made flat head screwdriver (minimum length of 10”) to pry open one bracket at a time to install mud flap. Insert screwdriver tip into center hole resting tip on flat portion above. Pry open bracket and slide flap in. Repeat this process between the two brackets until flap is fully engaged against the top/inside portion of the brackets. 1/20/2016 Minimizer Confidential 17
Fast Flap® Installation Instructions: 4. ) Wipe surface of Minimizer Fast Flap hanger to remove residue before applying conspicuity tape. Place two (2) pieces of tape on each hanger; alternating between RED and White. **Note white should always be placed to the outside edge of the vehicle side. ** 1/20/2016 Minimizer Confidential 18
Fast Flap® 1/20/2016 Minimizer Confidential 19
Fast Flap® Minimizer Confidential 20
