12 Gb SAS-3 SE Presentation Version 1. 4. 2 AFF and FAS TME Team (ng-aff-fas-tme) June 2019 1 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Notice of NDA Content The slides herein contain company confidential, proprietary information of Net. App and shall not be disclosed outside Net. App without a binding nondisclosure agreement in place. These documents are for viewing purposes only and shall not be distributed. 2 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Introducing the IOM 12 12 Gb shelf module § 12 Gb I/O SAS-3 Expander Modules § 4 x mini-SAS HD offers 48 Gb bandwidth per port § 12 Gb and 6 G homogeneous stacks only § Transitioning not allowed for external stack § No IOM 3 support with SAS-3 storage § In-band Alternate Control Path (IBACP) § Eliminates external Ethernet connections Out-of-Band ACP (OOBACP) § Supports Quad Path and Double-wide cabling options 4 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
2 U Enclosures Name scheme § DS 212 C § (2) rack units § (12) drives § (C) 12 Gb SAS § Aggregate 48 Gb per SAS Domain § DS 224 C § (2) rack units § (24) drives § (C) 12 Gb SAS § Aggregate 48 Gb per SAS Domain 5 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
4 U Enclosure Name scheme § DS 460 C § (4) rack units § (60) drives § (C) 12 Gb SAS § Aggregate 48 Gb per SAS Domain 6 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Introducing the DS 212 C § Capacity class § 2 U enclosure § 12 x 3. 5” 7. 2 k RPM drives § Quotable NL-SAS/SATA drives: 2 TB, 4 TB, 8 TB, & 10 TB § Quotable NL-SAS/SATA NSE drives: 10 TB § Support for legacy DS 4243/DS 4246 NL-SAS/SATA drives § Refer to Hardware Universe for a complete list of supported drives § 12 x 3. 5” SSD § 960 GB SSD available in Hybrid configuration only § Same drive carrier as DS 4243 and DS 4246 shelves § Common PSU § Leverages same efficient 913 W PSU as DS 224 C shelf and FAS 2600 series embedded systems 7 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Introducing the DS 224 C § Performance class § 2 U enclosure § 24 x 2. 5” 10 k RPM drives § Quotable SAS drives: 900 GB, 1. 2 TB, 1. 8 TB NSE § Support for legacy DS 2246 drives § Refer to Hardware Universe for a complete list of supported drives § 24 x 2. 5” SSD § Quotable SSD: 800 GB NSE, 960 GB, 3. 8 TB NSE, 7. 6 TB, 15. 3 TB § 960 GB, 3. 8 TB, 15. 3 TB available in Hybrid configuration only § Same drive carrier as DS 2246 shelf § Common PSU § Leverages same efficient 913 W PSU as DS 212 C shelf and FAS 2600 series embedded systems 8 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Introducing the DS 460 C § Density class § 4 U enclosure § 60 x 3. 5” 7. 2 k RPM drives § § § Quotable NL-SAS/SATA drives: 2 TB, 4 TB, 8 TB, & 10 TB Quotable NL-SAS/SATA NSE drives: 6 TB & 10 TB Orderable as empty, half-populated, or fully populated Minimum of 20 x HDD requires for proper cooling Legacy drives from DS 4243/DS 4246 shelves not supported § Refer to Hardware Universe for a complete list of supported drives § Maximum of 10 x 3. 5” SSD § 960 GB available in Hybrid configuration only § 2325 W ~220 V PSU § Requires C 19/C 20 Power cable & compatible PDU § Retrofits are not supported with C 13/C 19 power cords or PDU 9 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---

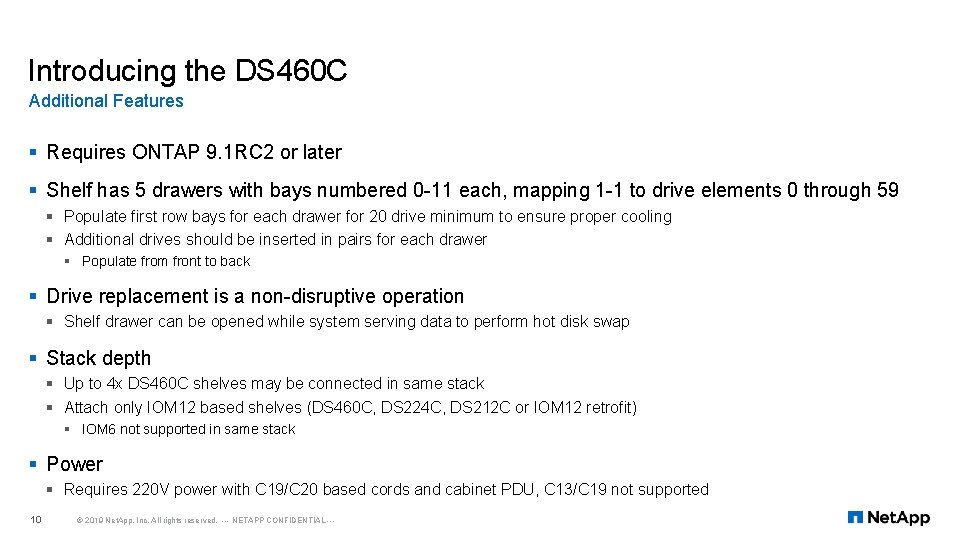

Introducing the DS 460 C Additional Features § Requires ONTAP 9. 1 RC 2 or later § Shelf has 5 drawers with bays numbered 0 -11 each, mapping 1 -1 to drive elements 0 through 59 § Populate first row bays for each drawer for 20 drive minimum to ensure proper cooling § Additional drives should be inserted in pairs for each drawer § Populate from front to back § Drive replacement is a non-disruptive operation § Shelf drawer can be opened while system serving data to perform hot disk swap § Stack depth § Up to 4 x DS 460 C shelves may be connected in same stack § Attach only IOM 12 based shelves (DS 460 C, DS 224 C, DS 212 C or IOM 12 retrofit) § IOM 6 not supported in same stack § Power § Requires 220 V power with C 19/C 20 based cords and cabinet PDU, C 13/C 19 not supported 10 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Introducing the DS 460 C Drawer bay layout Drawer front 11 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
DS 460 C Naming Convention Drawer and bay numbering cluster 1: : > storage disk show Usable Disk Container Disk Size Shelf Drawer Bay Type Name Owner -------- ------- ---------1. 16. 0 546. 9 GB 16 1 0 SAS spare Pool 0 cluster 1 -01 1. 16. 1 546. 9 GB 16 1 1 SAS spare Pool 0 cluster 1 -01 1. 16. 2 546. 9 GB 16 1 2 SAS spare Pool 0 cluster 1 -01 1. 16. 3 546. 9 GB 16 1 3 SAS spare Pool 0 cluster 1 -01 1. 16. 4 546. 9 GB 16 1 4 SAS spare Pool 0 cluster 1 -01 1. 16. 5 546. 9 GB 16 1 5 SAS spare Pool 0 cluster 1 -01 1. 16. 6 546. 9 GB 16 1 6 SAS spare Pool 0 cluster 1 -01 1. 16. 7 546. 9 GB 16 1 7 SAS spare Pool 0 cluster 1 -01 1. 16. 8 546. 9 GB 16 1 8 SAS spare Pool 0 cluster 1 -01 1. 16. 9 546. 9 GB 16 1 9 SAS spare Pool 0 cluster 1 -01 1. 16. 10 546. 9 GB 16 1 10 SAS spare Pool 0 cluster 1 -01 1. 16. 11 546. 9 GB 16 1 11 SAS spare Pool 0 cluster 1 -01 1. 16. 12 546. 9 GB 16 2 0 SAS spare Pool 0 cluster 1 -01 1. 16. 13 546. 9 GB 16 2 1 SAS spare Pool 0 cluster 1 -01 1. 16. 14 546. 9 GB 16 2 2 SAS spare Pool 0 cluster 1 -01 1. 16. 15 546. 9 GB 16 2 3 SAS spare Pool 0 cluster 1 -01 1. 16 546. 9 GB 16 2 4 SAS spare Pool 0 cluster 1 -01 1. 16. 17 546. 9 GB 16 2 5 SAS spare Pool 0 cluster 1 -01 1. 16. 18 546. 9 GB 16 2 6 SAS spare Pool 0 cluster 1 -01 1. 16. 19 546. 9 GB 16 2 7 SAS spare Pool 0 cluster 1 -01 1. 16. 20 546. 9 GB 16 2 8 SAS spare Pool 0 cluster 1 -01 1. 16. 21 546. 9 GB 16 2 9 SAS spare Pool 0 cluster 1 -01. . . . 1. 16. 57 546. 9 GB 16 5 9 SAS spare Pool 0 cluster 1 -01 1. 16. 58 546. 9 GB 16 5 10 SAS spare Pool 0 cluster 1 -01 1. 16. 59 546. 9 GB 16 5 11 SAS spare Pool 0 cluster 1 -01 12 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Hardware 13 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
IOM 12 Rear view mini-SAS HD Warning LED Blue LED beacon 14 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---

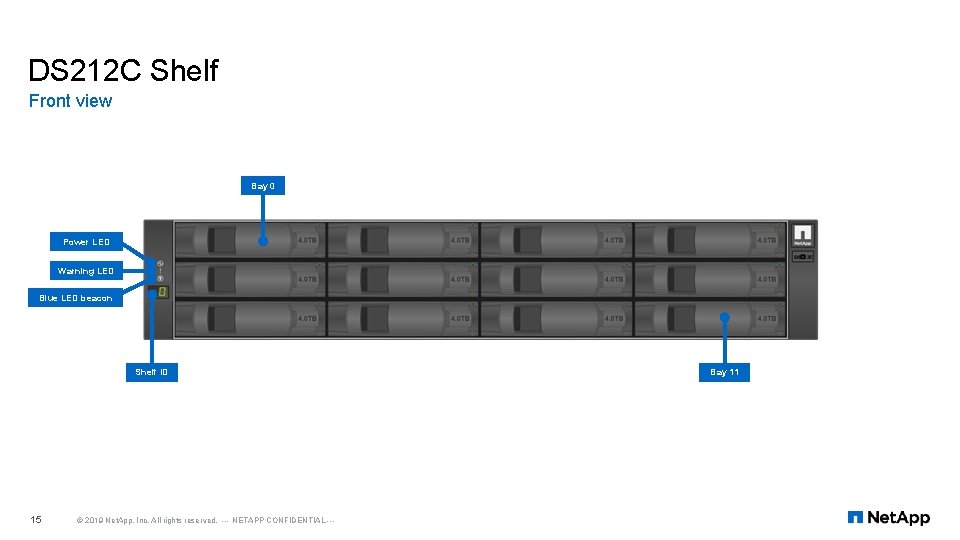

DS 212 C Shelf Front view Bay 0 Power LED Warning LED Blue LED beacon Shelf ID 15 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Bay 11

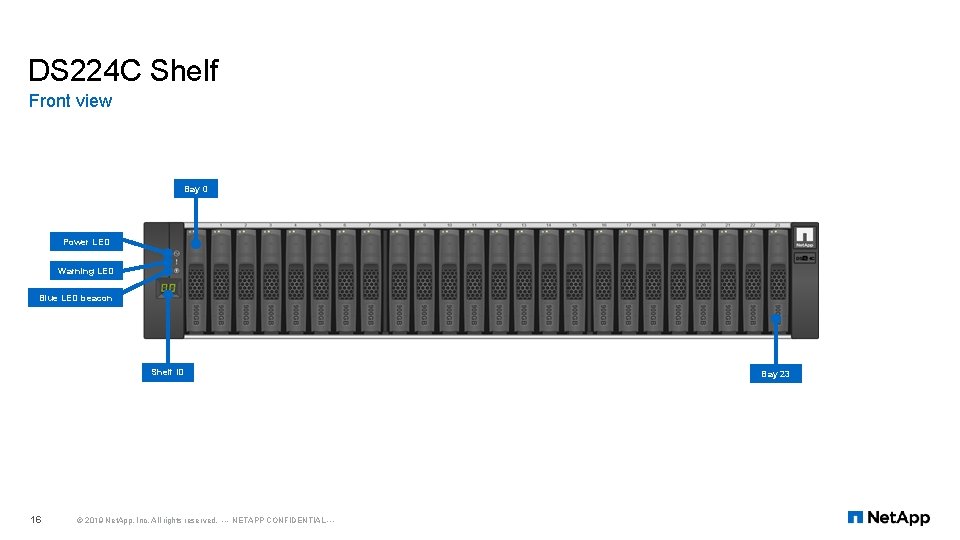

DS 224 C Shelf Front view Bay 0 Power LED Warning LED Blue LED beacon Shelf ID 16 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Bay 23
DS 212 C / DS 224 C Shelf Rear view Module B Module A PSU 17 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- PSU
DS 460 C Shelf Front view Drawer 1 Shelf ID Power LED Warning LED Blue LED beacon OPS Panel Display Button 18 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Drawer 5
DS 460 C Shelf Rear view Fan Module PSU Module A Module B PSU 19 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Fan Module
Controller-to-Shelf Conversions Conversion Stack Speed Part Number FAS 2240 -2, FAS 2552 DS 2246 6 Gb X 896 A DS 2246 DS 224 C 1 12 Gb X 899 A FAS 2240 -4, FAS 2554 DS 4246 6 Gb X 897 A DS 4246 DS 424 C 1 12 Gb X 898 A FAS 2620, FAS 2720 DS 212 C 12 Gb X 898 A FAS 2650, FAS 2750 DS 224 C 12 Gb X 899 A 1. Used for creating 12 Gb homogeneous stack with existing storage. Speed of storage stack will be 12 Gb, but shelf backplane is locked at 6 Gb speed. 20 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Upgrade Paths Shelf Conversion Kits § Net. App Part Number: X 898 A § Conversion Kit for FAS 2720, FAS 2620, FAS 2554, FAS 2240 -4 § Can also be used for DS 4246 shelf upgrades § 2 x IOM 12 shelf modules § 2 x. 5 meter shelf-to-shelf cables (mini-SAS HD) § 2 x shelf end caps for DS 212 C § Net. App Part Number: X 899 A § Conversion Kit for FAS 2750, FAS 2650, FAS 2552, FAS 2240 -2 § Can also be used for DS 2246 shelf upgrades § 2 x IOM 12 shelf modules § 2 x. 5 meter shelf-to-shelf cables (mini-SAS HD) § 2 x shelf end caps for DS 224 C § Not supported for usage with AFF A 200 21 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
SAS-3 Technical details 22 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Storage Requirements § ONTAP 9. 0 or later § ONTAP 8. x not supported § Shelves § DS 224 C: 12 Gb, 24 x 2. 5” SFF drive enclosure § DS 212 C: 12 Gb, 12 x 3. 5” LFF drive enclosure § DS 460 C 1: 12 Gb, 60 x 3. 5” LFF drive enclosure § I/O module expanders § IOM 12: 4 -port, mini-SAS HD § HBA adapter support § § § 1. 2. 23 X 2069 -R 6: 4 -port, QSFP, PCIe HBA X 2071 -R 62: 4 -port, mini-SAS HD, PCIe HBA X 92071 A: 4 -port, mini-SAS HD, PCIe I/O module ATTO 7500 N: Embedded HBA FAS 8200, FAS 2600: Embedded HBA Supported with ONTAP 9. 1 RC 2 or later. Supported with ONTAP 9. 2 or later. © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---

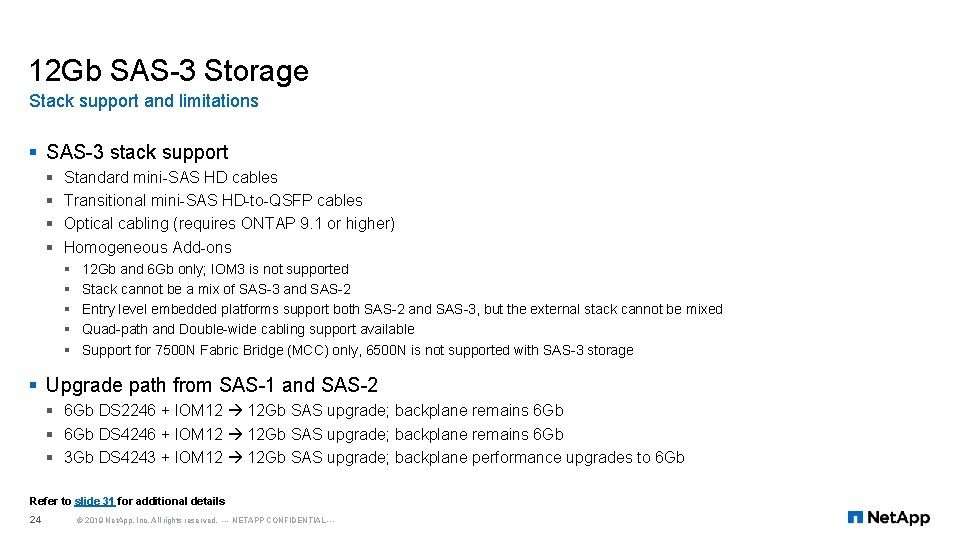

12 Gb SAS-3 Storage Stack support and limitations § SAS-3 stack support § § Standard mini-SAS HD cables Transitional mini-SAS HD-to-QSFP cables Optical cabling (requires ONTAP 9. 1 or higher) Homogeneous Add-ons § § § 12 Gb and 6 Gb only; IOM 3 is not supported Stack cannot be a mix of SAS-3 and SAS-2 Entry level embedded platforms support both SAS-2 and SAS-3, but the external stack cannot be mixed Quad-path and Double-wide cabling support available Support for 7500 N Fabric Bridge (MCC) only, 6500 N is not supported with SAS-3 storage § Upgrade path from SAS-1 and SAS-2 § 6 Gb DS 2246 + IOM 12 12 Gb SAS upgrade; backplane remains 6 Gb § 6 Gb DS 4246 + IOM 12 12 Gb SAS upgrade; backplane remains 6 Gb § 3 Gb DS 4243 + IOM 12 12 Gb SAS upgrade; backplane performance upgrades to 6 Gb Refer to slide 31 for additional details 24 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Storage Differences between X 2069 A and X 2071 A § SAS adapter X 2071 A is very similar to X 2069 A § Based on the same PMC Sierra (now Microsemi) PM 8072 chip § Firmware and ONTAP drivers are the same as the existing X 2069 A § Only difference is the connections § X 2069 A uses QSFP wide SAS connections § X 2071 A uses mini-SAS connections § X 2071 A supported at 6 Gb and 12 Gb speeds § Use mini-SAS to QSFP cables to connect to 6 Gb IOM 6 shelf modules Refer to Hardware Universe for additional platform and ONTAP support details. 25 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- X 2071 A X 2069 A 4 4 Mini-SAS HD QSFP Speed 12 Gb/6 Gb ASIC Microsemi PM 8072 ONTAP Support ONTAP 9. 1 P 10+ ONTAP 8. 2. 3+ Platform Support AFF A 700 s, AFF A 300, FAS 8200 AFF/FAS 8000 Series Ports Connector
12 Gb SAS-3 Storage Legacy Shelf Support with X 2071 A § All 6 Gb shelves are supported for use with X 2071 A § DS 2246 § DS 4486 § DS 4243 shelves are also supported for use with X 2071 A § IOM 3 must be upgraded to IOM 6 § 12 Gb and 6 Gb shelves must be on separate homogenous stacks § Optional to change IOM 6 with IOM 12 to mix in same stack § Order mini-SAS HD to QSFP cables to connect X 2071 A to 6 Gb shelves 26 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
SAS-3 12 Gb Storage Stack enhancements § Software Enhancements § In-band ACP (IBACP) § External Ethernet cabling is not required § Updated SAS-3 aware Config Advisor tool for deployments § NSS download from Tool Chest § New and improved Node Connectivity Health Monitor (NCHM) § Blue Location LED on DS 224 C and DS 212 C chassis 27 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
SAS-3 12 Gb Storage Innovations § New SSD Technology § MSW (Multi-Stream Write) capabilities § Overprovisioning requirements decrease by up to 20% (MSW not required for Lower Overprovision) § Enable support for lower capacity drives § SSD High Capacity First § First to market with 15. 3 TB SSD § Leverages Advanced Drive Partitioning (ADP) with Root-Data (R-D 2) SSD sharing § Provides 17% greater efficiency compared to Root-Data (RD) partitioning § HDD NL-SAS/SATA Offering § Support for 10 TB, 8 TB and 4 TB LFF 7. 2 K SAS HDD § 10 TB > HDD requires RAID-TEC and ONTAP 9 or later 28 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 IOM 12 Expander Module § IOM 12 Upgrade path for 3 & 6 Gb shelves § DS 4246 + IOM 12 § DS 4243 + IOM 12 § DS 2246 + IOM 12 § In-band Alternate Control Path (IBACP) only § Eliminates external ACP Ethernet connections Out-of-Band ACP (OOBACP) § Note: IOM 6 supports IBACP but requires minimum shelf firmware 0209 or later 29 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 at a Glance Storage enclosures DS 224 C DS 212 C DS 460 C Performance Capacity Density Rack Space 2 U 2 U 4 U Drive Slots 24 12 60 Drive Size SFF - 2. 5” LFF- 3. 5” LFF-3. 5” Drive Types SSD 10 K SAS 7. 2 K NL-SAS SSD (Hybrid Only) SAS Interface Speed 12 Gb Backplane Speed 12 Gb ONTAP® support 9. 0+ 9. 1 RC 2+ Segment 30 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Upgrade Paths Storage enclosures DS 2246 + IOM 12 DS 4243 + IOM 12 Performance Capacity Rack Space 2 U 4 U 4 U Drive Slots 24 24 24 Drive Size SFF - 2. 5” LFF- 3. 5” LFF-3. 5” Drive Types SSD 10 K SAS 7. 2 K NL-SAS SSD (Hybrid Only) SAS Interface Speed 12 Gb Backplane Speed 6 Gb 6 Gb ONTAP® support 9. 0+ Segment Refer to Hardware Universe for supported drive configurations. 31 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Drive Ownership 32 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Drive Ownership An overview § There are five drive assignment policies that determine physical drive ownership in a HA pair § Bay assignment: entry FAS systems § Used by entry AFF systems running ONTAP 9. 3 or earlier § Stack assignment: mid or high-range FAS systems § Shelf assignment: mid or high-range FAS systems § Split-shelf assignment: AFF systems § Support added for entry AFF systems with ONTAP 9. 4 or later § Drawer assignment: FAS systems § The policy used will vary between AFF and FAS platforms configurations 33 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Drive Ownership Bay Assignment Bay 0 § Used by entry FAS (2620 | 2720) systems § Drives in even numbered bays are assigned to Node 1 § Drives in odd numbered bays are assigned to Node 2 Bay 0 Bay 11 § Used by entry FAS (2650 | 2750) systems § Drives in even numbered bays are assigned to Node 1 § Drives in odd numbered bays are assigned to Node 2 Bay 23 34 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Drive Ownership Stack Assignment § Used when multiple stacks are present § All drives per stack are assigned to one node § Shelf type is irrelevant 35 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Drive Ownership Shelf Assignment § Used when a single stack is present § All drives in a shelf are assigned to one node § Shelf type is irrelevant 36 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Drive Ownership Split-shelf Assignment Bay 0 § Support added for entry AFF systems § Support added for AFF A 220 in ONTAP 9. 4 § Support added for AFF A 200 in ONTAP 9. 5 § AFF A 220 / A 200 § Drives in bays 0 -11 are assigned to Node 1 § Drives in bays 12 -23 are assigned to Node 2 37 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Bay 12
Drive Ownership Split-shelf Assignment § Used in mid and high-range AFF systems § Requires DS 2246 or DS 224 C shelves § Drives in bays 0 -11 are assigned to Node 1 § Drives in bays 12 -23 are assigned to Node 2 38 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---

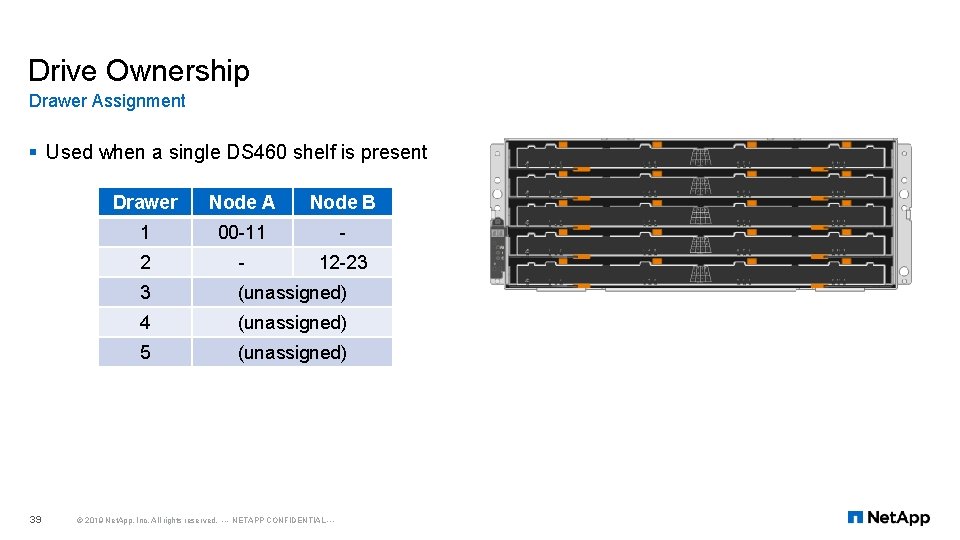

Drive Ownership Drawer Assignment § Used when a single DS 460 shelf is present 39 Drawer Node A Node B 1 00 -11 - 2 - 12 -23 3 (unassigned) 4 (unassigned) 5 (unassigned) © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
SAS-3 Cabling 40 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Cables HBA/expander cable connectors – Support 12 Gb connectivity: § Native SAS-3 - both endpoints Mini-SAS HD § Transitional Cable SAS-3 – (1) endpoint Mini-SAS HD & (1) endpoint QSFP 41 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Supported Cables ONTAP 9. 0 and later Part No Mfg Part No Length End 1 End 2 Supported Speed(s) X 66030 A 112 -00435 0. 5 m mini-SAS HD 12/6 Gb X 66020 A 112 -00429 1 m mini-SAS HD QSFP 12/6 Gb X 66031 A 112 -00436 1 m mini-SAS HD 12/6 Gb X 66021 A 112 -00430 2 m mini-SAS HD QSFP 12/6 Gb X 66032 A 112 -00437 2 m mini-SAS HD 12/6 Gb X 66033 A 112 -00438 3 m mini-SAS HD 12/6 Gb X 66022 A 112 -00431 5 m mini-SAS HD QSFP 12/6 Gb X 66034 A 112 -00439 5 m mini-SAS HD 12/6 Gb Refer to Hardware Universe for additional cabling details. 42 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Supported Cables ONTAP 9. 1 and later Part No Mfg Part No Length End 1 End 2 Supported Speed(s) X 66040 A 112 -00449 1 m mini-SAS HD 12/6 Gb X 66041 A 112 -00450 2 m mini-SAS HD 12/6 Gb X 66042 A 112 -00451 3 m mini-SAS HD 12/6 Gb X 66043 A 112 -00452 5 m mini-SAS HD 12/6 Gb X 66044 A 112 -00453 15 m mini-SAS HD 12/6 Gb X 66045 A 112 -00454 30 m mini-SAS HD 12/6 Gb X 66046 A 112 -00455 50 m mini-SAS HD 12/6 Gb X 660471 112 -00456 5 m mini-SAS HD LC 12/6 Gb X 66048 A 1 112 -00457 30 m mini-SAS HD LC 12/6 Gb 1. Refer to the SAS-3 Cabling Guide for optical cabling rules. Refer to Hardware Universe for additional cabling details. 43 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Expander & SAS Initiator Support ONTAP 9. 1 and later SAS-2 Support SAS-3 Support SAS-2 Shelf IOM 6 Expander SAS-3 Shelf IOM 12 Expander FAS 2700, AFF A 220 ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb Onboard: mini-SAS HD, 12 Gb FAS 2600, AFF A 200 ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb Onboard: mini-SAS HD, 12 Gb HBA SAS Initiator FAS 8200, AFF A 300 ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb Onboard: mini-SAS HD, 12 Gb External: X 2069 -R 6, 12 Gb, QSFP, PCIe External: X 2071 -R 6, 12 Gb, mini-SAS HD, PCIe FAS 9000, AFF A 700 ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb External: X 92071 A, mini-SAS HD, 12 Gb, PCIe AFF A 700 s ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb External: X 2069 -R 6, 12 Gb, QSFP, PCIe External: X 2071 -R 6, 12 Gb, mini-SAS HD, PCIe § Stack operations can be run at 12 Gb if HBA is 12 Gb and are SAS-3 shelves § DS 212 C, DS 224 C, DS 460 C, or DS 4243/DS 4246/DS 2246 with IOM 12, otherwise speed will negotiate to 6 Gb § Transitional QSFP-to-Mini-SAS HD cabling required for mixed interface connectivity § Speed will negotiate at lowest common speed 44 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Expander & SAS Initiator Support ONTAP 9. 1 and later SAS-2 Support SAS-3 Support SAS-2 Shelf IOM 6 Expander SAS-3 Shelf IOM 12 Expander FAS 22 xx, FAS 25 xx ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb Onboard: QSFP, 6 Gb FAS 32 xx ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb Onboard: QSFP, 6 Gb External: X 2069 -R 6, 12 Gb, QSFP, PCIe FAS 62 xx ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb External: X 2067 -R 6, 6 Gb, QSFP, PCIe External: X 2069 -R 6, 12 Gb, QSFP, PCIe FAS 80 xx, AFF 80 xx ✔ ✔ QSFP: 6 Gb Mini-SAS HD: 12 Gb Onboard: QSFP, 6 Gb External: X 2069 -R 6, 12 Gb, QSFP, PCIe HBA SAS Initiator § Stack operations can be run at 12 Gb if HBA is 12 Gb and are SAS-3 shelves § DS 212 C, DS 224 C, DS 460 C, or DS 4243/DS 4246/DS 2246 with IOM 12, otherwise speed will negotiate to 6 Gb § Transitional QSFP-to-Mini-SAS HD cabling required for mixed interface connectivity § Speed will negotiate at lowest common speed 45 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
SAS-3 Stack Cabling Multipath and Quad-Path Configurations 46 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
MPHA Cabling FAS 2600 with external shelves § FAS 2600 HA pair § Cabling is the same for a FAS 2700 controller § 3 x DS 212 C or DS 224 C shelves § Single stack configuration § 12 Gb SAS Cabling 47 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
MPHA Cabling FAS 2520 with external shelves § FAS 2520 HA pair § 3 x DS 212 C or DS 224 C shelves § Single stack configuration § 12 Gb SAS Cabling § Transitional cables between controller and shelves 1 and 3 § Native 12 Gb SAS cabling between shelves 48 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
MPHA Cabling FAS 8200 with external shelves § FAS 8200 HA pair § 2 connections per controller to storage stack § 3 x DS 212 C or DS 224 C shelves § Single stack configuration § 12 Gb SAS Cabling 49 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
QPHA Cabling FAS 8200 with external shelves § FAS 8200 HA pair § 4 connections per controller to storage stack § 3 x DS 212 C or DS 224 C shelves § Single stack configuration § 12 Gb SAS Cabling 50 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
SAS-3 Mixing Rules Mixing rules and best practices 51 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Requirements Overview § ONTAP 9. x is required for 12 Gb SAS-3 attachment § ONTAP 8. x is not supported § Speed transitions are not permitted between shelves in a 12 Gb stack § 12 Gb or 6 Gb homogenous stacks must be cabled into separate stacks § 12 Gb entry platforms support both 12 Gb and 6 Gb speeds § Shelf speeds in the external stack must be homogenous 52 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Recommendations Best practices § Provision SAS-3 native homogeneous configurations § Ideal to provision native 12 Gb SAS-3 shelves for all add-on storage within the HA pair § For best performance, provision SAS-3 storage in homogenous stacks within the HA pair § Separate 12 Gb and 6 Gb stacks are permitted within an HA pair, but it is best not to mix speeds within the stack § 12 Gb entry platforms support both 12 Gb and 6 Gb § Shelf speeds in the external stack must be homogenous § Quad Path cabling recommended for large block, 64 k or larger, sequential read workloads § Multipath HA sufficient for other workloads § Upgrade legacy 3 Gb and 6 Gb shelves with IOM 12 for 12 Gb intrastack connectivity § Upgrading to IOM 12 modules enables interoperability with SAS-3 shelves at 12 Gb § Storage stack will operate at 12 Gb, but shelf backplanes will limit individual shelf performance to 6 Gb § 12 Gb drives are not required 53 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb SAS-3 Stack Mixing Rules Maximum stack depth and drive types § HDD shelves support a maximum stack depth of (10) shelves § SSD shelves support a maximum stack depth of (4) shelves § FAS 2600, FAS 2700, AFF A 200, & AFF A 220 support a maximum of (6) SSD-only shelves § Up to 6 shelves for hybrid or mixed storage (SSD+HDD), are supported in same stack § Drives of the same type (e. g. NL-SAS) but different capacity can be mixed in the same shelf § Not recommended to provision in same RAID group § Drives of different types (e. g. NL-SAS and SAS 10 k) can be mixed in the same stack § Cannot be mixed within the same RAID group or aggregate 54 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
6 Gb SAS-3 Stack Mixing Rules Maximum stack depth and drive types § IOM 12 shelf support § New controllers: FAS 2700, FAS 2600, FAS 8200, FAS 9000, AFF A 200, AFF A 300, AFF A 700, and AFF A 700 s § Support mix of IOM 12 shelves in the same stack in ONTAP 9. 1 or later § Legacy controllers: FAS 2200, FAS 2500, FAS 3200, FAS 6200, FAS 8000, and AFF 8000 § Support mix of IOM 12 shelves in the same stack running ONTAP 9. 0 or later § IOM 3 and IOM 6 shelf support § New controllers support mix of IOM 6 shelves in the same stack in ONTAP 9. 1 or later § IOM 3 are not supported § Legacy controllers support mix of IOM 12 based shelves in the same stack running ONTAP 9. 0 or later § Stacks with 3 Gb and 6 Gb shelves will negotiate to the lowest common speed 55 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Alternate Control Path Overview § 12 Gb shelves support in-band ACP (IBACP) with 12 Gb SAS-3 cabling § IBACP is also supported on legacy controllers (9. 0+) and new controllers in (9. 1+) § 6 Gb shelves support both IBACP & out-of-band ACP (OOBACP) § Requires separate Ethernet cabling § OOBACP offered for legacy in 9. 1, 9. 0 and earlier § IBACP requires shelf firmware 2. 09 or later; See KB In. Band ACP setup § Legacy systems with existing IOM 6, require OOBACP to be setup before updating shelf firmware and enabling IBACP § New controllers must have the shelf firmware for IOM 6 updated to 2. 09 prior to attaching storage § 3 Gb shelves support only OOBACP § New controllers do not support IOM 3 as a dedicated ACP port is not present § Supported with legacy systems in 9. 1 and earlier 56 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Shelf Stack Drive Limits - FAS ONTAP 9. x with SAS-3 System Model HDD only stack maximum drives SSD+HDD stack maximum drives All FAS/V-Series systems, except those listed below 240 96 96 FAS 2220 and FAS 2520 84 60 60 FAS 26201 , FAS 27201 1442 FAS 2240 -2, FAS 2240 -4, FAS 2552, FAS 2554, FAS 8020 144 96 144 FAS 2650, FAS 2750 144 144 1. Must not exceed stack depth of 10 including internal shelf 2. Maximum listed when DS 224 C or DS 2246 are attached 57 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---

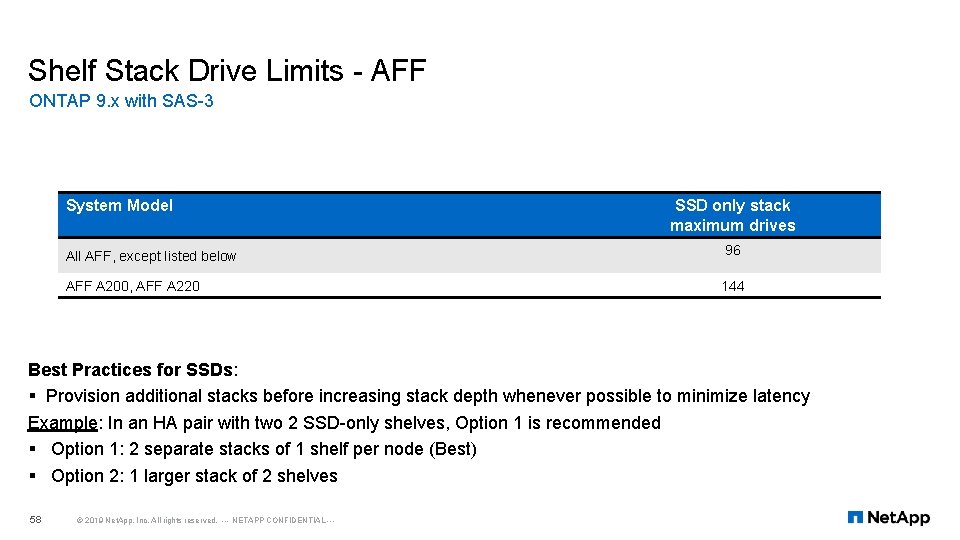

Shelf Stack Drive Limits - AFF ONTAP 9. x with SAS-3 System Model SSD only stack maximum drives All AFF, except listed below 96 AFF A 200, AFF A 220 144 Best Practices for SSDs: § Provision additional stacks before increasing stack depth whenever possible to minimize latency Example: In an HA pair with two 2 SSD-only shelves, Option 1 is recommended § Option 1: 2 separate stacks of 1 shelf per node (Best) § Option 2: 1 larger stack of 2 shelves 58 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
12 Gb Shelf Upgrades Mixing rules § Upgrade option of DS 4243, DS 2246, DS 4246's modules to IOM 12 § Enables 12 Gb transport speed for the data between shelves § Shelf backplane will continue to run at 6 Gb § IOM 12 upgrade procedure is a disruptive operation § System and storage must be powered down to complete swap operation of IOM 3/IOM 6 to IOM 12 § Upgrade Ordering Process § Order one conversation kit per shelf § Refer to slide 21 for details § Drive and Cabling Support for IOM 12 upgrade § All drives installed in DS 4243, DS 4246 and DS 2246 will be supported with IOM 12 modules including 15 K SAS § 5 -year window from first purchase observed for spare replacement entitlements § All legacy platforms running 9. 0 or 9. 1, or new 12 G controllers on 9. 1, are supported § ONTAP 8. x is not supported § Cabling rules follow same guidelines as native SAS-3 - DS 212 C & DS 224 C 59 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
6 Gb Shelf Upgrades Mixing rules § Upgrade option of DS 4243 modules to IOM 6 § Enables 6 Gb transport speed for the data between shelves § Shelf backplane will continue to run at 6 Gb § IOM 6 upgrade procedure is a disruptive operation § System and storage must be powered down to complete swap operation of IOM 3 to IOM 6 § Upgrade Ordering Process § Order one conversation kit per shelf § Refer to slide 21 for details § Drive and Cabling Support for IOM 6 upgrade § All drives installed in DS 4243 shelves will be supported with IOM 6 modules including 15 K SAS § 5 -year window from first purchase observed for spare replacement entitlements § Cabling rules follow same guidelines as native SAS-1 (DS 4243) § Multiple stack transitions between IOM 6 and IOM 3 are permitted with ONTAP 9. 2 P 1 or later 60 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---

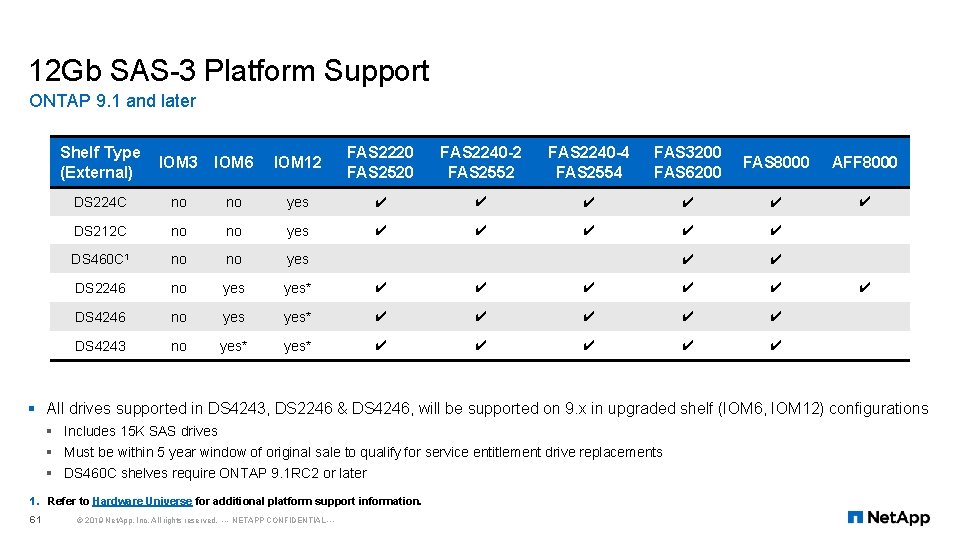

12 Gb SAS-3 Platform Support ONTAP 9. 1 and later Shelf Type (External) IOM 3 IOM 6 IOM 12 FAS 2220 FAS 2520 FAS 2240 -2 FAS 2552 FAS 2240 -4 FAS 2554 FAS 3200 FAS 6200 FAS 8000 AFF 8000 DS 224 C no no yes ✔ ✔ ✔ DS 212 C no no yes ✔ ✔ ✔ DS 460 C 1 no no yes ✔ ✔ DS 2246 no yes yes* ✔ ✔ ✔ ✔ ✔ DS 4243 no yes* ✔ ✔ ✔ § All drives supported in DS 4243, DS 2246 & DS 4246, will be supported on 9. x in upgraded shelf (IOM 6, IOM 12) configurations § Includes 15 K SAS drives § Must be within 5 year window of original sale to qualify for service entitlement drive replacements § DS 460 C shelves require ONTAP 9. 1 RC 2 or later 1. Refer to Hardware Universe for additional platform support information. 61 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Cooling Architecture § PSU blowers provide cooling for power supplies, shelf modules, and drives § Air flows in through disks, then splits between shelf modules and power supplies § Fan speed regulated by Storage Enclosure Services (SES) § SES forces higher or lower fan speeds to provide adequate cooling § ONTAP monitors temperature sensors, power supplies, and fan speeds via SES § One failed fan allowed per storage enclosure § Storage enclosure will run indefinitely with one failed PSU § Blowers continue to operate even if PSU fails § 2 -minute shutdown rule applies during PSU removal and replacement § ONTAP® initiates the shutdown 62 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Power Architecture § Number of power supplies (PSU) is dependent on storage enclosure § DS 212 C: Two PSUs present § Two blowers per PSU § DS 224 C: Two PSUs present § Two blowers per PSU § DS 460 C: Two PSUs present § Blowers are present in a separate field-replaceable unit (FRU) § 4 blowers per FRU § One failed power supply allowed per storage enclosure § Shelf will run indefinitely with single failed PSU § Blowers are powered by the backplane and will continue to run if PSU fails § Leave failed PSU in place until replacement arrives § 2 -minute shutdown rule applies during PSU removal and replacement 63 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Environmental Details Power, thermals, weight, dimensions § For the latest and most complete environmental information, refer to: Hardware Universe (https: //hwu. netapp. com) 64 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
Dimensions, Weight, and Acoustics DS 212 C Metric Rack Units Chassis Height 2 U 8. 7 cm 3. 43 in Width 48. 0 cm 18. 9 in Width (without mounting flanges) 44. 7 cm 17. 6 in Chassis depth 53. 4 cm 21. 02 in Chassis depth (without cable management) 50. 5 cm 19. 88 in Weight (empty) 16. 0 kg 35. 27 lbs Sound power (Lw. Ad) per ISO 9296 65 Imperial © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- 6. 3 bels
Dimensions, Weight, and Acoustics DS 224 C Metric Rack Units Chassis Height 2 U 8. 5 cm 3. 35 in Width 48. 0 cm 18. 9 in Width (without mounting flanges) 44. 7 cm 17. 6 in Chassis depth 61. 3 cm 20. 2 in Chassis depth (without cable management) 51. 3 cm 19. 02 in Weight (empty) 16. 0 kg 35. 27 lbs Sound power (Lw. Ad) per ISO 9296 66 Imperial © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- 6. 9 bels
Dimensions, Weight, and Acoustics DS 460 C Metric Rack Units 4 U Chassis Height 17. 6 cm 6. 93 in Width 48. 6 cm 19. 13 in Width (without mounting flanges) 44. 9 cm 17. 68 in Chassis depth 92. 2 cm 36. 3 in Chassis depth (without cable management) 85. 9 cm 33. 82 in Weight 61. 0 kg 134. 48 lbs Sound power (Lw. Ad) per ISO 9296 67 Imperial © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- 5. 0 bels
Certification Information EMI certifications 68 Type Country Test Standards Safety Emission Immunity Environmental U. S. CAN EU 60950 -1 CAN/CSA-22 -2 NO. 60950 -1 EN 60950 -1 FCC part 15, Subpart B, Class A ICES-003 EN 55022, Class A CISPR 22 EN 61000 -3 -3 N/A EN 55024 EN 61000 -4 -2 EN 61000 -4 -3 EN 61000 -4 -4 EN 61000 -4 -5 EN 61000 -4 -6 EN 61000 -4 -11 ASHRAE A 4 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL --- Notes Equivalent to UL 60950 FCC Class A minimum Emission of ITE AC Line Harmonic AC Line Flicker Immunity of ITE ESD RF Fast Transient Surge Conducted Line Dip/ Interrupt Compliant
Thank You. 69 © 2019 Net. App, Inc. All rights reserved. --- NETAPP CONFIDENTIAL ---
