11 2 Areas of Regular Polygons Geometry Find

THEOREM 11. 3 AREA OF AN EQUILATERAL TRIANGLE The area of an equilateral triangle

Find the area of the equilateral triangle

Parts of a Polygon • The center of the polygon is the center of

THEOREM 11. 4 AREA OF A REGULAR POLYGON The area of a regular n-gon

Examples 1. Find the area of an equilateral triangle with 10 cm sides. 2.

Central Angle of a Regular Polygon A central angle of a regular polygon is

When would we need to know the central angle? • Finding the side length

Examples 1. Find the area of a regular hexagon with each side 5. 2.

Let’s take a look at a couple of regular polygons POLYGON QUADRILATERAL PENTAGON HEXAGON

Other Regular Polygons We will have to use trig to find the missing sides

Find the Area of a Regular Dodecagon The enclosure on the floor underneath the

Example The bottom of a glass is a regular 12 -gon with a side

Slides: 26

Download presentation

11. 2 Areas of Regular Polygons Geometry

Find the area of the triangle below

What if the sides were variables?

THEOREM 11. 3 AREA OF AN EQUILATERAL TRIANGLE The area of an equilateral triangle is one fourth the square of the length of the side times square root of 3.

Find the area of the equilateral triangle

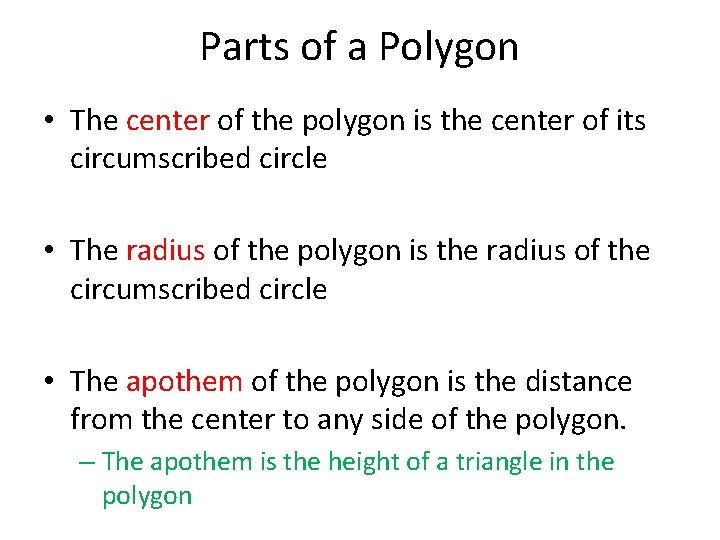

Parts of a Polygon • The center of the polygon is the center of its circumscribed circle • The radius of the polygon is the radius of the circumscribed circle • The apothem of the polygon is the distance from the center to any side of the polygon. – The apothem is the height of a triangle in the polygon

Finding the Area of a Regular Polygon

THEOREM 11. 4 AREA OF A REGULAR POLYGON The area of a regular n-gon with side length s is half the product of the apothem a and the perimeter P: A = (1/2)a. P A = (1/2)a · ns

Find the area of the regular polygons

Examples 1. Find the area of an equilateral triangle with 10 cm sides. 2. Find the area of a regular nonagon with each side being 8 and the apothem equal to 4. 77

Central Angle of a Regular Polygon A central angle of a regular polygon is an angle whose vertex is the center. You can divide 360 by the number of sides to find the measure of each central angle of the polygon.

Find the Central Angle

When would we need to know the central angle? • Finding the side length of the regular polygon • Finding the apothem of the regular polygon

REGULAR QUADRILATERAL SQUARE

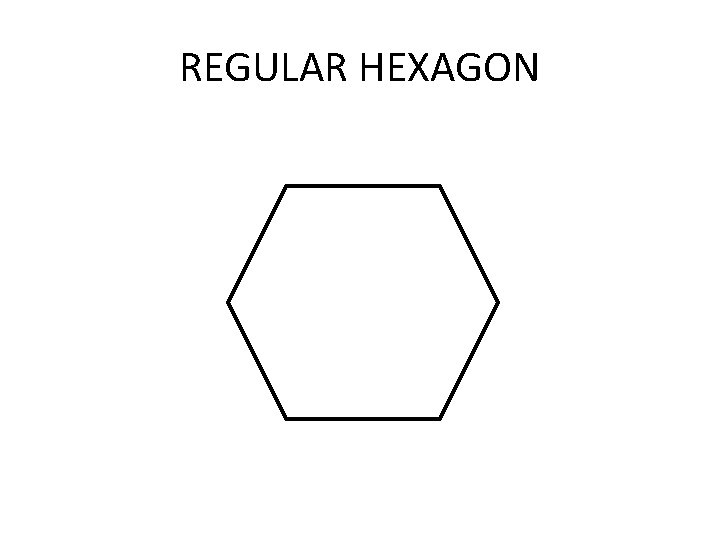

REGULAR HEXAGON

Examples •

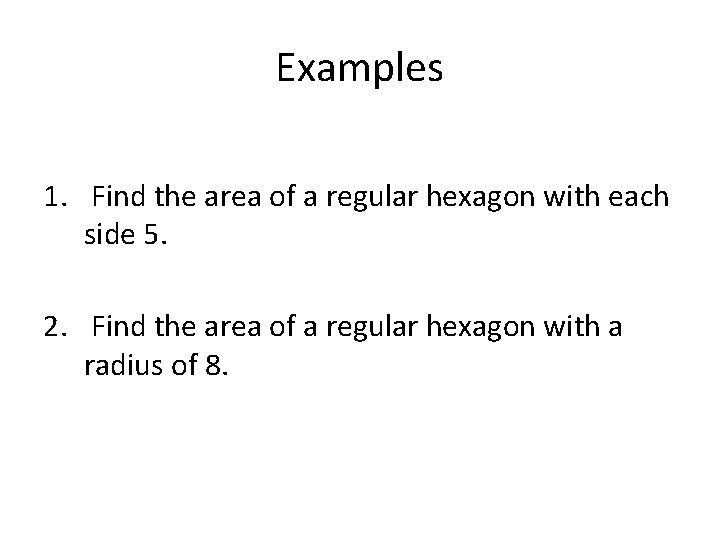

Examples 1. Find the area of a regular hexagon with each side 5. 2. Find the area of a regular hexagon with a radius of 8.

Let’s take a look at a couple of regular polygons POLYGON QUADRILATERAL PENTAGON HEXAGON HEPTAGON # OF SIDES CENTRAL ANGLE BASE ANGLES

What about other regular polygons?

Other Regular Polygons We will have to use trig to find the missing sides of other regular polygons. 1. Find the central angle 2. Draw in the apothem to make a right triangle 3. Divide the central angle by 2 to get the angle in the right triangle 4. Set up a trig function to find the missing sides.

Find the area of the Regular Pentagon

Find the area of the regular octagon

Find the Area of a Regular Dodecagon The enclosure on the floor underneath the Foucault Pendulum at Houston Museum of Natural Sciences in Houston, Texas, is a regular dodecagon with a side length of about 4. 3 feet and a radius of about 8. 3 feet. What is the floor area of the enclosure?

Example The bottom of a glass is a regular 12 -gon with a side length of about 1. 2 cm and a radius of 2. 3 cm. What is the area of the bottom of the glass?
