1090 8 WOLAMDONG DALSEOGU DAEGU CITY KOREA TEL

1090 -8, WOLAMDONG, DALSEOGU, DAEGU CITY, KOREA TEL. 82 -53 -588 -8865 FAX. 82 -53 -588 -9397 http: //www. sinsungeng. co. kr E-mail : nova@sinsungeng. co. kr

Quality Management System

주 거래처 REMY KOREA DELCOREMY DAC DAEGU PLANT SINSUNG ENGINEERING DONGYANG MOTONIC DAEGUPLANT MOTONIC DAEGU

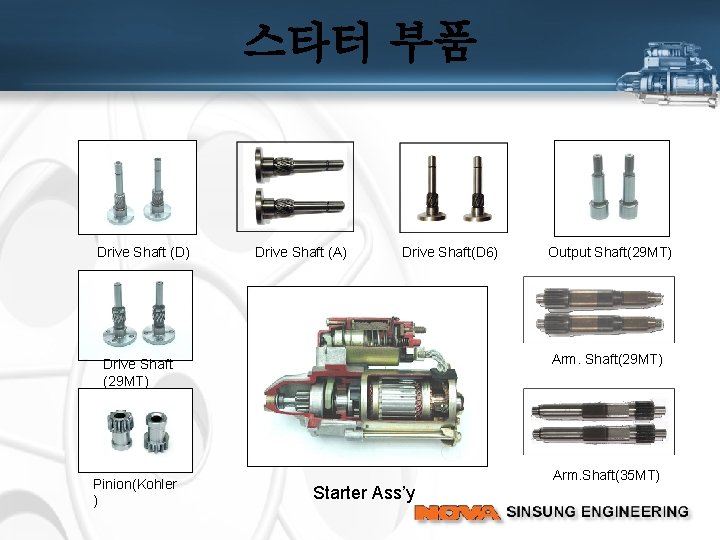

스타터 부품 Drive Shaft (D) Drive Shaft (A) Drive Shaft(D 6) Arm. Shaft(29 MT) Drive Shaft (29 MT) Pinion(Kohler ) Output Shaft(29 MT) Starter Ass’y Arm. Shaft(35 MT)

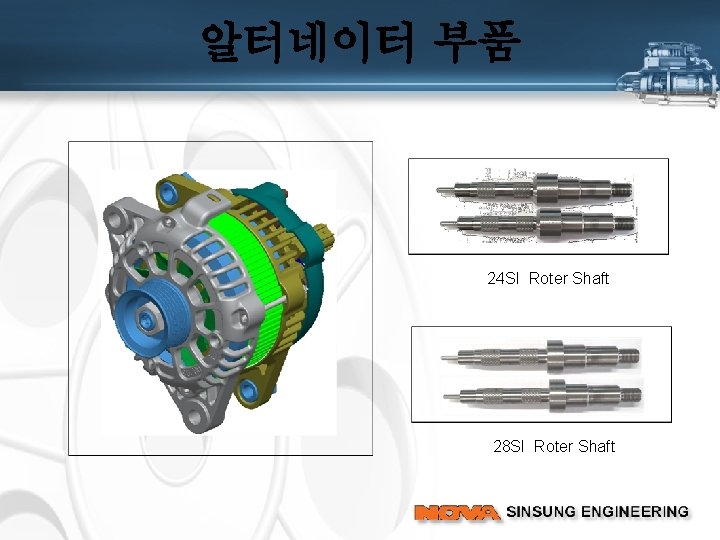

알터네이터 부품 24 SI Roter Shaft 28 SI Roter Shaft

멀티밸브 부품 Multi Valve Housing Ass’y Multi Valve Housing

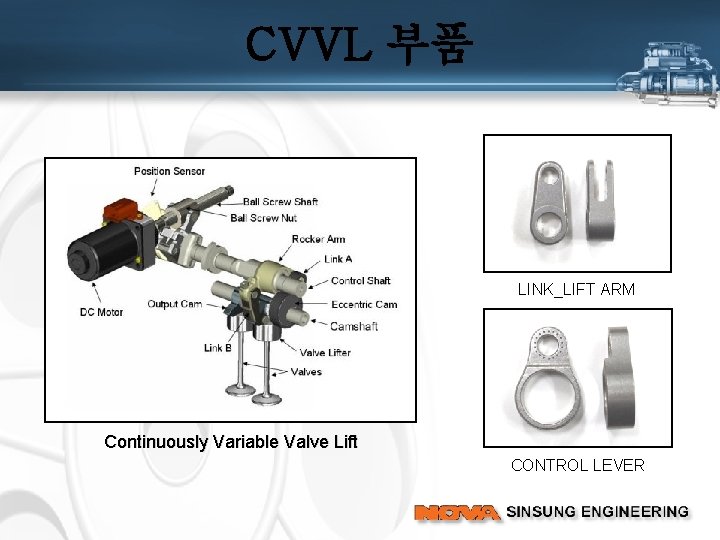

CVVL 부품 LINK_LIFT ARM Continuously Variable Valve Lift CONTROL LEVER

드라이브 샤프트 ▶ Model : PG 260 D & D 6, PG 260 A 29 MT, 35 MT etc ▶ Material : SWCH 45 K, SCM 420 H ▶ Process : Forming, Turning Spline Rolling Induction Hardening (Carburizing , Pin Hole) Centerless Grinding ▶ Capacity : 8, 000 pcs/year

아마츄어 샤프트 ▶ Model : 29 MT, 35 MT ▶ Material : SWCH 45 K ▶ Process : Forming, Turning Gear Hobbing Knurling Induction Hardening Grinding ▶ Capacity : 400, 000 pcs/year

로터 샤프트 ▶ Model : 24 SI, 28 SI ▶ Material : SWCH 45 K, SCM 420 H ▶ Process : Forming, Turning, Spline Rolling Induction Hardening , (Caburizing) Centerless Grinding ▶ Capacity : 8, 000 pcs/year

아웃풋 샤프트 ▶ Model : 29 MT, 35 MT ▶ Material : SCM 415 H ▶ Process : Forming, Turning Spline Rolling Carburizing Grinding ▶ Capacity : 400, 000 pcs/year

로터 샤프트 ▶ Model : 24 SI, 28 SI ▶ Material : SWCH 45 K ▶ Process : Forming Turning Milling Knurling Centerless Grinding ▶ Capacity : 500, 000 pcs/year

피니언 ▶ Model : Kohler, ▶ Material : AISI 10 B 21 ▶ Process : Forging Turning Carburizing Grinding ▶ Capacity : 400, 000 pcs/year

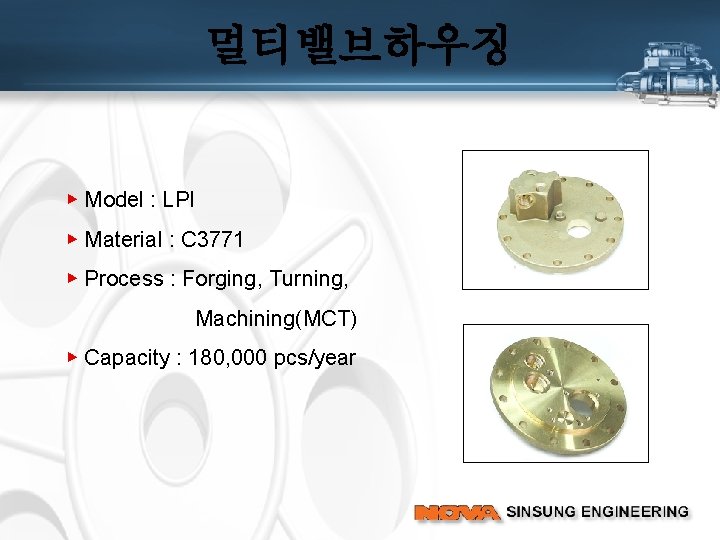

멀티밸브하우징 ▶ Model : LPI ▶ Material : C 3771 ▶ Process : Forging, Turning, Machining(MCT) ▶ Capacity : 180, 000 pcs/year

링크 리프트 암, 콘트롤 레버 ▶ Model : NU_CVVL ▶ Material : SMF 4040 M ▶ Process : Sintering, Machining(MCT), Carburizing, Honing ▶ Capacity : 1, 000 pcs/year
