100 Rack Pinion Material Platform Hoists Duty Cycle

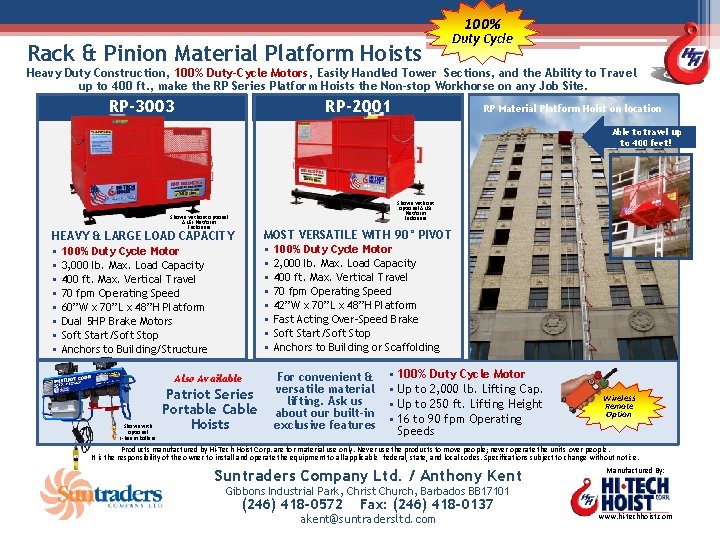

100% Rack & Pinion Material Platform Hoists Duty Cycle Heavy Duty Construction, 100% Duty-Cycle Motors, Easily Handled Tower Sections, and the Ability to Travel up to 400 ft. , make the RP Series Platform Hoists the Non-stop Workhorse on any Job Site. RP-2001 RP-3003 RP-1000 RP Material Platform Hoist on location Able to travel up to 400 feet! Shown without optional ANSI Platform Enclosure MOST VERSATILE WITH 90° PIVOT • 100% Duty Cycle Motor • 2, 000 lb. Max. Load Capacity • 400 ft. Max. Vertical Travel • 70 fpm Operating Speed • 42”W x 70”L x 48”H Platform • Fast Acting Over-Speed Brake • Soft Start/Soft Stop • Anchors to Building or Scaffolding HEAVY & LARGE LOAD CAPACITY • 100% Duty Cycle Motor • 3, 000 lb. Max. Load Capacity • 400 ft. Max. Vertical Travel • 70 fpm Operating Speed • 60”W x 70”L x 48”H Platform • Dual 5 HP Brake Motors • Soft Start/Soft Stop • Anchors to Building/Structure Also Available Shown with optional I-Beam Rollers Patriot Series Portable Cable Hoists For convenient & versatile material lifting. Ask us about our built-in exclusive features • • Shown without optional ANSI Platform Enclosure QUICKEST SMALL LOAD CAPACITY • 100% Duty Cycle Motor • 1, 000 lb. Max. Load Capacity • 400 ft. Max. Vertical Travel • 90 fpm Operating Speed • 31”W x 60”L x 48”H Platform • Fast Acting Over-Speed Brake • Soft Start/Soft Stop • Anchors to Building or Scaffolding 100% Duty Cycle Motor Up to 2, 000 lb. Lifting Cap. Up to 250 ft. Lifting Height 16 to 90 fpm Operating Speeds Wireless Remote Option Products manufactured by Hi-Tech Hoist Corp. are for material use only. Never use the products to move people; never operate the units over people. It is the responsibility of the owner to install and operate the equipment to all applicable federal, state, and local codes. Specifications subject to change without notice. Suntraders Company Ltd. / Anthony Kent Manufactured By: Gibbons Industrial Park, Christ Church, Barbados BB 17101 (246) 418 -0572 Fax: (246) 418 -0137 akent@suntradersltd. com www. hi-techhoist. com

Rack & Pinion Material Platform Hoists RP-3003 HEAVY & LARGE LOAD CAPACITY • • • 3, 000 lb. Max. Load Capacity* 400 ft. Max. Vertical Travel** 70 fpm Operating Speed* 60”W x 70”L x 48”H Clear Platform 230 V / 3 P / 60 Hz / 30 A* 100% Duty Cycle Dual 5 HP Brake Motors Fast Acting Over-Speed Brake Soft Start/Soft Stop ▫ Variable Frequency Drive for Smooth Acceleration & Deceleration RP-2001 MOST VERSATILE WITH 90° Pivot • 2, 000 lb. Max. Load Capacity* • 400 ft. Max. Vertical Travel** • 70 fpm Operating Speed* • 45”W x 70”L x 48”H Clear Platform • 220 V / 1 P / 60 Hz / 30 A* • 100% Duty Cycle • 90° Pivoting Platform ▫ Allows for Multiple Load Configuration • Fast Acting Over-Speed Brake • Soft Start/Soft Stop ▫ Variable Frequency Drive for Smooth • 5’H Tower Sections (Stackable) • Anchors to Building/Structure Acceleration & Deceleration • 5’H Tower Sections (Stackable) • Anchors to Building or Scaffolding ▫ Use Standard anchorage brackets or custom made brackets every 10’-15’. • • • Optional ANSI Enclosures Available Heavy Steel Construction Safety Chains on Access Sides Drop-Down Ramps on Access Sides Extendable Pendant Control Base Unit Weight: 1, 675 lbs. Water Tight Connectors ▫ Use Standard anchorage brackets or custom made brackets every 10’-15’ • • • Heavy Steel Construction Safety Chains on Access Sides Drop-Down Ramps on Access Sides Extendable Pendant Control Base Unit Weight: 1, 440 lbs. Water Tight Connectors MATERIAL USE ONLY – NO RIDERS *Constant voltage is required to prevent damage and to maintain specified lift capacity and speed. **Consult with a structural engineer for heights over 200 ft. or when unsure of required anchoring. Suntraders Company Ltd. / Anthony Kent 100% Duty Cycle Manufactured By: Managing Director, B. Sc (Hons) MBAPE, P. Eng Gibbons Industrial Park, Christ Church, Barbados BB 17101 (246) 418 -0572 Fax: (246) 418 -0137 akent@suntradersltd. com www. hi-techhoist. com Products manufactured by Hi-Tech Hoist Corp. are for material use only. Never use the products to move people; never operate the units over people. It is the responsibility of the owner to install and operate the equipment to all applicable federal, state, and local codes. Specifications subject to change without notice.

Portable Material Cable Hoists & Accessories HTH Portable Cable Hoists offer Rugged Reliability, 100% Duty-Cycle Motors, and a Variety of Mounting Options & Accessories. Built with HTH quality to withstand Harsh Environments while Performing Non-stop on your Job Site. Patriot Series Mounting Options Under-Hook Accessories 100% Duty Cycle Wireless Remote Option Patriot Series Portable Cable Hoist – Shown With Optional I-Beam Rollers • Equipment Basket (PEB) ▫ General use with a drop down gate • Tiltable Bucket (PTB-1) ▫ For small materials & liquids with tilt ability • Material Container (PMC) ▫ Larger platform for large materials & liquids. • Basket Sling • Wheelbarrow Sling • Choker Sling • Spreader Bar • Trestle Monorail System (PT-1) ▫ Stand Alone Unit for mounting your hoist to a roof top or balcony • Scaffold Monorail System (SMM-11) ▫ Provides a means to attach your hoist to a standard 7’ or 8’ scaffold A-Frame • Adjustable I-Beam Rollers ▫ Attachment for a variety of I-Beams Up to 2, 000 lb. Lifting Capacity Up to 250 ft. Lifting Height 16 to 90 fpm Operating Speeds 100% Duty Cycle Motors Variable Frequency Drive Factory Tested Before Shipment Dual Operating Speeds Also Available Rack & Pinion Material Platform RP-3003 shown Hoists without optional ANSI platform enclosure BASKETS, BUCKETS, & SLINGS 3 VERSATILE MOUNTING STYLES POWERFUL PERFORMANCE IN A CONVENIENT PACKAGE • • PEB Equipment Basket Shown Trestle Monorail System (Hoist & Ballast Containers sold separately) Platform hoists come in 3 standard models, with heavy duty construction, and the ability to travel up to 400’ • • • Up to 3, 000 lb. Load Capacity Up to 400 ft. Vertical Travel Height 70 to 90 fpm Operating Speeds 100% Duty Cycle Motors Soft Start/Soft Stop Products manufactured by Hi-Tech Hoist Corp. are for material use only. Never use the products to move people; never operate the units over people. It is the responsibility of the owner to install and operate the equipment to all applicable federal, state, and local codes. Specifications subject to change without notice. Manufactured By: Suntraders Company Ltd. / Anthony Kent Gibbons Industrial Park, Christ Church, Barbados BB 17101 (246) 418 -0572 Fax: (246) 418 -0137 akent@suntradersltd. com www. hi-techhoist. com

100% Portable Material Cable Hoists Duty Cycle Patriot Series 2000 Heavy Load Capacity • • • 2, 000 lb. Max. Lifting Capacity 200 ft. Max. Lifting Height 16 and 50 fpm Dual Speed 3 HP Brake Motor 230 v/1 P/60 Hz or 230 v/3 P/60 Hz ▫ (Additional Options Available) • 100% Duty Cycle Motor • 5/16” Wire Rope Cable Diameter • Quick & Easy Cable Replacement • NEMA-4 Quick Disconnect Control Box • 2 Speed Pendant Control (12’Length Std) • Cycloidal Speed Reducer • Upper Limit Travel Switch • Fail Safe Brake • 35”L x 12”W x 36”D Size • 230 lb. weight • Tough Powder Coat Finish Options: • • • 1, 000 lb. Max. Lifting Capacity 250 ft. Max. Lifting Height 30 and 90 fpm Dual Speed 3 HP Brake Motor 230 v/1 P/60 Hz or 230 v/3 P/60 Hz ▫ (Additional Options Available) Patriot 2000 Portable Cable Hoist – Shown With Optional I-Beam Rollers ▫ Cable Assembly: (50’, 100’, 150’, or 200’) ▫ Pendant Control Extensions: (50’, 100’, 150’, or 200’) ss Wirele m o d Free ls Mode Patriot Series 1000 Medium Load Capacity MATERIAL USE ONLY • 100% Duty Cycle Motor • 1/4” Wire Rope Cable Diameter • Quick & Easy Cable Replacement • NEMA-4 Quick Disconnect Control Box • Variable Frequency Drive • 2 Speed Pendant Control (12’Length Std) • Cycloidal Speed Reducer • Upper Limit Travel Switch • Fail Safe Brake • 35”L x 12”W x 36”D Size • 215 lb. weight • Tough Powder Coat Finish Options: Patriot 1000 Portable Cable Hoist – Shown With Optional Trestle Monorail Mount System ▫ Cable Assembly: (50’, 100’, 150’, 200’, or 250’) ▫ Pendant Control Extensions: (50’, 100’, 150’, 200’, or 250’) MATERIAL USE ONLY *Constant voltage is required to prevent damage and to maintain specified lift capacity and speed. Products manufactured by Hi-Tech Hoist Corp. are for material use only. Never use the products to move people; never operate the units over people. It is the responsibility of the owner to install and operate the equipment to all applicable federal, state, and local codes. Specifications subject to change without notice. Suntraders Company Ltd. / Anthony Kent Managing Director, B. Sc (Hons) MBAPE, P. Eng Many Option Availa s ble Manufactured By: Gibbons Industrial Park, Christ Church, Barbados BB 17101 (246) 418 -0572 Fax: (246) 418 -0137 akent@suntradersltd. com www. hi-techhoist. com
