10 Zone Digital IP Amplifier with BGMZone Paging

10 Zone Digital IP Amplifier with BGM/Zone Paging Standby Controller IP-8000 MC × 6 Ceiling Speaker System Server with Software IP-8000 SF With Weekly Schedule Timer × 6 Ceiling Speaker × 6 Ceiling Speaker Remote Microphone IP-8000 RM × 6 Ceiling Speaker

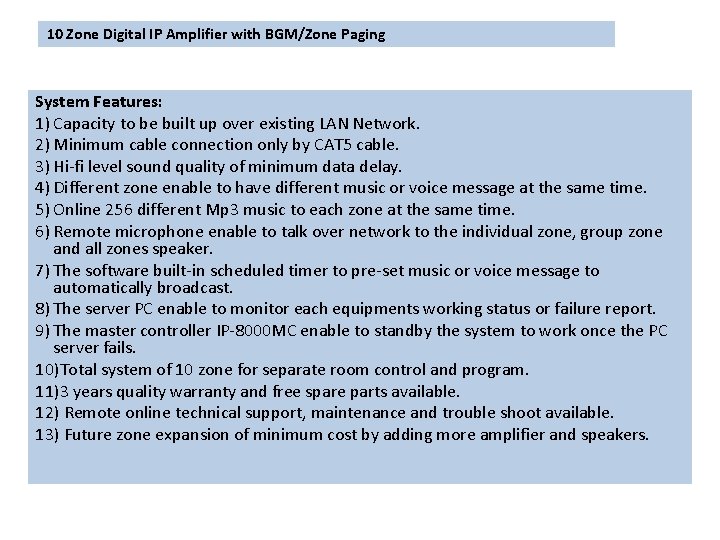

10 Zone Digital IP Amplifier with BGM/Zone Paging System Features: 1) Capacity to be built up over existing LAN Network. 2) Minimum cable connection only by CAT 5 cable. 3) Hi-fi level sound quality of minimum data delay. 4) Different zone enable to have different music or voice message at the same time. 5) Online 256 different Mp 3 music to each zone at the same time. 6) Remote microphone enable to talk over network to the individual zone, group zone and all zones speaker. 7) The software built-in scheduled timer to pre-set music or voice message to automatically broadcast. 8) The server PC enable to monitor each equipments working status or failure report. 9) The master controller IP-8000 MC enable to standby the system to work once the PC server fails. 10)Total system of 10 zone for separate room control and program. 11)3 years quality warranty and free spare parts available. 12) Remote online technical support, maintenance and trouble shoot available. 13) Future zone expansion of minimum cost by adding more amplifier and speakers.

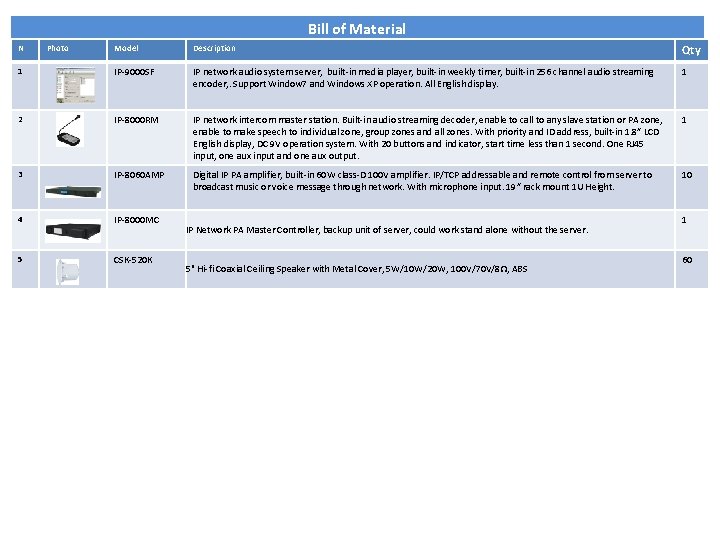

Bill of Material Model Description Qty 1 IP-9000 SF IP network audio system server, built-in media player, built-in weekly timer, built-in 256 channel audio streaming encoder, . Support Window 7 and Windows XP operation. All English display. 1 2 IP-8000 RM IP network intercom master station. Built-in audio streaming decoder, enable to call to any slave station or PA zone, enable to make speech to individual zone, group zones and all zones. With priority and ID address, built-in 1. 8” LCD English display, DC 9 V operation system. With 20 buttons and indicator, start time less than 1 second. One RJ 45 input, one aux input and one aux output. 1 3 IP-8060 AMP Digital IP PA amplifier, built-in 60 W class-D 100 V amplifier. IP/TCP addressable and remote control from server to broadcast music or voice message through network. With microphone input. 19” rack mount 1 U Height. 10 4 IP-8000 MC 5 CSK-520 K N Photo IP Network PA Master Controller, backup unit of server, could work stand alone without the server. 5" Hi-fi Coaxial Ceiling Speaker with Metal Cover, 5 W/10 W/20 W, 100 V/70 V/8Ω, ABS 1 60
