10 Reflection ST Reflection Birdseye view Reflection allows
10. Reflection

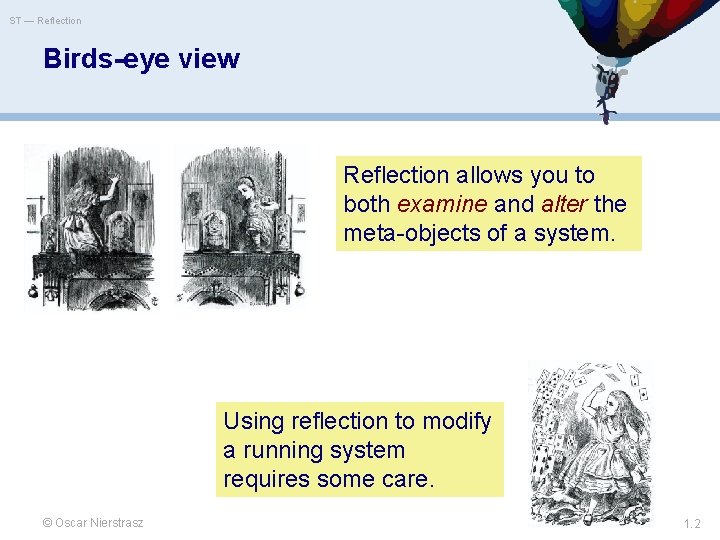

ST — Reflection Birds-eye view Reflection allows you to both examine and alter the meta-objects of a system. Using reflection to modify a running system requires some care. © Oscar Nierstrasz 1. 2
ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 3
ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 4
ST — Reflection Why we need reflection As a programming language becomes higher and higher level, its implementation in terms of underlying machine involves more and more tradeoffs, on the part of the implementor, about what cases to optimize at the expense of what other cases. … the ability to cleanly integrate something outside of the language’s scope becomes more and more limited Kiczales, in Paepcke 1993 © Oscar Nierstrasz 10. 5

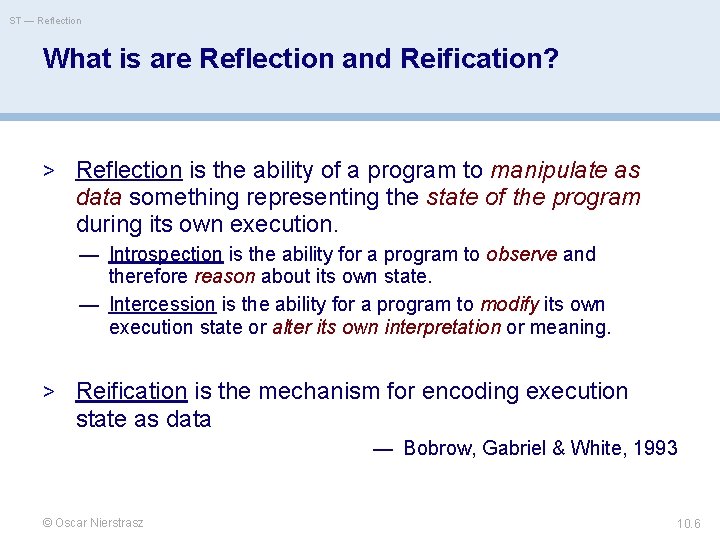

ST — Reflection What is are Reflection and Reification? > Reflection is the ability of a program to manipulate as data something representing the state of the program during its own execution. — Introspection is the ability for a program to observe and therefore reason about its own state. — Intercession is the ability for a program to modify its own execution state or alter its own interpretation or meaning. > Reification is the mechanism for encoding execution state as data — Bobrow, Gabriel & White, 1993 © Oscar Nierstrasz 10. 6

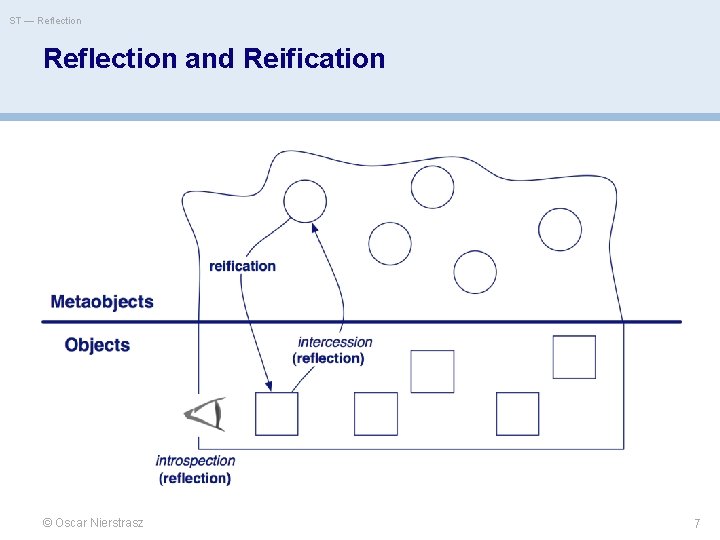

ST — Reflection and Reification © Oscar Nierstrasz 7

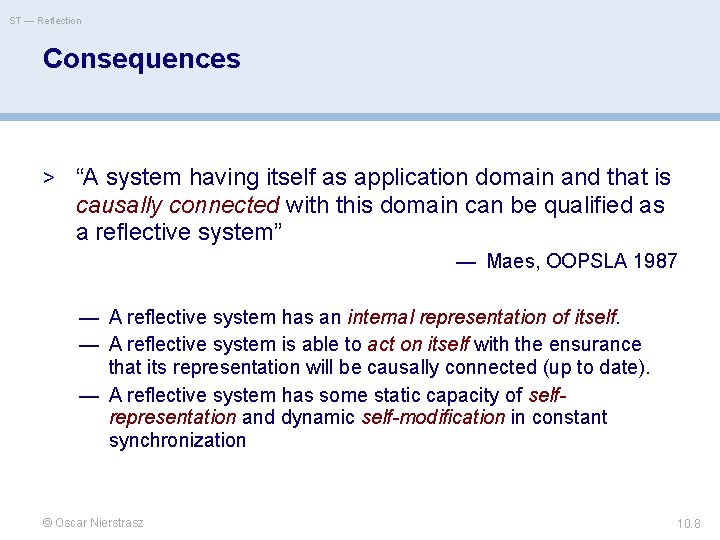

ST — Reflection Consequences > “A system having itself as application domain and that is causally connected with this domain can be qualified as a reflective system” — Maes, OOPSLA 1987 — A reflective system has an internal representation of itself. — A reflective system is able to act on itself with the ensurance that its representation will be causally connected (up to date). — A reflective system has some static capacity of selfrepresentation and dynamic self-modification in constant synchronization © Oscar Nierstrasz 10. 8
ST — Reflection Metaprogramming in Programming Languages > The meta-language and the language can be different: — Scheme and an OO language > The meta-language and the language can be same: — Smalltalk, CLOS — In such a case this is a metacircular architecture © Oscar Nierstrasz 10. 9
ST — Reflection Structural and behavioral reflection > Structural reflection is concerned with the ability of the language to provide a complete reification of both — the program currently executed — as well as its abstract data types. > Behavioral reflection is concerned with the ability of the language to provide a complete reification of — its own semantics and implementation (processor) — as well as the data and implementation of the run-time system. Malenfant et al. , A Tutorial on Behavioral Reflection and its Implementation, 1996 © Oscar Nierstrasz 10. 10
ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 11
ST — Reflection The Essence of a Class 1. A format — I. e. , a number of instance variables and types 2. A superclass 3. A method dictionary © Oscar Nierstrasz 10. 12

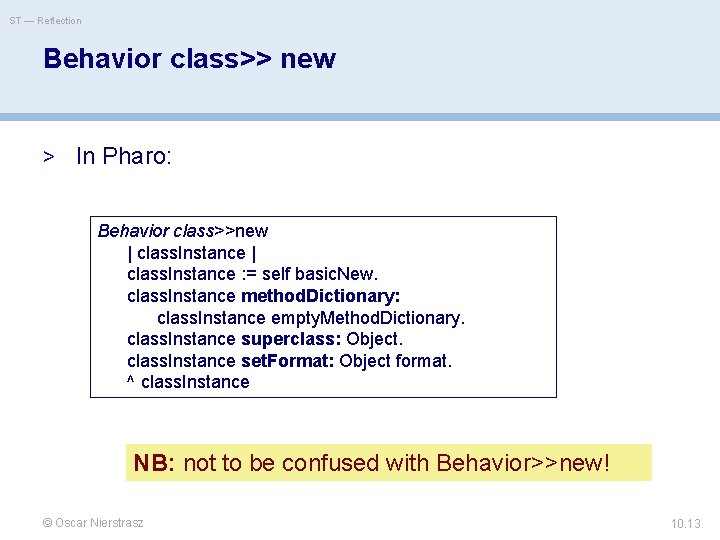

ST — Reflection Behavior class>> new > In Pharo: Behavior class>>new | class. Instance : = self basic. New. class. Instance method. Dictionary: class. Instance empty. Method. Dictionary. class. Instance superclass: Object. class. Instance set. Format: Object format. ^ class. Instance NB: not to be confused with Behavior>>new! © Oscar Nierstrasz 10. 13
ST — Reflection The Essence of an Object 1. Class pointer 2. Values > Can be special: — Small. Integer — Indexed rather than pointer values — Compact classes (Compiled. Method, Array …) © Oscar Nierstrasz 10. 14

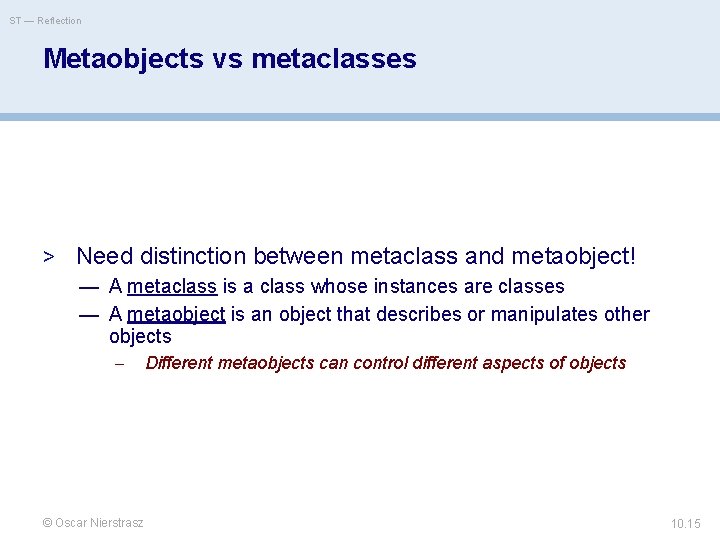

ST — Reflection Metaobjects vs metaclasses > Need distinction between metaclass and metaobject! — A metaclass is a class whose instances are classes — A metaobject is an object that describes or manipulates other objects – © Oscar Nierstrasz Different metaobjects can control different aspects of objects 10. 15

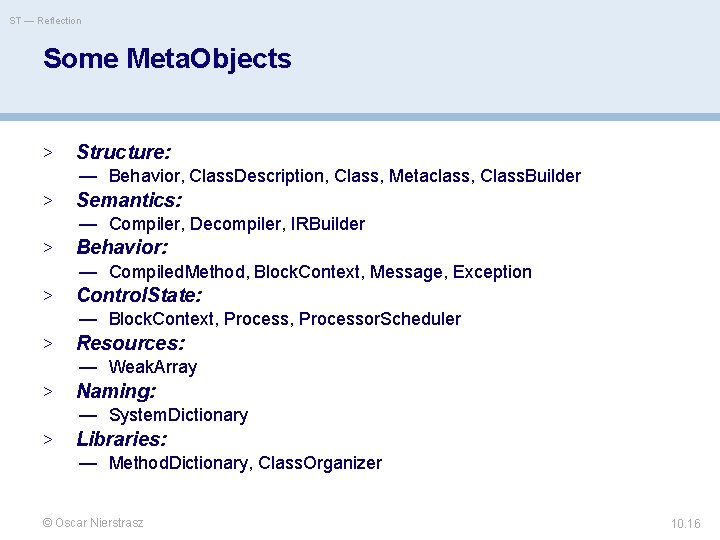

ST — Reflection Some Meta. Objects > Structure: — Behavior, Class. Description, Class, Metaclass, Class. Builder > Semantics: — Compiler, Decompiler, IRBuilder > Behavior: — Compiled. Method, Block. Context, Message, Exception > Control. State: — Block. Context, Processor. Scheduler > Resources: — Weak. Array > Naming: — System. Dictionary > Libraries: — Method. Dictionary, Class. Organizer © Oscar Nierstrasz 10. 16
ST — Reflection Meta-Operations “Meta-operations are operations that provide information about an object as opposed to information directly contained by the object. . . They permit things to be done that are not normally possible” Inside Smalltalk © Oscar Nierstrasz 10. 17

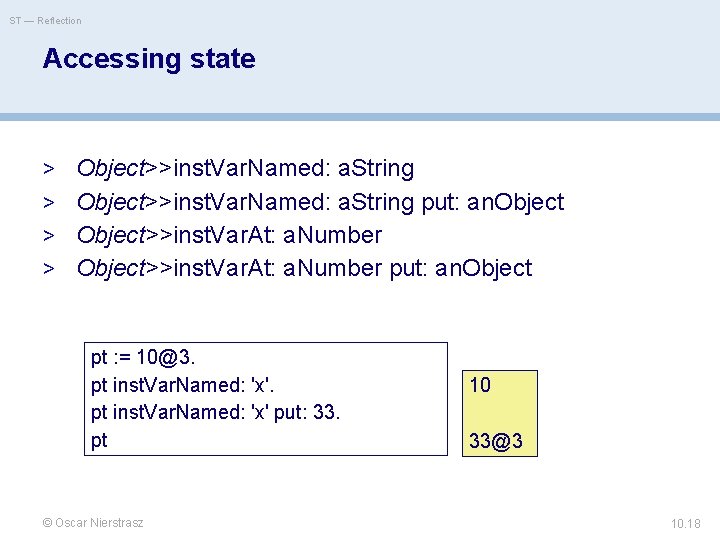

ST — Reflection Accessing state > Object>>inst. Var. Named: a. String put: an. Object > Object>>inst. Var. At: a. Number put: an. Object pt : = 10@3. pt inst. Var. Named: 'x' put: 33. pt © Oscar Nierstrasz 10 33@3 10. 18
ST — Reflection Accessing meta-information > Object>>class > Object>>identity. Hash 'hello' class (10@3) class Smalltalk class Class class Byte. String Point System. Dictionary Class class Metaclass 'hello' identity. Hash Object identity. Hash 5 identity. Hash 2664 2274 5 © Oscar Nierstrasz 10. 19
ST — Reflection Changes > Object>>primitive. Change. Class. To: an. Object — both classes should have the same format, i. e. , the same physical structure of their instances – “Not for casual use” > Object>>become: another. Object — Swap the object pointers of the receiver and the argument. — All variables in the entire system that used to point to the receiver now point to the argument, and vice-versa. — Fails if either object is a Small. Integer > Object>>become. Forward: another. Object — Like become: but only in one direction. © Oscar Nierstrasz 10. 20

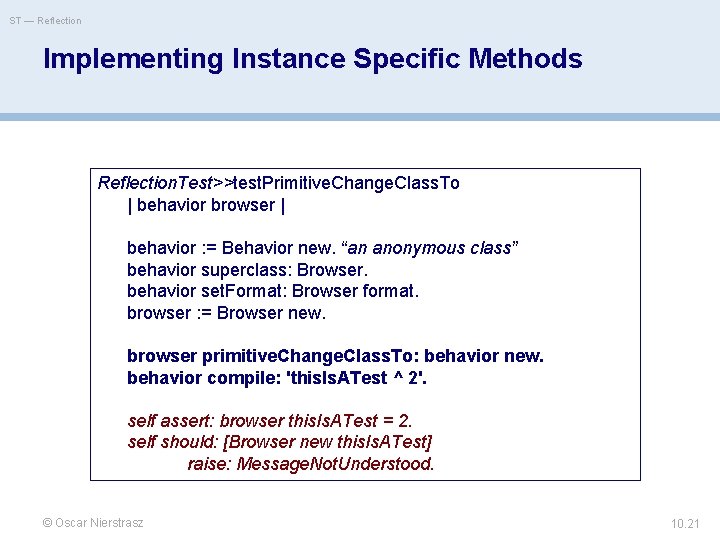

ST — Reflection Implementing Instance Specific Methods Reflection. Test>>test. Primitive. Change. Class. To | behavior browser | behavior : = Behavior new. “an anonymous class” behavior superclass: Browser. behavior set. Format: Browser format. browser : = Browser new. browser primitive. Change. Class. To: behavior new. behavior compile: 'this. Is. ATest ^ 2'. self assert: browser this. Is. ATest = 2. self should: [Browser new this. Is. ATest] raise: Message. Not. Understood. © Oscar Nierstrasz 10. 21
ST — Reflection become: > Swap all the pointers from one object to the other and back (symmetric) Reflection. Test>>test. Become | pt 1 pt 2 pt 3 | pt 1 : = 0@0. pt 2 : = pt 1. pt 3 : = 100@100. pt 1 become: pt 3. self assert: pt 1 = (100@100). self assert: pt 1 == pt 2. self assert: pt 3 = (0@0). © Oscar Nierstrasz 10. 22

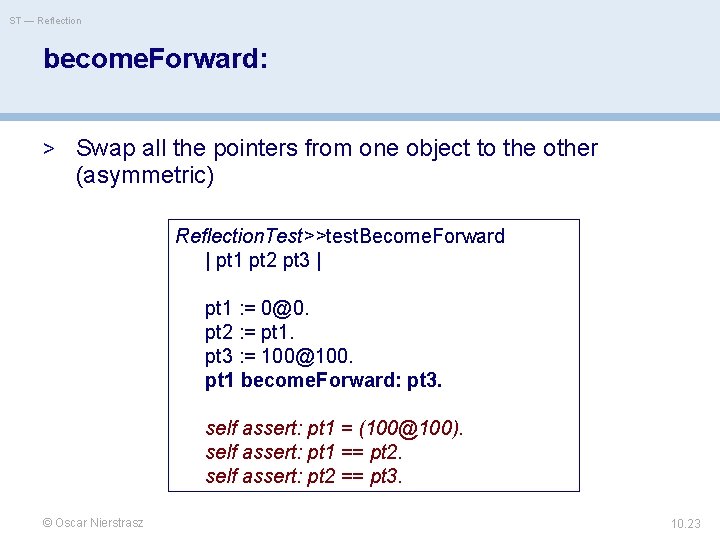

ST — Reflection become. Forward: > Swap all the pointers from one object to the other (asymmetric) Reflection. Test>>test. Become. Forward | pt 1 pt 2 pt 3 | pt 1 : = 0@0. pt 2 : = pt 1. pt 3 : = 100@100. pt 1 become. Forward: pt 3. self assert: pt 1 = (100@100). self assert: pt 1 == pt 2. self assert: pt 2 == pt 3. © Oscar Nierstrasz 10. 23
ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 24
ST — Reflection Code metrics Collection all. Superclasses size. Collection all. Selectors size. Collection all. Inst. Var. Names size. Collection selectors size. Collection inst. Var. Names size. Collection subclasses size. Collection all. Subclasses size. Collection lines. Of. Code. © Oscar Nierstrasz 2 610 0 163 0 9 101 864 25

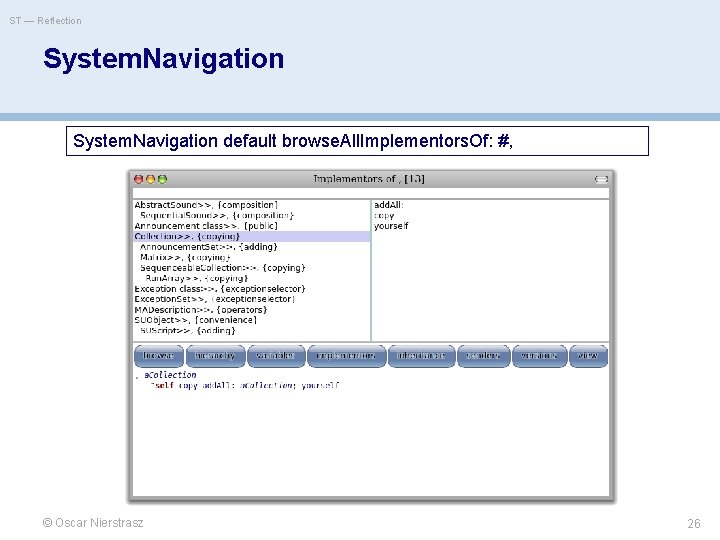

ST — Reflection System. Navigation default browse. All. Implementors. Of: #, © Oscar Nierstrasz 26
ST — Reflection Recap: Classes are objects too > Object — Root of inheritance — Default Behavior — Minimal Behavior > Behavior — Essence of a class — Anonymous class — Format, method. Dict, superclass > Class. Description — Human representation and organization > Metaclass — Sole instance © Oscar Nierstrasz 10. 27
ST — Reflection Classes are Holders of Compiled. Methods © Oscar Nierstrasz 10. 28
ST — Reflection Invoking a message by its name Object>>perform: a. Symbol with: arg > Asks an object to execute a message — Normal method lookup is performed 5 factorial 5 perform: #factorial © Oscar Nierstrasz 120 10. 29
ST — Reflection Executing a compiled method Compiled. Method>>value. With. Receiver: arguments: > No lookup is performed! (Small. Integer>>#factorial) value. With. Receiver: 5 arguments: #() Error: key not found © Oscar Nierstrasz (Integer>>#factorial) value. With. Receiver: 5 arguments: #() 120 10. 30
ST — Reflection Method. Reference © Oscar Nierstrasz 31

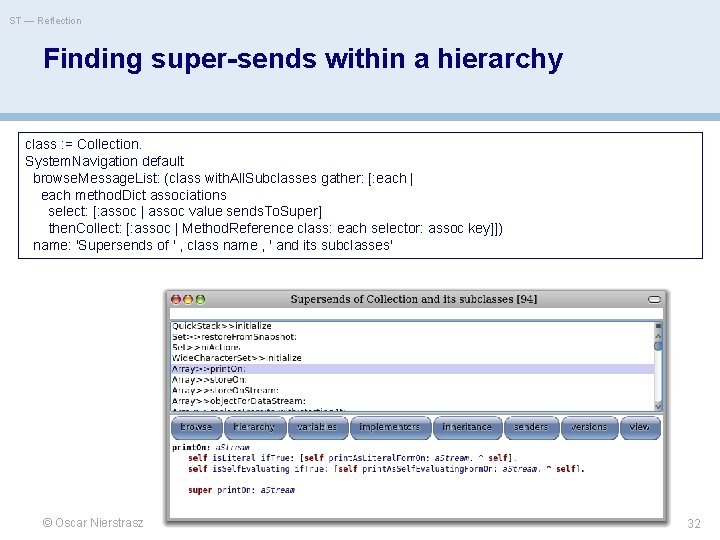

ST — Reflection Finding super-sends within a hierarchy class : = Collection. System. Navigation default browse. Message. List: (class with. All. Subclasses gather: [: each | each method. Dict associations select: [: assoc | assoc value sends. To. Super] then. Collect: [: assoc | Method. Reference class: each selector: assoc key]]) name: 'Supersends of ' , class name , ' and its subclasses' © Oscar Nierstrasz 32
ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 33
ST — Reflection Accessing the run-time stack > The execution stack can be reified and manipulated on demand — this. Context is a pseudo-variable which gives access to the stack © Oscar Nierstrasz 10. 34

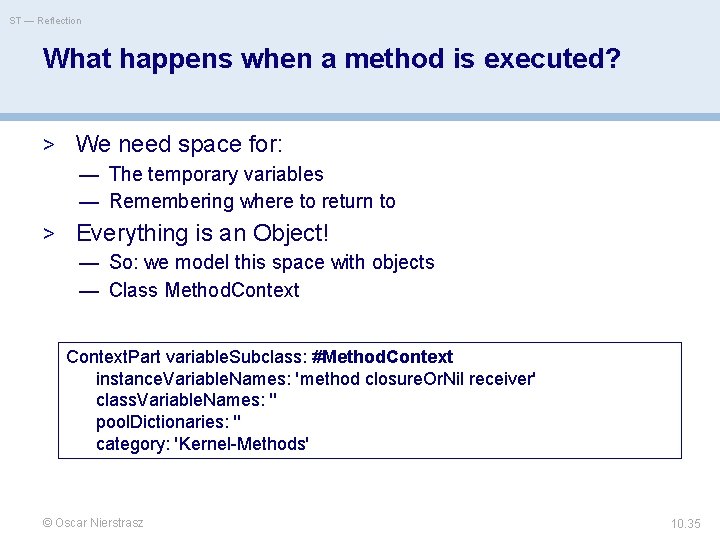

ST — Reflection What happens when a method is executed? > We need space for: — The temporary variables — Remembering where to return to > Everything is an Object! — So: we model this space with objects — Class Method. Context. Part variable. Subclass: #Method. Context instance. Variable. Names: 'method closure. Or. Nil receiver' class. Variable. Names: '' pool. Dictionaries: '' category: 'Kernel-Methods' © Oscar Nierstrasz 10. 35
ST — Reflection Method. Context > Method. Context holds all state associated with the execution of a Compiled. Method — Program Counter (pc, from Context. Part) — the Method itself (method) — Receiver (receiver) and the Sender (sender) > The sender is the previous Method. Context — (or Block. Context) — The chain of senders is a stack — It grows and shrinks on activation and return © Oscar Nierstrasz 10. 36
ST — Reflection Contextual halting > You can’t put a halt in methods that are called often — e. g. , Ordered. Collection>>add: — Idea: only halt if called from a method with a certain name Halt. Demo>>halt. If: a. Selector | context : = this. Context. [context sender is. Nil] while. False: [context : = context sender. (context selector = a. Selector) if. True: [ Halt signal ] ]. NB: Object>>halt. If: in Pharo is similar © Oscar Nierstrasz 10. 37
ST — Reflection Halt. Demo>>foo self halt. If: #bar. ^ 'foo' Halt. Demo>>bar ^ (self foo), 'bar' Halt. Demo new foo 'foo' Halt. Demo new bar © Oscar Nierstrasz 10. 38

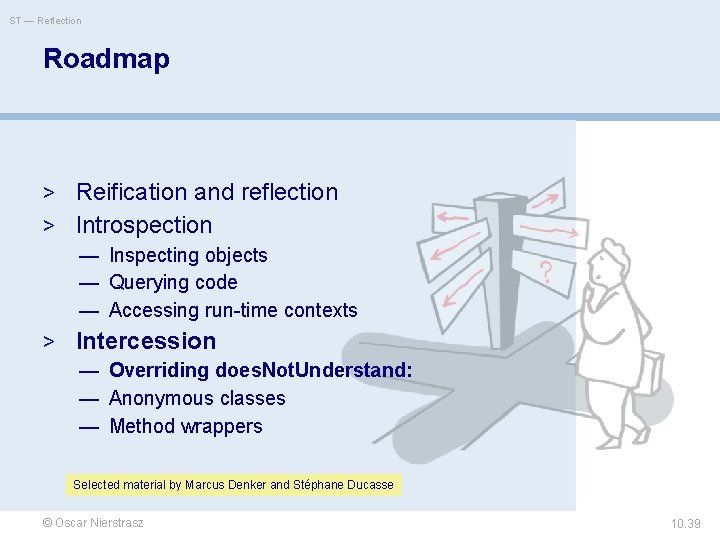

ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 39

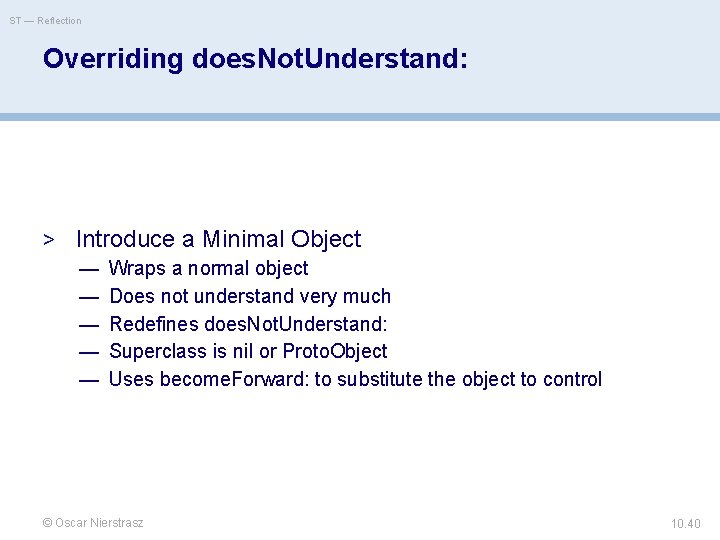

ST — Reflection Overriding does. Not. Understand: > Introduce a Minimal Object — Wraps a normal object — Does not understand very much — Redefines does. Not. Understand: — Superclass is nil or Proto. Object — Uses become. Forward: to substitute the object to control © Oscar Nierstrasz 10. 40
ST — Reflection Minimal Object at Work © Oscar Nierstrasz 10. 41

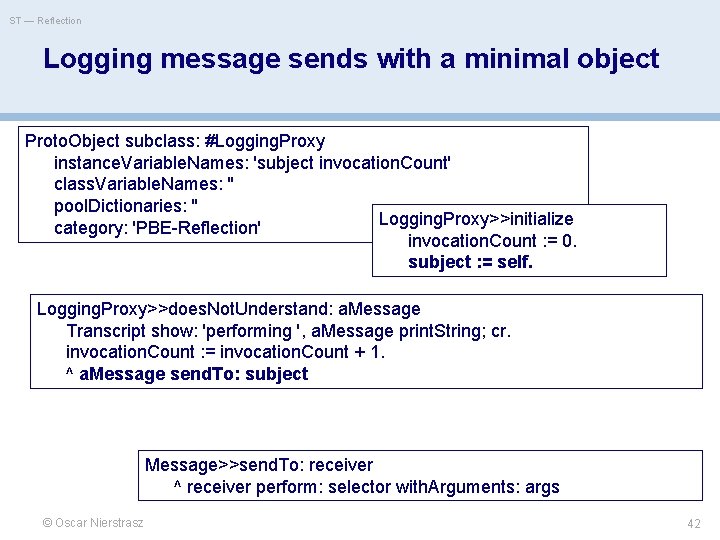

ST — Reflection Logging message sends with a minimal object Proto. Object subclass: #Logging. Proxy instance. Variable. Names: 'subject invocation. Count' class. Variable. Names: '' pool. Dictionaries: '' Logging. Proxy>>initialize category: 'PBE-Reflection' invocation. Count : = 0. subject : = self. Logging. Proxy>>does. Not. Understand: a. Message Transcript show: 'performing ', a. Message print. String; cr. invocation. Count : = invocation. Count + 1. ^ a. Message send. To: subject Message>>send. To: receiver ^ receiver perform: selector with. Arguments: args © Oscar Nierstrasz 42

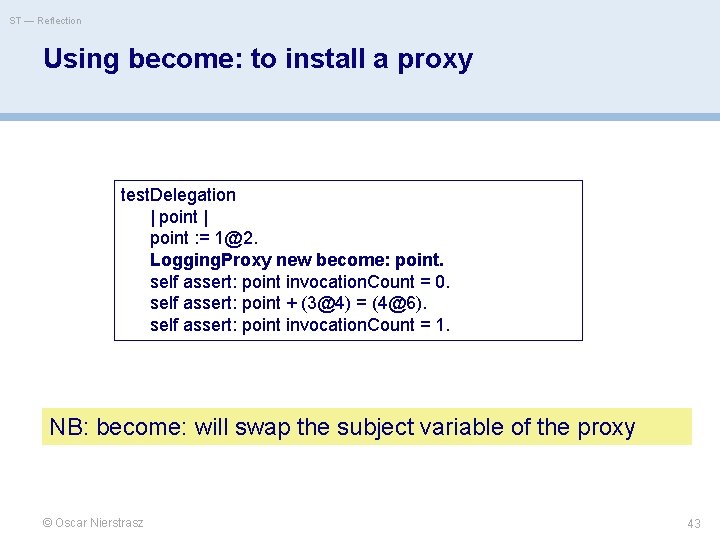

ST — Reflection Using become: to install a proxy test. Delegation | point : = 1@2. Logging. Proxy new become: point. self assert: point invocation. Count = 0. self assert: point + (3@4) = (4@6). self assert: point invocation. Count = 1. NB: become: will swap the subject variable of the proxy © Oscar Nierstrasz 43

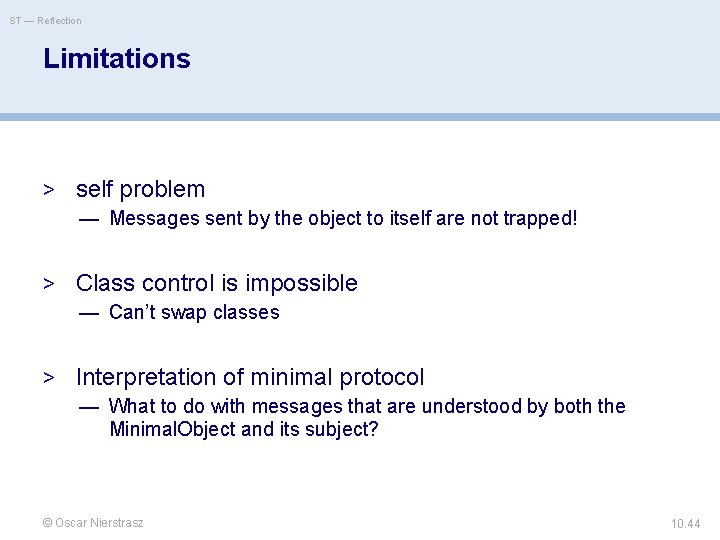

ST — Reflection Limitations > self problem — Messages sent by the object to itself are not trapped! > Class control is impossible — Can’t swap classes > Interpretation of minimal protocol — What to do with messages that are understood by both the Minimal. Object and its subject? © Oscar Nierstrasz 10. 44

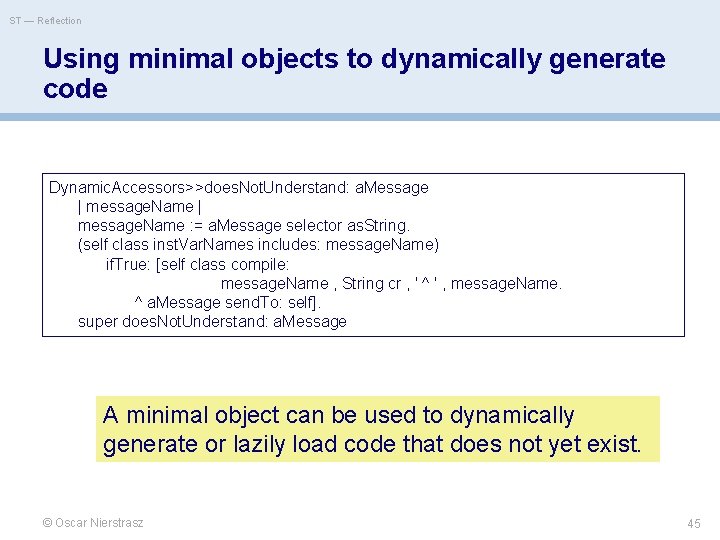

ST — Reflection Using minimal objects to dynamically generate code Dynamic. Accessors>>does. Not. Understand: a. Message | message. Name : = a. Message selector as. String. (self class inst. Var. Names includes: message. Name) if. True: [self class compile: message. Name , String cr , ' ^ ' , message. Name. ^ a. Message send. To: self]. super does. Not. Understand: a. Message A minimal object can be used to dynamically generate or lazily load code that does not yet exist. © Oscar Nierstrasz 45

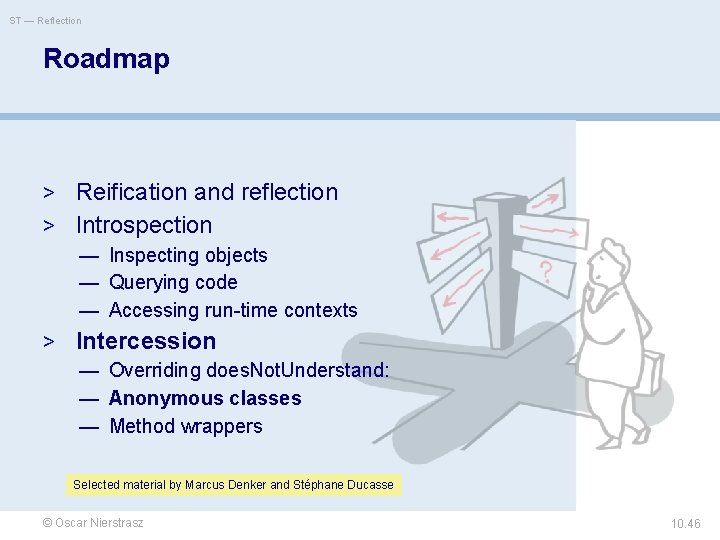

ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 46
ST — Reflection Message control with anonymous classes > Create an anonymous class — Instance of Behavior — Define controlling methods — Interpose it between the instance and its class © Oscar Nierstrasz 10. 47
ST — Reflection Selective control © Oscar Nierstrasz 10. 48
ST — Reflection Anonymous class in Pharo | anon. Class set | anon. Class : = Behavior new. anon. Class superclass: Set; set. Format: Set format. anon. Class compile: 'add: an. Object Transcript show: ''adding '', an. Object print. String; cr. ^ super add: an. Object'. set : = Set new. set add: 1. set primitive. Change. Class. To: anon. Class basic. New. set add: 2. © Oscar Nierstrasz 10. 49
ST — Reflection Evaluation > Either instance-based or group-based > Selective control > No self-send problem > Good performance > Transparent to the user > Requires a bit of compilation — (could be avoided using clone as in Method Wrapper) © Oscar Nierstrasz 10. 50
ST — Reflection Roadmap > Reification and reflection > Introspection — Inspecting objects — Querying code — Accessing run-time contexts > Intercession — Overriding does. Not. Understand: — Anonymous classes — Method wrappers Selected material by Marcus Denker and Stéphane Ducasse © Oscar Nierstrasz 10. 51
ST — Reflection Method Substitution First approach: > Add methods with mangled names — but the user can see them Second approach: > Wrap the methods without polluting the interface — replace the method by an object that implements run: with: in: © Oscar Nierstrasz 10. 52
ST — Reflection Method. Wrapper before and after methods A Method. Wrapper replaces an original Compiled. Method in the method dictionary of a class and wraps it by performing some before and after actions. © Oscar Nierstrasz 10. 53
ST — Reflection A Logging. Method. Wrapper>>initialize. On: a. Compiled. Method method : = a. Compiled. Method. reference : = a. Compiled. Method method. Reference. invocation. Count : = 0 Logging. Method. Wrapper>>install reference actual. Class method. Dictionary at: reference method. Symbol put: self uninstall is similar … Logging. Method. Wrapper>>run: a. Selector with: an. Array in: a. Receiver invocation. Count : = invocation. Count + 1. ^ a. Receiver with. Args: an. Array execute. Method: method NB: Duck-typing also requires (empty) flush. Cache, method. Class: , and selector: methods © Oscar Nierstrasz 54

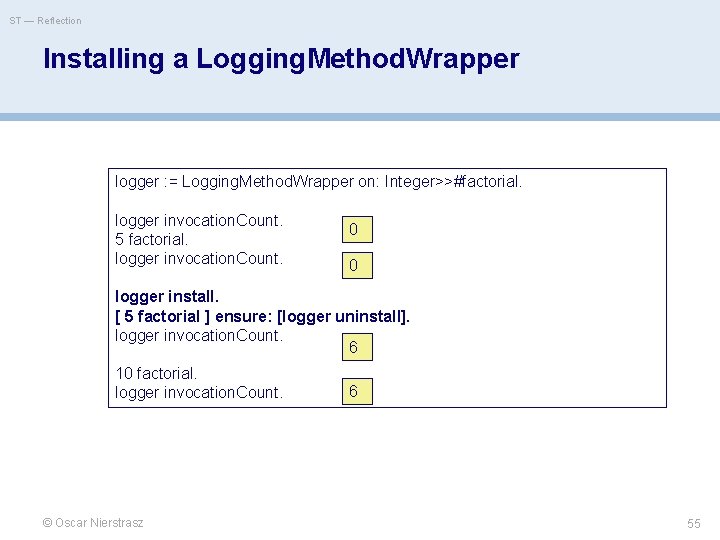

ST — Reflection Installing a Logging. Method. Wrapper logger : = Logging. Method. Wrapper on: Integer>>#factorial. logger invocation. Count. 5 factorial. logger invocation. Count. 0 0 logger install. [ 5 factorial ] ensure: [logger uninstall]. logger invocation. Count. 6 10 factorial. logger invocation. Count. © Oscar Nierstrasz 6 55
ST — Reflection Checking Test Coverage Test. Coverage>>run: a. Selector with: an. Array in: a. Receiver self mark; uninstall. ^ a. Receiver with. Args: an. Array execute. Method: method Test. Coverage>>mark has. Run : = true © Oscar Nierstrasz 56

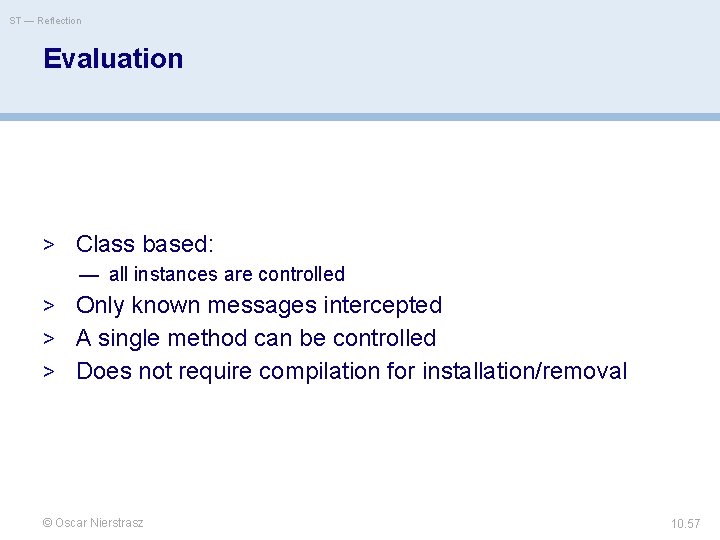

ST — Reflection Evaluation > Class based: — all instances are controlled > Only known messages intercepted > A single method can be controlled > Does not require compilation for installation/removal © Oscar Nierstrasz 10. 57

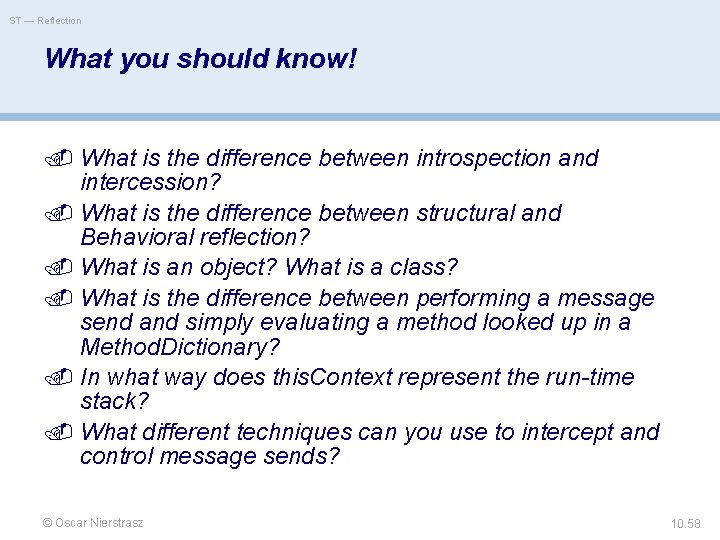

ST — Reflection What you should know! What is the difference between introspection and intercession? What is the difference between structural and Behavioral reflection? What is an object? What is a class? What is the difference between performing a message send and simply evaluating a method looked up in a Method. Dictionary? In what way does this. Context represent the run-time stack? What different techniques can you use to intercept and control message sends? © Oscar Nierstrasz 10. 58

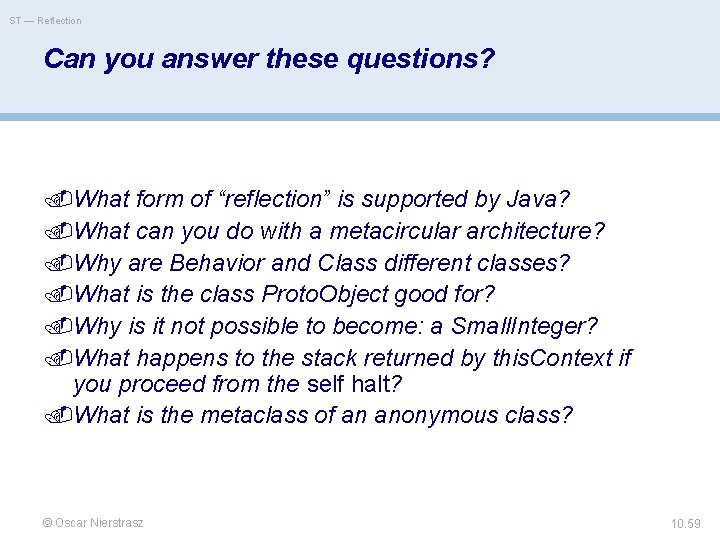

ST — Reflection Can you answer these questions? What form of “reflection” is supported by Java? What can you do with a metacircular architecture? Why are Behavior and Class different classes? What is the class Proto. Object good for? Why is it not possible to become: a Small. Integer? What happens to the stack returned by this. Context if you proceed from the self halt? What is the metaclass of an anonymous class? © Oscar Nierstrasz 10. 59
