10 Graphs ng Warm Up Problem of the

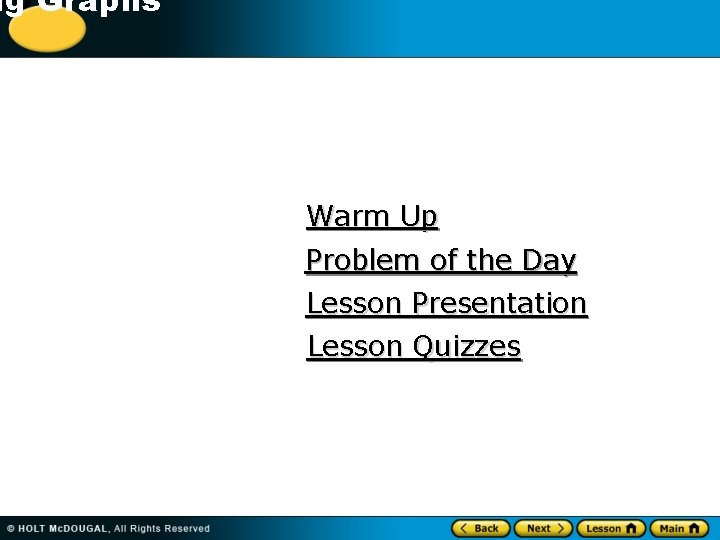

10 Graphs ng Warm Up Problem of the Day Lesson Presentation Lesson Quizzes

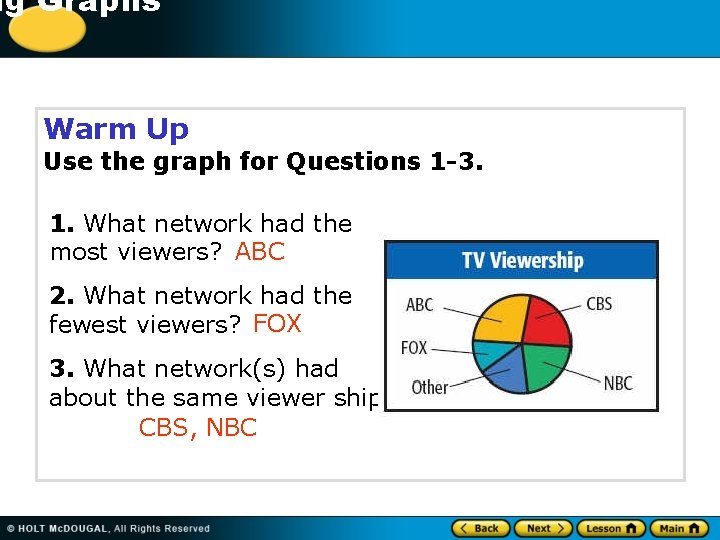

10 Graphs ng Warm Up Use the graph for Questions 1 -3. 1. What network had the most viewers? ABC 2. What network had the fewest viewers? FOX 3. What network(s) had about the same viewer ship? CBS, NBC

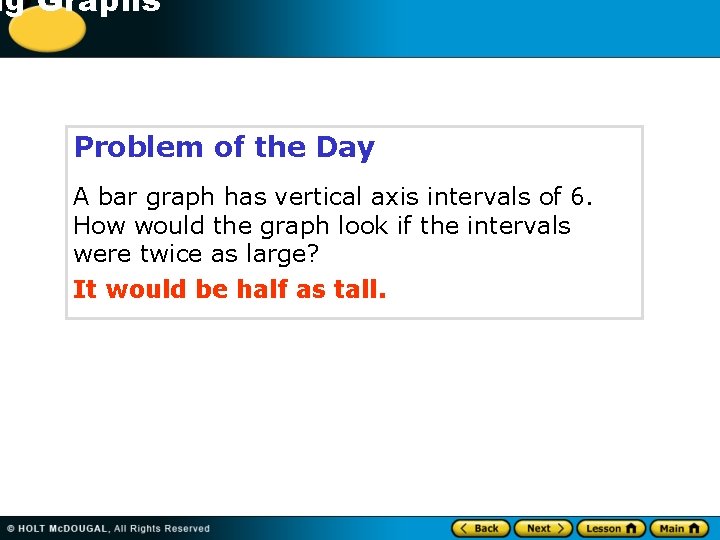

10 Graphs ng Problem of the Day A bar graph has vertical axis intervals of 6. How would the graph look if the intervals were twice as large? It would be half as tall.

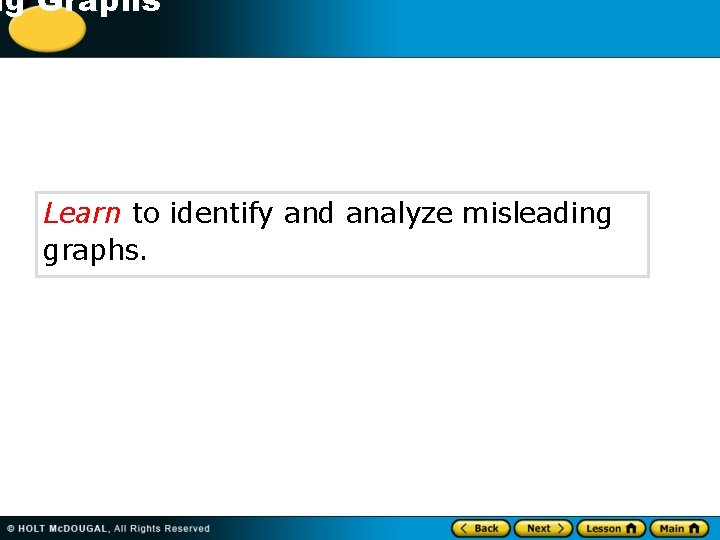

10 Graphs ng Learn to identify and analyze misleading graphs.

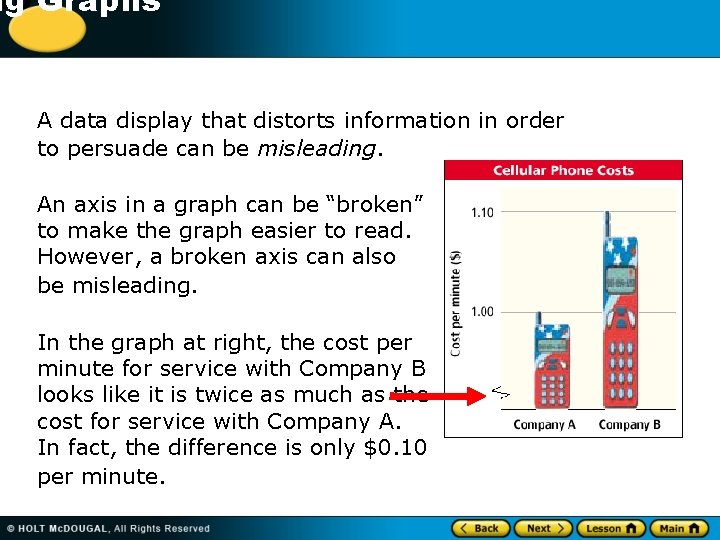

10 Graphs ng A data display that distorts information in order to persuade can be misleading. An axis in a graph can be “broken” to make the graph easier to read. However, a broken axis can also be misleading. In the graph at right, the cost per minute for service with Company B looks like it is twice as much as the cost for service with Company A. In fact, the difference is only $0. 10 per minute.

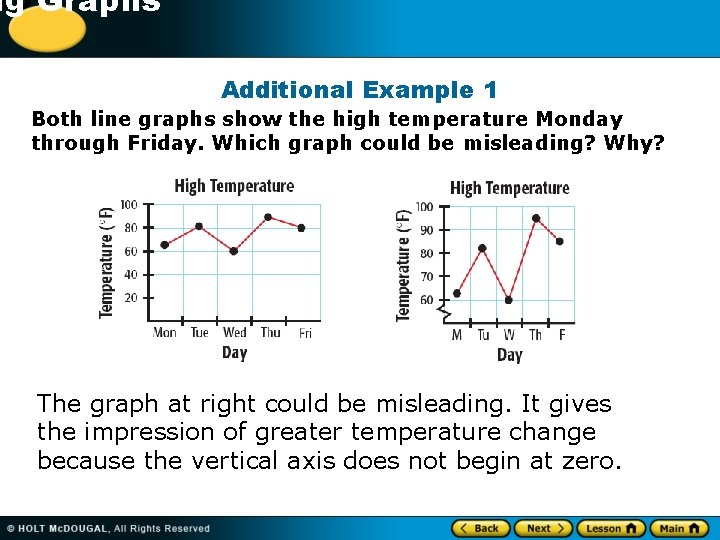

10 Graphs ng Additional Example 1 Both line graphs show the high temperature Monday through Friday. Which graph could be misleading? Why? The graph at right could be misleading. It gives the impression of greater temperature change because the vertical axis does not begin at zero.

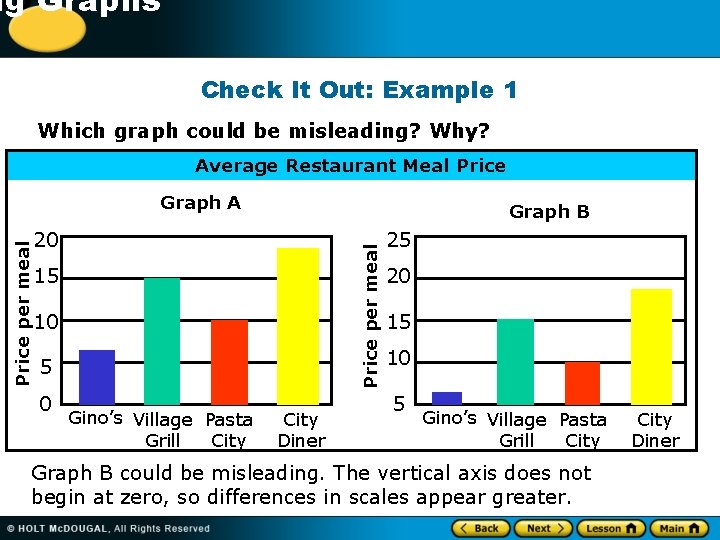

10 Graphs ng Check It Out: Example 1 Which graph could be misleading? Why? Average Restaurant Meal Price Graph B 20 Price per meal Graph A 15 10 5 0 Gino’s Village Pasta Grill City Diner 25 20 15 10 5 Gino’s Village Pasta Grill City Graph B could be misleading. The vertical axis does not begin at zero, so differences in scales appear greater. City Diner

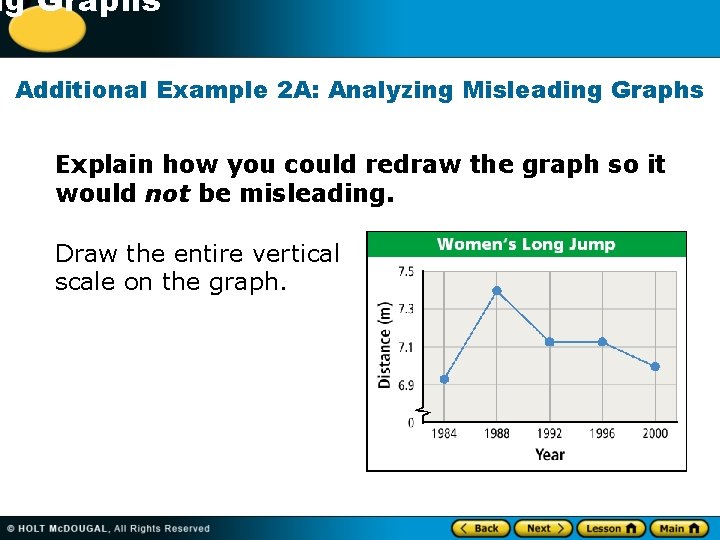

10 Graphs ng Additional Example 2 A: Analyzing Misleading Graphs Explain how you could redraw the graph so it would not be misleading. Draw the entire vertical scale on the graph.

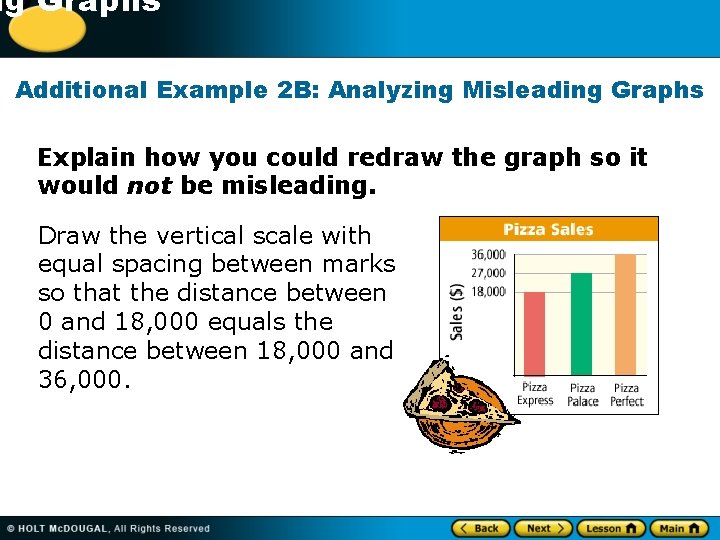

10 Graphs ng Additional Example 2 B: Analyzing Misleading Graphs Explain how you could redraw the graph so it would not be misleading. Draw the vertical scale with equal spacing between marks so that the distance between 0 and 18, 000 equals the distance between 18, 000 and 36, 000.

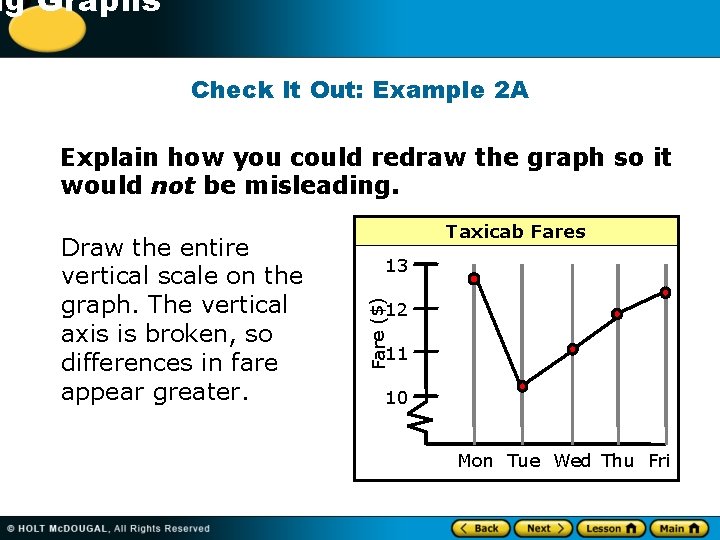

10 Graphs ng Check It Out: Example 2 A Explain how you could redraw the graph so it would not be misleading. 13 Fare ($) Draw the entire vertical scale on the graph. The vertical axis is broken, so differences in fare appear greater. Taxicab Fares 12 11 10 Mon Tue Wed Thu Fri

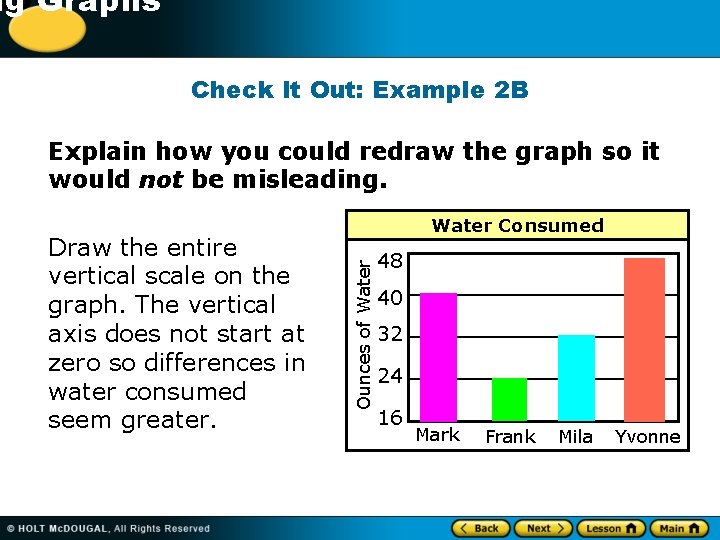

10 Graphs ng Check It Out: Example 2 B Explain how you could redraw the graph so it would not be misleading. Ounces of Water Draw the entire vertical scale on the graph. The vertical axis does not start at zero so differences in water consumed seem greater. Water Consumed 48 40 32 24 16 Mark Frank Mila Yvonne

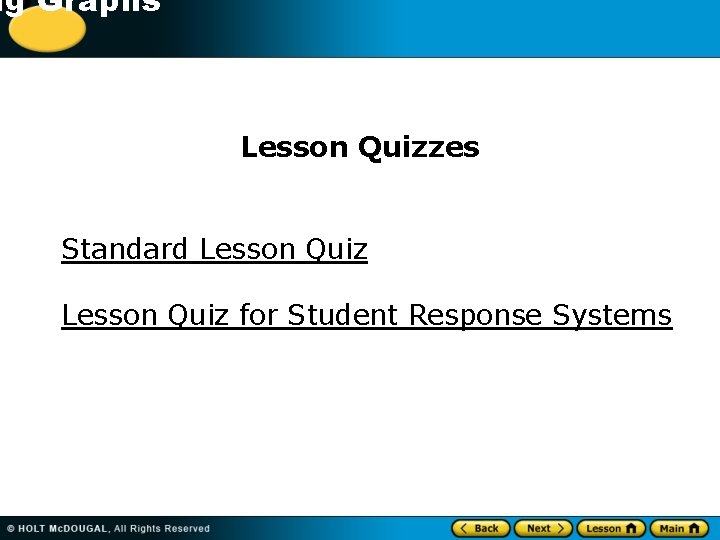

10 Graphs ng Lesson Quizzes Standard Lesson Quiz for Student Response Systems

10 Graphs ng Lesson Quiz Explain why each graph could be misleading and why. 1. The vertical scale on the graph is not small enough to show the changes. 2. The scale does not start at 0, so it looks like fewer people like each type of animal.

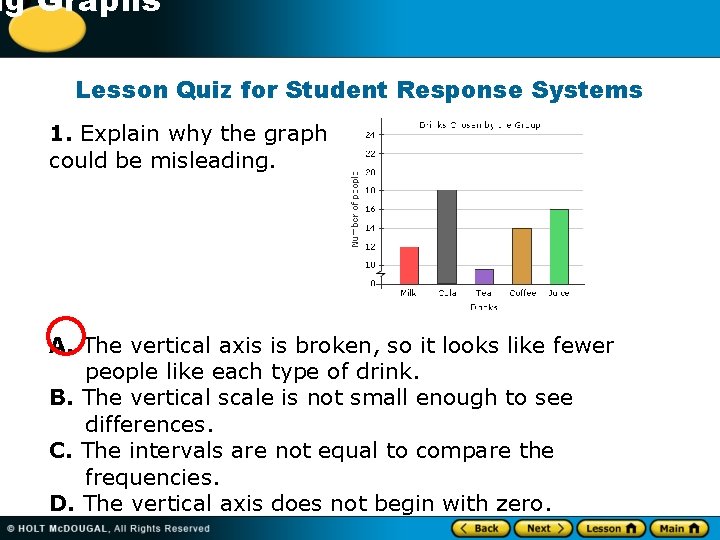

10 Graphs ng Lesson Quiz for Student Response Systems 1. Explain why the graph could be misleading. A. The vertical axis is broken, so it looks like fewer people like each type of drink. B. The vertical scale is not small enough to see differences. C. The intervals are not equal to compare the frequencies. D. The vertical axis does not begin with zero.

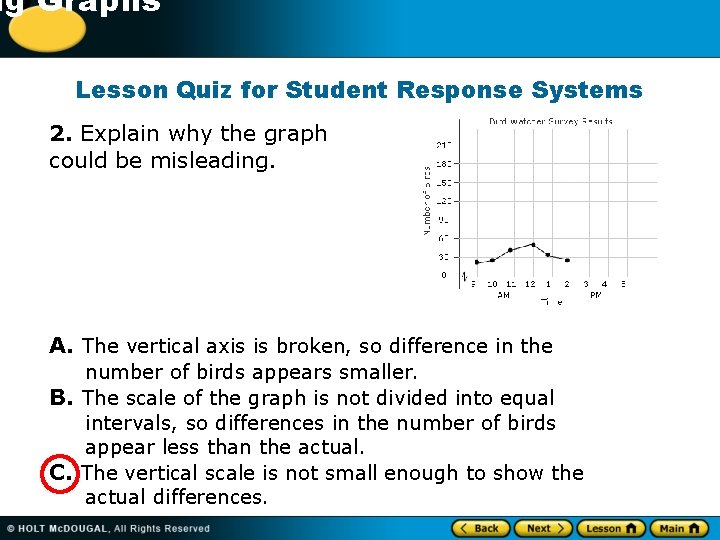

10 Graphs ng Lesson Quiz for Student Response Systems 2. Explain why the graph could be misleading. A. The vertical axis is broken, so difference in the number of birds appears smaller. B. The scale of the graph is not divided into equal intervals, so differences in the number of birds appear less than the actual. C. The vertical scale is not small enough to show the actual differences.
