1 WAN 2 WAN 3 4 HDLC 5
- Slides: 91

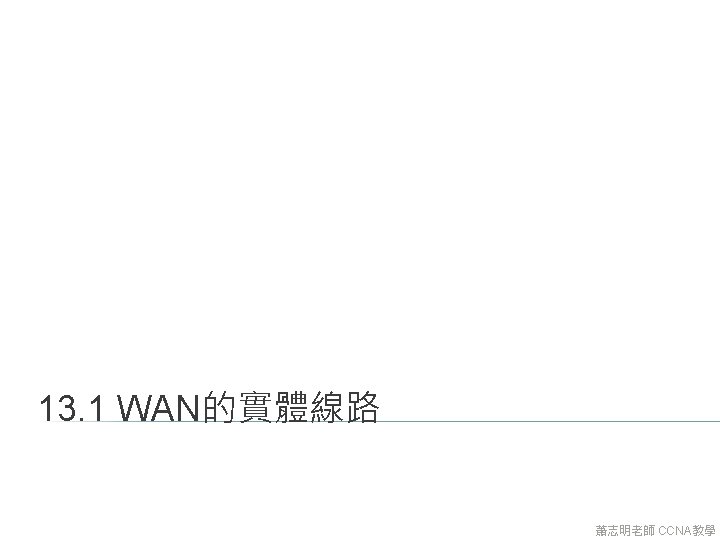

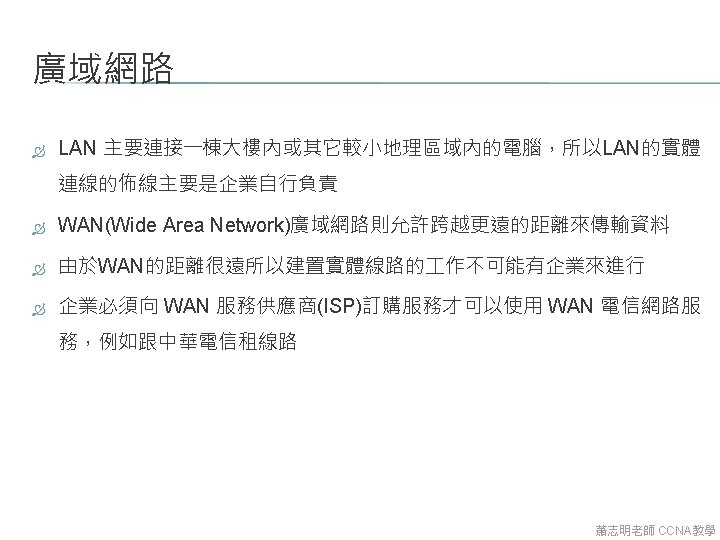

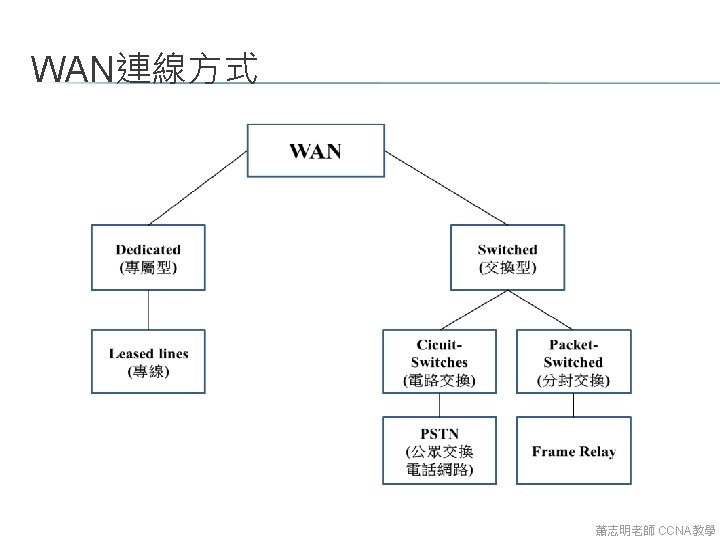

章節大綱 1. WAN的實體線路 2. WAN連線方式 3. 路由器時脈設定 4. HDLC 介紹 5. PPP協定 6. 設定PPP認證 7. PPP Troubleshooting 8. Multilink PPP(MLPPP) 9. PPP over Ethernet (PPPo. E) 蕭志明老師 CCNA教學

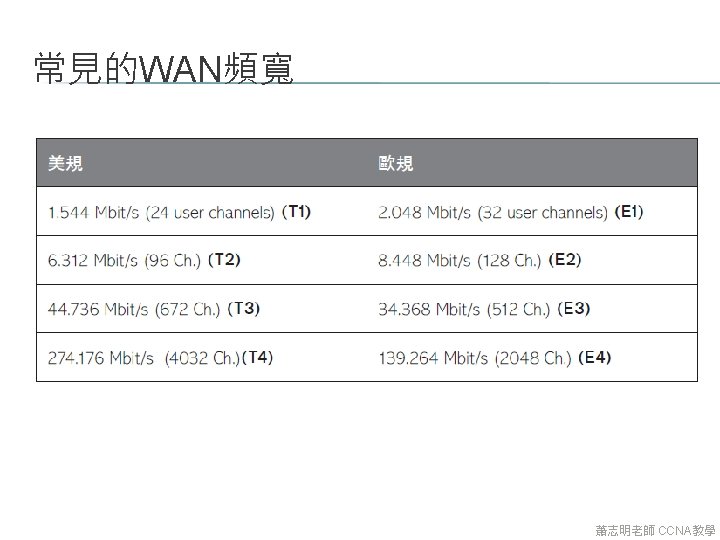

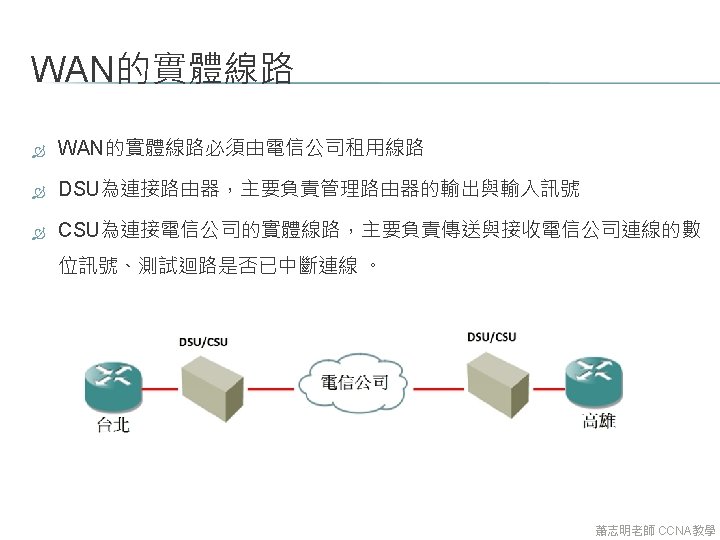

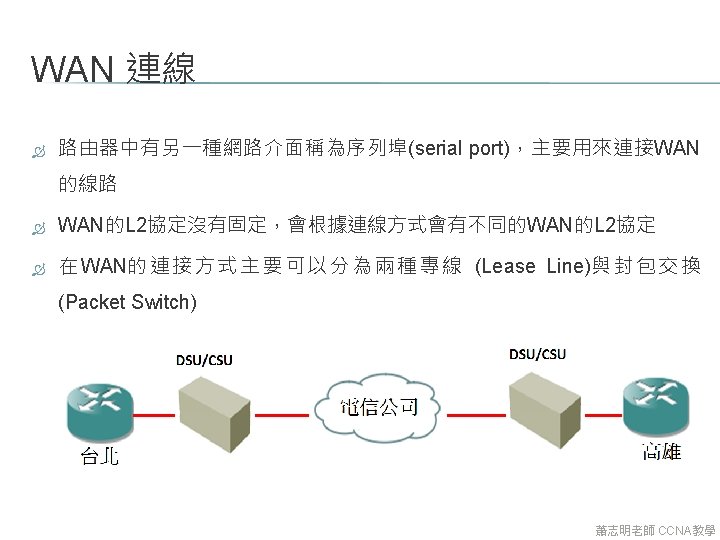

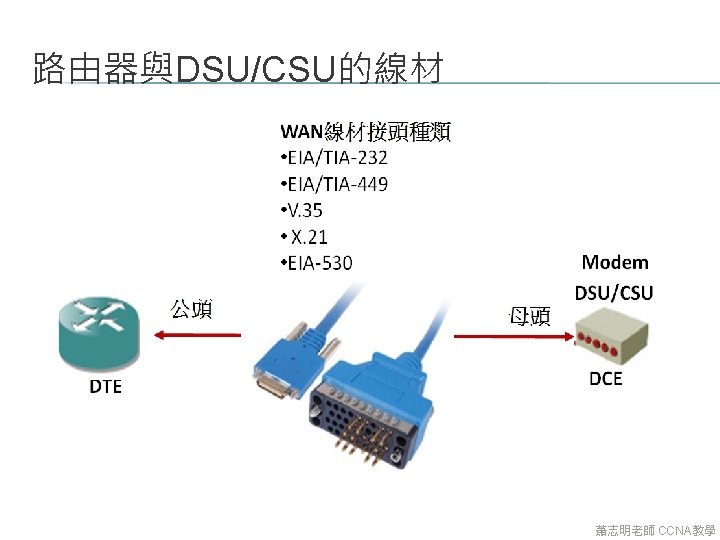

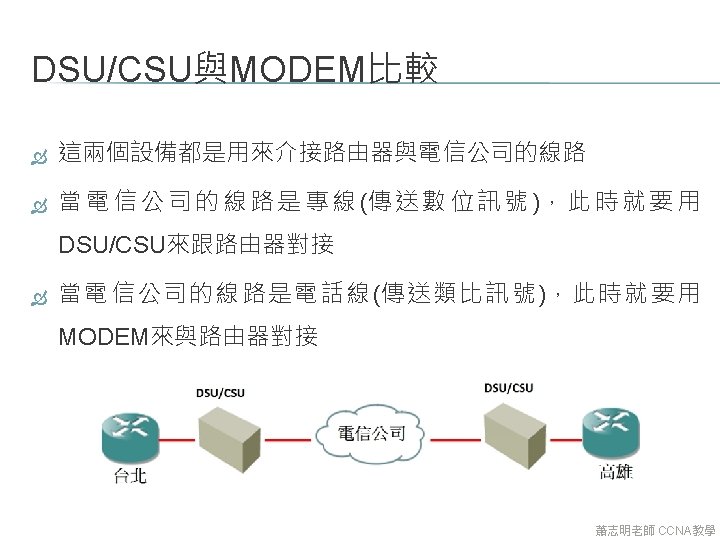

DSU/CSU DSU : Data Service Unit CSU : Channel Service Unit 蕭志明老師 CCNA教學

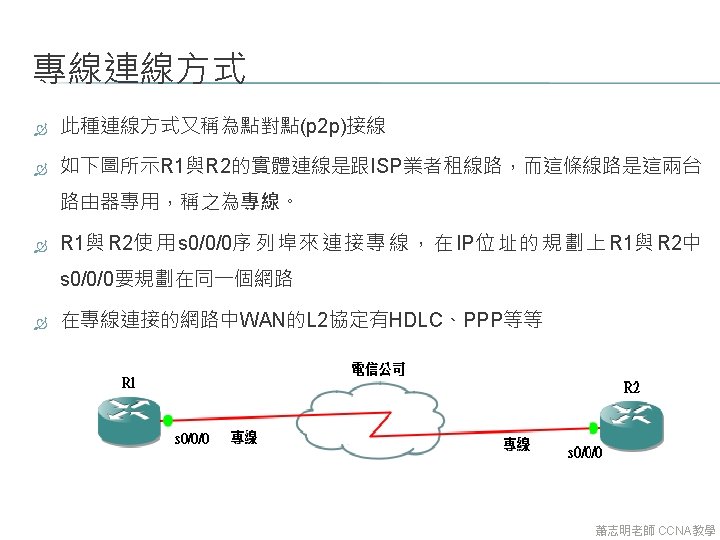

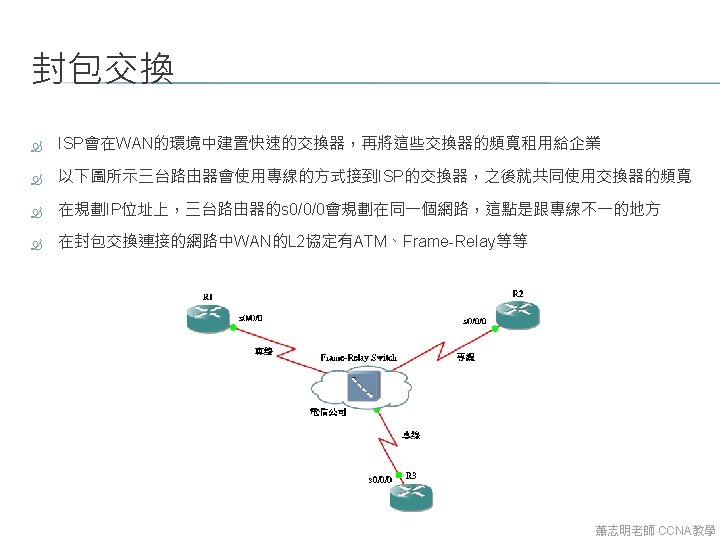

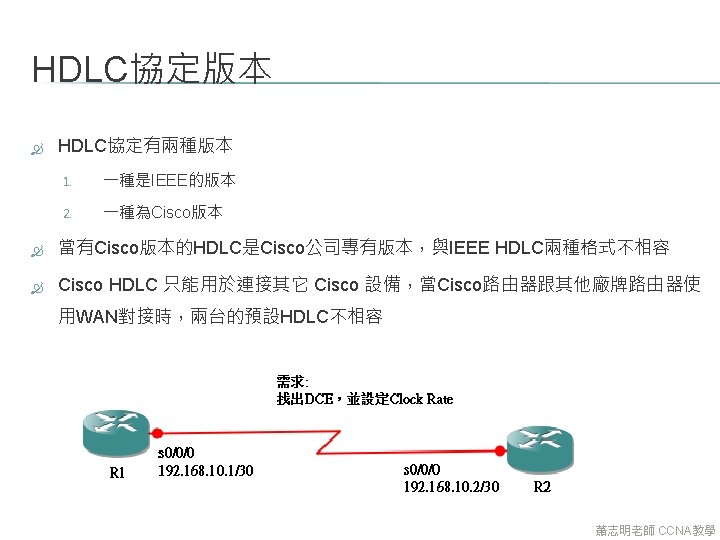

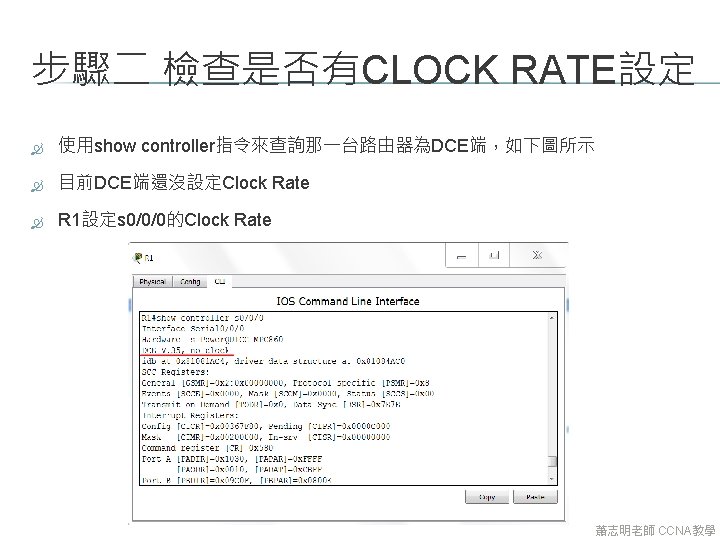

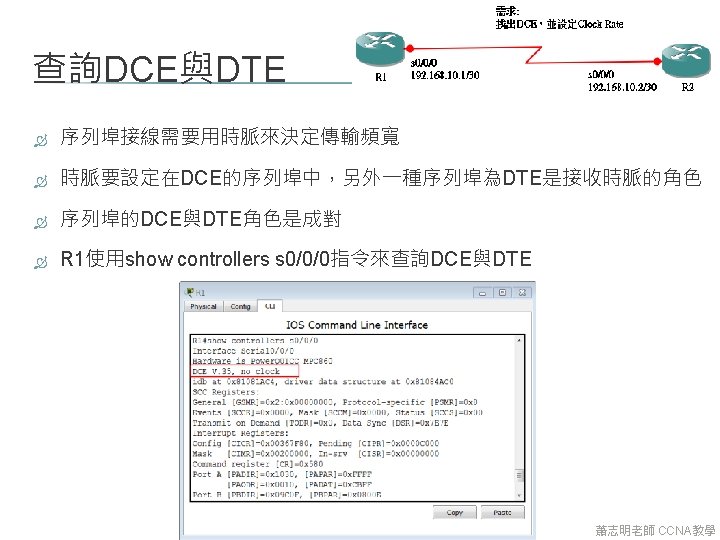

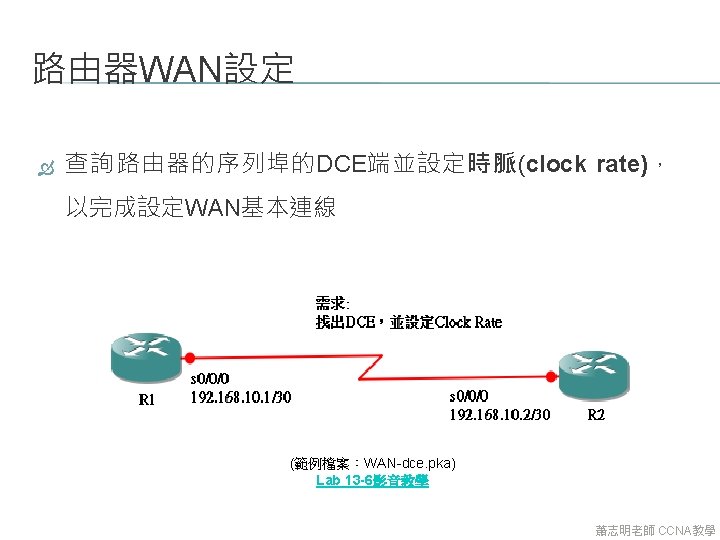

DCE與DTE的角色 DTE(Data Terminal Equipment) DCE(Data Circuit-Terminating Equipment) DTE都是由路由器來扮演,作為資料終端設備 DSU/CSU都是當DCE角色,作為電信公司的通訊設備的末端 DCE要負責送出時脈(Clock Rate)給DTE以保持同步 蕭志明老師 CCNA教學

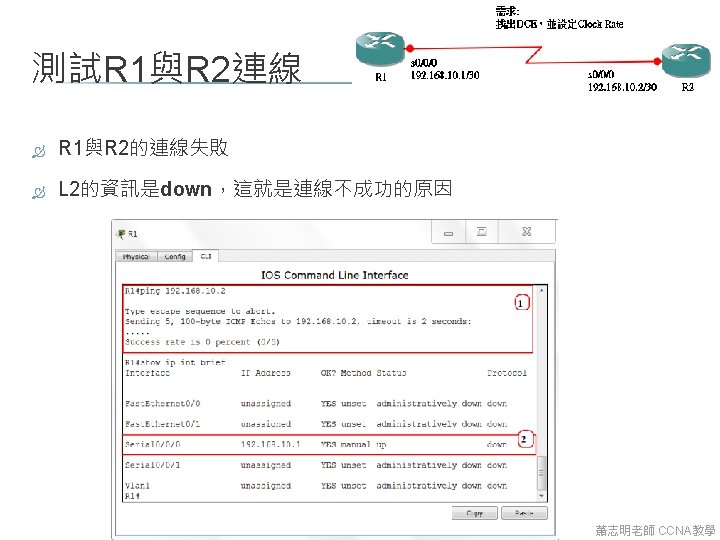

序列埠S 0/0/0設定 如下表指令為設定R 1與R 2的序列埠s 0/0/0 指令 R 1(config)#int s 0/0/0 R 1(config-if)#ip address 192. 168. 10. 1 255. 252 R 1(config-if)#no shutdown R 2(config)#int s 0/0/0 R 2(config-if)#ip address 192. 168. 10. 2 255. 252 R 2(config-if)#no shutdown 說明 設定R 1中s 0/0/0的IP位址與 啟動介面 設定R 2中s 0/0/0的IP位址與 啟動介面 請注意當在 s 0/0/0 中執行 no shutdown 後,PT 模擬器中 s 0/0/0 的燈號會變綠燈, 這綠燈不是代表網路連線是好的,僅表示 L 1 實體層是沒問題。 蕭志明老師 CCNA教學

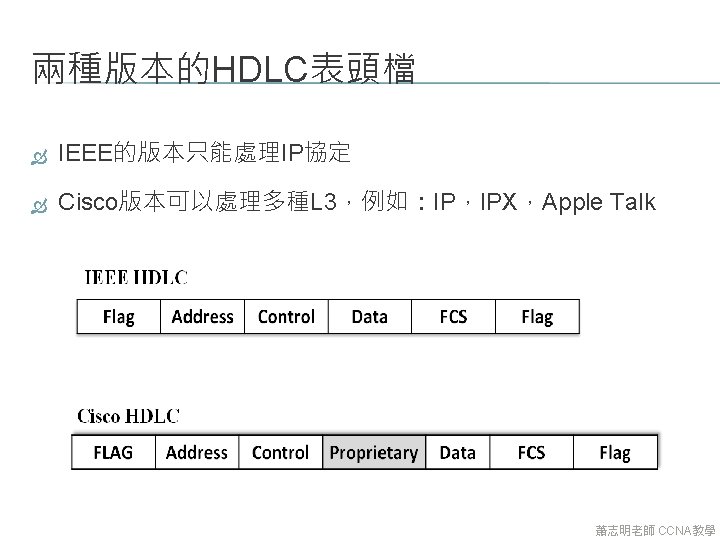

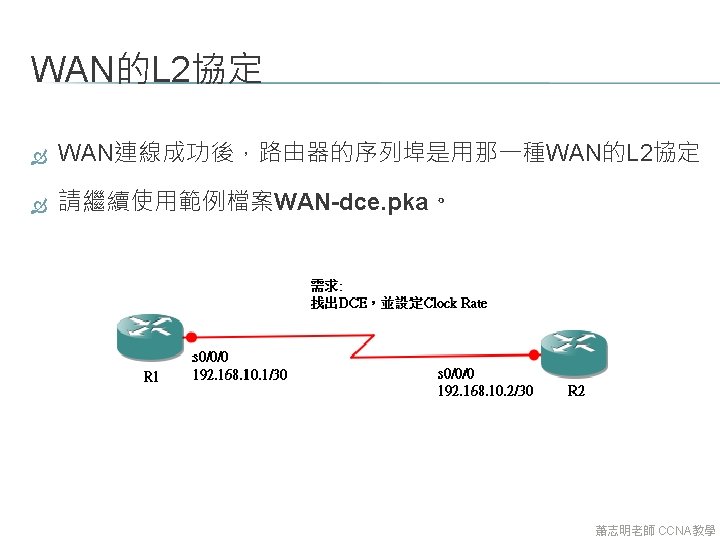

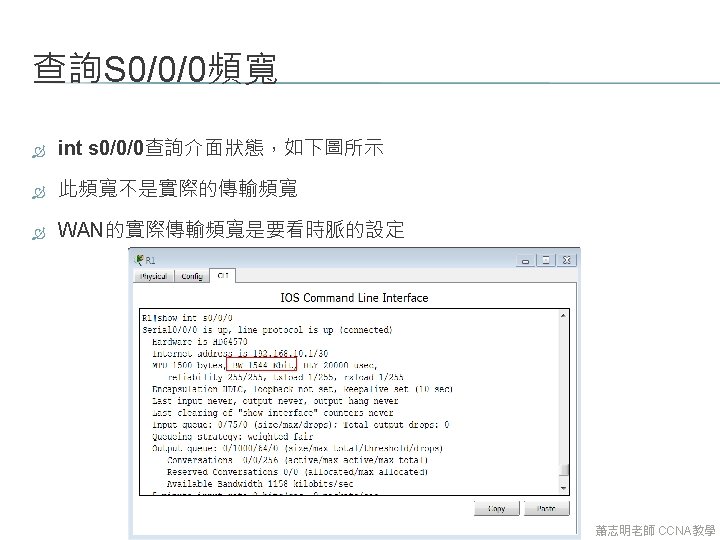

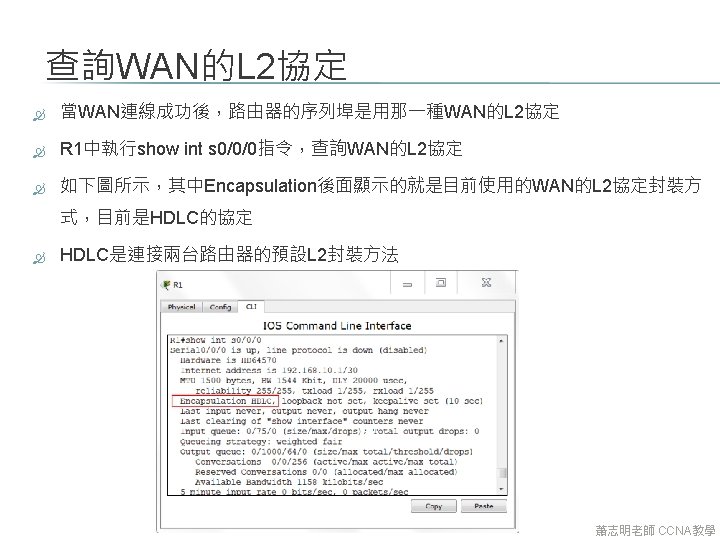

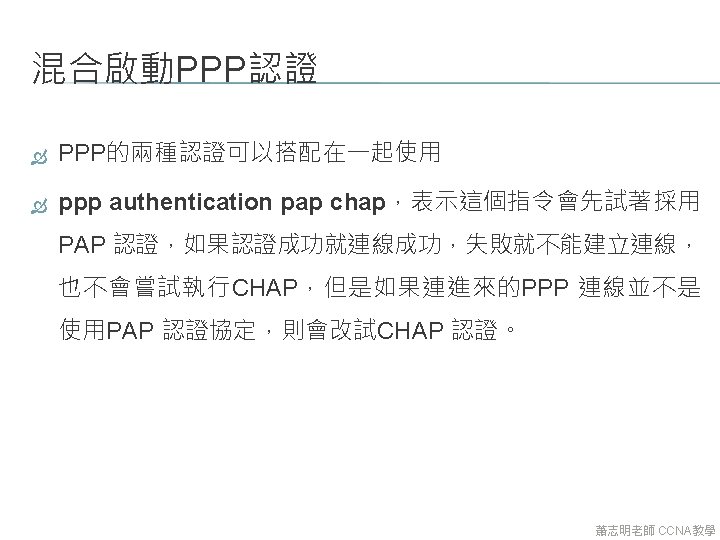

PPP常用指令 指令 說明 R 1(config-if)#encapsulation ppp 更改WAN L 2封裝為ppp R 1(config-if)#ppp authentication pap 啟動PAP認證功能 R 2(config-if)#ppp pap sent-username cisco password ccna 送出PAP認證的使用者名稱及密碼 R 1(config)#username cisco password ccna 建立使用者名稱及密碼 R 1(config-if)#ppp authentication chap 啟動CHAP 認證 R 1(config-if)#ppp authentication chap pap 啟動CHAP與PAP混合認證 R 1#show int s 0/0/0 查詢s 0/0/0的L 2封裝 R 1#debug ppp authentication 啟動PPP debug 蕭志明老師 CCNA教學

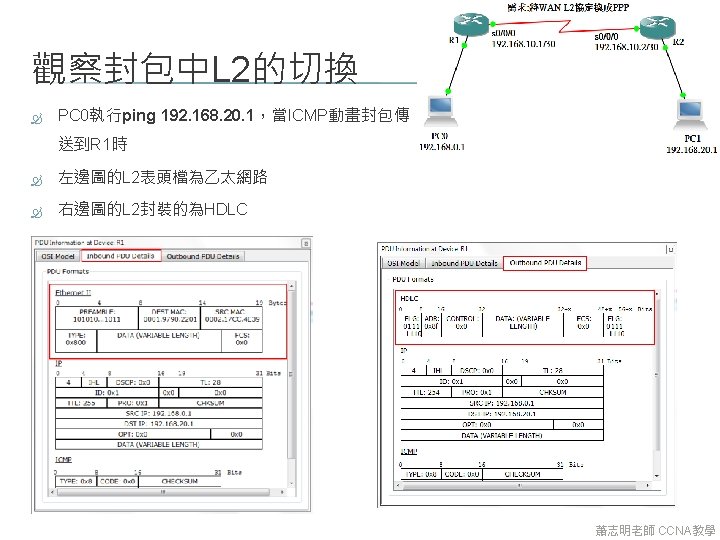

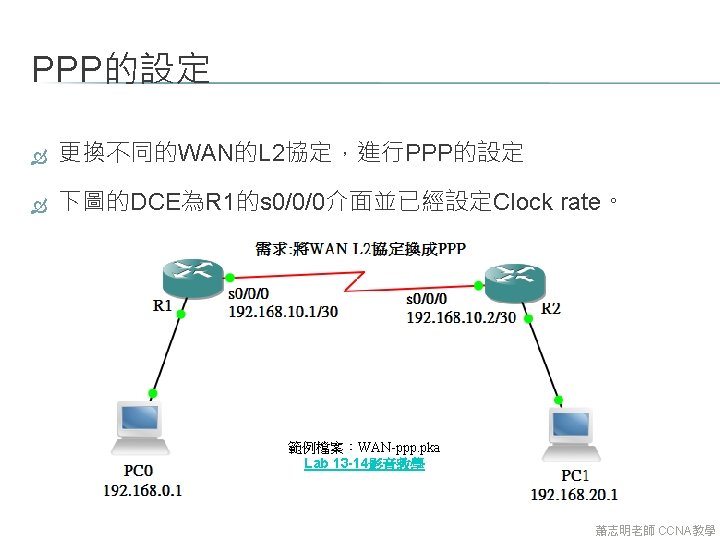

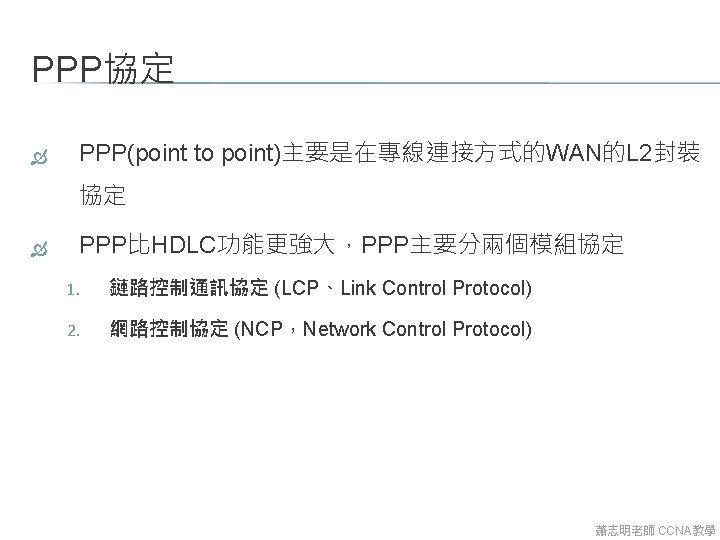

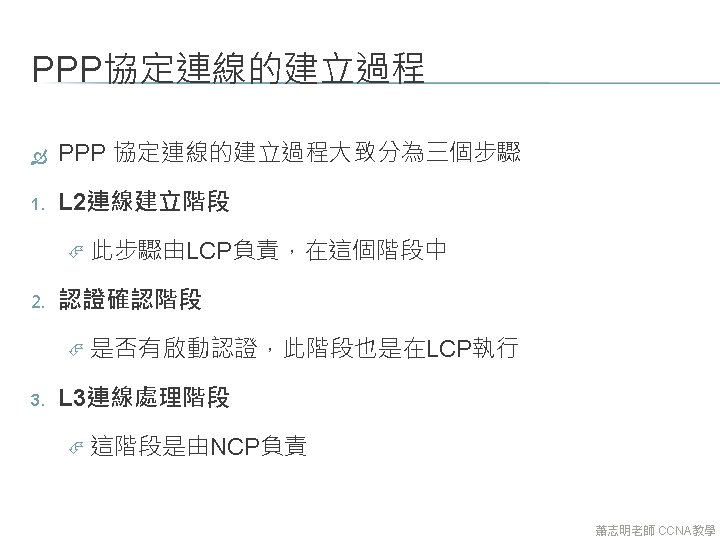

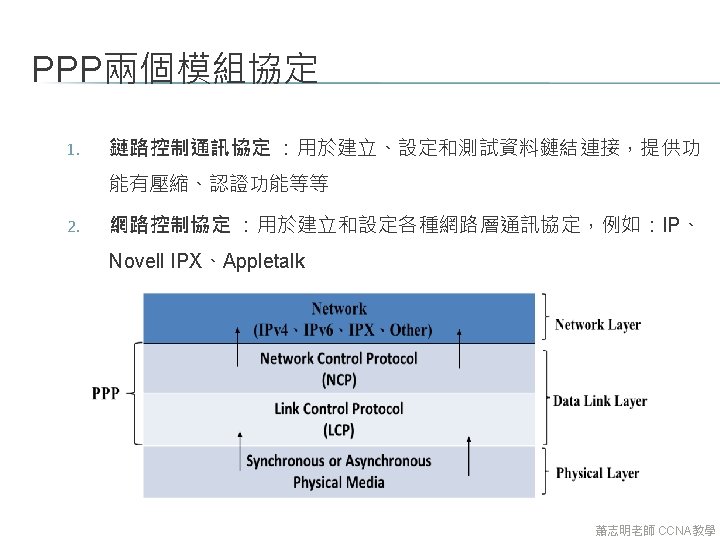

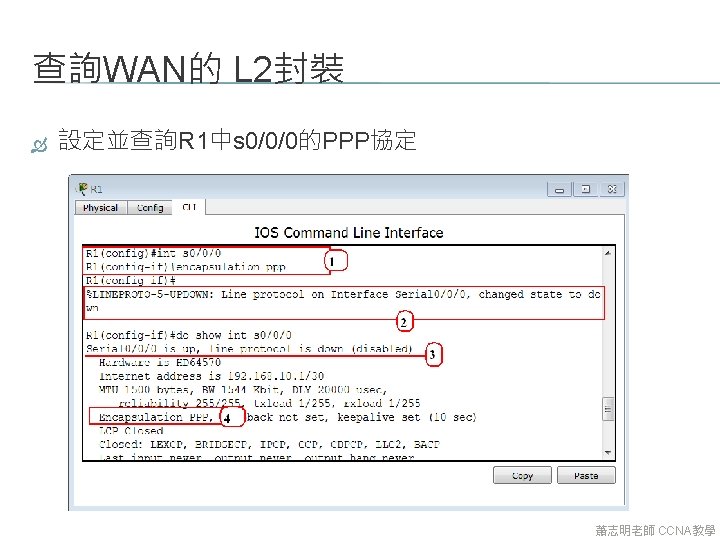

啟動PPP 使用encapsulation指令來設定WAN 的L 2封裝種類 如下表所示將R 1中s 0/0/0的L 2 協定設定為PPP。 指令 R 1(config)#int s 0/0/0 說明 切換到S 0/0/0介面模式 R 1(config-if)#encapsulation ppp 更改WAN L 2封裝為ppp 蕭志明老師 CCNA教學

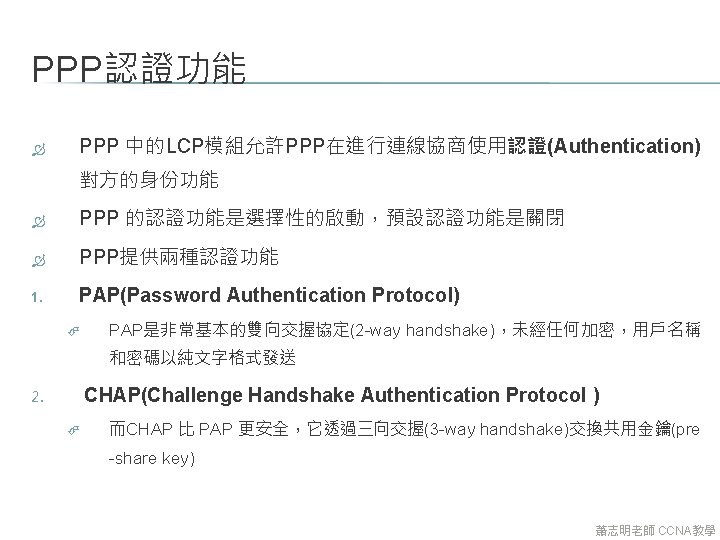

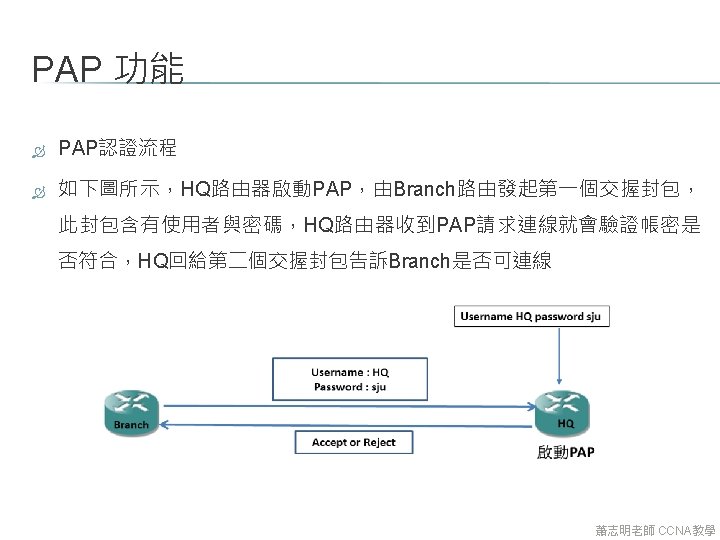

啟動PAP單向認證 使用ppp authentication pap指令為啟動PAP功能的路由器為PAP Server 設定R 1為PAP Server 範例檔案:WAN-ppp-pap-single. pka Lab 13 -22影音教學 蕭志明老師 CCNA教學

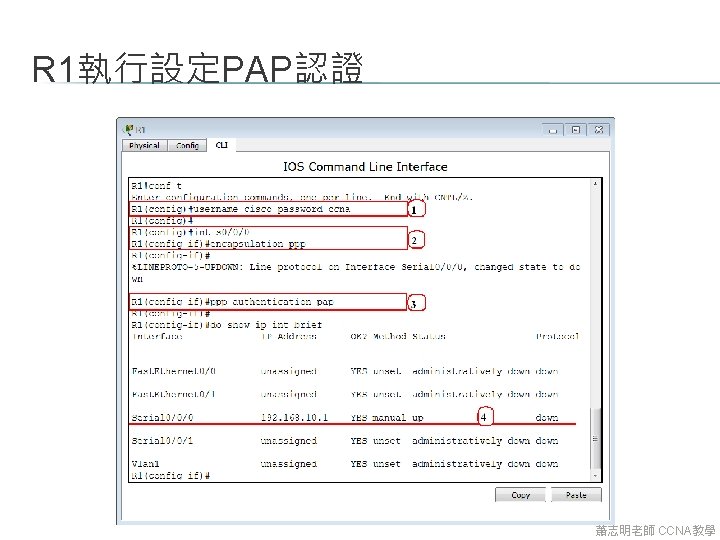

R 1中建立PAP認證資料及啟動 指令 說明 R 1#conf t 進入組態模式 R 1(config)#username cisco password ccna 建立使用者名稱及密碼 R 1(config)#int s 0/0/0 切換到S 0/0/0界面模式 R 1(config-if)#encapsulation ppp 設定L 2協定為ppp R 1(config-if)#ppp authentication pap 啟動PAP認證功能 蕭志明老師 CCNA教學

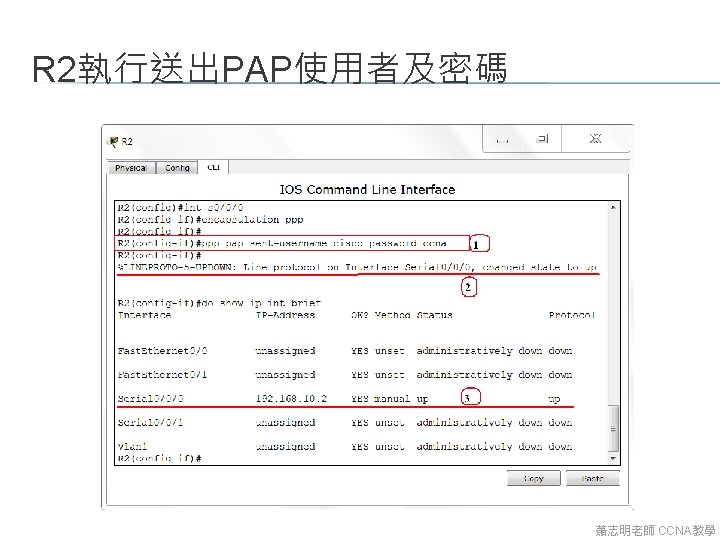

R 2送出PAP認證資料 當R 2送出正確的使用者名稱及密碼後,s 0/0/0的L 2協定就連線成功。 指令 說明 R 2(config)#int s 0/0/0 切換到S 0/0/0界面模式 R 2(config-if)#encapsulation ppp 設定L 2協定為ppp R 2(config-if)#ppp pap sent-username cisco password ccna 送出PAP認證的使用者名稱及 密碼 蕭志明老師 CCNA教學

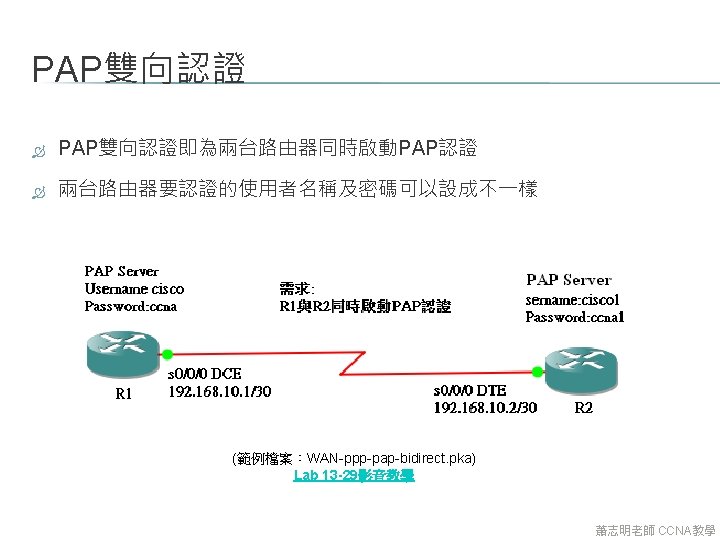

R 1、R 2中建立PAP認證資料 指令 說明 R 1(config)#username cisco password ccna 設定R 1的認證資料 R 2(config)#username cisco 1 password ccna 1 設定R 2的認證資料 蕭志明老師 CCNA教學
R 1、R 2中S 0/0/0使用PPP封裝及PAP認證 指令 說明 R 1(config)#int s 0/0/0 R 1(config-if)#encapsulation ppp R 1(config-if)#ppp authentication pap R 1(config-if)#ppp pap sent-username cisco 1 password ccna 1 設定R 1中s 0/0/0為PPP並啟動 PAP認證功能,並送出 cisco 1與ccna 1與R 2進行 PPP連線 R 2(config)#int s 0/0/0 R 2(config-if)#encapsulation ppp R 2(config-if)#ppp authentication pap R 2(config-if)#ppp pap sent-username cisco password ccna 設定R 2中s 0/0/0為PPP並啟動 PAP認證功能,並送出 cisco與ccna與R 2進行PPP 連線 蕭志明老師 CCNA教學

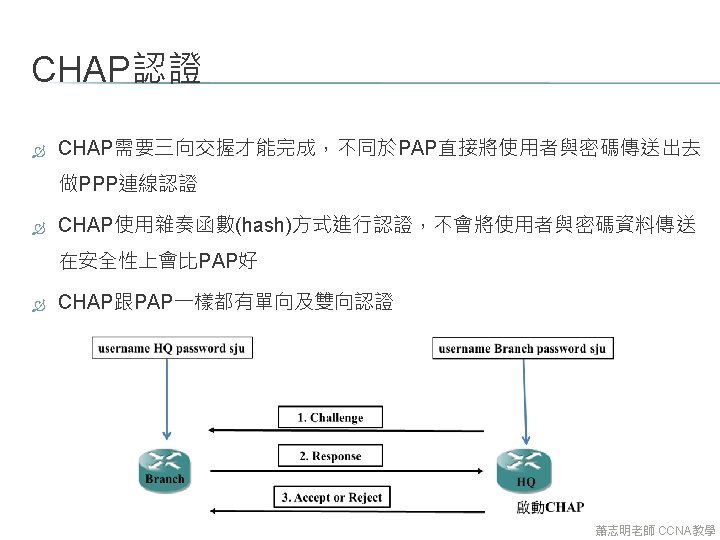

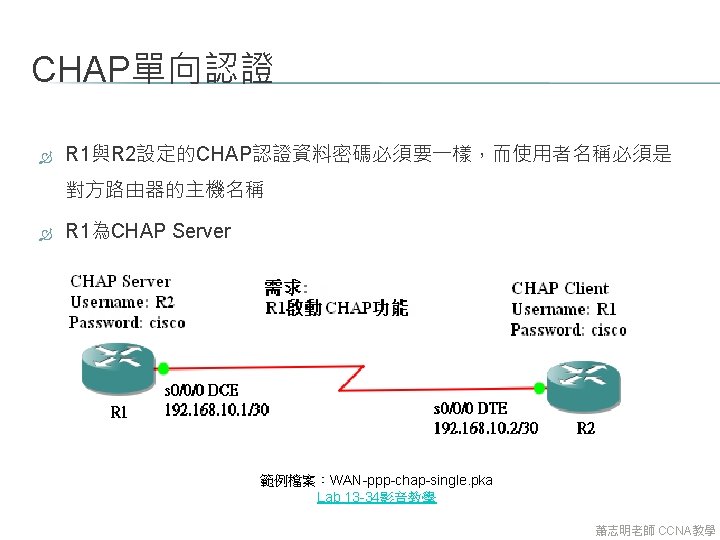

R 1設定為PPP CHAP SERVER 指令 說明 R 1(config)#username R 2 password cisco 設定認證資料,使用者名稱必須為對方 路由器的主機名稱 R 1(config)#int s 0/0/0 切換到s 0/0/0介面模式 R 1(config-if)#encapsulation ppp 設定s 0/0/0的L 2為PPP協定 R 1(config-if)#ppp authentication chap 啟動CHAP 認證 蕭志明老師 CCNA教學
R 2設定為PPP CHAP 認證資料 R 2沒有啟動CHAP,但仍須設定CHAP的認證資料 指令 說明 R 2(config)#username R 1 password cisco 設定認證資料 R 2(config)#int s 0/0/0 切換到s 0/0/0介面模式 R 2(config-if)#encapsulation ppp 設定s 0/0/0的L 2為PPP協定 蕭志明老師 CCNA教學
CHAP雙向認證 R 1已經啟動CHAP,所以R 1為CHAP Server 將R 2執行ppp authentication chap來啟動CHAP,R 2也為 CHAP Server R 1與R 2都會執行CHAP認證過程 蕭志明老師 CCNA教學

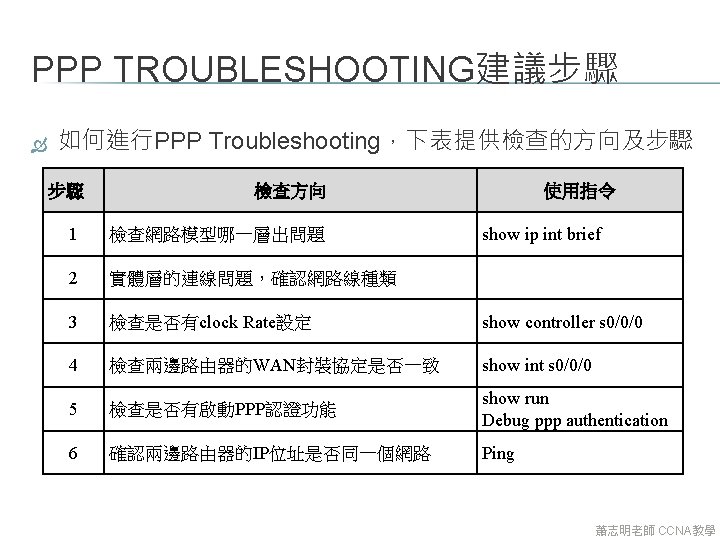

13. 7 PPP TROUBLESHOOTING 蕭志明老師 CCNA教學

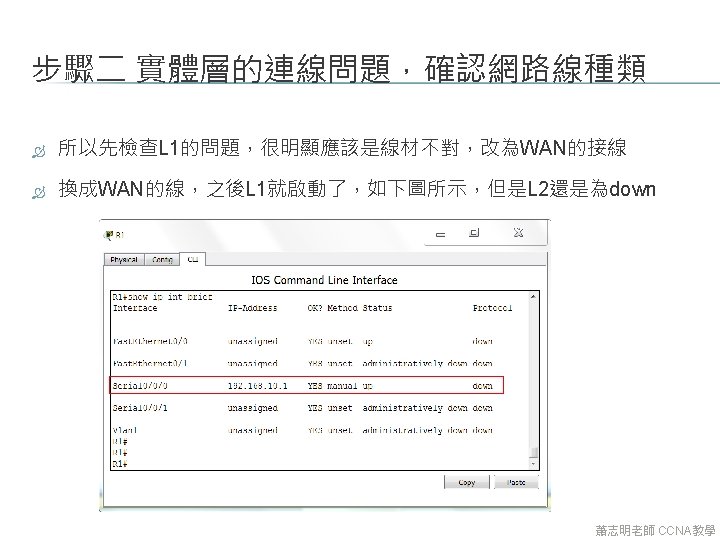

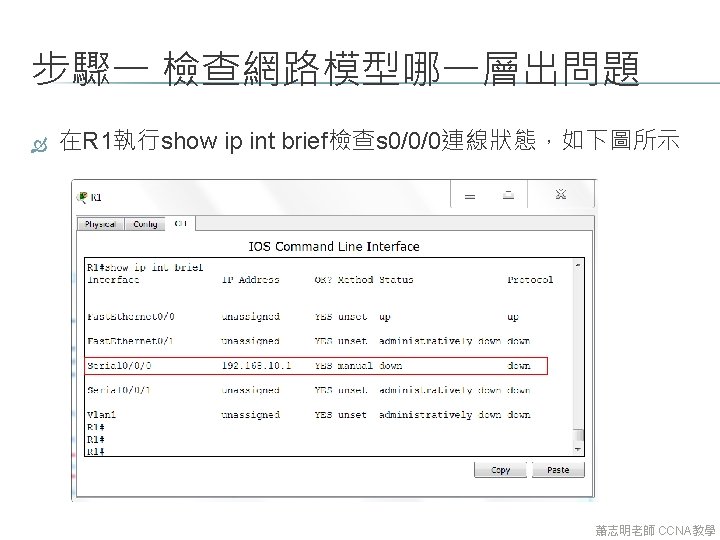

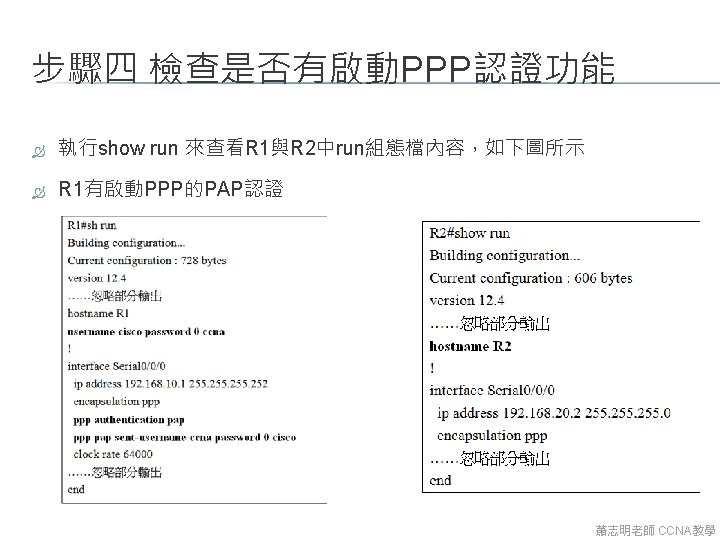

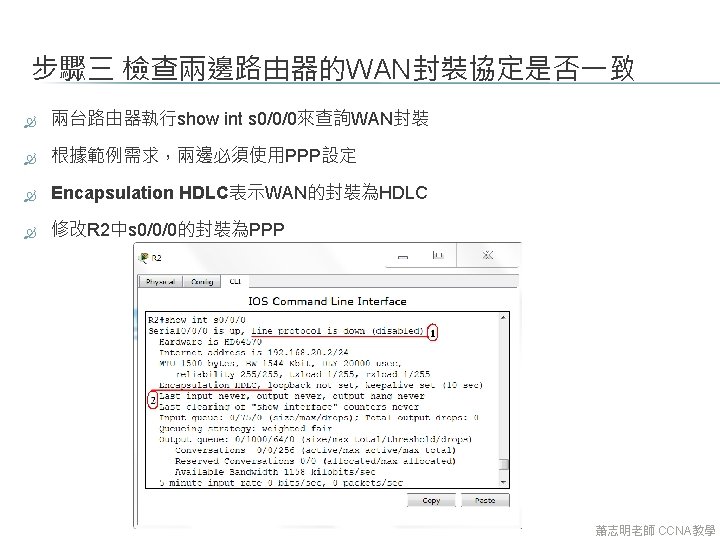

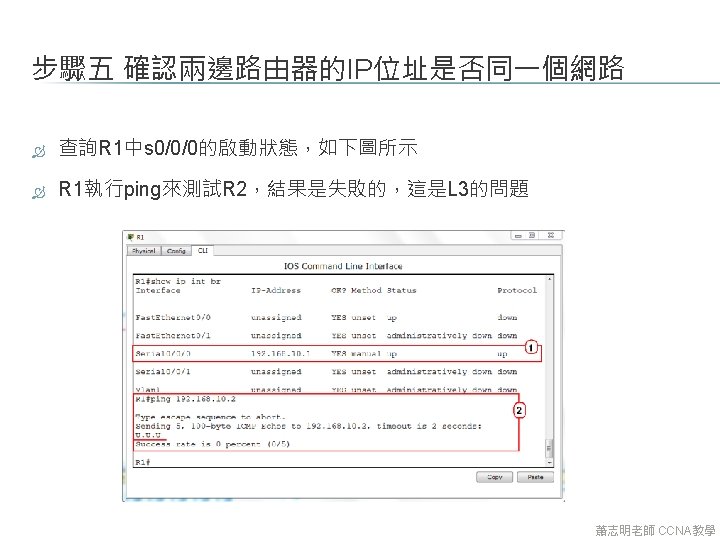

PPP TROUBLESHOOTING R 1與R 2的PPP設定有錯誤,需要找出問題並修正 範例檔案:WAN-PPP-Troubleshooting. pka Lab 13 -38影音教學 蕭志明老師 CCNA教學
R 2設定為PPP PAP 認證資料 在R 2執行下表指令 修正兩台路由器的PAP認證 PPP協定已經正常運作 指令 說明 R 2(config)# username ccna password cisco 設定認證資料 R 2(config)#int s 0/0/0 切換到s 0/0/0介面模式 R 2(config-if)# ppp authentication pap 啟動PAP認證 R 2(config-if)#ppp pap sent-username cisco password ccna R 2送出PAP認證資訊 蕭志明老師 CCNA教學

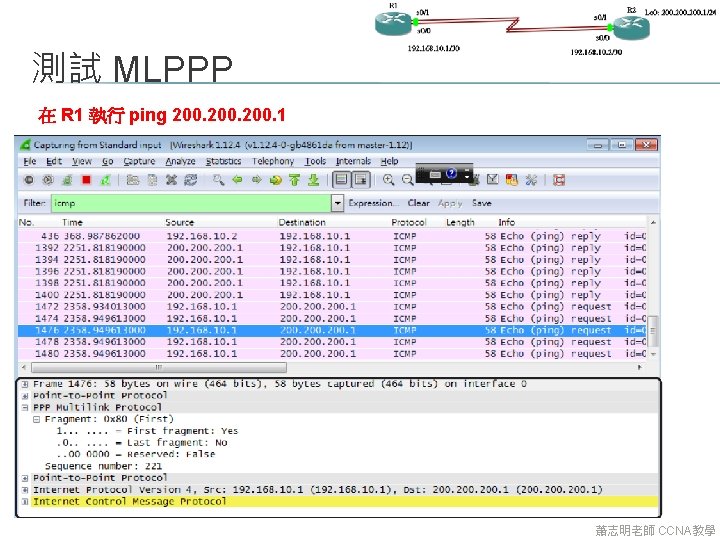

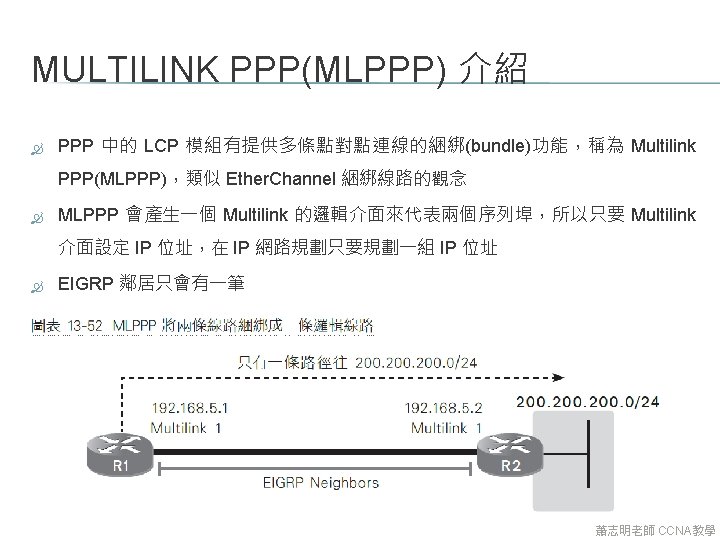

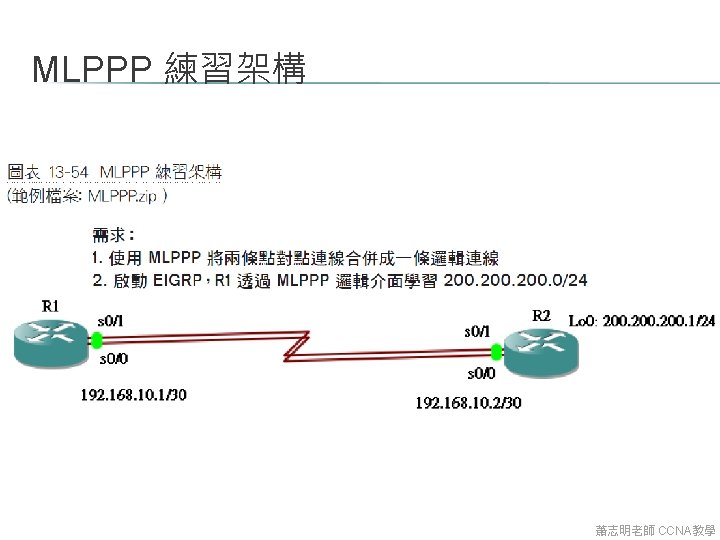

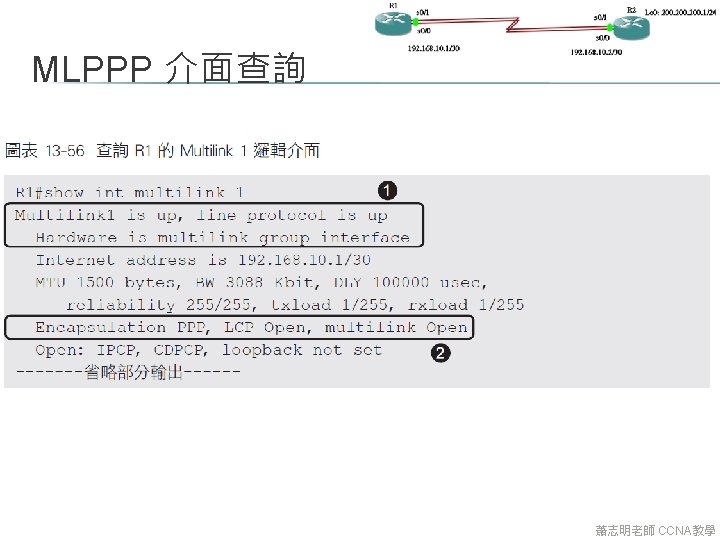

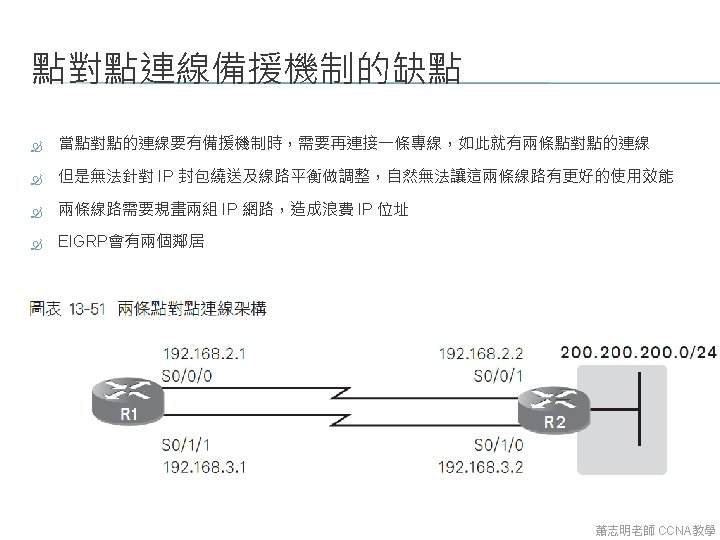

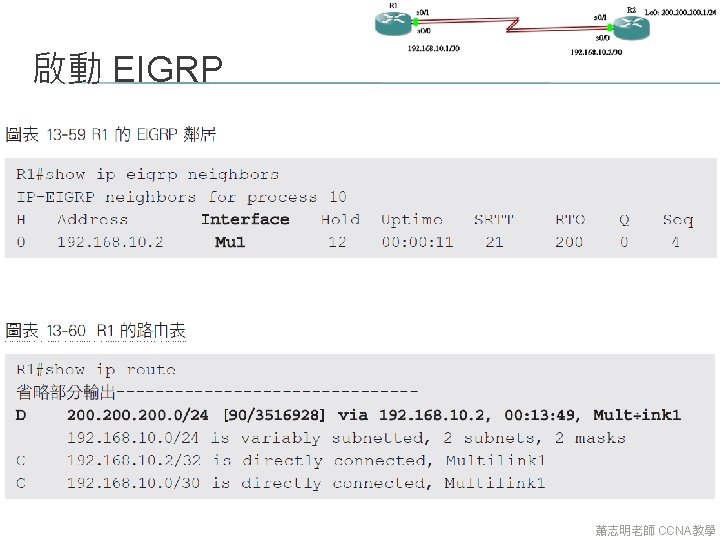

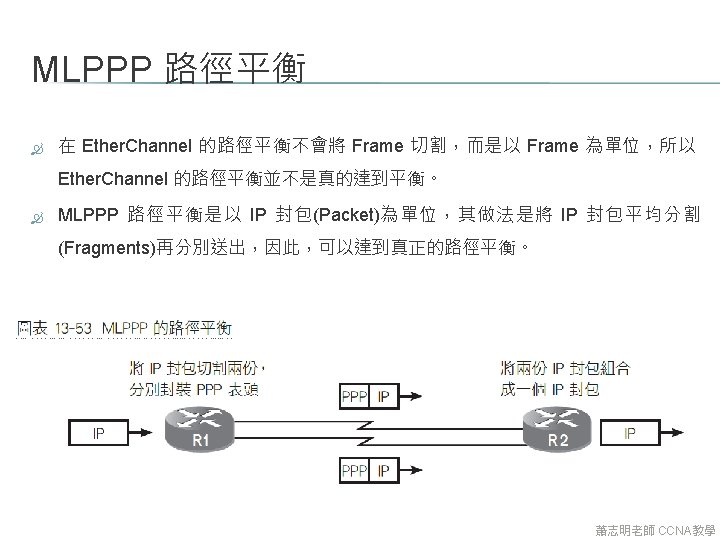

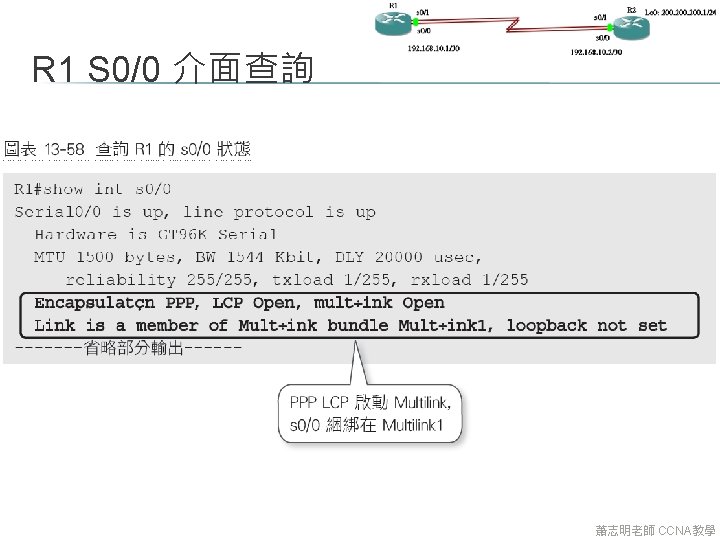

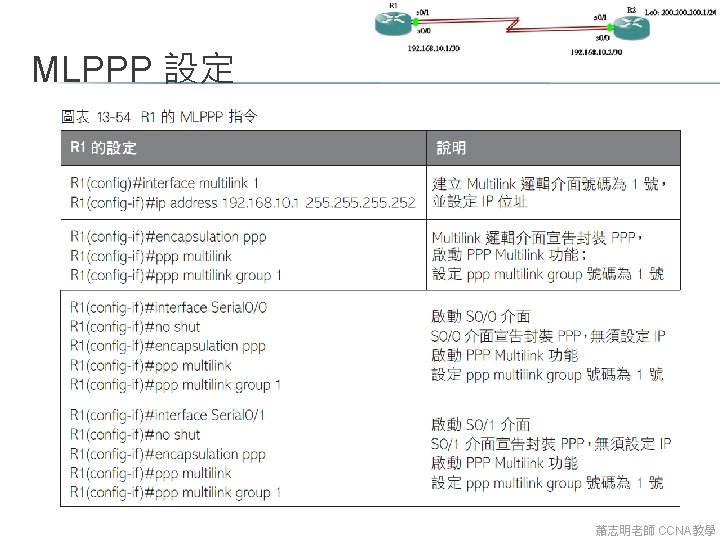

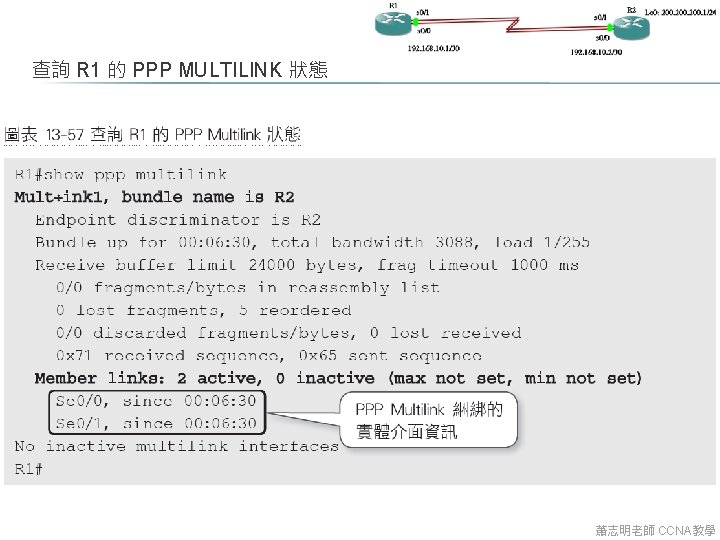

13. 8 MULTILINK PPP(MLPPP) 蕭志明老師 CCNA教學

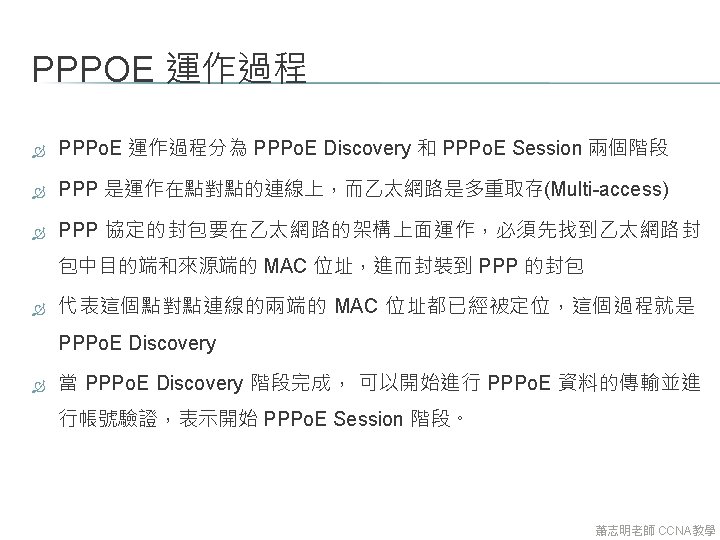

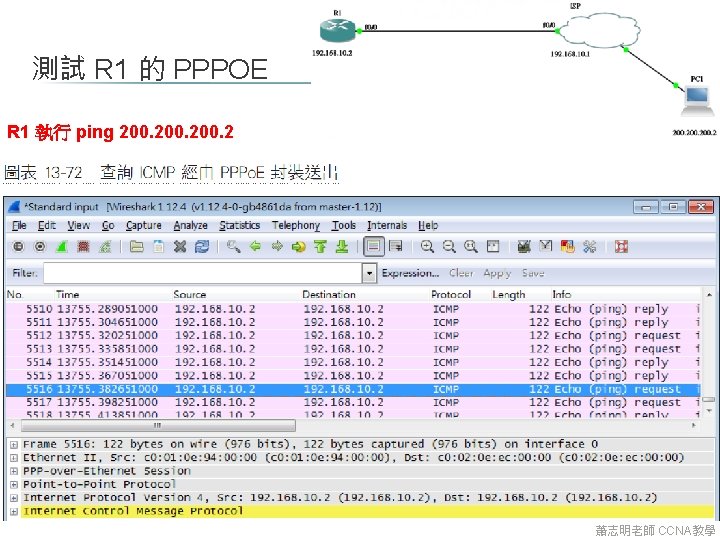

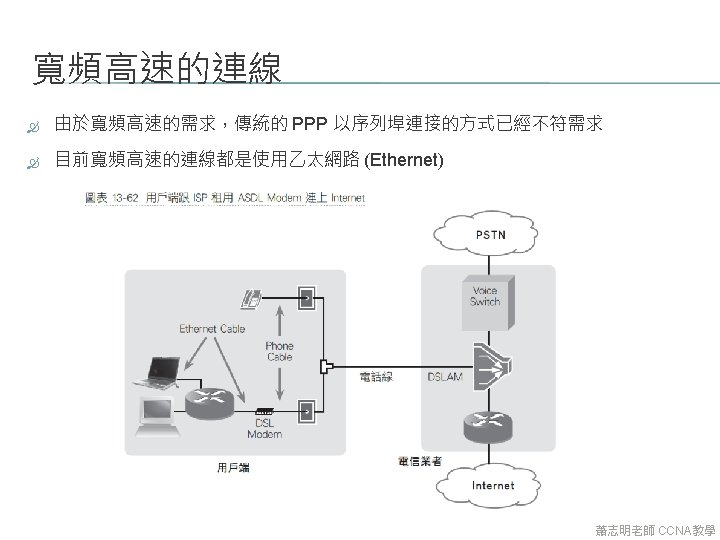

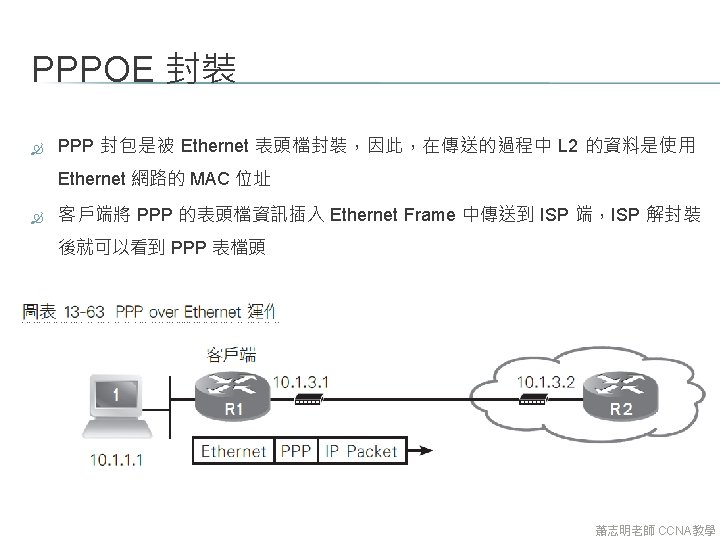

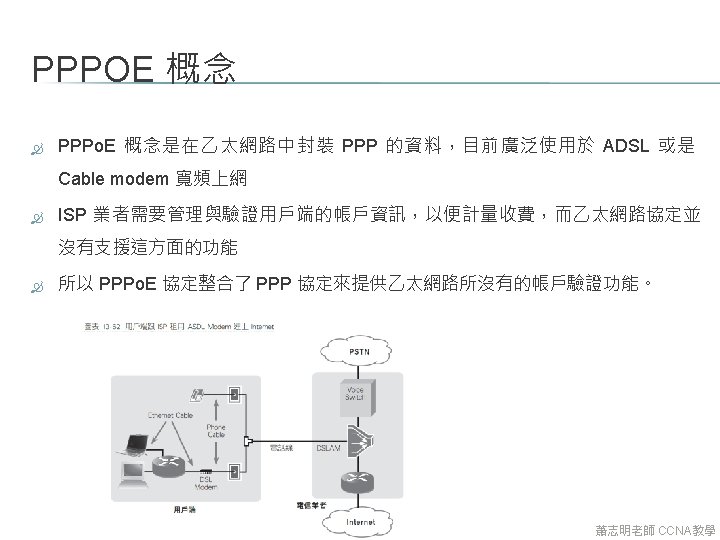

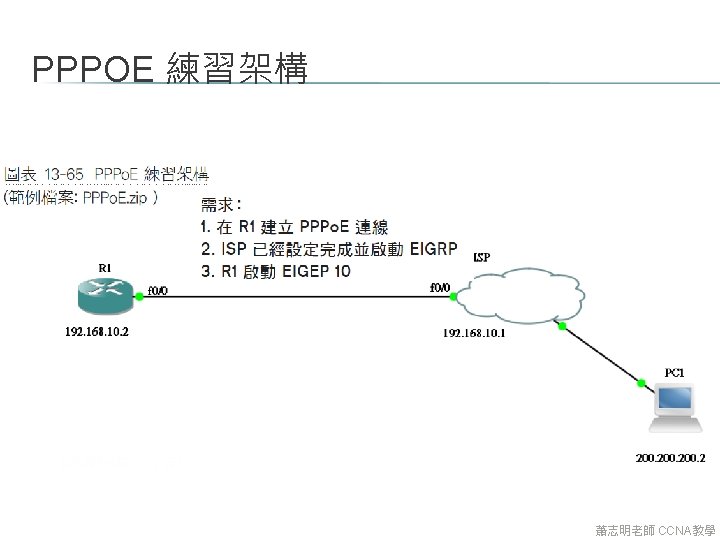

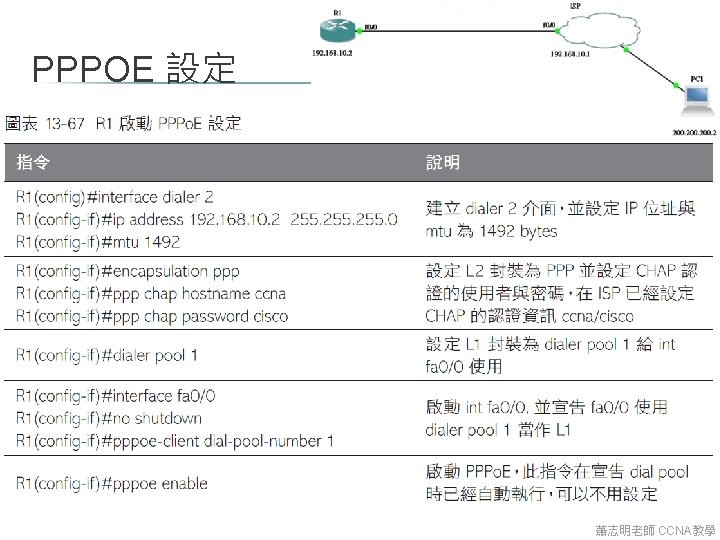

13. 9 PPP OVER ETHERNET (PPPOE) 蕭志明老師 CCNA教學
調整 IP PACKET 的 MTU 由於 IP Packet 的 MTU(maximum transmission unit)為 1500 bytes 當 PPPo. E 的表頭檔插入 Ethernet Frame 中會多出 8 bytes 需要調整 IP Packet 的 MTU 為 1492 bytes, 蕭志明老師 CCNA教學

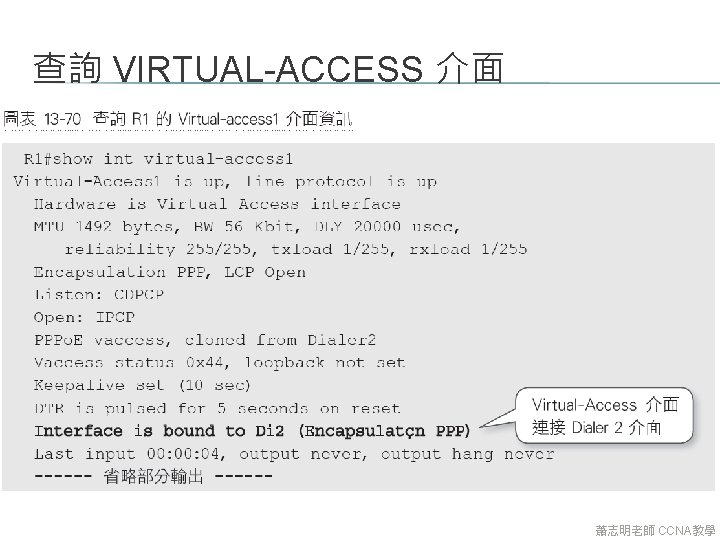

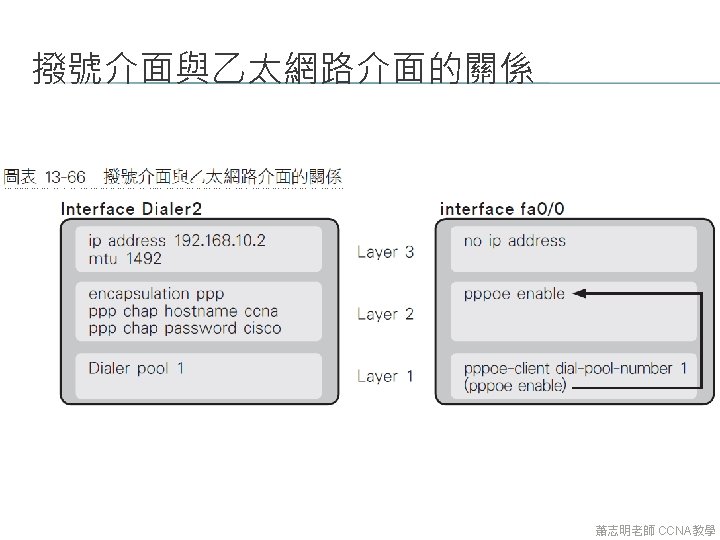

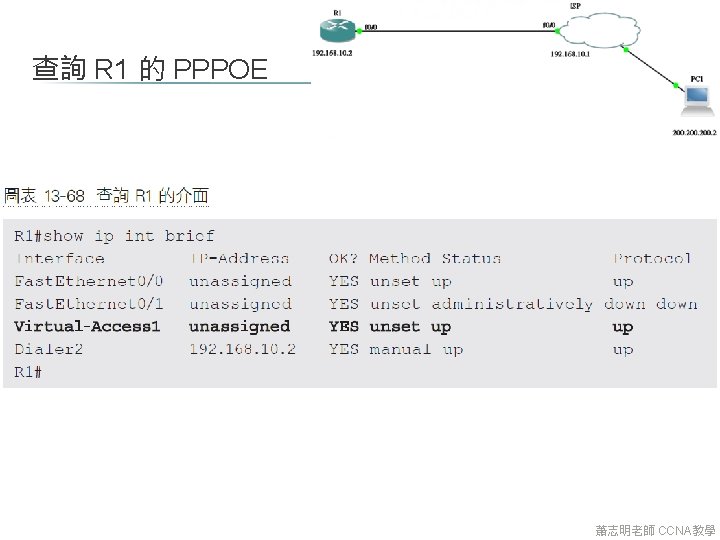

VIRTUAL-ACCESS 介面 蕭志明老師 CCNA教學
