1 st MEMS Commercial Tuning Fork Gyroscope Draper
- Slides: 8
1 st MEMS Commercial Tuning Fork Gyroscope Draper Labs Area 1 mm 2 ! M. Weinberg, J. Bernstein, S. Cho, A. T. King, A. Kourepenis, P. Ward, and J. Sohn, “A micromachined comb-drive tuning fork gyroscope for commercial applications, ” in Proc. Sensor Expo, Cleveland, OH, 1994, pp. 187– 193.

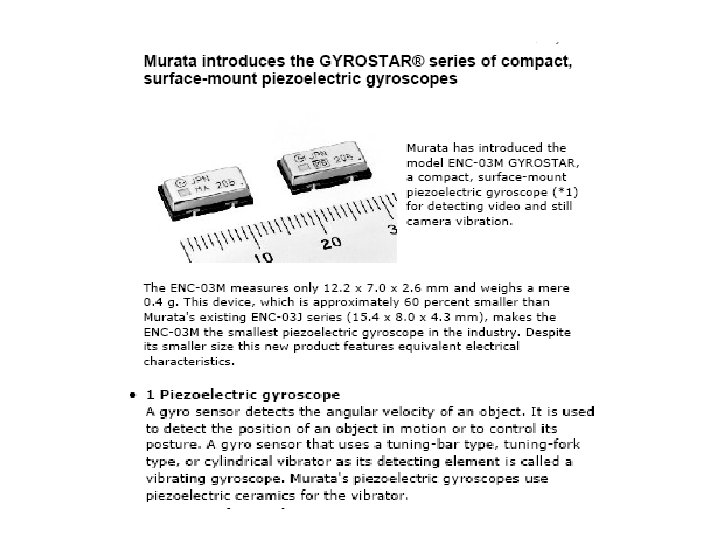

A Quartz Tuning Fork Gyroscope
Economy of Scale to Lower Cost “. . high volume occurred once unit prices achieved $3 target prices. ” A Critical Review of MEMS Gyroscopes Technology and Commercialization Status Steven Nasiri, 408 -988 -7339 x 108, snasiri@invensense. com 3150 A Coronado Drive, Santa Clara, California 95054
Applications • Automotive: vehicle stability control, rollover detection, navigation, load leveling/suspension control, event recording, collision avoidance • Consumer: computer input devices, handheld computing devices, game controllers, virtual reality gear, sports equipment, camcorders, robots • Industrial: navigation of autonomous (robotic) guided vehicles, motion control of hydraulic equipment or robots, platform stabilization of heavy machinery, human transporters, yaw rate control of wind-power plants • Aerospace/military: platform stabilization of avionics, stabilization of pointing systems for antennas, unmanned air vehicles, or land vehicles, inertial measurement units for inertial navigation A Critical Review of MEMS Gyroscopes Technology and Commercialization Status Steven Nasiri, 408 -988 -7339 x 108, snasiri@invensense. com 3150 A Coronado Drive, Santa Clara, California 95054
UI Research Project- Using AUVs to Measure Magnetic Signature of Naval Vessels

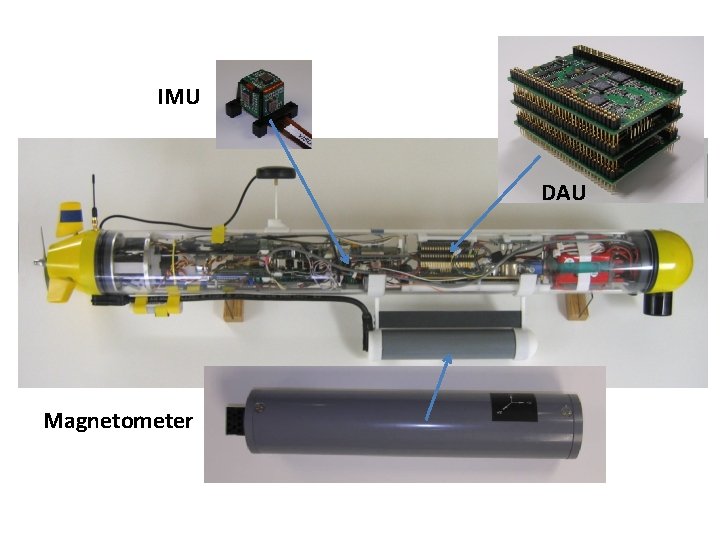

IMU DAU Magnetometer
IMU Specifications Archangel IM 3 Data Resolution Body Rates 0. 0006°/second @ 200 Hz Accelerations 50 μg @ 200 Hz Data Accuracy (Gyro IMU Mode) Random Walk 2. 5°/√hour (C 1) 5. 2°/√hour (C 2) Bias Drift 15°/hour Stability 50°/hr/year Scale Factor Accuracy 0. 1% of Full Scale Factor Drift 300 ppm, 1 sigma Cross Axis 0. 13% maximum Data Accuracy (Accelerometer) Bias Drift 0. 2 mg Scale Factor Accuracy 0. 10% of Full Scale Factor Drift 500 ppm, 1 sigma Cross Axis 0. 13% maximum Dynamic Range - C 1 ± 150°/s ± 10 g (Linear) - C 2 ± 300°/s ± 10 g Bandwidth (3 db) Rates 40 Hz Maximum Accelerations 50 Hz Maximum
