1 Same Medio Ambiente 2 Muheza Cambio Climtico
1. Same – Medio Ambiente 2. Muheza – Cambio Climático 3. Kongwa - Saneamiento 4. Kilombero - Energía
Suministro de energía eléctrica asequible y producción de carbón verde a partir de la gasificación de la cascarilla de arroz para áreas no conectadas a la red general de suministro
Escalera de acceso a la energía
Antecedentes
A Project Key Data Brief Project Description The Project envisages the provision of electricity from Rice Husk Gasification (32 k. W) for the community of Mbingu, Kilombero District (Tanzania) Type of project Demonstration Project Expected starting date of project 1 st January 2015 Expected project completion date 31 st August 2016 Project duration [months] 20 months Project implementation address (if different from the lead applicant address below) Mbingu village, Kilombero District, Morogoro Region, Tanzania Total project cost [Euro] 263. 950, 00 Eur Amount of funds requested from EEP 184. 765 Eur Amount of co- financing secured 79. 185 Eur Number of households with increased access to sustainable energy 150 Households, 2 institutions and 15 SMEs directly connected.
Socios 30 - 10
Modelo de negocio • The energy utility will be established and owned by a company limited by guarantee (non-profit) formed by ONGAWA (30% of the property), Ta. TEDO (30%) and HPS (30%). The partnership will be open to other partners (10%), such as social investors, local entrepreneurs or local authorities. The benefits of the company will be reinvested in expanding capacity and network coverage. • The company will have a shareholders' meeting (board of trustees) once a year to monitor the operation, approve budgets, determine the allocation of benefits and to confirm the director and employees. For everyday operation, the company will have a manager, who will be ultimately responsible for the operation and administration of the plant, and 2 resident staff in two shifts that will be recruited to run and manage the plant in the village. One of them will be in charge of the plant operation and the other will be in charge of the micro-grid and the revenue collection from pre-paid vouchers.
Datos técnicos Gasifier Type Down Draft Rated Capacity 40 k. VA Fuel type Rice Husk Gas Volume 150 cu. ft. Avg. gas calorific value 1050 Kcal/ NM 3 Char removal Dry Char Discharge Permissible moisture content 20% maximum Start up and operation Through electrical blower Blower Type Centrifugal

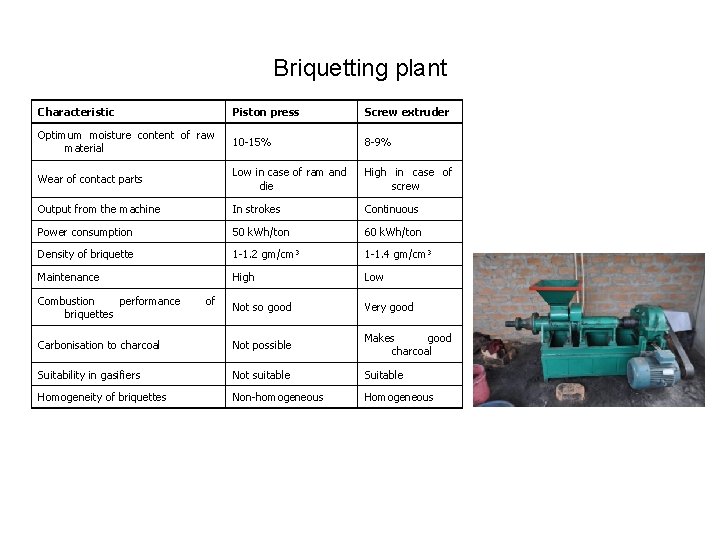

Briquetting plant Characteristic Piston press Screw extruder Optimum moisture content of raw material 10 -15% 8 -9% Wear of contact parts Low in case of ram and die High in case of screw Output from the machine In strokes Continuous Power consumption 50 k. Wh/ton 60 k. Wh/ton Density of briquette 1 -1. 2 gm/cm³ 1 -1. 4 gm/cm³ Maintenance High Low Not so good Very good Carbonisation to charcoal Not possible Makes good charcoal Suitability in gasifiers Not suitable Suitable Homogeneity of briquettes Non-homogeneous Homogeneous Combustion performance briquettes of
Plan de Negocio
Resumen Cronograma 1. Constitución del equipo y de la compañía 2. Planificación participativa 3. Dimensionamiento y diseño 4. Declaración de impacto ambiental 5. Adquisición de los equipos 6. Formación en O&M 7. Construcción de la planta 8. Cableado 9. Formación en desarrollo de negocio 10. Monitoreo y evaluación
Cronograma

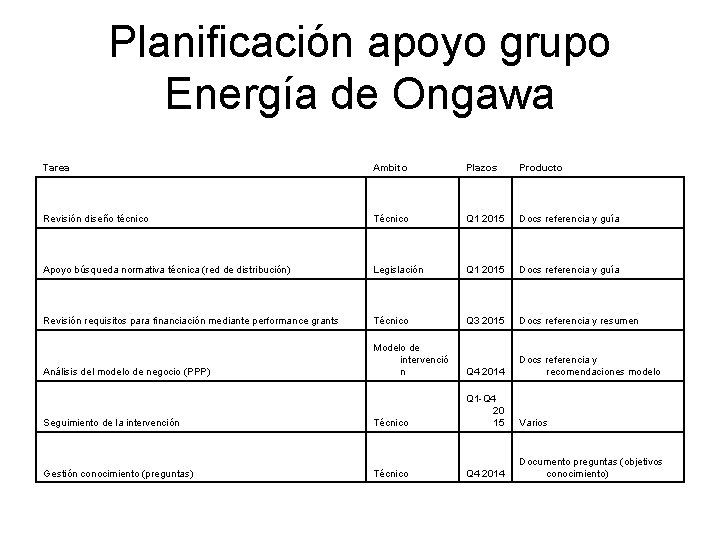

Planificación apoyo grupo Energía de Ongawa Tarea Ambito Plazos Producto Revisión diseño técnico Técnico Q 1 2015 Docs referencia y guía Apoyo búsqueda normativa técnica (red de distribución) Legislación Q 1 2015 Docs referencia y guía Revisión requisitos para financiación mediante performance grants Técnico Q 3 2015 Docs referencia y resumen Análisis del modelo de negocio (PPP) Modelo de intervenció n Q 4 2014 Docs referencia y recomendaciones modelo Seguimiento de la intervención Técnico Q 1 -Q 4 20 15 Varios Gestión conocimiento (preguntas) Técnico Q 4 2014 Documento preguntas (objetivos conocimiento)
