Presentation Overview Ø Solar Industry Overview Ø Intro into Solar Photovoltaics Ø Types of PV Systems Ø Solar Product Offering – Solar Combiner Boxes – Solar Pass Through Boxes – Solar Cord Grips

Solar Industry Ø Solar Industry Market – Expected to increase to $127 B by 2016 – Driven by Renewable Energy acts – Federal and State funding – Rebates for extra energy consumption – Falling module and installation costs – ARRA certification The Solar Industry Is Big, Global & Growing! 3

Solar Photovoltaic Systems Off-Grid-Tie

Off-Grid Solar PV Systems Ø Off-Grid PV systems – Stand alone system – Battery back up – Low voltage electricity generation 12, 24, or 48 V – Typically provide DC power to smaller systems (lights, signs, etc) – “I don’t want to run power from the line side”

Off-Grid Solar PV Systems

Grid-Tied Solar PV Systems Ø Grid-Tied (on-grid) PV systems – System that is connected to a large independent grid (typically public) and feeds power into that grid – The electricity demand is met by the system and the excess is fed directly to the grid – Inverter is required to convert DC electricity to AC – Used in high voltage electricity generation – 6001000 V (buildings, residential rooftops, solar farms)

Grid-Tied Solar PV Systems

Solar Combiner Solutions Typical Grid-Tie PV System

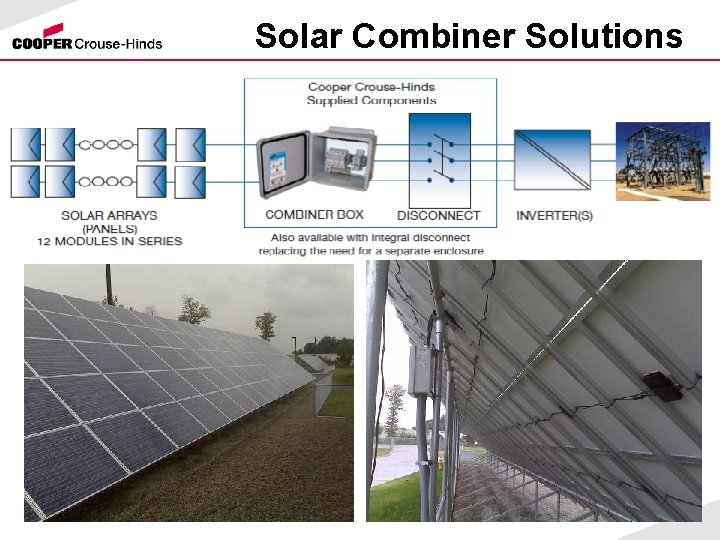

Solar Combiner Solutions

Solar Combiner Solutions

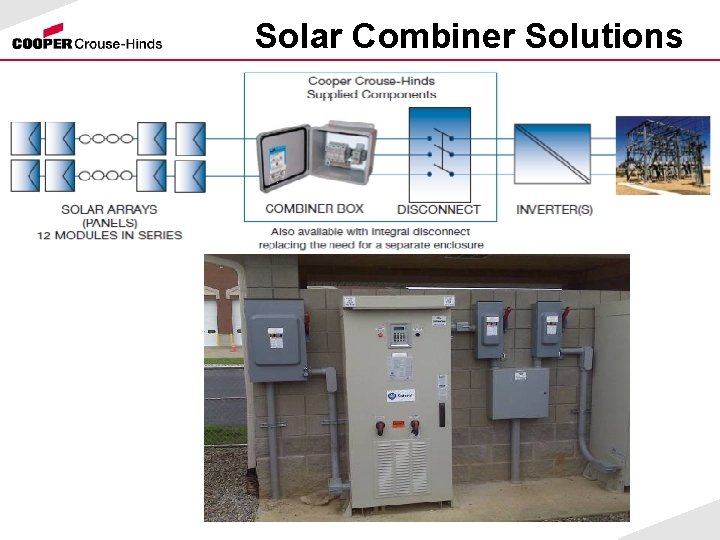

Solar Combiner Solutions

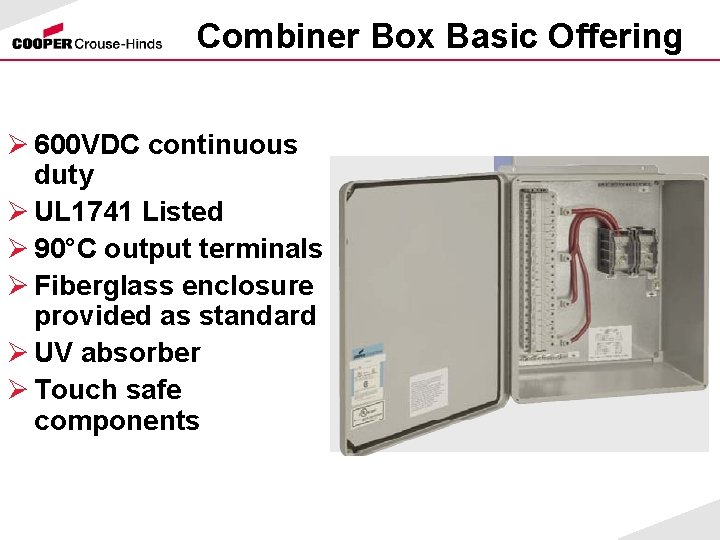

Combiner Box Basic Offering Ø 600 VDC continuous duty Ø UL 1741 Listed Ø 90°C output terminals Ø Fiberglass enclosure provided as standard Ø UV absorber Ø Touch safe components

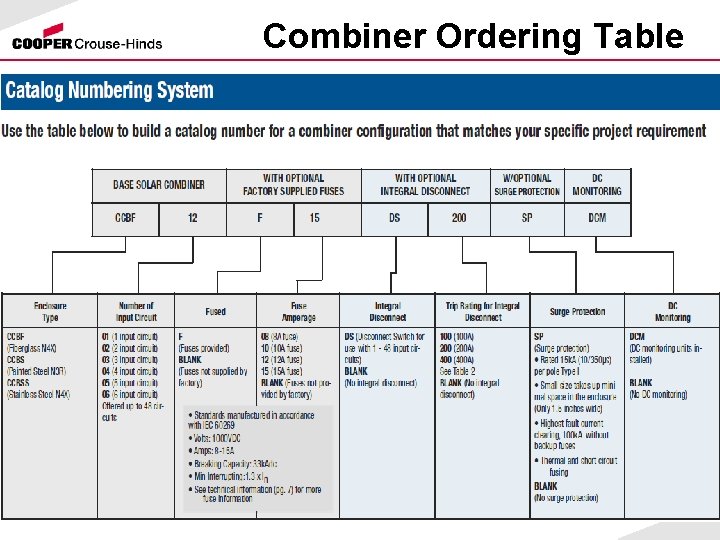

Combiner Ordering Table

Select Enclosure Type Ø Fiberglass N 4 X (standard) Ø Painted Steel N 3 R Ø Stainless Steel N 4 X

Select Number of Input Circuits Ø Offered from 1 to 48 input circuits Ø Touch safe Ø Din Rail Mounted

Select Fused or Not Fused Ø PV specific fuse Ø Offered in 8, 10, 12, or 15 A Ø Rated at 1000 VDC Ø Breaking capacity 33 k. A

Select Integral Disconnect Ø Disconnect switches offered in 100, 200, 400 A Ø Max current can never exceed disconnect rating Ø Save time, labor & space!

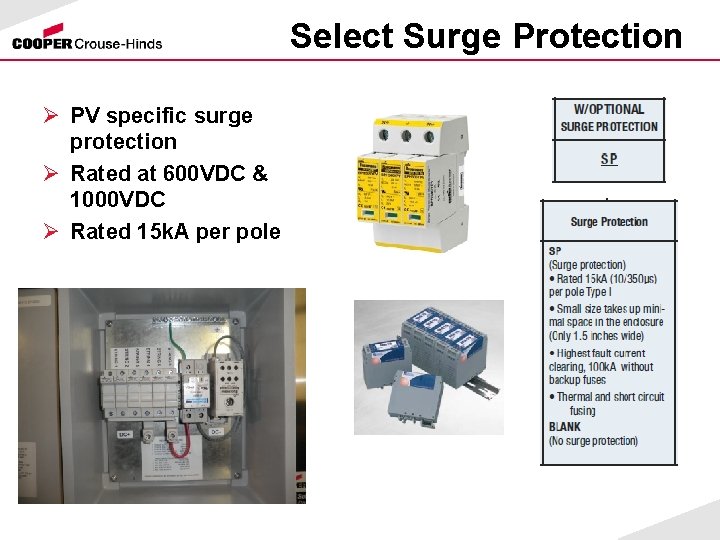

Select Surge Protection Ø PV specific surge protection Ø Rated at 600 VDC & 1000 VDC Ø Rated 15 k. A per pole

DC String Monitoring 20

DC String Monitoring 21

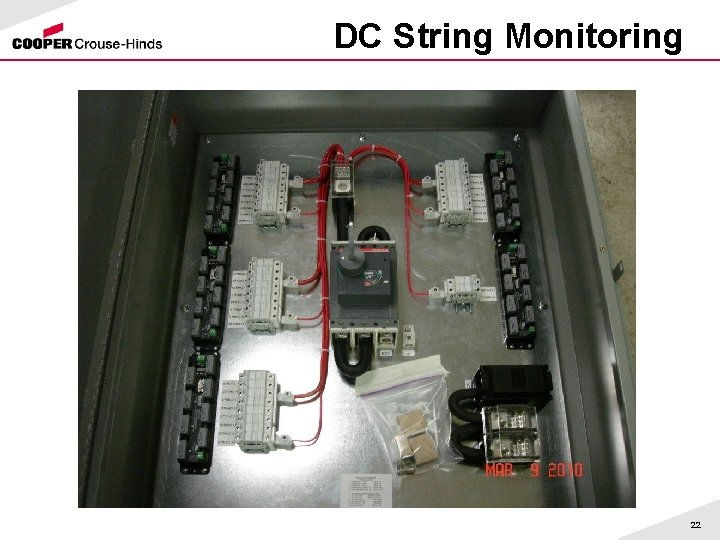

DC String Monitoring 22

DC String Monitoring 23

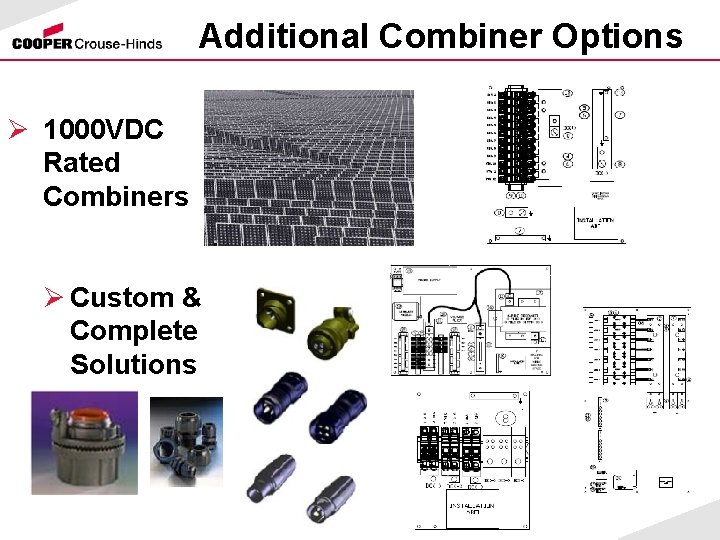

Additional Combiner Options Ø 1000 VDC Rated Combiners Ø Custom & Complete Solutions

CCH Solar Product Offering ØRecombiners – Larger PV systems may require a need to combine the wires from several combiner boxes – Sometimes referred to as array or sub combiners – Consult factory

CCH Solar Product Offering Ø Heavy Duty Disconnect Switches – – – 600 VDC/ VAC 30, 60, 100, 200 A 3 Pole 3 Wire N 3 R & N 4 X Fusible or Non-Fusible *400 A & 4 Pole available upon request

Solar Pass Through Boxes

Solar Pass Through Box Ø Used in residential applications Ø Provides low profile, cost effective solution Ø Transitions solar PV wire into traditional building wire Ø Designed for PV applications where over current protection is not necessary due to the low power rating of the PV string Ø Sometimes referred to as a “Transition Box” Ø Available in 3 and 4 circuit 28

Solar Pass Through Box Fiberglass (N 4 X) enclosure provided as standard offering long dependable service in the most environmental conditions Rated 600 VDC continuous duty Lightweight design offers easy mounting capabilities. Optional mounting feet are available for increased customer flexibility Skinned over glands offer flexibility to use from 1 -13 available holes while still providing a liquid tight seal around the wire(s) Constructed in accordance with UL 1741 standards providing spacious wiring room for quick easy wire termination Factory installed 9 or 13 Multi hole CG allows for entry of multiple PV wires 29

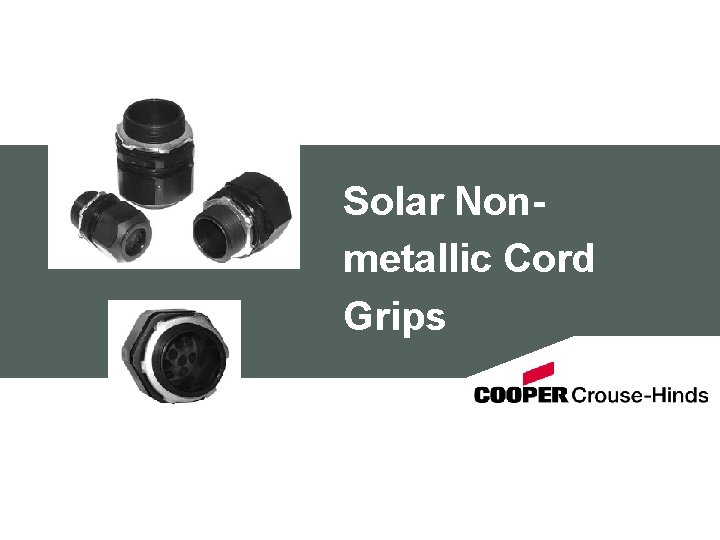

Solar Nonmetallic Cord Grips

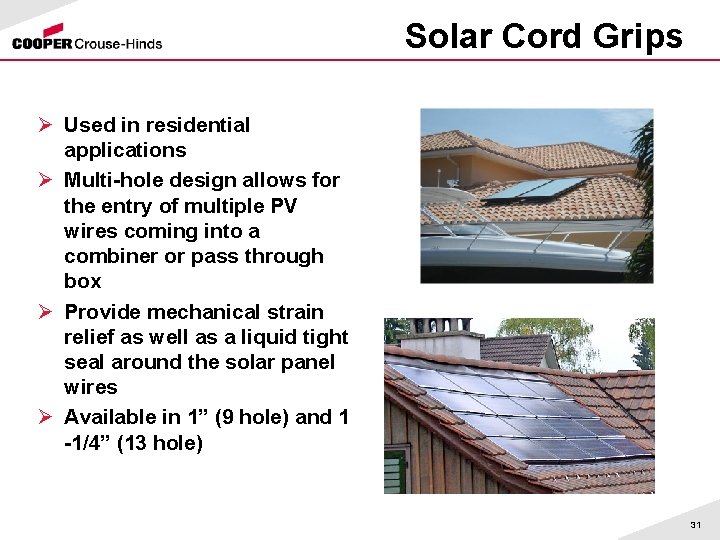

Solar Cord Grips Ø Used in residential applications Ø Multi-hole design allows for the entry of multiple PV wires coming into a combiner or pass through box Ø Provide mechanical strain relief as well as a liquid tight seal around the solar panel wires Ø Available in 1” (9 hole) and 1 -1/4” (13 hole) 31

Solar Cord Grips No disassembly required! Skinned over glands provide a durable, liquid tight seal around the wires Solar cord grips offer customer flexibility by allowing the termination from 1 to 13 PV wires in a single connector Multi-hole cord grip to allow for entry of multiple PV wires 32

Contact Information QUESTIONS ? ? ? Email: solarsolutions@cooperindustries. com
