1 Point Perspective 2 Point Perspective 3 Point
- Slides: 37
1 Point Perspective 2 Point Perspective 3 Point Perspective Linear Perspective Drawings

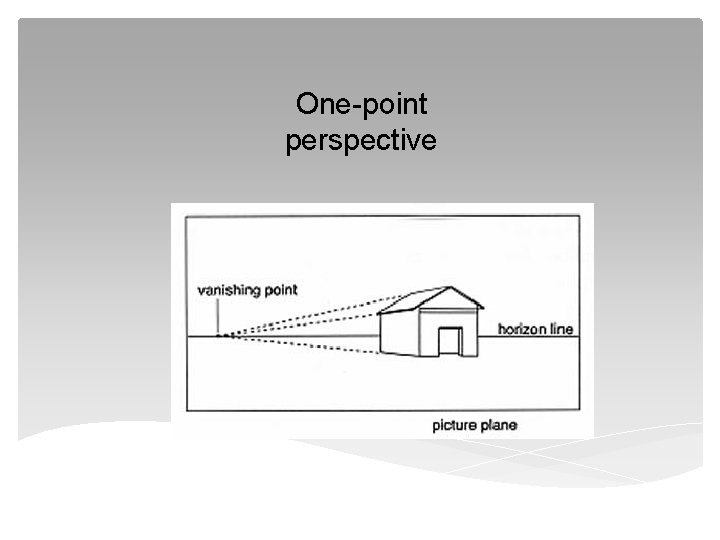

One-point perspective

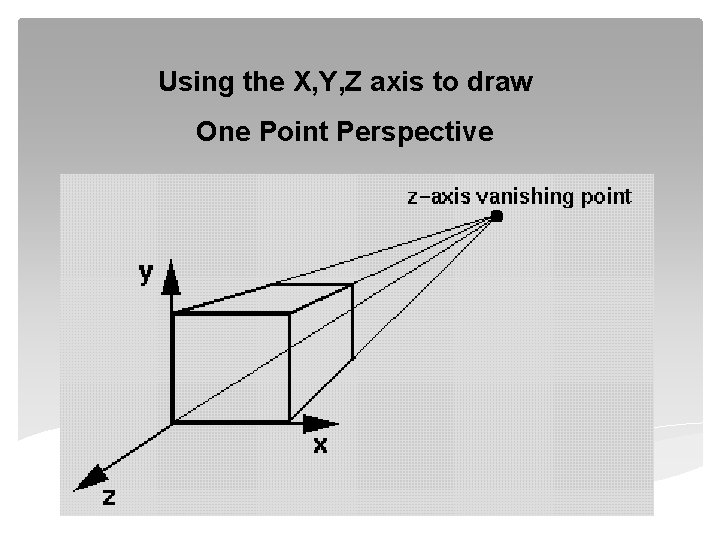

Using the X, Y, Z axis to draw One Point Perspective
by G. Smith Examples Paintings with One Point Perspective by Canaletto
Two point perspective
Using the X, Y, Z axis to Plot Points in a Two Point Perspective Painting Z X Y
Two Point Perspective Paintings
Three point perspective
Three point perspective 3 rd Vanishing point above if want sense of looking from above 3 rd Vanishing point below if want sense of looking from below

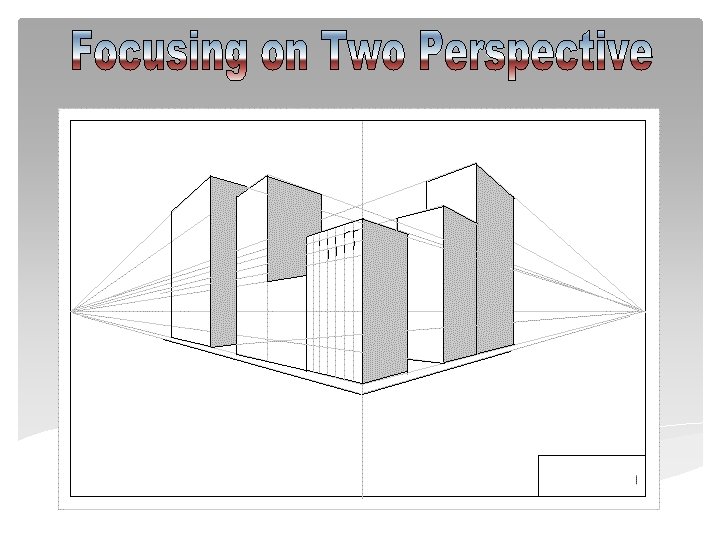

Learning to Draw Two Point Perspective
Step 1: Draw line lightly across paper about 3 inches down from top

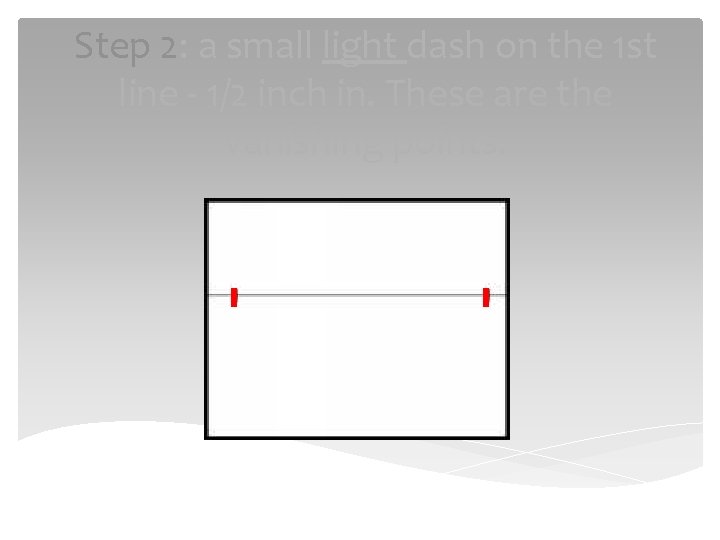

Step 2: a small light dash on the 1 st line - 1/2 inch in. These are the vanishing points.
Step 3: make the z-axis - does not need to be in the center. Z
Step 4: make the x-axis - from the bottom of z to the vanishing point Z x
Step 5: make the y-axis - from the bottom of z to the other vanishing point. Z y x

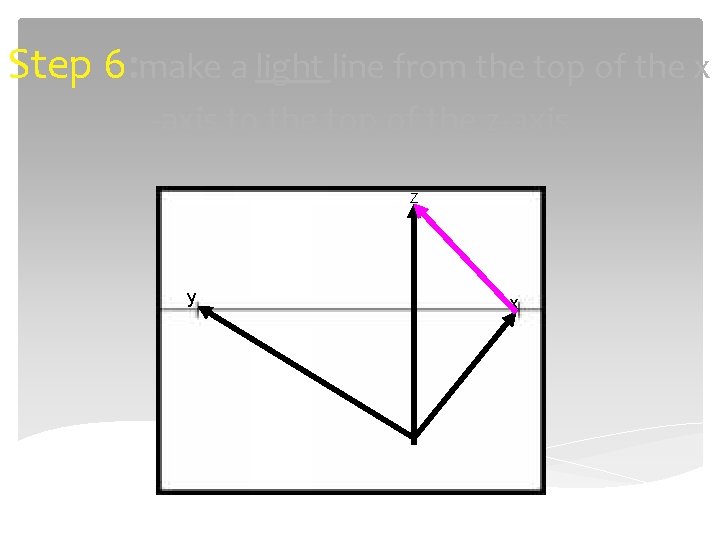

Step 6: make a light line from the top of the x -axis to the top of the z-axis Z y x
Step 7: make a light line from the top of the yaxis to the top of the z-axis Z y x
Step 8: Make two vertical lines - one on each side of the z-axis Z y x
Step 9: Darken the lines connecting to z-axis to the lines just drawn. Z y x
Step 10: Draw a line part way up from the yaxis. It needs to go above the horizon. Z y x
Step 11: Lightly Draw a line to the vanishing point and another vertical line. Z y x

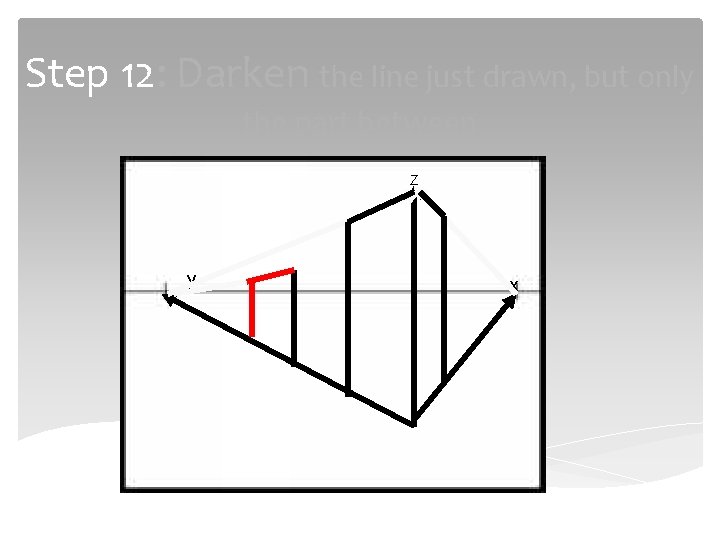

Step 12: Darken the line just drawn, but only the part between Z y x
Step 13: Lightly Draw another line to the vanishing point and darken rest of the vertical line. Z y x

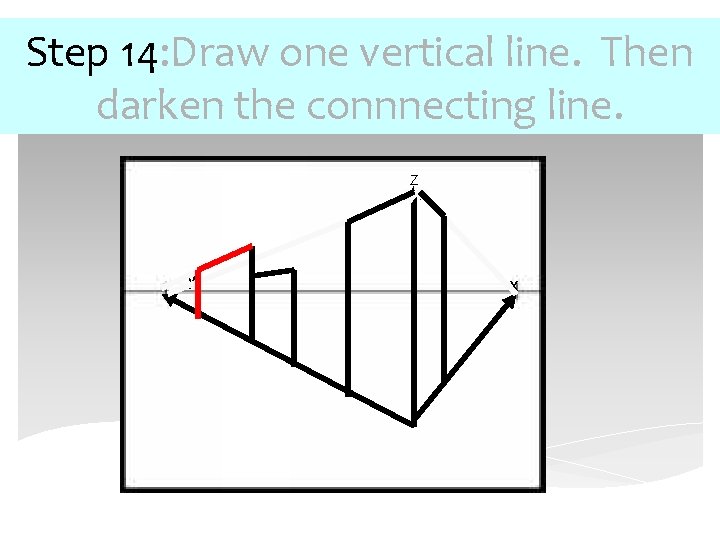

Step 14: Draw one vertical line. Then darken the connnecting line. Z y x

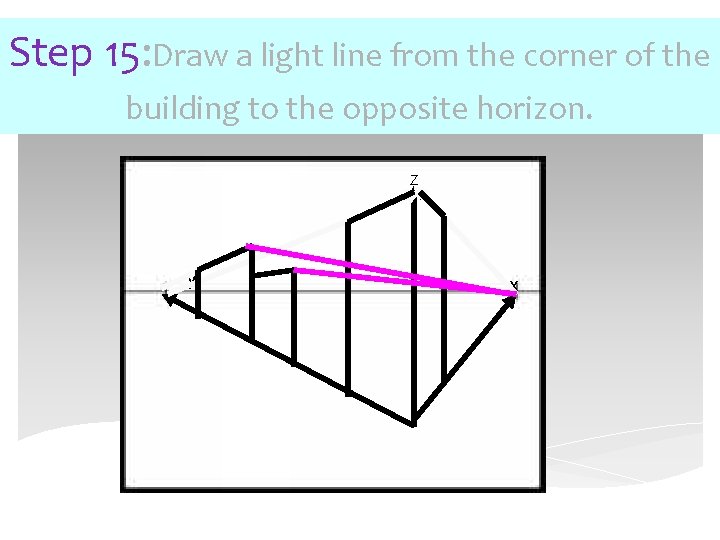

Step 15: Draw a light line from the corner of the building to the opposite horizon. Z y x
Step 16: Darken the newly drawn lines up until they hit the first building. Z y x
Step 17: erase the light lines between the x and y axis. Z y x
Step 18: try to make a building along the x-axis. 4 lines. Z y x
Step 19: darken lines between buildings. Z y x

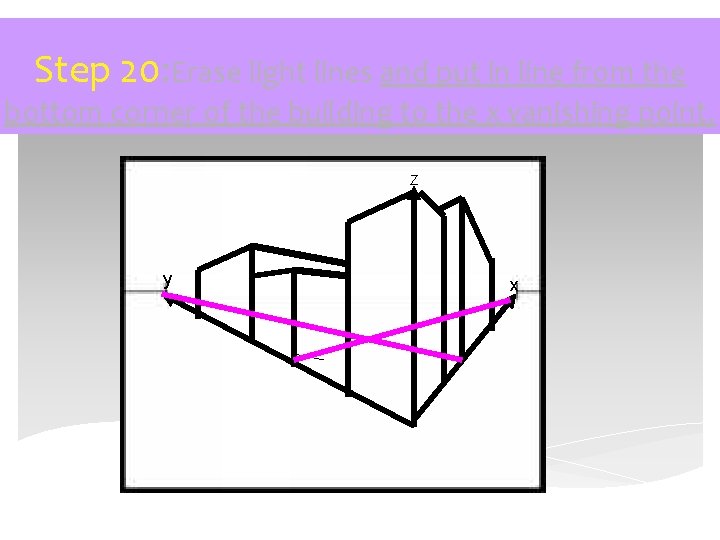

Step 20: Erase light lines and put in line from the bottom corner of the building to the x vanishing point. Z y x
Step 21: Darken the lines you just made from the bottom of the building till it hits the next building Z y x
Step 22: choose where your sun goes and begin shading and adding more detail. Z y x
Put in the details….
Make a drawing from your own perspective
Math and Abstract Art
Z X Y
