1 Pick up 9 in back do it

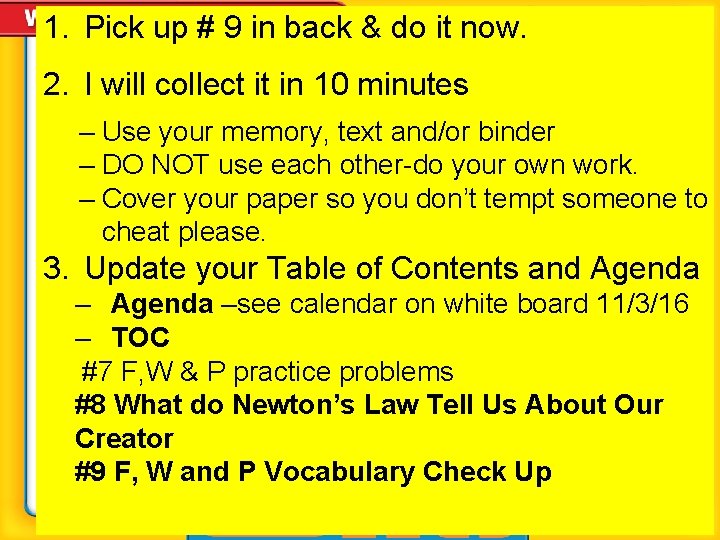

1. Pick up # 9 in back & do it now. 2. I will collect it in 10 minutes – Use your memory, text and/or binder – DO NOT use each other-do your own work. – Cover your paper so you don’t tempt someone to cheat please. 3. Update your Table of Contents and Agenda –see calendar on white board 11/3/16 – TOC #7 F, W & P practice problems #8 What do Newton’s Law Tell Us About Our Creator #9 F, W and P Vocabulary Check Up

1. Title, Heading and # a sheet of notebook paper. 2. Find then Write Romans 1: 20 then Hide it again. 3. Make a list of words or phrases that come to min from the scripture that describe God’s Nature #8 What do Newton’s Law’s Tell Us About Our Creator? Find Romans 1: 20

• But the basic reality of God is plain enough. Open your eyes and there it is! By taking a long and thoughtful look at what God has created, people have always been able to see what their eyes as such can’t see: eternal power, for instance, and the mystery of his divine being. So nobody has a good excuse. Romans 1: 20 MSG 4. Use one of Newton’s Laws to explain what the writer of Romans is talking about in 1: 20

• Pick up Notes in back please • c • Do the back of the first page on #7 NOW-yes NOW… • Binder, book and calculator out on your desk.

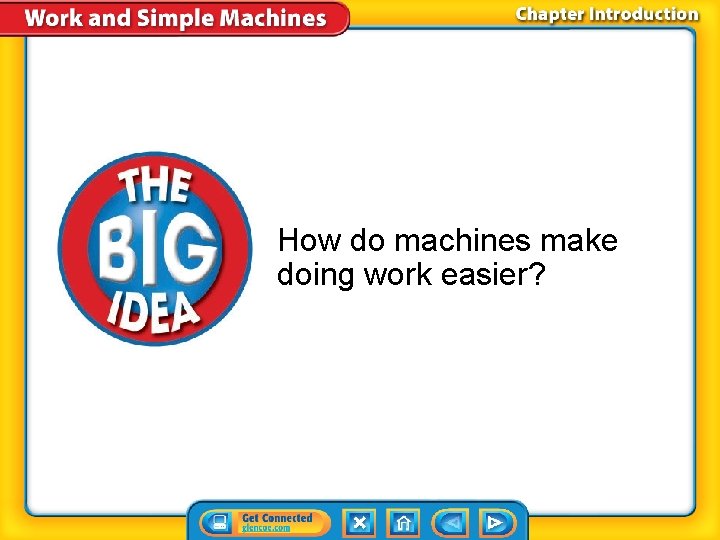

How do machines make doing work easier?

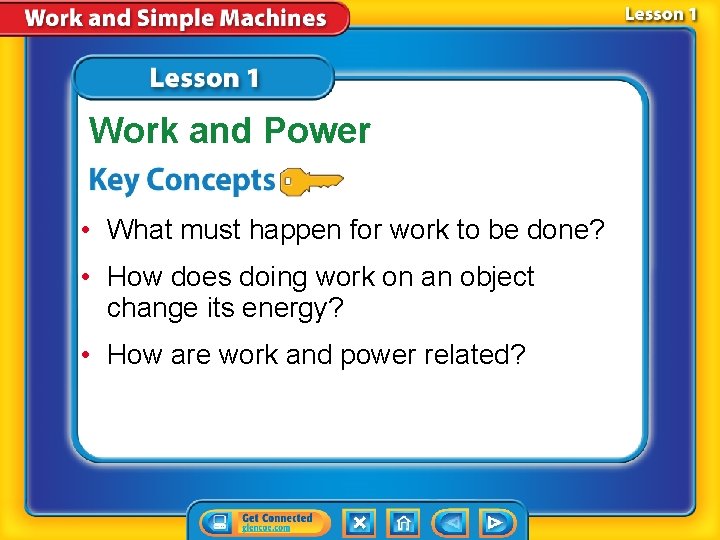

Work and Power • What must happen for work to be done? • How does doing work on an object change its energy? • How are work and power related?

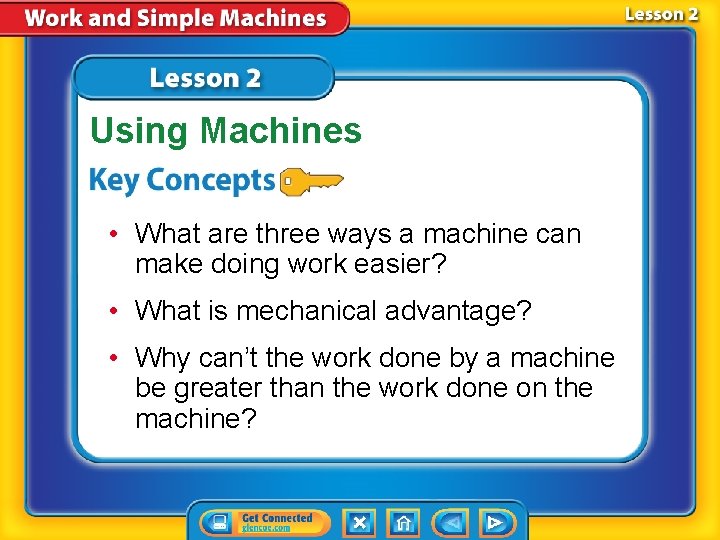

Using Machines • What are three ways a machine can make doing work easier? • What is mechanical advantage? • Why can’t the work done by a machine be greater than the work done on the machine?

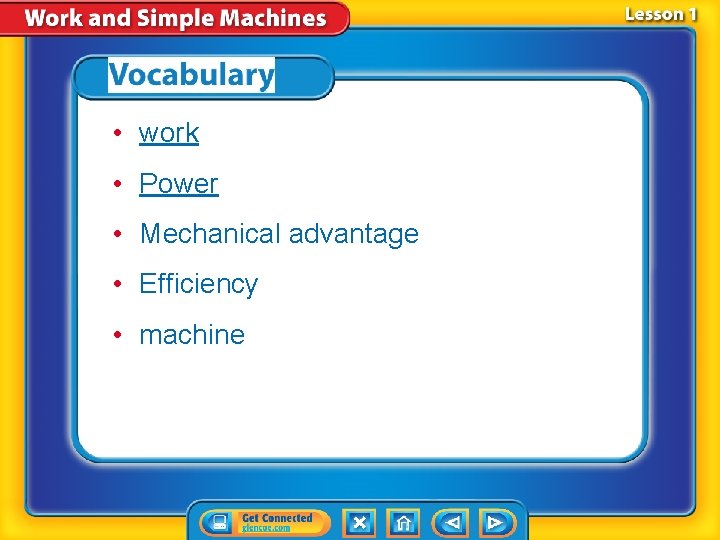

• work • Power • Mechanical advantage • Efficiency • machine

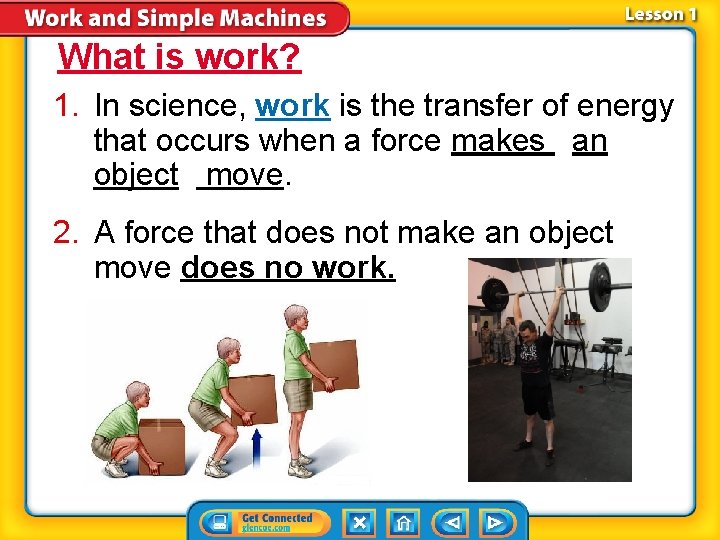

What is work? 1. In science, work is the transfer of energy that occurs when a force makes an object move. 2. A force that does not make an object move does no work.

Calculating Work 1. 2. The product of force and distance; the unit newton·meter. The newton· meter is also known as the joule (J).

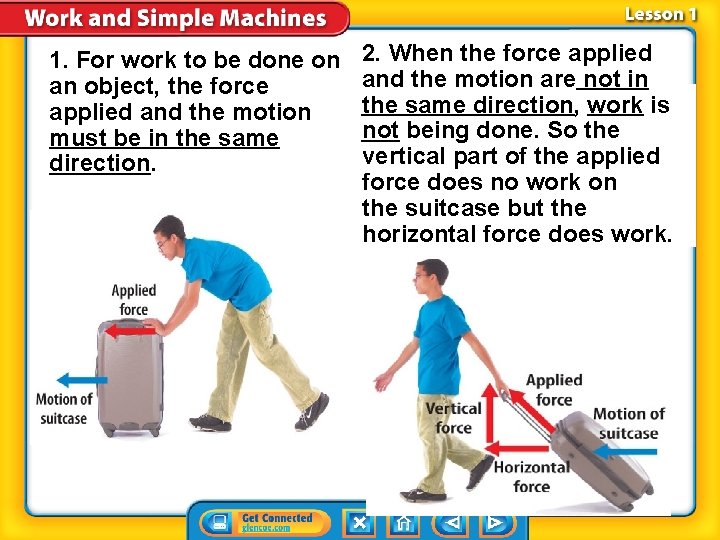

1. For work to be done on an object, the force applied and the motion must be in the same direction. 2. When the force applied and the motion are not in the same direction, work is not being done. So the vertical part of the applied force does no work on the suitcase but the horizontal force does work.

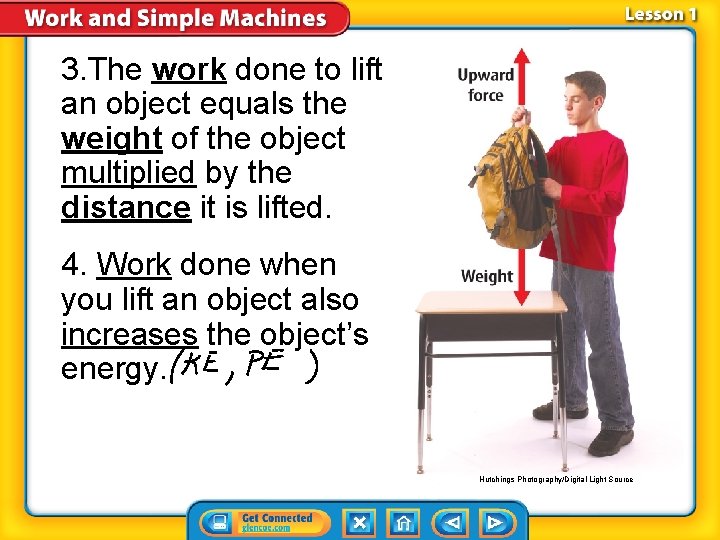

3. The work done to lift an object equals the weight of the object multiplied by the distance it is lifted. 4. Work done when you lift an object also increases the object’s energy. Hutchings Photography/Digital Light Source

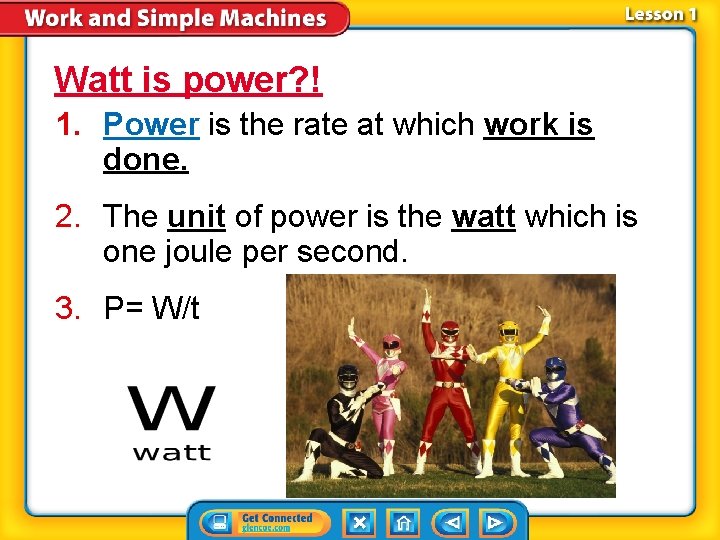

Watt is power? ! 1. Power is the rate at which work is done. 2. The unit of power is the watt which is one joule per second. 3. P= W/t

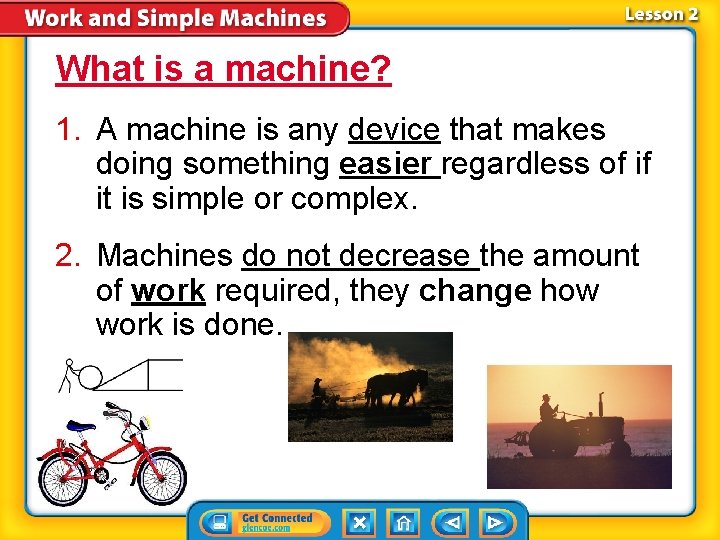

What is a machine? 1. A machine is any device that makes doing something easier regardless of if it is simple or complex. 2. Machines do not decrease the amount of work required, they change how work is done.

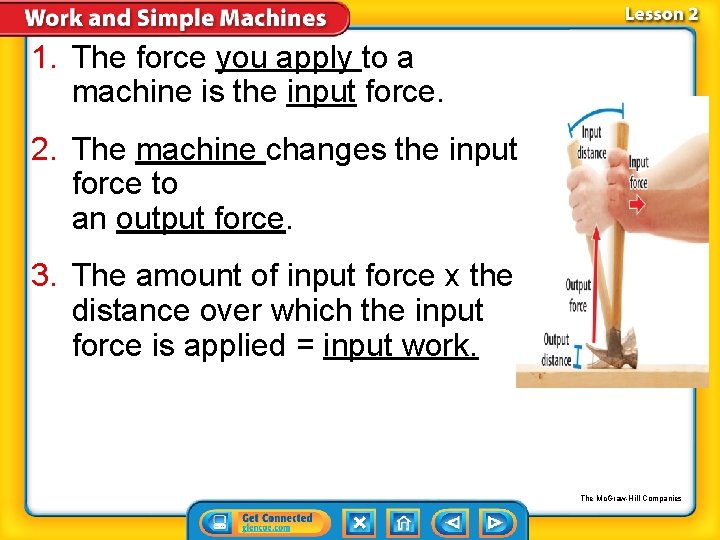

1. The force you apply to a machine is the input force. 2. The machine changes the input force to an output force. 3. The amount of input force x the distance over which the input force is applied = input work. The Mc. Graw-Hill Companies

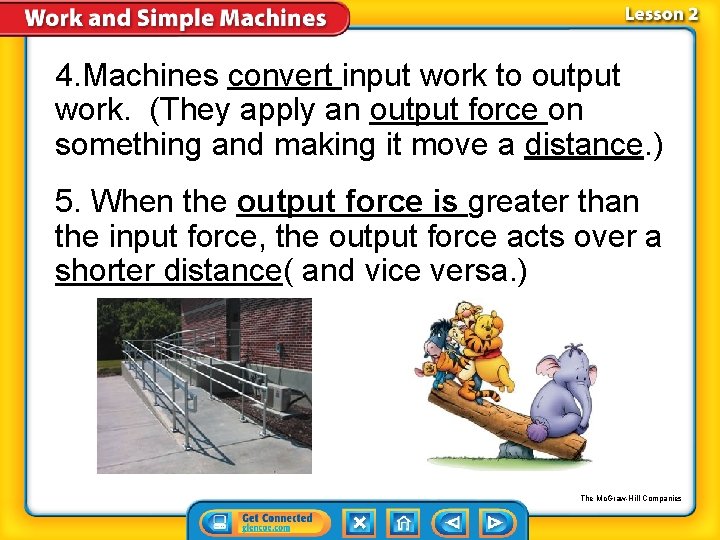

4. Machines convert input work to output work. (They apply an output force on something and making it move a distance. ) 5. When the output force is greater than the input force, the output force acts over a shorter distance( and vice versa. ) The Mc. Graw-Hill Companies

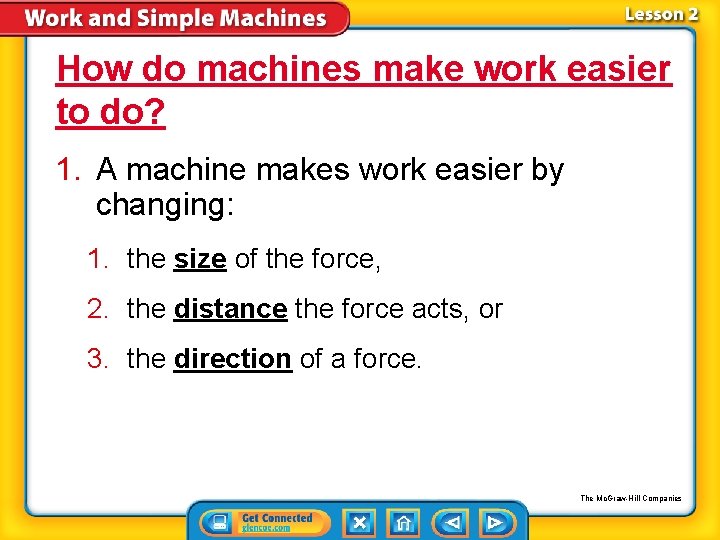

How do machines make work easier to do? 1. A machine makes work easier by changing: 1. the size of the force, 2. the distance the force acts, or 3. the direction of a force. The Mc. Graw-Hill Companies

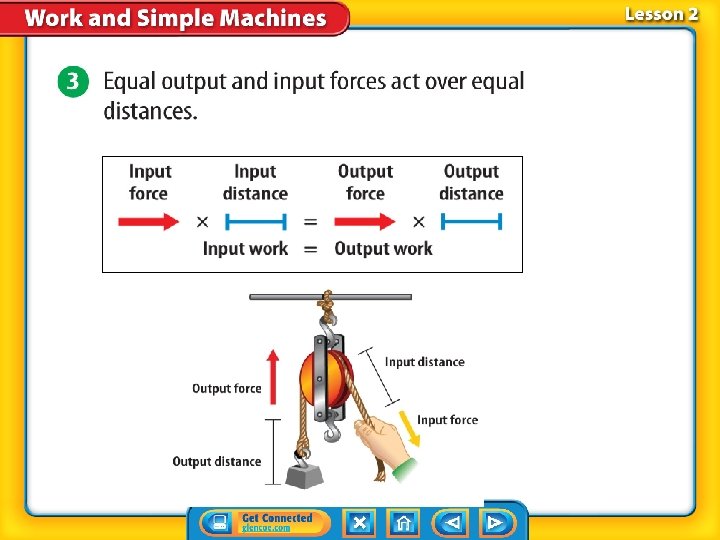

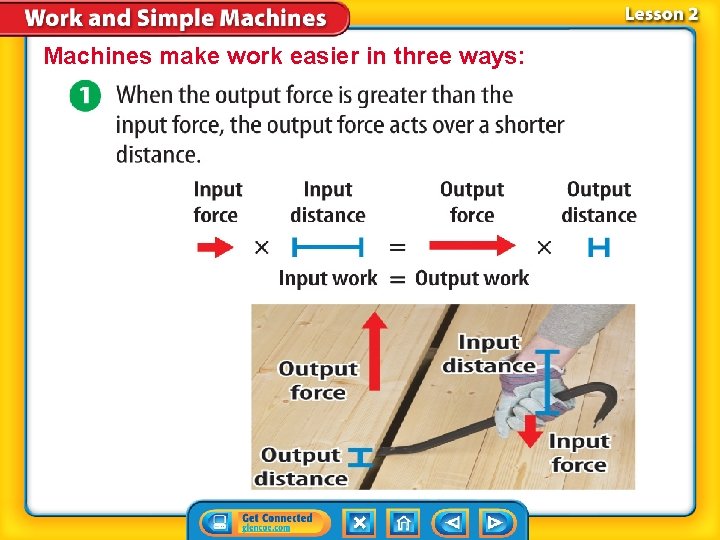

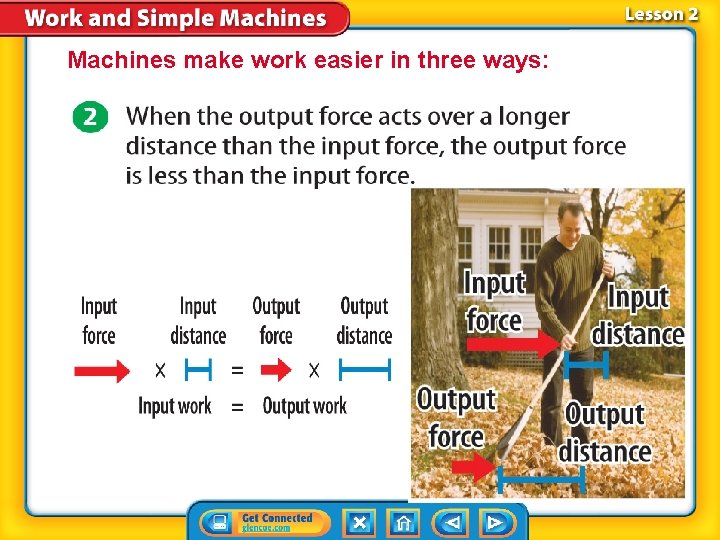

Machines make work easier in three ways:

What is mechanical advantage? 1. A machine’s mechanical advantage is the ratio of a machine’s output force to the applied input force and tells you how many times larger or smaller the output force is than the input force. 2. A mechanical advantage greater than 1 means the output force is greater than the input force.

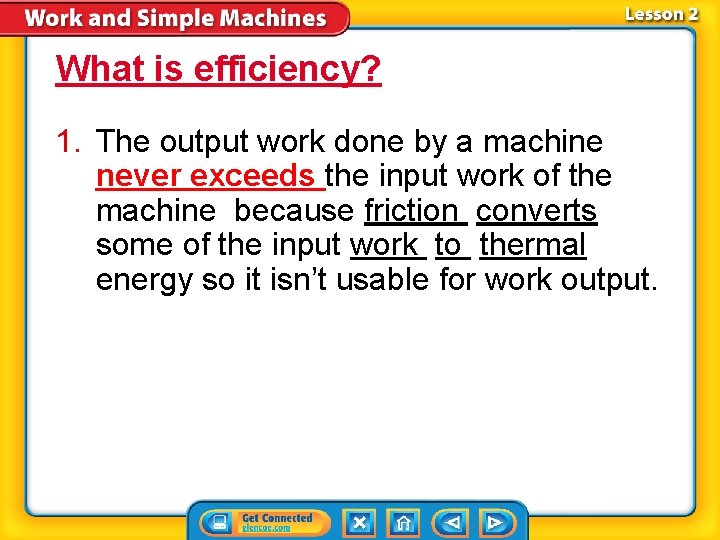

What is efficiency? 1. The output work done by a machine never exceeds the input work of the machine because friction converts some of the input work to thermal energy so it isn’t usable for work output.

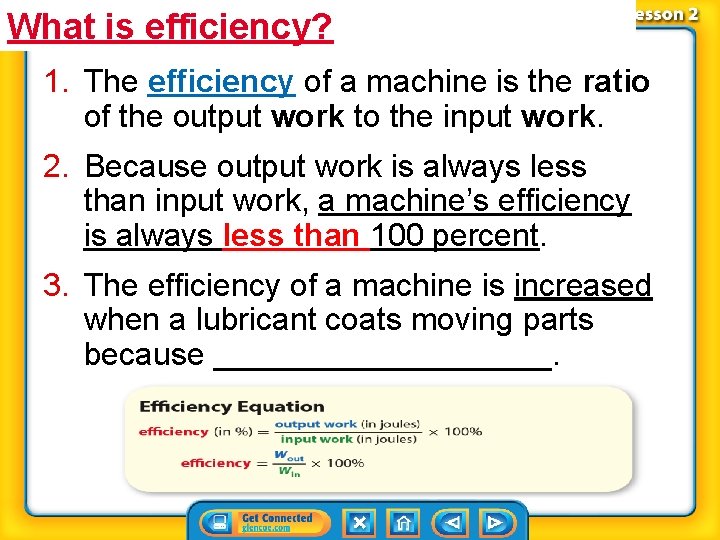

What is efficiency? 1. The efficiency of a machine is the ratio of the output work to the input work. 2. Because output work is always less than input work, a machine’s efficiency is always less than 100 percent. 3. The efficiency of a machine is increased when a lubricant coats moving parts because __________.

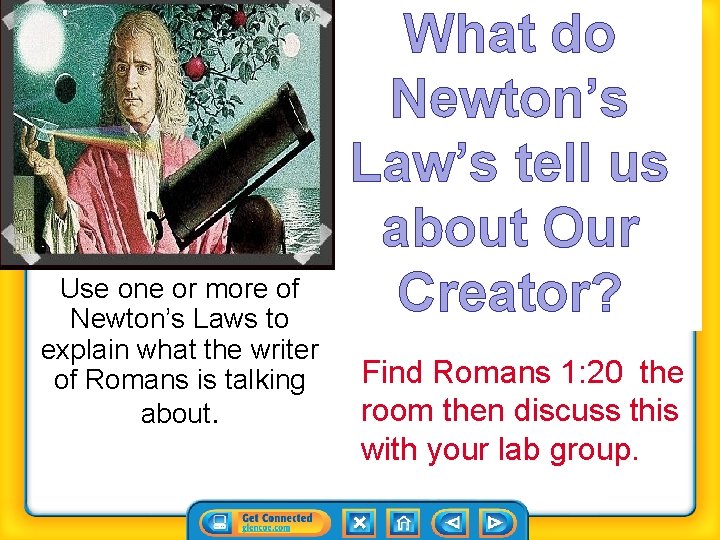

Use one or more of Newton’s Laws to explain what the writer of Romans is talking about. What do Newton’s Law’s tell us about Our Creator? Find Romans 1: 20 the room then discuss this with your lab group.

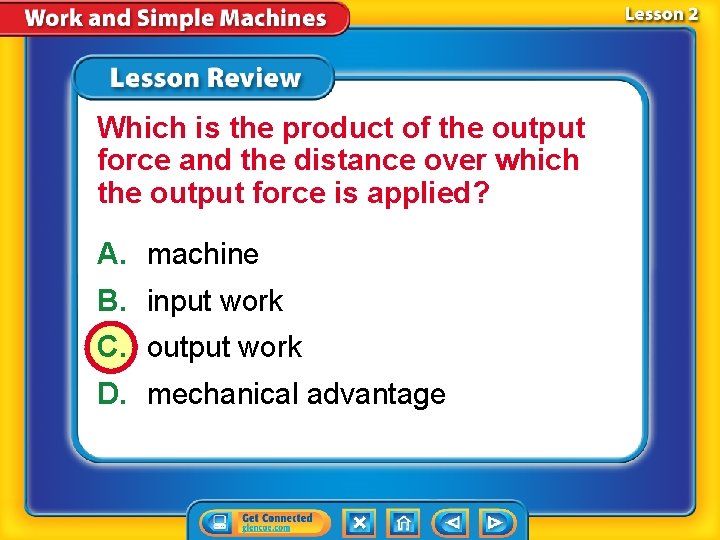

Which is the product of the output force and the distance over which the output force is applied? A. machine B. input work C. output work D. mechanical advantage

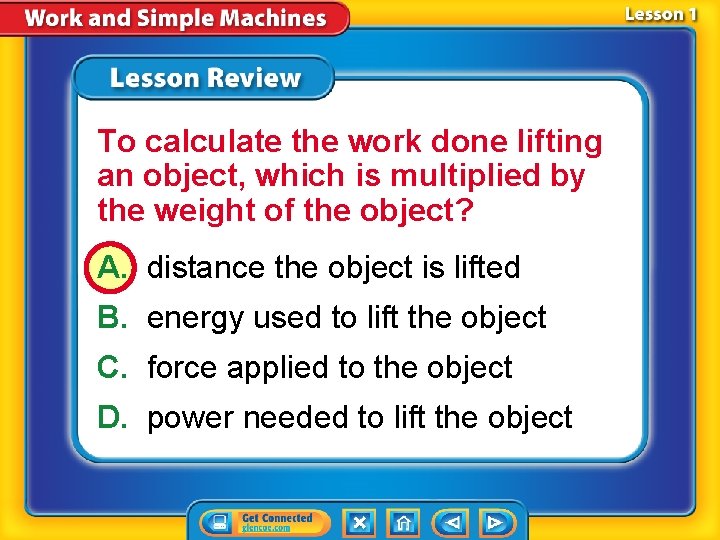

To calculate the work done lifting an object, which is multiplied by the weight of the object? A. distance the object is lifted B. energy used to lift the object C. force applied to the object D. power needed to lift the object

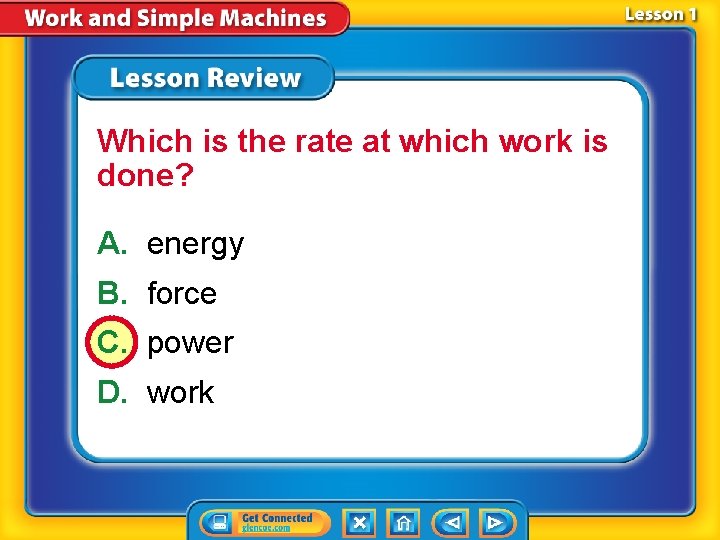

Which is the rate at which work is done? A. energy B. force C. power D. work

When you lift an object, what else are you doing? A. decreasing the object’s energy B. increasing the object’s energy C. making the object do work D. receiving the object’s energy

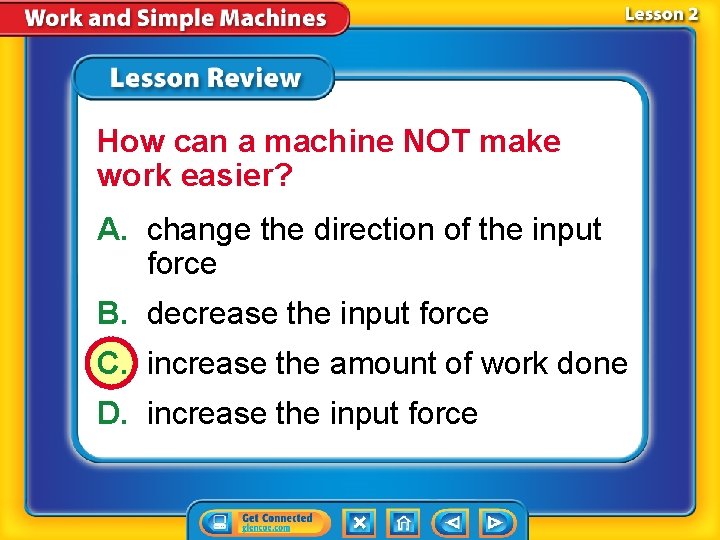

How can a machine NOT make work easier? A. change the direction of the input force B. decrease the input force C. increase the amount of work done D. increase the input force

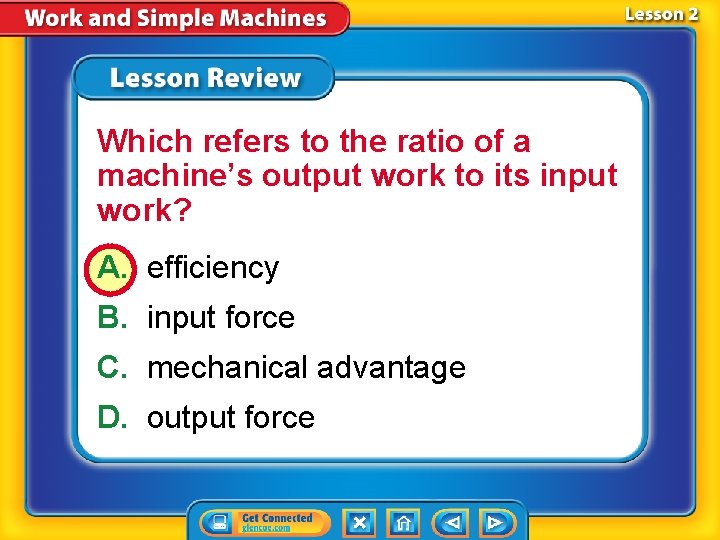

Which refers to the ratio of a machine’s output work to its input work? A. efficiency B. input force C. mechanical advantage D. output force
