1 Our Focus Mechanical Electronic Door Opening Solutions

1

Our Focus: Mechanical & Electronic Door Opening Solutions 2

Our products Mechanical locks Identification Electromechanics Security doors and fittings Automatic doors and Revolvers Hotel locks 3 Industrial locks Global platforms

Global Leadership in Door Opening Solutions • Sales: approx. $4. 5 bi Sales • Employees: approx. 25, 000 • Global Presence: Five Divisions 4

5 ASSA ABLOY Divisions: 3 Geographic … Americas Europe, Middle East, Africa (EMEA) 5 Asia Pacific

5 ASSA ABLOY Divisions: … & 2 World Wide Global Technologies (HID, Hospitality) Entrance Systems (Besam ) 6

7

Our Customers Everyone everywhere • Commercial: Industries, businesses and institutions – e. g. hotels, airports, hospitals, buildings, shopping malls, factories, schools and more • Residential: Private households 8

How does ASSA ABLOY address this market? Integrated Solutions Specialists - National Support Program - Integrators Door Security Solutions - over 400 END USER DEMAND generators. AHC, CSI, CDT, EHC, CISSP, RCDD, PSP, CPP… - Healthcare, K-12, University, Military/Govt Regional EAC Campus Managers OEM Sales Director Specification, Engineering & Construction Assistance Training & Certification Education Programs Lead Generation / Sharing 9

Demand Generation 10

IP Enabled E Po WIFI 11

IP Enabled Features § Keypad option available § Available in: – Mortise – Cylindrical – Exits (mortise and rim) § HID 125 k. Hz Prox § Magstripe § i. CLASS § POE / WIFI § 2400 users § 10, 000 Event Buffer § Fully distributed access control 12

IP Enabled § Leverage Proven Technologies – Proven SARGENT locks and exits – Open Standard 802. 11 b/g infrastructure § Reduce Costs – WIFI 80% faster installation § Improve Data Security – 128 -Bit Encryption – WEP, WMA, and LEAP standards § Decision making on the door § Maintain Architectural Integrity 13

Typical On-line Access Control 12 / 24 VDC Wiegand Data Strike DPS REX 3 rd Party Reader Interface 3 rd Party Access Controller 3 rd Party Access Control System 14

IP Enabled Locksets: SARGENT v. S 2 Wi. Fi-based Access Control 2, 000 Users WAP • Alarms • 10, 000 Events • 2, 000 Users • 10, 000 Events 15 3 rd Party Access Control System

IP Enabled Locksets: SARGENT v. S 1 Po. E-based Access Control IEEE 802. 3 AF Po. E Switch Or Injector 3 rd Party Access Control System • 2, 000 Users • 10, 000 Events 16

Introducing Aperio™ Technology § A global wireless platform from ASSA ABLOY § Utilizes local wireless communication between the lock(s) and an Aperio hub to connect to an online electronic access control system § Eliminates the greatest cost and inconvenience of traditional access control – the wiring at the door – 17

Redefining Wireless Access Control § 1: 1 hub-lock ratio – 1: 8 1 st quarter 2011 § Lock and Aperio hub paired during manufacturing – Minimizes field configuration – Ensures secure communication – Distance 15 ft – 45 ft 1 st quarter 2011 18

Redefining Wireless Access Control 19

Easily Expand the Reach of Existing Electronic Access Control Systems Wired Access Control Door Aperio Enabled Door 20

An Innovative New Approach to Online Access Control § Quick, easy wireless deployments – Minimal field configuration – No proprietary programming devices required – Works with many popular access control systems for easy integration into existing systems 21

An Innovative New Approach to Online Access Control § Advanced capabilities – Fully encrypted AES 128 wireless communication (IEEE 802. 15. 4) – Full i. CLASS® authentication and support for 13. 56 MHz contactless credentials – Prox in 2011 – Online functionality – Communications at every access event, 60 minute check-in cycle – Real-time authentication and alarms – Lock is managed by the Electronic Access Control (EAC) system – Supports override credentials in the event of a network outage – Supports multiple communication methods (RS-485 or Wiegand) HID and i. CLASS are registered trademark of HID Global Corporation. 22

A Global Wireless Platform § The first truly global solution § Available in a range of lock types to support: – Various types of openings – Local requirements in regions throughout the world In North America, Aperio technology will initially be available in these form factors, with ongoing expansion across the entire spectrum of ASSA ABLOY door opening solutions. 23

Aperio™ Hub § IEEE 802. 15. 4 UHF interface § AES 128 -bit encryption § Interface to EAC system – RS-485 – Wiegand – Ethernet (planned) § Integrated antenna or external antenna connector § Fits standard electrical box § Flush or wall mount 24

SARGENT Profile Series § Integrated reader, monitoring and radio § ANSI/BHMA Grade 1 hardware, available in: – 10 Line Bored Lock – 8200 Series Mortise Lock – 80 Series Exit Device § Provides real-time door status monitoring § Uses standard AA batteries for easy, cost effective deployment and maintenance 25

Medeco e-Cylinder § Integrated reader and radio § Combined ease of installation of a rim or mortise cylinder § Provides flexible access control and alarm notifications § Uses standard lithium battery for easy, cost effective deployment and maintenance 26

Adams Rite Narrow Stile Aluminum Storefront § Integrated reader, monitoring and radio § Fits Narrow Stile Applications – Alum, steel, glass, and wood doors § Mortise Lock § Uses standard AA batteries for easy, cost effective deployment and maintenance 27

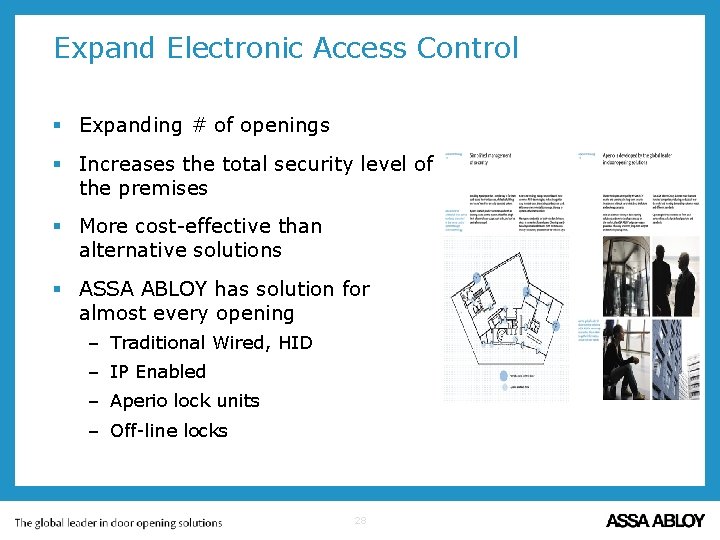

Expand Electronic Access Control § Expanding # of openings § Increases the total security level of the premises § More cost-effective than alternative solutions § ASSA ABLOY has solution for almost every opening – Traditional Wired, HID – IP Enabled – Aperio lock units – Off-line locks 28
