1 Oracle RAC 原理浅谈 Copyright © 2004, Oracle. All rights reserved.

1 Oracle RAC 原理浅谈 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -2 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -2 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -3 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -3 Copyright © 2004, Oracle. All rights reserved.

Oracle基础架构 User process Shared Pool Library Cache Server process Data Dictionary Cache Instance SGA

Oracle基础架构 User process Shared Pool Library Cache Server process Data Dictionary Cache Instance SGA Database Buffer Cache Redo Log Buffer Java Pool Large Pool PGA PMON SMON DBWR LGWR Data files Parameter file Control files CKPT Redo Log files Password file Database 1 -4 Copyright © 2004, Oracle. All rights reserved. Others Archived Log files

双节点Oracle RAC架构 A LMS 1 -5 B LMD LMON LCK 0 Copyright © 2004,

双节点Oracle RAC架构 A LMS 1 -5 B LMD LMON LCK 0 Copyright © 2004, Oracle. All rights reserved.

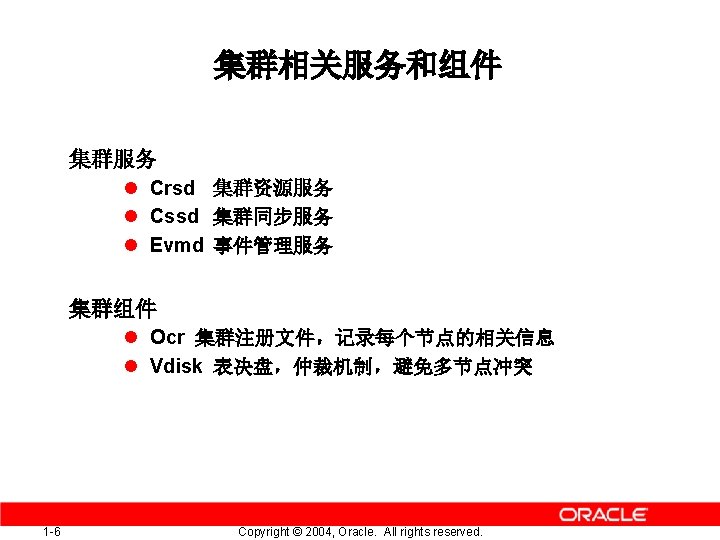

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色：

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色： Local，Global 1 -7 Copyright © 2004, Oracle. All rights reserved.

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色：

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色： Local，Global 1 -8 Copyright © 2004, Oracle. All rights reserved.

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色：

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色： Local，Global 1 -9 Copyright © 2004, Oracle. All rights reserved.

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色：

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色： Local，Global 1 -10 Copyright © 2004, Oracle. All rights reserved.

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色：

Cache Fusion 示例 数据块属性 状态： PI, CR, SCUR, XCUR 访问模式： NULL, S, X 角色： Local，Global 1 -11 Copyright © 2004, Oracle. All rights reserved.

Oracle RAC 发展史 简称 简单描述 8 i OPS Oracle Parallel Server 9 i 10

Oracle RAC 发展史 简称 简单描述 8 i OPS Oracle Parallel Server 9 i 10 g 11 g R 2 1 -12 RAC Real Application Cluster 启动 共享 存储 IP 数据 同步 手动 Raw Public Private Rac Ping 手动 Raw Ocfs Public Private 自动 Raw Ocfs 2 Asm Public Private Host-vip 自动 记录状态 Raw Ocfs 2 Asm Public Private Host-vip Scan-vip Copyright © 2004, Oracle. All rights reserved. Cache Fusion 新特性 Service 冗余 Grid 用户 Server Pools

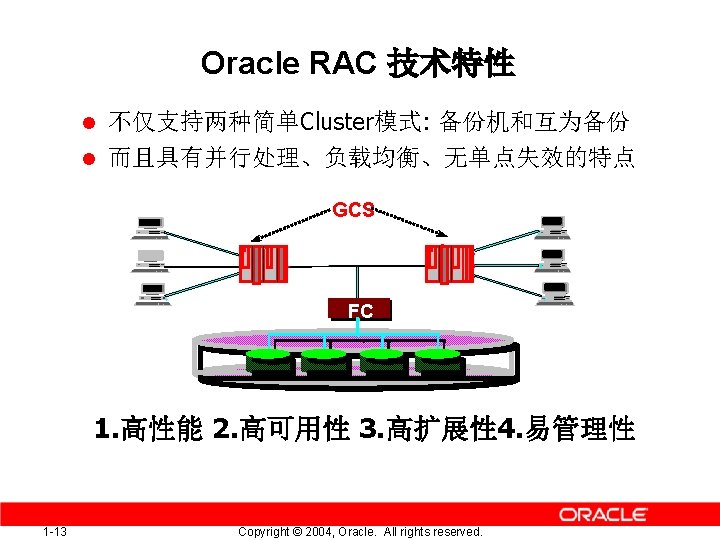

Oracle RAC 技术特性 1－高性能 负载均衡/并行处理 LAN High Speed Interconnect Fiber Channel or Shared SCSI

Oracle RAC 技术特性 1－高性能 负载均衡/并行处理 LAN High Speed Interconnect Fiber Channel or Shared SCSI Single Database l 大用户量的并发访问分担到多台节点机上并行处理 l 单个用户重负载的运算分担到多个节点机上做并行处理 1 -14 Copyright © 2004, Oracle. All rights reserved.

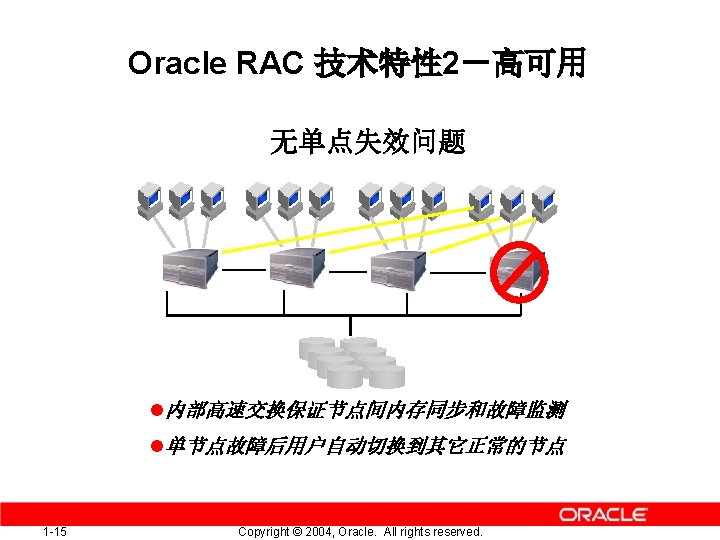

Oracle RAC 技术特性 3－易扩展 具有高度的可扩展性 Node A Node B Node C 节点 C &

Oracle RAC 技术特性 3－易扩展 具有高度的可扩展性 Node A Node B Node C 节点 C & D 加入OPS/RAC集群, 最大可扩展到个？节点 1 -16 Copyright © 2004, Oracle. All rights reserved. Node D

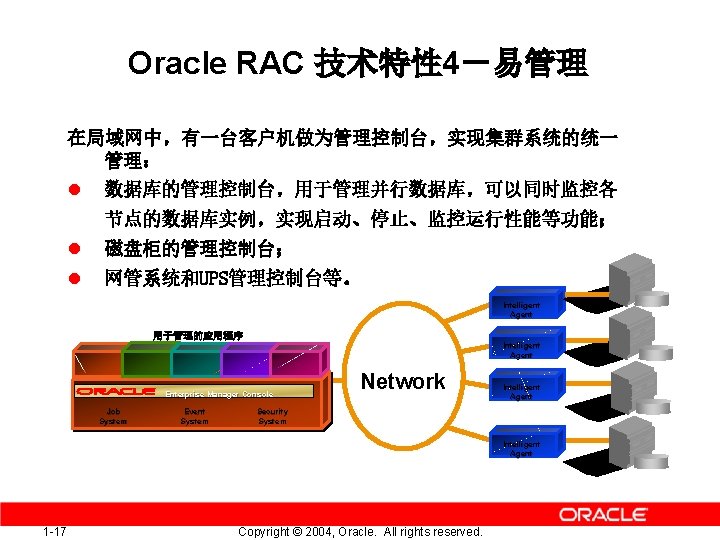

Oracle RAC 数据保护的延伸－DG Standby Server 上海 1 -18 Standby Database l l 物理备份 逻辑备份

Oracle RAC 数据保护的延伸－DG Standby Server 上海 1 -18 Standby Database l l 物理备份 逻辑备份 l l l 最大保护模式 最大可用模式 最大性能模式 Log Delayed Apply Files Primary Server Production Log write Database 北京 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -19 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -19 Copyright © 2004, Oracle. All rights reserved.

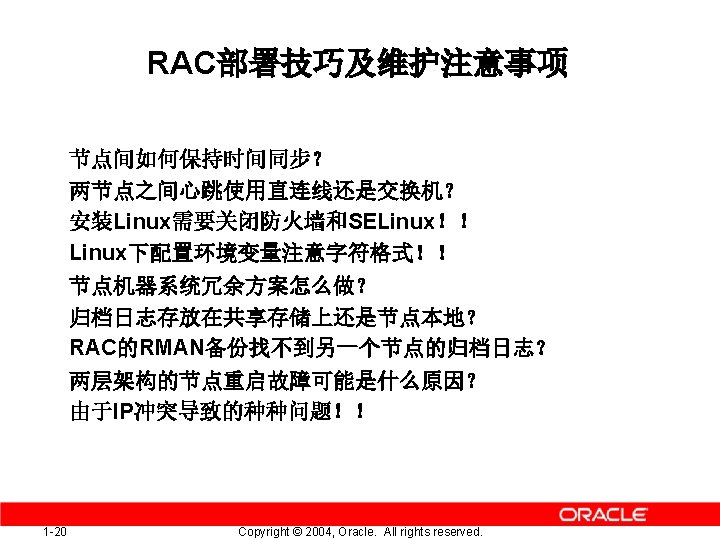

RAC部署技巧及维护注意事项 客户端连接配置后时断时通！！ RAC = (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST =

RAC部署技巧及维护注意事项 客户端连接配置后时断时通！！ RAC = (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = 192. 168. 0. 1)(PORT = 1521)) (ADDRESS = (PROTOCOL = TCP)(HOST = 192. 168. 0. 2)(PORT = 1521)) (LOAD_BALANCE = yes) ) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = rac) ) HOST=node 1 ) HOST=node 2 1 -21 /etc/hosts或DNS 192. 168. 0. 1 node 1 192. 168. 0. 2 node 2 Copyright © 2004, Oracle. All rights reserved.

RAC部署技巧及维护注意事项 RAC自身实现数据冗余！！ 1 -22 Copyright © 2004, Oracle. All rights reserved.

RAC部署技巧及维护注意事项 RAC自身实现数据冗余！！ 1 -22 Copyright © 2004, Oracle. All rights reserved.

RAC部署技巧及维护注意事项 11 g. R 2新特性－scan-vip ORCL = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST

RAC部署技巧及维护注意事项 11 g. R 2新特性－scan-vip ORCL = (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST =scan-vip)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = orcl) ) ) DNS primary Scan-vip 192. 168. 0. 1 双DNS解析 client DNS 2 1 -23 Scan-vip standby 192. 168. 0. 2 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -24 Copyright © 2004, Oracle. All rights reserved.

纲要 Oracle RAC 原理简介 RAC部署技巧及维护注意事项 1 -24 Copyright © 2004, Oracle. All rights reserved.

Q& A Q U E S T I O N S A N S

Q& A Q U E S T I O N S A N S W E R S 1 -25 Copyright © 2004, Oracle. All rights reserved.
