1 min 5 g ppm 10 g ppm

  • Slides: 21
Download presentation

表 1：樣品數據 時間 (min) 5 g 活性碳 濃度 (ppm) 去除率 （%） 10 g 活性碳

表 1：樣品數據 時間 (min) 5 g 活性碳 濃度 (ppm) 去除率 （%） 10 g 活性碳 濃度 (ppm) 去除率 （%） 0 0. 810 A 16. 017 0 0. 096 A -1. 355 0 10 0. 103 A -1. 185 107. 41 0. 061 A -2. 207 -62. 88 20 0. 079 A -1. 769 111. 06 0. 048 A -2. 523 -86. 20 30 0. 053 A -2. 401 115. 01 0. 064 A -2. 134 -57. 49 40 0. 071 A -1. 964 112. 28 0. 065 A -2. 109 -55. 65 50 0. 058 A -2. 280 114. 25 0. 063 A -2. 158 -59. 26 60 0. 090 A -1. 501 109. 38 0. 060 A -2. 231 -64. 65

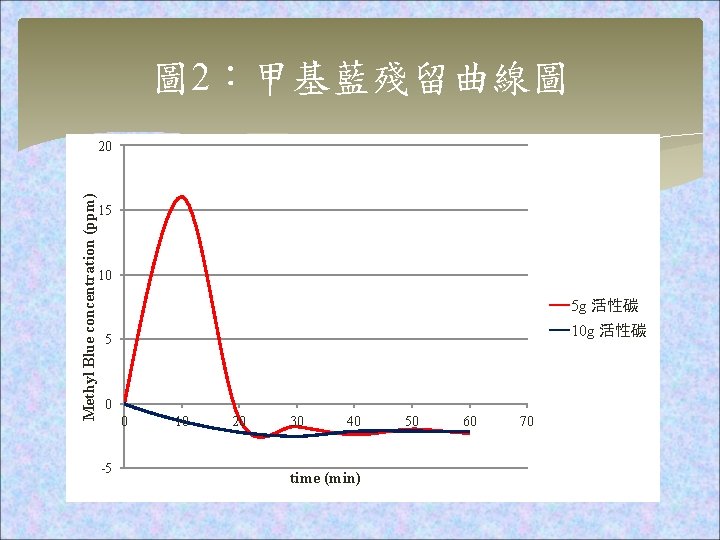

圖 2：甲基藍殘留曲線圖 Methyl Blue concentration (ppm) 20 15 10 5 g 活性碳 10 g

圖 2：甲基藍殘留曲線圖 Methyl Blue concentration (ppm) 20 15 10 5 g 活性碳 10 g 活性碳 5 0 0 -5 10 20 30 40 time (min) 50 60 70

圖 3：甲基藍去除率曲線圖 150 Removal Rate (%) 100 50 5 g 活性碳 10 g 活性碳

圖 3：甲基藍去除率曲線圖 150 Removal Rate (%) 100 50 5 g 活性碳 10 g 活性碳 0 0 10 20 30 40 -50 -100 Time (min) 50 60 70

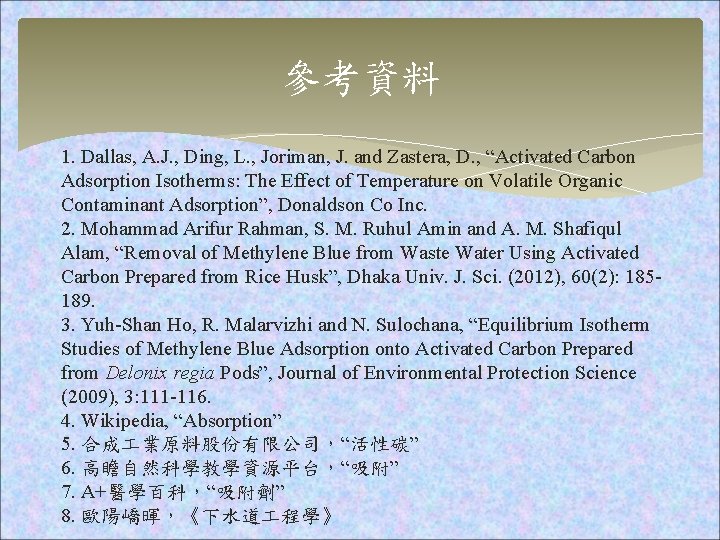

參考資料 1. Dallas, A. J. , Ding, L. , Joriman, J. and Zastera, D.

參考資料 1. Dallas, A. J. , Ding, L. , Joriman, J. and Zastera, D. , “Activated Carbon Adsorption Isotherms: The Effect of Temperature on Volatile Organic Contaminant Adsorption”, Donaldson Co Inc. 2. Mohammad Arifur Rahman, S. M. Ruhul Amin and A. M. Shafiqul Alam, “Removal of Methylene Blue from Waste Water Using Activated Carbon Prepared from Rice Husk”, Dhaka Univ. J. Sci. (2012), 60(2): 185189. 3. Yuh-Shan Ho, R. Malarvizhi and N. Sulochana, “Equilibrium Isotherm Studies of Methylene Blue Adsorption onto Activated Carbon Prepared from Delonix regia Pods”, Journal of Environmental Protection Science (2009), 3: 111 -116. 4. Wikipedia, “Absorption” 5. 合成 業原料股份有限公司，“活性碳” 6. 高瞻自然科學教學資源平台，“吸附” 7. A+醫學百科，“吸附劑” 8. 歐陽嶠暉，《下水道 程學》
