1 MECH 313 Engineering Drawing Design Lecture 12

1 MECH 313 Engineering Drawing & Design Lecture 12 REVIEW

2 Final Examination § Short Drawings/Calculations § Short Design Problems § Assembly Drawing § Marks are proportionate to the time expected to complete the answer

3 Final Examination § Do not forget your student ID § Book and Faculty Approved Calculator are allowed, it is an open book exam § Come to the exam hall in time § You have to pass the final to pass the course

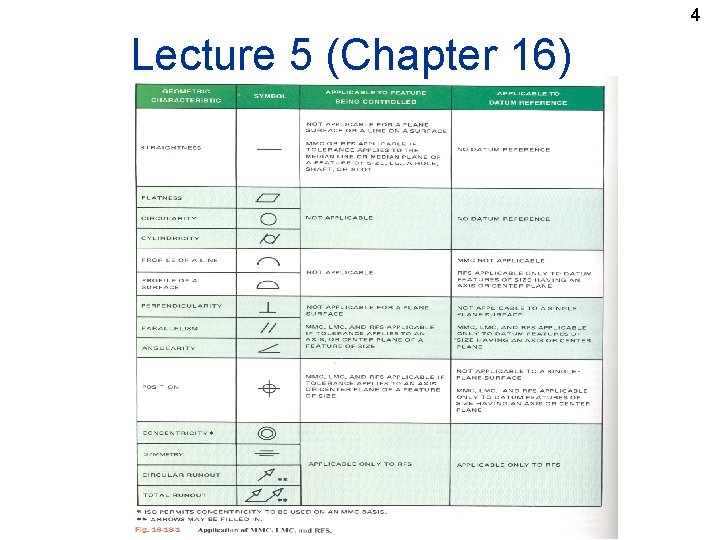

4 Lecture 5 (Chapter 16)

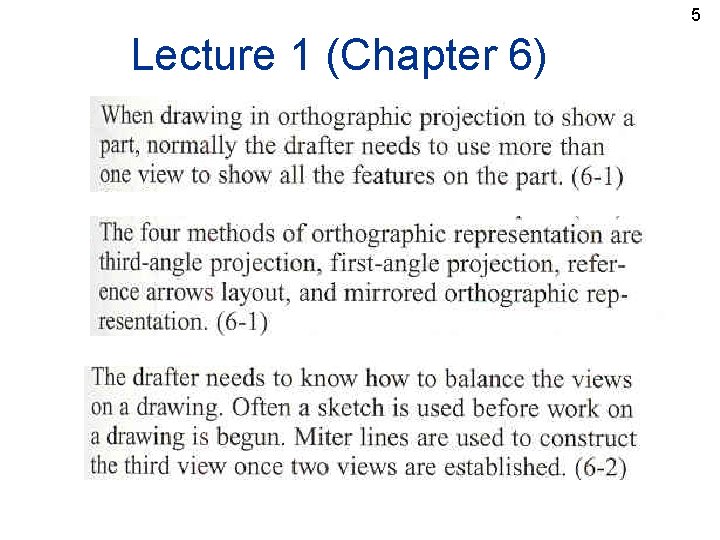

5 Lecture 1 (Chapter 6)

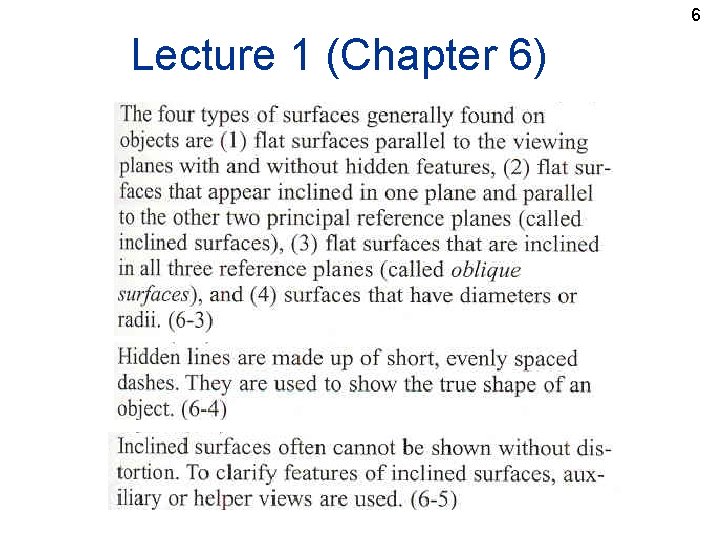

6 Lecture 1 (Chapter 6)

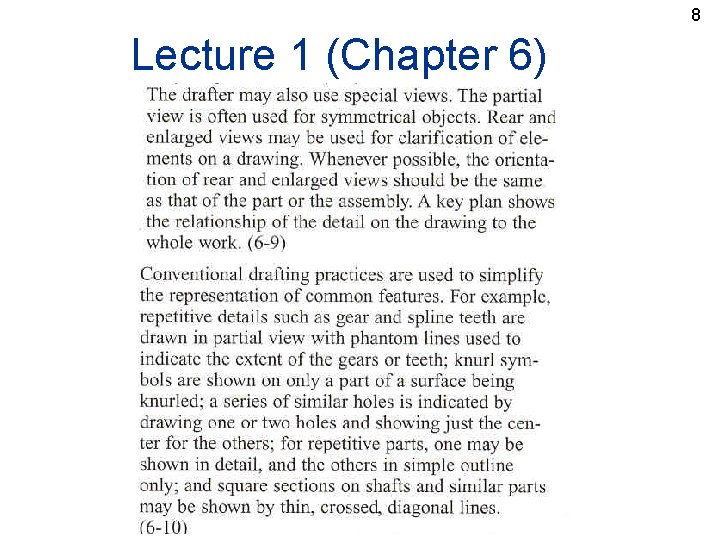

7 Lecture 1 (Chapter 6)

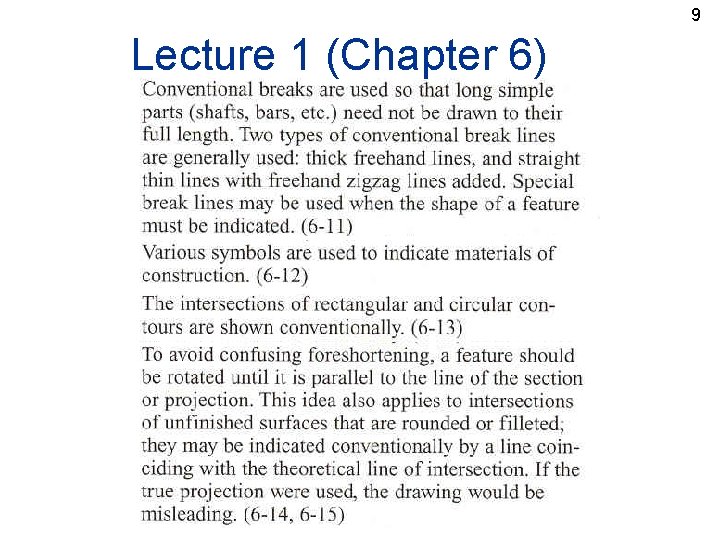

8 Lecture 1 (Chapter 6)

9 Lecture 1 (Chapter 6)

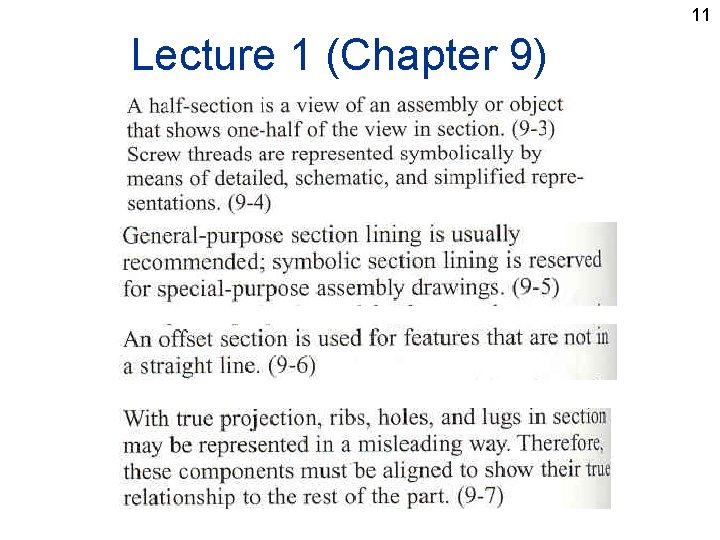

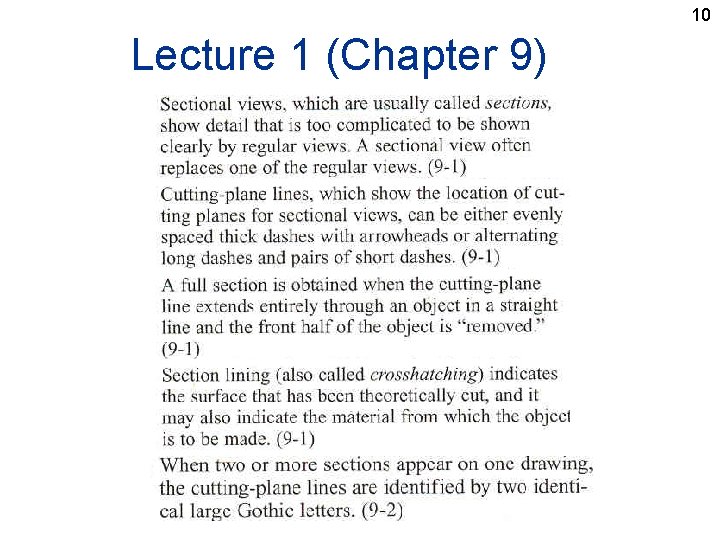

10 Lecture 1 (Chapter 9)

11 Lecture 1 (Chapter 9)

12 Lecture 1 (Chapter 9)

13 Lecture 2 (Chapter 8)

14 Lecture 2 (Chapter 8)

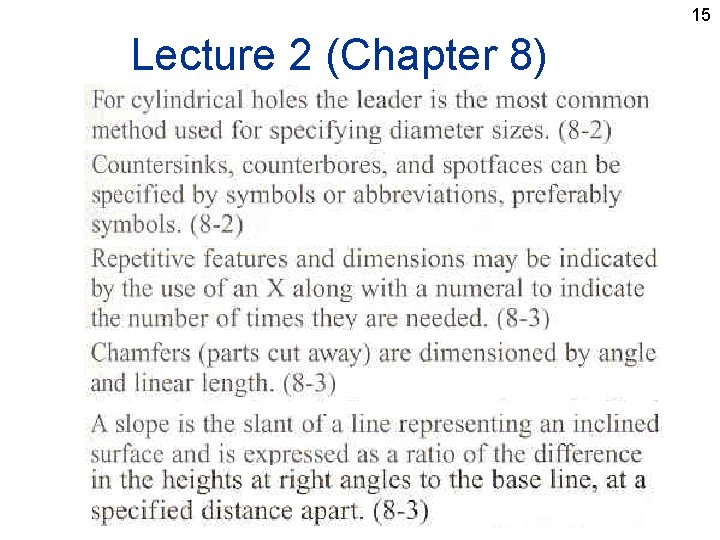

15 Lecture 2 (Chapter 8)

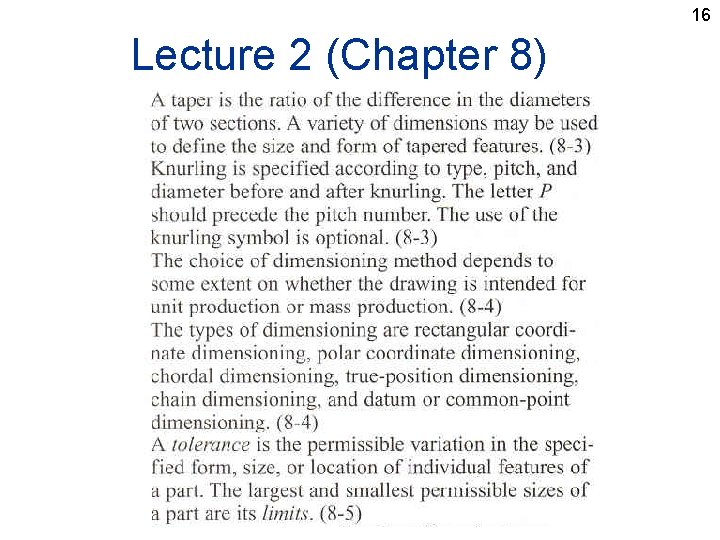

16 Lecture 2 (Chapter 8)

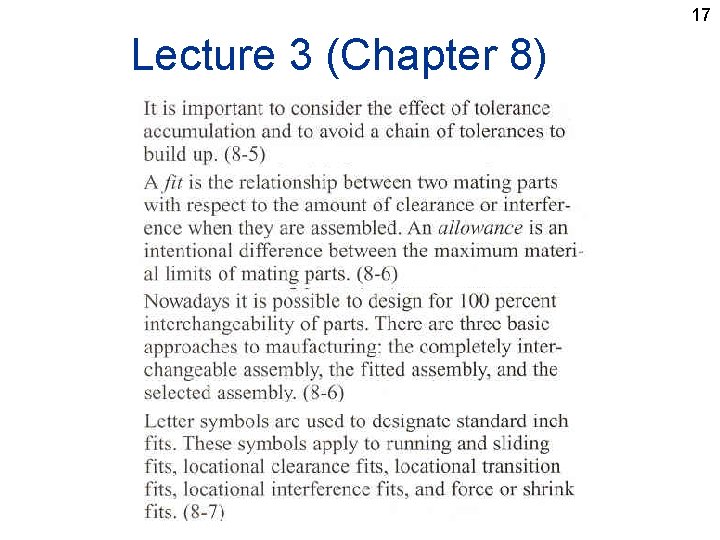

17 Lecture 3 (Chapter 8)

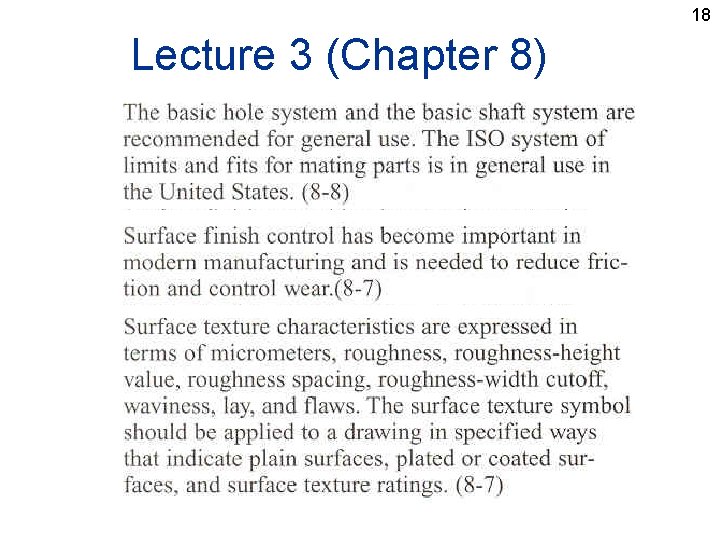

18 Lecture 3 (Chapter 8)

19 Lecture 4 (Chapter 16)

20 Lecture 4 (Chapter 16)

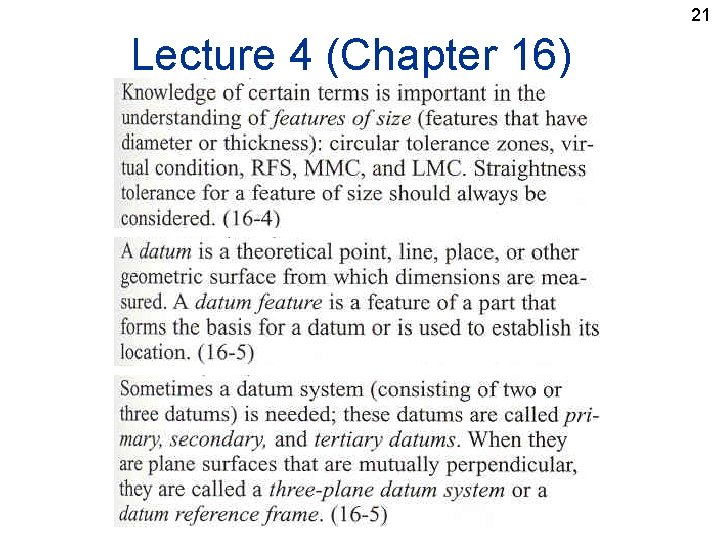

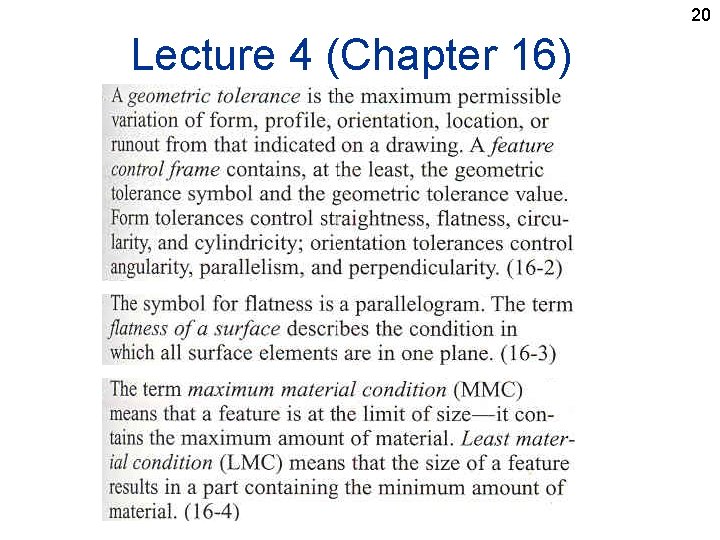

21 Lecture 4 (Chapter 16)

22 Lecture 4 (Chapter 16)

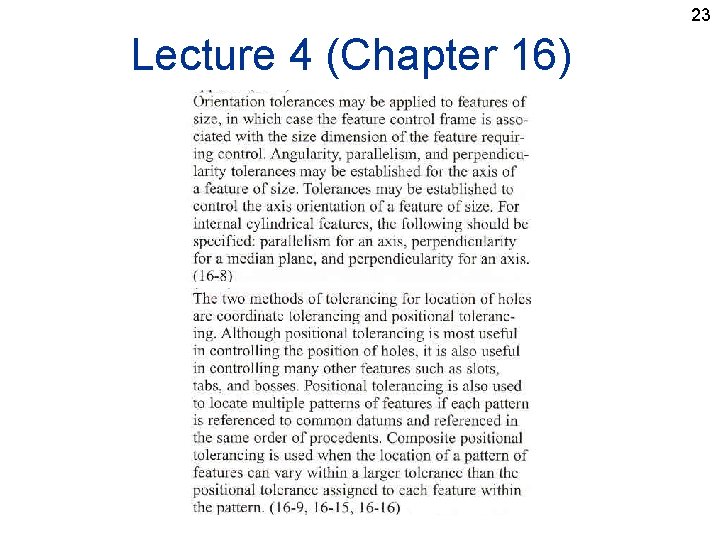

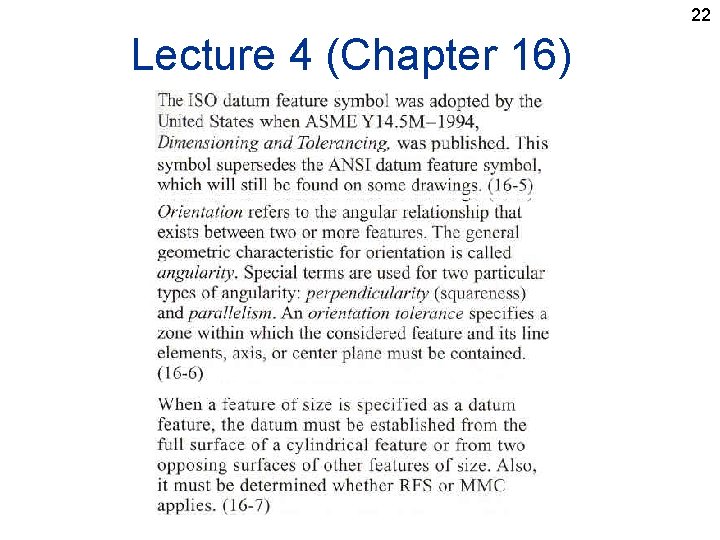

23 Lecture 4 (Chapter 16)

24 Lecture 4 (Chapter 16)

25 Lecture 5 (Chapter 16)

26 Lecture 5 (Chapter 16)

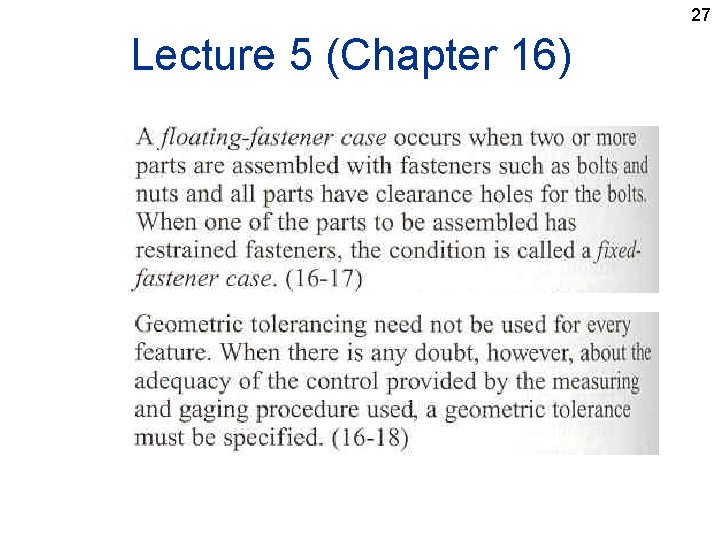

27 Lecture 5 (Chapter 16)

28 Lecture 6 (Chapter 10)

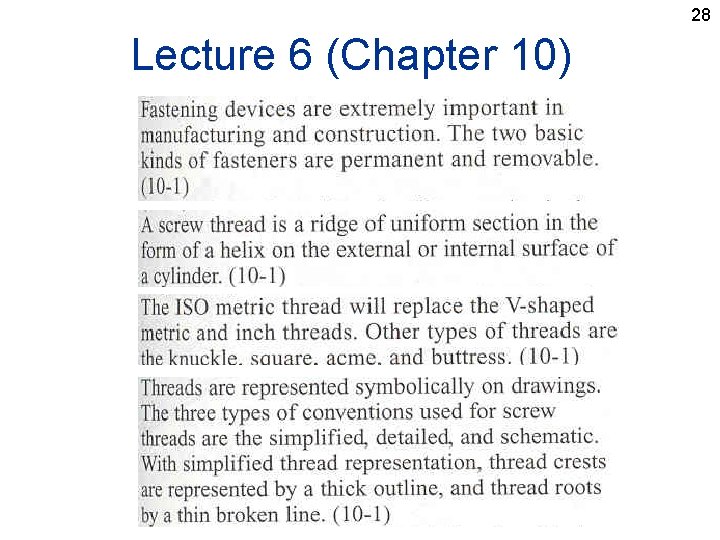

29 Lecture 6 (Chapter 10)

30 Lecture 6 (Chapter 10)

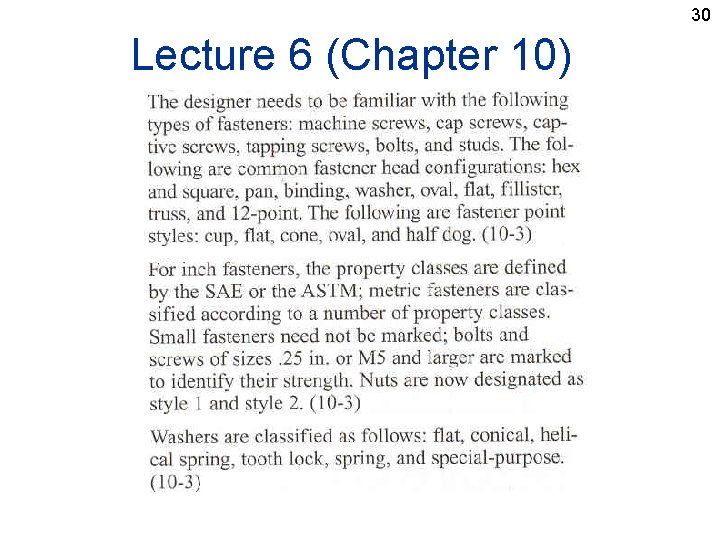

31 Lecture 6 (Chapter 10)

32 Lecture 7 (Chapter 11)

33 Lecture 7 (Chapter 11)

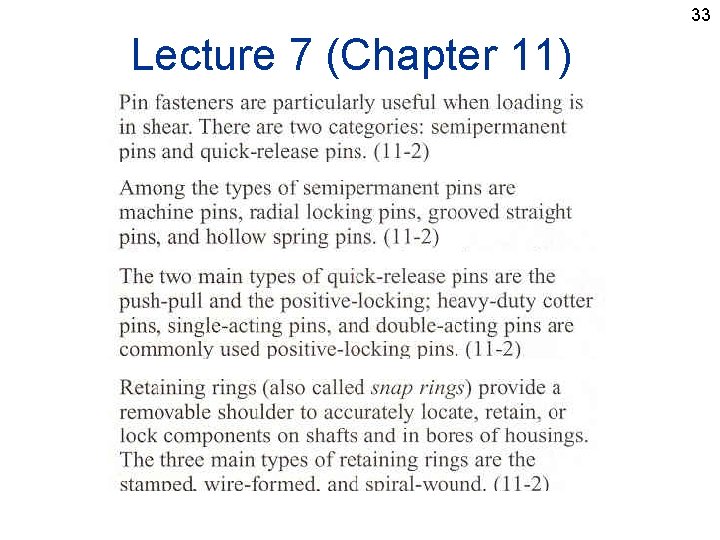

34 Lecture 7 (Chapter 11)

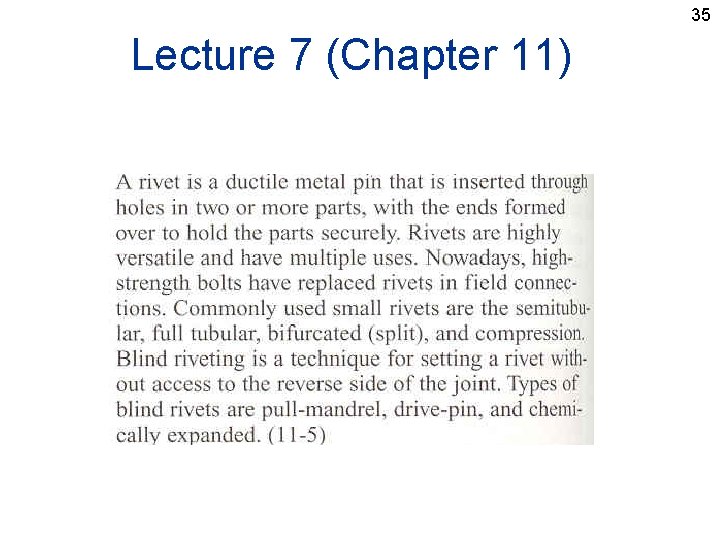

35 Lecture 7 (Chapter 11)

36 Lecture 7 (Chapter 11)

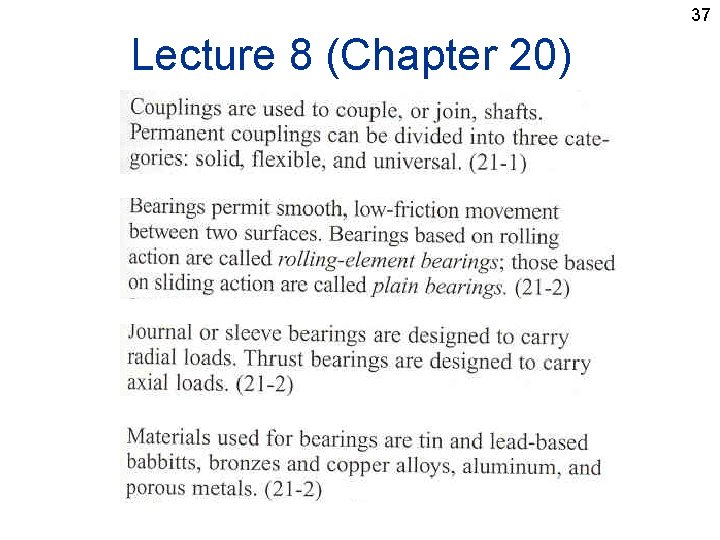

37 Lecture 8 (Chapter 20)

38 Lecture 8 (Chapter 20)

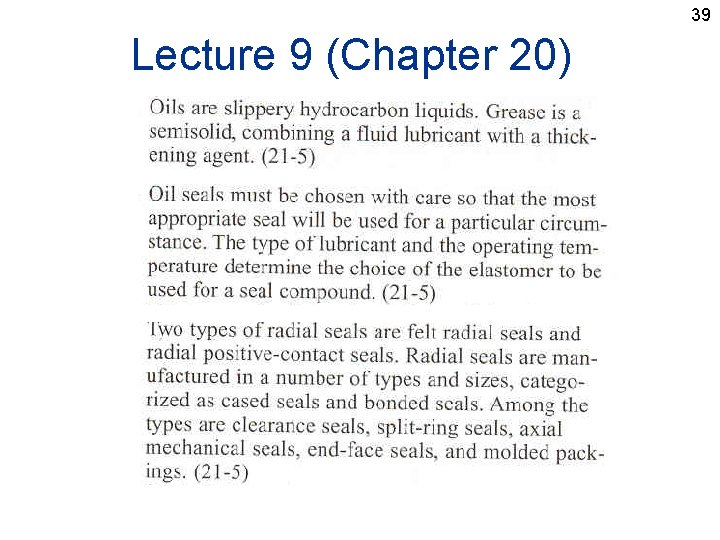

39 Lecture 9 (Chapter 20)

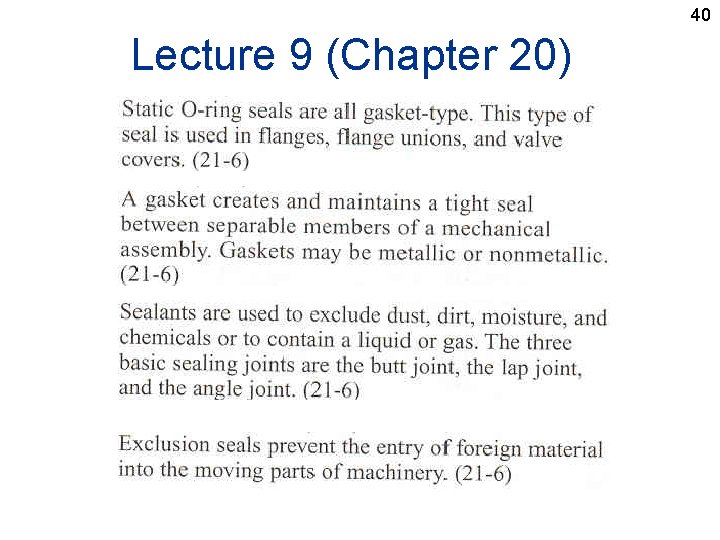

40 Lecture 9 (Chapter 20)

41 Lecture 10 (Chapter 21)

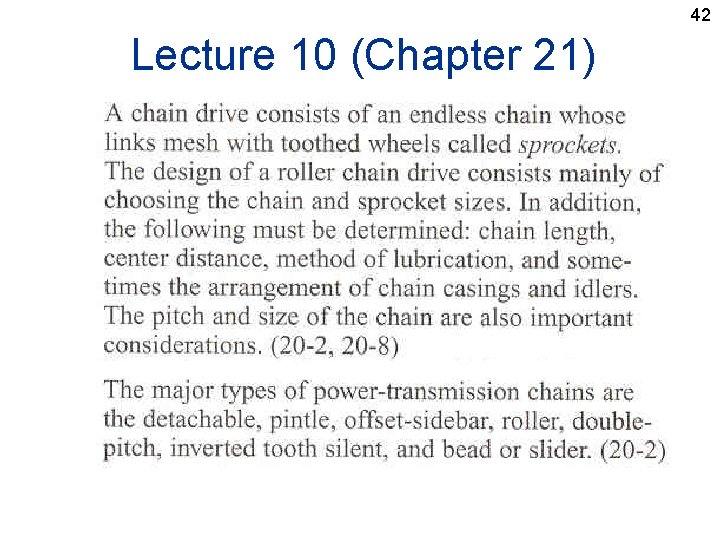

42 Lecture 10 (Chapter 21)

43 Lecture 11 (Chapter 21)

44 Lecture 11 (Chapter 21)
