1 LTE TDD UL AWGN BER q Oversampling

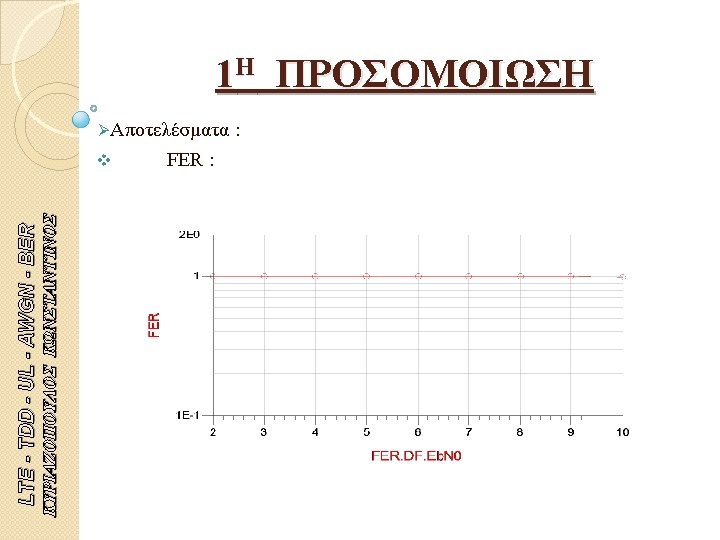

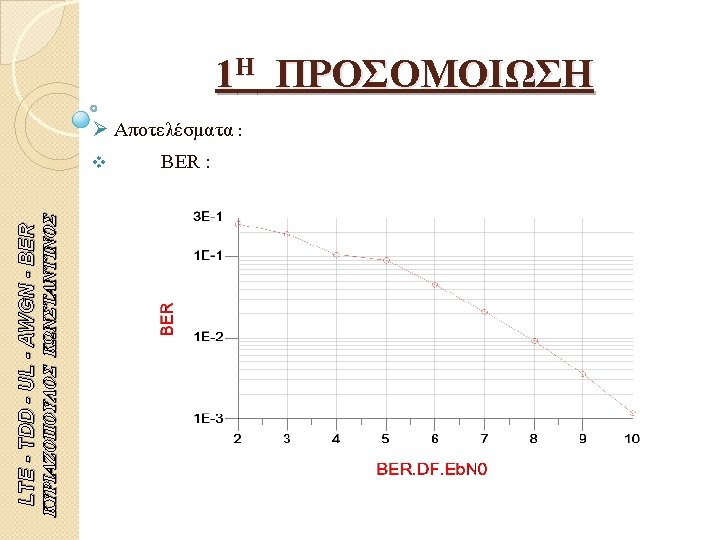

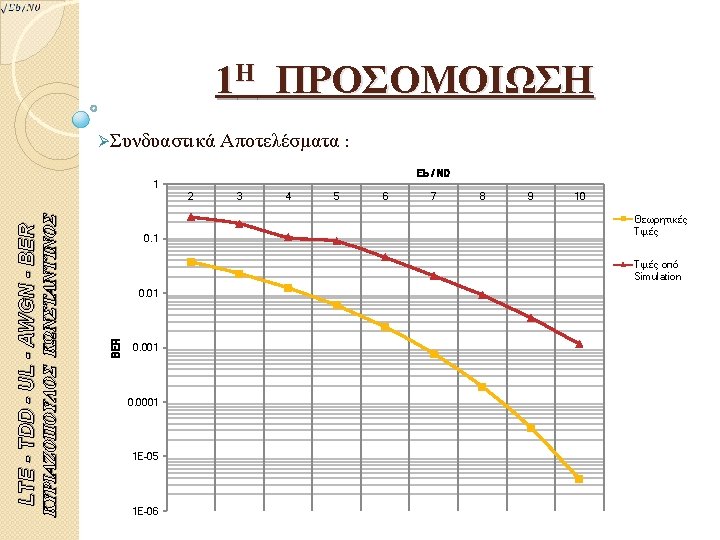

1Η ΠΡΟΣΟΜΟΙΩΣΗ ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ LTE - TDD - UL - AWGN - BER Ø Παράμετροι : q Oversampling Option = 1 (Oversampling ratio = 2 ) FCarrier = 2500 MHz q Bandwidth = 2 (5. 0 MHz BW) q Num. Of. RBs = 25 q Cyclic. Prefix = 0 q Mapping Type = 0 (QPSK) q Frames = 5000 q Start = 2 q Stop = 10 q Step = 1 q

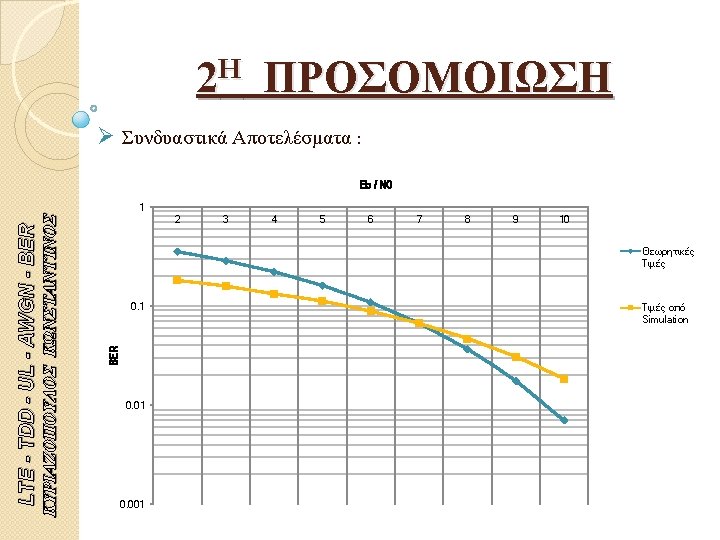

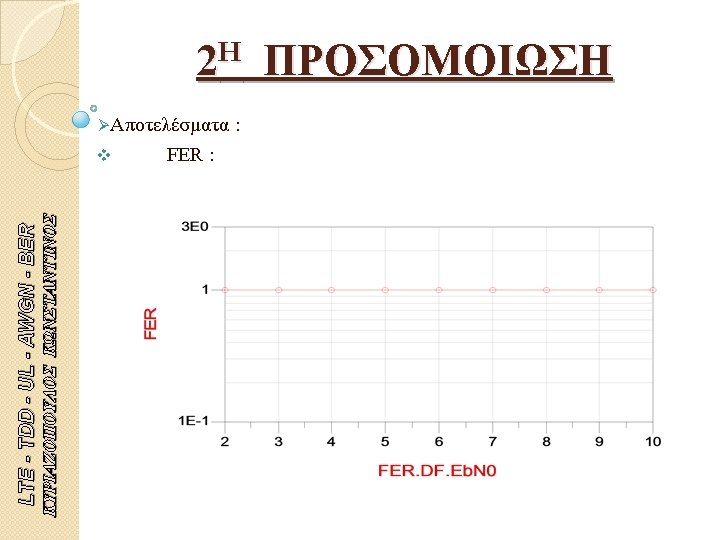

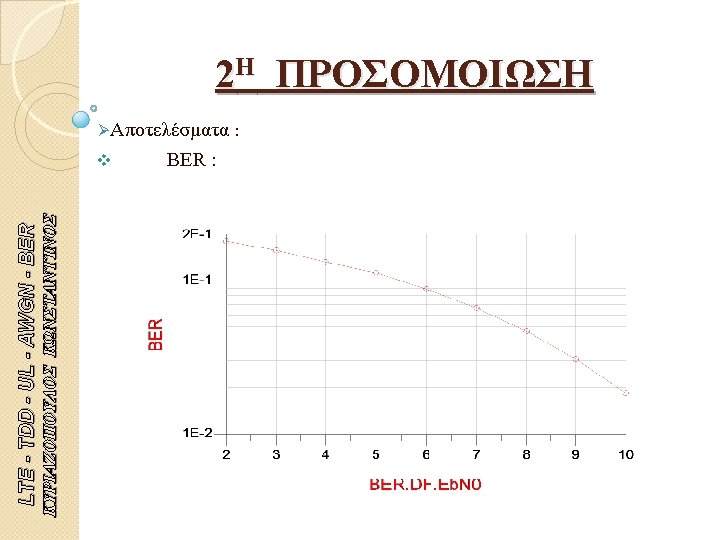

2Η ΠΡΟΣΟΜΟΙΩΣΗ ØΠαράμετροι Oversampling Option = 1 (Oversampling ratio = 2 ) q FCarrier = 2500 MHz q Bandwidth = 2 (5. 0 MHz BW) q Num. Of. RBs = 25 q Cyclic. Prefix = 0 q Mapping Type = 1 (16 -QAM) q Frames = 5000 q Start = 2 q Stop = 10 q Step = 1 ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ q LTE - TDD - UL - AWGN - BER :

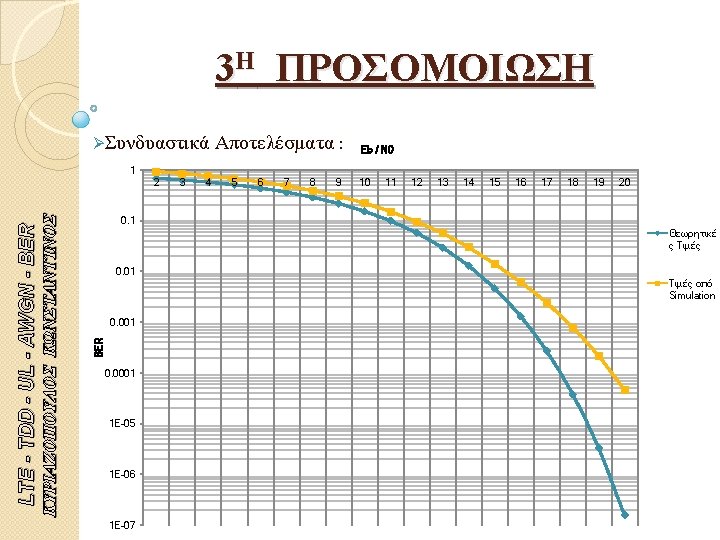

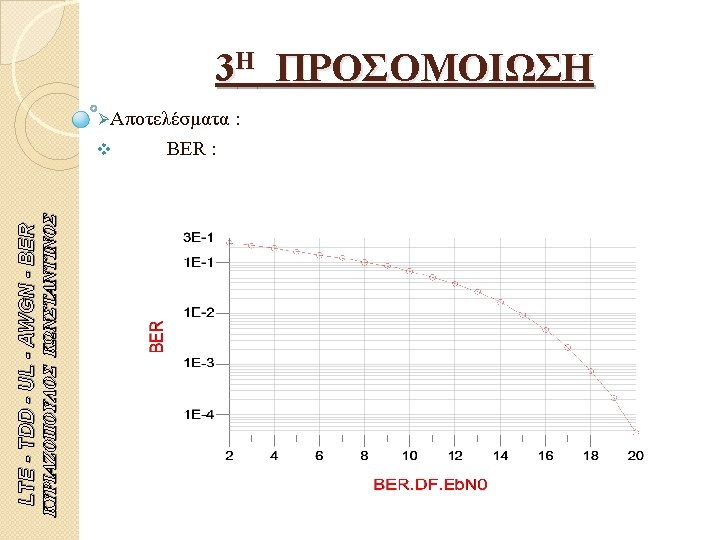

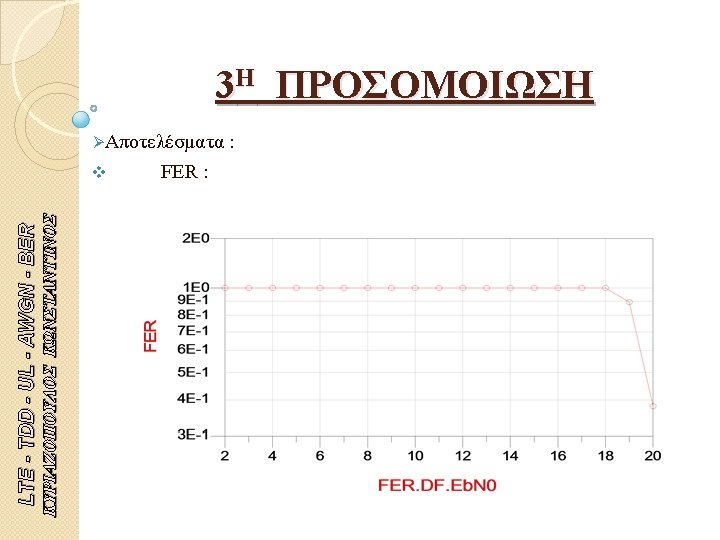

3Η ΠΡΟΣΟΜΟΙΩΣΗ ØΠαράμετροι Oversampling Option = 1 (Oversampling ratio = 2 ) q FCarrier = 2500 MHz q Bandwidth = 2 (5. 0 MHz BW) q Num. Of. RBs = 25 q Cyclic. Prefix = 0 q Mapping Type = 2 q Frames = 15000 q Start = 2 q Stop = 20 q Step = 1 ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ q LTE - TDD - UL - AWGN - BER :
![ΒΙΒΛΙΟΓΡΑΦΙΑ [1] [2] Wikipedia – LTE (telecommunication) 4 G Americas – Technology Center “LTE:](http://slidetodoc.com/presentation_image_h/7e832aca1b7cf5f9b9cac7df060caae1/image-33.jpg "ΒΙΒΛΙΟΓΡΑΦΙΑ [1] [2] Wikipedia – LTE (telecommunication) 4 G Americas – Technology Center “LTE:")

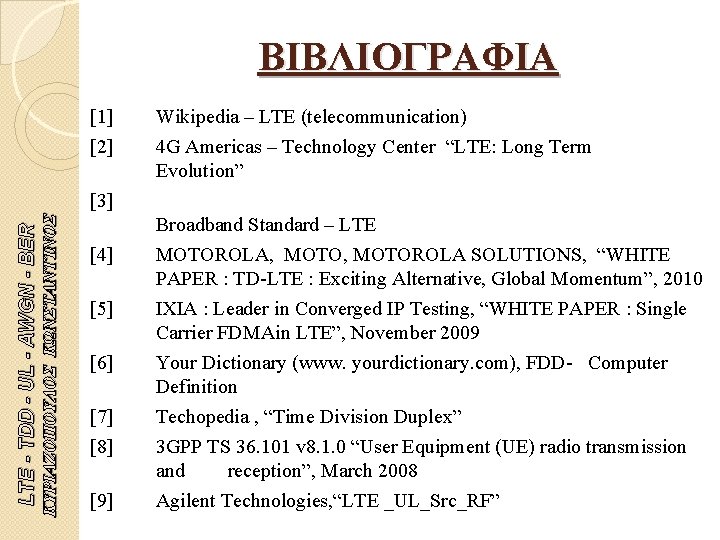

ΒΙΒΛΙΟΓΡΑΦΙΑ [1] [2] Wikipedia – LTE (telecommunication) 4 G Americas – Technology Center “LTE: Long Term Evolution” ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ LTE - TDD - UL - AWGN - BER [3] [4] [5] [6] [7] [8] [9] Broadband Standard – LTE MOTOROLA, MOTOROLA SOLUTIONS, “WHITE PAPER : TD-LTE : Exciting Alternative, Global Momentum”, 2010 IXIA : Leader in Converged IP Testing, “WHITE PAPER : Single Carrier FDMAin LTE”, November 2009 Your Dictionary (www. yourdictionary. com), FDD- Computer Definition Techopedia , “Time Division Duplex” 3 GPP TS 36. 101 v 8. 1. 0 “User Equipment (UE) radio transmission and reception”, March 2008 Agilent Technologies, “LTE _UL_Src_RF”
![ΒΙΒΛΙΟΓΡΑΦΙΑ ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ LTE - TDD - UL - AWGN - BER [10] [11]](http://slidetodoc.com/presentation_image_h/7e832aca1b7cf5f9b9cac7df060caae1/image-34.jpg "ΒΙΒΛΙΟΓΡΑΦΙΑ ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ LTE - TDD - UL - AWGN - BER [10] [11]")
ΒΙΒΛΙΟΓΡΑΦΙΑ ΚΥΡΙΑΖΟΠΟΥΛΟΣ ΚΩΝΣΤΑΝΤΊΝΟΣ LTE - TDD - UL - AWGN - BER [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] ETSI TS 136 101 V 11. 4. 0 (2013 -04), LTE : Evolved Universal Terrestial Radio Access (E-UTRA): User Equipment (UE) radio transmission and reception (3 GPP TS 36. 101 version 11. 4. 0 Release 11) 3 GPP TS 36. 211 v 8. 2. 0, “Physical Channels and Modulation”, March 2008 Agilent Technologies, “Add. NDensity” Agilent Technologies, “Data Pattern” Agilent Technologies, “NRZTo. Logic” Agilent Technologies, “BER_FER” Wikipedia – “Oversampling” Anritsu Company : WHITE PAPER : “LTE Resource Guide”, 2009 Webopedia – “Carrier” Wikipedia – “Cyclic Prefix 10]
