1 LRB Laminated Rubber Bearing System Flange Rubber

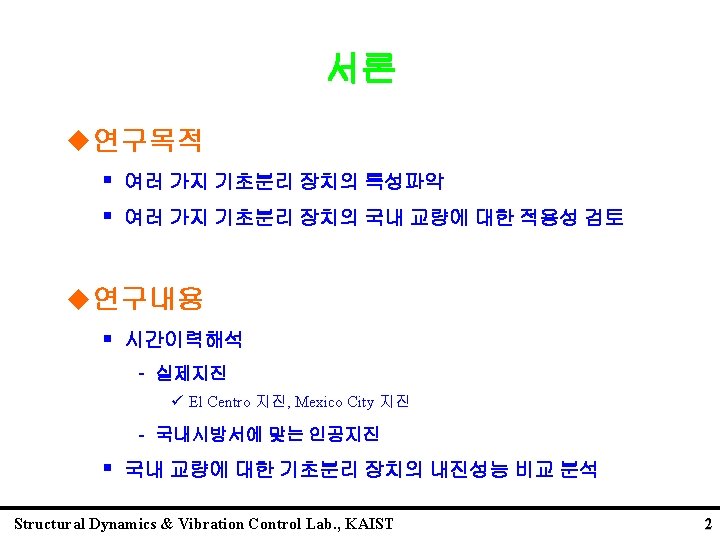

여러 가지 기초분리 장치 1. LRB (Laminated Rubber Bearing) System § 탄성받침, 적층고무베어링 § 가장 널리 연구되고 사용 § 스프링과 점성감쇠의 병렬작용 Flange Rubber Inner steel plate Protective rubber Outer steel plate K M C 그림 1. LRB System 과 개념도 Structural Dynamics & Vibration Control Lab. , KAIST 3
2. PF (Pure Friction) System § 가장 간단한 장치 § 마찰에 의한 미끌림 거동 § 미끌림에 의한 영구변위 발생 M 그림 2. PF System 의 개념도 Structural Dynamics & Vibration Control Lab. , KAIST 4
3. R-FBI (Resilient Friction Base Isolation) System § LRB System 과 PF System 의 기능을 병렬적으로 결합 § 스프링, 점성감쇠, 마찰감쇠의 병렬작용 Peripheral rubber core Cover plate Rubber cover Sliding ring K C M Connecting plate Central rubber core 그림 3. R-FBI System 과 개념도 Structural Dynamics & Vibration Control Lab. , KAIST 5

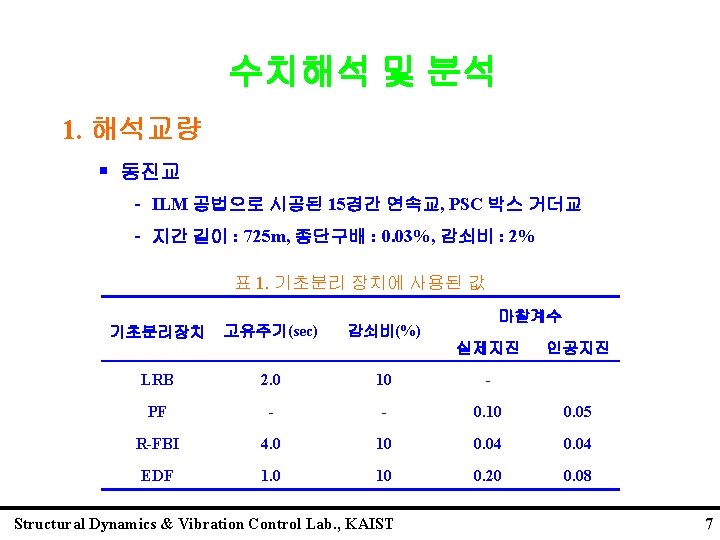

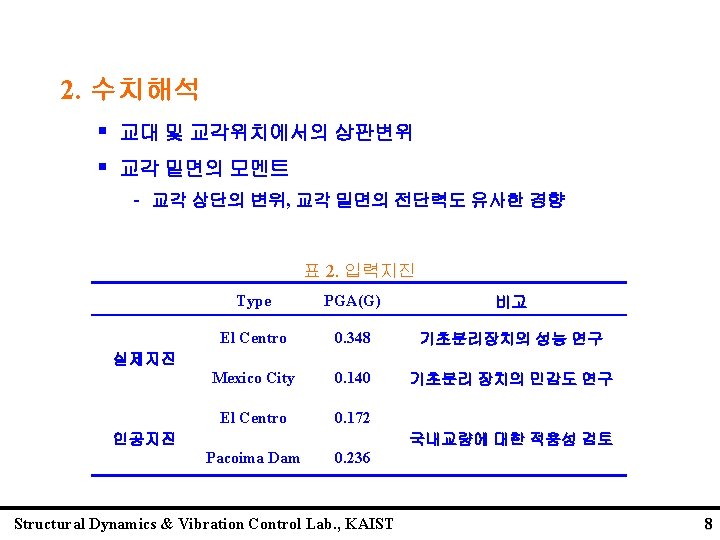

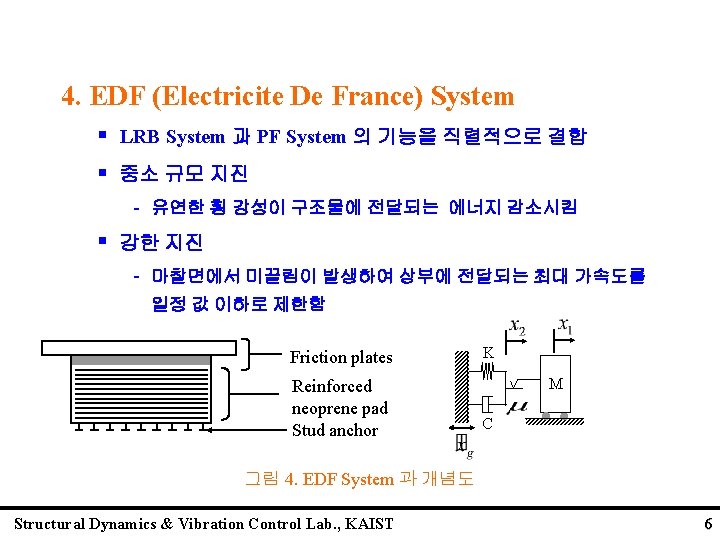

실제지진 <El Centro> 실제지진 <Mexico City> 인공지진 <El Centro> 인공지진 <Pacoima Dam> 그림 5. 입력지진의 가속도 시간이력 Structural Dynamics & Vibration Control Lab. , KAIST 그림 6. 입력지진의 Fourier Spectrum 9

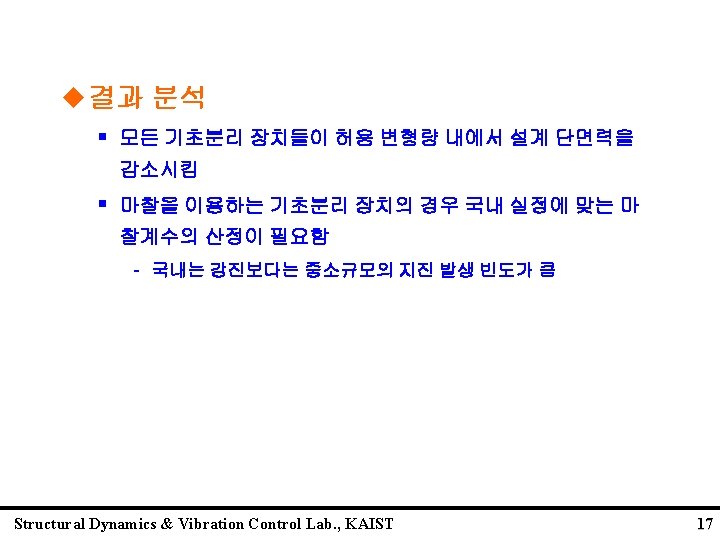

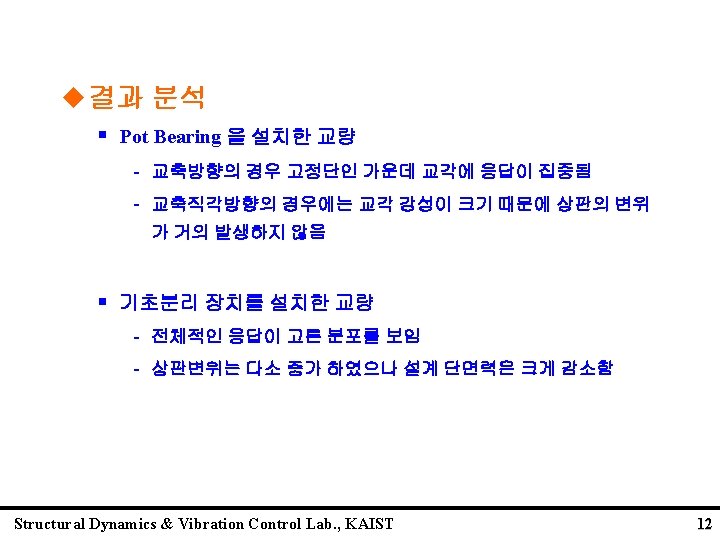

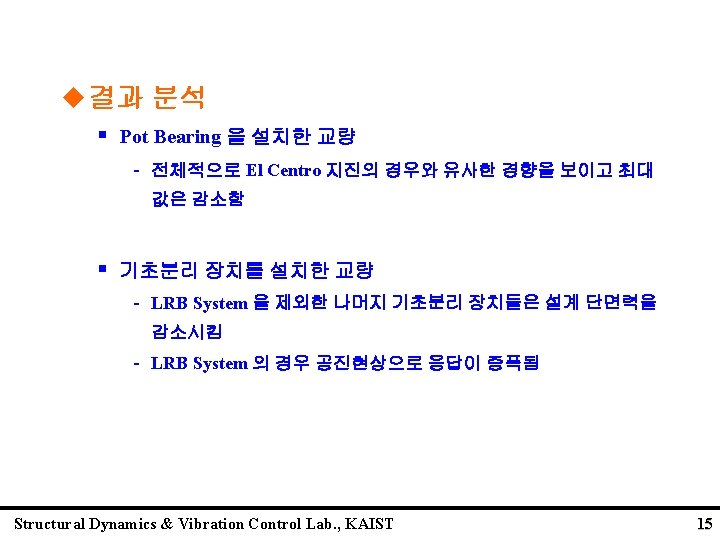

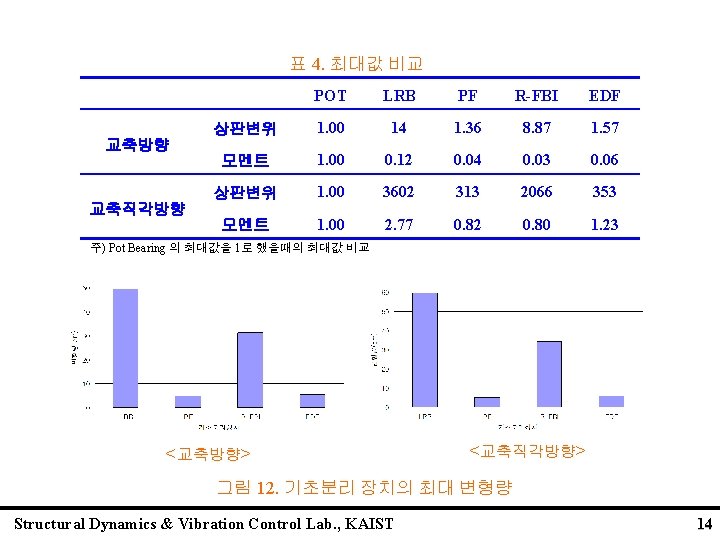

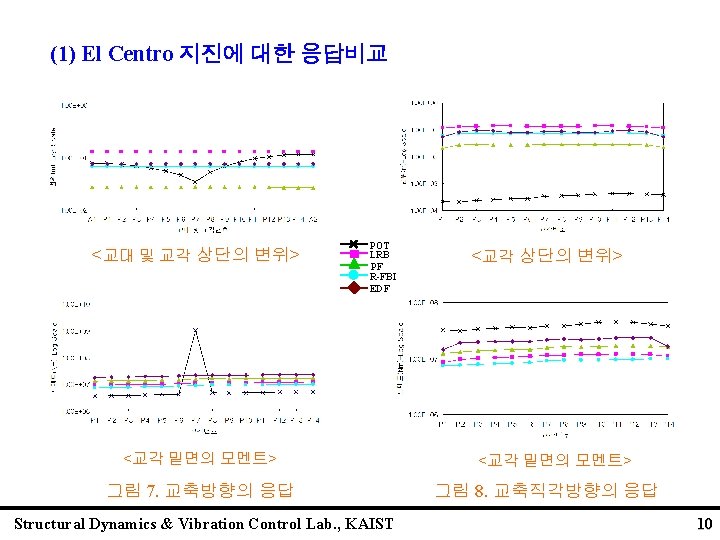

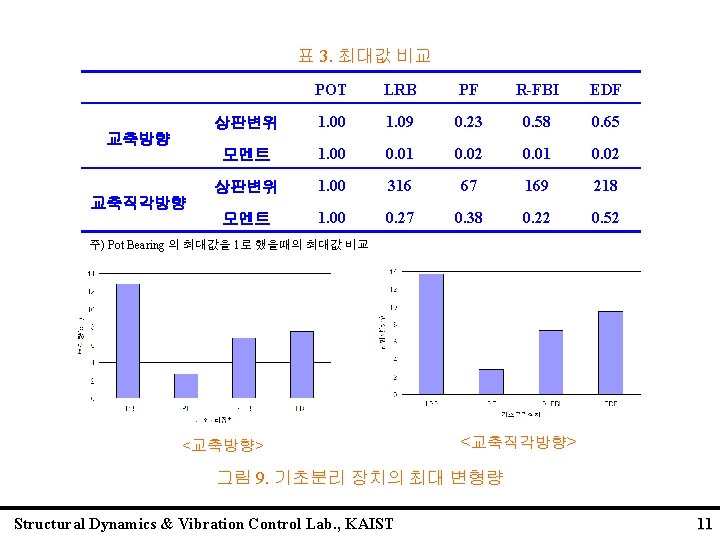

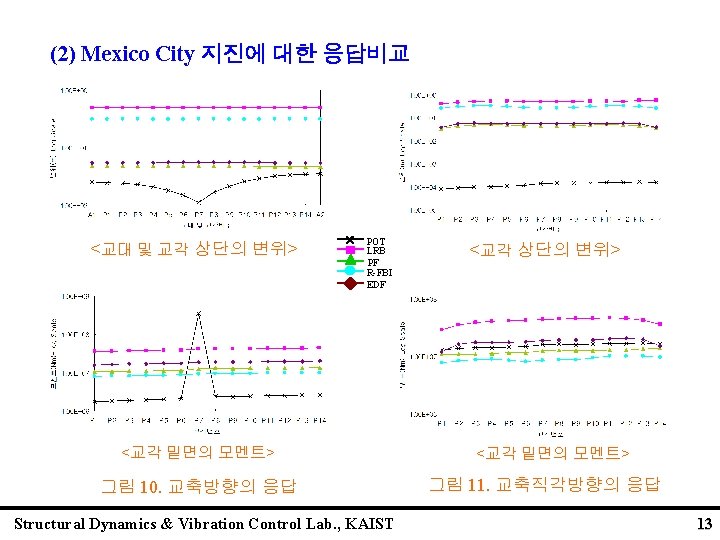

(3) 인공 지진에 대한 응답비교 표 5. 최대값 비교-El Centro Type 교축방향 교축직각방향 POT LRB PF R-FBI EDF 최대상판변위(cm) 3. 53 5. 73 1. 03 2. 24 2. 30 최대모멘트(Nm) 3. 16 E 8 5. 93 E 6 8. 64 E 6 6. 10 E 6 8. 23 E 6 최대상판변위(cm) 2. 54 E-2 6. 76 7. 92 2. 18 2. 51 최대모멘트(Nm) 2. 55 E 7 5. 62 E 6 7. 52 E 6 6. 13 E 6 8. 82 E 6 표 6. 최대값 비교-Pacoima Dam Type 교축방향 교축직각방향 POT LRB PF R-FBI EDF 최대상판변위(cm) 2. 98 7. 54 2. 21 3. 01 3. 39 최대모멘트(Nm) 2. 83 E 8 7. 08 E 6 9. 16 E 6 5. 72 E 6 9. 06 E 6 최대상판변위(cm) 2. 70 E-2 7. 93 2. 37 3. 06 3. 70 최대모멘트(Nm) 2. 91 E 7 6. 98 E 6 9. 02 E 6 6. 66 E 6 9. 53 E 6 Structural Dynamics & Vibration Control Lab. , KAIST 16
