1 Lenses – Learning Outcomes �

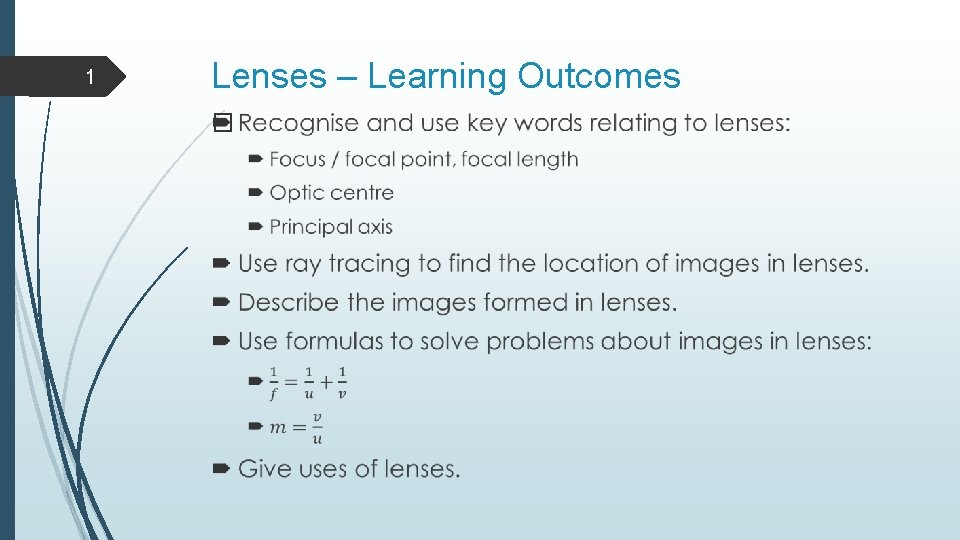

2 Lenses – Learning Outcomes �
3 Lenses � Convex lens � (a. k. a. converging lens) � Concave lens � (a. k. a. diverging lens)
4 Convex Lenses – Ray Tracing � A ray striking the optic centre will pass straight through the lens.
5 Convex Lenses – Ray Tracing � A ray incident parallel to the principal axis will pass through the focus on the other side of the lens.
6 Convex Lenses – Ray Tracing � A ray incident through a focus will emerge parallel to the principal axis on the other side of the lens.
7 Convex Lens – Images � To focus an image of a distant object. 1. Use a bright distant object (e. g. a window in a dark room). 2. Face a convex lens towards the object. 3. Hold a piece of paper behind the lens and move it back and forth to focus the image. 4. If the object was very far away, the image will form at the focus behind the lens.
8 Convex Lenses – Images 1. An object outside 2 f. Image is: � real � inverted � diminished � between f and 2 f
9 Convex Lenses – Images 2. An object at 2 f. Image is: � real � inverted � same size � at 2 f
10 Convex Lenses – Images 3. An object between 2 f and f. Image is: � real � inverted � magnified � outside 2 f
11 Convex Lenses – Images 4. An object at f. Image is: � at infinity
12 Convex Lenses – Images 5. An object inside f. Image is: � virtual � upright � magnified � behind the object
13 Concave Lenses – Ray Tracing � A ray striking the optic centre will pass straight through the lens.
14 Concave Lenses – Ray Tracing � A ray incident parallel to the principal axis will emerge as if it had come from the focus on the incident side.
15 Concave Lenses – Ray Tracing � A ray incident towards the focus on the other side will emerge parallel to the principal axis.
16 Concave Lenses – Images � An object anywhere in front of a concave lens will yield the same result – image is virtual, upright, diminished, and inside the focus.

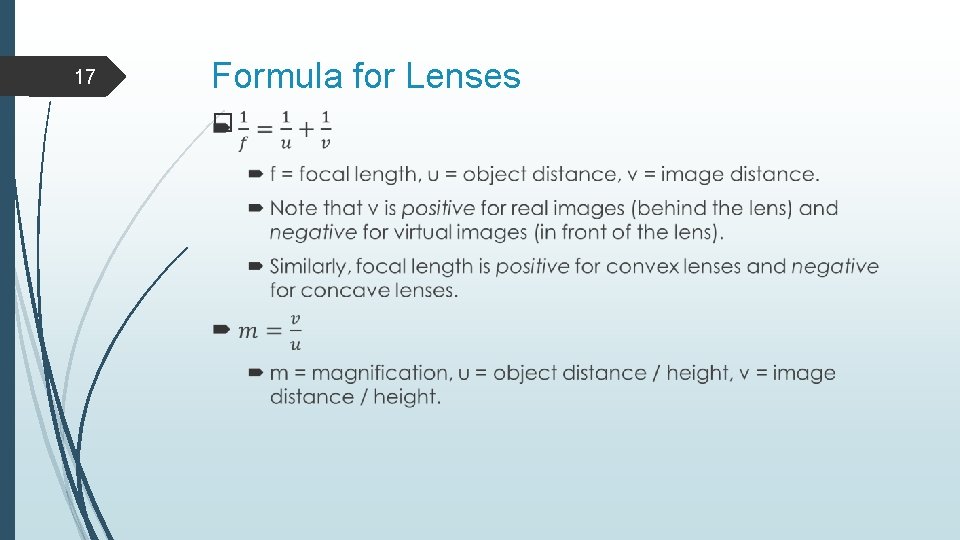

17 Formula for Lenses �
18 Lens Calculations � e. g. An object is placed 40 cm from a convex lens of focal length 30 cm. Find the position and nature of the image. � e. g. An object is placed 10 cm in front of a convex lens of focal length 20 cm. Find the position, nature, and magnification of the image. If the object is 3 cm high, what is the height of the image? � e. g. An image which is four times the size of the object is formed in a convex lens of focal length 30 cm. Where must an object be placed if the image is real? What if the image is virtual?
19 Lens Calculations � e. g. An object is placed 40 cm from a diverging lens of focal length 50 cm. Find the position and nature of the image. � e. g. A concave lens of focal length 10 cm produces an image which is half the size of the object. How far is the object from the lens? � Find the position and nature of the image.
20 Uses of Lenses � Convex – magnify when object inside 2 f � Magnifying glasses � Spectacles (glasses) � Telescopes, binoculars, microscopes etc. � Concave � Spectacles � Camera lenses � Door peepholes � Telescopes
21 Power of a Lens �
22 Power Calculations � e. g. Find the power of: i. A convex lens of focal length 30 cm. ii. A concave lens of focal length 20 cm. � e. g. Two convex lenses of power 5 m-1 and 8 m-1 are placed in contact. i. Find the power of the combination. ii. Find the focal length of the combination.
23 Power Calculations � e. g. A object is placed 20 cm from a diverging lens, producing an image 10 cm from the lens. What is the power of the lens? � e. g. A concave lens of power -0. 06 m-1 and a convex lens of power 0. 04 m-1 are placed in contact. i. Find the power of the combination. ii. Does the combination behave as a convex or concave lens?
24 The Eye � The iris controls the amount of light entering the eye by varying the size of the pupil (the hole) � The cornea, aqueous humour, lens, and vitreous humour all refract light. � The lens has variable focal length, controlled by the ciliary muscles. By Rhcastilhos – public domain
25 The Eye � The retina has three types of cones which detect red, green, or blue light and send signals to the brain. � There are no cones around the optic nerve due to the density of nerves. This gives a “blind spot” where we have no vision. By Rhcastilhos – public domain
26 The Eye � Due to the variable power of the eye’s lens, humans can focus on objects at different distances. � This is called the power of accommodation of the eye. � The lens has a maximum and a minimum power. � Correspondingly, there is a shortest and farthest distance it can focus on. � The shortest distance is called the least distance of distinct vision.
By Gumenyuk – CC-BY-SA-3. 0 27 Vision Defects � Short-sightedness (myopia) is a defect of the eye that allows people to see nearby objects clearly, but cannot bring distant objects into focus. � Normally, an image is brought to focus in front of the retina. � This is fixed with a diverging (concave) lens.
By Gumenyuk – CC-BY-SA-4. 0 28 Vision Defects � Long-sightedness (hyperopia) is a defect of the eye that allows people to focus on distance objects, but not nearby ones. � Normally, an object would be brought to focus behind the retina. � This is fixed with a converging (convex) lens.
