1 LED LED Standards Activities SSL Standards Status
- Slides: 48

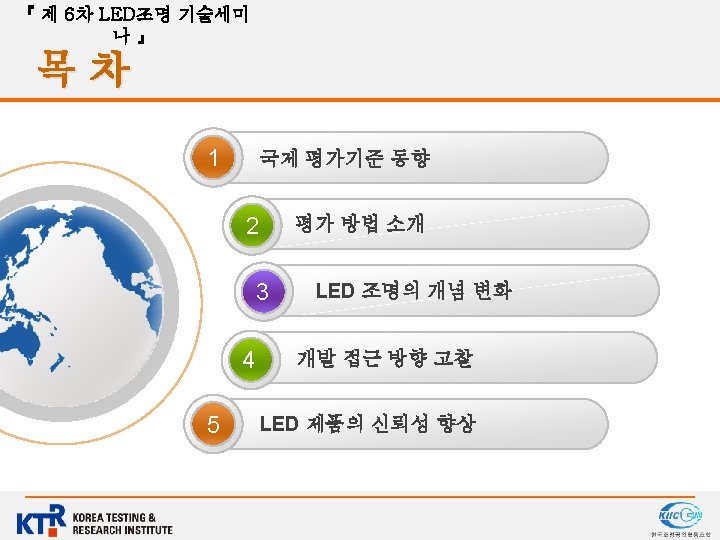

1. LED 조명의 국제 동향 및 평가 방법 소개 • LED Standards Activities • SSL Standards Status • IESNA LM-79 • IESNA LM-80 • ANSI C 78. 377 A
LED Standards Activities Reference : Cree Seminar(Yuming Chen)
SSL Standards Status of ANSI, IESNA, and CIE Solid State Lighting Standards(Parial List) Reference : Cree Seminar(Yuming Chen)

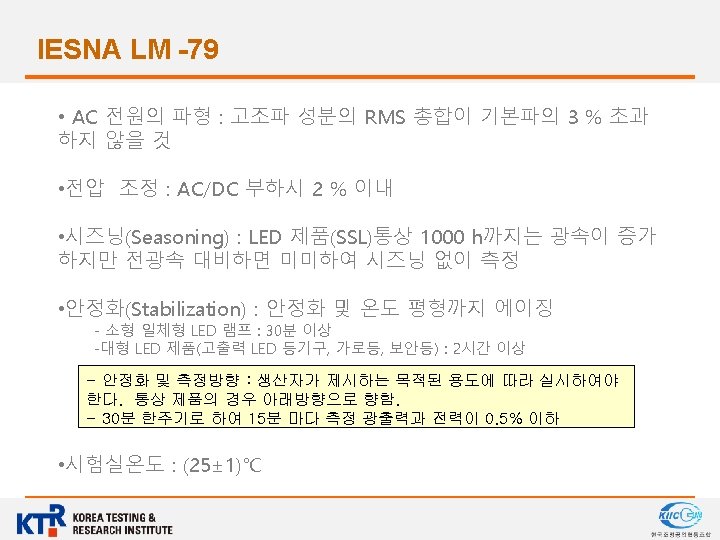

IESNA LM -79 • IESNA Approved Method for the Electrical and Photometric Measurements of Solid-State Lighting Products • Specify procedures for measuring total luminous flux, electrical power, luminous efficacy, and chromaticity of SSL luminaries and replacement lamp products. • LM-79 test procedure covers: - Luminous flux Intensity distribution CCT, chromaticity coordinates CRI Power factor

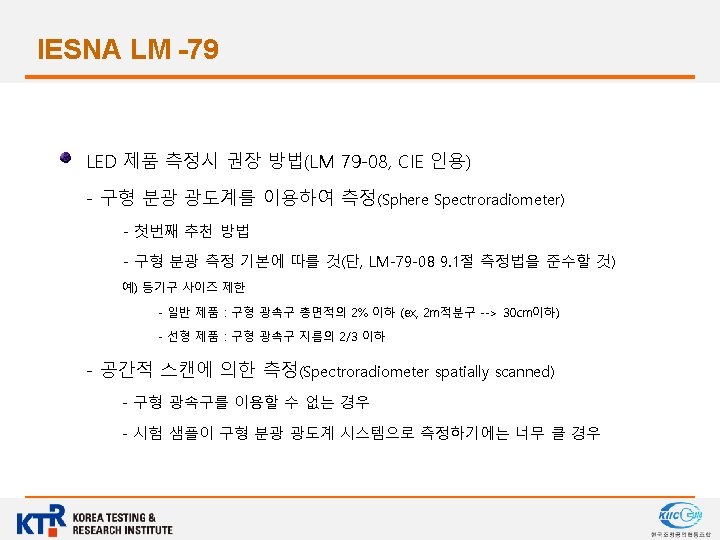

IESNA LM -79 MAX. 총면적 3%이하 구형 : 30 cm, 선형, 2/3 MAX. 1/3
IESNA LM -79 OSRAM SYLVANIA. 08 May 2007

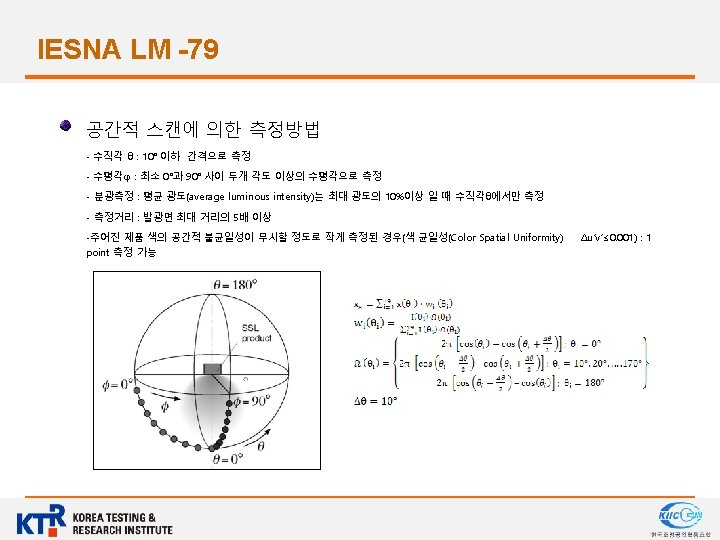

IESNA LM -79
IESNA LM -79
IESNA LM -79
IESNA LM -79 • 자세한 내용 - A study on the comparison of correlated color temperature measured by colorimeter and spectrophotometer, Ki Jin Kwon, KIIEE Annual Spring 2011 - A study on the comparison and analysis of correlated color temperature using spectroradiometer spatially scanned and spectrum measurement system with sphere-spectroradiometer , Ki Jin Kwon, KIIEE Annual Spring 2011 - Study for measuring Solid State Lighting product Correlated Color Temperature using Colorimeter Spatially Scanned , Ki Jin Kwon, 2011 Lighting Conference of China, Japan and Korea
IESNA LM -80 • IESNA Approved Method for Measuring Lumen Maintenance of LED Light Sources • Specify procedures for determining lumen mainenance of LEDs and LED modules (but not luminaires) related to effective useful life of the product. • LM-80 is a component (package, module or array) level test • Lumen maintenance (life) determined by in-situ temperature measurements of components.
IESNA LM -80 • Will be three test temperatures (Tc): 55 ℃, 85 ℃ and one determine by manufacturer. • Test may be conducted at the same time as UL 1598/153
IESNA LM -80 Example of LM-80 Test Data Reference : Cree, What Everyone Should Know About Lm 80, Led Lifetime
IESNA LM -80 Example of LM-80 Test Data Reference : Cree Seminar(Yuming Chen)
ANSI C 78. 377 A • Specifications for the Chromaticity of Solid State Lighting Products • Specify the recommended chromaticity (color) ranges for white light LEDs with various correlated color temperatures (CCTs) and ensure communication of chromaticities to consumers.
ANSI Chromaticity Standard Reference : Cree Seminar(Yuming Chen)
조명제품 인증의 변화 LED 등기구 기존 등기구 Fixture System 개념의 변 화 Ballast LED Light Source Optics /Heat Sinks Driver /SMPS

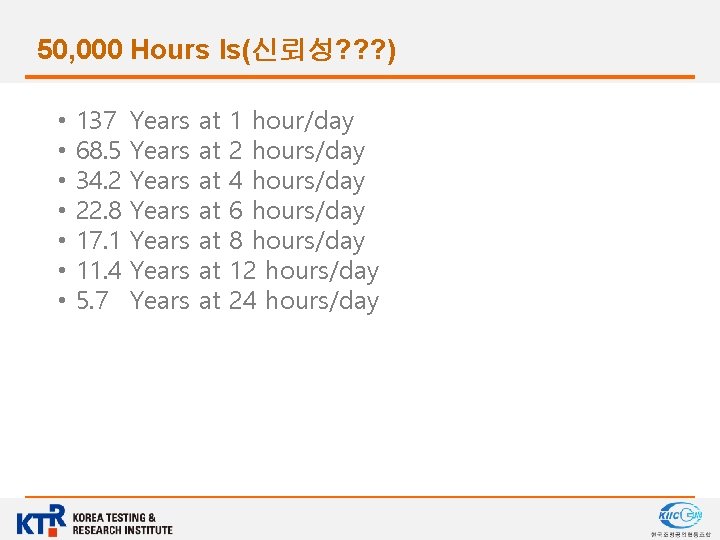

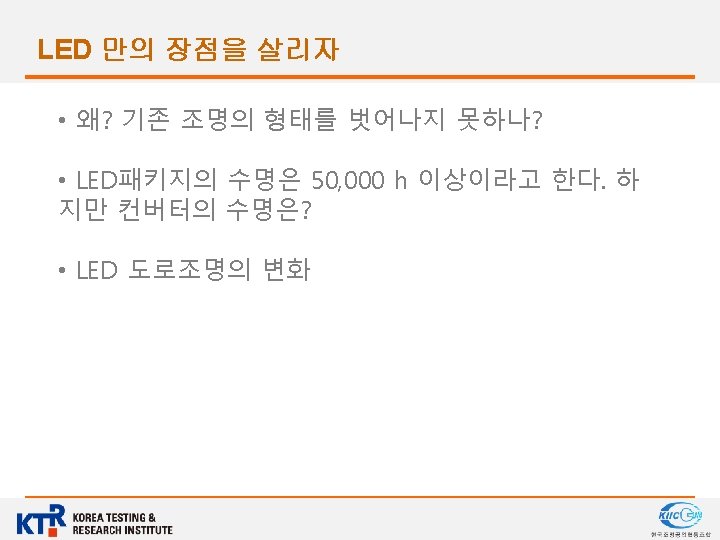

50, 000 Hours Is(신뢰성? ? ? ) • • 137 68. 5 34. 2 22. 8 17. 1 11. 4 5. 7 Years Years at at 1 hour/day 2 hours/day 4 hours/day 6 hours/day 8 hours/day 12 hours/day 24 hours/day
형광등 vs LED램프 형광등기구 (FLR 32 W X 8등용) LED등기구 (LED 22 W X 8등용) Uniformity(g 1) : 0. 58 Uniformity(g 1) : 0. 57 Uniformity(g 2) : 0. 42 Uniformity(g 2) : 0. 37
미국 DOE CALi. PER 결과 검토 <출처, DOE : CALi. PER Summary Report May 2010>
미국 DOE CALi. PER 결과 검토 <출처, DOE : CALi. PER Summary Report May 2010>
미국 DOE CALi. PER 결과 검토 <출처, DOE : CALi. PER Summary Report May 2010>
미국 DOE CALi. PER 결과 검토 <출처, DOE : CALi. PER Summary Report May 2010>
